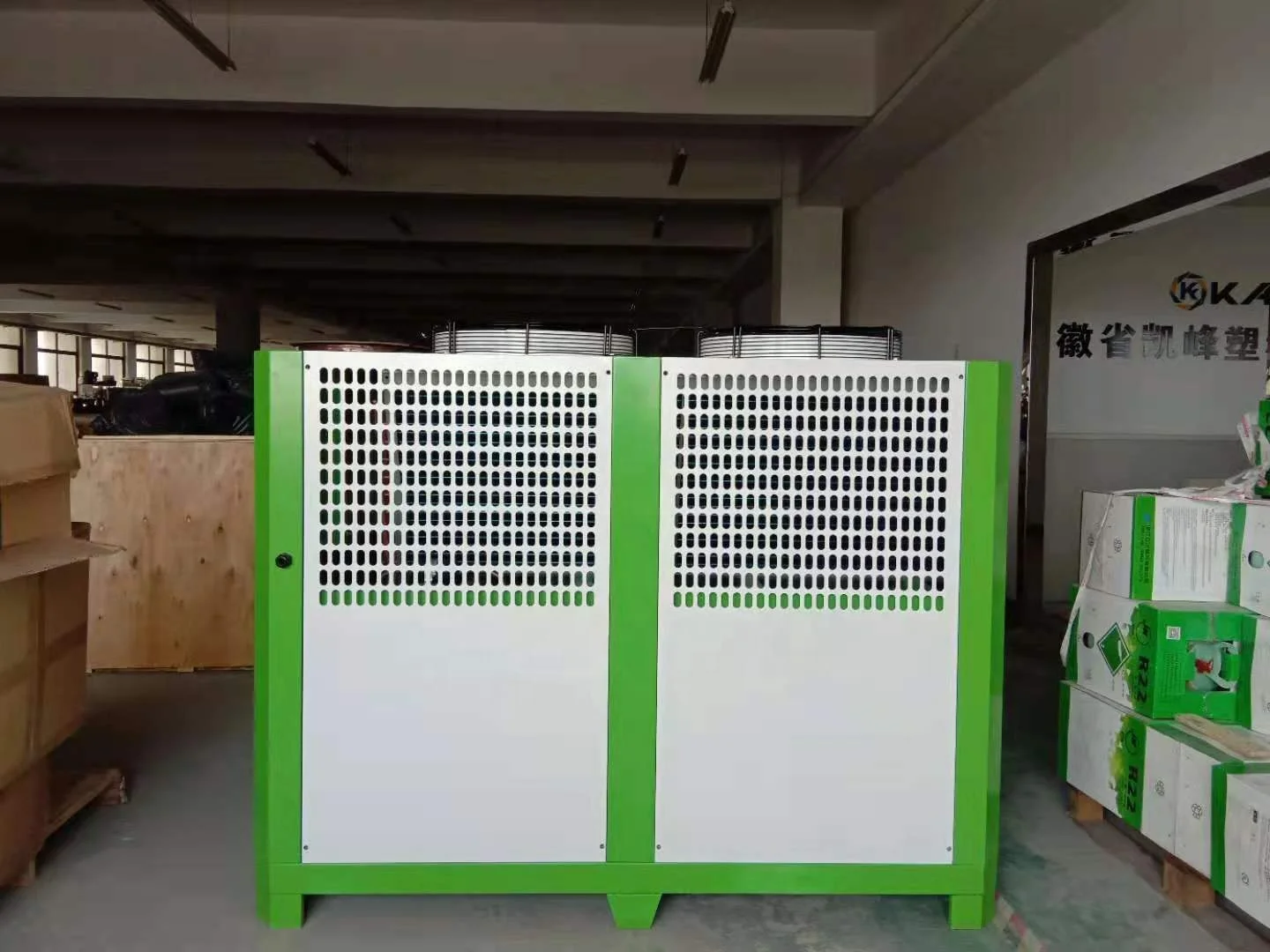

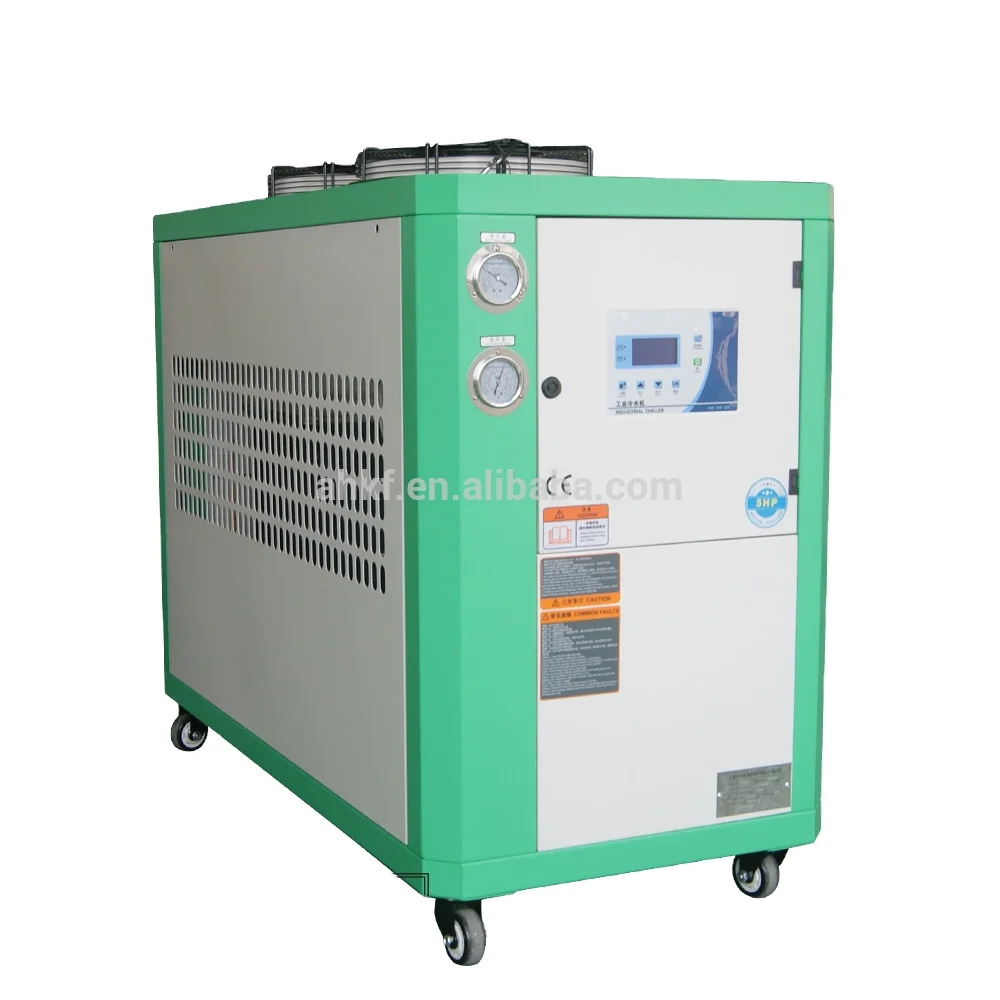

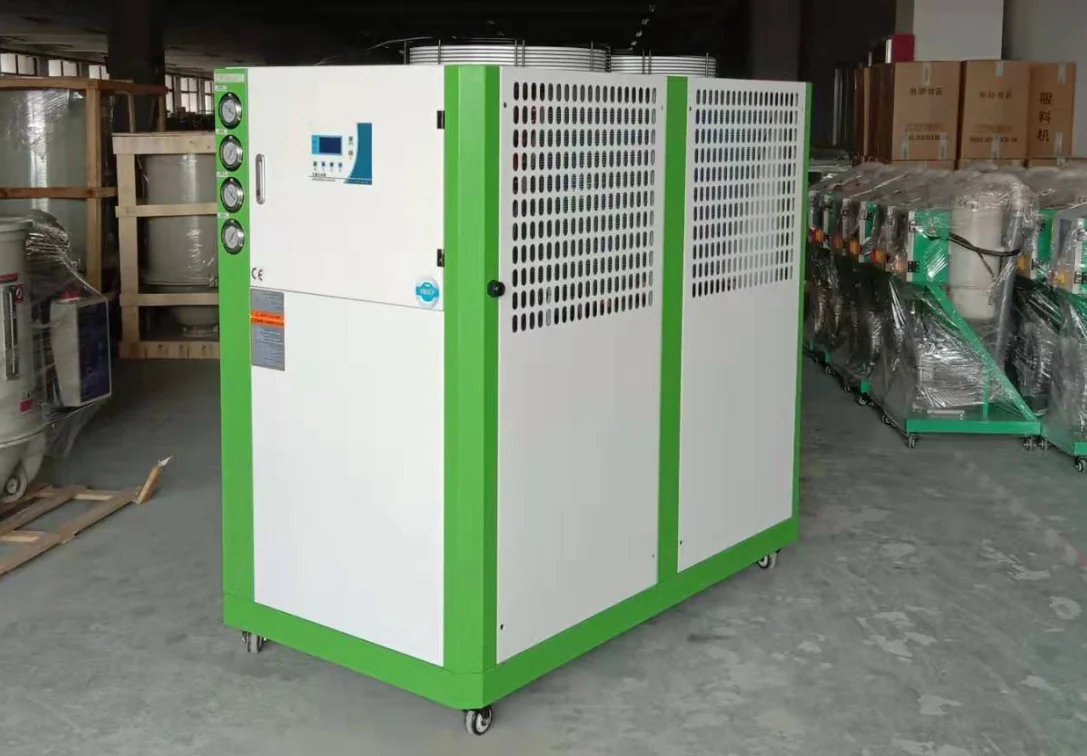

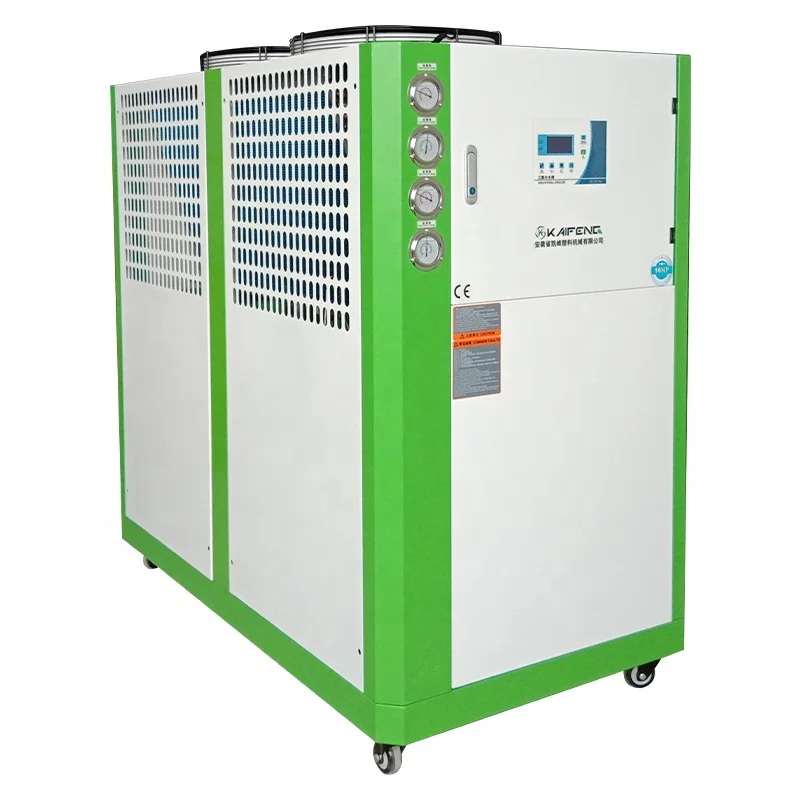

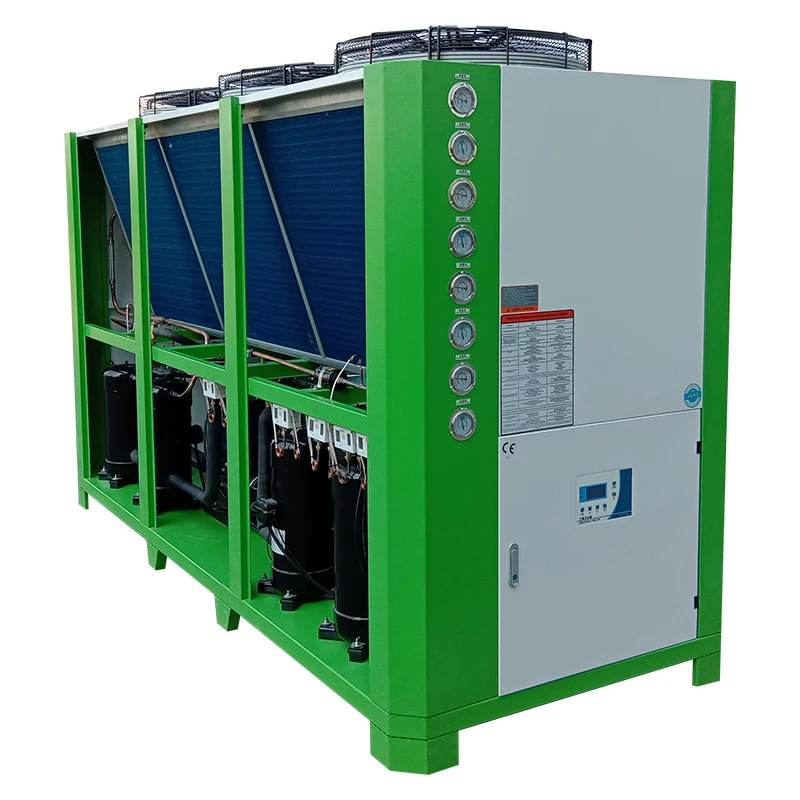

Industrial chillers best industrial chillers air cooled chiller
- Category: >>>
- Supplier: Anhui Kaifeng Plastic Machinery Co. Ltd.
Share on (1600580414603):
Product Overview
Description
Company Profile
Anhui KAIFENG Plastic Machinery Co., Ltd.
Anhui Kaifeng Plastic Machinery Co., Ltd. is a professional manufacturing, manufacturing, sales, and service as one of the plastic auxiliary equipment and industrial temperature control of the field of outstanding manufacturing enterprises.
We have 10 years experience of the designer team, To provide the best service to our customer.
Our products have passed the ISO9001 and CE system certification.
The main production of Industrial Chillers, Plastic Crusher, Mold Temperature Control Machine, Hopper Dryer, Hopper Loader, Plastic Mixer And Cooling Towers.
Products in Europe, the Americas, Africa, Southeast Asia, more than 20 countries and gain acceptance.
Products Description
Refrigeration Capacity 13~50KW
Refrigeration Capacity 55~143kW
Refrigeration Capacity 110~810KW
Refrigeration capacity 15~58KW
Refrigeration capacity 61~164KW
Refrigeration capacity 128~943KW
KAIFENG Chiller provides economical refrigeration solutions for plastic industry, electronic industry, electroplating industry, mechanical industry, construction industry, vacuum coating industry, food industry, pharmaceutical industry and other industries
Model selection parameter
(Please provide following parameters, KAIFENG sales staff will choose the suitable machine for you.
1.What is the max ambient temperature in your country?
2.What's your request of minimum cooling temperature?
3.What's your voltage ?Including frequency and Hertz
4.What's your choice of refrigerant? R22/R407c/R134a or others?
5.What is the maximum cooling capacity(KW/kcal/h) you need?

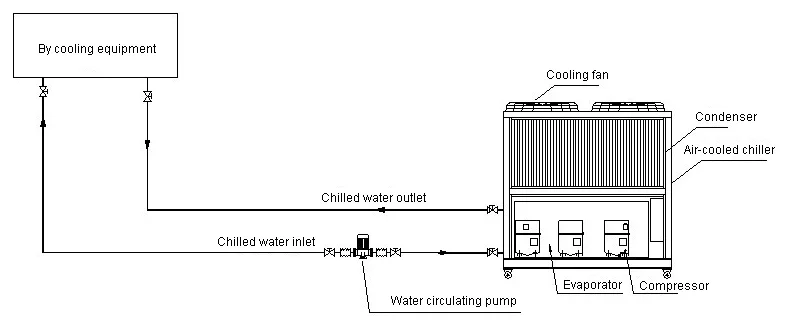

Air-Cooled Chiller - Coil Evaporator Connection Diagram

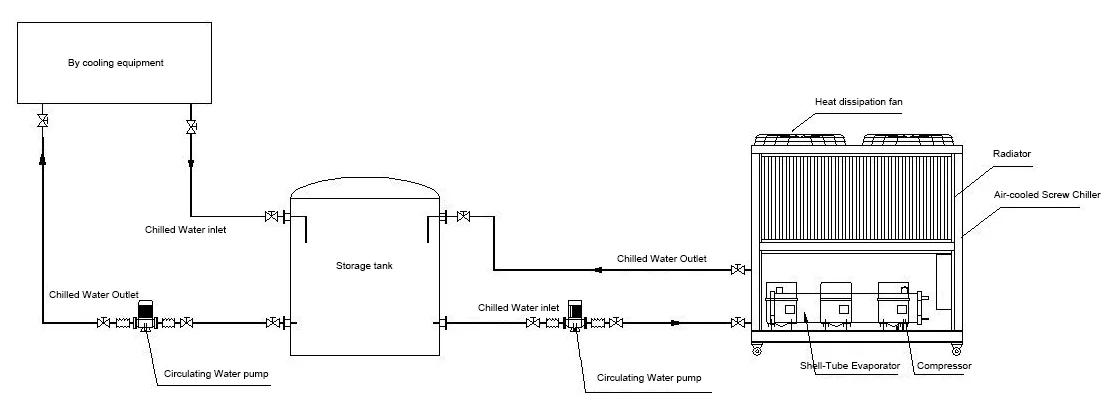

Air-Cooled Chiller - Shell Tube Evaporator Connection Diagram

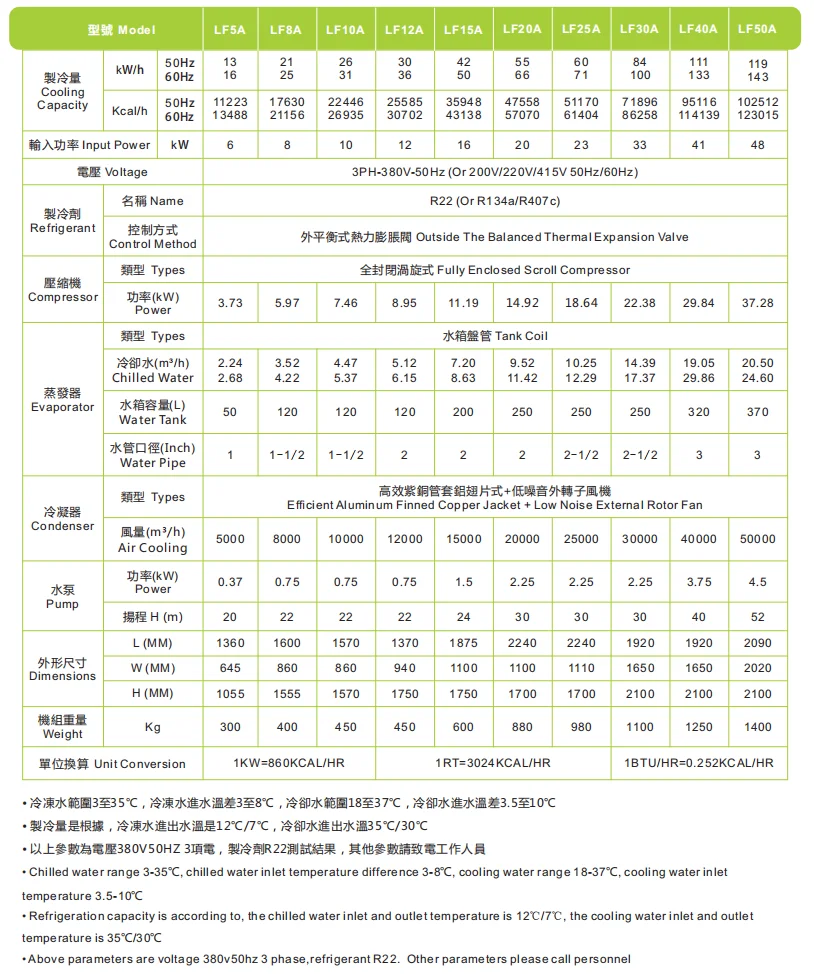

Product Name | Air-cooled Chiller | ||||||
Refrigeration Capacity | 13~143 KW | ||||||
Refrigerant | Type | R22 / R134a / R407c | |||||
Control Method | Outside The Balanced Thermal Expansion Valve | ||||||
Evaporator | Types | Tank Coil | |||||
Chilled Water | 2.24~24.6 m³/h | ||||||
Water Tank | 50~370 L | ||||||
Condenser | Type | Efficient Aluminum Finned Copper Jacket + Low Noise External Rotor Fan | |||||
Air Cooling | 5000~50000 m³/h | ||||||
Pump | Power | 0.37~4.5 KW | |||||
Lift | 20~52 M | ||||||
Connection Schematic

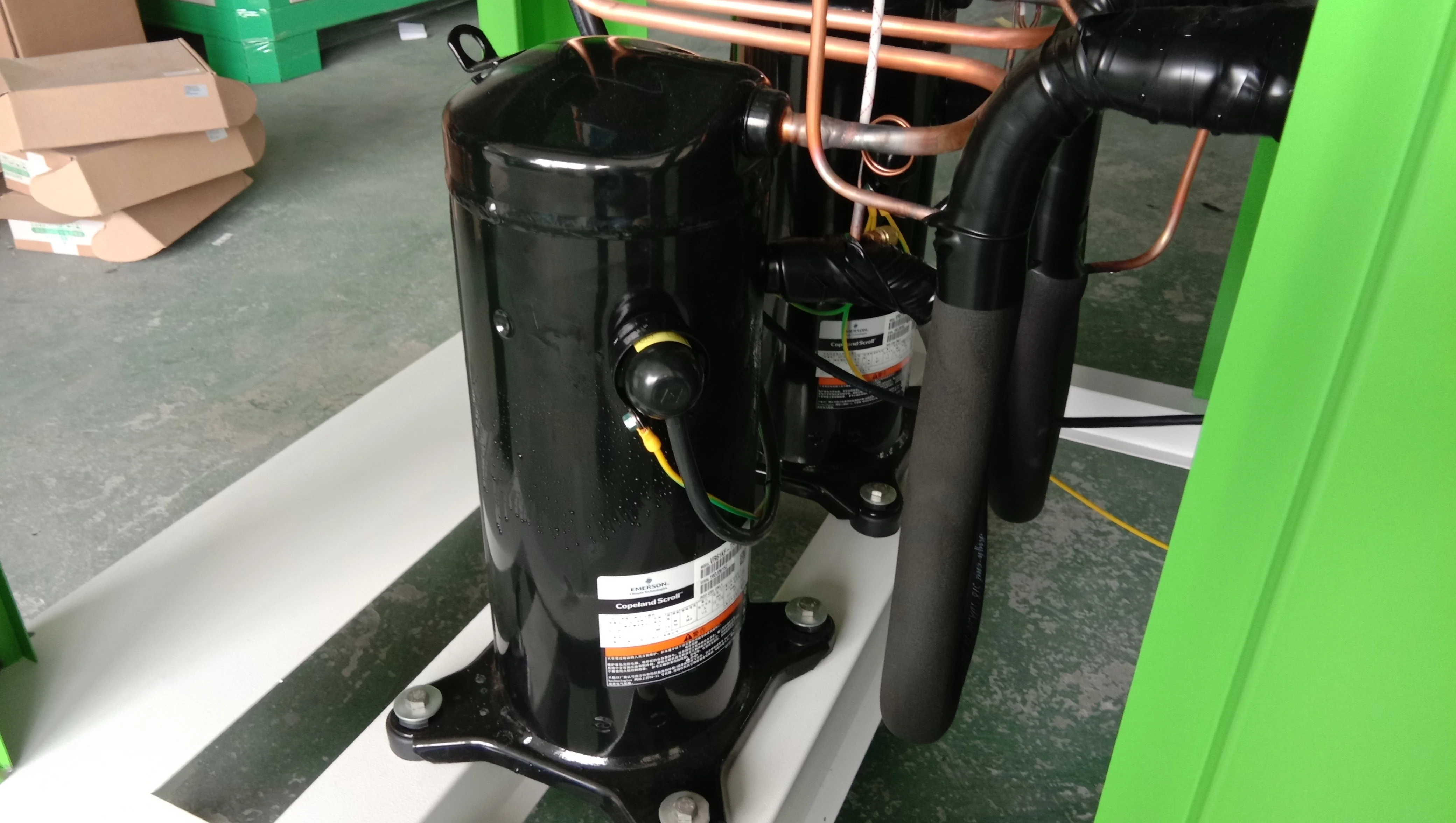

EMERSON Compressor
EMERSON fully enclosed scroll compressor, more efficient than reciprocating compressor 20~30%. It has the advantages of smooth and reliable operation, low efficiency and lower fault, low vibration noise, convenient maintenance and long life.
High-quality compressor as the heart of the chiller, we choose Europe, the United States, Japan High-quality import brand original compressor, built-in safety protection, low noise, power saving and durable, in order to increase the service life of the equipment.
High-quality compressor as the heart of the chiller, we choose Europe, the United States, Japan High-quality import brand original compressor, built-in safety protection, low noise, power saving and durable, in order to increase the service life of the equipment.
High-efficiency air-cooled condenser high-speed punch punch perforation, the quality of the piece is reliable. Second turn edge, copper pipe and fins more closecontact, heat exchange efficiency, the use of fully imported copper pipe and automatic elbow welding, greatly enhance the air tightness, to eliminate refrigerant leakage phenomenon. It is particularly suitable for use in areas where water resources are scarce or water quality is high.
FCNP Pump Industry
FCNP Stainless steel pump. With high lift, large flow, low energy consumption, smooth and reliable operation, high efficiency and lower fault, low vibration noise, long life and other advantages, to ensure that water quality away from corrosion.
Some merchants in order to save costs, will be equipped with poor performance of the water pump, will cause the machine cooling effect is not good, operation is unstable, the chance of repair is high and so on. We use FCNP stainless steel pumps to make the machine more durable and better.
The use of 304 full stainless steel thick water tank, one welding molding, rust-proof, anti-corrosion, put an end to water pollution, once wiped, as fresh as new.Inside the automatic rehydration device, high-efficiency internal thread double-layer copper coil, real foot number evaporator, with large stainless steel water tank, quickly reduce heat, to achieve cooling effect.Compared with other machines of the same model, more cooling capacity, higher efficiency, more energy saving, cleaning and maintenance more convenient and fast.

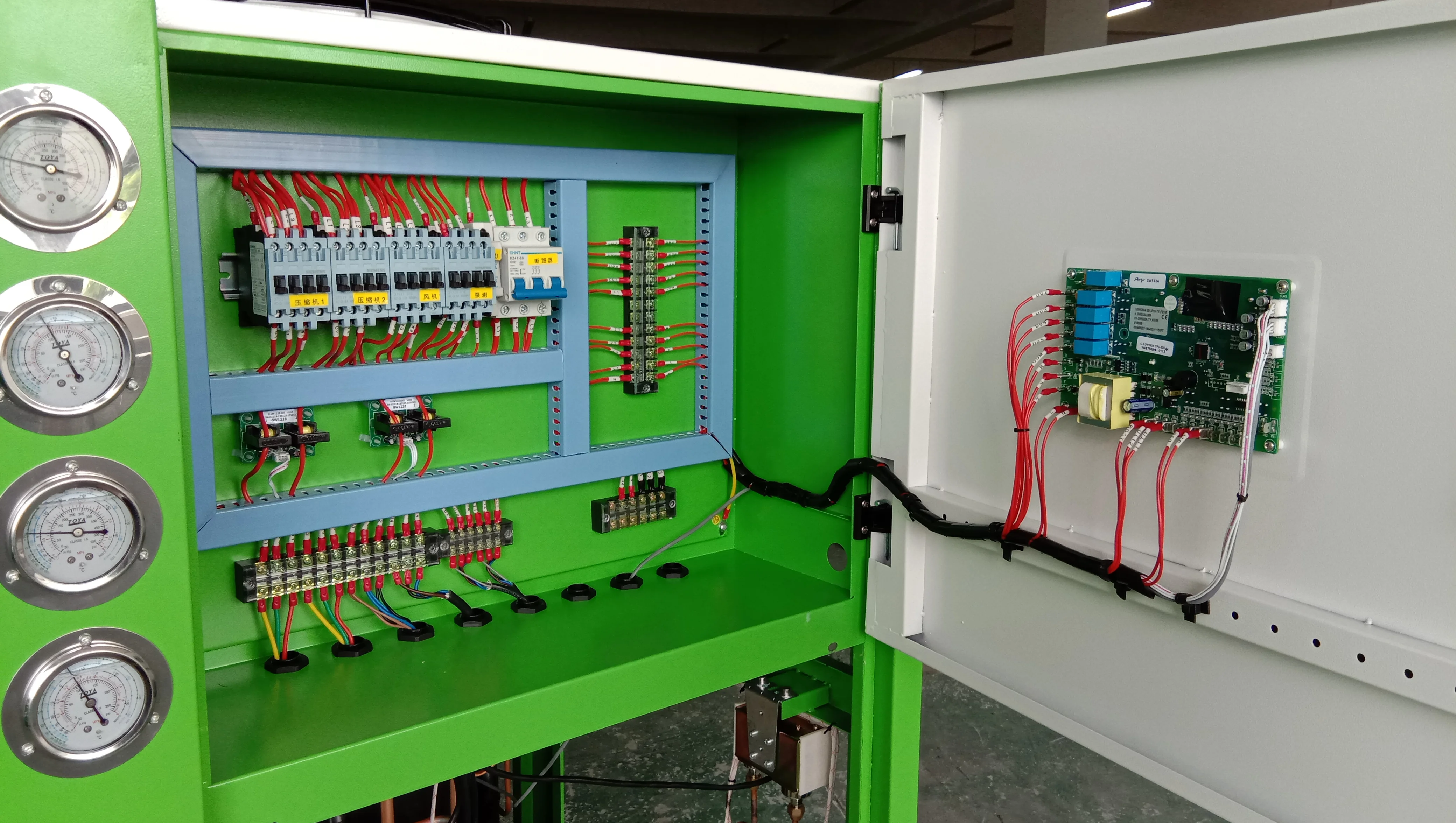

SIEMENS Electrical Systems
Protection system built-in compressor superload protector, circulating water pump superload, system high and low pressure protector, compressor start electronic time delay, German SIEMENS electronic products, with a sound electrical protection system.
Bump Microcomputer Control System
The intelligent control system of microcomputer is precisely controlled, Simple operation, intelligent start and stop, Precision temperature control within 5 to 45 degrees of arbitrary adjustment, LCD display, all kinds of faults at a glance, Monitor ingends in real time, Multiple protection features, The Chinese and English interface sits to switch, To meet the needs of different users, Easy to operate.
High wind volume axial flow design, imported heat-changing fan, heat exchange efficiency is significant. Low noise fan and high efficiency motor, with large air volume, small vibration, external protection fence, to achieve a good heat dissipation effect, its fan using high-strength hard aluminum alloy production, blade stamping molding, and by strict movement of the two balance test, quality is better than peers.

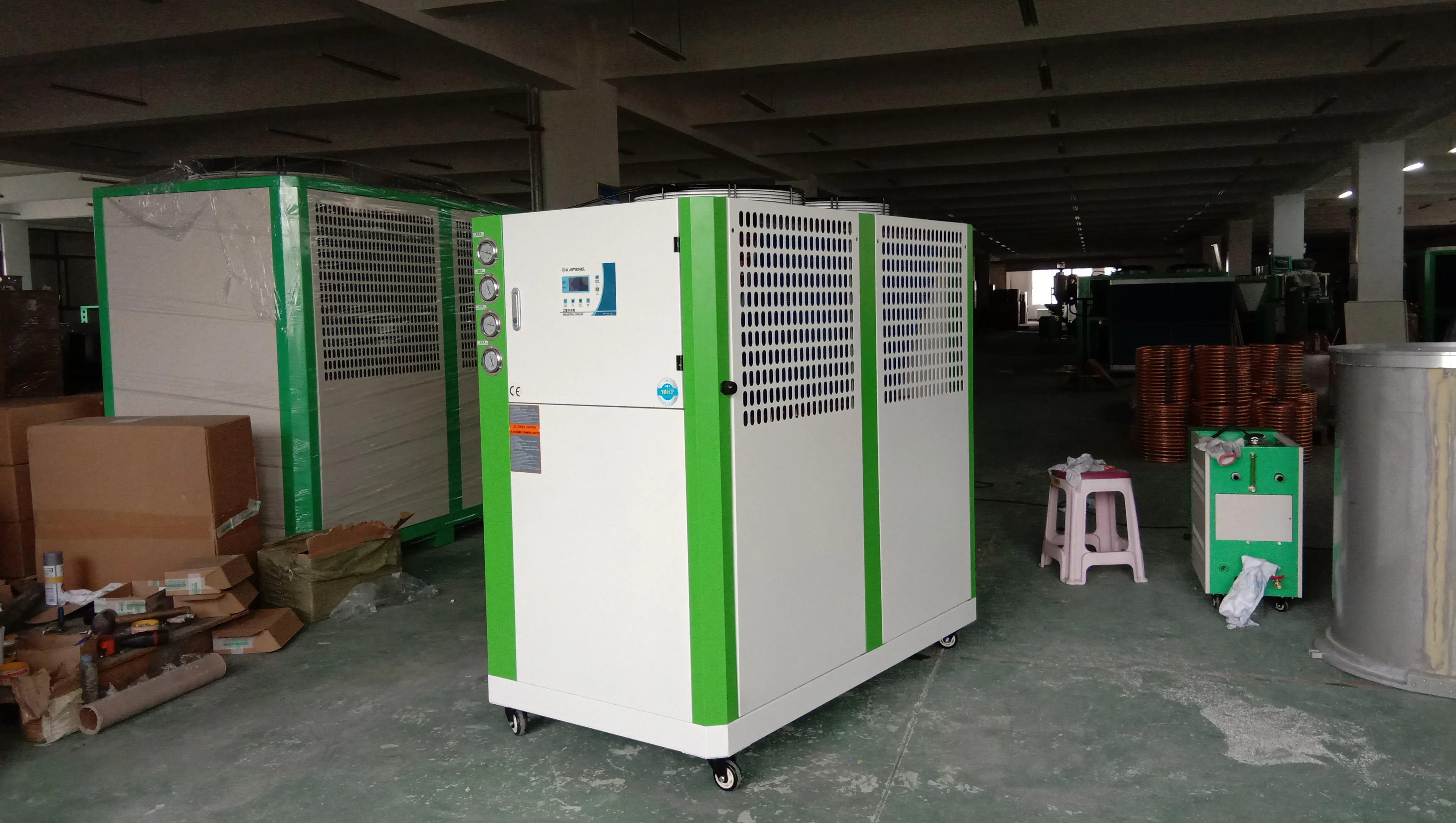

Details Images
Product packaging
Winding film Packaging
Wooden Rack Packaging
Wooden Box Packaging
Exhibition
Customer Evaluation
FAQ
Q:How to control the products quality?
We have always placed great emphasis on quality level is matintained. Moreover, the principle we always maintain is "to provide customers better quality, better price and better service".
Q:Can you provide OEM service?
Yes, We work on OEM orders.
Q:Where is KAIFENG? Is it possible to visit your factory?
KAIFENG is located in Anqing, Anhui. You are welcome to visit us, and many clients from all over the worlds have visited us.
Q:Shipping Method and Shipping Time?
1. Express courier like DHL, FEDEX to USA, and TNT to European, etc. Shipping time is about one month depends on country and aera.
2. By air port to port: about 7-12 days depends on port.
3. By sea port to port: about 20-35 days
4. Agent appointed by clients
