About this item

•









  • Product Description:

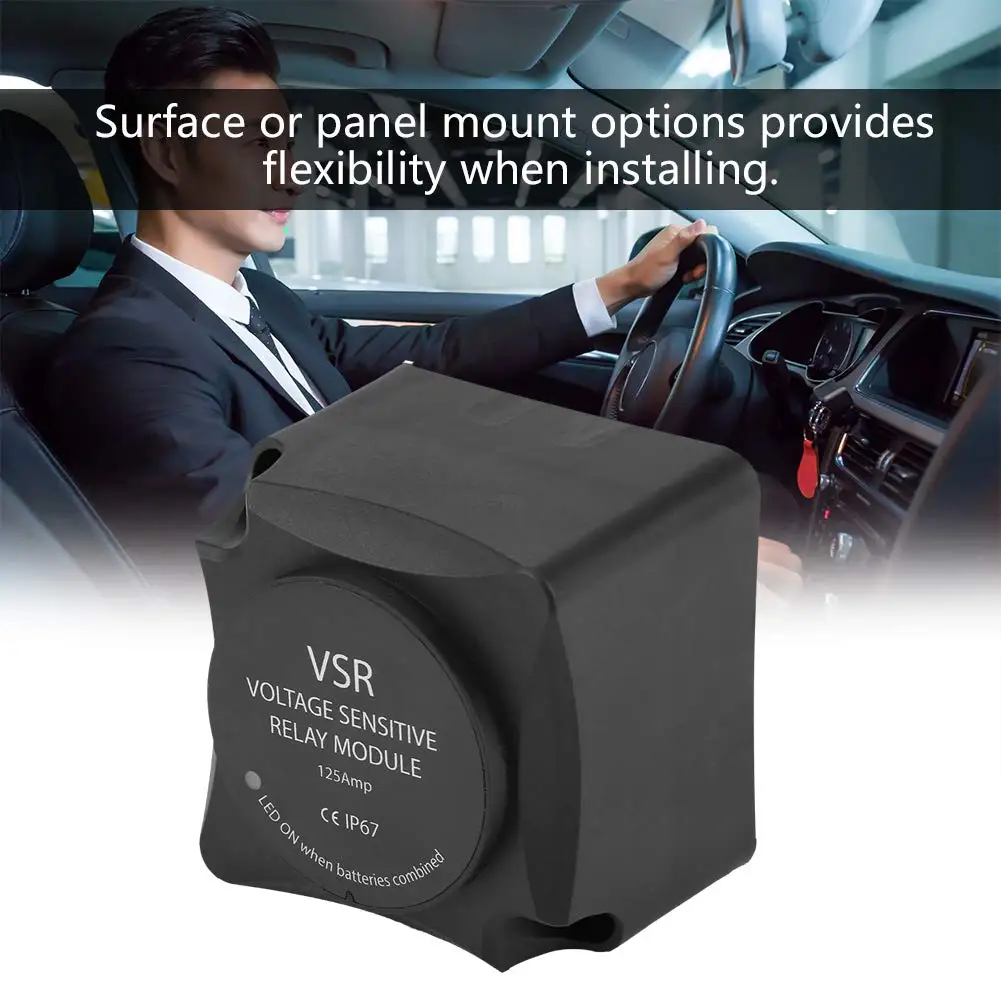

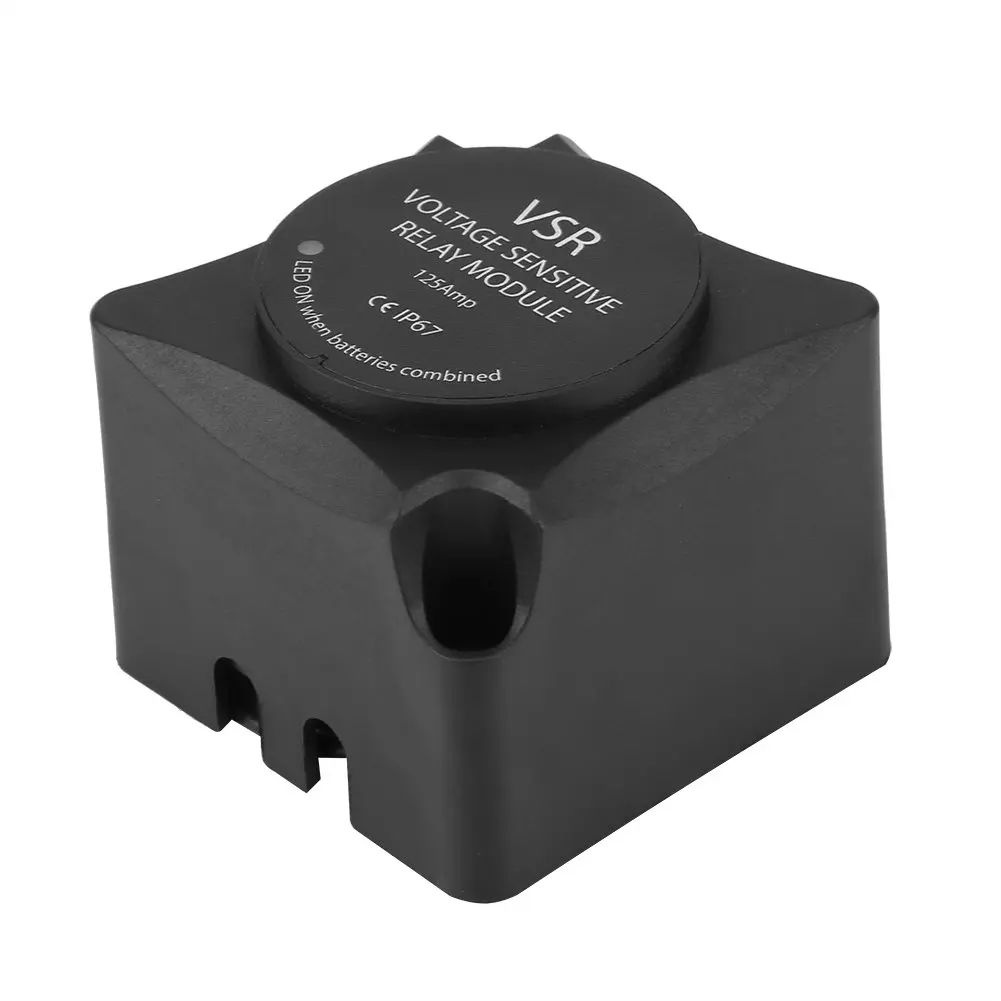

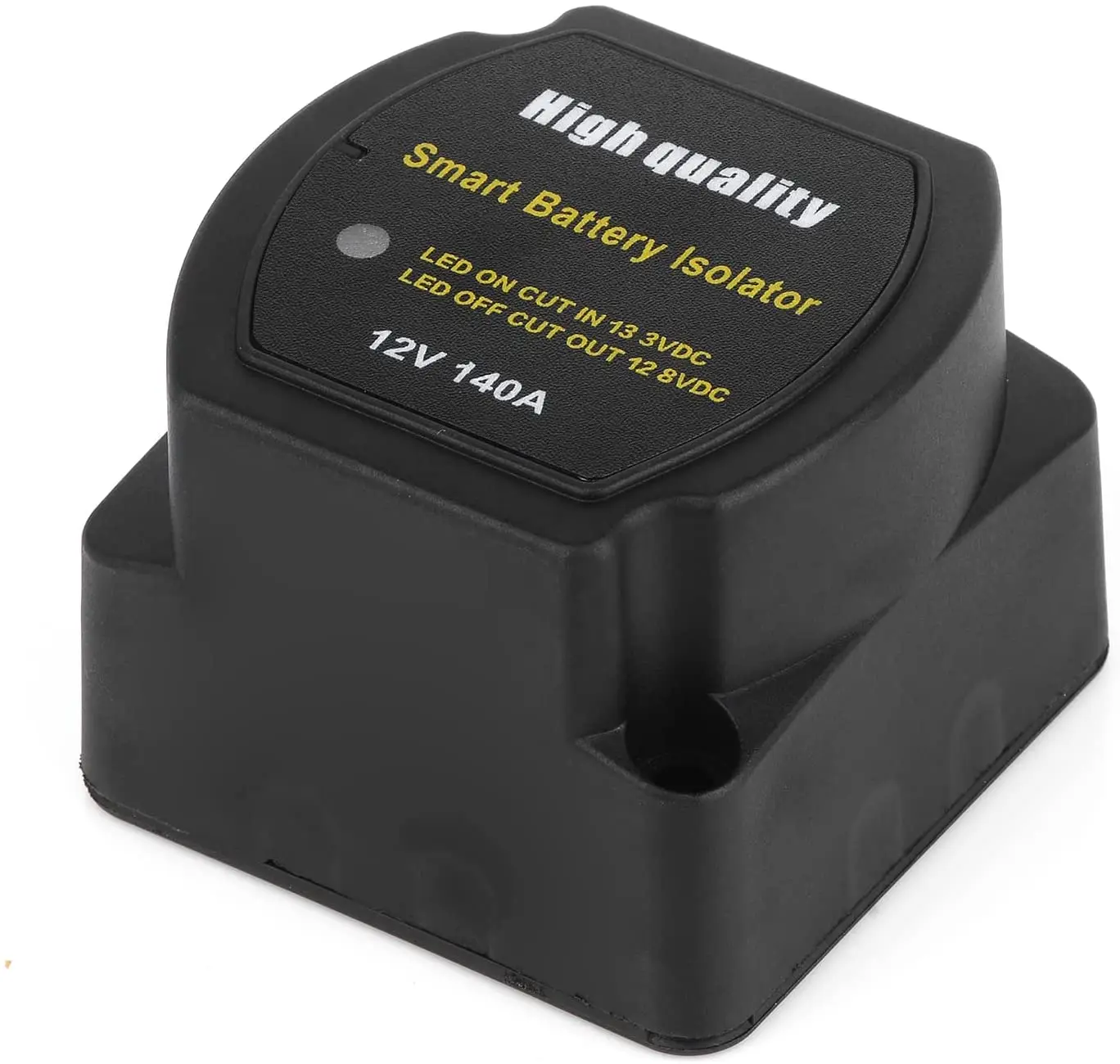

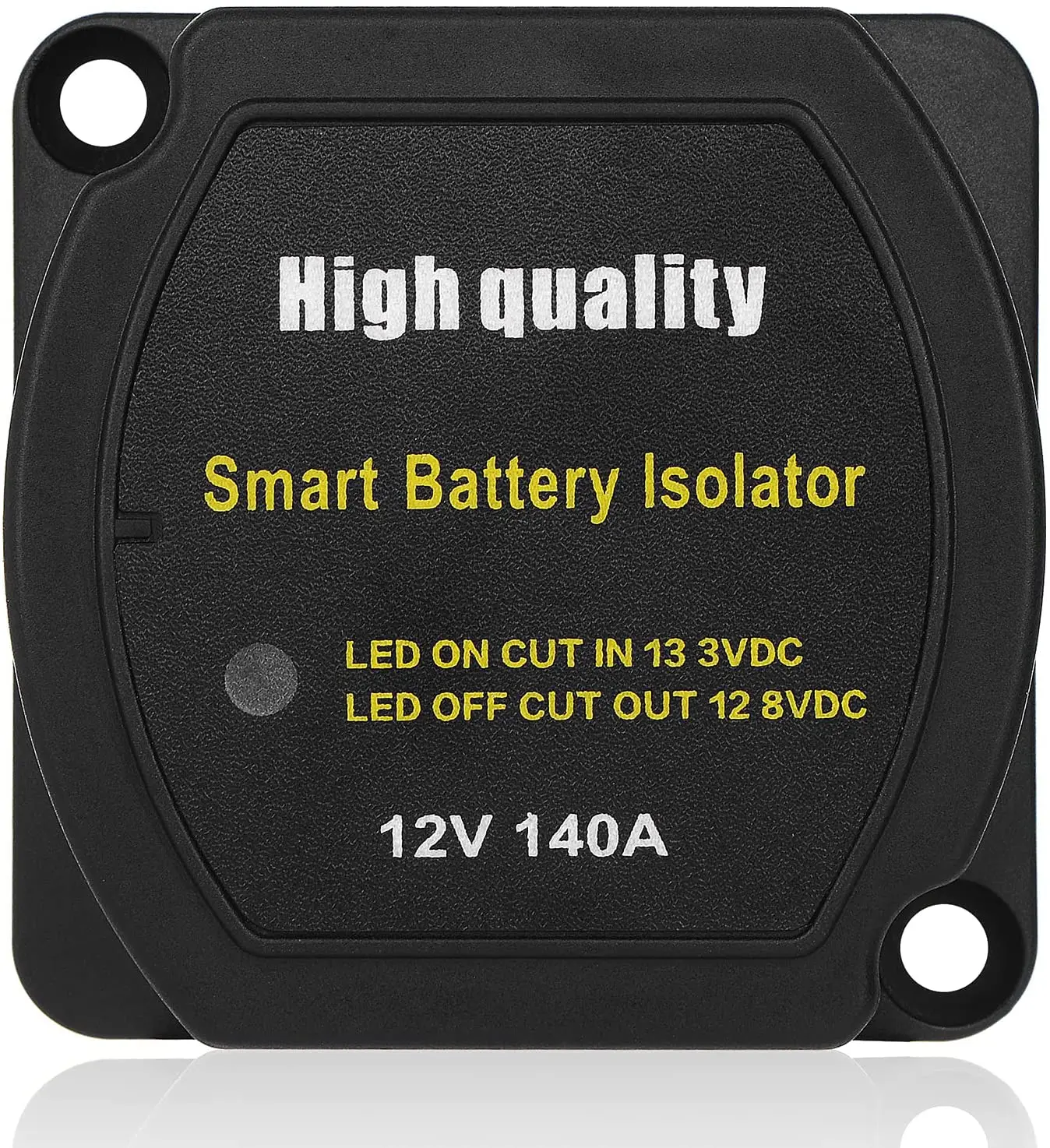

    12V battery voltage sensitive Relay (VSR) dual battery isolator Universal used for car, vehicle, RV, ATV, UTV and boat, also two battery electrical equipment.

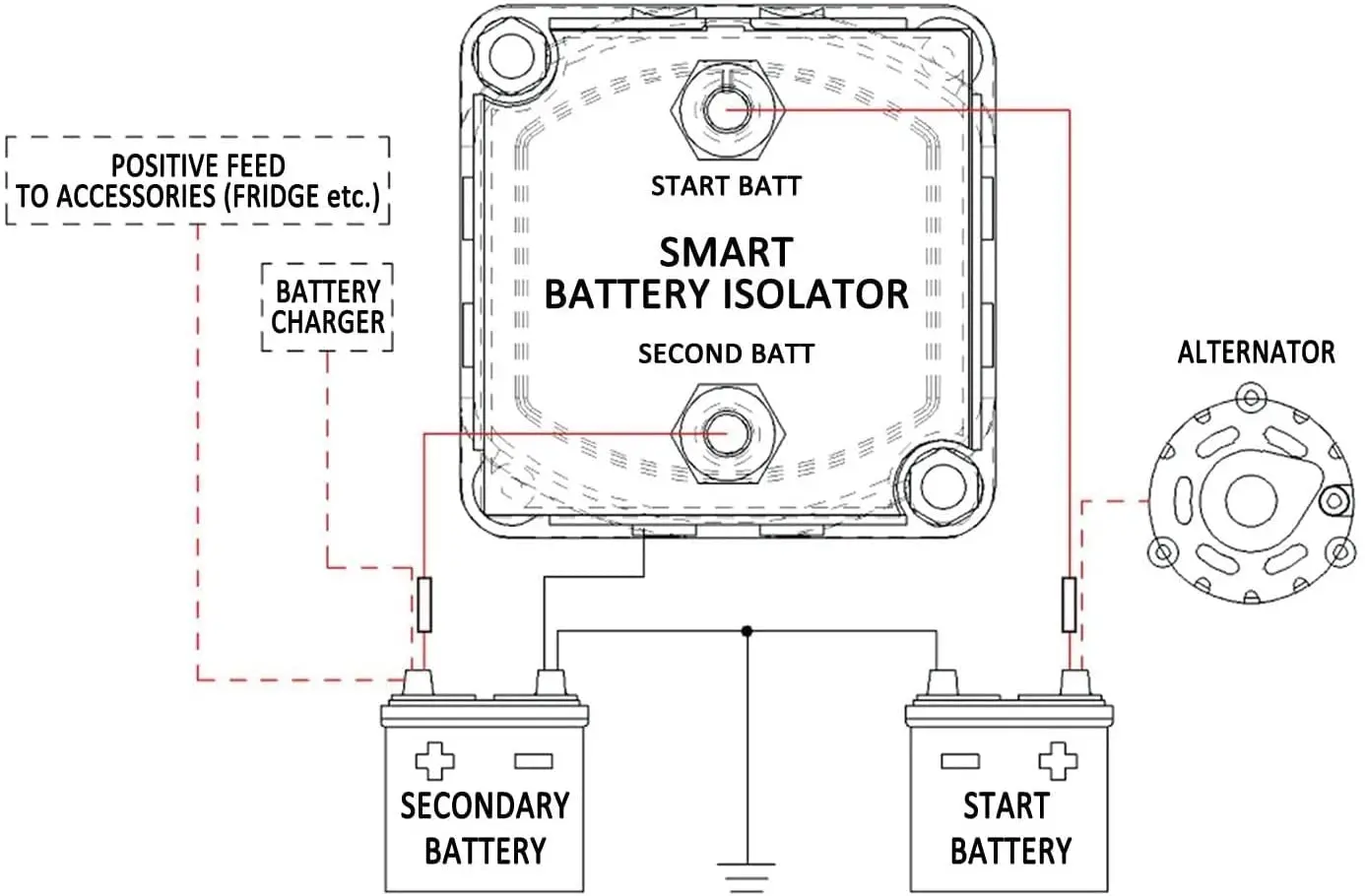

    Instructions: When the voltage of the main battery is greater than 13.3V, the main battery charges the second battery; when the voltage of the main battery is lower than 12.7V, the main battery and the second battery are disconnected
    Type: 12V voltage sensitive relay
    1. Continuous current: 100-120A Instantaneous current: 160A
    2. Current consumption-charging: 250mA
    Current consumption-standby: 8mA
    3. With anti-reverse function
    4. Ambient temperature: -20℃~50℃
    5. Departure delay: 5-10 seconds
    6. Recommended fuse: 80Amp

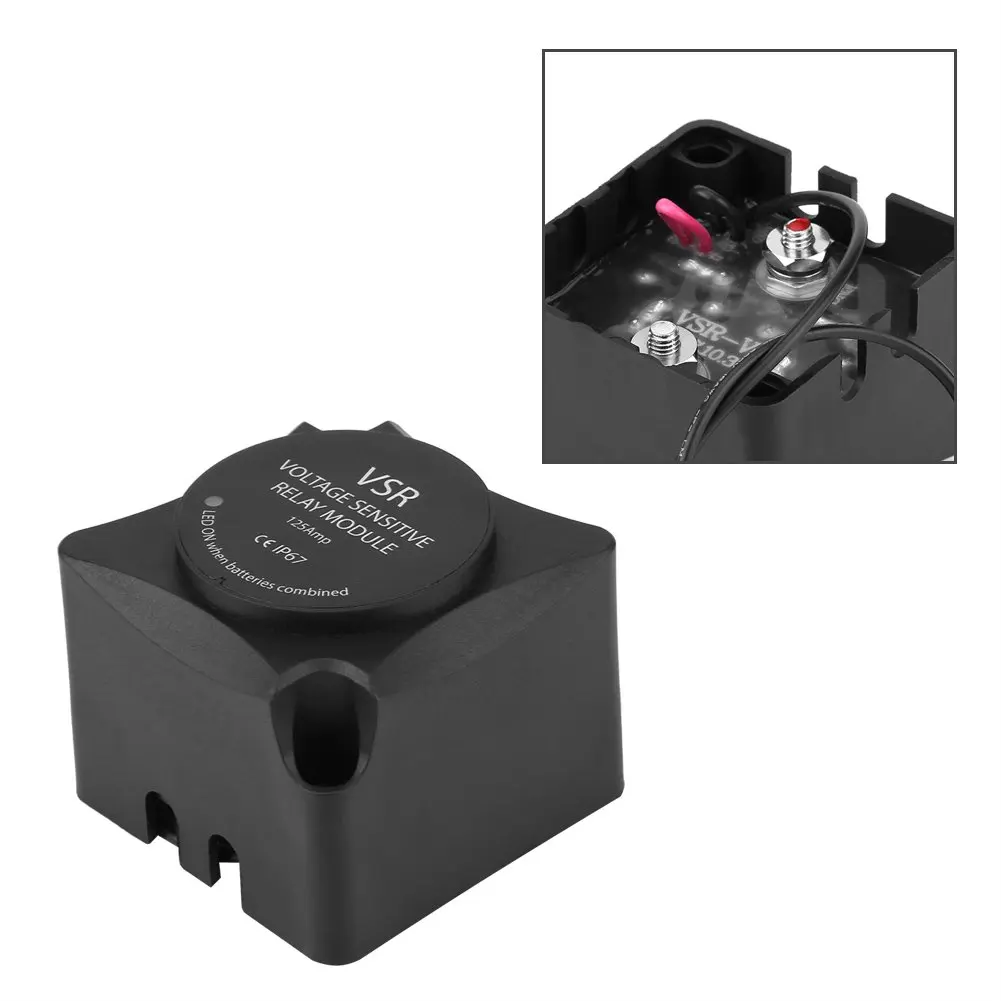

    7. Power stud: M6 copper screw nut
    8. Surge protection: built-in

    Specification:

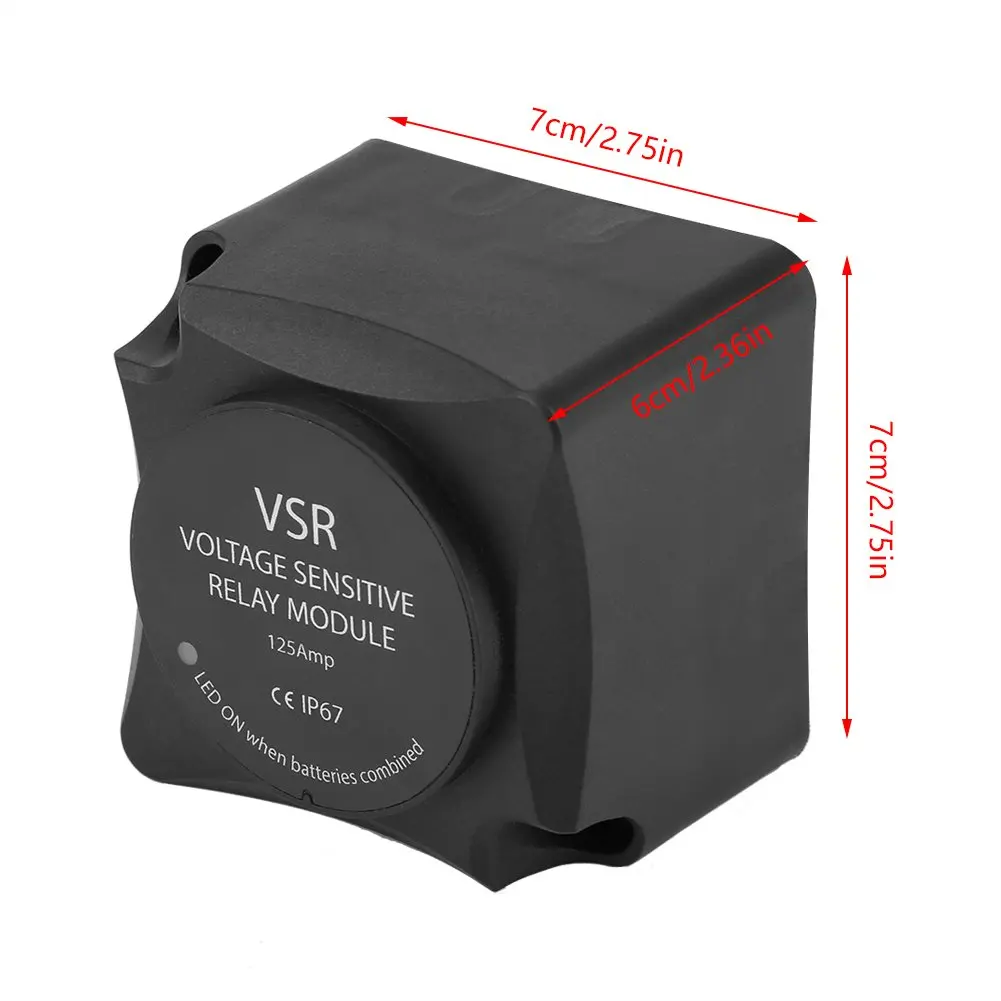

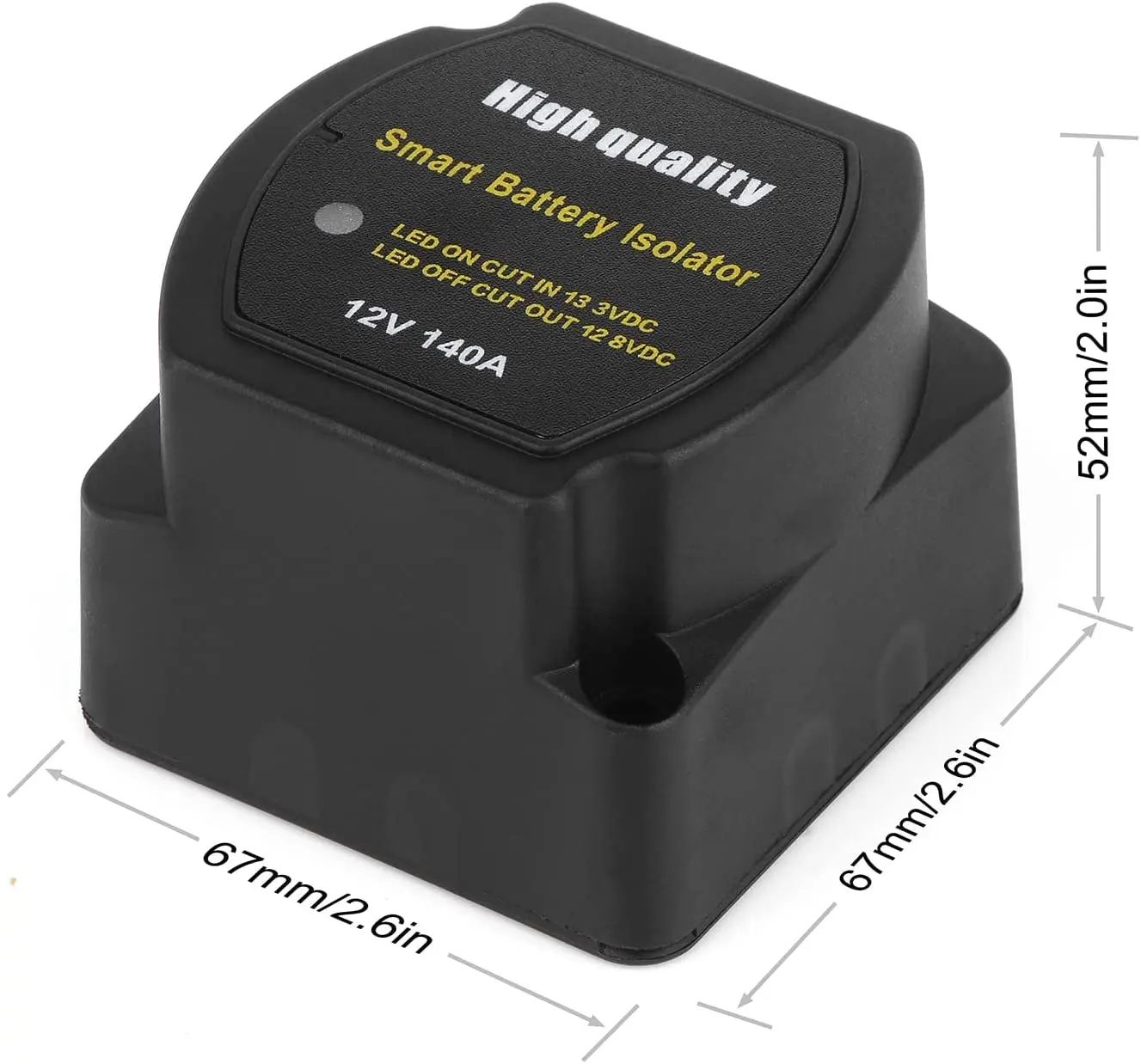

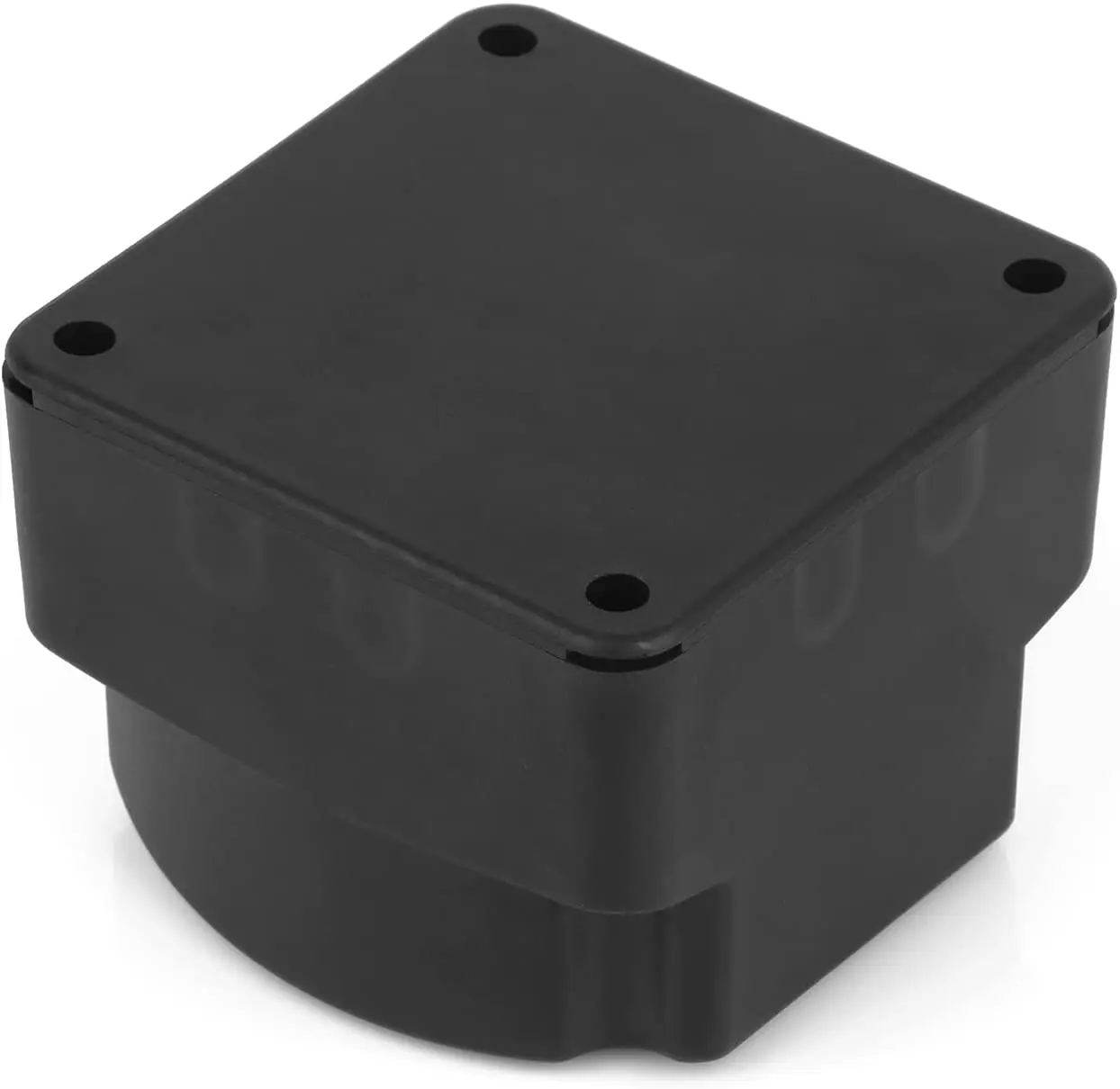

    Size: 2.6*2.6*2.0 inches
    Weight: 235g

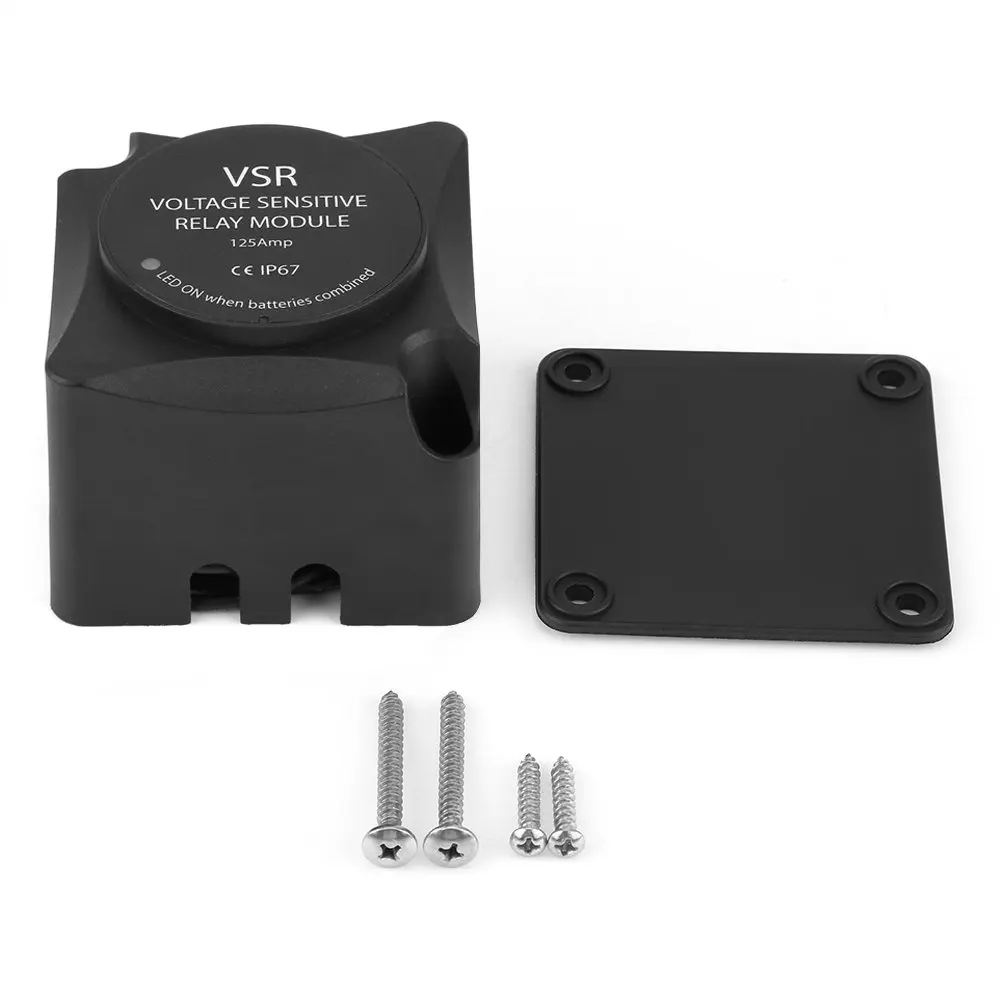

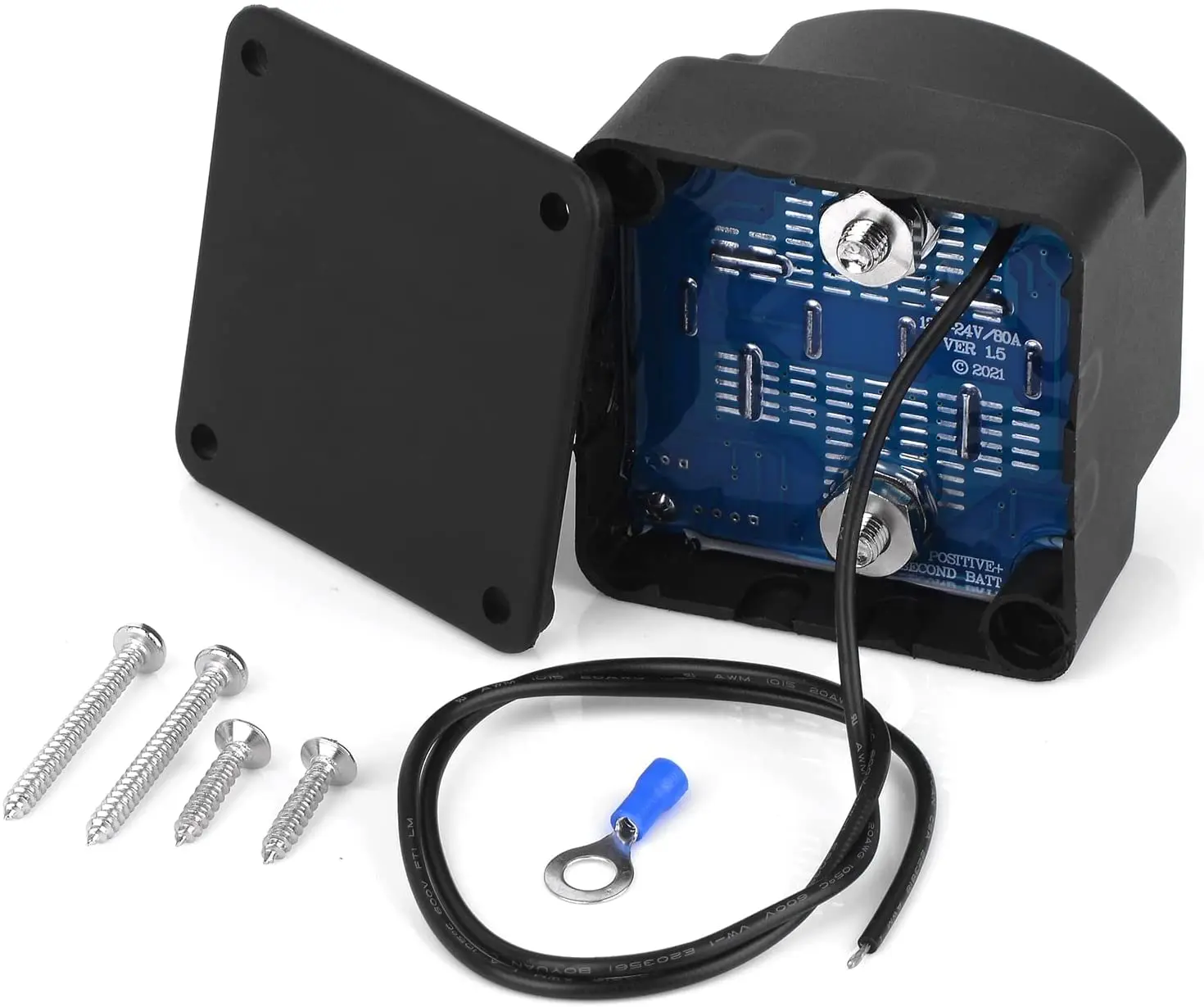

    Package include:


    1 x voltage sensitive Relay (VSR).
    4 x bolts
    1 x Insulated blue ring terminal



  •












•












  •
