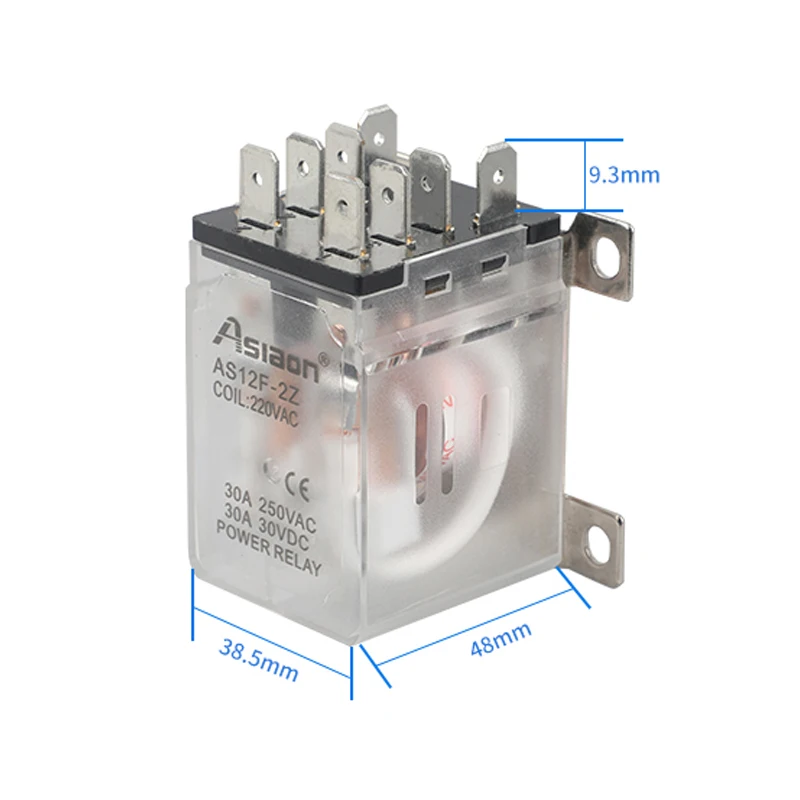

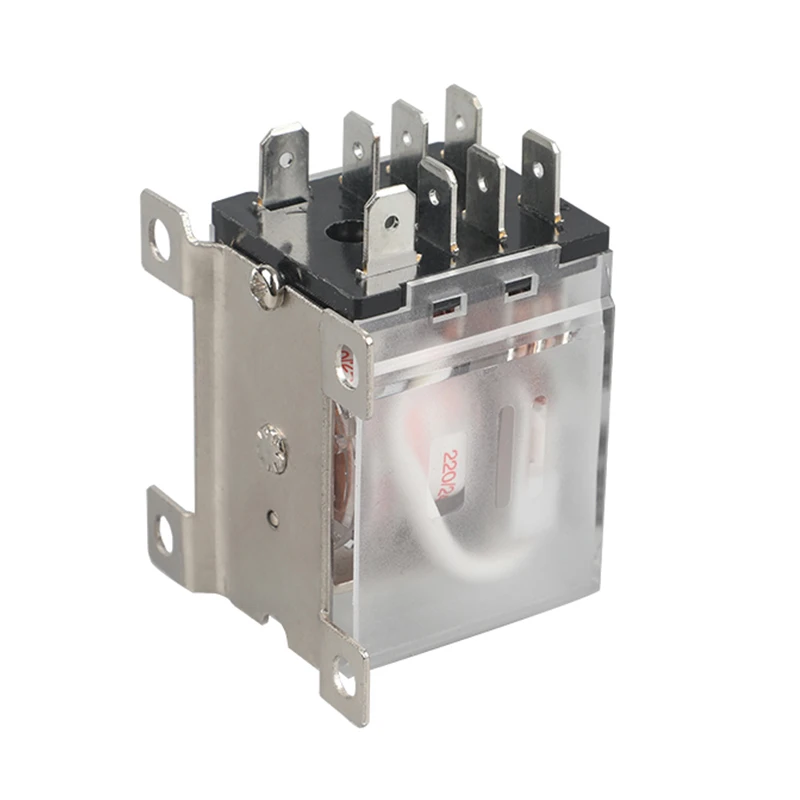

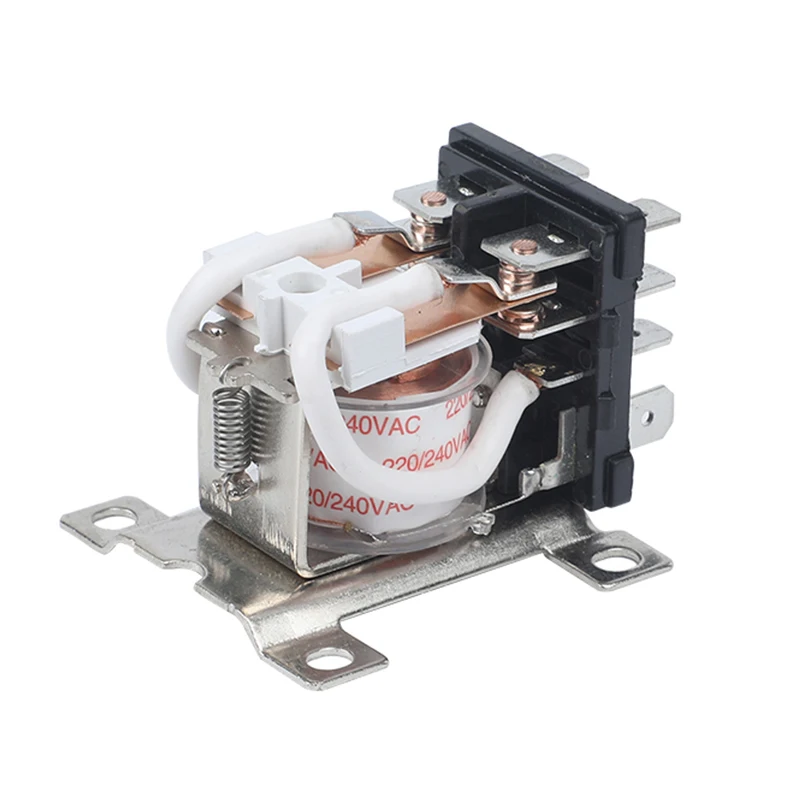

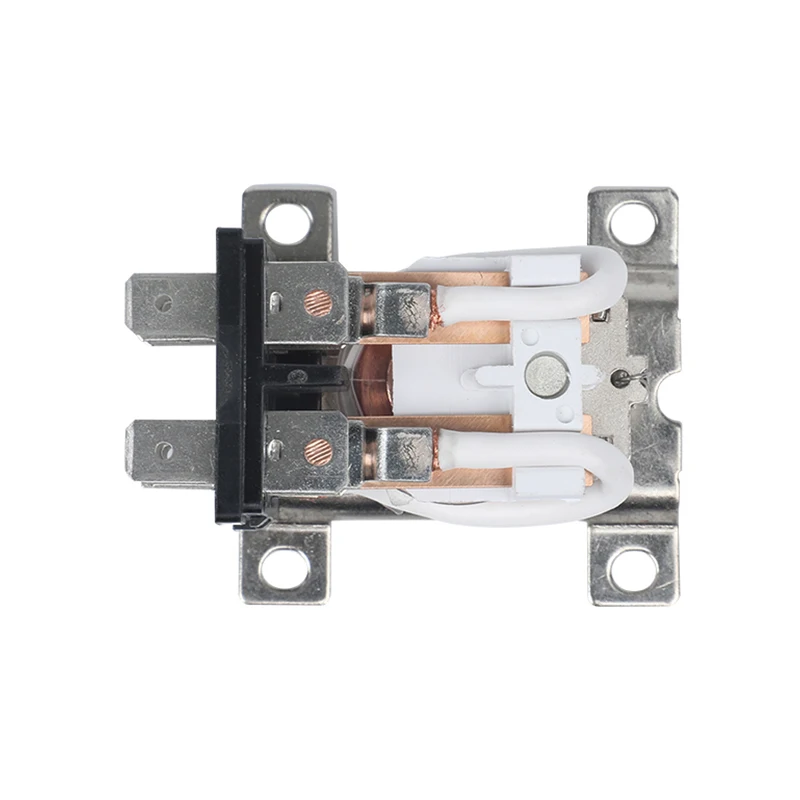

electrical equipment supplies 40a 250vac relay /High power relay
- Category: Relays >>>
- Supplier: Foshan Deweixun Intelligent Technology Co. Ltd.
Share on (1600580431501):
Product Overview
Description
Product Description

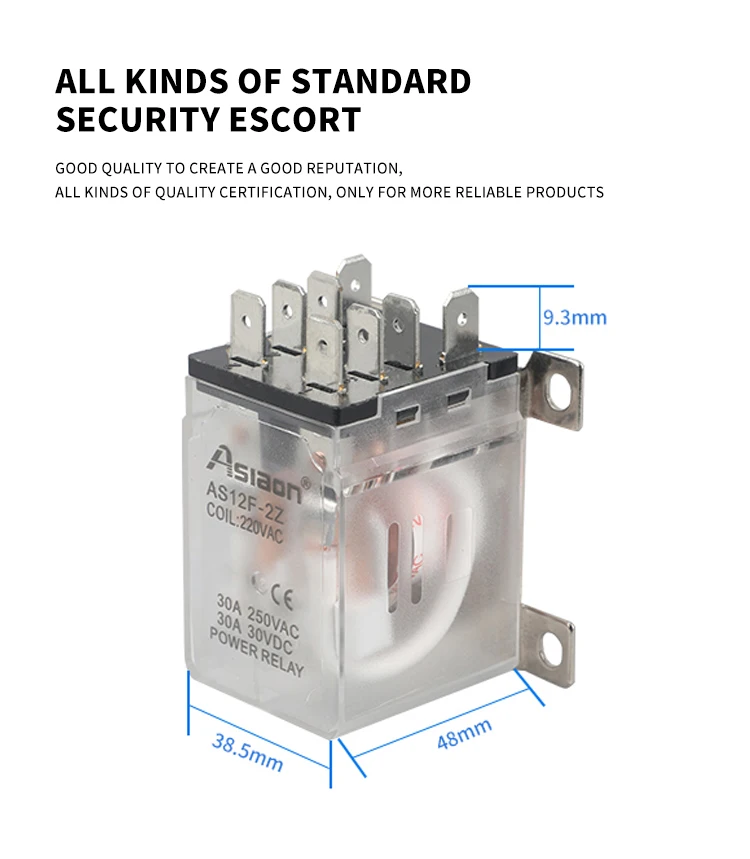

Details Images
Product Paramenters
Product parameters | ||||||||
Contact formContact materials | 2Z | |||||||
Contact load (resistance) | 30A 250VAC/30VDC | |||||||
Electrical/mechanical life | ≥10 5次/10 7次 | |||||||
Contact resistance | ≤100mΩ (1A 6VDC) | |||||||
Contact materials | AgSnO 2 | |||||||
Performance | Insulation resistance | ≥1000MΩ (500VDC) | ||||||
Between contacts of the same polarity≥1000VAC/1min | ||||||||
Between different pole contacts≥1500VAC/1min | ||||||||
Between coil and contact≥2500VAC/1min | ||||||||
Absorption/release time | ≤25ms/25ms | |||||||
Terminal way | Fast connection/wiring type | |||||||
coil | The rated power DC coil | 2 .5W/4VA | ||||||
The DC coil specification table | ||||||||
The rated voltage VDC | And the voltage VDC | The release of the voltage VDC | Coil resistance Ω±10% | |||||
6 | 4.8 | 0.6 | 14.4 | |||||
12 | 9.6 | 1.2 | 57.6 | |||||
24 | 19.2 | 2.4 | 230 | |||||
48 | 38.4 | 4.8 | 920 | |||||
60 | 48.0 | 6.0 | 1440 | |||||
AC coil specification table | ||||||||
The rated voltage VDC | And the voltage VDC | The release of the voltage VDC | Coil resistance Ω±10% | |||||
12 | 9.6 | 3.6 | 12.6 | |||||
24 | 19.2 | 7.2 | 50.4 | |||||
48 | 38.4 | 14.4 | 200 | |||||
110 | 88.0 | 36.0 | 1060 | |||||
220/240 | 176.0 | 72.0 | 4230 | |||||
Application industry
Suitable for many occasions
Control circuit through smaller current and lower voltage
