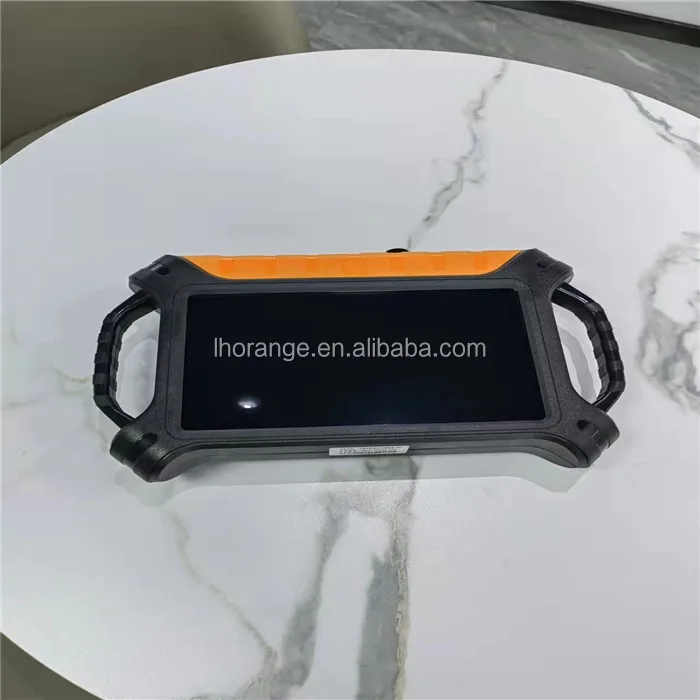

The ADMT-150S groundwater detection instrument is a water quality meter designed by our company with reference to the advanced electric water detectors at home and abroad. It is designed to measure the depth of the natural electric field by measuring the strength of the natural electric field. The change of resistivity, in order to analyze and judge the position and depth of groundwater, has a great help to well water extraction. The instrument solves the major problem of shielding and frequency-selection signal processing amplification in complex natural electric fields. Anti-jamming design

Main functions and uses of ADMT-150S groundwater detection instrument

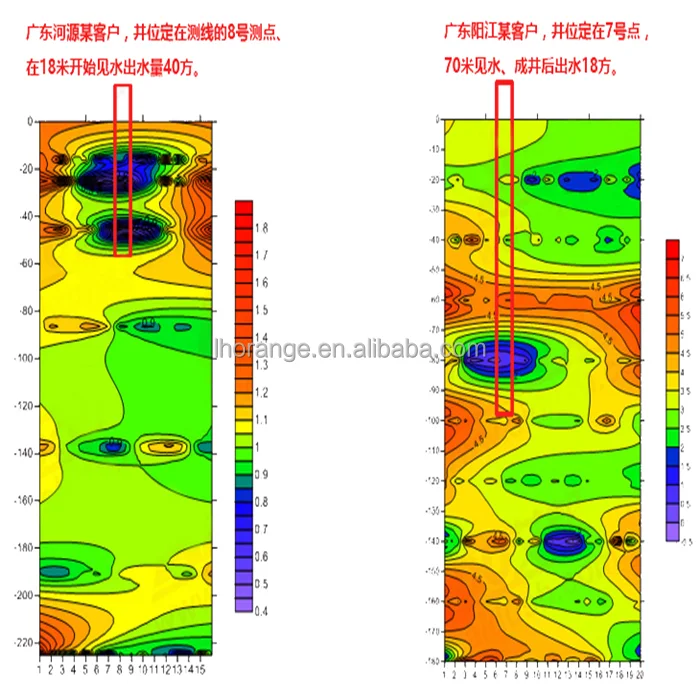

It measures the change of the underground resistivity by measuring the strength of the natural electric field, and then analyzes and judges the position, depth, and direction of the groundwater, and solves the human and animal drinking water, industrial water and agricultural irrigation through detailed investigation and general survey of groundwater. The demand has played a huge role in the success of drilling wells and taking water, and has been well received by customers!

Main technical parameters of ADMT-150S groundwater detection instrument

Measuring range: 0-300mv

Detection depth: <150m

Measurement mode: 10 frequency

Frequency error: 2%

Resolution: 1mV

Repeat error: ±5% ± 2 words

A/D conversion: 16 bits 1Msps

Input impedance: ≥10MΩ

Power frequency rejection: >80dB

Display: 128*64 LCD display

Connection: USB2.0

Power: DC7.4V 3400mAh lithium battery

Power consumption: 100mA

Temperature: -10℃ ~ +40℃

Humidity: 60%

Volume: 18.6 × 14.8 × 8cm

Host weight: 3KG

Machine plus accessories and package weight: 12KG

Main technical parameters of ADMT-300S groundwater detection instrument

Measuring range: 0-300mv

Detection depth: <300m

Measurement mode: 30 frequency

Frequency error: 2%

Resolution: 0.5mV

Repeat error: ±2% ± 2 words

A/D conversion: 16 bits 1Msps

Input impedance: ≥10MΩ

Power frequency rejection: >80dB

Display: 128*64 LCD display

Connection: USB2.0

Power: DC7.4V 3400mAh lithium battery

Power consumption: 100mA

Temperature: -20 ° C ~ +60 ° C

Humidity: 60%

Volume: 18.6 × 14.8 × 8cm

Host weight: 3KG

Machine plus accessories and package weight: 12KG
