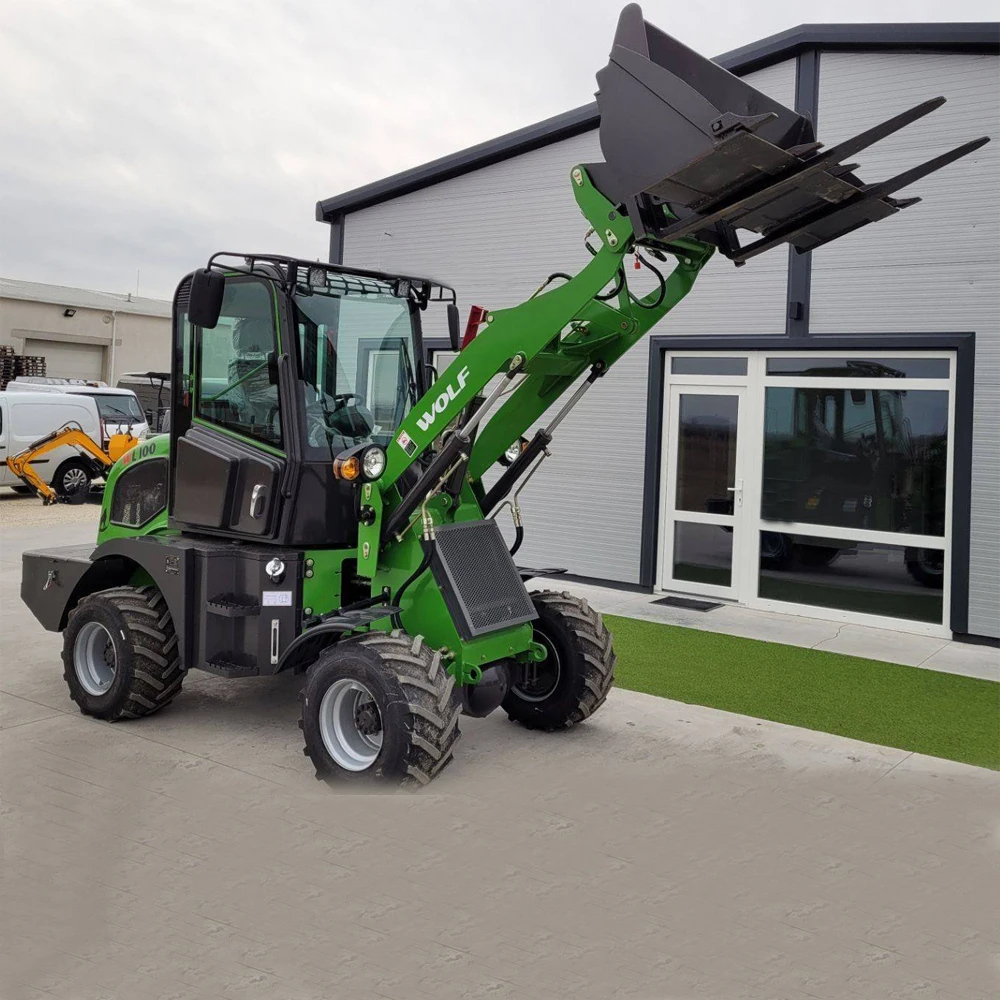

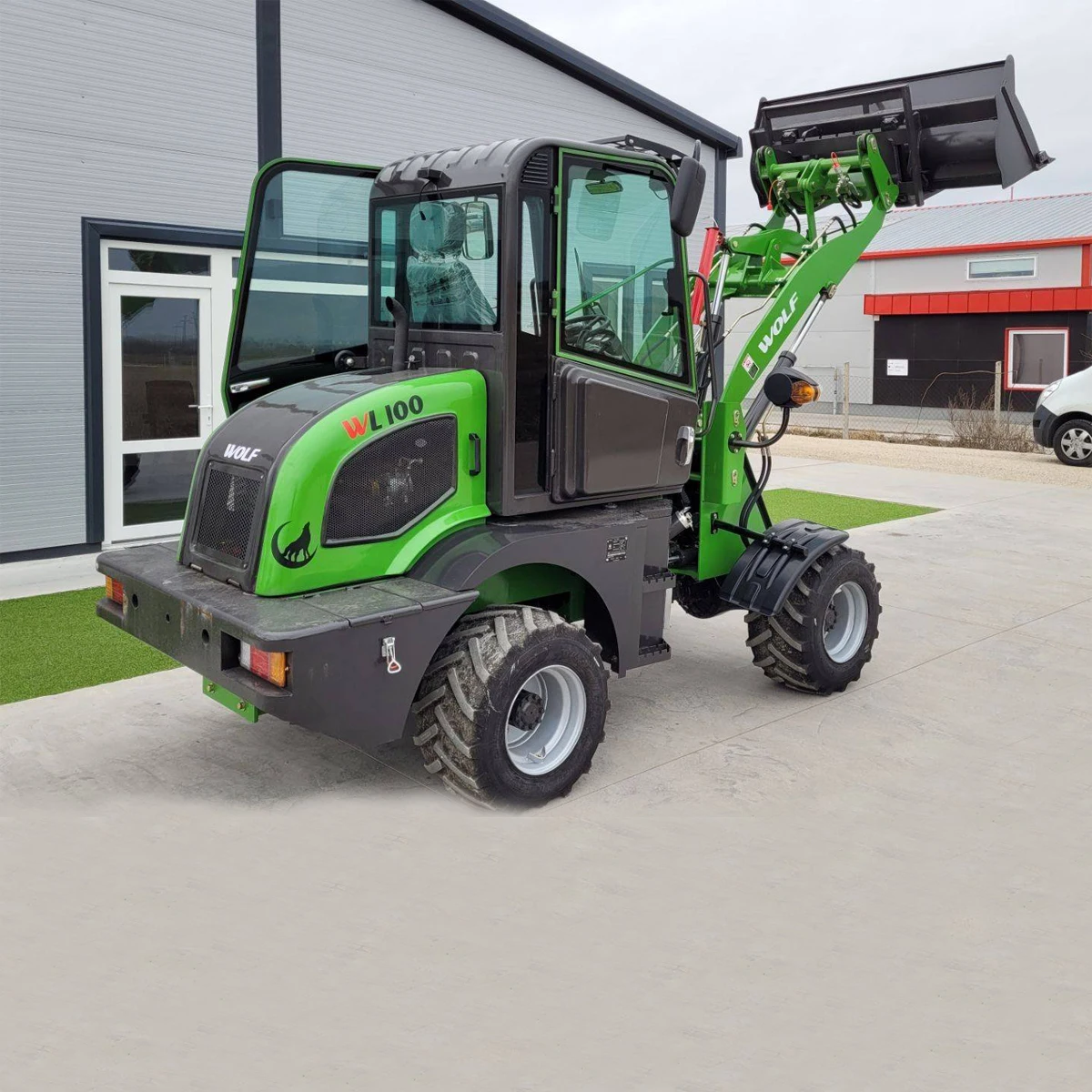

China Wolf Loaders Articulated Front Loader 1t ZL10/WL100 Small Wheel Loader
- Category: >>>
- Supplier: Qingdao Zongjin Engineering Machinery Co. Ltd.
Share on (1600580437799):
Product Overview
Description

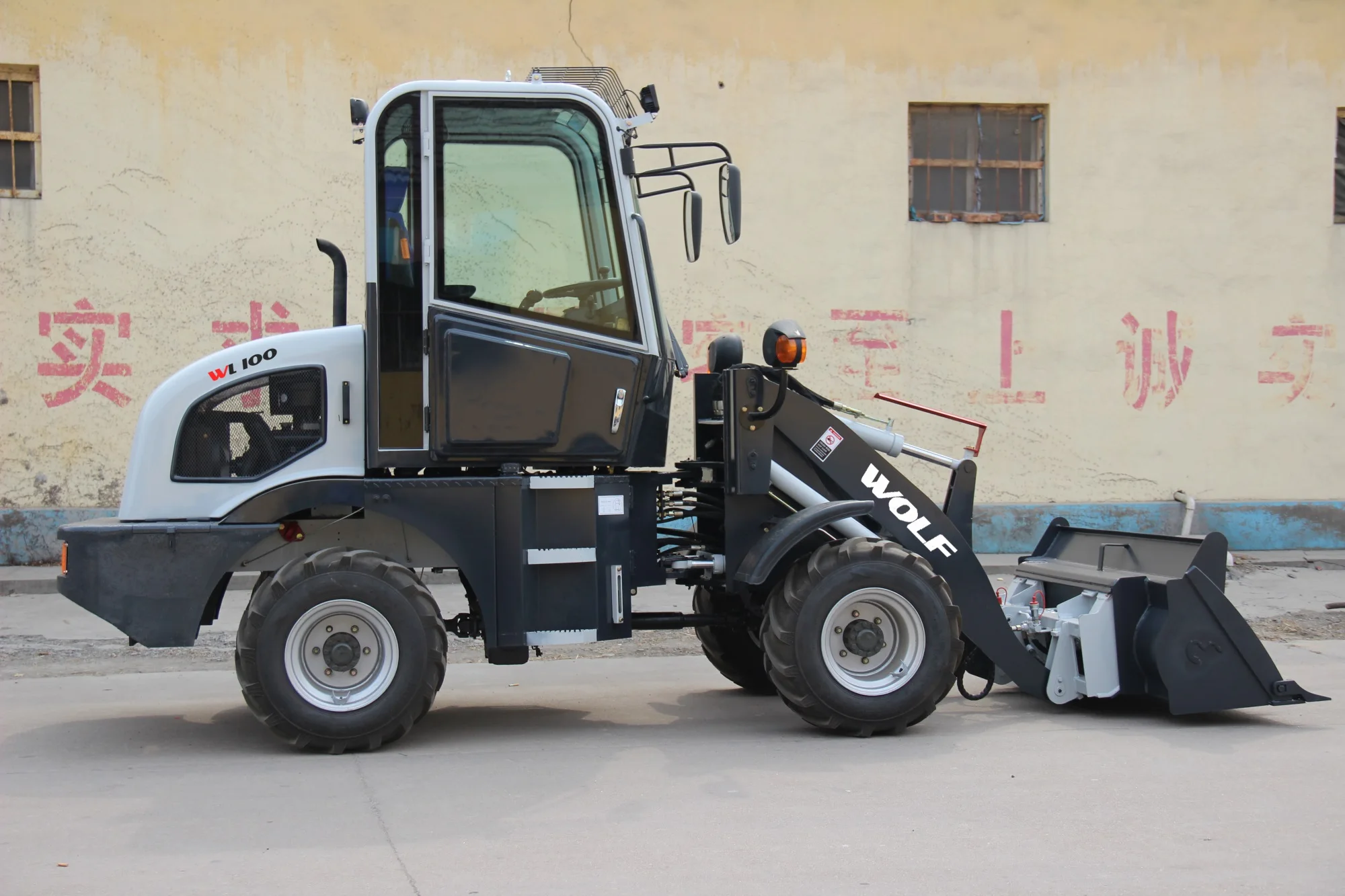

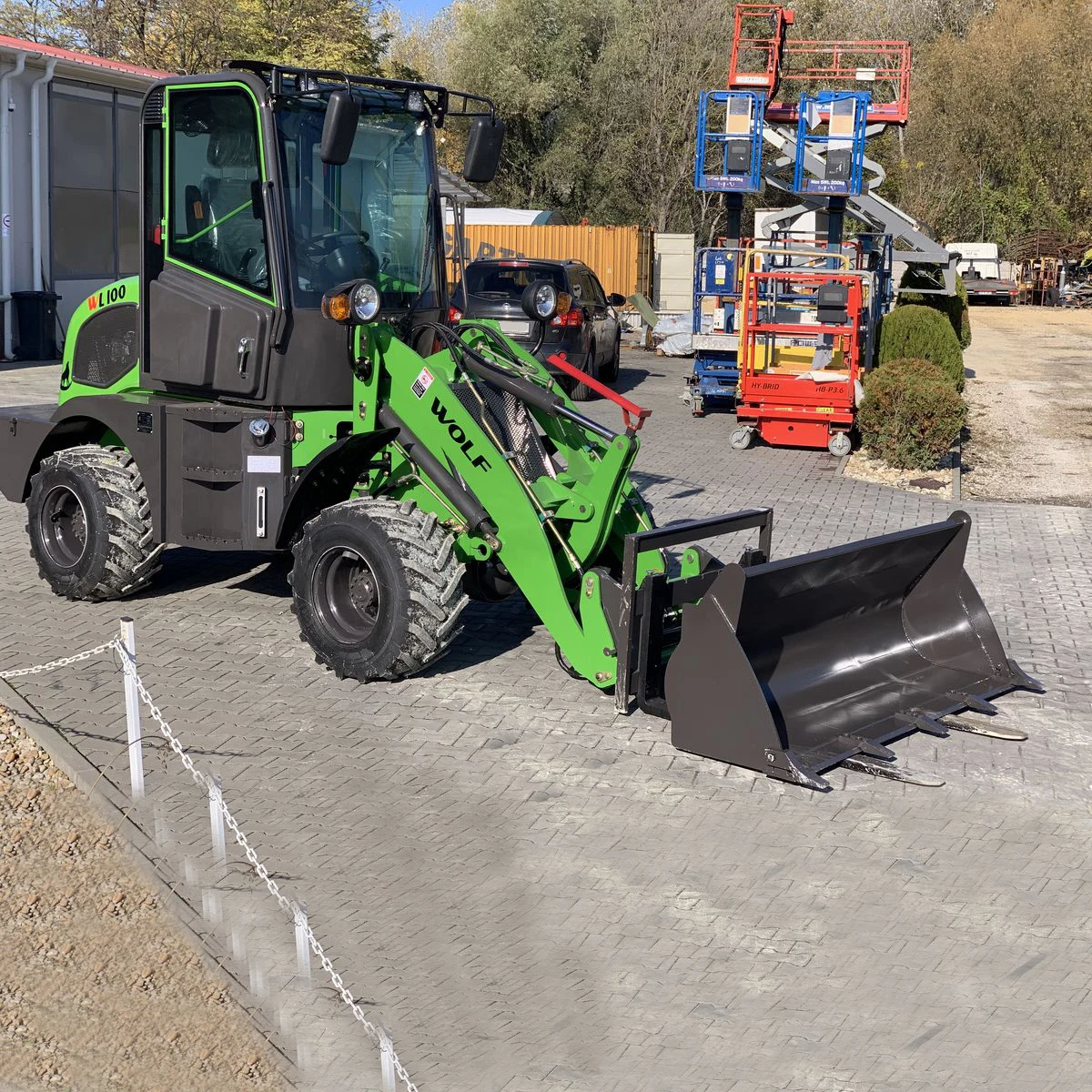

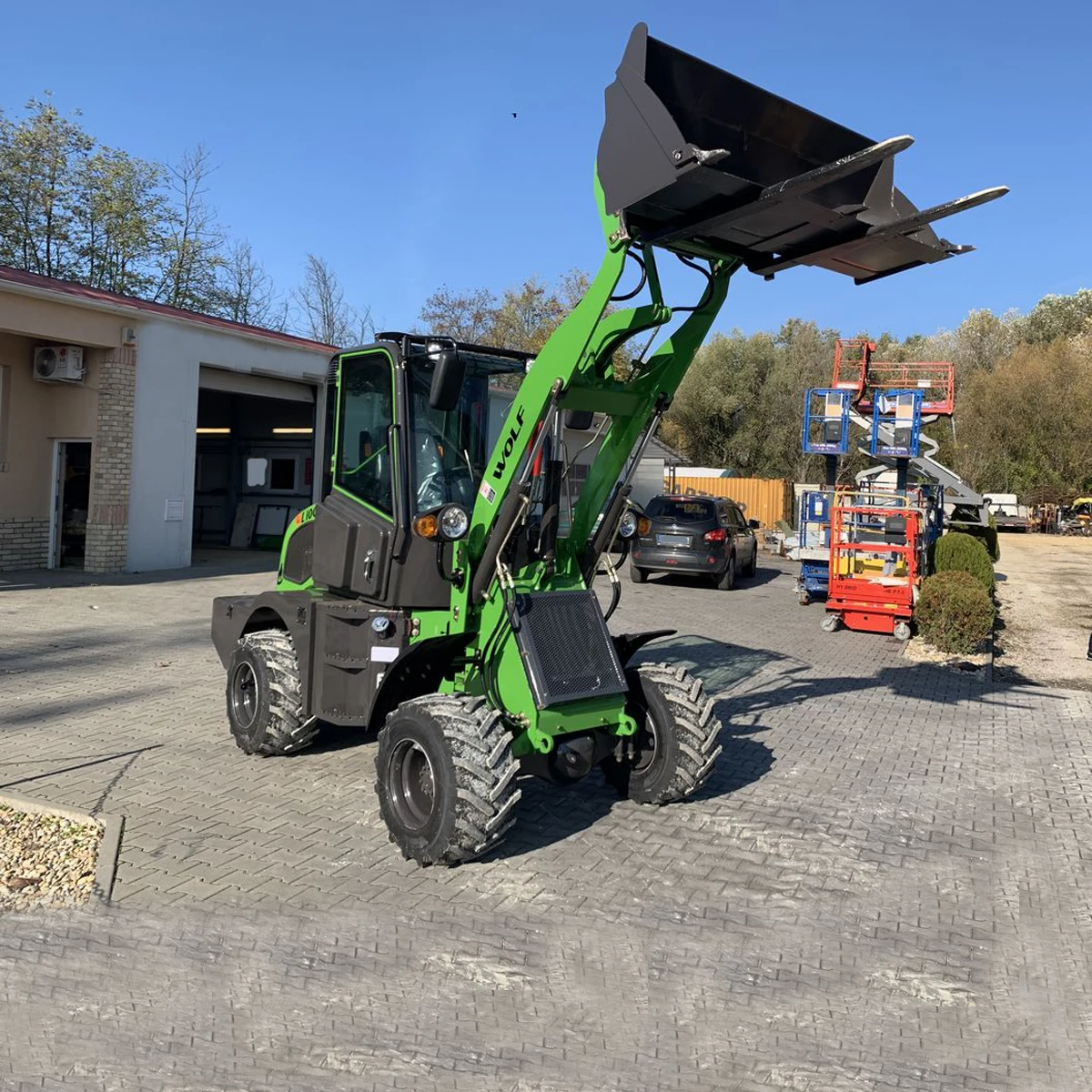

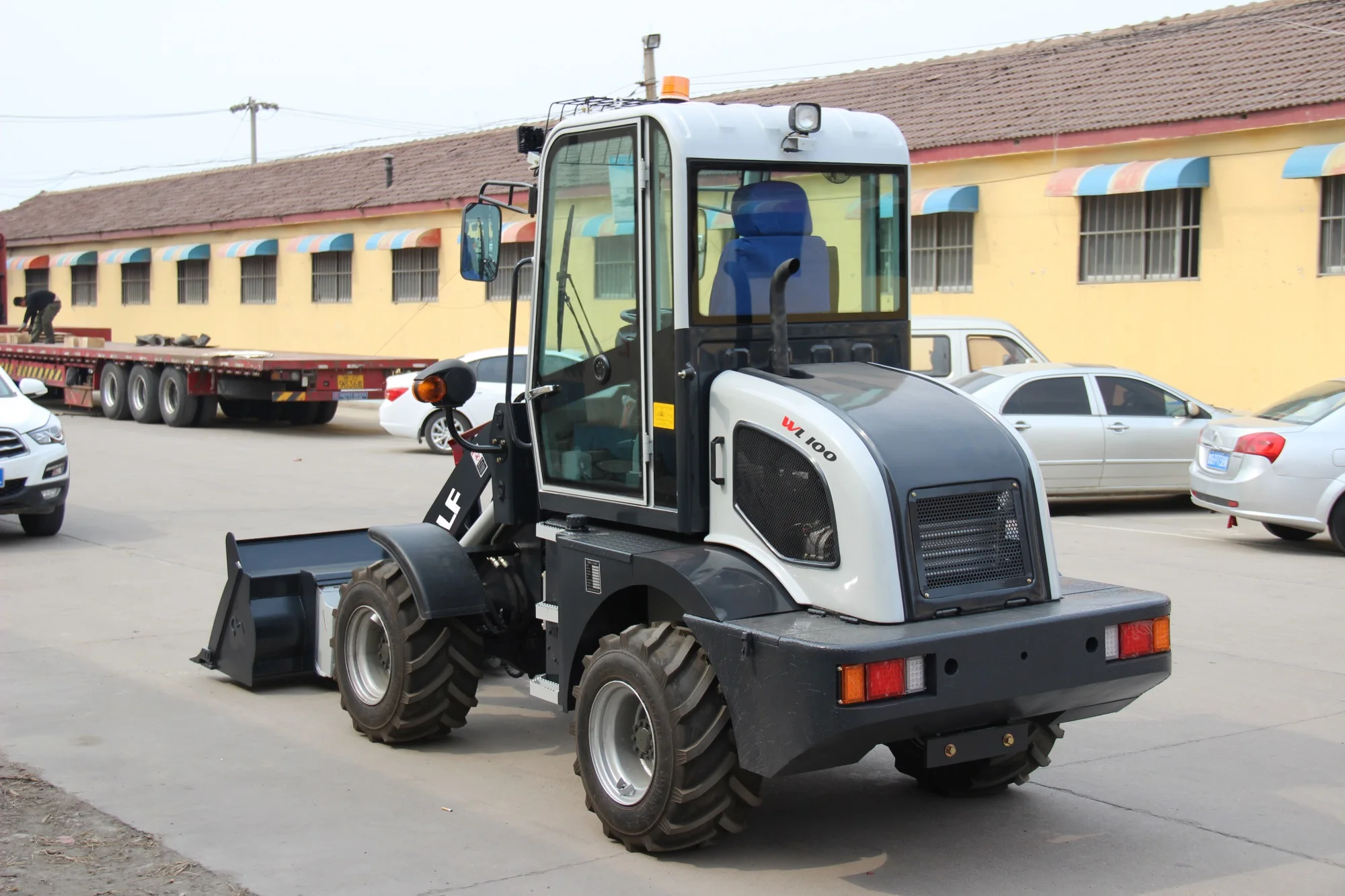

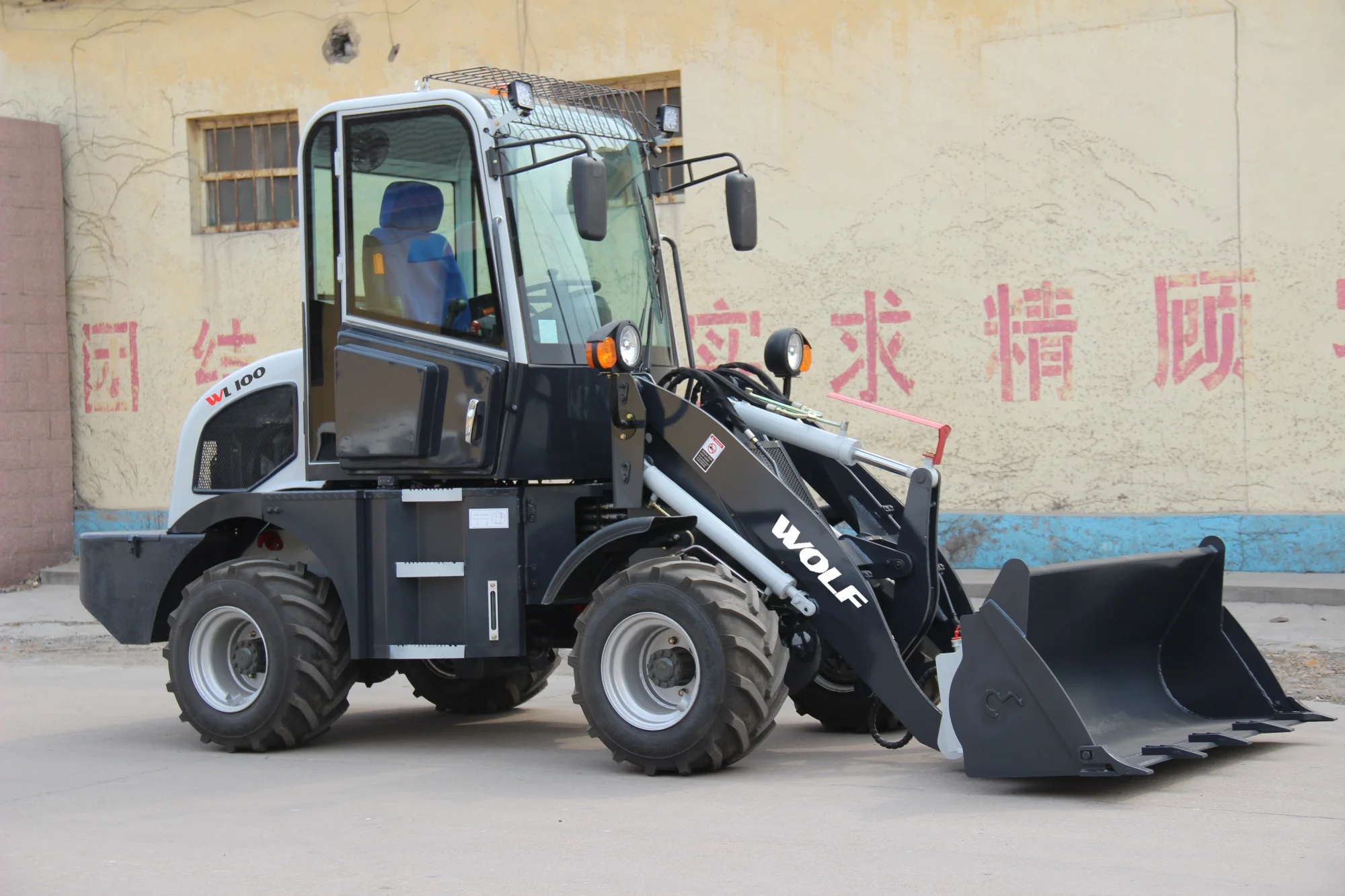

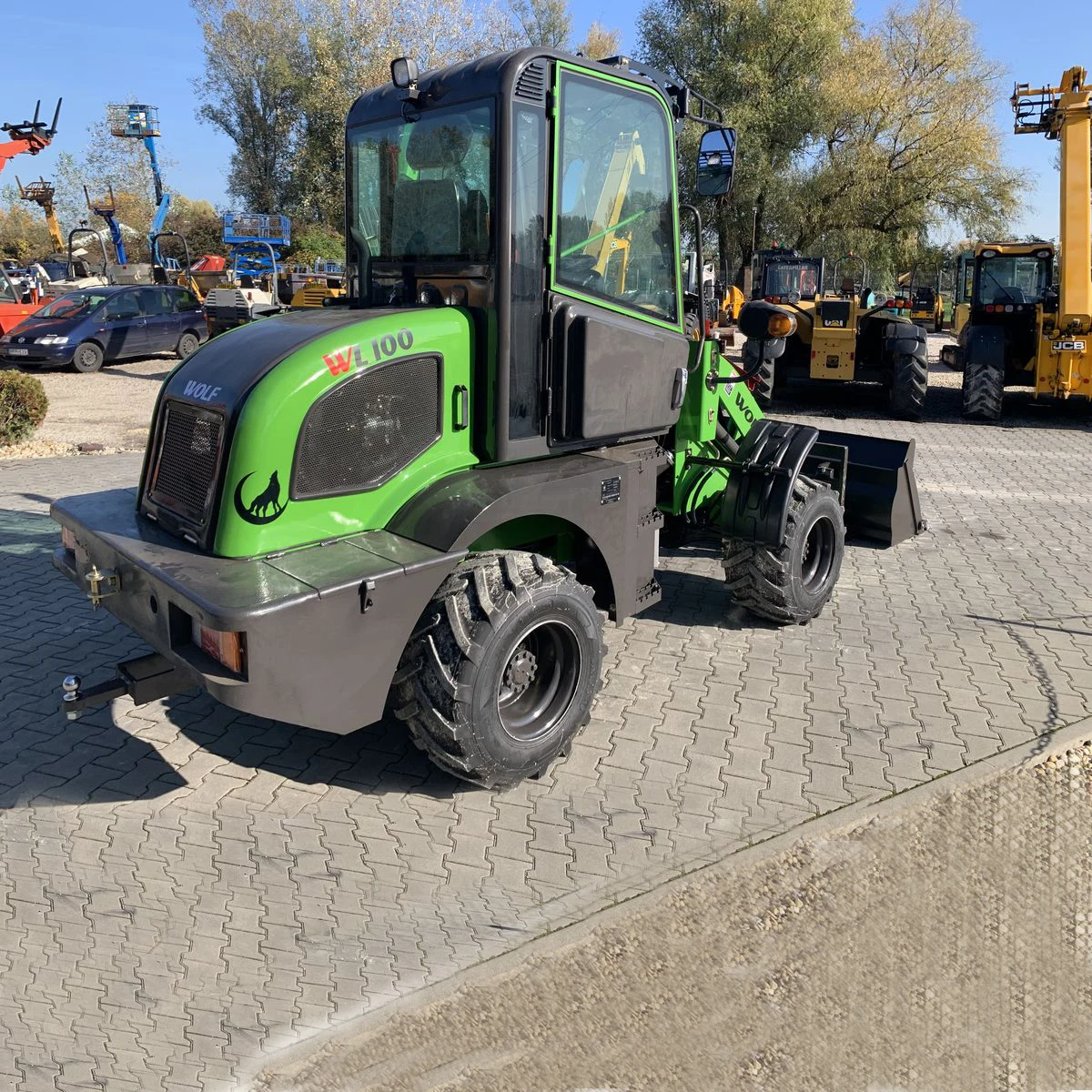

China Wolf Loaders Articulated Front Loader 1t ZL10/WL100 Small Wheel Loader
Performance and characteristic
I,Streamlined appearance, beautiful and elegant.
l II,Fully hydraulic steering system, easier operation.
l III,Bucket can be leveled automatically, high productivity.

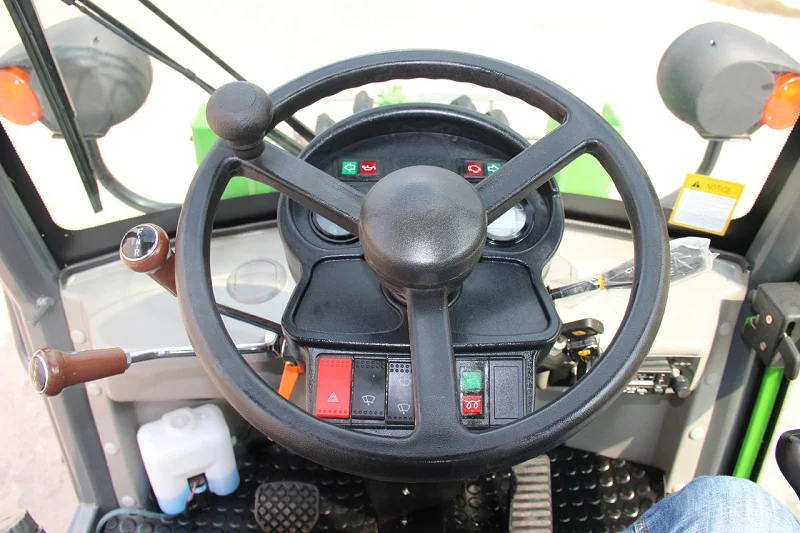

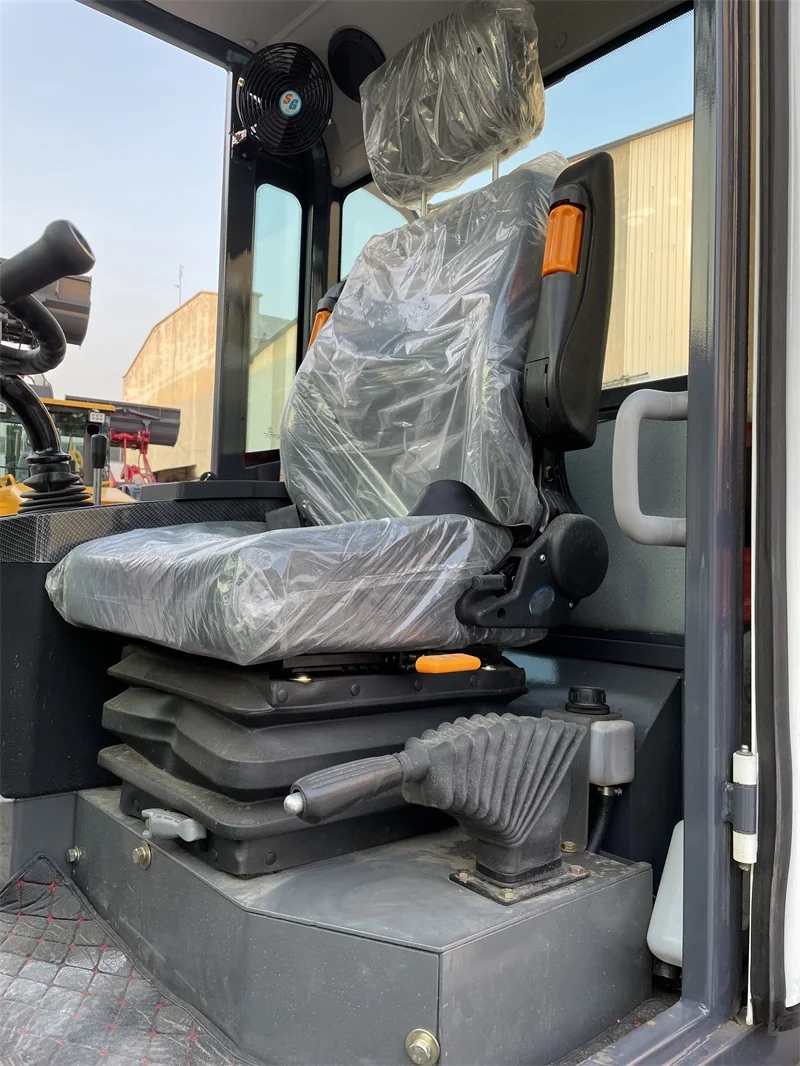

l IV,Comfortable operation environment, new design cabin, air-conditioner at option.
l V,Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone
bucket, enlarged bucket, plow, fork etc, to meet different needs.
Standard configuration:

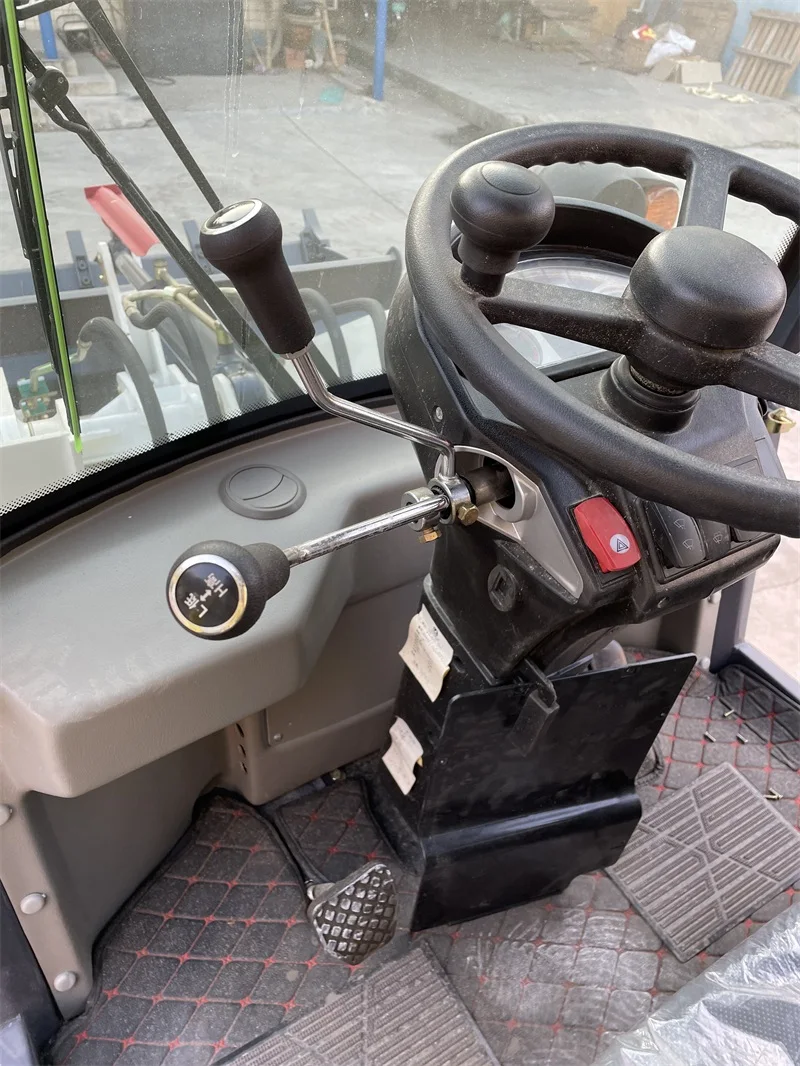

Changchai ZN490B engine 39kw, 4WD, 900-16 tires, joystick, standard bucket, VARTA Battery, floating
function, luxury cabin with heater, new engine hood, 220V engine preheat, warning light, adjustable
steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher,
window hammer, Free parts, tool box.Standard with 3 hydraulic lines
Optional:
Imported engine, Quick Hitch, double heater, air conditioning, electric floating, extra Hydraulic Line,
electronic joystick, different attachments etc.
Technical Specifications:
| Specification | Overall Weight(Kg) | 3300 |
| L×W×H(Mm) | 4750x1700x2600 | |
| Rated Bucket Capacity(M3) | 0.6 | |
| Rated Load(Kg) | 1000 | |
| Wheel Base | 2080mm | |
| Track Base | 1400mm | |
| Maximum Dump Height (Mm) | 2300mm | |
| Engine | Model | Changchai 490 |
| Rated Power(Kw) | 39 | |
| Rated Speed(R/Min) | 2200 | |
| Type | In-Line Arrangement, Water Cooled, Three-Cycle Diesel Engine | |
| Engine Starting Mode | Electric | |
| Optional engine | Xinchai C490BPG Euro III Yanmar 4TNV94L | |
| Steering System | Type | Articulated And Hydraulic Steering |
| Min Turning Radius(Mm) | 4200 | |
| Tyres | Standard Tyres | 900-16 |
| Optional Tyres | 12-16.5/20.5-16 31x15.5-15 |
Wolf Focus On Details
