Product Overview
Description

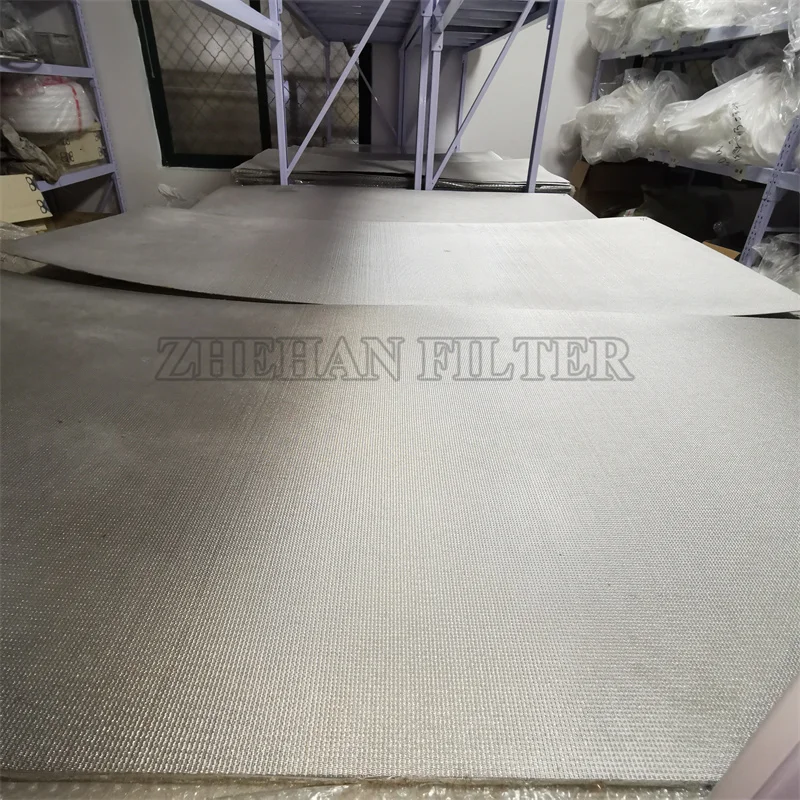

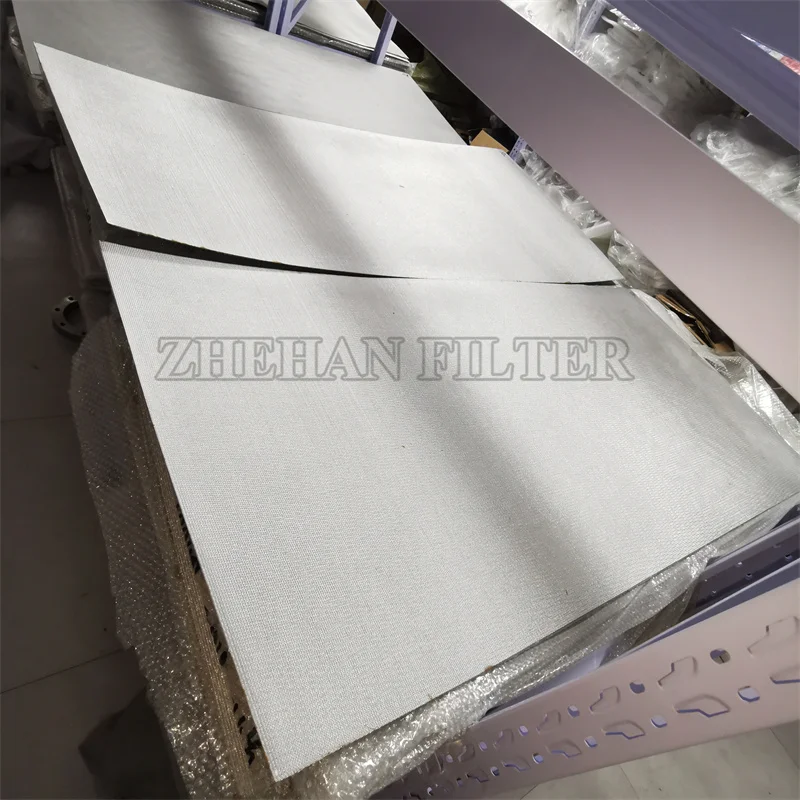

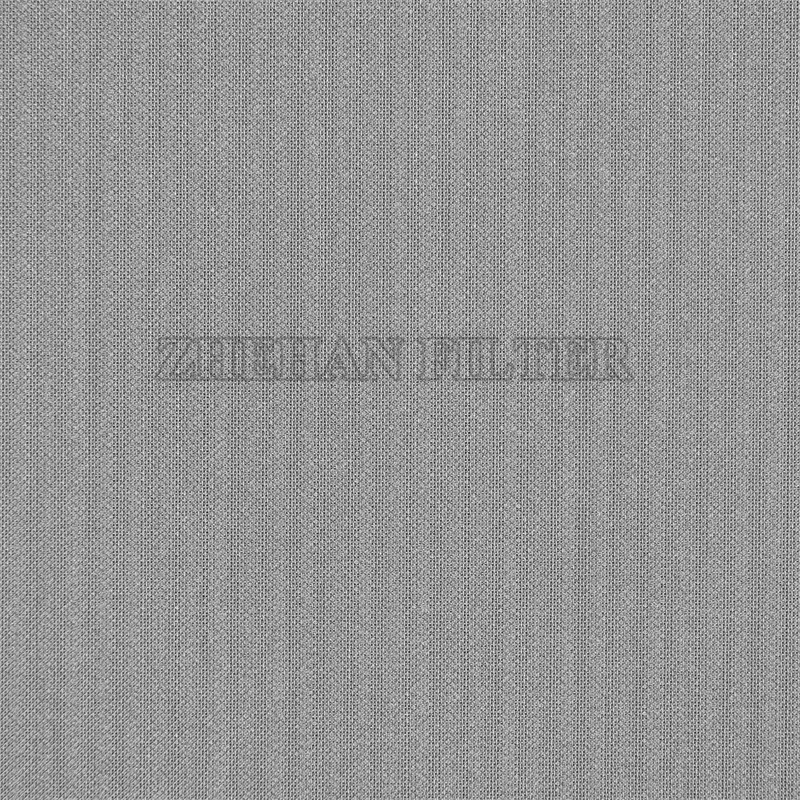

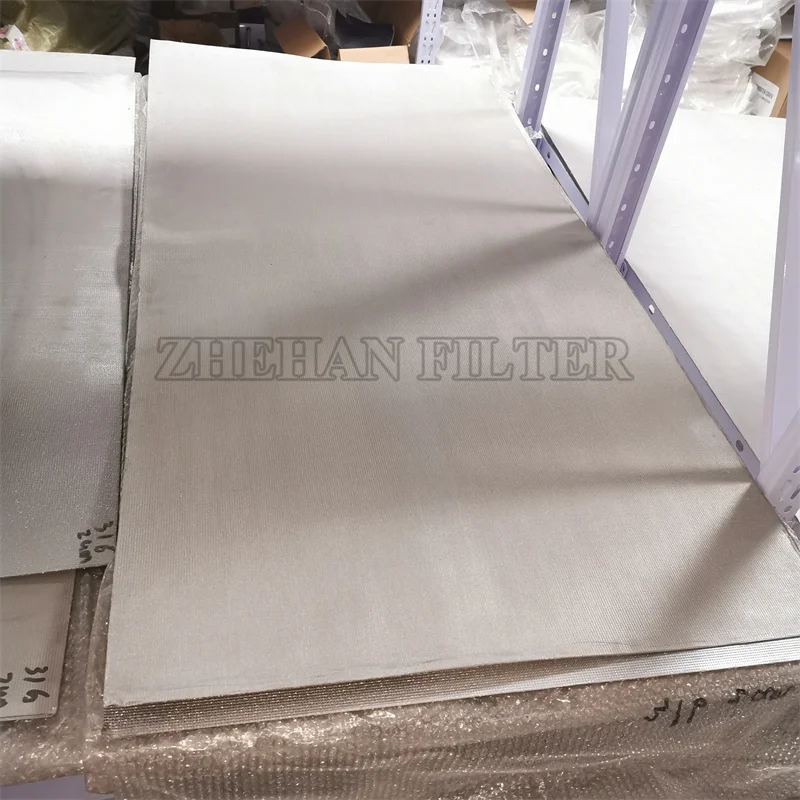

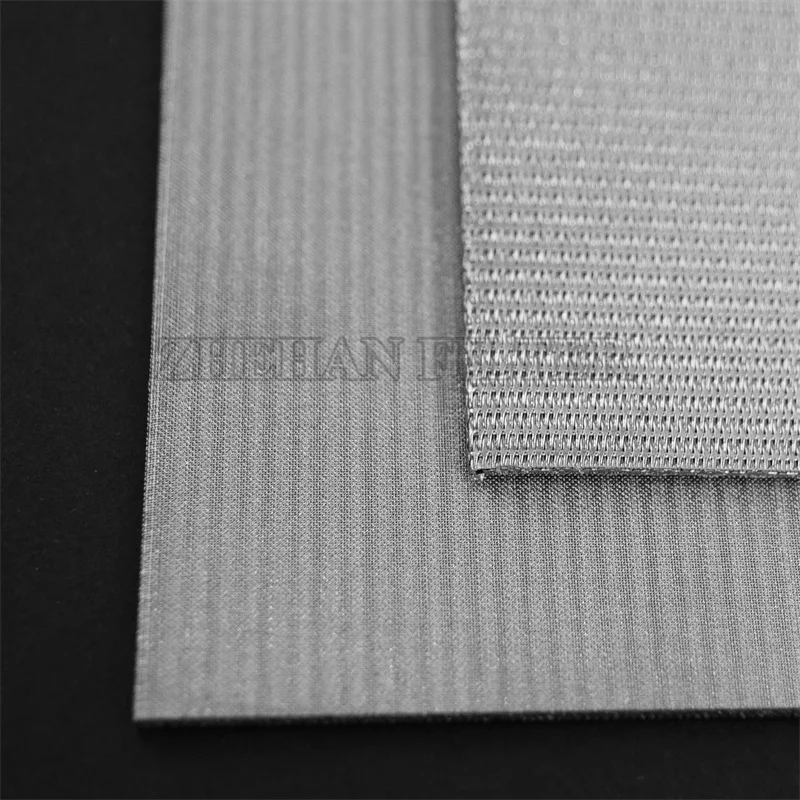

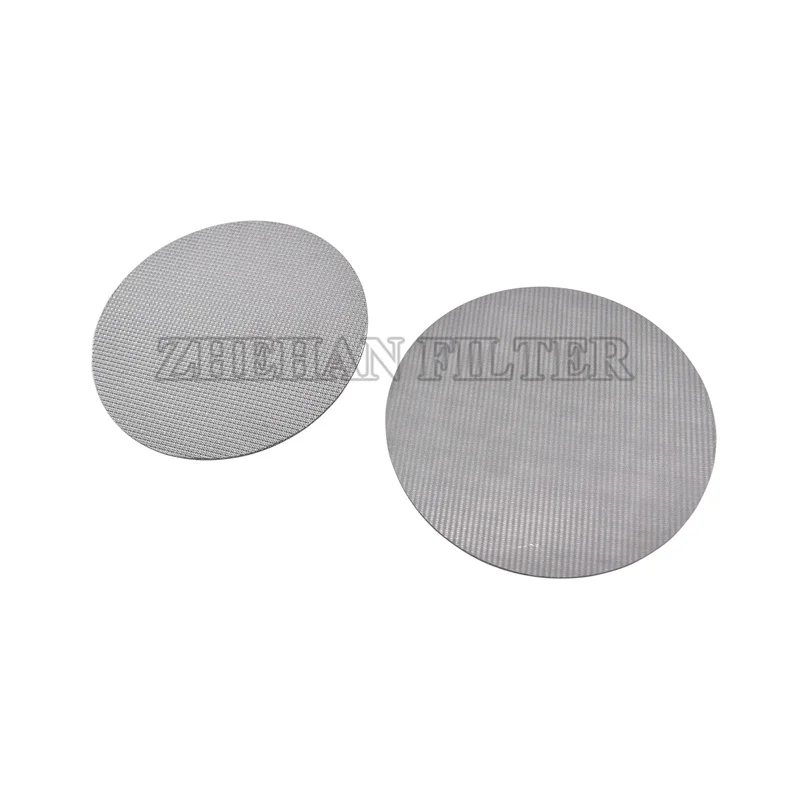

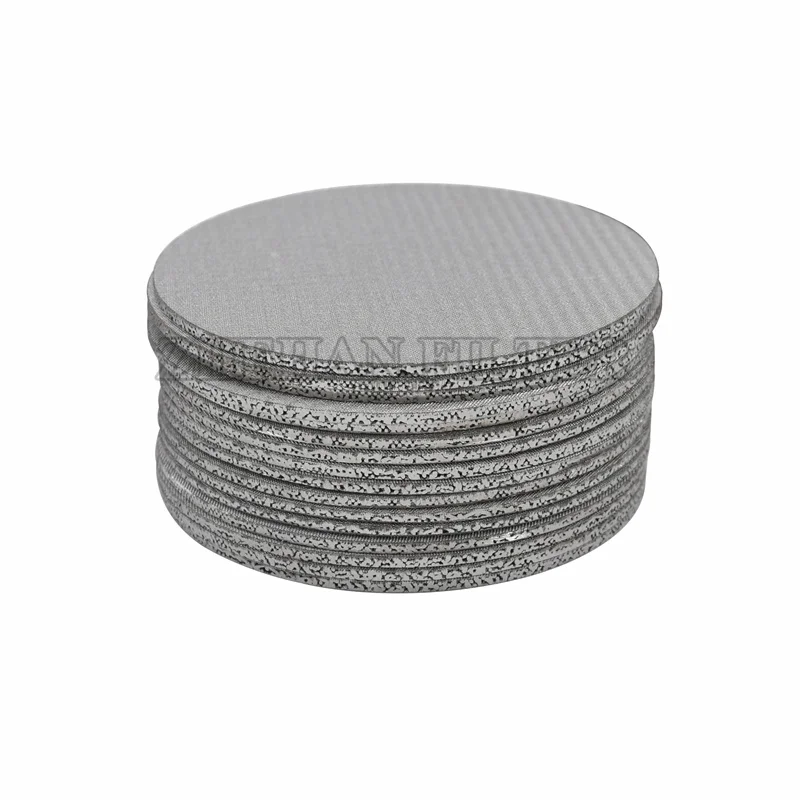

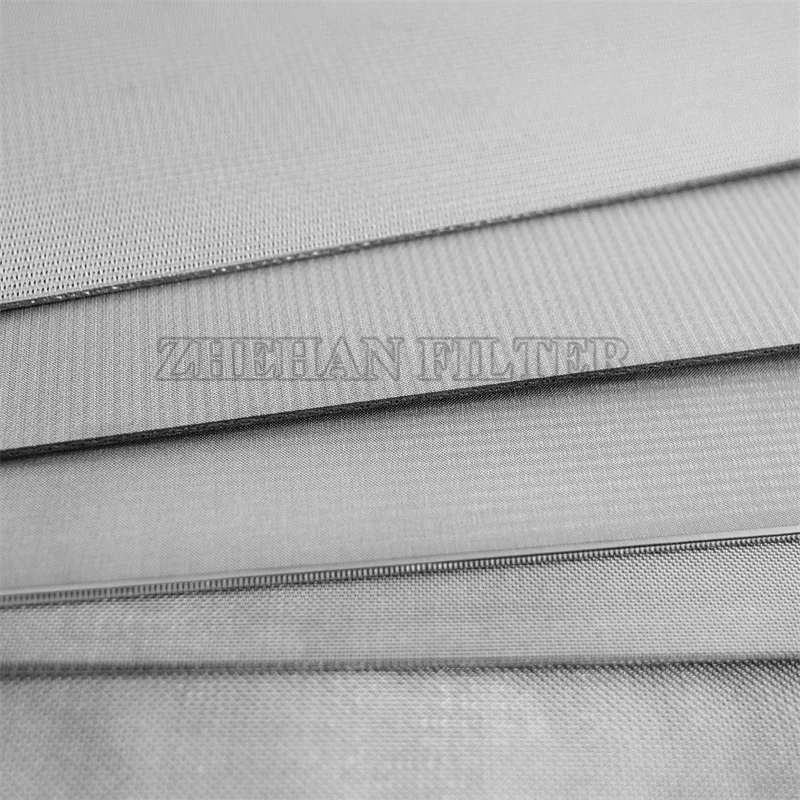

A-type sintered mesh

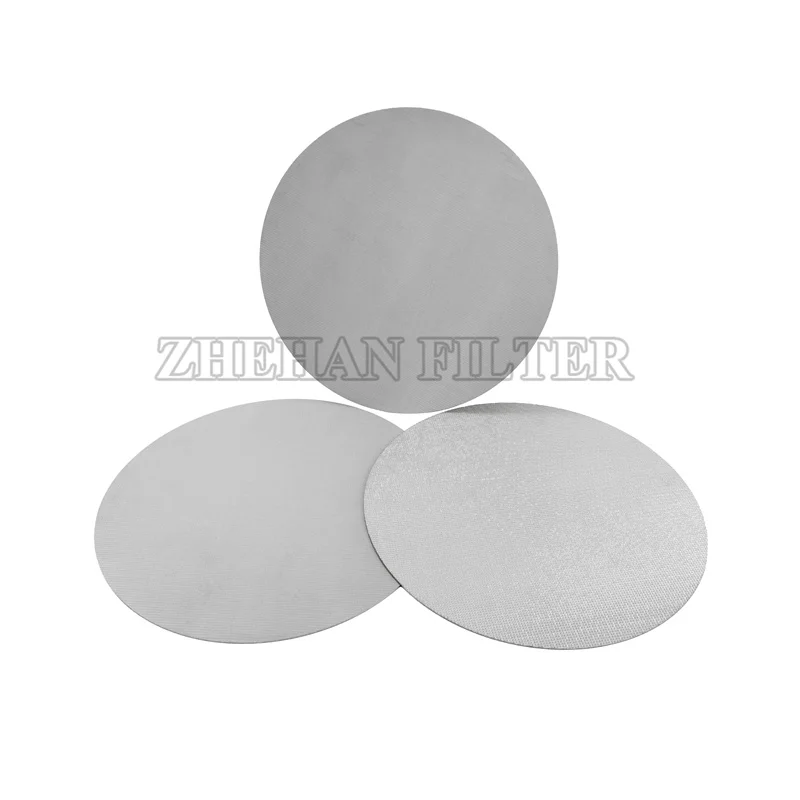

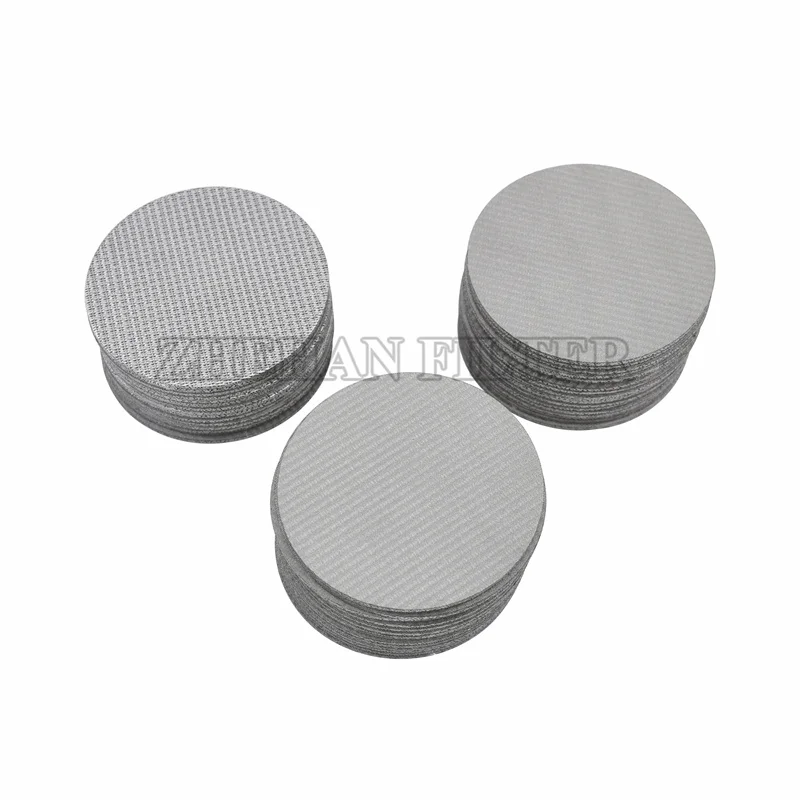

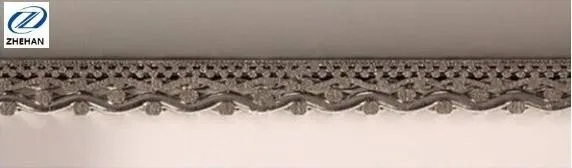

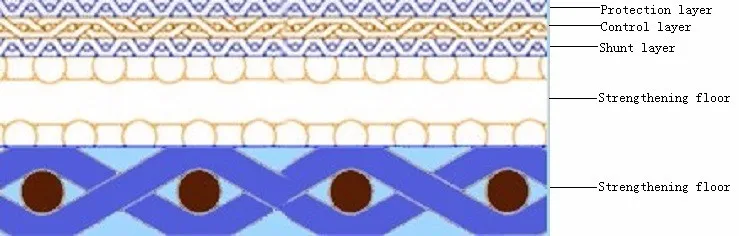

This is the most widely used standard structure sintered mesh. It is a porous sintered material made by stacking five layers of stainless steel wire mesh according to different structures, and then sintering, pressing, rolling and other processes. Mainly used in food and beverage, water treatment, power plant dust removal, pharmaceutical, film and other industries. It can be processed into cylinder, disc and disc filters.
Characteristic
-Wide range of filtration accuracy: Reliable filtration performance from 1 micron to 200 micron.
-Stable filtration accuracy: Because there are two layers of wire mesh for protection, and the sintering process of diffusion and solidification, make sure the mesh of the filter layer is not easy to deform.
-Good strength: Due to the support of the fourth and fifth layers, it has high pressure resistance and mechanical strength.
-Easy to clean: Due to the use of surface filter material, it is easy to clean, especially suitable for backwashing.
-High temperature resistance: Can withstand high temperature of 600℃.
-Corrosion resistance: Due to the use of SUS316L material, it has high corrosion resistance.
-Easy to process: It is suitable for cutting, bending, stamping, stretching, welding etc.
Material
Standard material SUS316L (AISI316L)
Standard material SUS316L (AISI316L)
Size

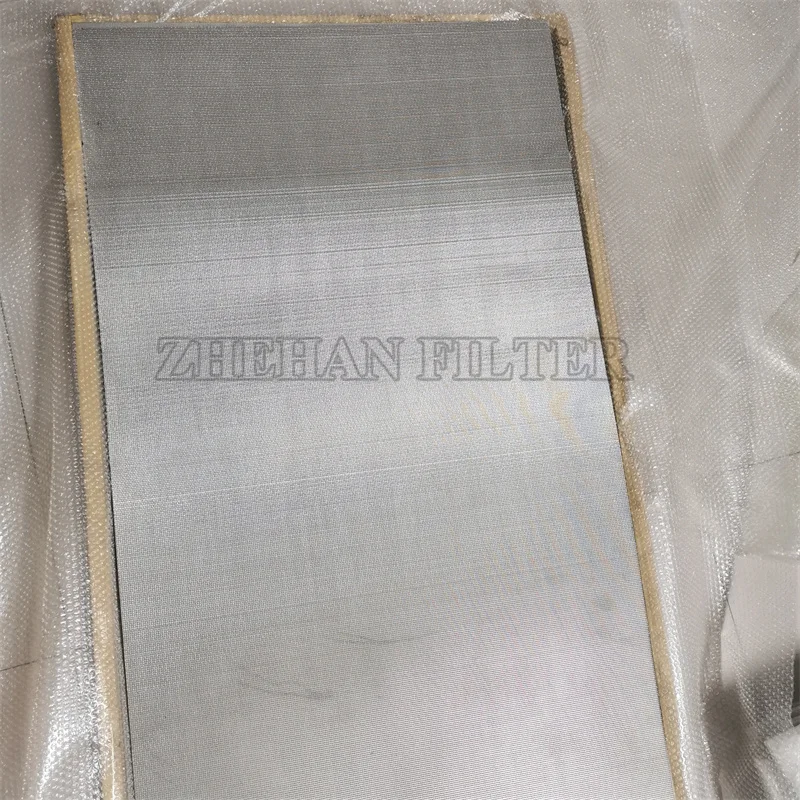

The standard size is 500×1000mm, 600×1200mm. The size within the above range can be customized according to user requirements.
The standard size is 500×1000mm, 600×1200mm. The size within the above range can be customized according to user requirements.
Technical data
Filtration Accuracy (micron) | Thickness (mm) | Permeability (L/min/cm2) | Bubbling pressure (mmH2O) | Poriness (%) |
1 | 1.7 | 1.81 | 360--600 | About 40% |
2 | 2.35 | 300--590 | ||
5 | 2.42 | 260--550 | ||
10 | 3.00 | 220--500 | ||
15 | 3.41 | 200--480 | ||
20 | 4.50 | 170--450 | ||
25 | 6.12 | 150--410 | ||
30 | 6.86 | 120--390 | ||
40 | 7.10 | 100--350 | ||
50 | 8.41 | 90--300 | ||
75 | 8.70 | 80--250 | ||
100 | 9.10 | 70--190 | ||
150 | 2.0 | 25.00 | 50--150 | |
200 | 26.00 |
Note:On the basis of 5 layers of sintered mesh, add a layer of 12 mesh wire mesh to become 6 layers of sintered mesh with a thickness of 3.5mm, which has better pressure resistance.
B-type/ C-type sintered mesh

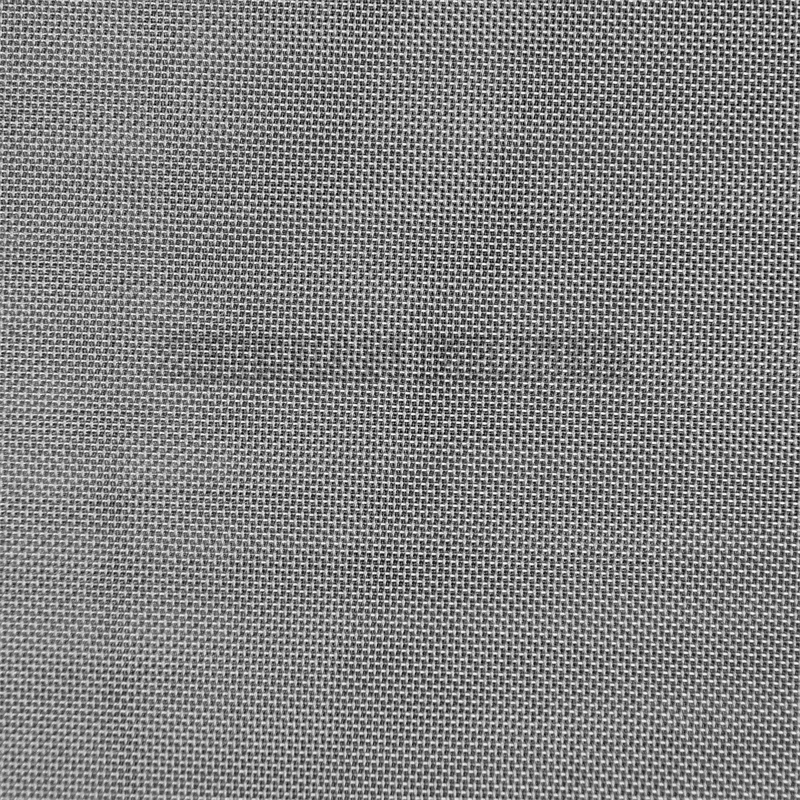

B-type sintered mesh
This is a sintered mesh made of a multi-layer plain weave square mesh. Due to the high opening rate of the square mesh, the sintered mesh has the characteristics of high air permeability, low resistance, and large circulation. Mainly used in the filtration of various gases and liquids. Since each layer of wire mesh has greater selectivity, its structure can be customized according to user requirements.

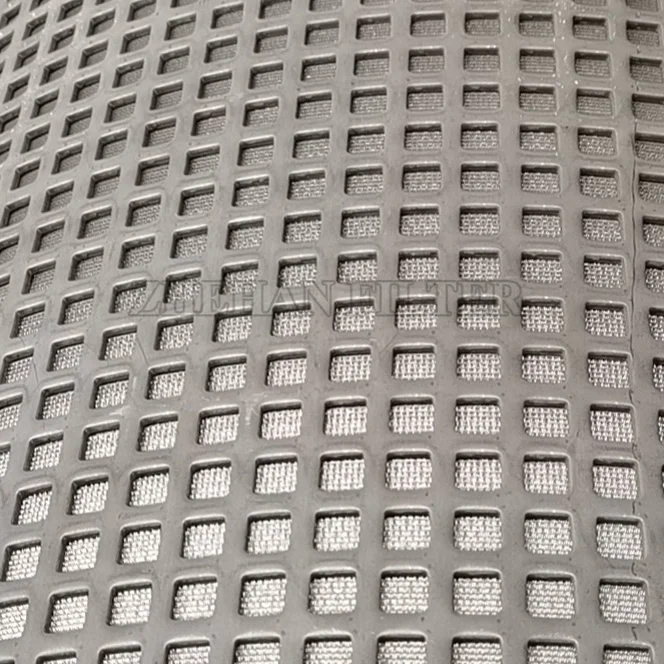

C-type sintered mesh

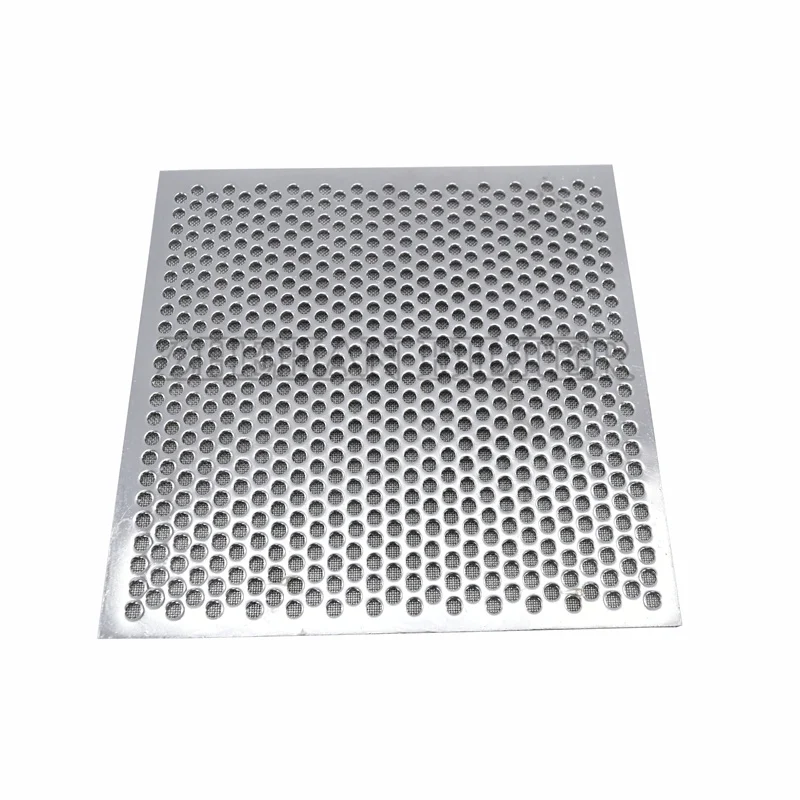

The product is a kind of sintered mesh which sintered with a punching panel and multi-layer stainless steel wire mesh. The compressive strength and mechanical strength of sintered mesh is higher because of the support of the punching panel. Mainly used in food and beverage, water treatment, power plant dust removal, pharmaceutical, film and other industries. It can be processed into cylinder, disc, and disc filters. The thickness of the punching panel and the structure of the screen can be customized a ccording to user requirements.
Material (punching panel/wire mesh)
Standard material SUS316 (AISI316), SUS316L (AISI316L)
Standard material SUS316 (AISI316), SUS316L (AISI316L)
Size
The standard size is 500×1000mm, 600×1200mm.
The standard size is 500×1000mm, 600×1200mm.
The size within the above range can be customized according to user requirements.

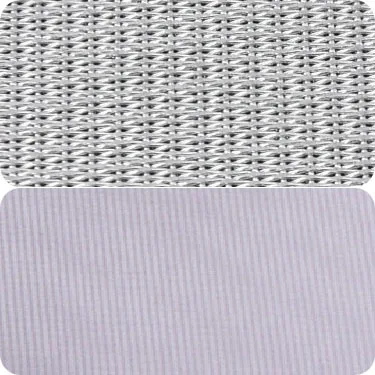

D-type sintered mesh
This is a sintered mesh made by stacking two or three layers of plain weave dutch meshes
with the same precision together through sintering, pressing, rolling and other processes. It has the characteristics of uniform holes and stable air permeability. Mainly used in fluidized bed, powder conveying, silencer, drying, cooling and other industries fields.Material
Standard material SUS316L (AISI316L)
Size
The standard size is 500×1000mm, 600×1200mm. The size within the above range can be customized according to user requirements.
Standard material SUS316L (AISI316L)
Size
The standard size is 500×1000mm, 600×1200mm. The size within the above range can be customized according to user requirements.

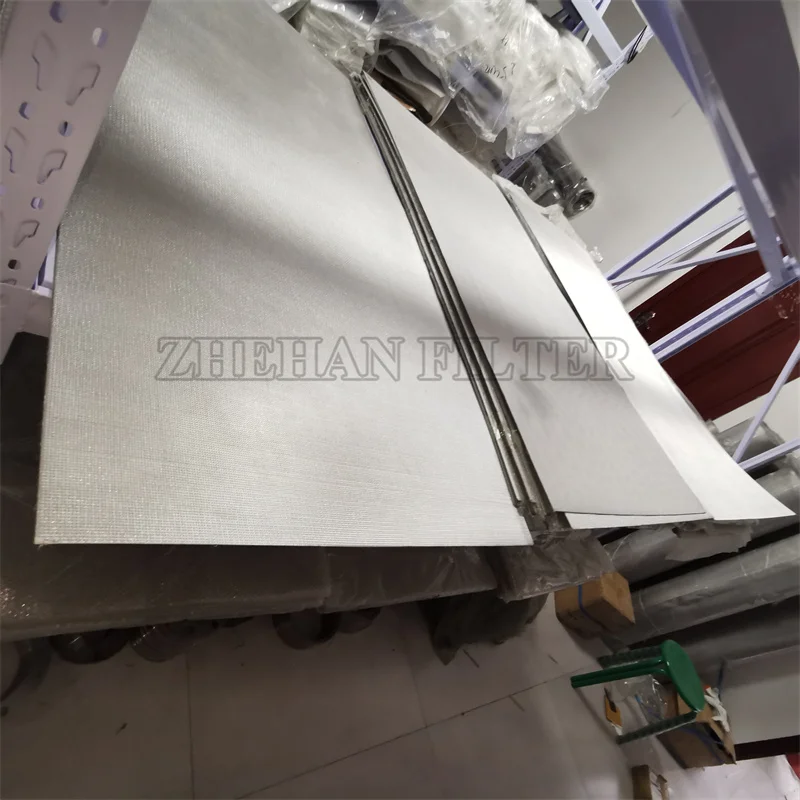

Stock in hand
Details Images
Company Profile
FAQ
Manufacturer | Yes | ||||||
OEM service | Yes | ||||||
Packaging | plywood cases, boxes lined with waterproof material or custom | ||||||
Delivery Time | Delivery Time: 3---7 days for goods are in stock ; 7-15 days for freshly-made | ||||||
Payment Terms | Alibaba online payment/ TT/ LC/ Western Union/ etc. | ||||||
Shipment | Sea: MSK, MSC, CGM, OOCL, COSCO, CSCL and so on. Air: service provided by the route fron China to all over the world Express: DHL, TNT, UPS, FeDex, EMS, etc | ||||||
After-sales | Any quality problems, will be free to fix or change | ||||||
