SA 1192 High Quality Wholesale Stroke 10mm AC Waterproof Solenoid Push Pull Electromagnet
- Category: Other Electronic Accessories >>>
- Supplier: Wenzhou Chen Intelligent Technology Co. Ltd.
Share on (1600580442893):
Product Overview
Description

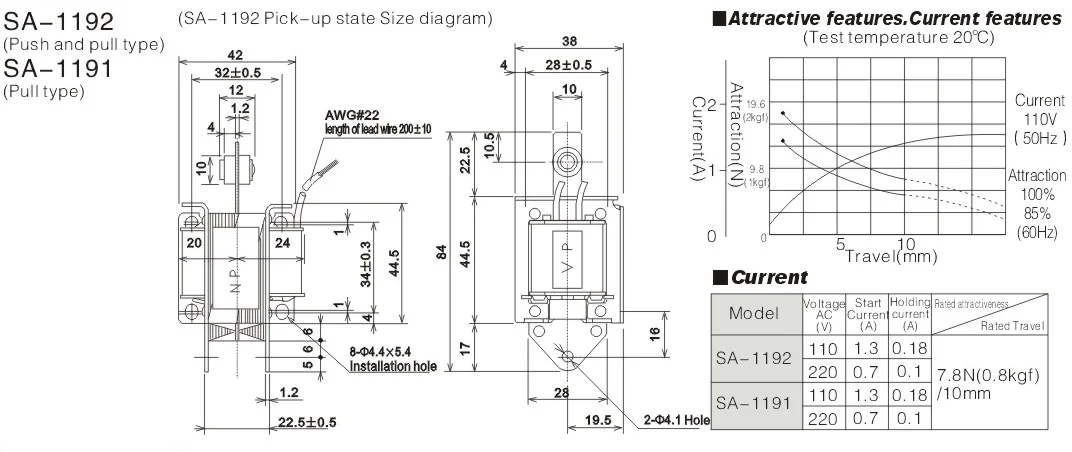

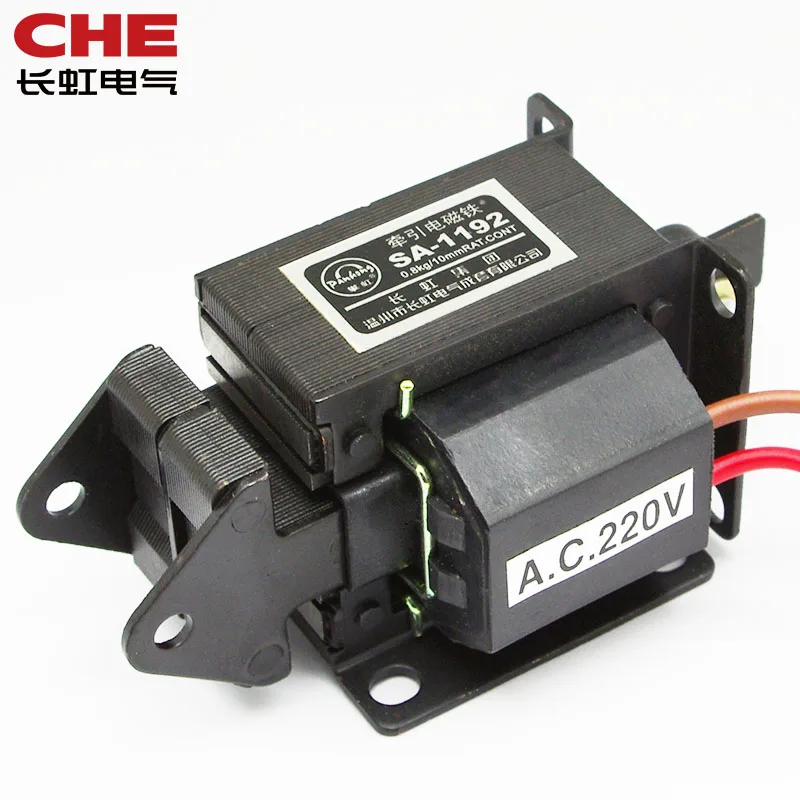

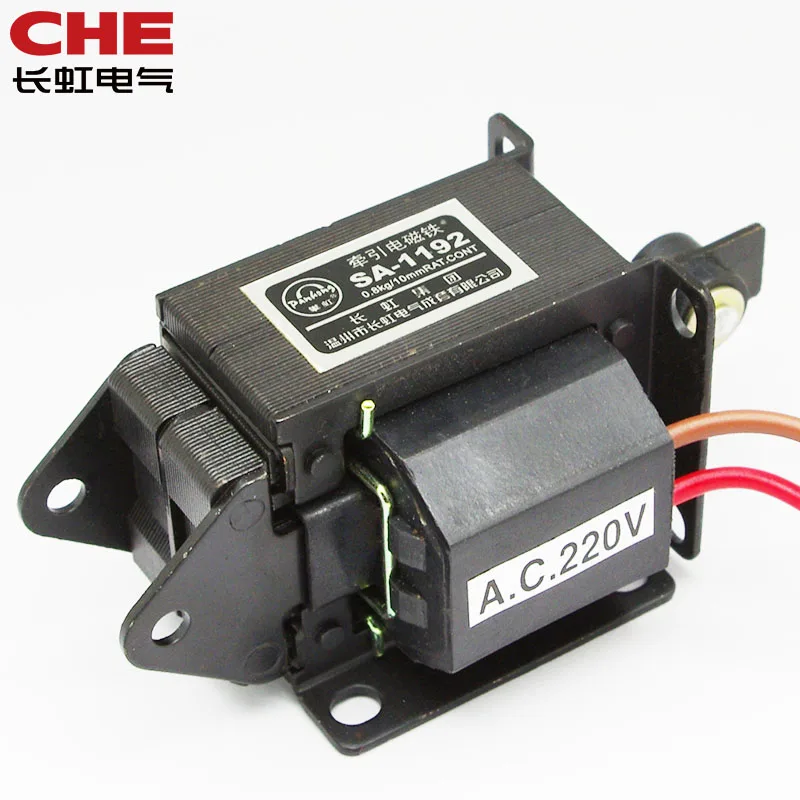

SA-1192 0.8kgf 7.8N 10mm Push-Pull Type AC Solenoid electromagnet
Product Description
SA Series electromagnet,Patent Number ZL00251767.1,is the latest achievement of high quality AC solenoid.It has adopted the high quality silicon-steel vacuum pouring seal coil,raising the insulation characteristics,safe and reliable,good appearance,small volume,light weight,attract and close fast and save energy.Mainly used in circuit of AC 50/60 HZ,rated voltage 415 to remote control of machinery equipment automation system and varies of operation mechanisms.This products accorand with the standard GB14048.5.
| Model | Action forms | Rated stroke | Rated force | Rated voltage | Rated cycle | Insulation class |
| mm | N(kgf) | V | HZ | |||
| SA-1192 | PUSH-PULL | 10 | 7.8(0.8) | AC220orAC110 AC380 AC24 AC36 Non-standard voltages can be customized | 50/60HZ Common (2 leads wire) | A |
| Model | Insulation resistance | Frequency voltage | Temperature rise | Rated operating frequency | Movable iron core weight | Total weight |
| 60% | g | g | ||||
| SA-1192 | DC500V 50MΩ above | AC1500V 1 Minute | Below 85°C | 1500 time / hour | 96 | 295 |
  |
Company Information
Wenzhou CHEN Intelligent Technology Co., Ltd is a manufacturer of solenoid, timer, kwh meter, fuse base, ac contactor, circuit breaker, sensor, switch and so on with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in automatic control system, industrial automation control, office automation, medical equipment and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Packaging & Shipping
FAQ
1. Q : Can I get some samples?
A : Yes. But you have to pay the samples and the express cost.
2 . Q : How about your delivery time?
A : Generally, we have standard models in stock and will arrange delivery to you as soon as possible. The specific delivery time depends on the items and the quantity of your order. ( Within 30 days )
3 . Q : Is it possible to customize the product?
A : Yes. Customize according to your needs or produce by your samples.
4 . Q : What's the payment terms?
A : 100% payment in advance for customized products,
30% in advance, 70% before shipment for standard models. (Could be negotiated )
