2mm Thick Polycarbonate embossed Sheet for bending

Share on (1600580443205):


Price:$3.00 - $3.30

Quantity:


Product Overview

Description



Product Description

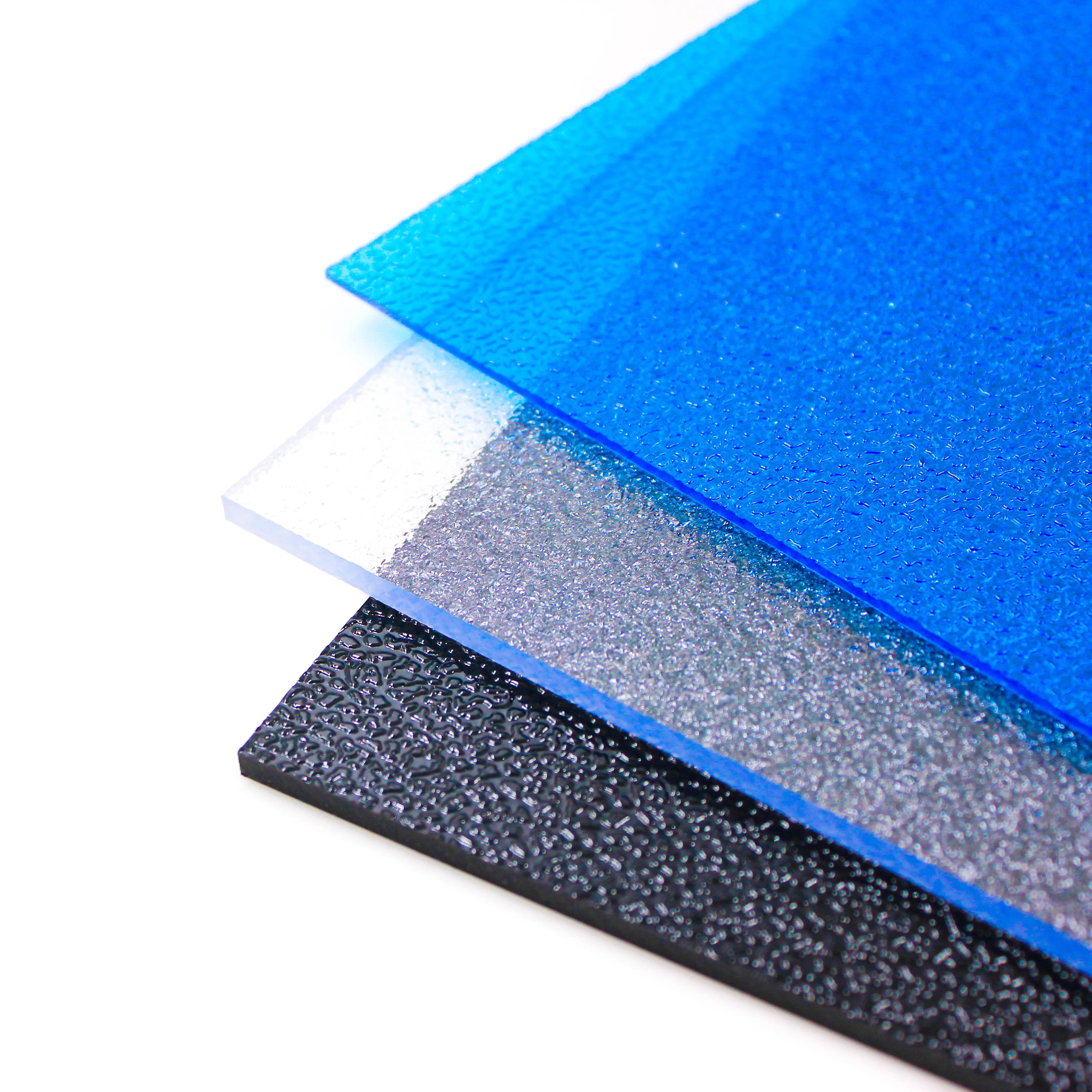

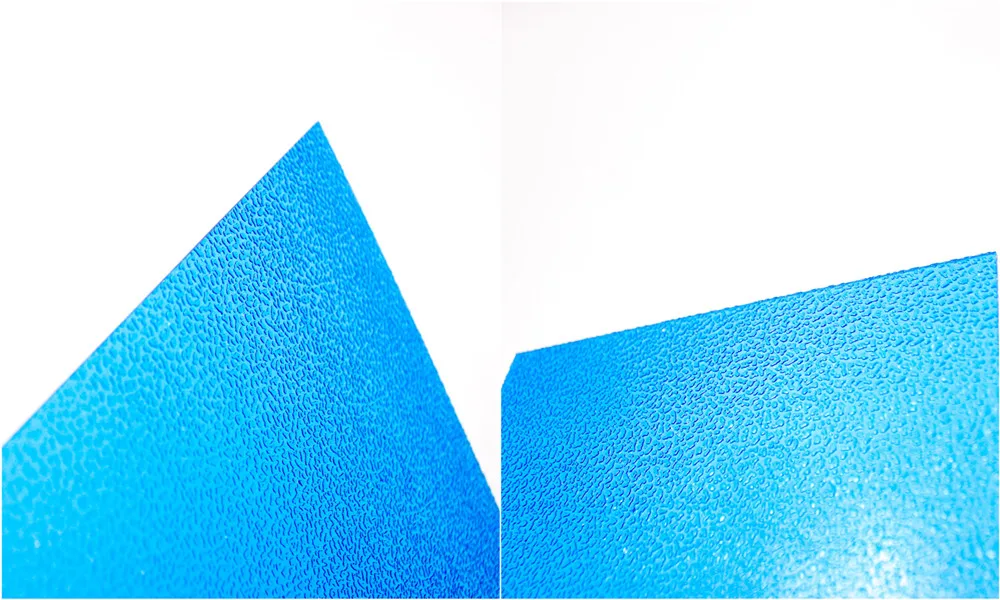

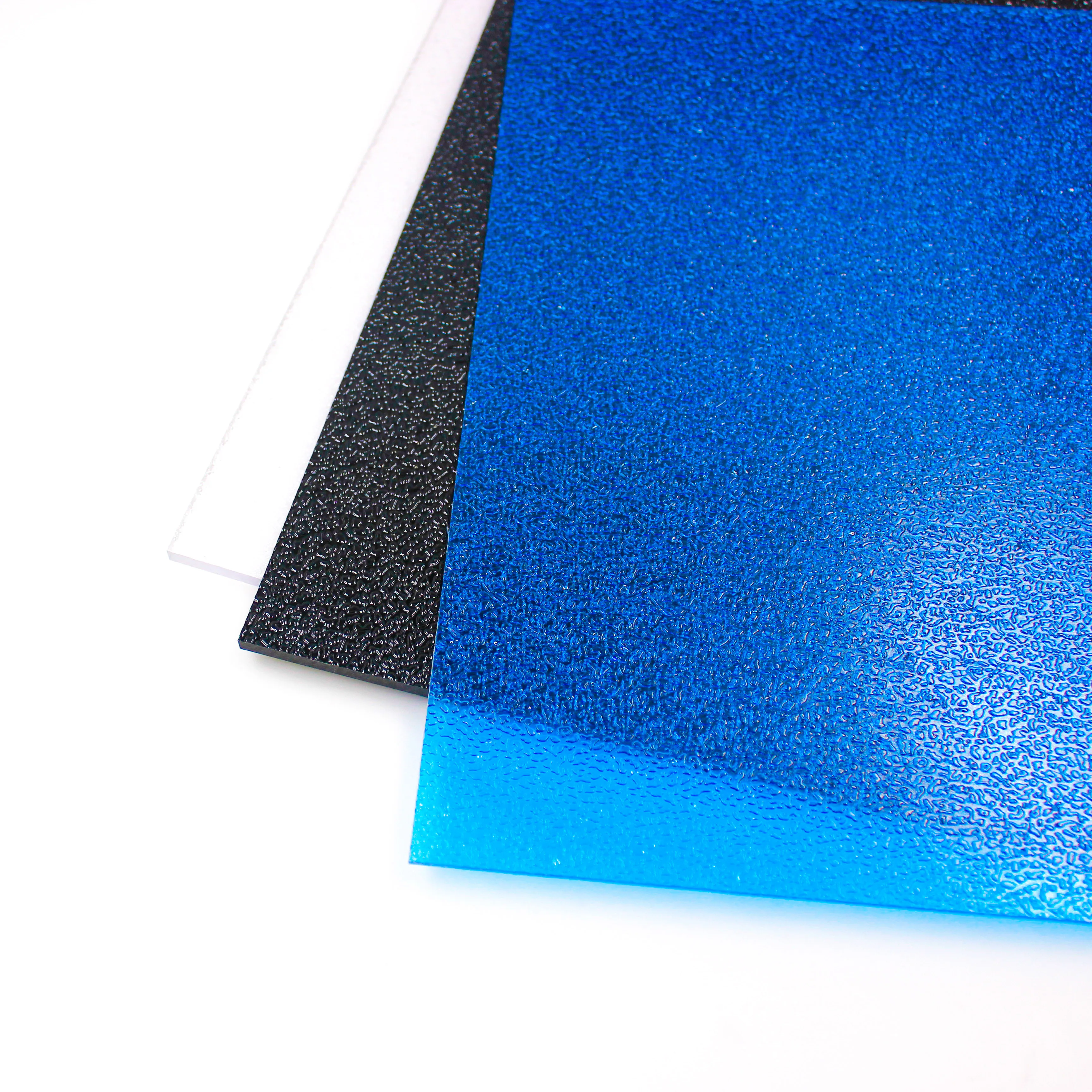

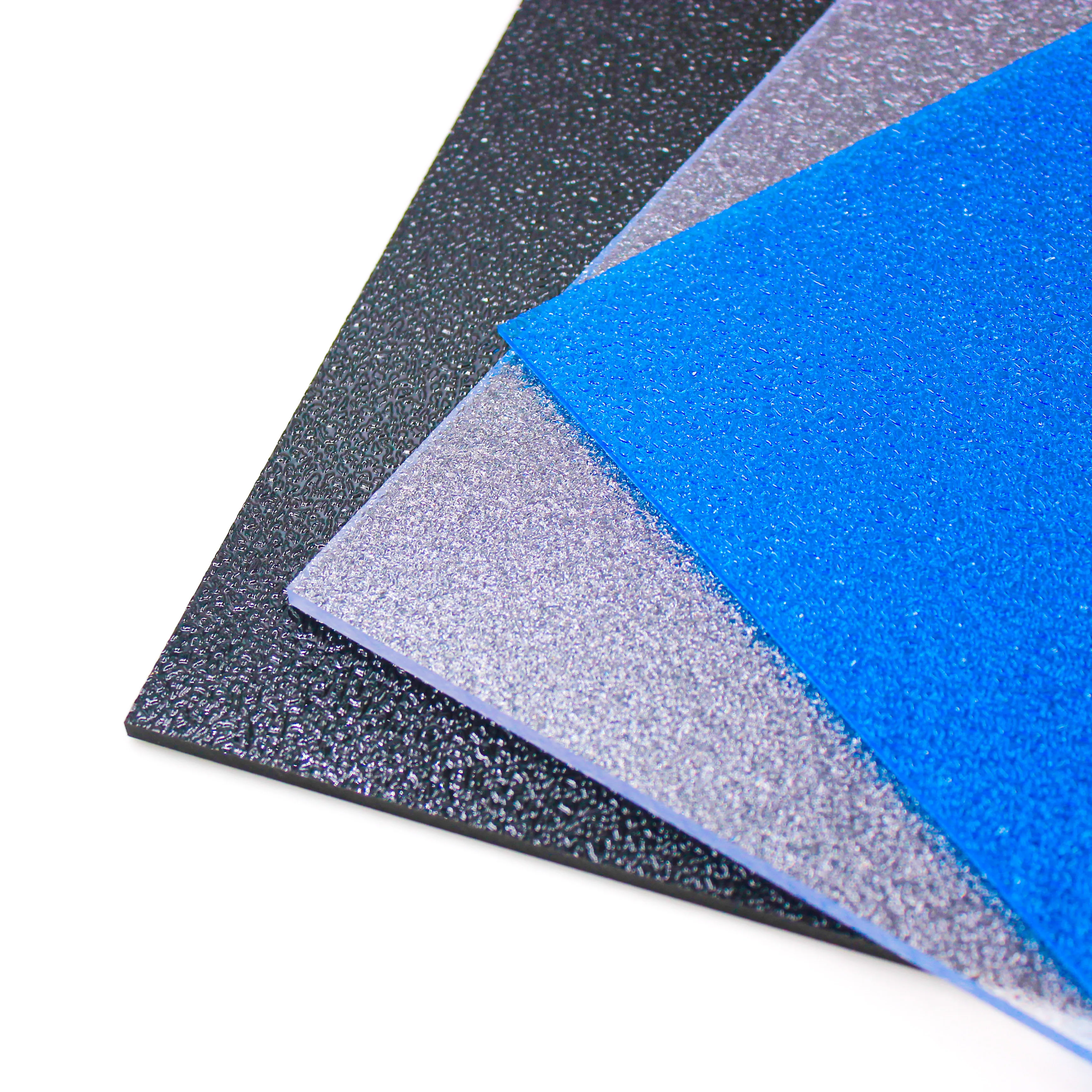

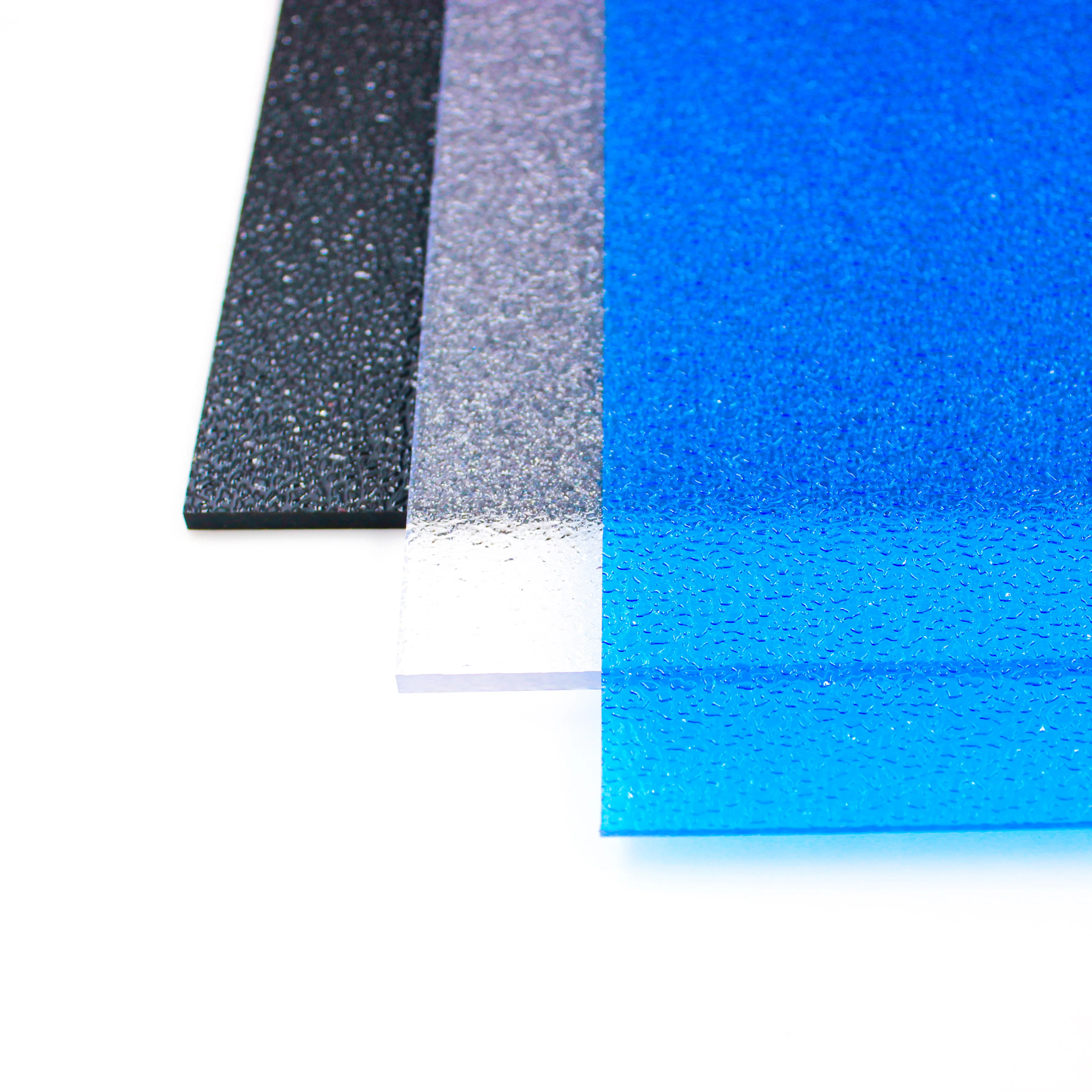

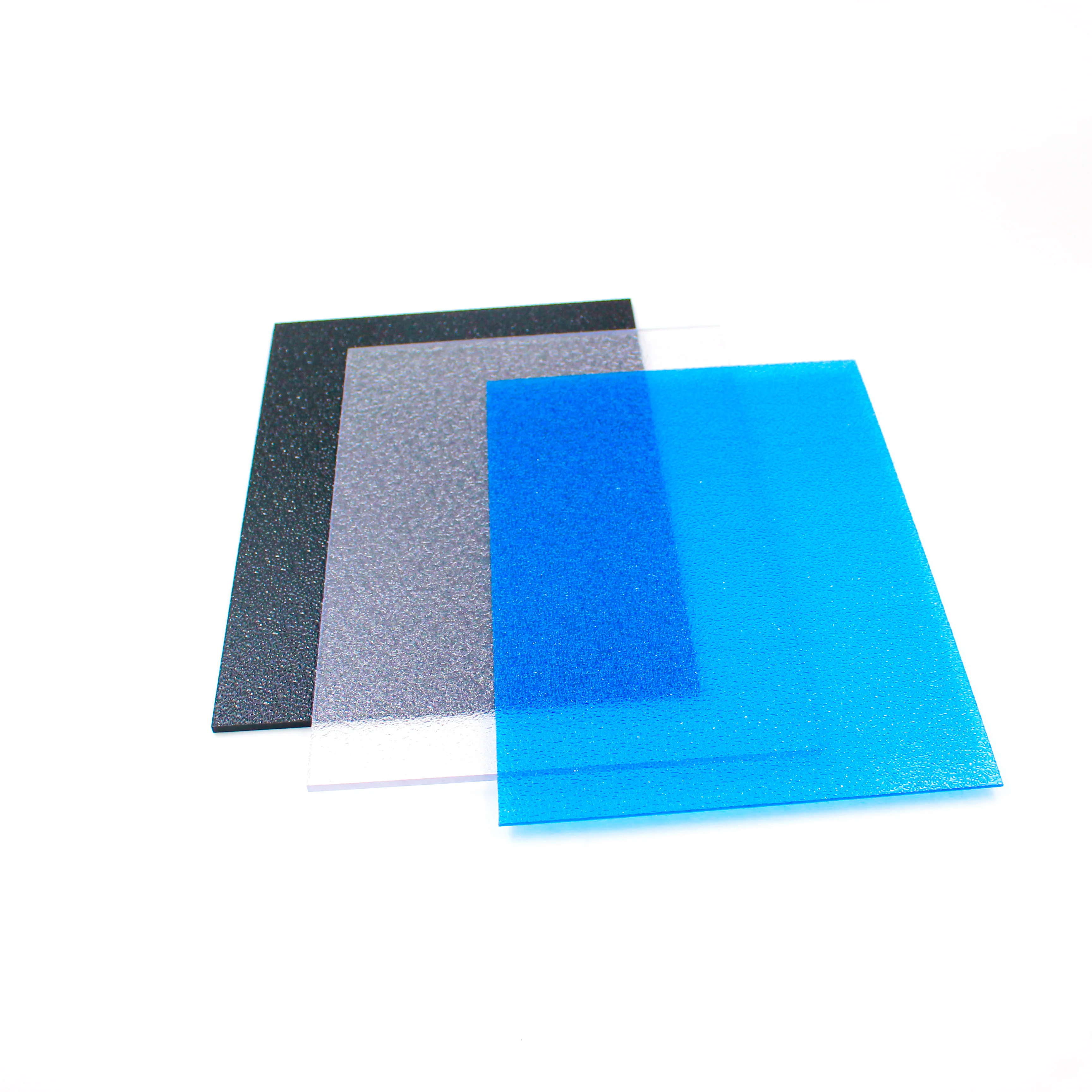

Embossed polycarbonate sheet










Embossed polycarbonate sheet is suitable in enviroments where safety is paramount. Embossed polycarbonate sheet has a class 1 fire rating that is significantly better than acrylic,making it ideal for use in public areas. Embossed polycarbonate sheet combines ultra-high impact resistance with clarity, making it the material of choice for demanding applications. Polycarbonate solid sheet is virtually unbreakable, yet it is transparent as glass at less than half its weight.Embossed polycarbonate sheetcan be cold bent and easily fabricated and formed, making it ideal for barrel vault roofing, skylights, architectural roofing and glazing. Clear, translucent and opaque Polycarbonate solid sheets are also ideal as machine guards, sound barriers, anti-vandal and safety glazing. Polycarbonate solid sheets Diffuser and LB sheets are extensively used in durable light boxes.










physical data.jpg




























































































Solid pc sheet Properties


Test Method


Average Index


Specific Gravity


ASTM D792


1.20


Tensile Strength


JIS K6735;CNS11335


551 kgf/cm²


Elongation


JIS K6735;CNS11335


50%


Compressive strength


ASTM D695


830 kgf/cm²


Modulus of Elasticity


ASTM D638


345000PSI+/-10%


Flexural Strength


ASTM D790


950 kgf/cm²


Yellowing Index
(UV-Grade apply)


ASTM D1925
(After exposure to sunlight for 3 years)


Below 3.0


Light Transmittance


wave length 500nm(UV/VIS)


88%


UV-Ray Penetrability
(UV-Grade apply)


wave length 500nm(UV/VIS)


2.4%


Weather Resistance
(UV-Grade app)


(Continously exposed to sunlight for 3000 hours)


yellowing index below5


Impact Strength


CNS11335
(1kg iron ball falls from 120cm height)


Unbreakable


Inflammability


UL 94V2
(contact with flame for 10 seconds and move away)


Self-extinguishing


Deflection Temperature


ASTM D648,18.6KG/cm²


135℃(the highest temp is about 120℃ in continuous uses)


Brittle Temperature


ASTM D764


(the lowest temp is about +30℃ in continuous uses)


Coeffcient of Liner Expansion


Pertain to smaller coefficent of synthetic resin


polycarbonate sheet






 F[8XV_)C[ULKXFDQ]KZL%B.pngapplication and benefits.jpg






Benefits




1)High impact resistance - virtually unbreakable
2)High clarity and light transmission
3)Weather and UV resistant
4)Wide service temperature range
5)Blocks harmful UV radiation
6)Good acoustical insulation
7)Lightweight
8)Easy to handle and install
9)Versatile, formable, and machinable










Applications




1)Architecture: Transparent acoustic barriers, Sport venues, Skylights, Shopping centers, Covered walkways
2)Construction: Sun rooms and conservatories, Pergolas and covered patios
3)Safety and Security Glazing: Safety glazing, machine guards,
Bus stops and telephone booth
4)Shields for police and security forces, Glazing in public transportation,
Safety windshields for cars, Eye protection visors for  helmets
5)Sign & Display: Signs, public sign guards, Displays, P.O.P stands, Illuminated signs, light fixtures
6)Fabrication: Thermoformed, vacuum formed, bent and fabricated items






.jpg




.jpg
