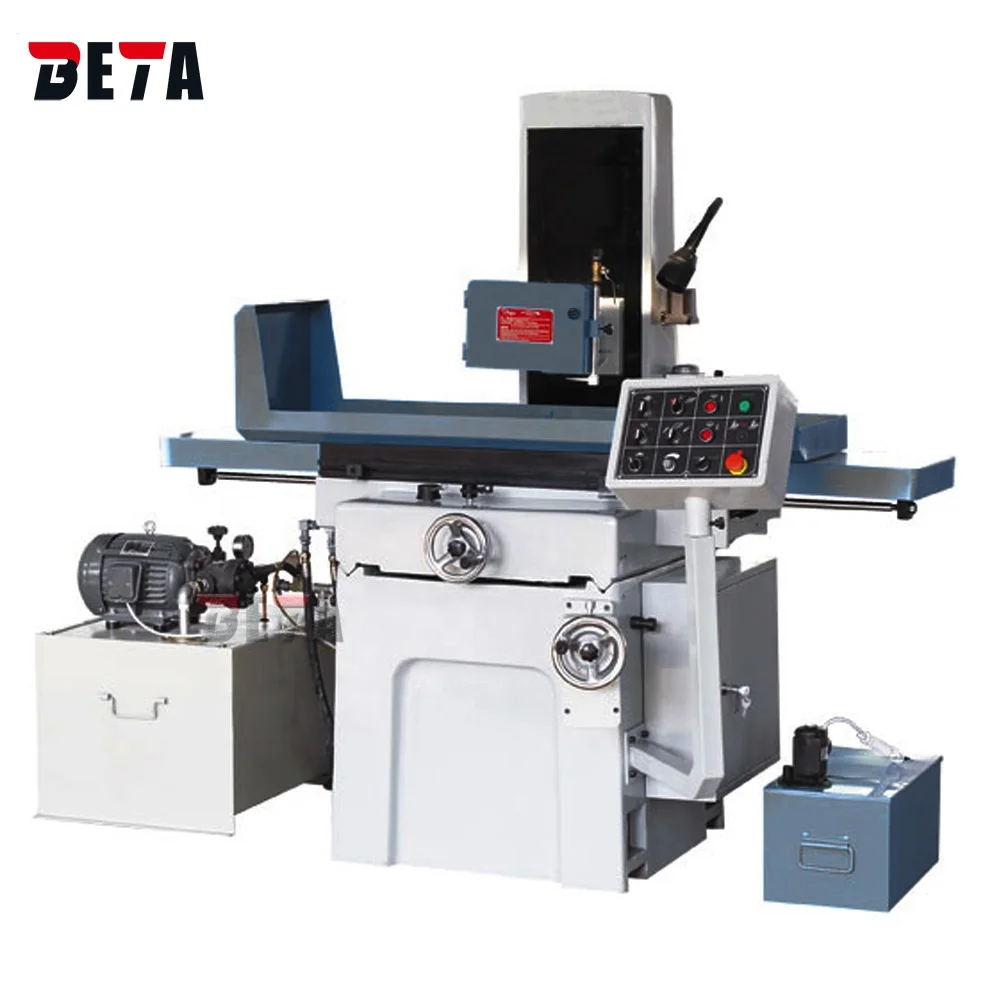

MY1224 Economic low noise grind combo Surface metal grinding machine price
MY1224 Economic low noise grind combo Surface metal grinding machine price

MY1224 Economic low noise grind combo Surface metal grinding machine price

Share on (1600580450360):


Price:$5,500.00 - $5,800.00

Quantity:


Product Overview

Description



Products Description


MY1224 Economic low noise grind combo Surface metal grinding machine price




Product Parameters


Model
MY1224
Working table
Table Size (L* W)
mm
600*300
Max movement of working table(L* W)
mm
630*320
T-Slot (number*width)
mm
1*14
Grinding wheel
Max distance from spindle center to table surface
mm
520
Wheel Size(Outer diameter*width*Inner diameter)
mm
Φ300*30*Φ76.2
Wheel speed
50HZ
r/min
1450
60HZ
1680
Feed amount
Longitudinal speed of working table
m/min
3-20
Cross feed(front and rear) on handwheel
Continuously (Variable Transmission)
mm/min
600
Intermittently(Variable Transmission)
mm/times
0-6
Per revolution
mm
4
Per graduation
mm
0.02
Vertical(up and down) feed on handwheel
Per revolution
mm
2
Per graduation
mm
0.01
Speed of vertical feed
mm/min
360
Motor power
Spindle motor
kw
2.2
Coolant pump motor
W
40
Lifting motor
W
120
Hydraulic system
Hydraulic motor
kw
2.2
Working pressure
Mpa
4
Oil tank capacity
L
100
Max flow
L/min
20
Working precision
The parallelism of working surface to base level
mm
300:0.005
Surface roughness
μm
Ra0.32
Weight
Net
kg
1400
Gross
kg
1530
Overall dimension (L*W*H)
mm
1960*1480*1850
Package dimension(L*W*H)
mm
2000*1640*2020


Details Images


Standard configuration:
Tool box
Balancing stand
Balancing arbor
Grinding wheel
Wheel flange
Screw driver
Magnetic chuck
Wrench
