Product Overview
Description

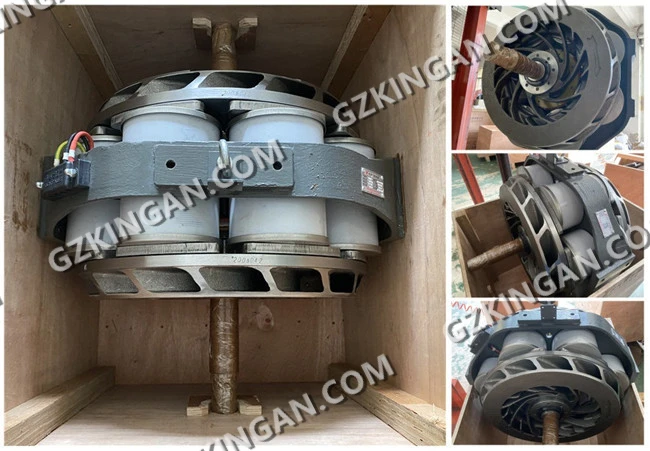

DC192V 2200N.m retarder eddy current absorber for dynamometer
KA series air cooled eddy current dynamometer retarder is designed based on the domestic automobile testing equipment. Our Retarder brake torque ranges from 500N.m ~ 3800N.m. Welcome to contact us for more information about our dynamometer retarder list and prices. We supply DC24V, 48V, 96V,192V retarders for options.
Model | Max speed (rpm) | Max torque (N.m) | Rated power (kw) | Dimensions (mm) |
KD2200 | 4300 | 2200 | 275 | 546×560×316 |
KD2400 | 4300 | 2400 | 290 | 546×560×316 |
KD2800 | 4000 | 2800 | 350 | 555×650×360 |
KD3000 | 4000 | 3000 | 400 | 568×650×363 |
KD3500 | 4000 | 3500 | 500 | 640×622×418 |
Application
Our dynamometer retarder is mainly applicable in:
●Brake tester;
●Test bench equipment;
●Roller chassis dyno;
●Auto chassis dynamometer;
●Motorcycle chassis dynamometer;
●Emission loading equipment;
●Vehicle chassis dynamometer;
●Motor vehicles, as well as teaching test demonstration instrument used as a load and torque measurement.
●Test bench equipment;
●Roller chassis dyno;
●Auto chassis dynamometer;
●Motorcycle chassis dynamometer;
●Emission loading equipment;
●Vehicle chassis dynamometer;
●Motor vehicles, as well as teaching test demonstration instrument used as a load and torque measurement.

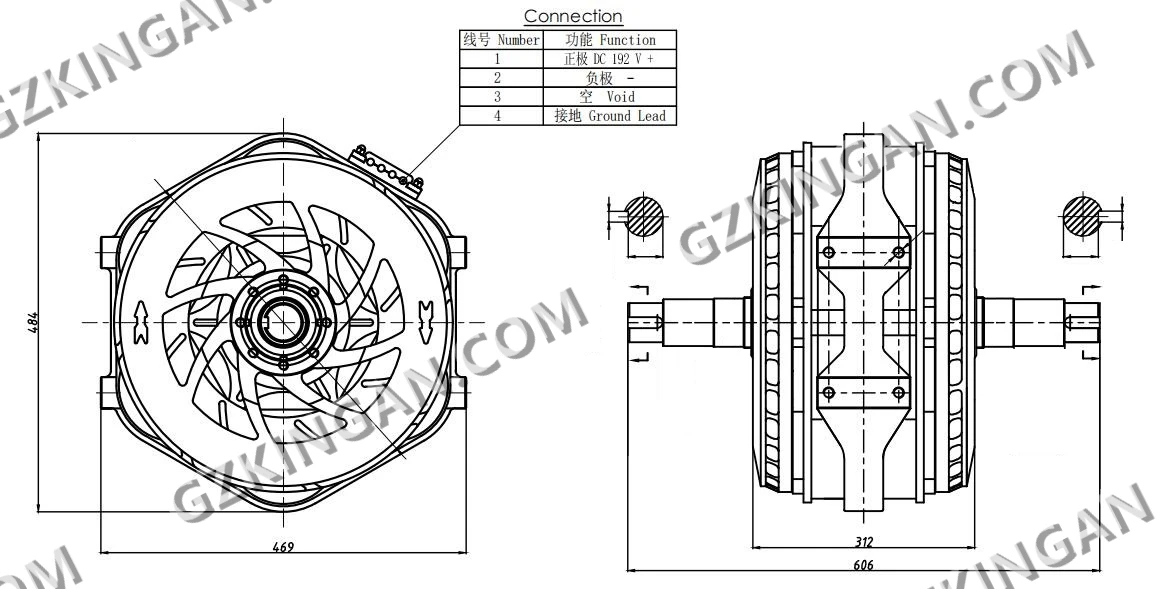

Dimension Drawing
This drawing is for display purpose, if you want to know the specific detail dimension, please contact us.
