Product Overview
Description
Product Description
Characteristics:

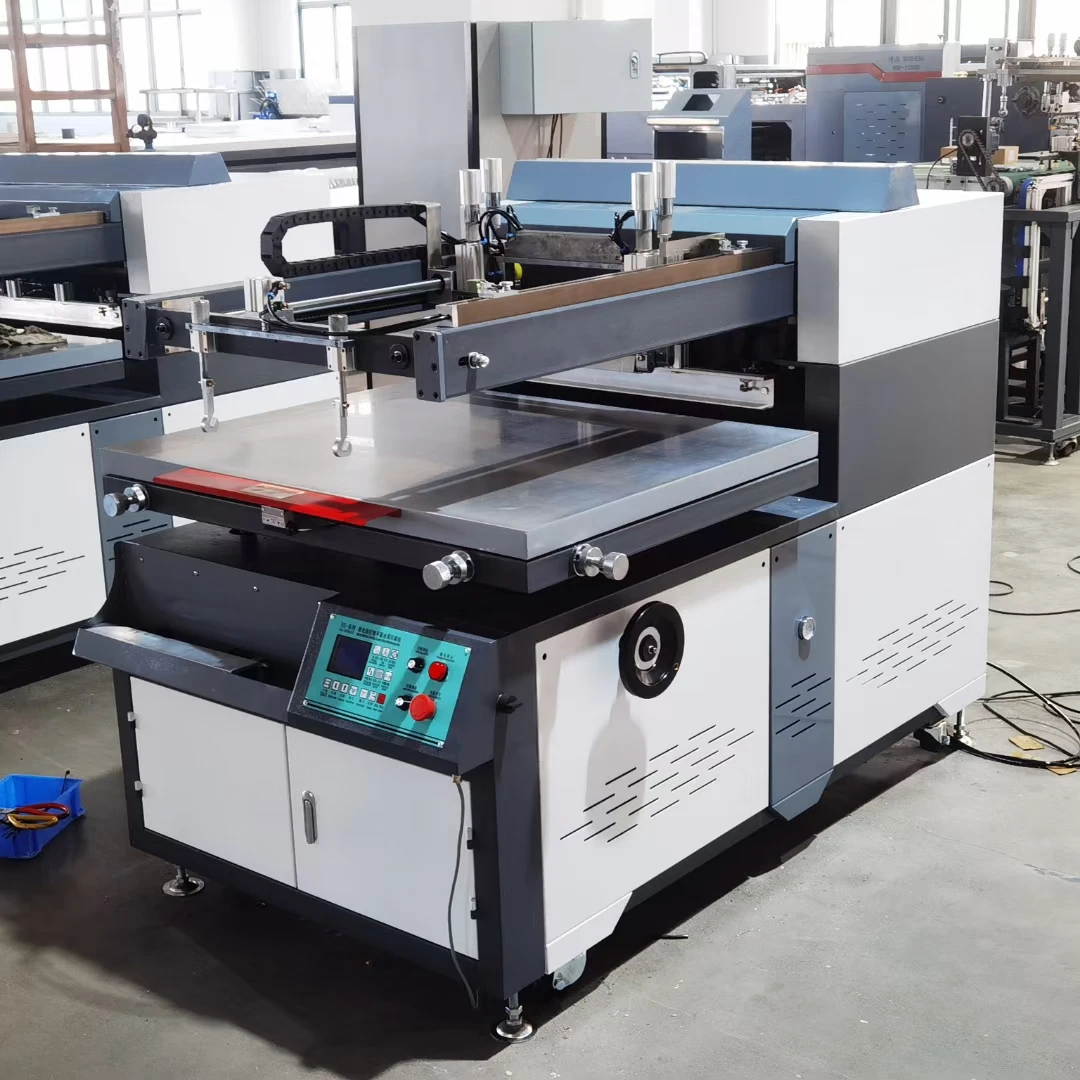

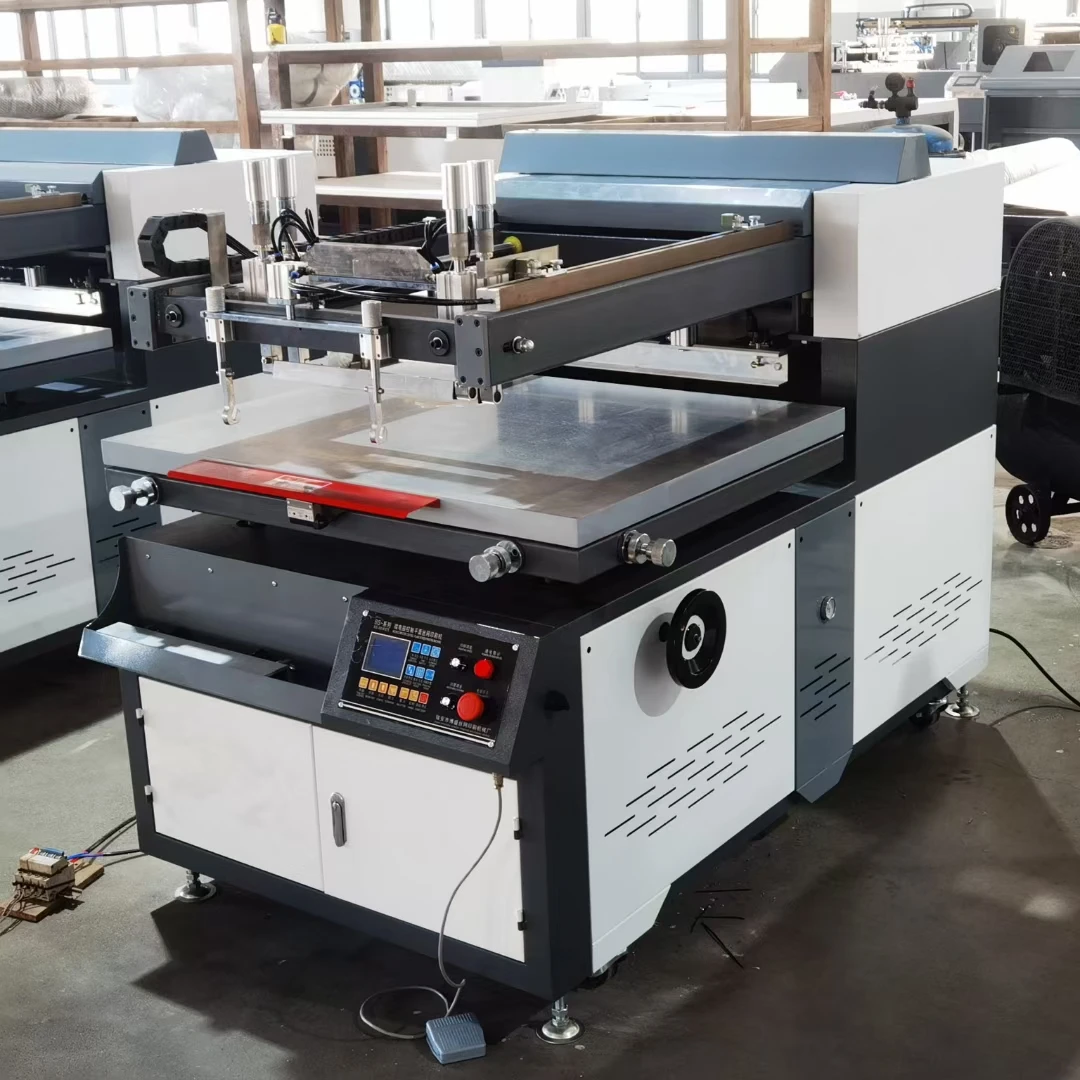

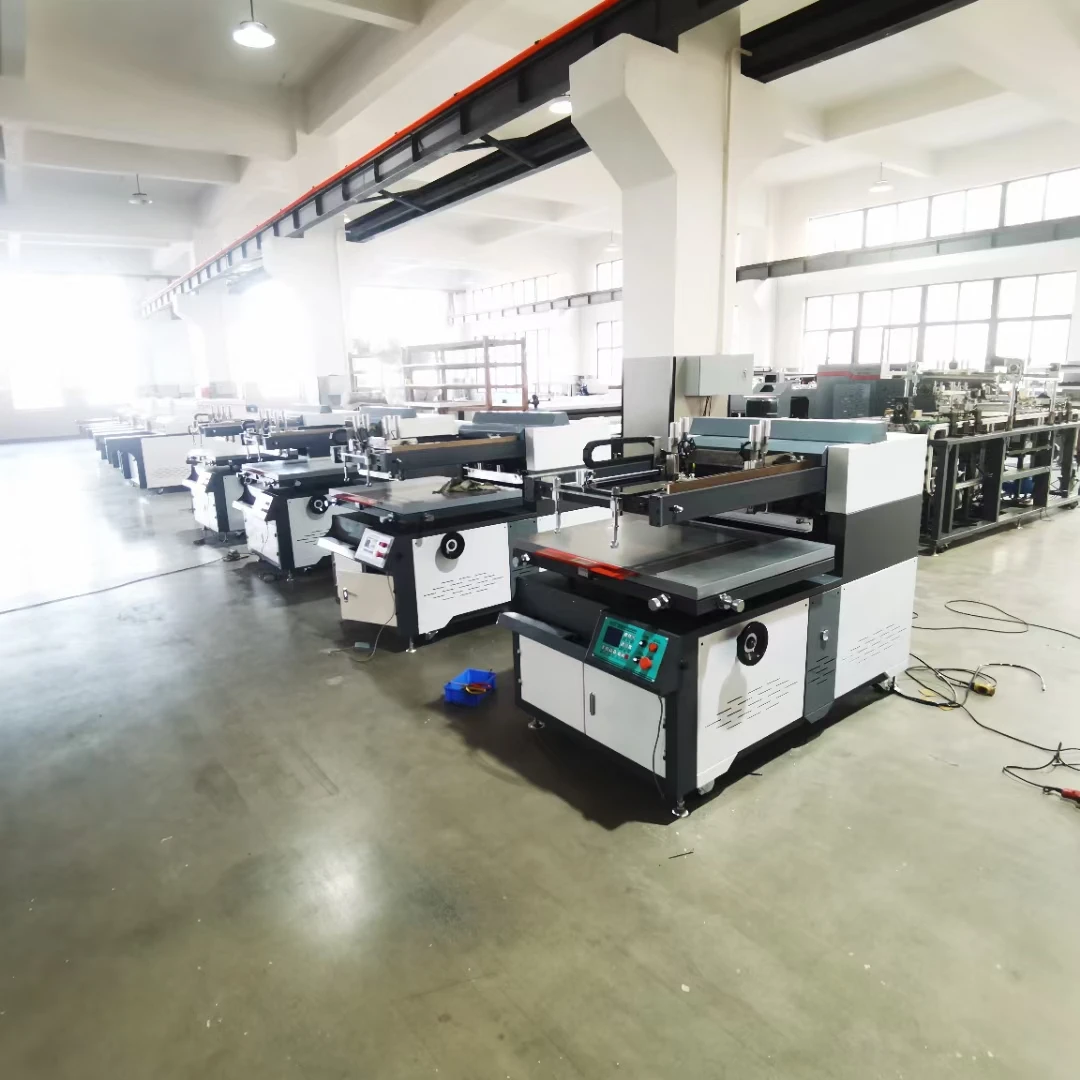

The machine is composed of printer part, take-off set machine and UV dryer. It is a 3/4 automatic production line which feeds mate-rial to printer by human hand, then takes off material automatically.
After printing is finished, the printing arm put up, mechanism arm of takeoff set machine will extend into between the printing arm and printing table, suck and pull out the printing material, then send it to next working procedure (drying and paper collecting). It can not only save human labor, but also improve working efficiency of printing machines. It is fit for printing on
flexible mate-rails such as paper and polyester plastic film and so on.
After printing is finished, the printing arm put up, mechanism arm of takeoff set machine will extend into between the printing arm and printing table, suck and pull out the printing material, then send it to next working procedure (drying and paper collecting). It can not only save human labor, but also improve working efficiency of printing machines. It is fit for printing on
flexible mate-rails such as paper and polyester plastic film and so on.
Overview
The machine is economical and universal; With beautiful modeling of four corners of the manufacturing process for circular arc(change the traditional square tube right Angle welding), convenient and flexible operating system and high-speed and stable printing and reasonable price advantages, widely favored by users;Products are widely used in hard items, plastic leather, non-woven bags, film switches, self-adhesive, process porcelain paper, heat transfer printing, watermarking, security and scratch card printing, card, gift box, wine box, desk calendar calendar, books and other surface local UV, ice, wrinkles, refraction, scrub and other printing and scraping glue on the flat substrates.
Features and functions:
1. the machine is double frequency control (swing arm and printing) motor synchronous belt drive, frequency control speed,stable operation.
2. multifunctional LCD computer version, control the whole operating system, powerful, simple and convenient operation.
3. scraper pressure adjustment mode: self-locking four cylinder control printing scraper and ink knife, each cylinder can adjust the pressure.
4. The machine is equipped with multiple functions of double scraper, which can change the ink-returning knife into scraper, and then the front and back can be scratched.
5. the printing arm and after the screen frame clamping device for the split mode, the screen can swing independently, convenient printing manual plate positioning.
6. printing platform in each direction of flexible fine-tuning, easy to overprint version, accurate alignment.
7. The left side of the operation panel is the toolbox, which is convenient for single machine to save tools and use.
8. printing operation stop braking mode, pneumatic brake device, precise stop
9. this model adds the rear clamp plate for pneumatic locking device, convenient for the operator to load and unload the screen plate and the version, improve the machine grade and work efficiency.
2. multifunctional LCD computer version, control the whole operating system, powerful, simple and convenient operation.
3. scraper pressure adjustment mode: self-locking four cylinder control printing scraper and ink knife, each cylinder can adjust the pressure.
4. The machine is equipped with multiple functions of double scraper, which can change the ink-returning knife into scraper, and then the front and back can be scratched.
5. the printing arm and after the screen frame clamping device for the split mode, the screen can swing independently, convenient printing manual plate positioning.
6. printing platform in each direction of flexible fine-tuning, easy to overprint version, accurate alignment.
7. The left side of the operation panel is the toolbox, which is convenient for single machine to save tools and use.
8. printing operation stop braking mode, pneumatic brake device, precise stop
9. this model adds the rear clamp plate for pneumatic locking device, convenient for the operator to load and unload the screen plate and the version, improve the machine grade and work efficiency.
Basic characteristics:

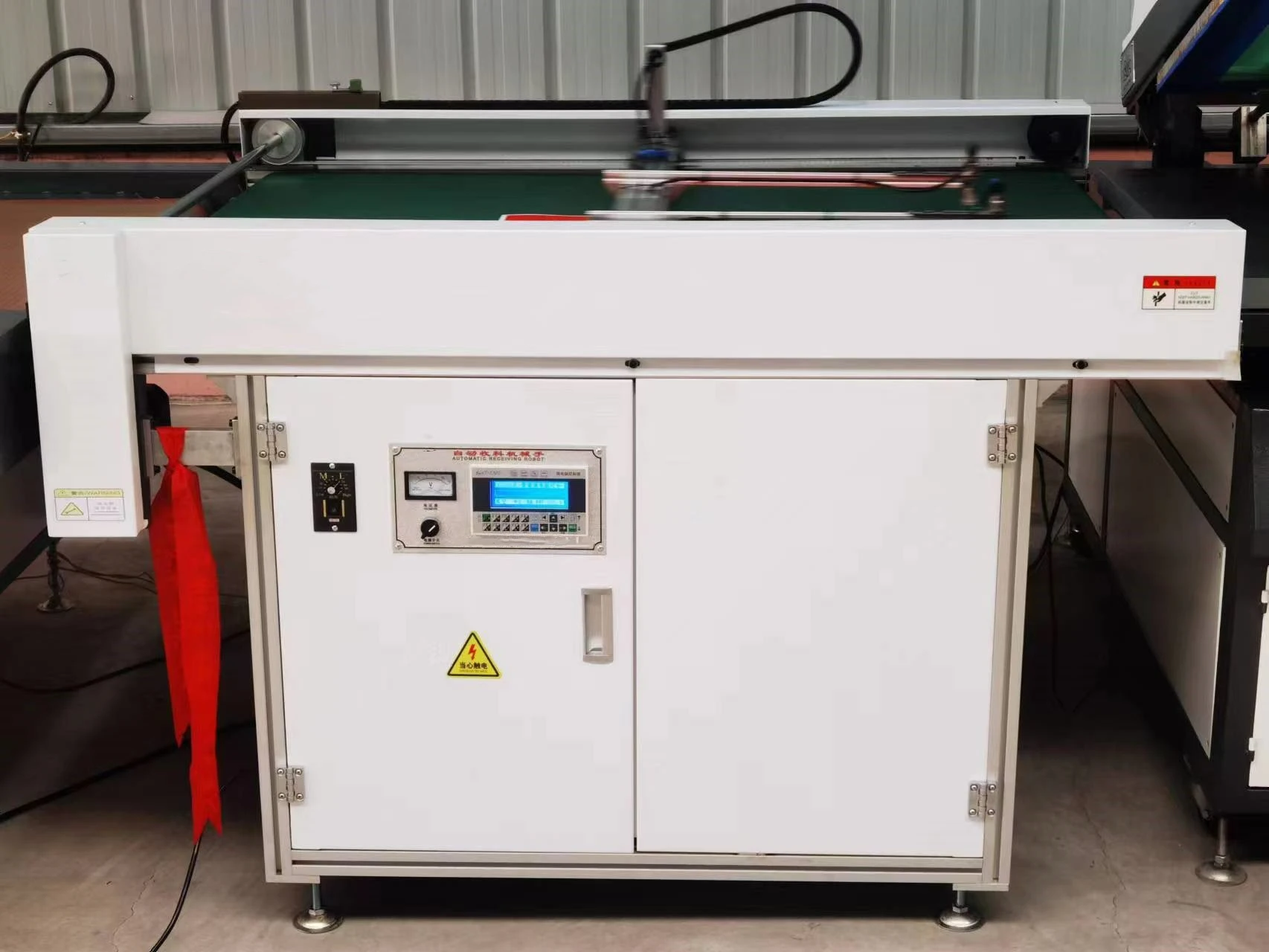

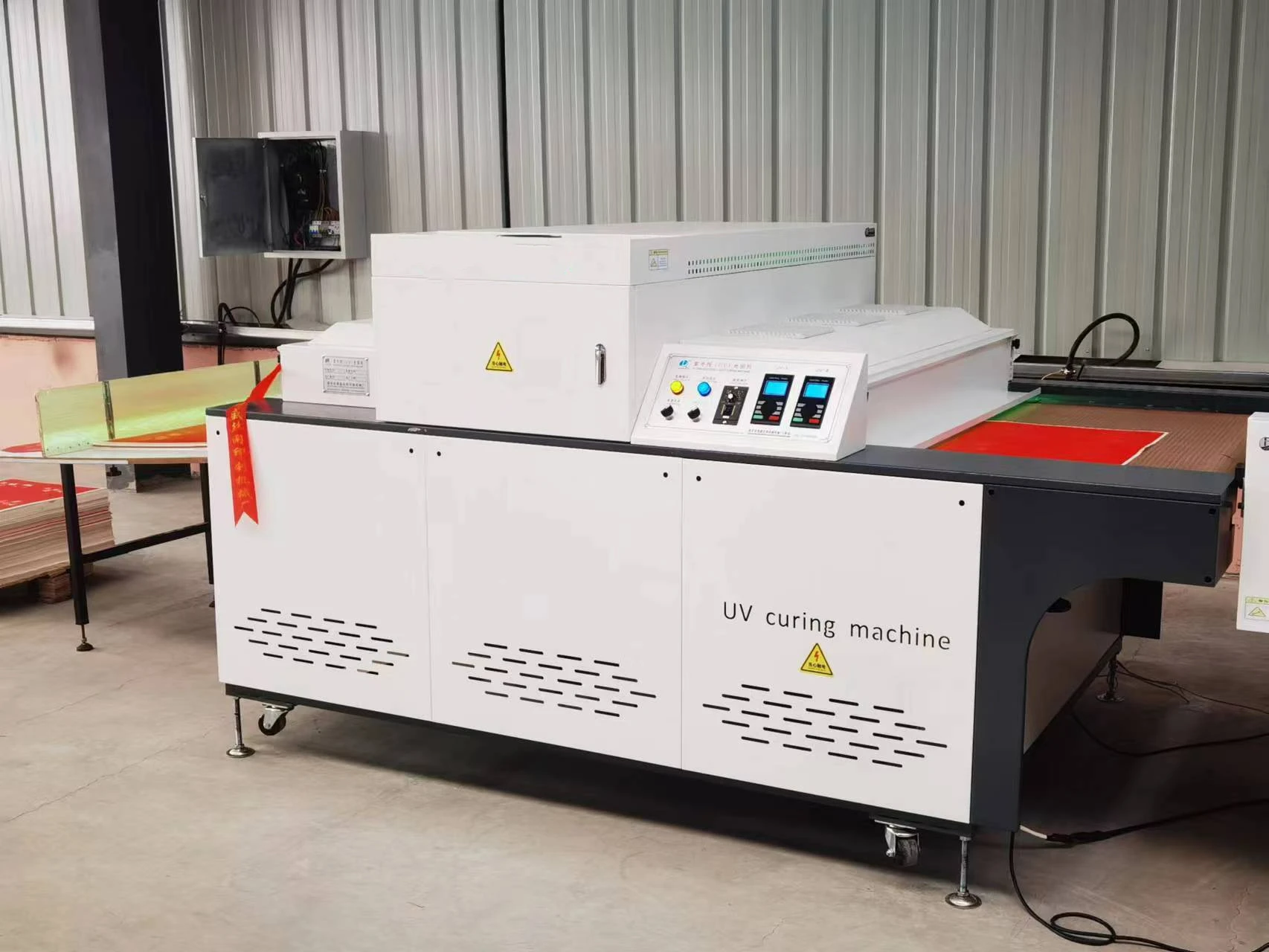

This machine is suitable for curing and drying all kinds of printing UV ink. This machine is equipped with automatic and semi-automatic screen printing equipment printing UV special effects process; Such as local UV glazing, matte, refraction, wrinkles (need to add wrinkle headlamp) and other UV material light curing.
Functional configuration:
1) system mode: electronic power supply UV lamp power stepless voltage regulation,according to UV ink specific drying regulation light power, save energy.
2) lampshade: The use of aluminum magnesium alloy mirror reflection special UV lamp profile lampshade.
3) tube function: UV start automatically monitor the use of the tube and timing, energy consumption, reasonable grasp the service life of UV loss.
4) cooling mode: UV light solid room high-power fan air exhaust heat, axial flow fan cooling lamp shade.
5) operation mode: The use of high temperature and friction resistance 4*4 double dimension Teflon conveyor belt, the channel under the adsorption mode, so that the paper through smoothly.
6) transmission mode: electronic stepless speed regulation, according to the production situation to adjust the transmission speed, manual correction and fine tuning.
7) Appearance technology: The appearance design of this machine is novel; By the whole plate cold rolling laser cutting bending, Appearance spray paint, electroplating, phosphating.
2) lampshade: The use of aluminum magnesium alloy mirror reflection special UV lamp profile lampshade.
3) tube function: UV start automatically monitor the use of the tube and timing, energy consumption, reasonable grasp the service life of UV loss.
4) cooling mode: UV light solid room high-power fan air exhaust heat, axial flow fan cooling lamp shade.
5) operation mode: The use of high temperature and friction resistance 4*4 double dimension Teflon conveyor belt, the channel under the adsorption mode, so that the paper through smoothly.
6) transmission mode: electronic stepless speed regulation, according to the production situation to adjust the transmission speed, manual correction and fine tuning.
7) Appearance technology: The appearance design of this machine is novel; By the whole plate cold rolling laser cutting bending, Appearance spray paint, electroplating, phosphating.
Products Photos
Specification
item | value |
Applicable Industries | Manufacturing Plant, Printing Shops, Other, paperboard factory, cardboard factory, corrugated paperboard factory |
Showroom Location | None |
Condition | New |
Type | flexo printing machine |
Place of Origin | China |
Weight | 1650kg |
Warranty | 1 Year |
Production Capacity | Other |
Key Selling Points | High-accuracy |
Max. workable width | 1200mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 3 months |
Core Components | Motor, Other, Bearing, Engine, PLC |
PLC Brand | Omron, Siemens |
