Rawsuns AC Traction Motors PMSM EV Conversion Kit RDD1100 Bus Truck Electric Powertrain Inverter Control Diesel Electric Drive
- Category: >>>
- Supplier: Rawsun Technology (shantou) Co. Ltd.
Share on (1600580461399):
Product Overview
Description
Recommend Products
Technical supporting
The updated the electric system support files and services below, and add VCU software and BMS software. From now on,you can use the VCU host computer software and BMS software for free when you purchase our electric system. You can set vehicle parameters and battery parameters.
Rawsun VCU Host Computer Software Interface
Certifications
Product Paramenters
Rawsuns AC Traction Motors PMSM EV Conversion Kit RDD1100 Bus Truck Electric Powertrain Inverter Control Diesel Electric Drive
Rawsuns AC Traction Motors PMSM EV Conversion Kit RDD1100 Bus Truck Electric Powertrain Inverter Control Diesel Electric Drive

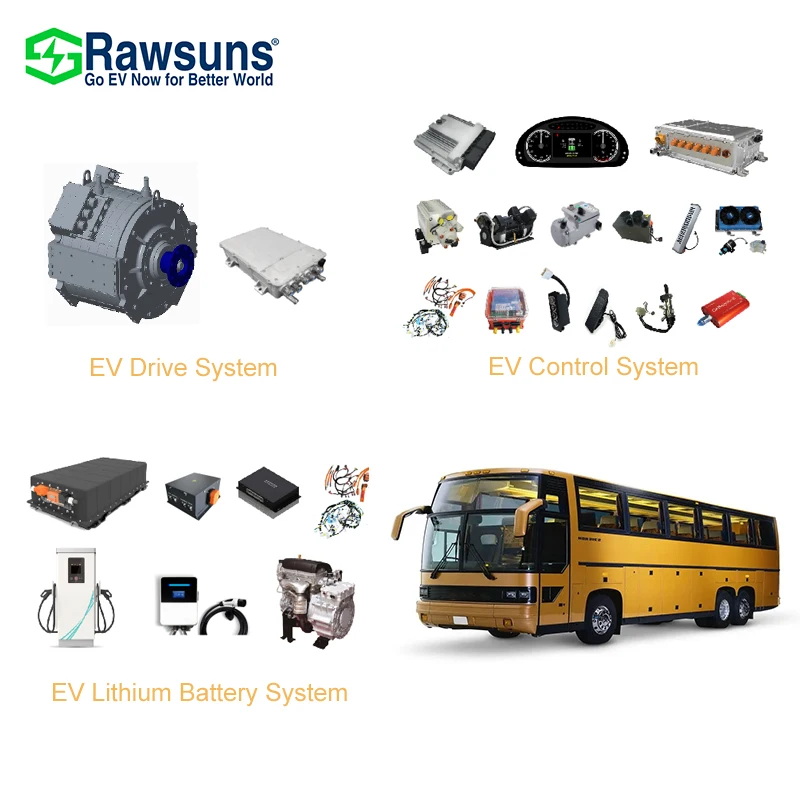

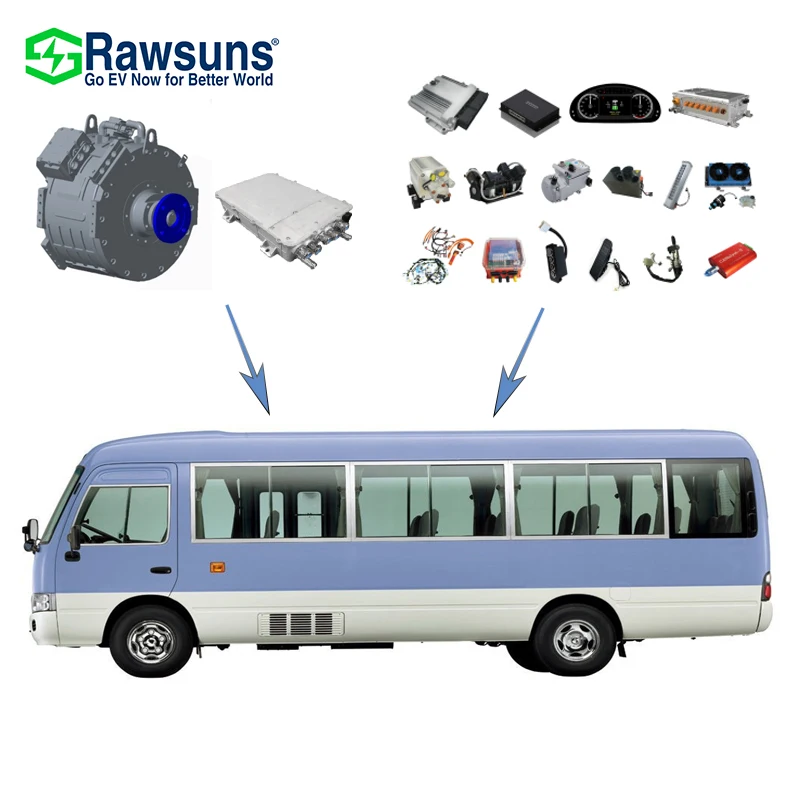

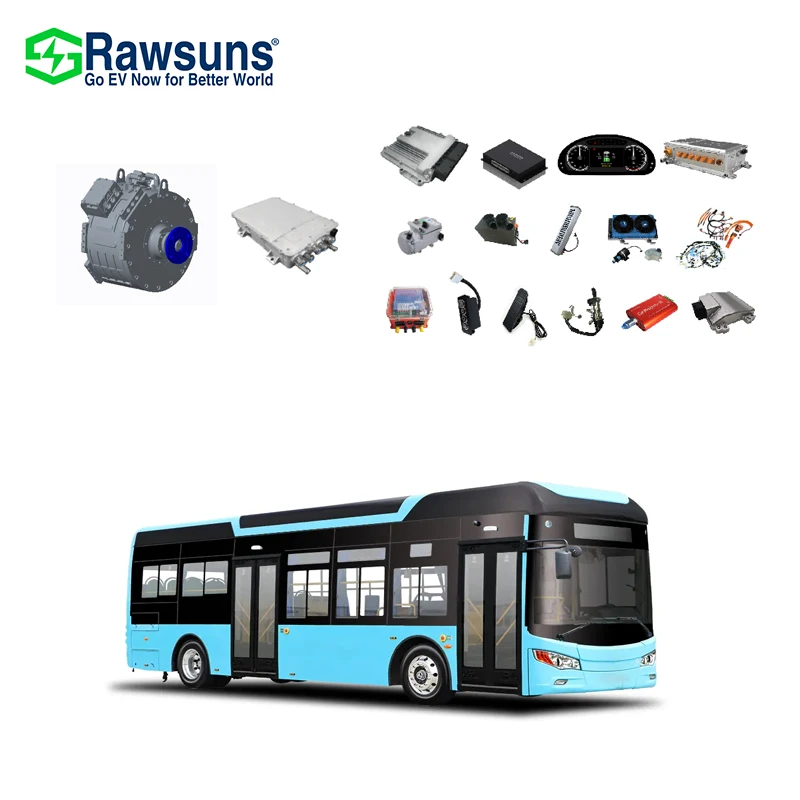

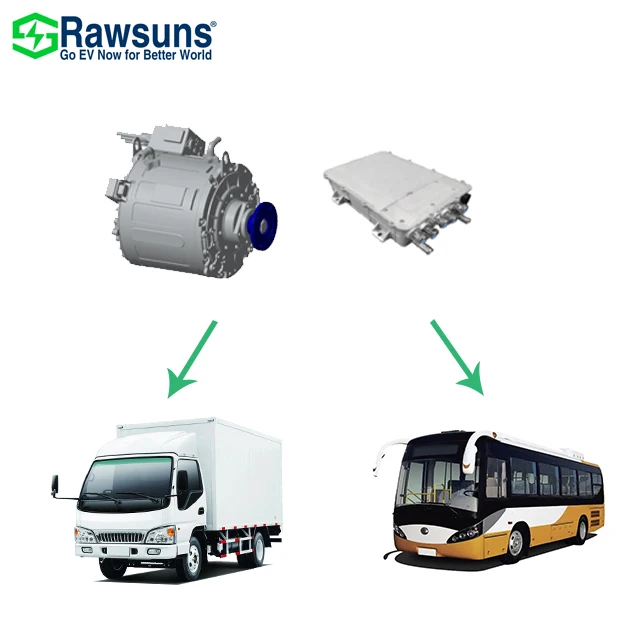

Rawsun EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include electric vehicle drive systems,vehicle control systems and lithium battery systems, Rawsun EV systems are mainly used in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric ships, and electric engineering machineries.
EV Drive System
(1. Drive motor 2. Motor controller 3.Gearbox 4. Axle)
EV Control System
( 5.VCU with software 6.BMS with software 7.Dashboard 8.PDU/Precharge/DCDC/DCAC/DCAC/OBC Integrated Controller 9.Steering hydraulic pump 10. Braking air pump 11. Air Conditioner 12. HV Defroster 13. HV Heater 14.Intelligent cooling system 15. System Wire harness 16. Low voltage distribution box 17. Gear Panel/Operator 18. Accelerator pedal/Operator 19. Ignition lock 20.CANbus Analyzer )
EV Lithium Battery System
(21.battery packs 22. Insulation detector 23. Contactors and fuses 24.Current sensor 25.Temperature sensors 26. MSD 27. Battery PDU 28. Human Machine Interface 29. Thermal management system 30. Battery Wire Harness 31. AC Charger 32. DC Charger 33. Range extender (DC generator ) 34. EVCC Module 35. SECC Module
EV Drive System
(1. Drive motor 2. Motor controller 3.Gearbox 4. Axle)
EV Control System
( 5.VCU with software 6.BMS with software 7.Dashboard 8.PDU/Precharge/DCDC/DCAC/DCAC/OBC Integrated Controller 9.Steering hydraulic pump 10. Braking air pump 11. Air Conditioner 12. HV Defroster 13. HV Heater 14.Intelligent cooling system 15. System Wire harness 16. Low voltage distribution box 17. Gear Panel/Operator 18. Accelerator pedal/Operator 19. Ignition lock 20.CANbus Analyzer )
EV Lithium Battery System
(21.battery packs 22. Insulation detector 23. Contactors and fuses 24.Current sensor 25.Temperature sensors 26. MSD 27. Battery PDU 28. Human Machine Interface 29. Thermal management system 30. Battery Wire Harness 31. AC Charger 32. DC Charger 33. Range extender (DC generator ) 34. EVCC Module 35. SECC Module

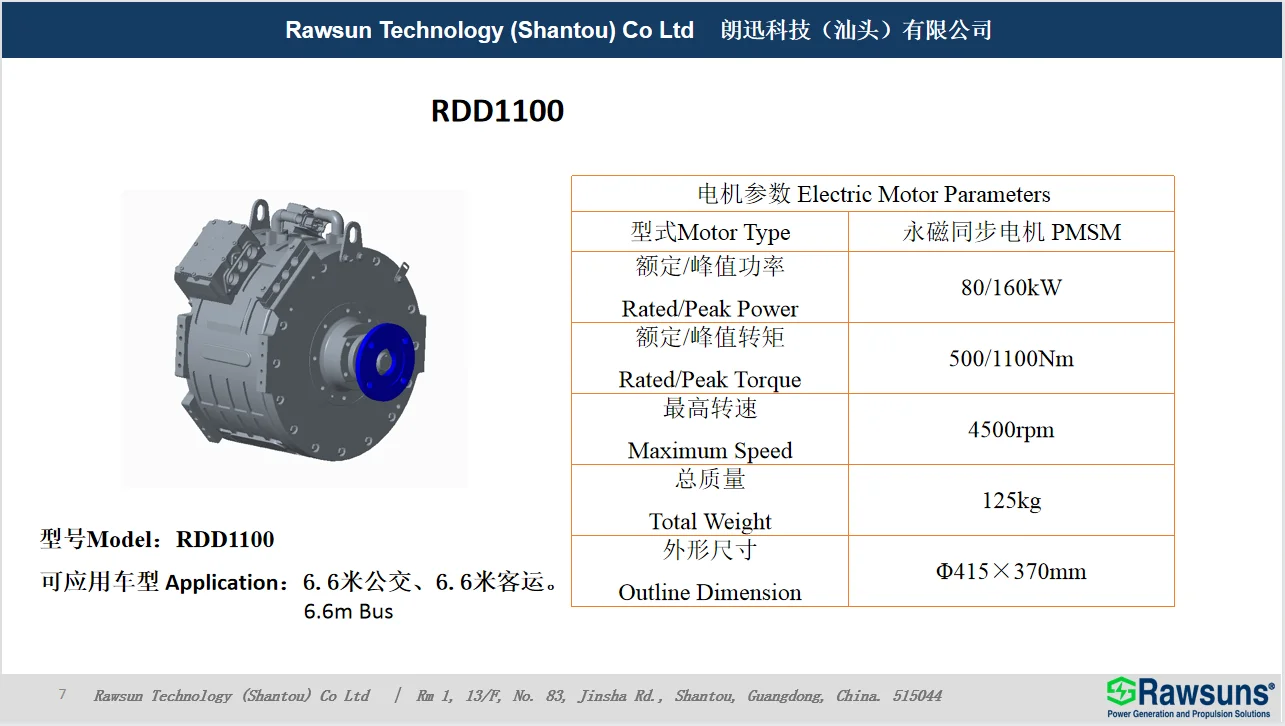

Model | RDD1100 |

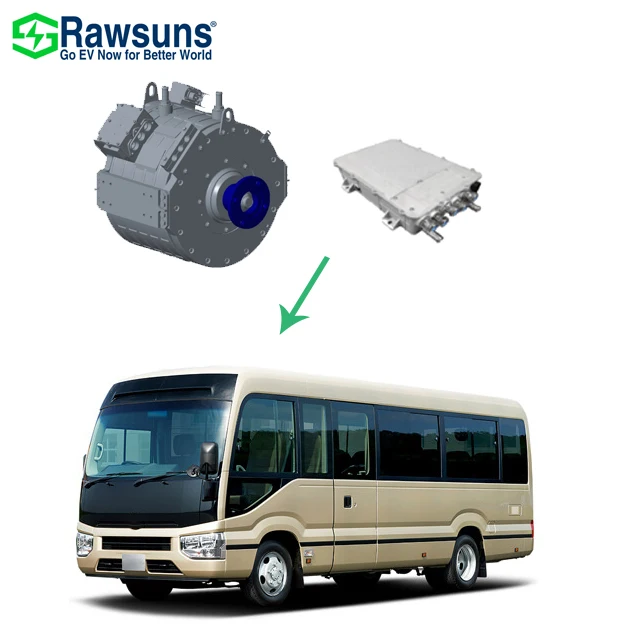

Application | 6.6m Bus |
IP Grade | IP67 |
Battery Rated Voltage(VDC) | 540VDC |
Motor Type | Permanent Magnet Synchronous Motor |
Motor Rated (Kw) | 80kw |
Motor Peak (Kw) | 160kw |
Rated Torque (Nm) | 500Nm |
Peak Torque (Nm) | 1100Nm |
Rated Speed(rpm) | 1528rpm |
Peak Speed (rpm) | 4500rpm |
Total Weight | 125kg |

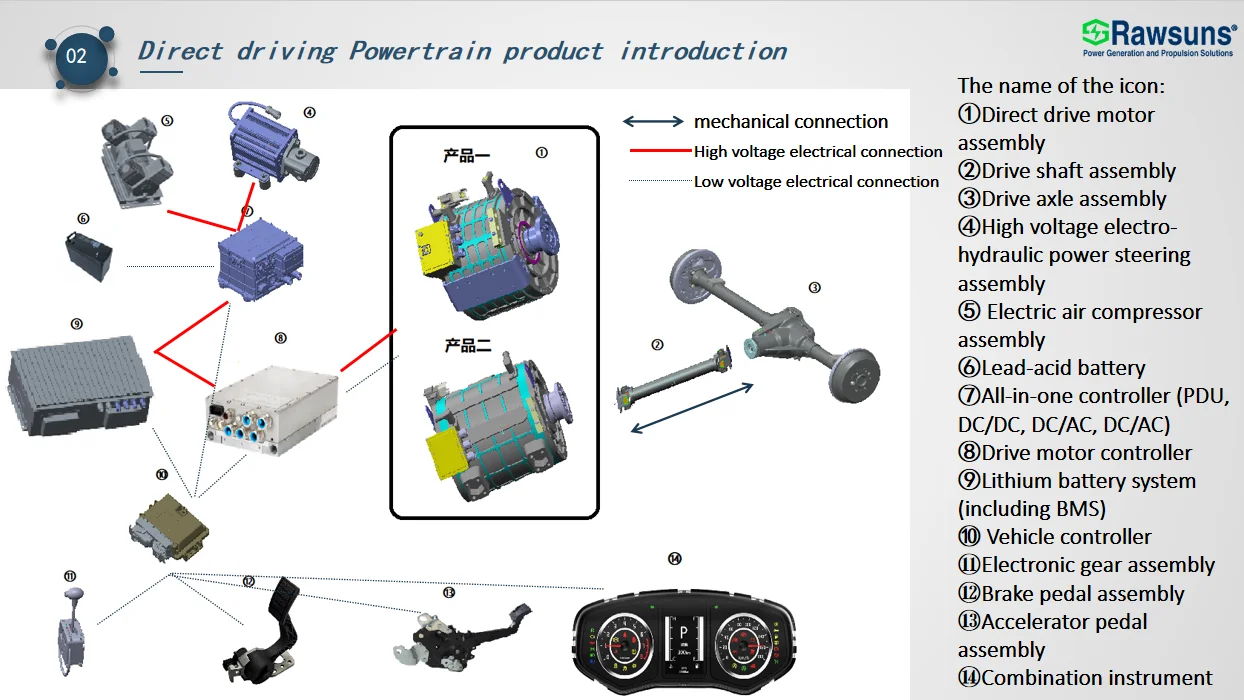

！Direct-drive battery electric system！
System introduction: The battery as a power reserve, motor as a power output drive vehicle
driving power systemFeatures: No gearbox, high running comfort, efficient recovery of braking power.
driving power systemFeatures: No gearbox, high running comfort, efficient recovery of braking power.
Workshop Pictures

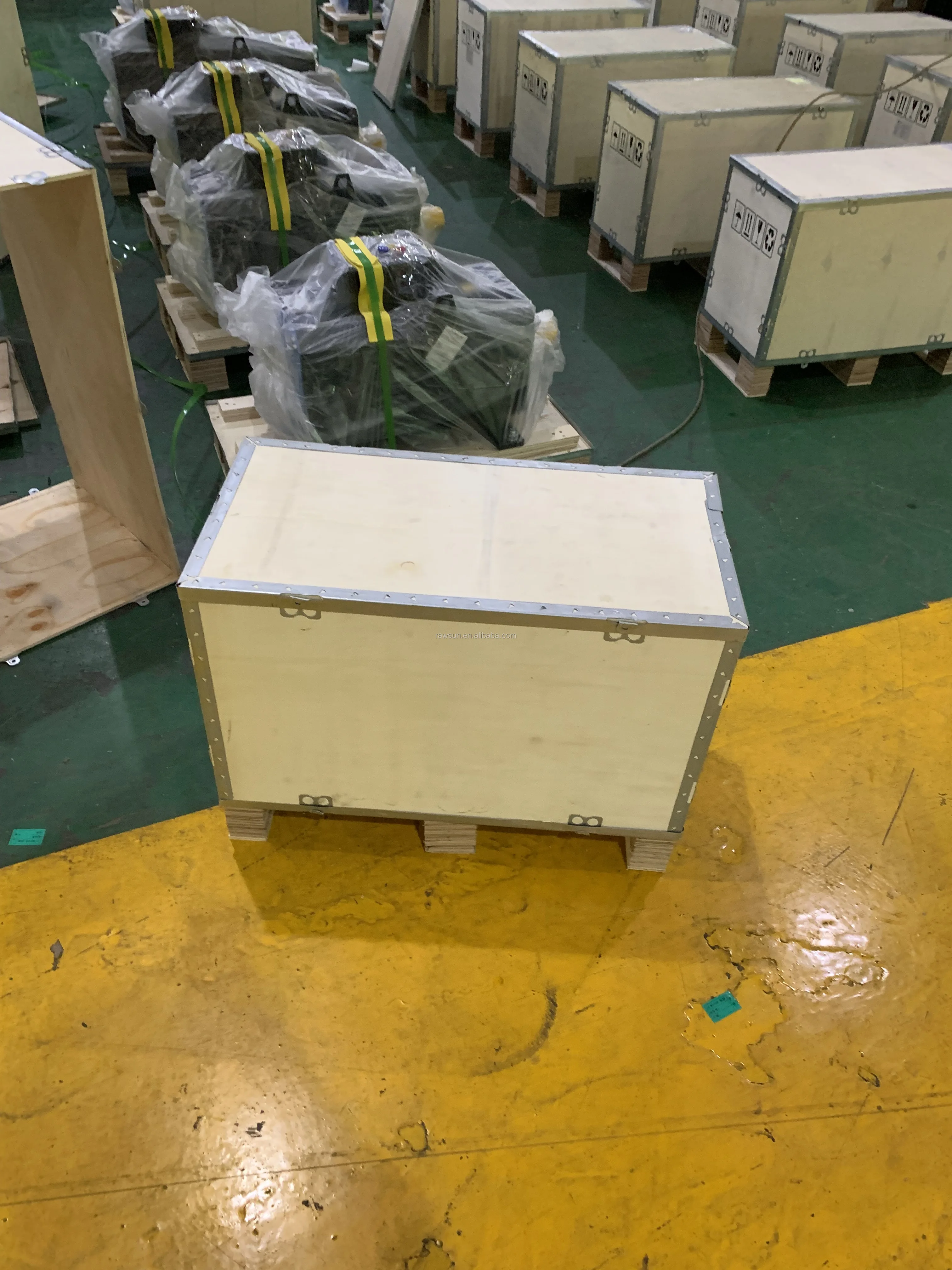

Packaging
