One way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch
One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch
One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch
One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch
One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch
One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch
One-way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch

One way relay module Delay power off Disconnect Trigger delay Cycle timing circuit switch

Share on (1600580474955):


Price:

Quantity:


Product Overview

Description



Product Description


Product parameters:
1: Working voltage: 6--30V support micro USB 5.0V power supply
2: Trigger signal source: high-level trigger (3.0V-24V) signal ground and system ground are not in common to improve the anti-interference ability of the system (you can also short-circuit the common ground by yourself)

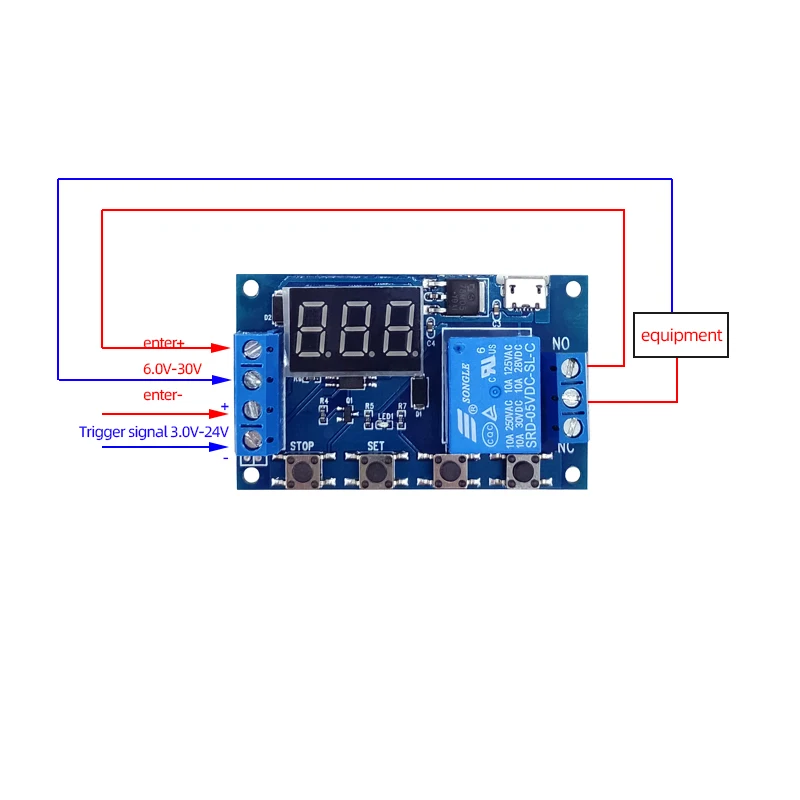

3: Output capability: can control equipment within DC 30v 5A or AC 220v 5A
4: Quiescent current: 20mA Working current: 50mA
5: Service life: more than 100,000 times; working temperature: -40-85℃; size: 6.2*3.8*1.7cm
6: With optocoupler isolation, enhance anti-interference ability, industrial-grade circuit board, set parameters after power off
memory.

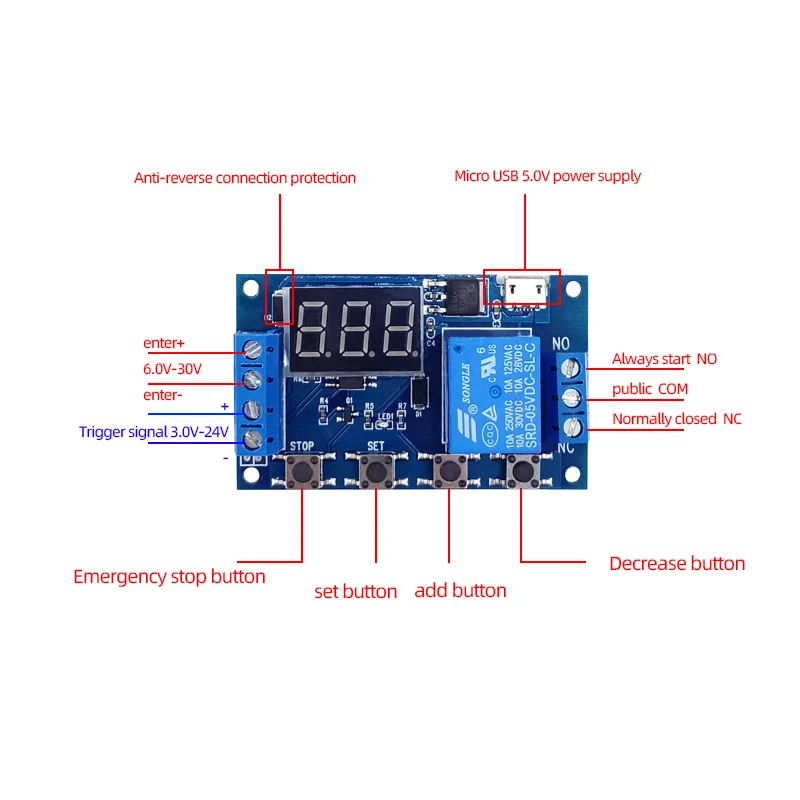

Module Highlights:
1. Wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use;
2. The interface is clear and simple, powerful and easy to understand, almost meeting all your needs;
3. One-key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn;
4. Added sleep mode. After enabling, if there is no operation within 5 minutes, the display will be automatically turned off; any key will wake up;
5. Different OP, CL, LOP parameters can be set, these parameters are mutually independent and saved separately;
6. All setting parameters are automatically saved after power off.
