HDRF H Charging Station Fuse 500V 200A 300A 400A 500A Electrical Vehicle Cylindrical Fusible Link Solar Photovoltaic Cutoffs

Product Details

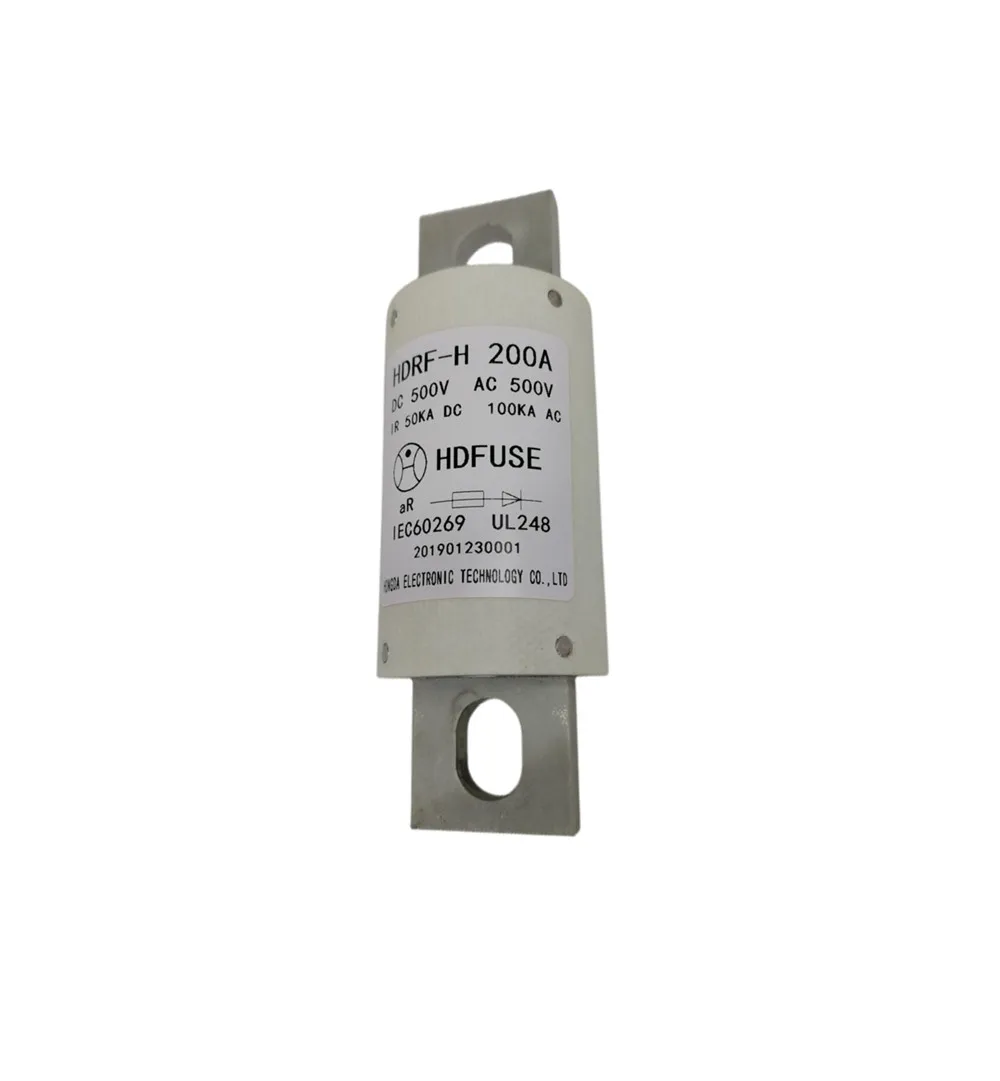

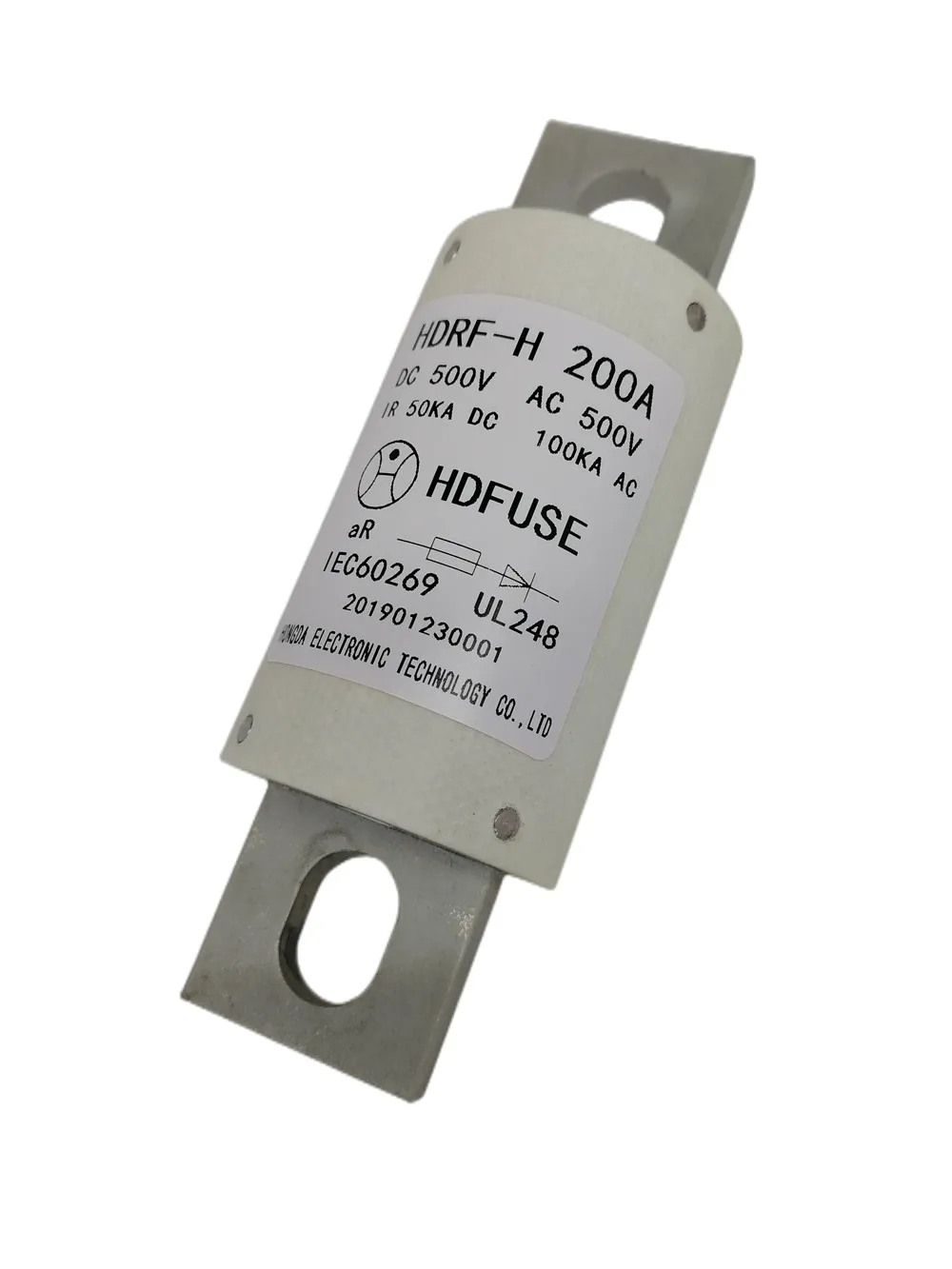

Product name: Fast fuse
Product model: HDRF-H series
Rated voltage: 500VAC/DC
Rated current: 5A~1600A
Contact blade material: tinned brass
Body Material: Ceramic/Fiberglass
Melt Material: Sterling Silver
Filling in the tube: high-purity quartz sand
Category of use: aR
Breaking capacity: AC100kA, DC50kA
Safety certification: fast fuse conforms to UL248-13, IEC60269.4; safety and application environment reliability conform to ISO8820, GB13539.4
Authorized with CE, UL certification, in line with RoHS directive.

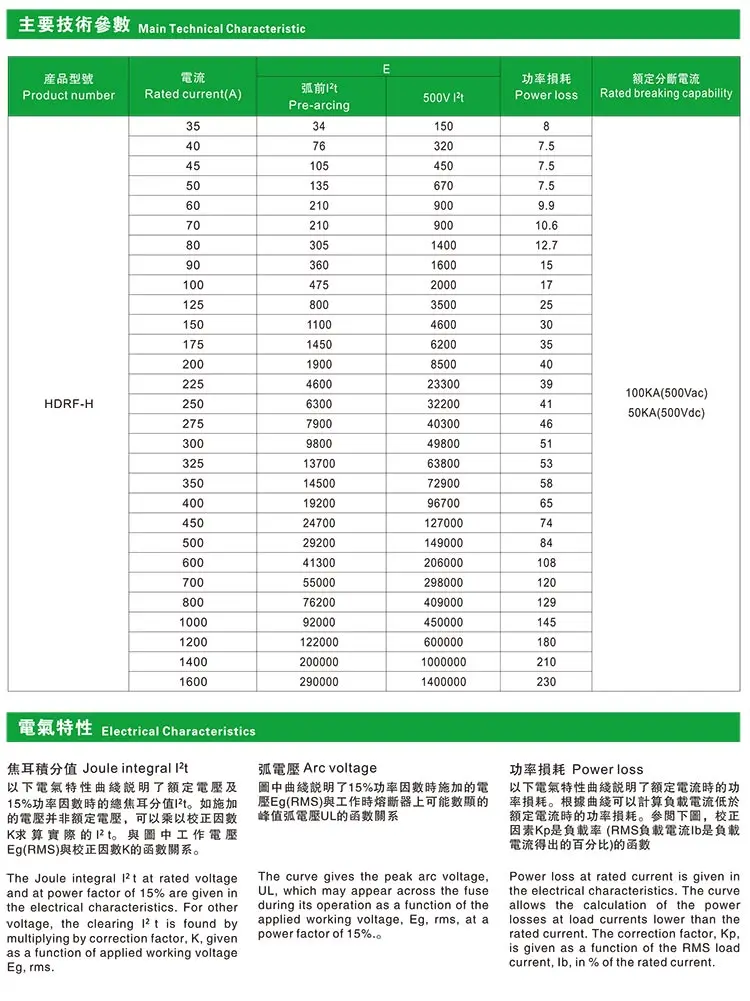

Product features: The fast fuse is a round pipe bolted fuse. The fast fuse has the characteristics of small size, low fusing I2t value, high breaking capacity, and resistance to current impact; it can withstand high strength
Mechanical vibration and shock, shock in a wide temperature range, strong chemical load.

Product application: Fast fuse is suitable for road vehicle industry applications. Fuses can be used for short-circuit, overload and backup protection of electric vehicle drive power systems, power conversion systems, energy storage and power systems, inverter controllers, chargers, wires and other automotive components and equipment. The safety and reliability of the fast fuse also meet the requirements of UL/CSA standards.

Semiconductor high speed fuses protect devices from overcurrents that may cause damage to equipment. High speed fuses are reliable, quick reactors that can reduce the amount of short circuit current. Littelfuse offers a variety of semiconductor fuses, which are listed below. Find the fuse that meets your needs now.
This Series is a next generation High-Speed Fuse for the protection of power semiconductor devices and is designed in the Traditional Round Body Bolted Style package. this Series High-Speed Fuses rated at 1000 VAC/Vdc are extremely current limiting and are used to protect power converters, drives and control circuit applications. Designed with lower I2t performance characteristics, these fuses provide balanced performance to extend longevity while lowering potentially damaging heat energy to the devices being protected. In addition this Series fuses have been designed with a universal mounting option to meet customer requirements for installation into a variety of application configurations Hongda fuse products offer optimized circuit protection at the extremely fast speed required to protect modern day, sensitive, high-power semiconductor devices.
