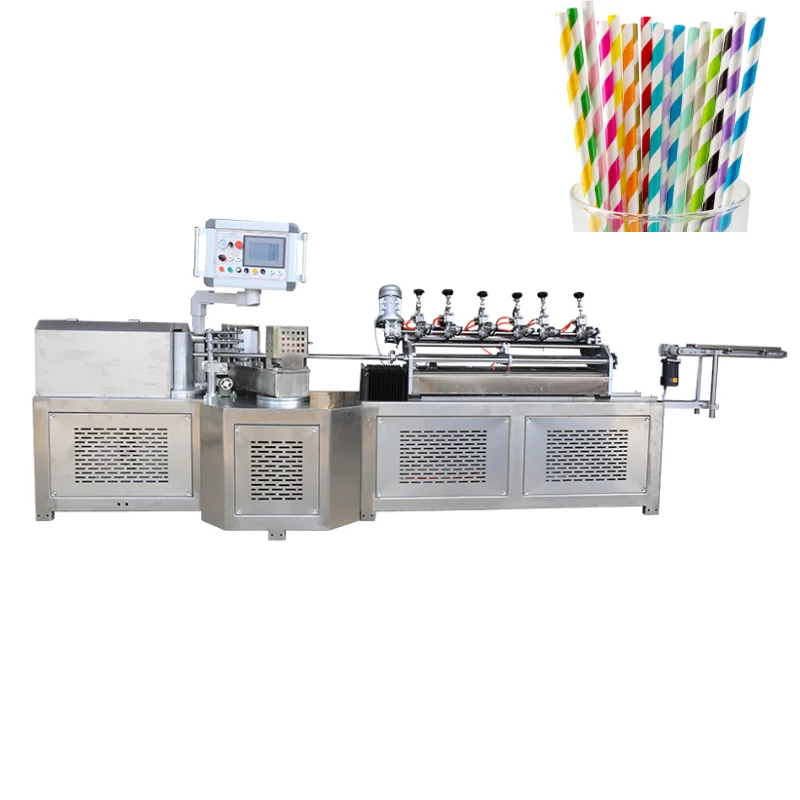

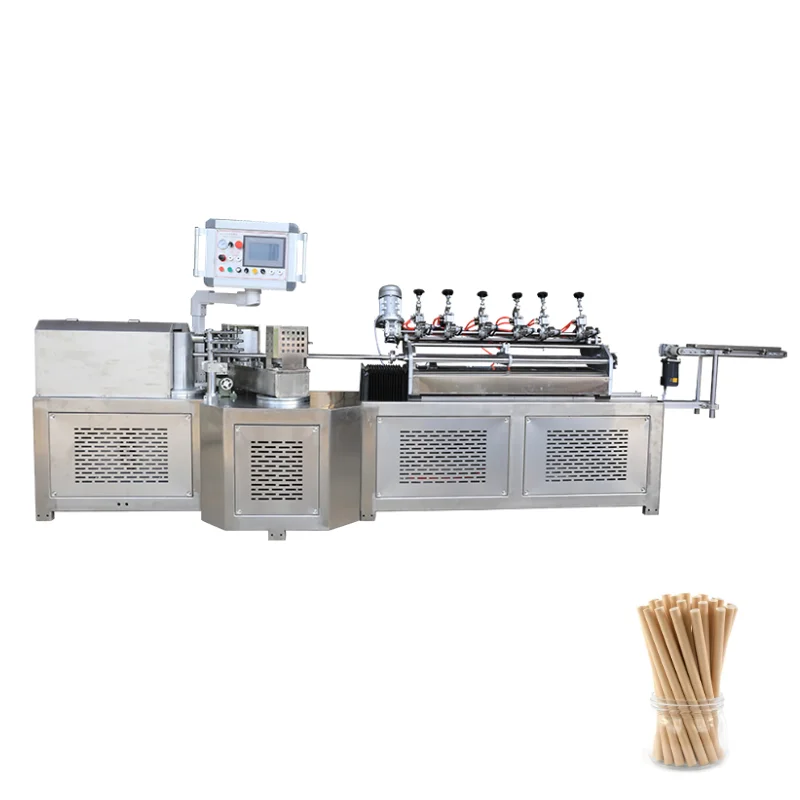

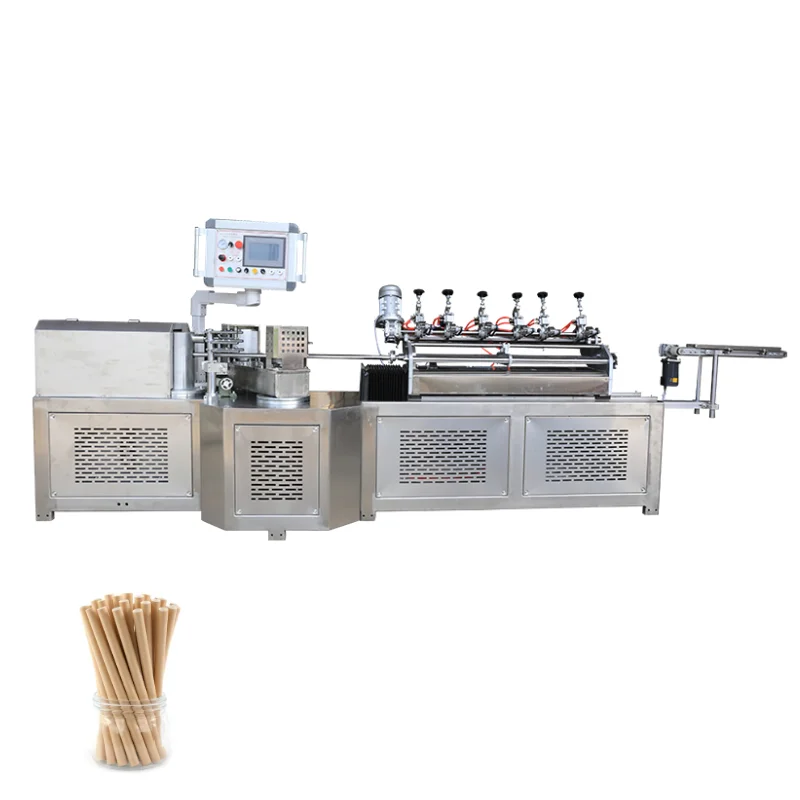

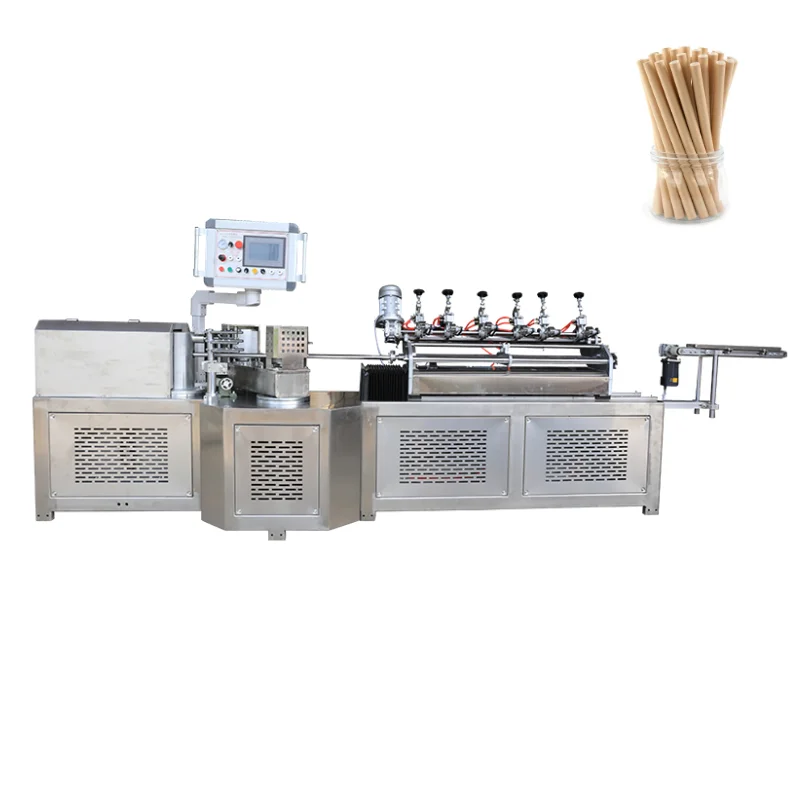

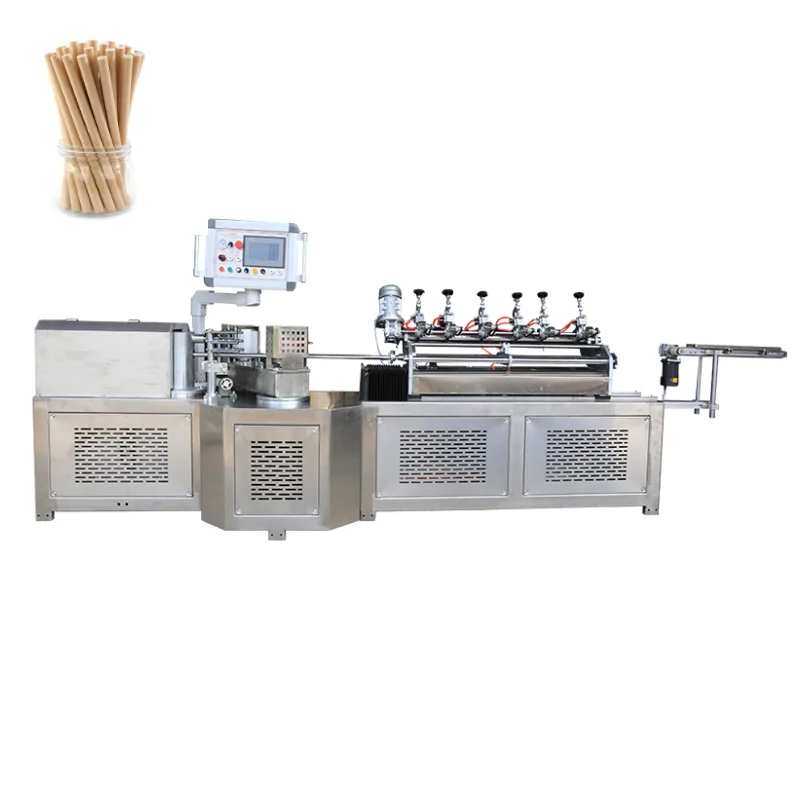

High Speed Automatic Paper Straw Making Machine for Sale

Technical Parameter

Control system

Number of roller

3 layer

Main motor

2.2 KW

Tube diameter

5-12 mm

Reducer type

RV110-1:15

Wall-thickness

0.5-1 mm

Conveyor reducer

RV 30/40-1:7.5

Core mould fixed

Flank chuck

Servo motor

Teco, Taiwan

Winding head

2

Servo driver

Teco, Taiwan

Cutting way

6 multi-blade

PLC controller

Delta DVP28SV

Gluing way

Single side

Touch screen

MCGS TPC7062

Operator

1-2 person

Inverter

YASKAWA3.7 KW

Winding speed

20-45 m/min

Electric part

CHINT

Speed control

Inverter

Single part

SHHG

Cutting control

Servo Sync

Pneumatic part

AIRTAC

Air pressure

0.6Mpa

Fix length way

Encode

Power supply

380V*3P/50Hz

Configuration

Straw collecter

Auto

Paper reel stand

3 layers

Angel correction

Auto by motor

Glue system

3 layers

Language

English

Conveyor

1 set

Measurement & weight

Blades

6 pieces

Mainframe size

3400*1400*1450

Belts

5 pieces

Area space

6000*8000 mm

Core mould

2 set

Weight

1000 KGS

Useful tool

1 set
