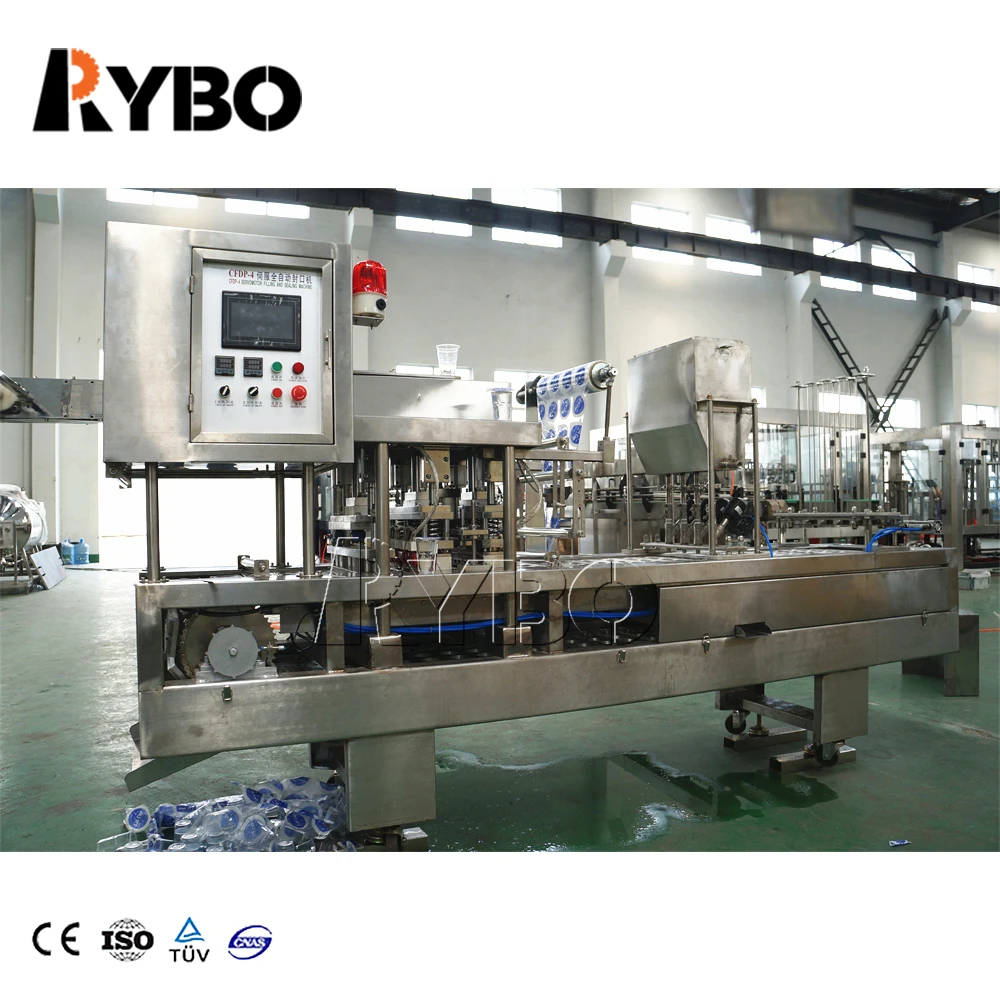

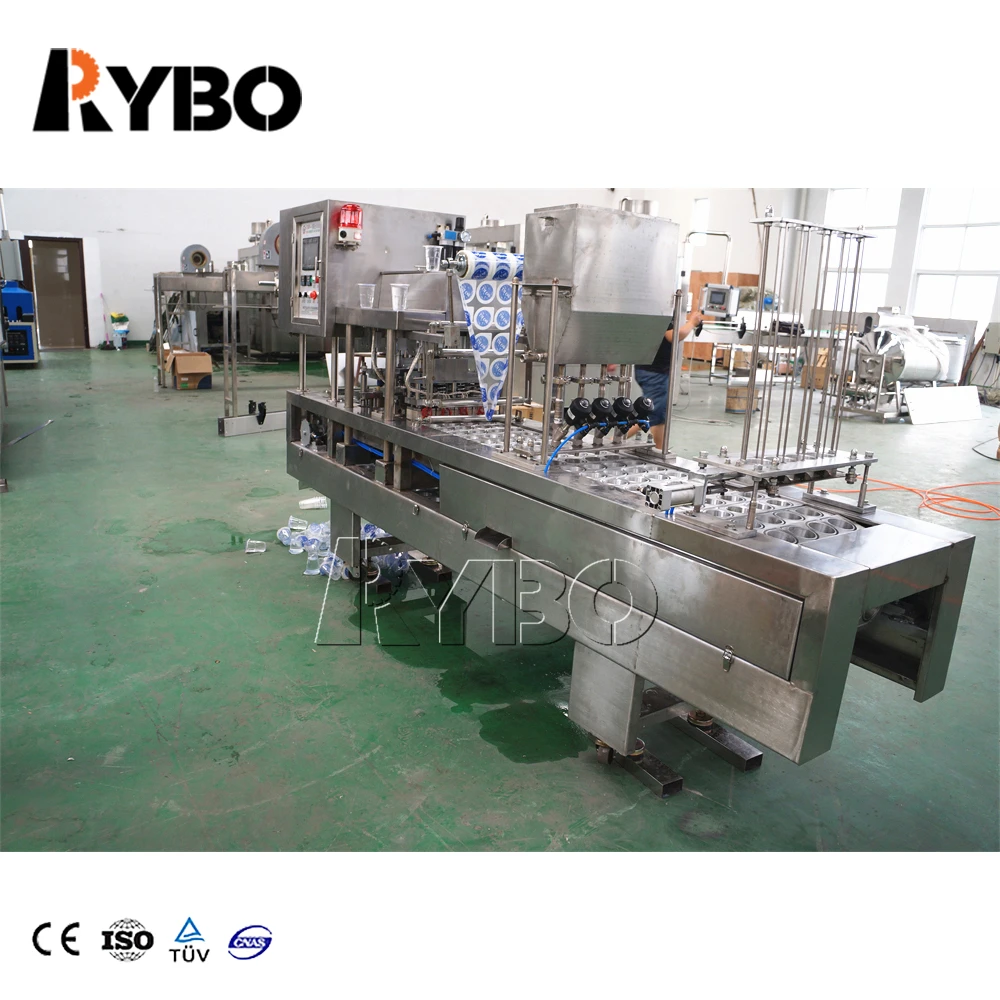

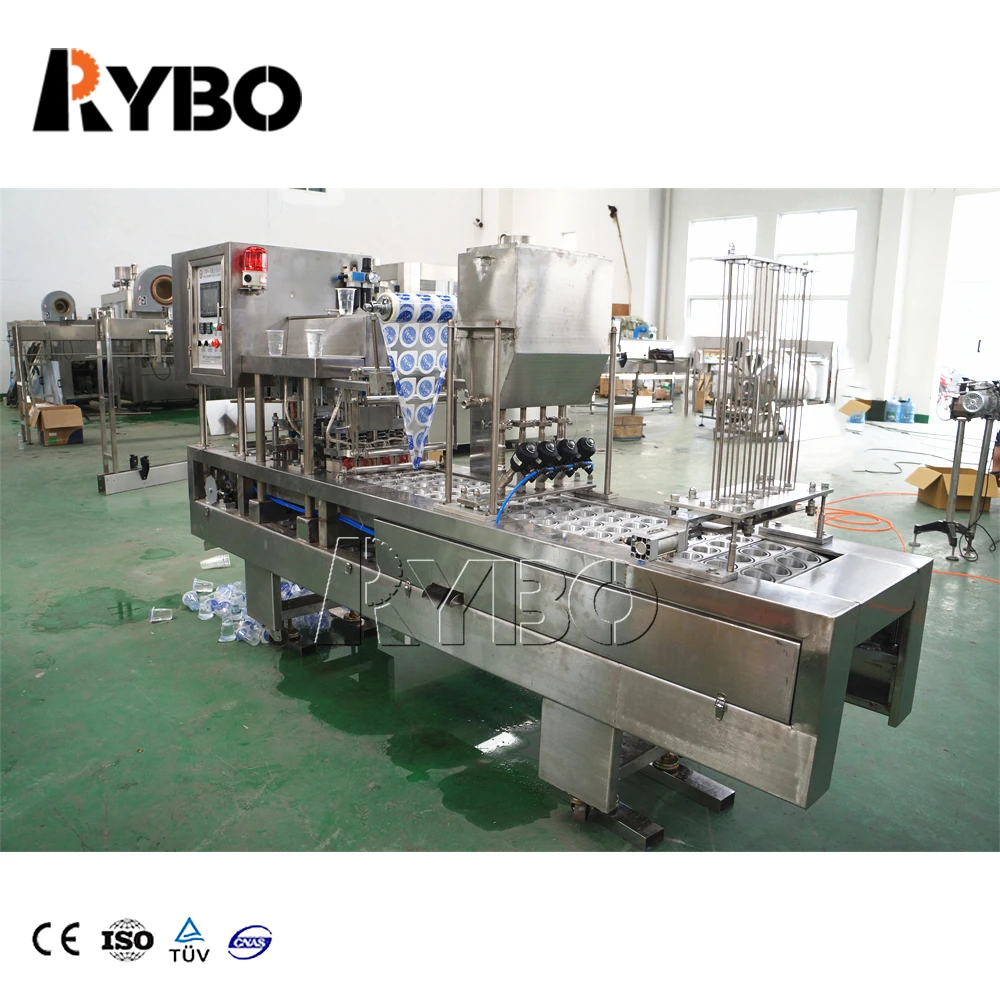

Automatic Cup Filling and Sealing Machine
The machine is mainly used for filling and sealing of liquid and semi-liquid products such as water, yogurt, ice cream, jelly, dairy products, salads, juices, beverages, etc.
The entire production process includes:
1. Load cups: put the pre-made plastic cup on the cup holder of the machine
2. Cups drop: the cup falls on the cup mold
3. Filling: Fill the product to be packaged into the cup.
4. Sealing: Through the heating head of the machine, the cup is sealed with a prefabricated plastic film.
5. Finished Product Out: Packaged finished products come out from machine.
The entire production process includes:
1. Load cups: put the pre-made plastic cup on the cup holder of the machine
2. Cups drop: the cup falls on the cup mold
3. Filling: Fill the product to be packaged into the cup.
4. Sealing: Through the heating head of the machine, the cup is sealed with a prefabricated plastic film.
5. Finished Product Out: Packaged finished products come out from machine.
Application
Specification
Features:
1. 1. All the electro-pneumatic components of this machine are from Germany, Japan and other international famous brand products.
2. All production processes are automatically operated, only put the cup and collect the finished products manually.
3. The machine is made of stainless steel and conforms to food hygiene regulations.
2. All production processes are automatically operated, only put the cup and collect the finished products manually.
3. The machine is made of stainless steel and conforms to food hygiene regulations.
Specification | CFDP-2 | CFDP-4 | CFDP-8 | CFDP-12 |
Cup Rows | 2-cups | 4-cups | 8-cups | 12-cups |
Output | 1800pcs/h | 3600pcs/h | 7200pcs/h | 10000pcs/h |
Power | 2KW | 2.6KW | 4.2KW | 5.8KW |
Air Consumption | 0.6m³/min | 0.8m³/min | 1.0m³/min | 1.2m³/min |
External Size (mm) | 3100*520*1760 | 3700*700*1760m | 4500*790*1760 | 3150*980*1760 |
Weight | 700kg | 1000kg | 1300kg | 1600kg |

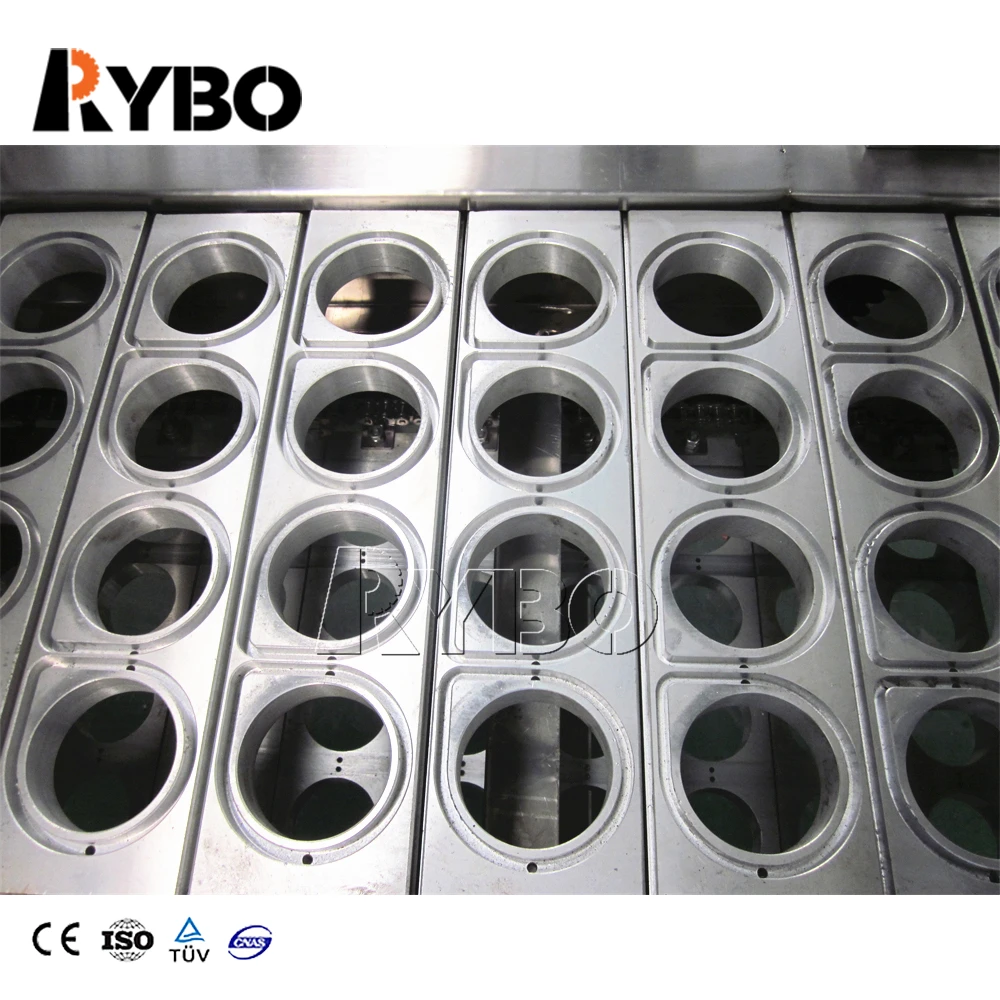

High Quality Cups Mold
Aluminum alloy mold, corrosion-resistant and easy to clean

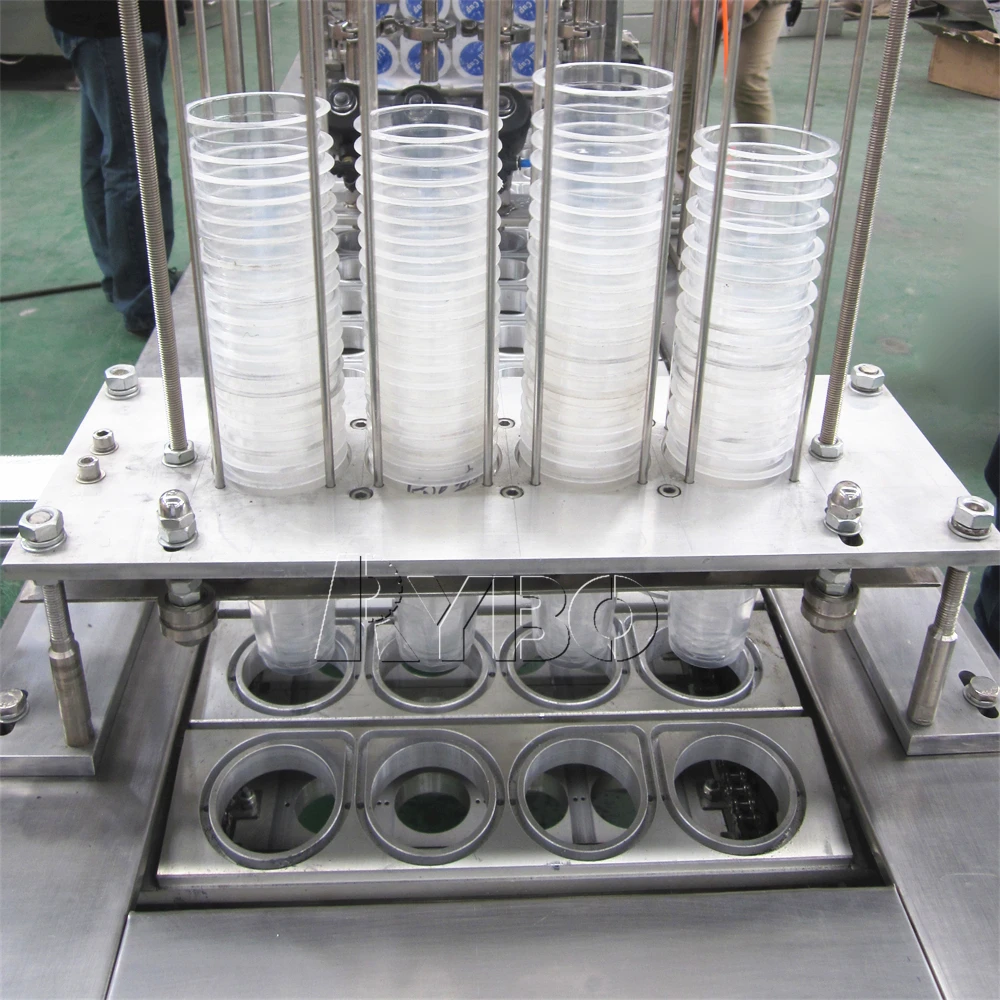

Load Cups
4 rows cup holders, can be 6 8 10 12 rows also.
Cups Filling
can choose different filling types according to filling material

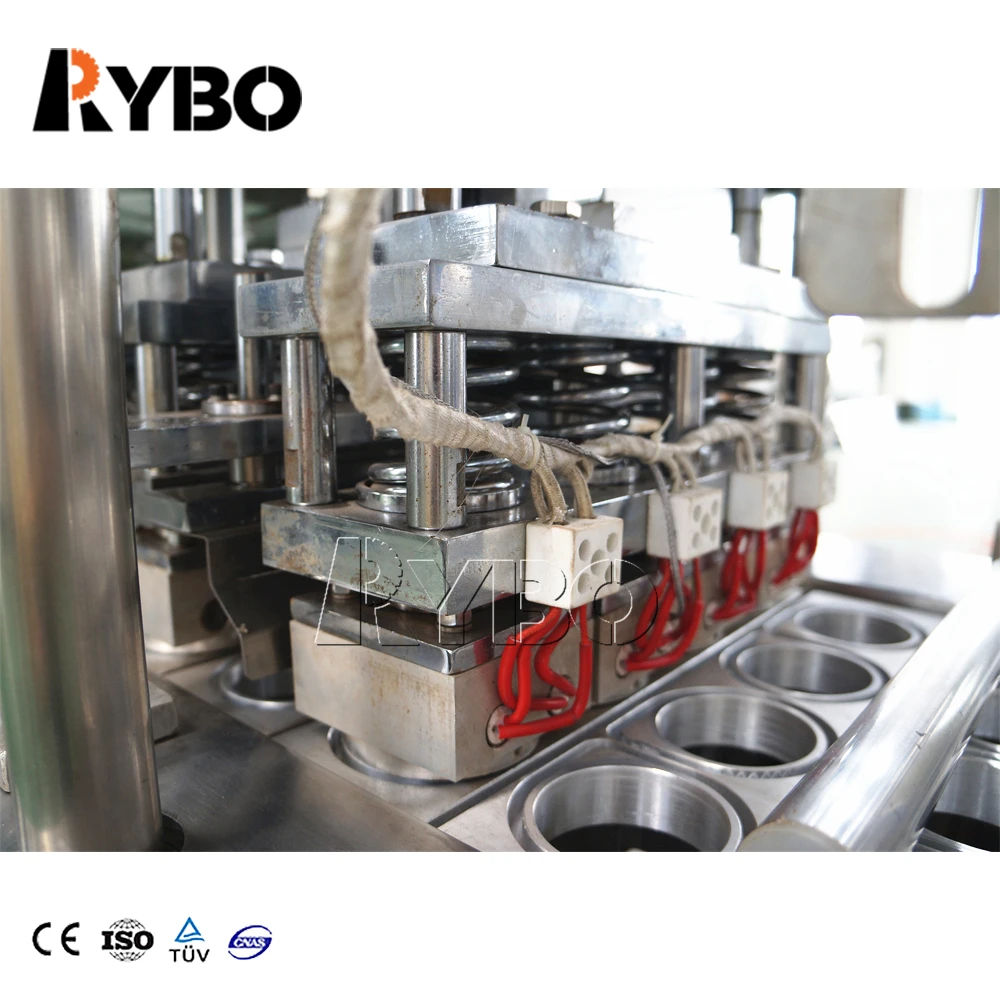

Cups Heat Sealing
95 copper sealing head, better thermal conductivity

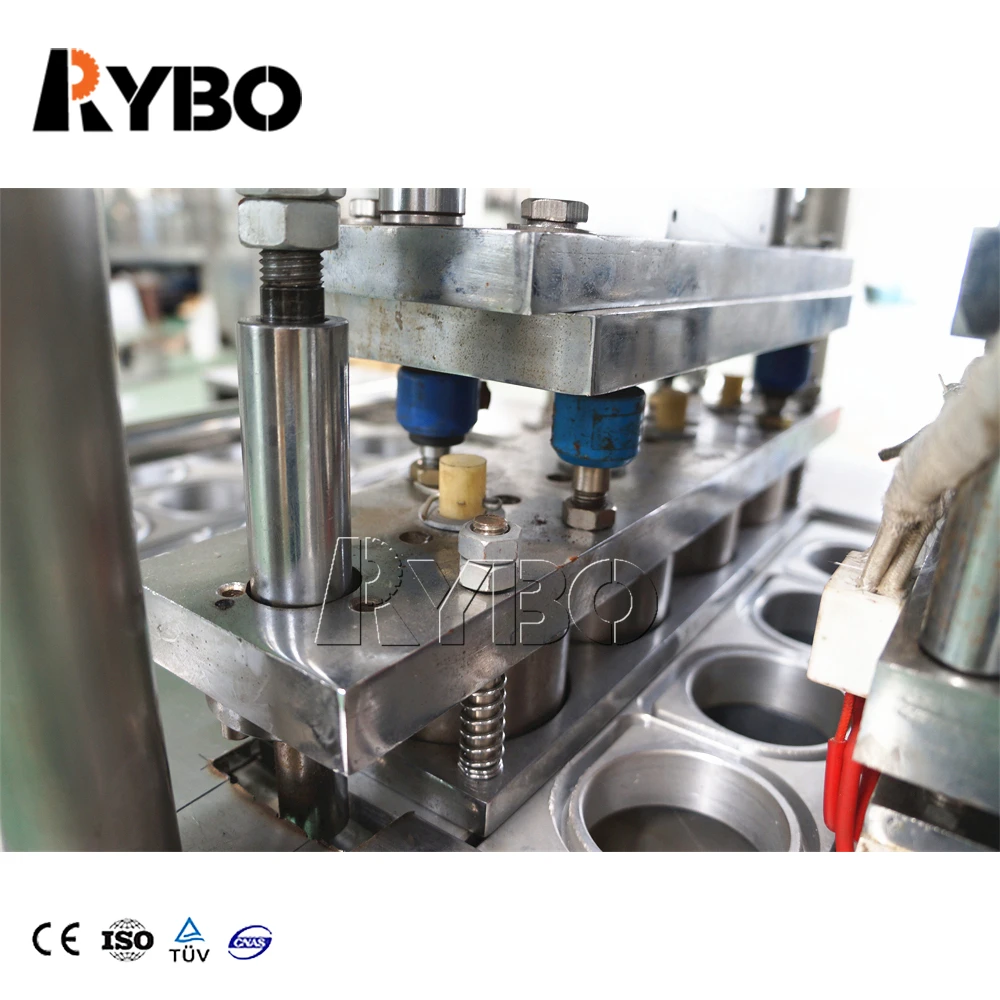

Film Cutting
Can code different dates and text.
The Complete Line
We Can Also SupplyTurnkey Project of Bottle Water From A to Z
Normally Speaking, The whole complete vial filling production line including:
1. Bottle Feeder
2. Filling Machine
3. Capping Machine
4. Coding Machine
5. Labeling Machine
6. Film Packing Machine
Some machines can also be increased to the production line according to customer requirements, such as Foil Sealer, Carton Packer, Palletizers, etc.
