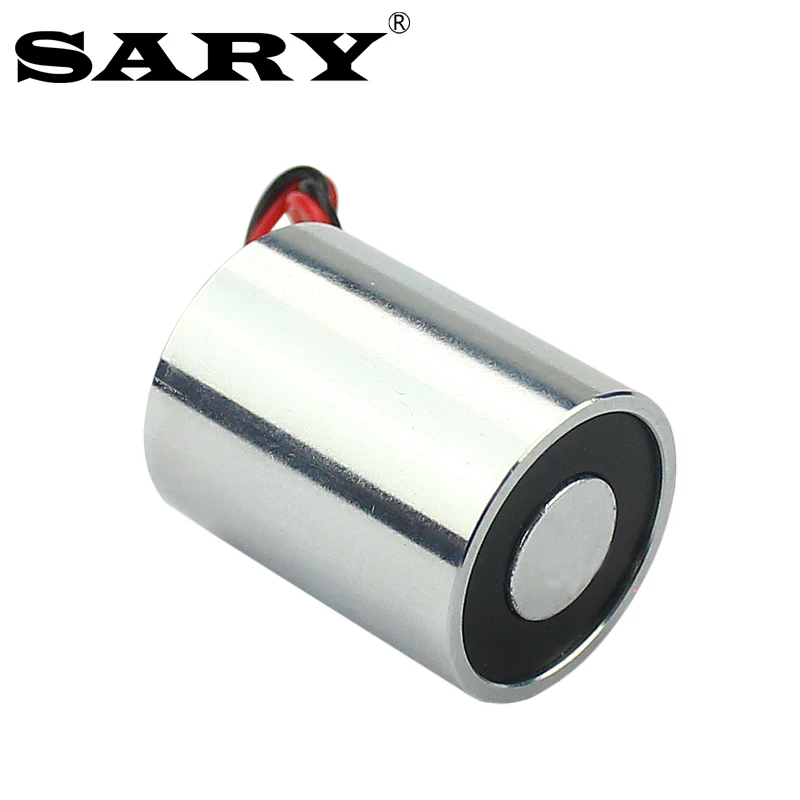

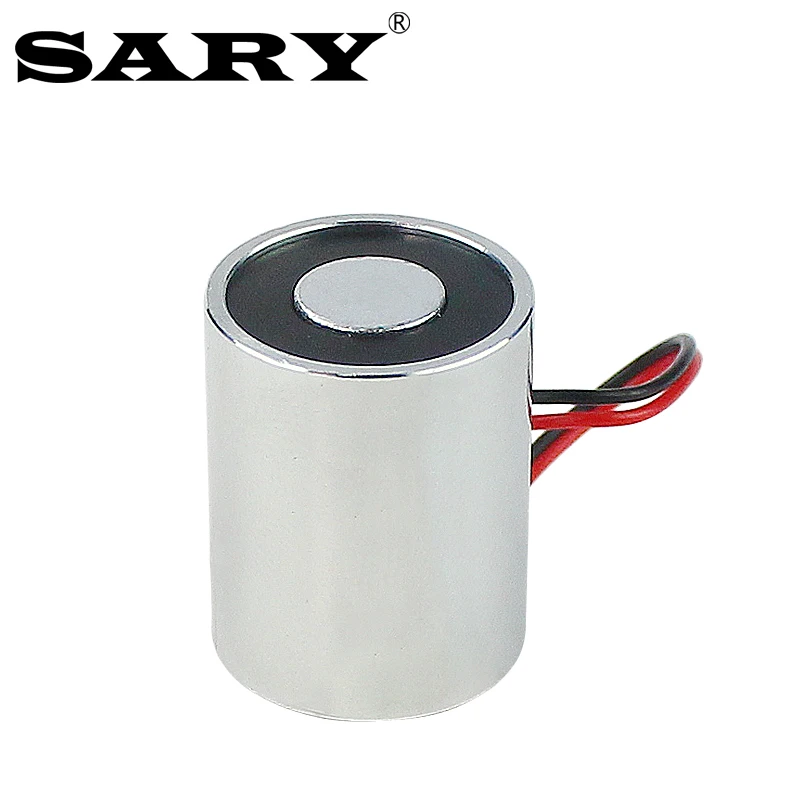

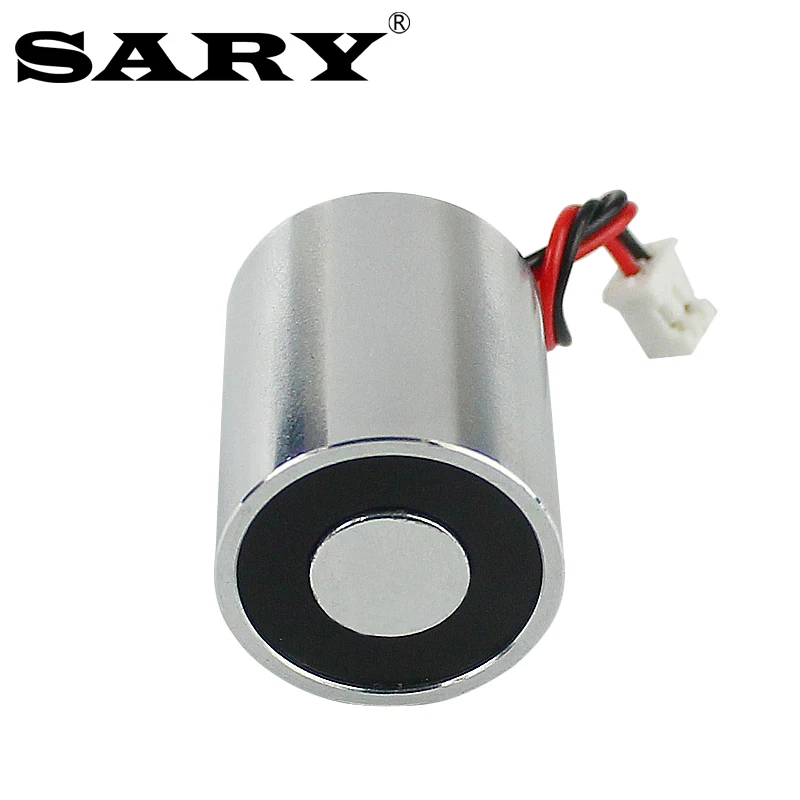

LY2025 lifting electromagnet 2KG 25N mini electromagnetic solenoid DC12V normally closed electromagnet energized non magnetic
- Category: >>>
- Supplier: Guangzhou Sary Electronics Co. Ltd.
Share on (1600580548013):
Product Overview
Description
Instructions for use :
The electromagnet must meet the following conditions to achieve maximum suction:
1. The inhaled object must have good magnetic permeability.
2. Correct use of power supply and rated voltage.
3. The object to be sucked must be flat and clean.
4. The object to be attracted must be greater than or equal to the surface of the magnet
5. The object to be sucked must be larger than 8mm. (As thickness decreases, suction decreases)
6. The inhaled object must be closed, and no objects or gaps can be inserted in the middle.
! ! ! Contrary to all cases, the suction power is reduced, not the maximum suction power. ! ! ! Please pay attention when purchasing. Refuse to dispute at your own risk.
The electromagnet must meet the following conditions to achieve maximum suction:
1. The inhaled object must have good magnetic permeability.
2. Correct use of power supply and rated voltage.
3. The object to be sucked must be flat and clean.
4. The object to be attracted must be greater than or equal to the surface of the magnet
5. The object to be sucked must be larger than 8mm. (As thickness decreases, suction decreases)
6. The inhaled object must be closed, and no objects or gaps can be inserted in the middle.
! ! ! Contrary to all cases, the suction power is reduced, not the maximum suction power. ! ! ! Please pay attention when purchasing. Refuse to dispute at your own risk.
A certain amount of heat is generated when the electromagnet is energized. The longer the power-on time, the higher the temperature; this is a normal phenomenon; it is recommended that the continuous power-on time does not exceed 10S
Model | LY-2025 | material | metal |
Input voltage | DC 12V /1A | Color | silver |
Power consumption | 12W | Diameter | 20mm |
Holding force | 2KG/20N | Center diameter | 9mm |
Height | 25mm | Thread Size | M4 / Depth: 20mm |
Working method: no magnetism when power on, magnetism when power off
FAQ
1. Q: Are you a factory or trading company?
A: We are a company which has our own trading department and factory.
2. Q: What is your sample policy?
A: Free samples could be sent to the test as request. We can arrange a sample by DHL or UPS, but the courier fee would be paid by the customer.
3.Q:What about the shipping way?
A:Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
4. Q:Can I print my own brand logo on your product?
A: OEM orders are highly welcome. Please write us the details of your logo color, logo position; user manual before you send us an inquiry. In this way, we can offer you the most accurate answer for the first time.
5.Q:What about the warranty?
A:We provide 1 years warranty from the date of delivery but lifetime technical support.
