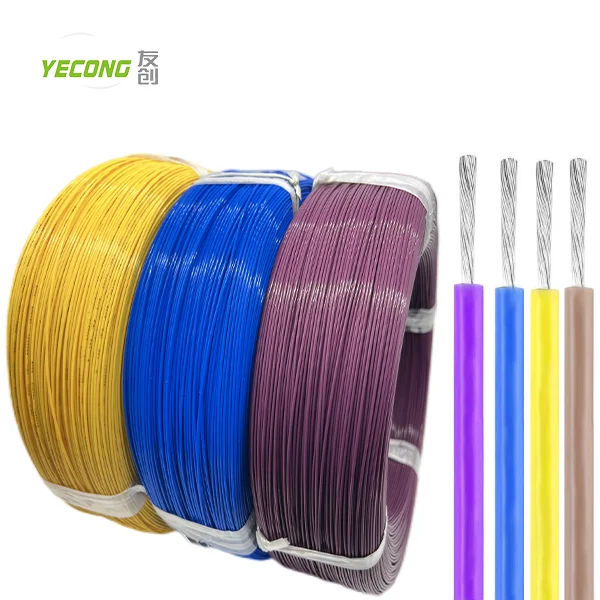

Mil W 16878/4 PTFE Insulated Wire Flexible Ptfe Insulated 200c 10awg/12awg/14awg/16awg/18Awg mil spec 16878/4 ptfe hook up wire
- Category: >>>
- Supplier: Foshan Yecong High Temperature Wire Co. Ltd.
Share on (1600580577383):
Product Overview
Description
mil-w-wire

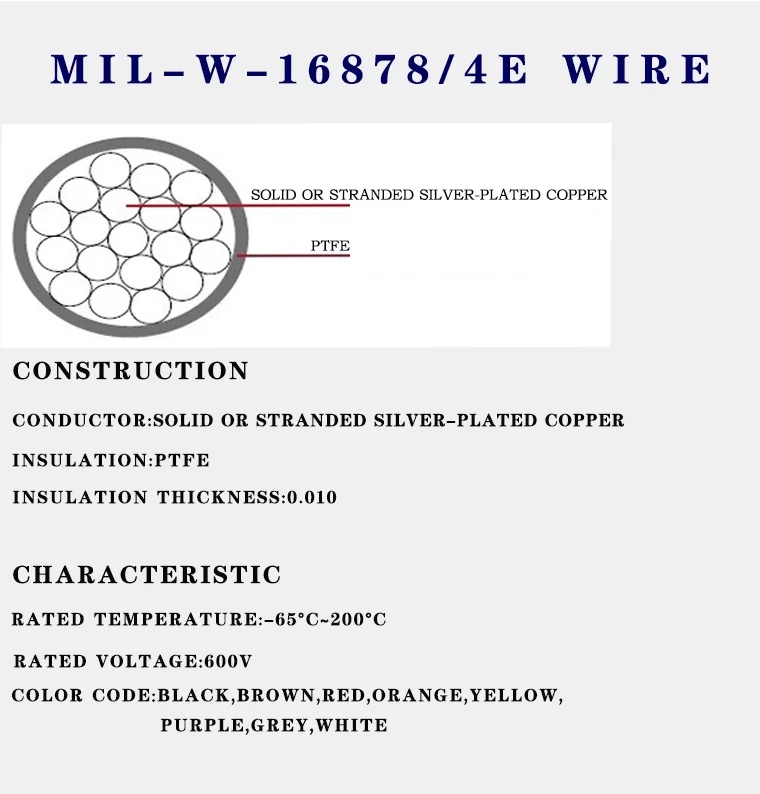

| AWG | Stranding | Insulation Thickness (In) | Nom. O.D. (In) | Temp | Voltage Rating | Approx Weight LBS./MFT |
|---|---|---|---|---|---|---|
| 32 | 7/40 | 0.01 | 0.030 | -65°C to 200°C | 600 | 0.77 |
| 30 | Solid | 0.01 | 0.030 | -65°C to 200°C | 600 | 0.90 |
| 30 | 7/38 | 0.01 | 0.032 | -65°C to 200°C | 600 | 1 |
| 28 | Solid | 0.01 | 0.033 | -65°C to 200°C | 600 | 1.12 |
| 28 | 7/36 | 0.01 | 0.035 | -65°C to 200°C | 600 | 1.22 |
| 26 | Solid | 0.01 | 0.036 | -65°C to 200°C | 600 | 1.55 |
| 26 | 19/38 | 0.01 | 0.039 | -65°C to 200°C | 600 | 1.73 |
| 26 | 7/34 | 0.01 | 0.039 | -65°C to 200°C | 600 | 1.73 |
| 24 | Solid | 0.01 | 0.040 | -65°C to 200°C | 600 | 2.12 |
| 24 | 19/36 | 0.01 | 0.044 | -65°C to 200°C | 600 | 2.35 |
| 24 | 7/32 | 0.01 | 0.044 | -65°C to 200°C | 600 | 2.35 |
| 22 | Solid | 0.01 | 0.045 | -65°C to 200°C | 600 | 2.92 |
| 22 | 19/34 | 0.01 | 0.050 | -65°C to 200°C | 600 | 3.33 |
| 22 | 7/30 | 0.01 | 0.050 | -65°C to 200°C | 600 | 3.33 |
| 20 | Solid | 0.01 | 0.052 | -65°C to 200°C | 600 | 4.18 |
| 20 | 19/32 | 0.01 | 0.058 | -65°C to 200°C | 600 | 4.97 |
| 20 | 7/28 | 0.01 | 0.058 | -65°C to 200°C | 600 | 4.97 |
| 18 | 19/30 | 0.01 | 0.072 | -65°C to 200°C | 600 | 7.70 |
| 18 | 7/26 | 0.01 | 0.070 | -65°C to 200°C | 600 | 7.70 |
| 16 | 19/29 | 0.01 | 0.077 | -65°C to 200°C | 600 | 7.70 |
| 14 | 19/27 | 0.01 | 0.095 | -65°C to 200°C | 600 | 15 |
| 12 | 19/25 | 0.01 | 0.114 | -65°C to 200°C | 600 | 23 |
| 10 | 37/26 | 0.01 | 0.134 | -65°C to 200°C | 600 | 35 |
Company Information

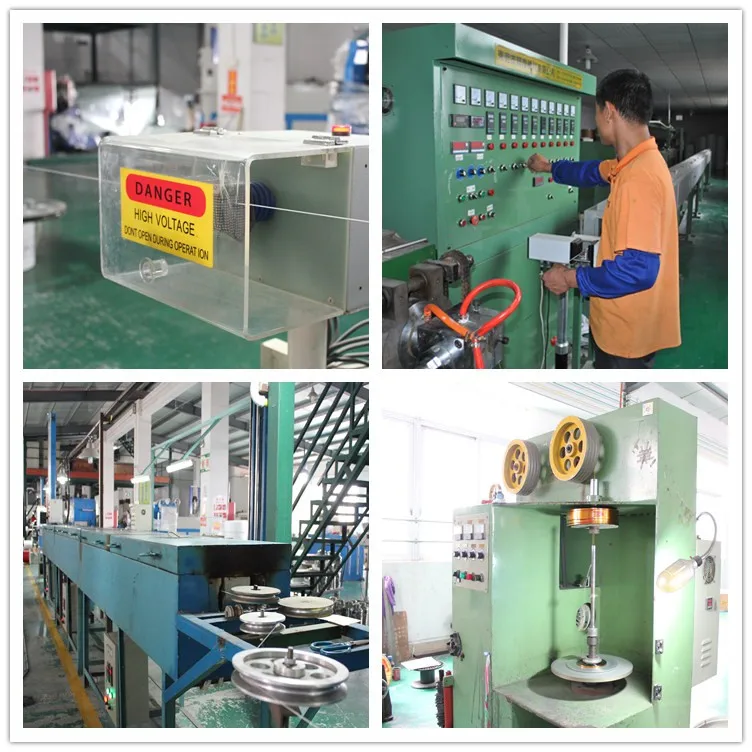

We manufacture UL certificated wire and customized fluorine plastic wire for 16 years . In our facility , there are 10 automatic extruding production lines . As a result , we can produce about 100,000 meters electric wire per day .

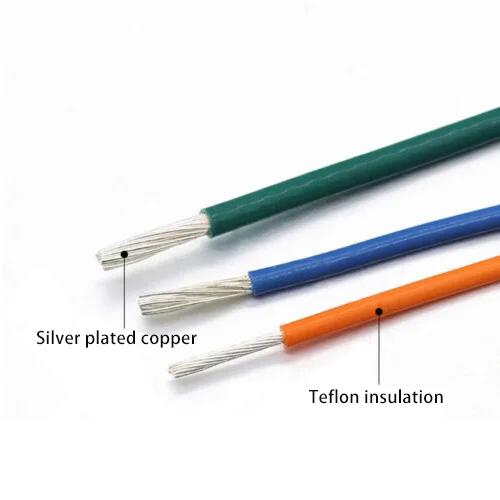

For UL certificated wire and customized fluorine plastic wire , we have different raw material to meet different customers demand , like we use PTFE , FEP , PFA , ETFE and kapton as insualtion material . And we use silver plated copper , nickel plated copper , tin plated copper and pure nickle as conductor . So our product can be applied in hot runner wire , thermometer hook up wire , automobile wiring harness , mining and some other high working temperature electronic .
We make full use of our advanced mechanical resource to deliver high standard products to the market . Moreover , the orders we get are manufactured in a qualitative way within the scheduled time to make on time delivery of the consignments .
Packaging & Shipping
Packaging :
Carton size : A : 29cm*29cm*15cm B : 33cm*33cm*26cm C : 46cm*26cm*20cm
Lead time : 3 to 7 days
Shipping : sea or air
Delivery / Freight / Payment :
Delivery method : Fedex or LCL depend on the weight
Freight : If you have better and cheaper shipping method , please tell me , I can do as you demand .
Payment :
1. T/T advance for 3months
2. T/T by 30% before production and 70% before delivery
3. Above 10,000usd/month, 30 days after delivery
4. Above 50,000usd/moth, LC
