Product Description
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | GWS |
Model Number | GWS-SX8P |
Dimensions (L x W x H (Inches) | 12.4 x 7.37 x 16.34(inches) |
Housing Material | Plastic |
Power (W) | 2100W |
Voltage (V) | 220V,50Hz |
After-sales Service Provided | Free spare parts |
Warranty | 1 Year |
Type | Hot & Cold |
Installation | Stand |
Application | Hotel, Outdoor, Garage, Commercial, Household |
Power Source | Electric |
App-Controlled | NO |
Private Mold | Yes |
Product name | wall-mounted pipeline water dispenser |
material | new plastic ABS |
front panel material | glass |
voltage | 220V |
function | instant heating, cold |
frequency | 50Hz |
rated wattage | 2100W |
cold wattage | 60W |
product color | white, black, etc |
packing | color box or export carton |

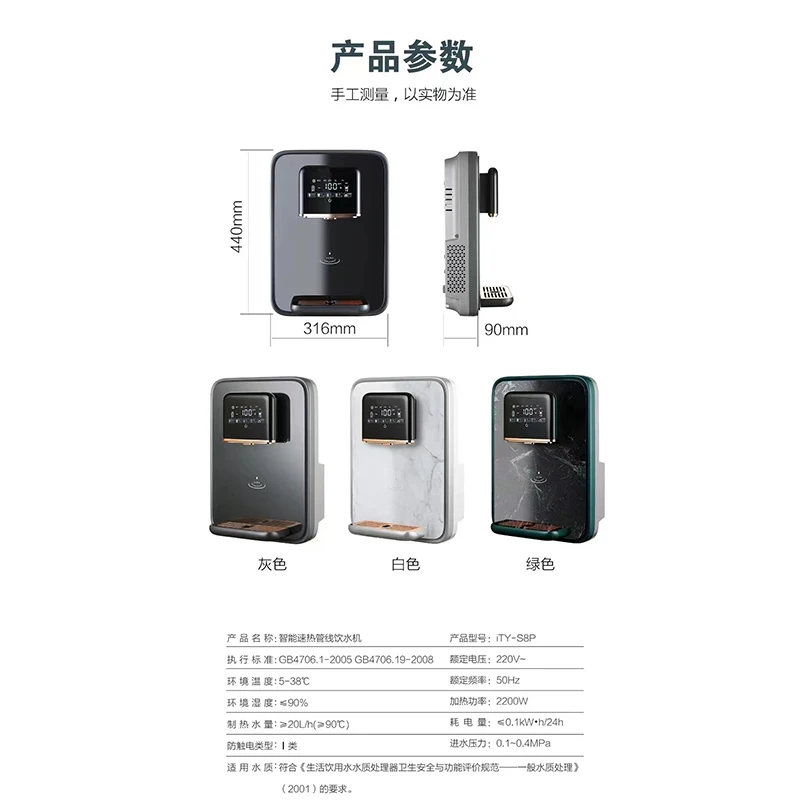

Technical Parameters as following: | ||||||||
Voltage | 220V~ | |||||||
Frequency | 50Hz | |||||||
Power | Heating: 2100W Cooling: 60W | |||||||
Input Water Source | Purified/Filtered Water | |||||||
Input Water Pressure | 0.1-0.4Mpa | |||||||
Working Environment Temperature | 5℃-38℃ | |||||||
Working Environment Humidity | ≤ 90% | |||||||
Water Heating Capacity | 20L/h (≥90°C) | |||||||
Power Consumption | ≤0.1kW·h/24h | |||||||
cooling water capacity | ≥0.7L/h | |||||||
Working Process and Process Flow
Products introduction , products function and features as following:
Thank you for using the new generation multifunctional wall-mounted pipeline water dispenser
(1) Cooling function, temperature low as12 ℃,Mainly based on the ambient temperature
(2) Water output within 3 seconds, boiled water without waiting
(3) Touch screen, user friendly
(4) Intelligent program control; output water with required temperature and volume, operation simplified.
(5) Fashionable and exquisite appearance, high quality.
(6) 3 steps of boil dry protection in sequence, liquid level alarm, thermal resistor, and temperature control.
(2) Water output within 3 seconds, boiled water without waiting
(3) Touch screen, user friendly
(4) Intelligent program control; output water with required temperature and volume, operation simplified.
(5) Fashionable and exquisite appearance, high quality.
(6) 3 steps of boil dry protection in sequence, liquid level alarm, thermal resistor, and temperature control.
How to use as following:
1 After installation and get charged, the indicator will show as “FO”, which means “no water”. Touch any button to pump up
water. The inner-cooler real-time temperature will show on the monitor. If no actions in 60 seconds, the machine will turned into “locked mode” and the “LOCK” indicator will be on. Another 60 seconds will turn the machine from “locked mode” into “sleeping mode”.

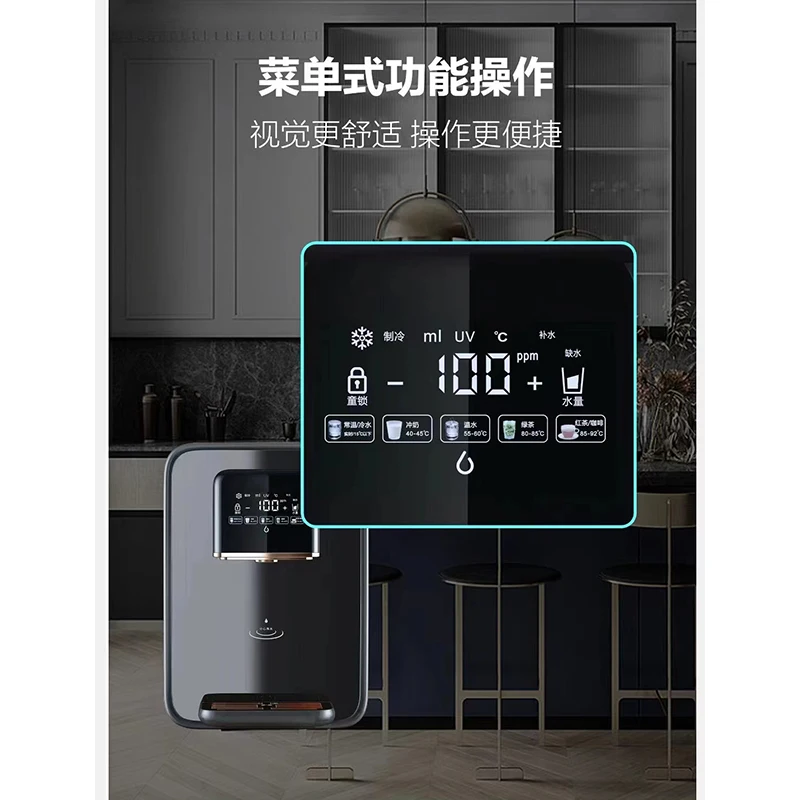

2 Instructions for Function Buttons
* LOCK: When on, cooling and heating functions will not work.Touch “LOCK” for 1 second before using other function buttons.
* COOLING: Touch “COOLING” to have the machine working in “cooling mode”, in which the indicator is in orange. Until the
inner-cooler temperature reaches 12 ℃, the function will automatically stop, then the indicator is in green. Or you can touch “COOLING” whenever you want to stop the work.
* COLD: One touch will release around 150ml cold water, or you can stop it whenever by touching it again. The LED monitor will show the real-time temperature inside the inner cooler.
* HOT/150ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater.Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/150ml” whenever you want to stop the work.
* HOT/250ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater. Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/250ml” whenever you want to stop the work.
CAUTION: Please do touch the outlet when the machine is releasing hot water(99℃).
water. The inner-cooler real-time temperature will show on the monitor. If no actions in 60 seconds, the machine will turned into “locked mode” and the “LOCK” indicator will be on. Another 60 seconds will turn the machine from “locked mode” into “sleeping mode”.
2 Instructions for Function Buttons
* LOCK: When on, cooling and heating functions will not work.Touch “LOCK” for 1 second before using other function buttons.
* COOLING: Touch “COOLING” to have the machine working in “cooling mode”, in which the indicator is in orange. Until the
inner-cooler temperature reaches 12 ℃, the function will automatically stop, then the indicator is in green. Or you can touch “COOLING” whenever you want to stop the work.
* COLD: One touch will release around 150ml cold water, or you can stop it whenever by touching it again. The LED monitor will show the real-time temperature inside the inner cooler.
* HOT/150ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater.Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/150ml” whenever you want to stop the work.
* HOT/250ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater. Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/250ml” whenever you want to stop the work.
CAUTION: Please do touch the outlet when the machine is releasing hot water(99℃).
Daily Maintenance
* Do not place any part of this dispenser in water or any other liquid.
* Place the dispenser away from direct sunlight。
* Keep the dispenser out the reach of Kids.
* Don’t remove the cup when hot water is streaming out.
* Organic media is not allowed to be used for cleaning the surface of the machine.
* Place the dispenser away from direct sunlight。
* Keep the dispenser out the reach of Kids.
* Don’t remove the cup when hot water is streaming out.
* Organic media is not allowed to be used for cleaning the surface of the machine.
Packing & Delivery
Carton packaging
Products packing as following:
Each product into each inner box with box dimension: 340 x 212 x 440 (mm)
4pcs products into each outer carton with carton dimension: 890 x 355 x 460 (mm)
