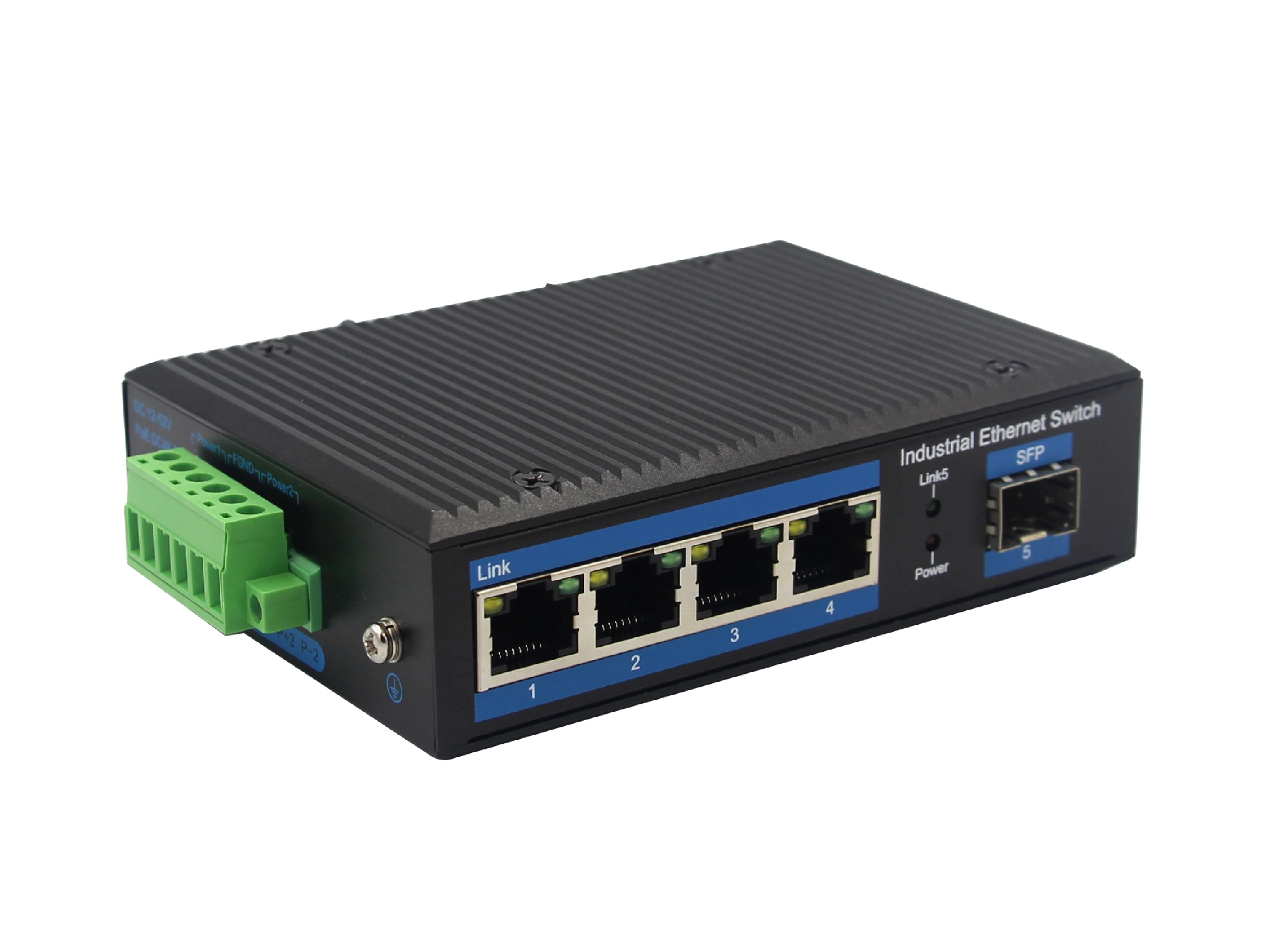

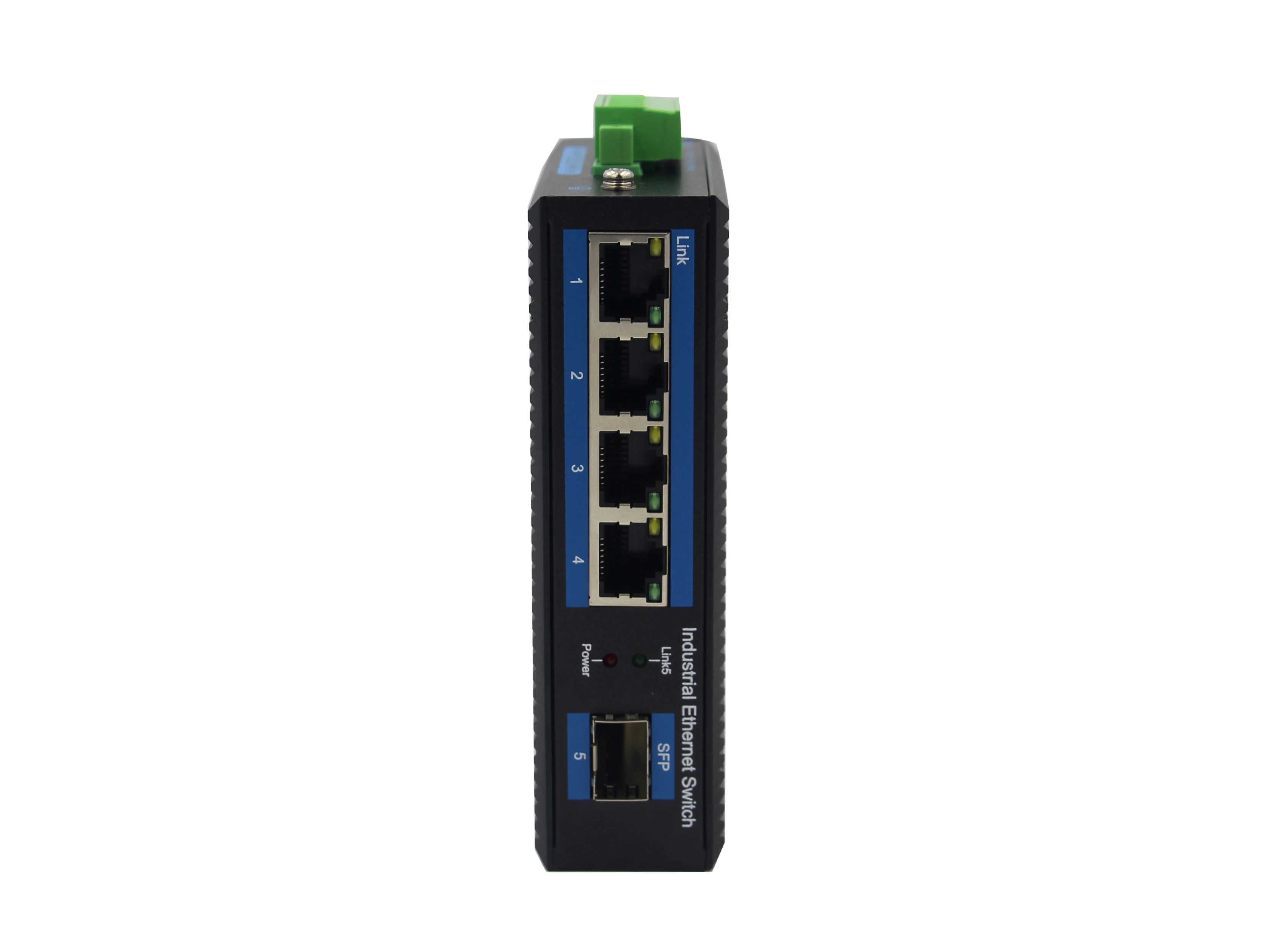

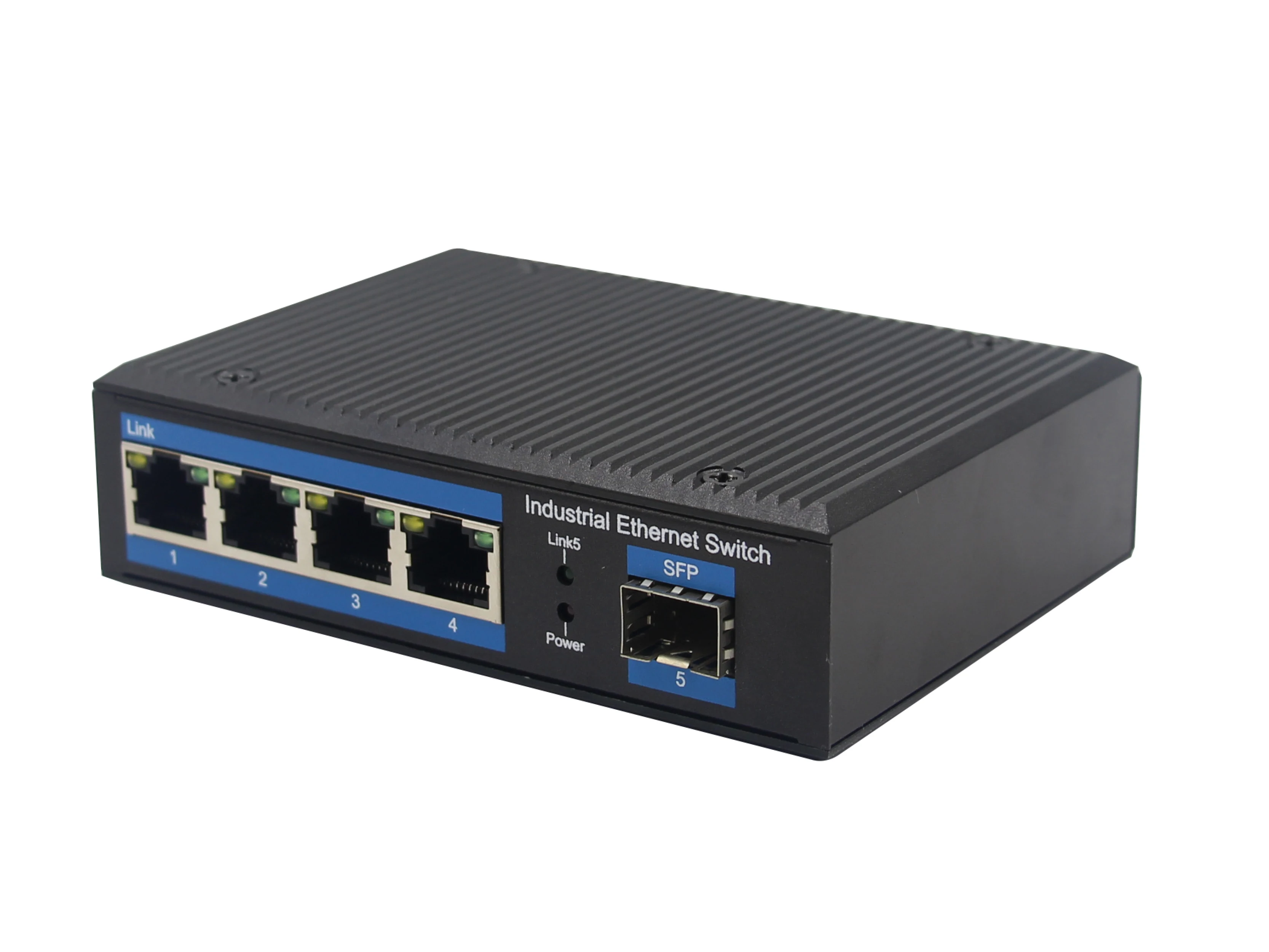

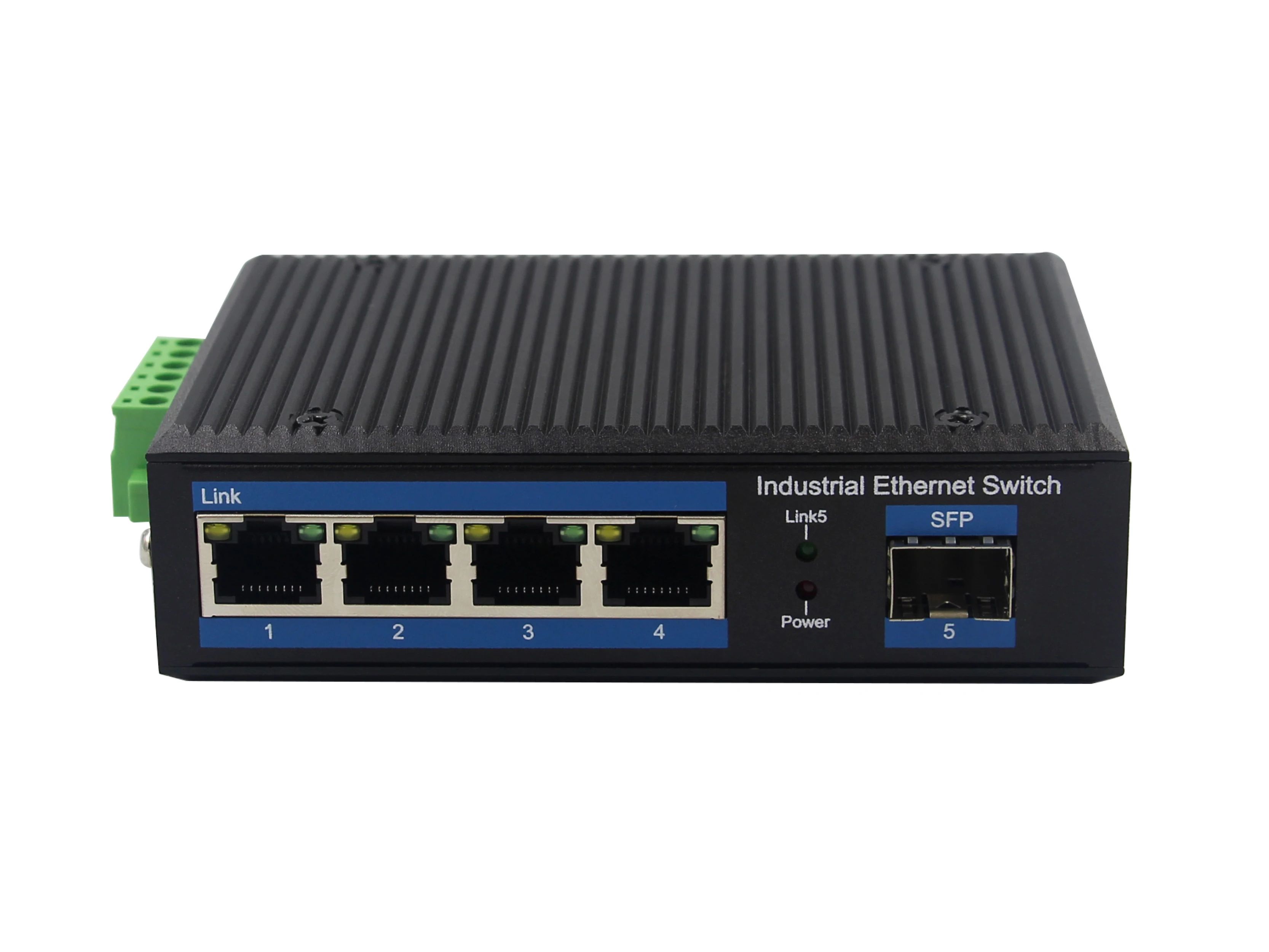

POE Switch Ethernet 4 port 10/100/1000BASE TX 1000Base FX Industrial Ethernet Switch
- Category: >>>
- Supplier: Shenzhen Yuhang Communication Technology Co. Ltd.
Share on (1600580613562):
Product Overview
Description
Product Description
Model No. | ZXD14G-SC2 / ZXD14G-SC20 / ZXD14G-SFP | Installation | DIN rail |
10/100/1000Base-TX Port | 4 port RJ-45 auto-MDI / MDI-X | Maximum Frame Size | 9000bytes packet size |
1000Base-FX Port | ZXD14G-SC2: 1 SC interface ZXD14G-SC20: 1 SC Interface ZXD14G-SFP: 1 SFP Slot | Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Fiber Port Type | ZXD14G-SC2: SC / multi-mode ,up to distance 2km ; ZXD14G-SC20: SC / single-mode ,up to distance 20km ; ZXD14G-SFP: Vary on module | Enclosure | IP40 aluminum housing |
Optical Frequency | ZXD14G-SC2: 1310nm ZXD142G-SC20: 1310nm ZXD14G-SFP: Vary on module | LED Indicator | Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
Performance Specification | Bandwidth: 14Gbps Packet Buffer Memory:1.2Mbit Packet Forwarding Rate:10.5Mpps MAC Address Table: 2K | Power Input | 12 to 52V DC redundant power |
Power Consumption | < 3 watts | Surge protection | ±4KV |
- ZXD14G Series
4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch
Slim Type with more Practicability and Convenience
ZXD14G an hardened 5-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100/1000BASE-TX RJ45 +1-port 1000Base-Fx delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
ZXD14G an hardened 5-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100/1000BASE-TX RJ45 +1-port 1000Base-Fx delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
The ZXD14G series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The ZXD14G series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Product Usage
Interface
•4-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
•1-port 1000Base-Fx interface SC/FC/ST/SFP
•Multi-Mode up to 2km
•Single-Mode up to 20km/40km/60km/80km
•1-port 1000Base-Fx interface SC/FC/ST/SFP
•Multi-Mode up to 2km
•Single-Mode up to 20km/40km/60km/80km
Industrial conformance

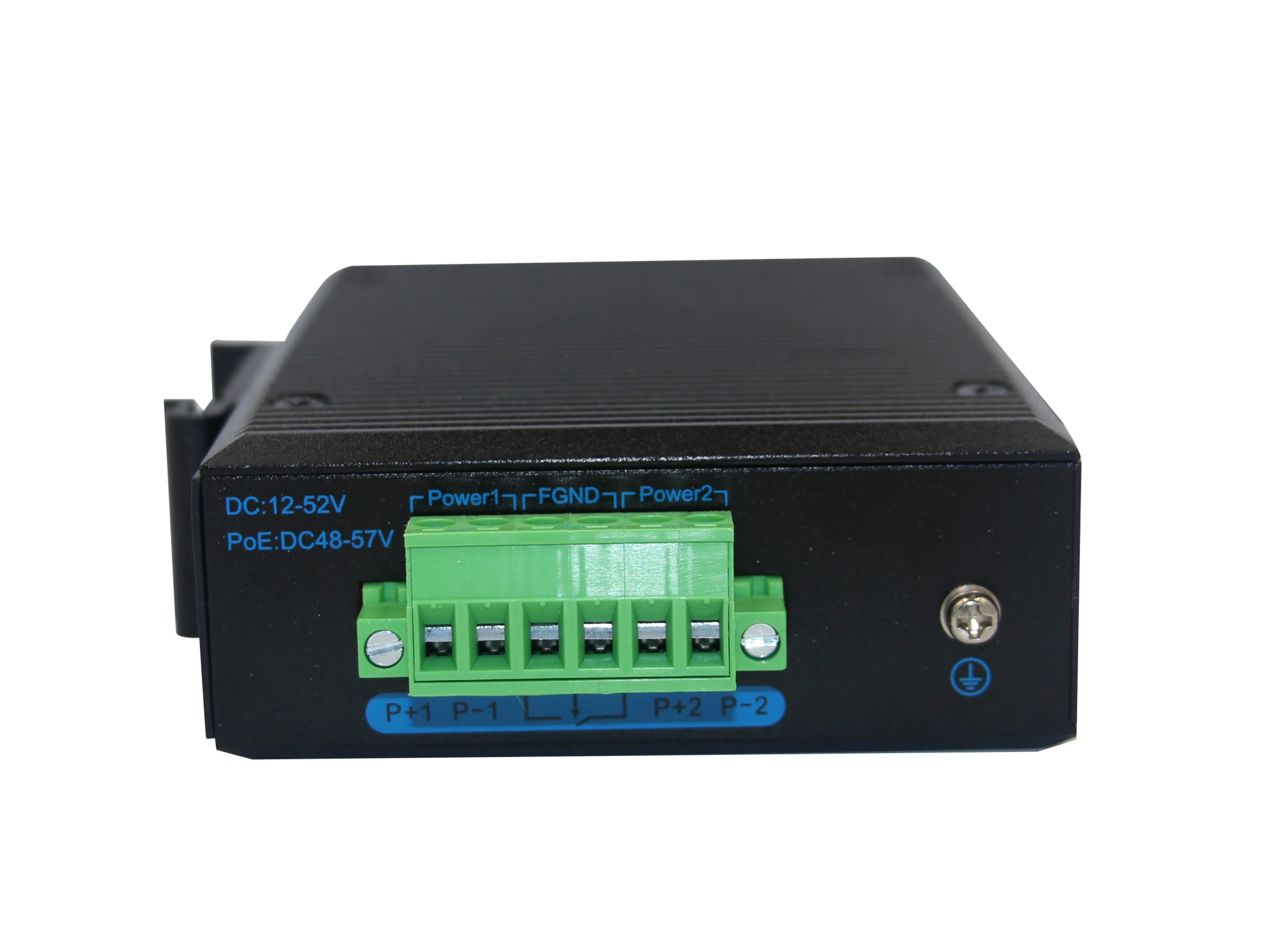

•12V to 52V DC, redundant power input
•-40℃ to 85℃ operating temperature
•IP40 aluminum housing
•-40℃ to 85℃ operating temperature
•IP40 aluminum housing
•Supports 6KV DC Ethernet ESD protection •Supports 6KV DC EFT protection for power line

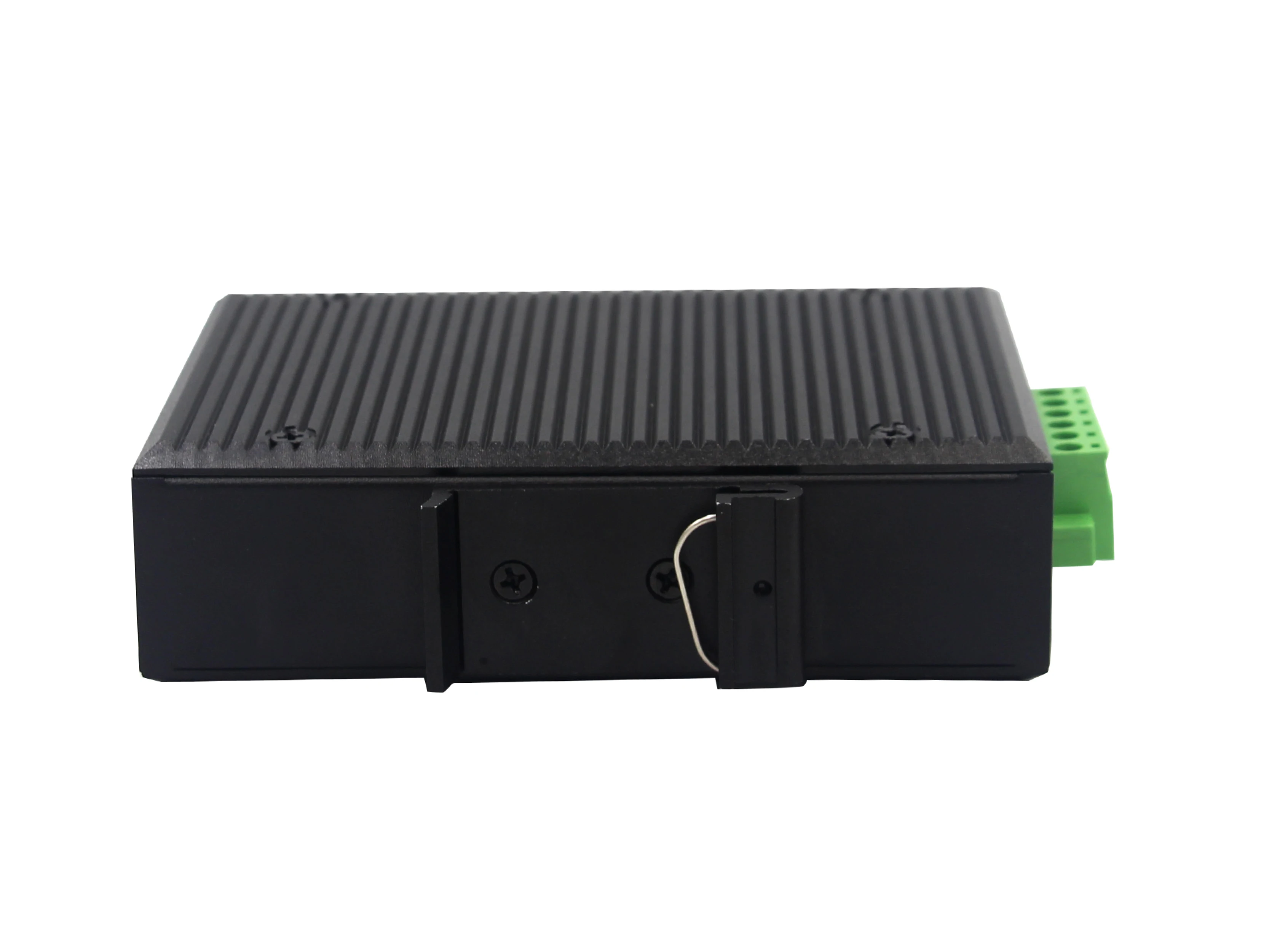

•Free Fall, Shock and Vibration Stability •DIN-rail and wall-mountable hardware design
Company Introduction
Shenzhen Yuhang Communication Technology Co.,Ltd established in 2012 ,which headquartered in Shenzhen, it’s a high-tech enterprise specialized in Industrial Ethernet Switch (IES), providing customers with cost-effective products and solutions for industrial Ethernet. Yuhang focuses on the Industrial Ethernet Switches market of medium and large customers with OEM/ODM service.

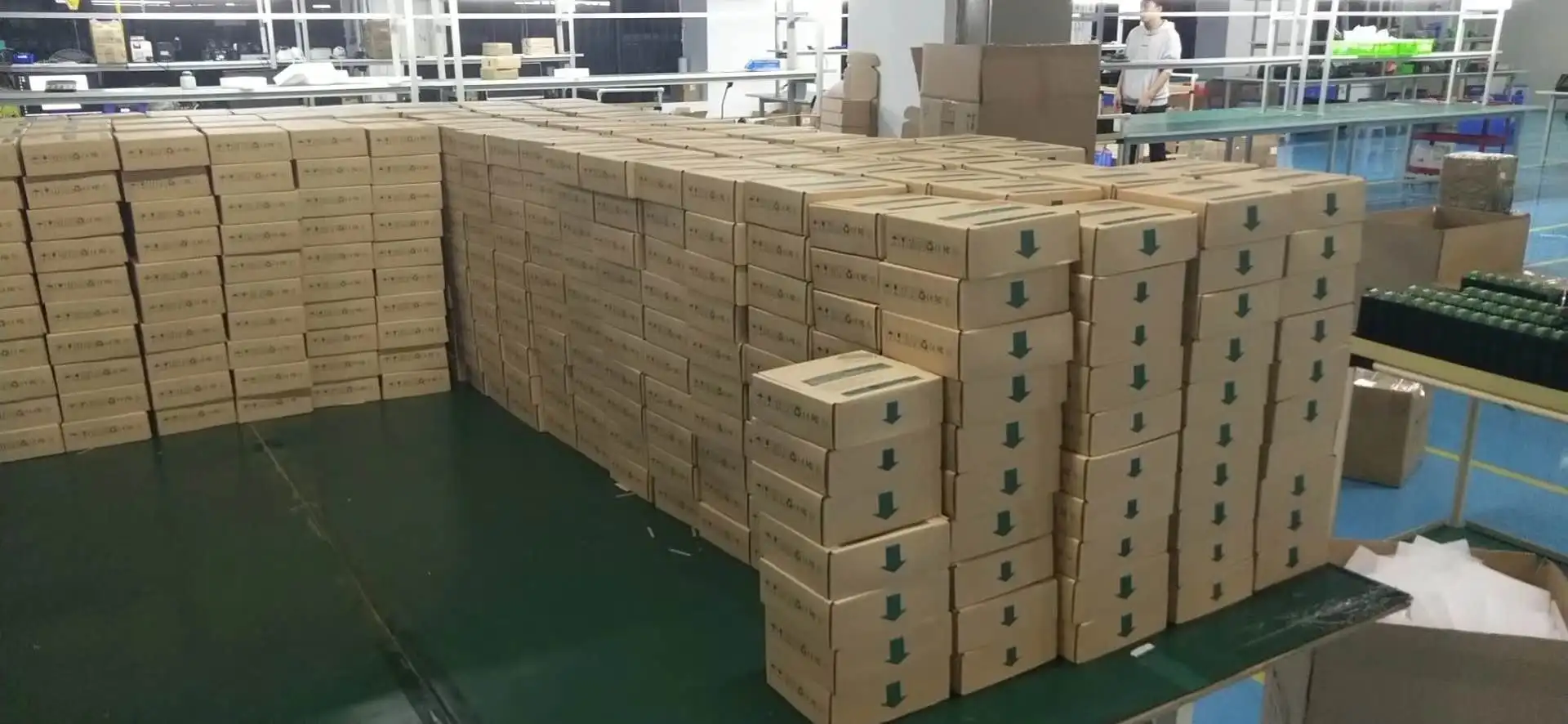

YHGT is one of the domestic national brands in China with the largest manufacturing workshop for industrial Ethernet switches(3000㎡) and automation production line (launched in June 2021), and 7S standard factory.
Yuhang focus on the industrial switch product line, already launched more than 1000 models, the solution coving IC+\\ Marvell \\RTL\\VTS\\BCM and ourself-developed chips and other chip manufacturers of various industrial switch mainstream standard solutions, seven product lines, hexagonal product layout, well known as the industrial switch "Wal-Mart“.
