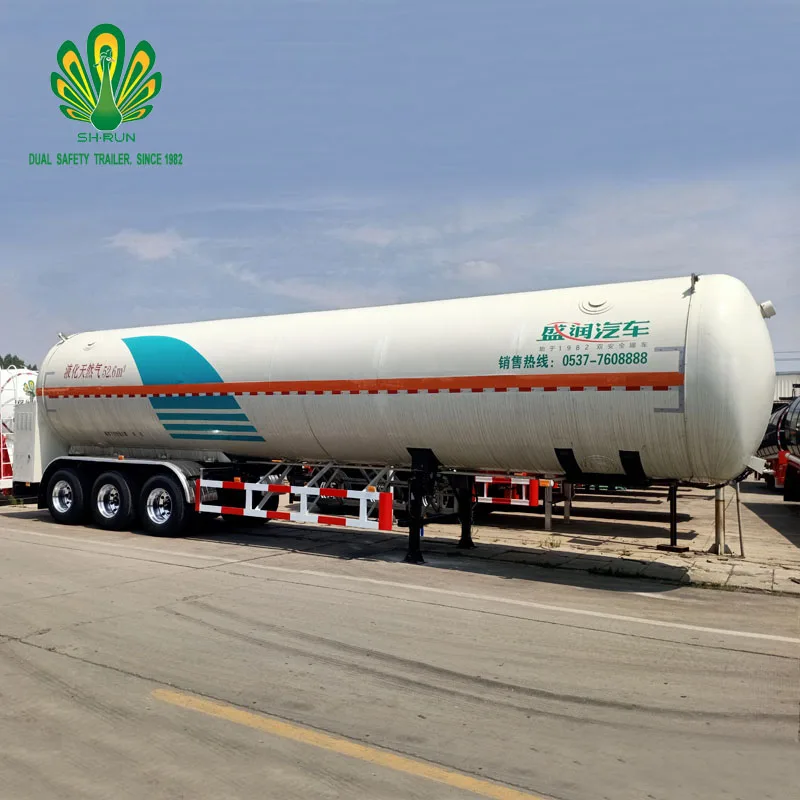

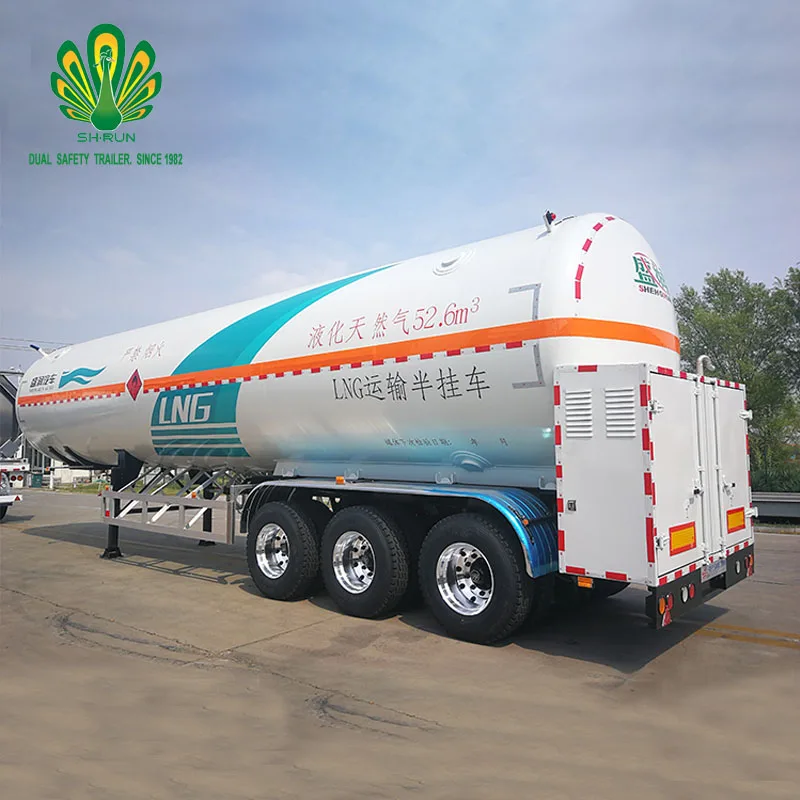

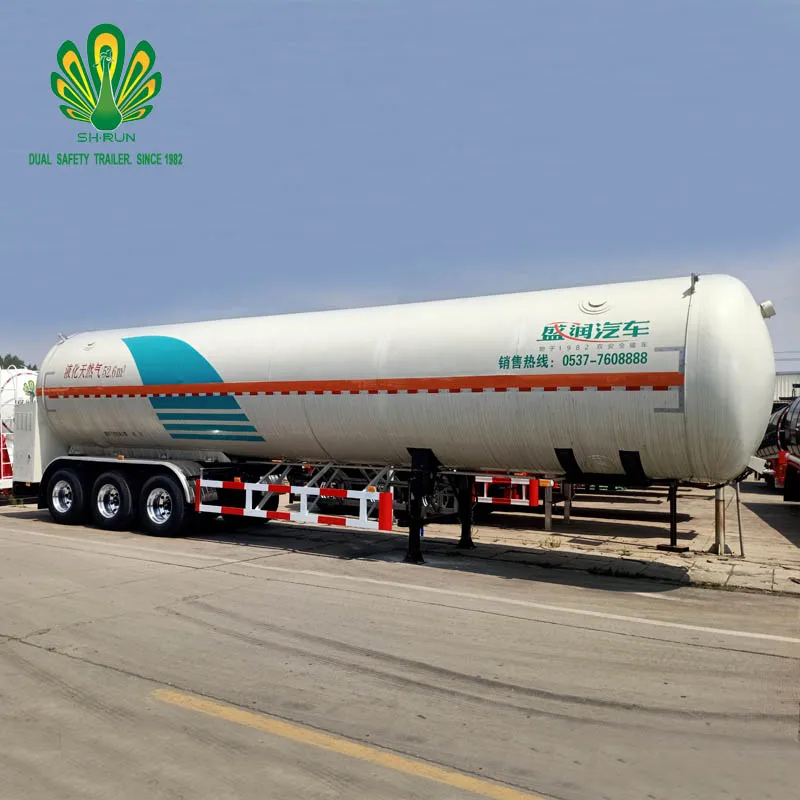

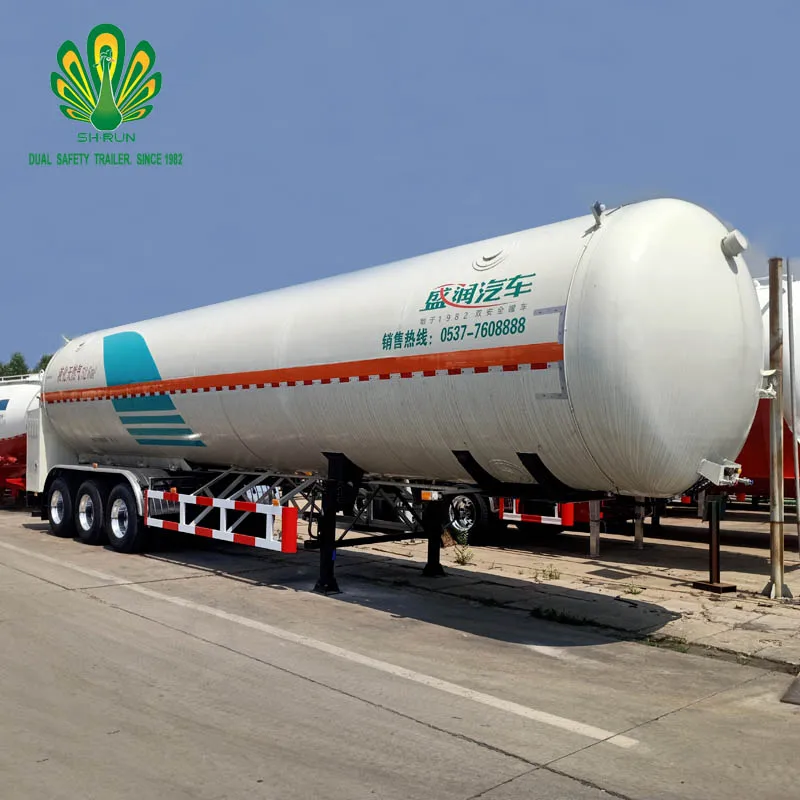

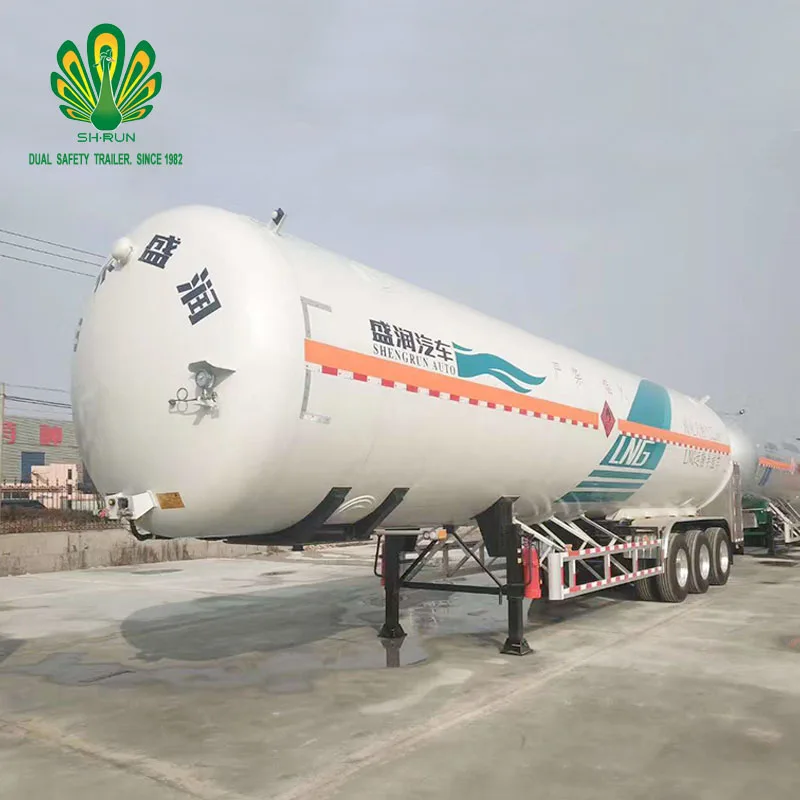

China Manufacturer 52.6M3 Liquefied Natural Gas cryogenic LNG tank container semi trailer
- Category: >>>
- Supplier: Shandong Shengrun Automobile Co. Ltd.
Share on (1600580618448):
Product Overview
Description
VR
ASME standard Factory low price 3 Axles 12 tire 52.6CBM LNG tanker trailer
Our factory has nearly 40 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your business to a higher level.
Products Description
Shengrun GAS LNG tank trailer, is a special vehicle used for road transportation of liquefied natural gas. Our LNG tanker trailer choose carbon high-tensile steel material, welded by automatic Submerged-Arc processes. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
LNG Tanker trailer will be inspected before painting ensure every detail in good condition.
We are manufacturer, provide customized service, design as the customers’ every request.
Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO quality system certification. Our phone service 24 hours service for you.
LNG Tanker trailer will be inspected before painting ensure every detail in good condition.
We are manufacturer, provide customized service, design as the customers’ every request.
Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO quality system certification. Our phone service 24 hours service for you.

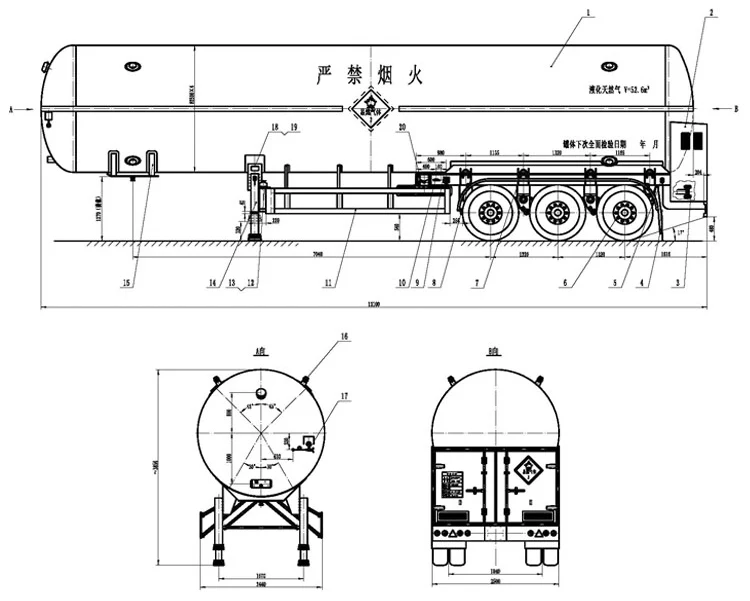

Specification For LNG Tanker Trailer | ||
Manufacturer | Shandong Shengrun Automobile Co., Ltd. | |
Type | GAS LNG tanker trailer | |
Tanker Body | ||
Shape | Cylindrical | |
Dimension | 9500-13000*2500*3900mm ( can be customized ) | |
Volume | 52.6 m³ - 56 m³ | |
Compartments | 1 Compartments | |
Material | S30408 Q345R | |
Design temperature | -196～50 ℃ | |
Design pressure | 0.64 MPa | |
Corrosion allowance | 1 mm | |
Thermally insulation thickness/material | 25mm / aluminum foil+Degreased fibre paper | |
Safety Valve | ||
Type | DAH-25 | |
Form | Full lift | |
Norminal pressure | 4 MPa | |
Valve base size | 20 mm | |
Rated pressure | 0.69 MPa | |
Discharge-pressure | ≤0.76 MPa | |
Return-pressure | ≥0.63 MPa | |
Chassis | ||
Main Beam | Q345B Carbon steel material | |
Axles | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles | |
Suspenssion | Mechanical, Air, Bogie | |
Landing Leg | JOST E100 | |
Brake system | 6pcs T30/30 Brake Chambers, WABCO relay valve | |
Tire | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand | |
King Pin | JOST 2" or 3.5 " Bolting Type | |
Any parts fitted could according to clients request, contact us to get more. | ||

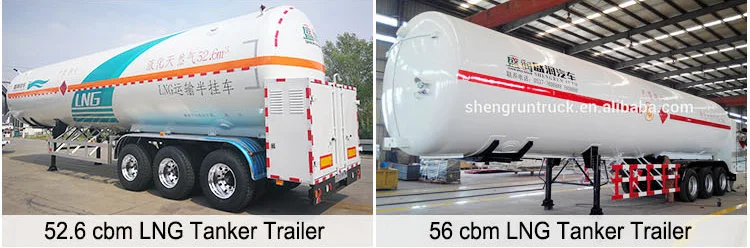

More Types
Shengrun have more models GAS LNG tank trailer
Material: Carbon steel
Volume: 20 - 70 cbm
Axles: 2-4 axles
Click interested pictures below for more.
Material: Carbon steel
Volume: 20 - 70 cbm
Axles: 2-4 axles
Click interested pictures below for more.

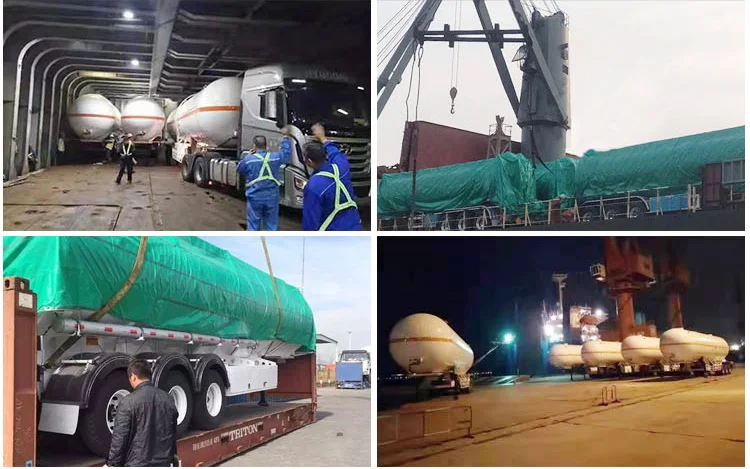

Packing & Shipping
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
Packing:Standard export packing, or customized packing as your request.
Professional goods shipping forwarder.
Our Service
1. 12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3. Lifelong Parts Supports.
4. Engineer available service oversea.
2. Technical Support by phone Whatsapp or email around the clock.
3. Lifelong Parts Supports.
4. Engineer available service oversea.
Our Factory
Shandong Shengrun Automobile Co., Ltd. is the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, fuel tanker, bulk cement tanker, particle material tanker, LNG, LPG, container trailer, sidewall trailer, low bed trailer, dump trailer and other special vehicles.
Shengrun has passed ISO9001:2008 quality management system certification, 3C product certification, national safety production standardization secondary enterprise, has obtained A2 fixed pressure vessel (low temperature storage tank), C2 automobile tanker(low temperature), C3 tank container pressure vessel Production license, American Society of Mechanical Engineers ASME qualification certification, European ADR vehicle certification, China Classification Society tank container production approval certificate, national dangerous goods packaging, container production license, measurement management system certification, rated by the state as high-tech enterprise. And obtained more than 60 national patents.
Shengrun has passed ISO9001:2008 quality management system certification, 3C product certification, national safety production standardization secondary enterprise, has obtained A2 fixed pressure vessel (low temperature storage tank), C2 automobile tanker(low temperature), C3 tank container pressure vessel Production license, American Society of Mechanical Engineers ASME qualification certification, European ADR vehicle certification, China Classification Society tank container production approval certificate, national dangerous goods packaging, container production license, measurement management system certification, rated by the state as high-tech enterprise. And obtained more than 60 national patents.
ASME
E MARK
ISO
Classification Society
Design License of Special Equipment
ADR
Customer Visit
Our Advantages
We are a manufacturer, not a trading company!
1. Shengrun factory started in 1983 and has nearly 40 years of industry manufacturing experience. And obtained more than 60 national patents.
2. Finite Element analysis used in vehicle to promote product performance.3. The product complies with international standards such as IMDG / ADR / RID / TC / CSC / ASME / EN, and is applicable to the global shipping, road and rail transportation regulations and standards.
4. Steel frames are built with top-class hot rolled or rolled steel plate, which ensure Beam and frame’s Toughness and strength.
5. Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding.
6. Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.
7. Tough ribs design, Ensure the safety and carrying capacity of trailer.
8. Uniquely designed low-load platform provides lower transport center of gravity and smoother transportation.
9. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
10. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
11. Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading.
12. Trailer Main Parts Warranty Period Reach 12 Months.
13. Strict factory inspections ensure that every car leaves the factory perfectly.
FAQ
Q: Does your company has your own factory?
A: Yes, we have a factory ourself, which is in this business nearly 40 years in China. Our factory is very famous where is manufacturing various trailers in Shandong, China.
Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers, could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: How about your price?
A: Although we are brand name products,but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
Q: What's your payment term?
A: We accpet both T/T and L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
A: Yes, we have a factory ourself, which is in this business nearly 40 years in China. Our factory is very famous where is manufacturing various trailers in Shandong, China.
Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers, could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: How about your price?
A: Although we are brand name products,but our prices are very favorable and competitive.
Customer from all over the world to purchase our products, because our best price.
Q: What's your payment term?
A: We accpet both T/T and L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
