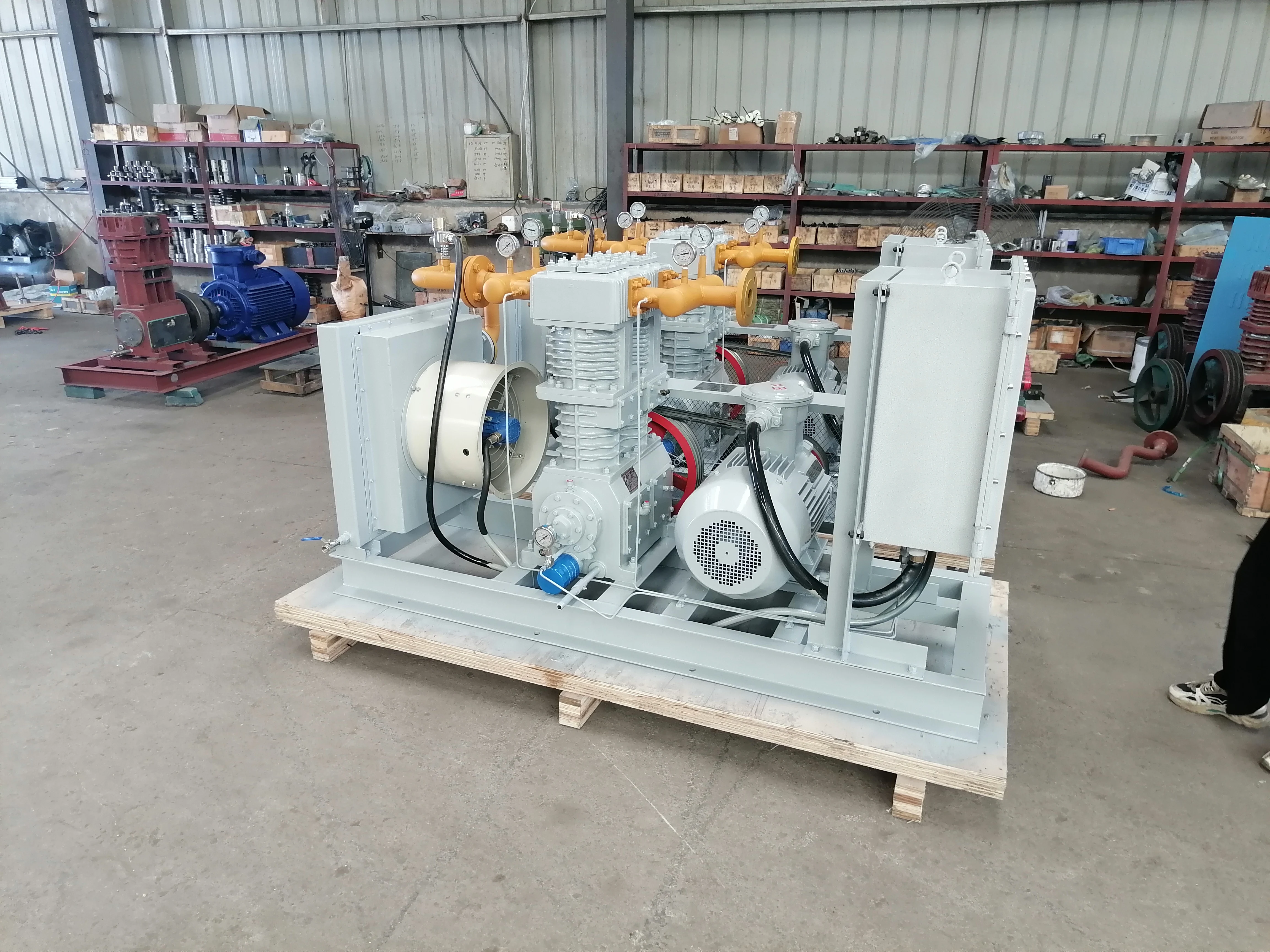

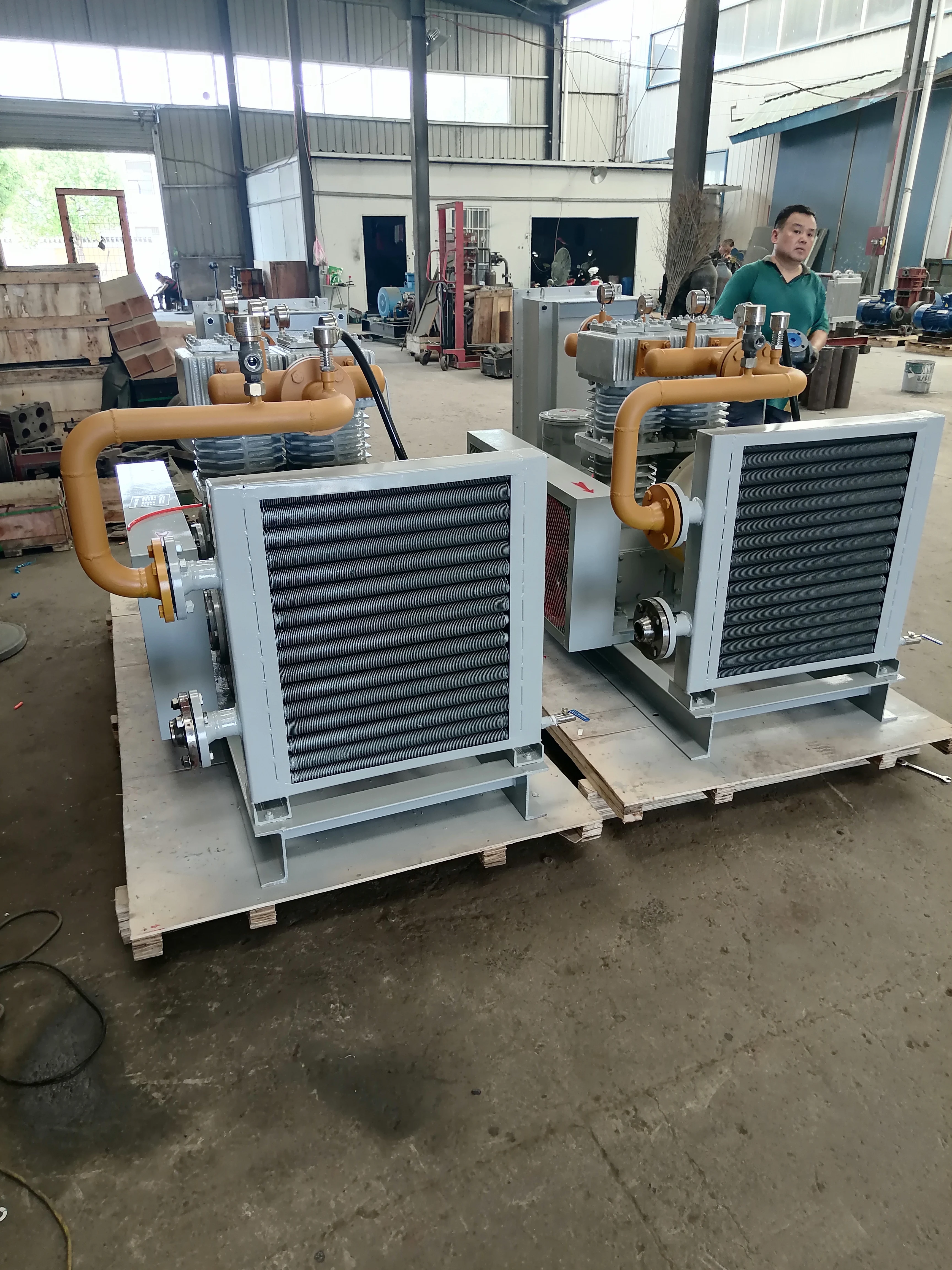

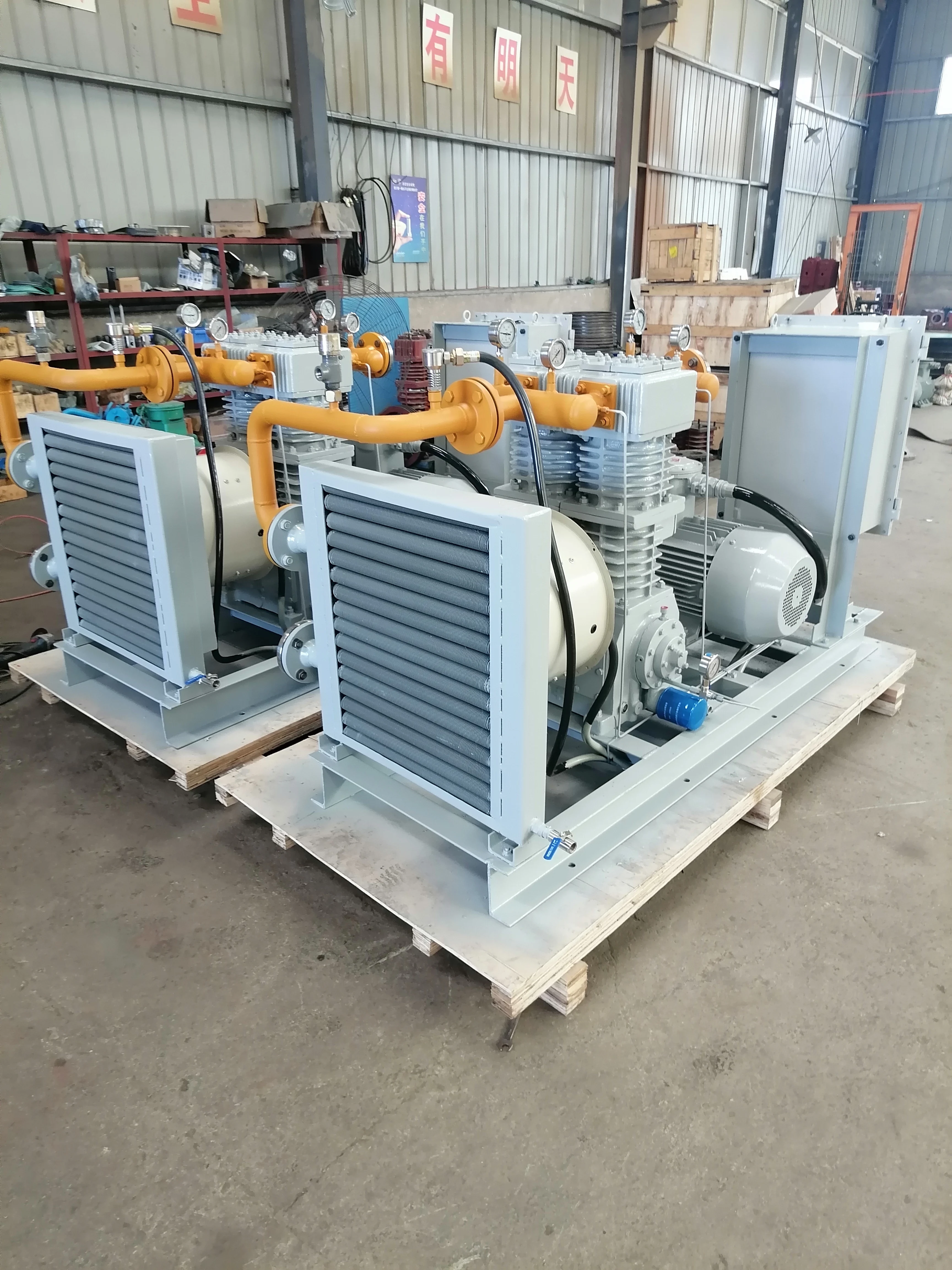

High Performance Reciprocating Oil free Natural Gas CNG Piston Compressor For CNG Filling Station
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1600580650027):
Product Overview
Description

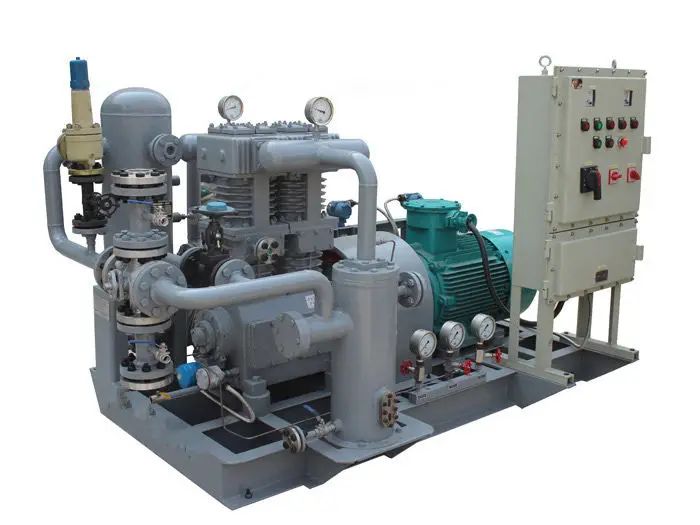

High Performance Reciprocating Oil-free Natural Gas CNG Piston Compressor For CNG Filling Station
Product Description
Product description
This series of compressors are mainly used for (methanol, natural gas, coal gas) cracking hydrogen production, water electrolysis hydrogen production, hydrogen filling bottle, benzene hydrogenation, tar hydrogenation, catalytic cracking and other hydrogen booster compressors.
Features
1. Designed specifically for process flow.
2. The whole machine is skid-mounted, with advanced structure and good airtightness.
3. Stable operation, convenient maintenance and perfect automatic control protection.
Specification
No | Model | Gas flow （Nm3/h） | Inlet pressure （Mpa） | Outlet pressure （Mpa） | Gas | Power （kw） | Dimensions （mm） |
1 | ZW-0.5/15 | 24 | Atmospheric pressure | 1.5 | Hydrogen | 7.5 | 1600*1300*1250 |
2 | ZW-0.16/30-50 | 240 | 3 | 5 | Hydrogen | 11 | 1850*1300*1200 |
3 | ZW-0.45/22-26 | 480 | 2.2 | 2.6 | Hydrogen | 11 | 1850*1300*1200 |
4 | ZW-0.36 /10-26 | 200 | 1 | 2.6 | Hydrogen | 18.5 | 2000*1350*1300 |
5 | ZW-1.2/30 | 60 | Atmospheric pressure | 3 | Hydrogen | 18.5 | 2000*1350*1300 |
6 | ZW-1.0/1.0-15 | 100 | 0.1 | 1.5 | Hydrogen | 18.5 | 2000*1350*1300 |
7 | ZW-0.28/8-50 | 120 | 0.8 | 5 | Hydrogen | 18.5 | 2100*1350*1150 |
8 | ZW-0.3/10-40 | 150 | 1 | 4 | Hydrogen | 22 | 1900*1200*1420 |
9 | ZW-0.65/8-22 | 300 | 0.8 | 2.2 | Hydrogen | 22 | 1900*1200*1420 |
Company Profile
Our company specialize in making various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirements.

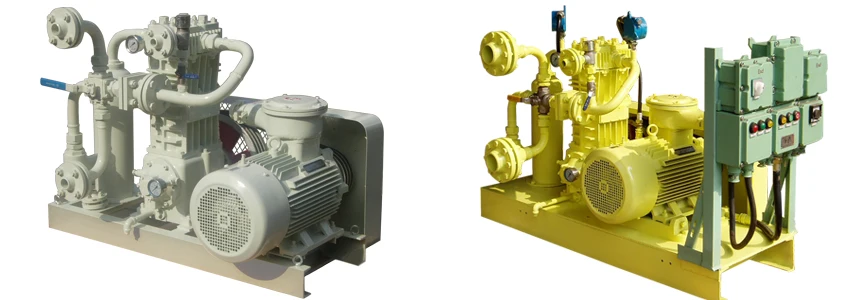

This series of oil-free compressor is one of the first products produced by our factory in China. The product has the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance. This series compressor is in the form of unit. It integrates compressor, gas-liquid separator, filter, two position four-way valve, safety valve, check valve, explosion-proof motor and chassis. The utility model has the advantages of small volume, light weight, low noise, good sealing performance, easy installation, simple operation, etc.
This series of oil-free compressor is one of the first products produced by our factory in China. The product has the characteristics of low speed, high component strength, stable operation, long service life and convenient maintenance. This series compressor is in the form of unit. It integrates compressor, gas-liquid separator, filter, two position four-way valve, safety valve, check valve, explosion-proof motor and chassis. The utility model has the advantages of small volume, light weight, low noise, good sealing performance, easy installation, simple operation, etc.
Recommend Products
Packing & Delivery
CERTIDICATION
FAQ
1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
