Cylinder Block Grinding & Milling Machine 3M9730
- Category: >>>
- Supplier: Shaanxi Aps Machinery Equipment Co. Ltd.
Share on (1600580670486):
Product Overview
Description

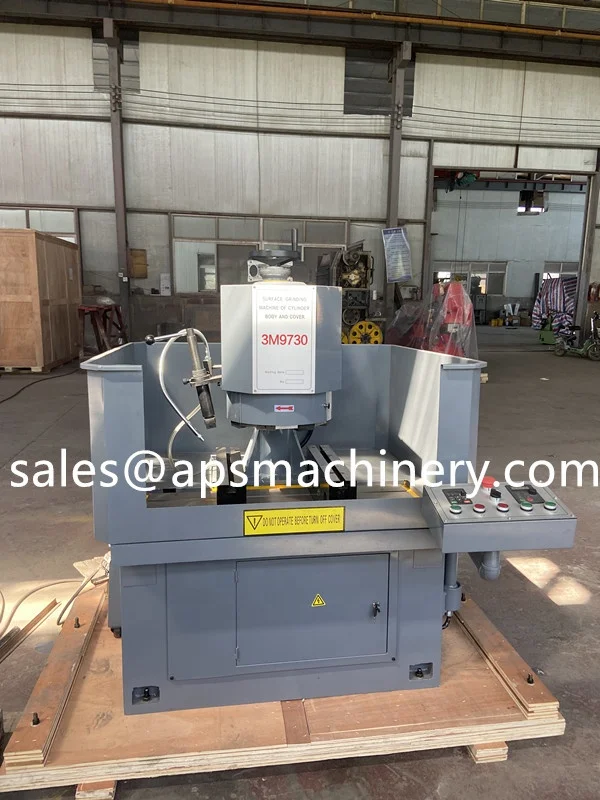

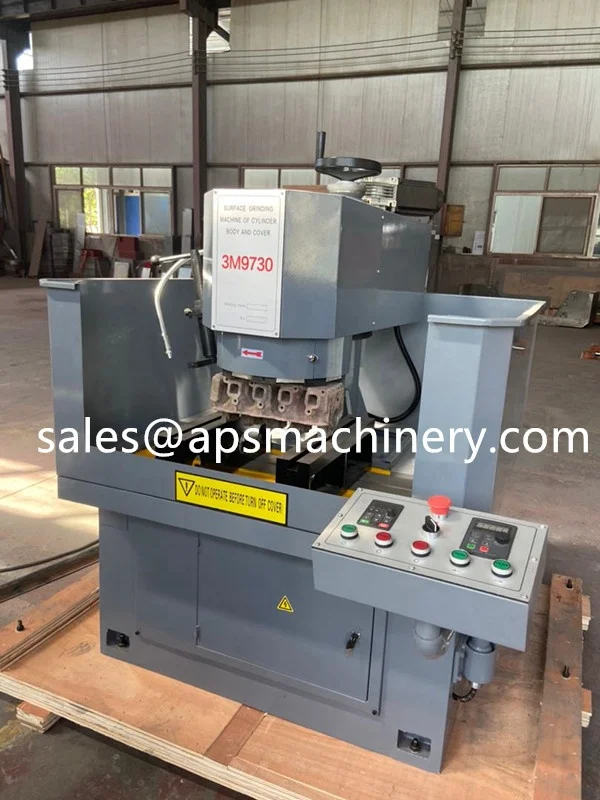

Cylinder Heads Grinding-Milling 3M9730
3M9730 is mainly suitable for grinding and milling the surface of cylinders body and head surface of middle and small type engine. It is used for finishing flat of general part also.
Main specifications
Model | 3M9730 |
Table area | 670x270mm |
Range of finish area | 700x180,600x225, 500x260,400x285, 350x300mm |
Rocker arm rotation radius | 310mm |
350mm | |
Min. height to finished | 205mm |
Milling head moving speed: | 0-300r/min |
Emery wheel disk diameter: | 330mm |
The speed of revolution of main motor: | 960r/min 300-1400 frequency conversion speed regulation |
Power of the main motor: | 1.5KW |
Feed motor power: | 0.11KW |
Machine weight N/G | 600/800kgs |
Outline dimension: | 1220X1100X1670mm |
