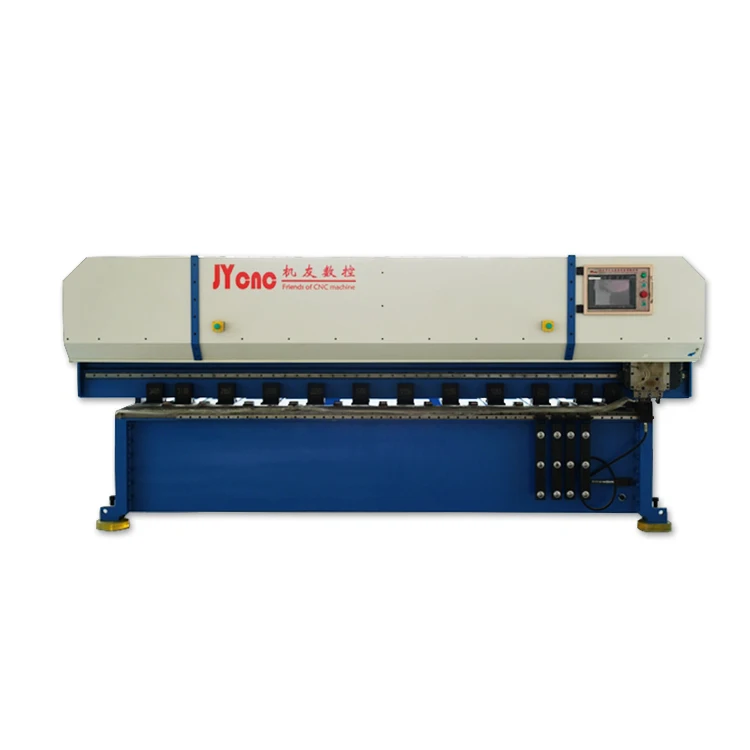

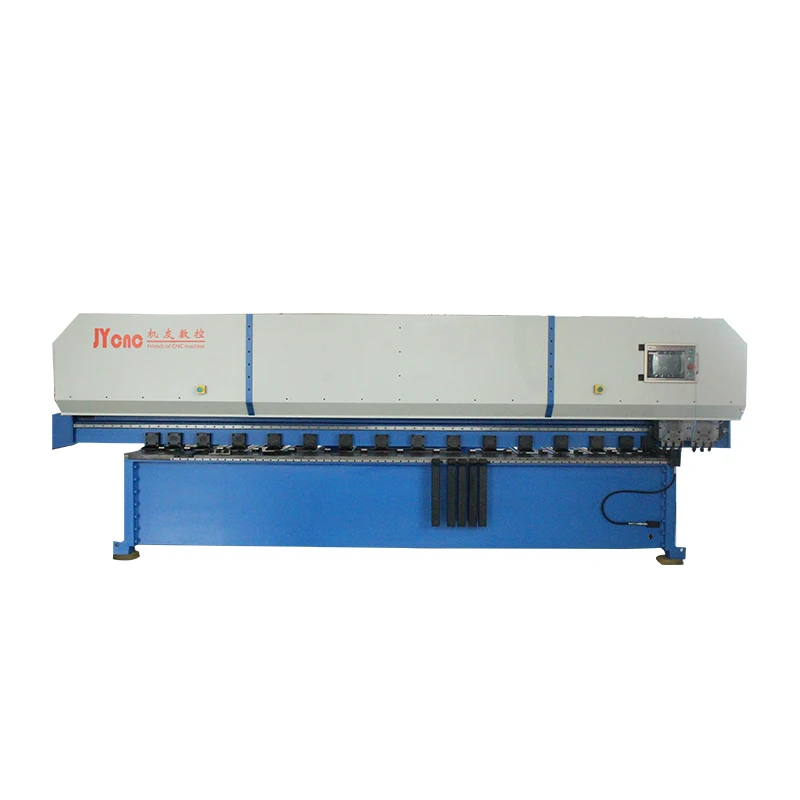

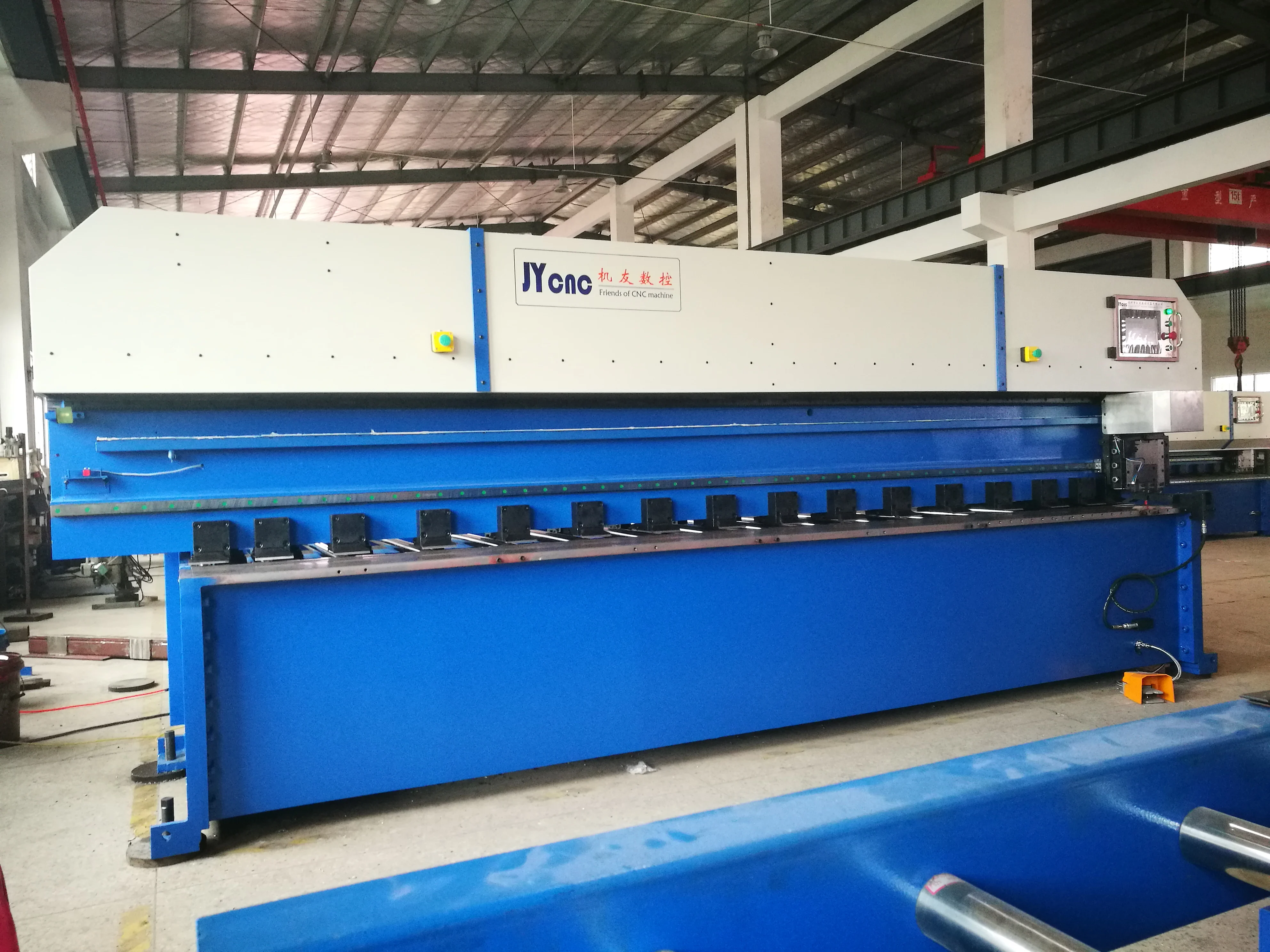

High Precision 220-380v Vertical Grooving Machine for Mechanical Equipment automatic pipe grooving machine


Products Description


Product name

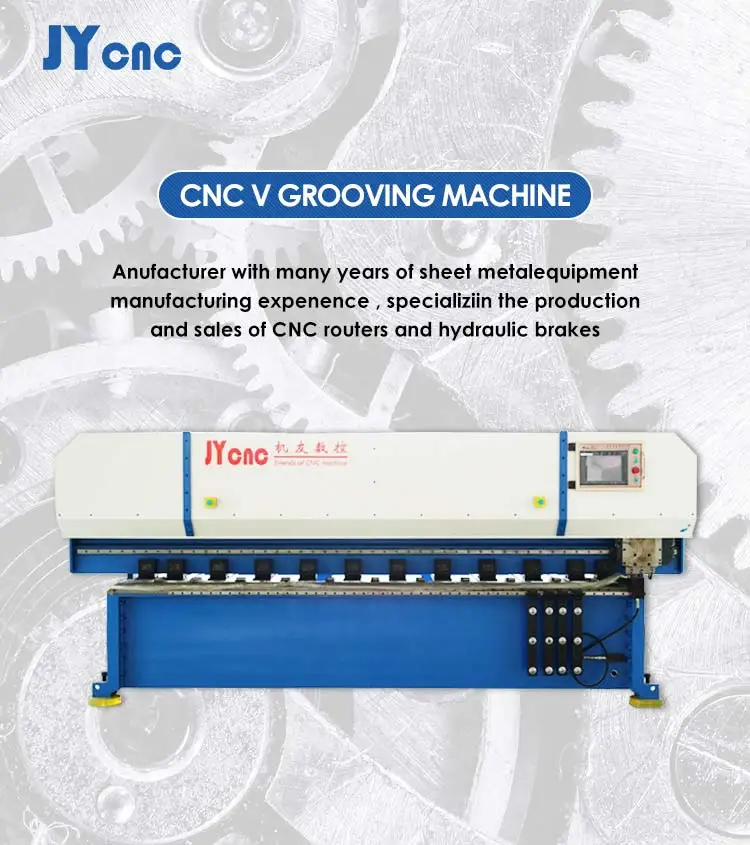

CNC V Grooving Machine
Fuel tank capacity
40 litre
Color
AS Picture
Delivery time
Quantity
Packaging
1pc/ctn
Size
4100*2100*1650mm
Weight
6000KG
OEM/ODM
Customization Service Provided






Core Components


Serial number
item name
Model specification
quantity
unit
Unit price ( excluding tax )
Remark
1
Simplified CNC router
JYNCV- 3 213- J
1
tower
195,000
Including tax plus 10%
2
Fine sharp Edition CNC machine Notch
JYNCV- 3 213- R
1
tower
238000
Including tax plus 10%
3
Fine Chinese version of CNC machine Notch
JYNCV- 3 213- H
1
tower
276000
Including tax plus 10%
4
Simplified CNC router
JYNCV- 4 213- J
1
tower
215000
Including tax plus 10%
5
Fine sharp Edition CNC machine Notch
JYNCV- 4 213- R
1
tower
265000
Including tax plus 10%
6
Fine Chinese version of CNC machine Notch
JYNCV- 4 213- H
1
tower
308000
Including tax plus 10%
total
(Uppercase RMB) Yuan whole ( without tax )


Part Name
Brand /Place of Origin
3213-J
3 213- R
3 213- H
4 213- J
4 213- R
4 213- H
Control interface
Willen 8-inch touch screen
Mitsubishi
Mitsubishi 5U
Willen 8-inch touch screen
Mitsubishi
Mitsubishi 5U
China
Japan
Japan
China
Japan
Japan
Controller
Zhejiang Hechuan
Zhejiang Hechuan
Zhejiang Hechuan
Zhejiang Hechuan
Zhejiang Hechuan
Zhejiang Hechuan
China
China
China
China
China
China
server system
Zhejiang Hechuan
Panasonic Electric
Panasonic Electric
Zhejiang Hechuan
Panasonic Electric
Panasonic Electric
China
Japan
Japan
China
Japan
Japan
Switch appliances
Schneider
Schneider
Schneider
Schneider
Schneider
Schneider
France
France
France
France
France
France
Proximity switch, solid state
Yang Ming
Yang Ming
Yang Ming
Yang Ming
Yang Ming
Yang Ming
Taiwan
Taiwan
Taiwan
Taiwan
Taiwan
Taiwan
Hydraulic system
Shanghai Weierfo.5kw
Taiwan Liquid Saint
, Taiwan Sun Hung
Taiwan Liquid Saint
, Taiwan Sun Hung
Shanghai Well.5kw
Taiwan Liquid Saint
, Taiwan Sun Hung
Taiwan Liquid Saint
, Taiwan Sun Hung
China
Taiwan
Taiwan
China
Taiwan
Taiwan
Screw, slide rail
Jiangsu Zhongchengfa Precision
TBI
TBI
Jiangsu Zhongchengfa Precision
TBI
TBI
China
Taiwan
Taiwan
China
Taiwan
Taiwan
Planetary right angle reducer
Newgate
Taiwan World Association
Taiwan World Association
Newgate
Taiwan World Association
Taiwan World Association
China
Taiwan
Taiwan
China
Taiwan
Taiwan
Precision gears, racks
Jingte Transmission
He Kai KH
He Kai KH
Jingte Transmission
He Kai KH
He Kai KH
China
Taiwan
Taiwan
China
Taiwan
Taiwan


Part Name
Brand /Place of Origin
3213-J
3 213- R
3 213- H
4 213- J
4 213- R
4 213- H
Machine size
4100*2100*1650
4100*2100*1650
600*2100*1650
5100*2100*1950
5100*2100*1950
5100*2100*1950
Workpiece thickness
0.4~5mm
0.4~8mm
0.4~8mm
0.4~5mm
0.4~8mm
0.4~8mm
Maximum stroke of machine tool
20*13 0 0*3 20 0
20*13 0 0*3 20 0
20*13 0 0*3 20 0
20*13 0 0* 4200
20*13 0 0* 4200
20*13 0 0* 4200
Maximum processing capacity
5 *13 0 0*3 20 0
8 *13 0 0*3 20 0
8 *13 0 0*3 20 0
5 *13 0 0* 4200
8 *13 0 0* 4200
8 *13 0 0* 4200
Positioning accuracy
Plus or minus 0.1mm
Plus or minus 0.1mm
Plus or minus 0.1mm
Plus or minus 0.1mm
Plus or minus 0.1mm
Plus or minus 0.1mm
Feed positioning accuracy
Plus or minus 0.03m m
Plus or minus 0.0 2 m m
Plus or minus 0.0 2 m m
Plus or minus 0.03m m
Plus or minus 0.0 2 m m
Plus or minus 0.0 2 m m
Planing speed
0-60m/min
0- 8 0m/min
0- 8 0m/min
0-60m/min
0- 8 0m/min
0- 8 0m/min
Return speed
0 - . 8 0m / min
0 -1 2 0m/min
0 -1 2 0m/min
0 - . 8 0m / min
0 -1 2 0m/min
0 -1 2 0m/min
Planing depth
0.6mm
0. 8 mm
1.2 mm
0.6mm
0. 8 mm
1.2 mm
Spindle motor power
3 000W
3000W
5 000W
3 000W
3000W
3000W
Spindle positioning accuracy
Plus or minus 0.5mm
Plus or minus 0.5mm
Plus or minus 0.5mm
Plus or minus 0.5mm
Plus or minus 0.5mm
Plus or minus 0.5mm
Fuel tank capacity
100 L
100 L
100 L
100 L
100 L
100 L
Hydraulic pressure plate/pc
12
12
12
16
16
16
Positioning clamp
11
11
11
15
15
15
Machine weight kg
6000
7000
85000
7000
9000
10000


Serial number
Part Name
Delivery quantity
Simplified CNC router
Elite Edition CNC Grooving Machine
Essence version of CNC router
price
RMB
Remark
1
Alloy Tool Holder
1
V
V
V
2
Alloy knife
1
V
V
V
For example, get 2 boxes
3
White steel knife holder
1
X
V
V
4600
4
White steel knife
1
X
V
V
5
Knife block
1
V
V
V
6
Toolbox
1
V
V
V
7
Allen wrench
1
V
V
V
8
Ratchet wrench
1
V
V
V
9
screwdriver
1
V
V
V
10
Grease gun
1
V
V
V
11
air gun
1
V
V
V
12
Foot switch
1
V
V
V
13
grinder
1
X
V
V
14
Wheel Corrector
1
X
V
V
15
Grinding wheel washer
1
X
V
V
16
White steel knife sharpening die
1
X
V
V
17
1.5M rear support rack
1
X
X
X
15000
Cooperation plan: complete machine + standard accessories
Optional plan:




Processed Products

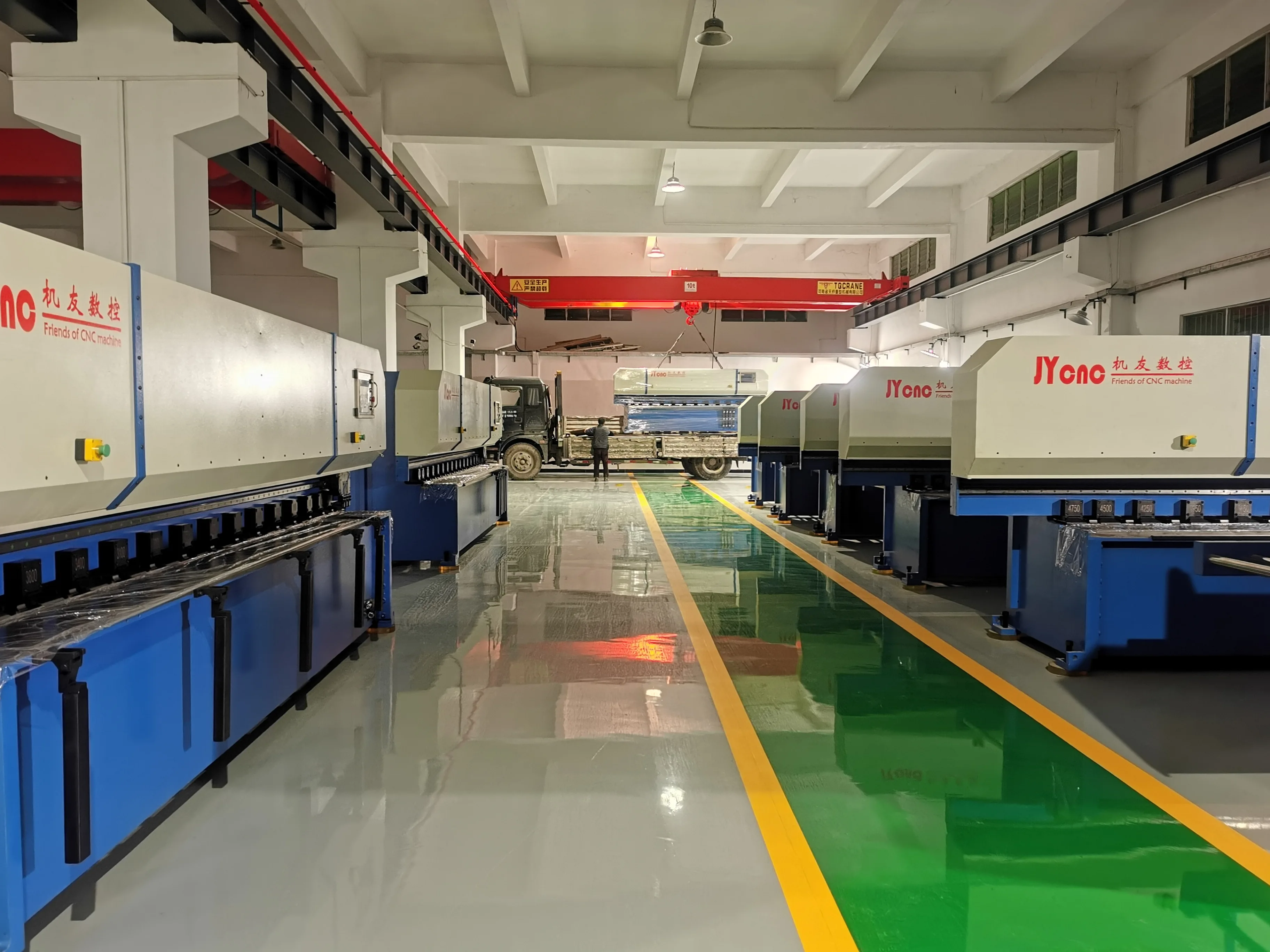

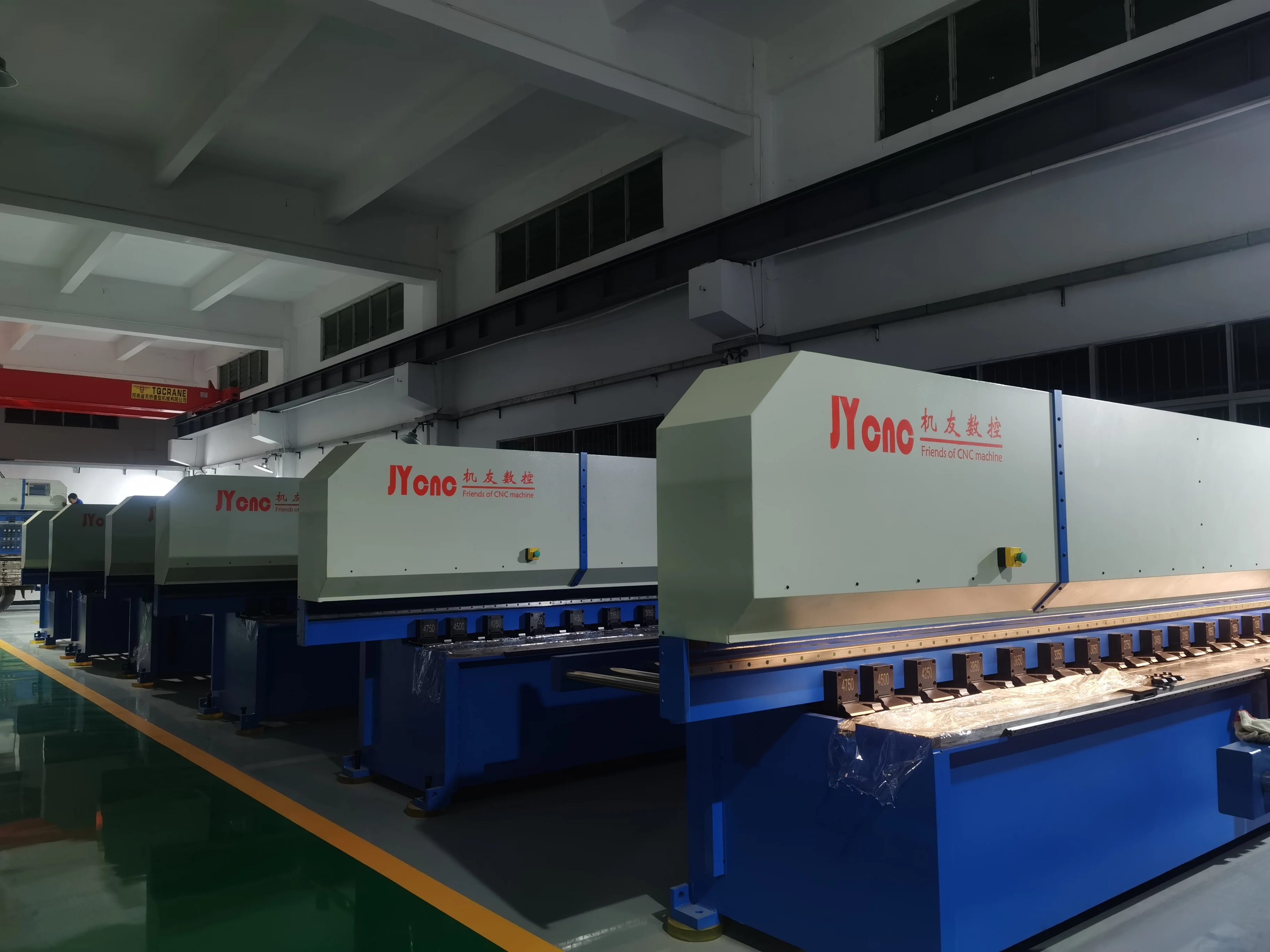

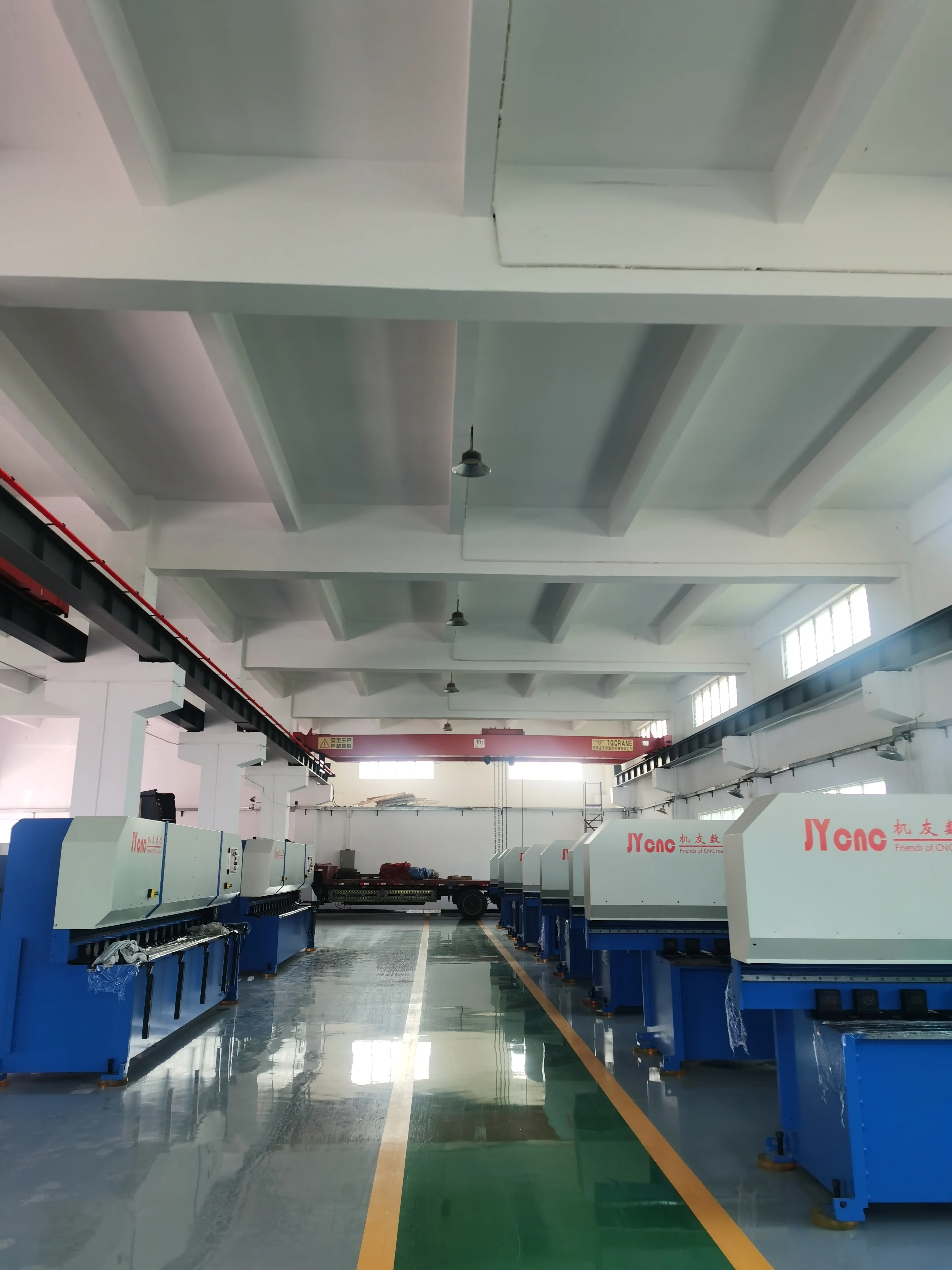

Our Company

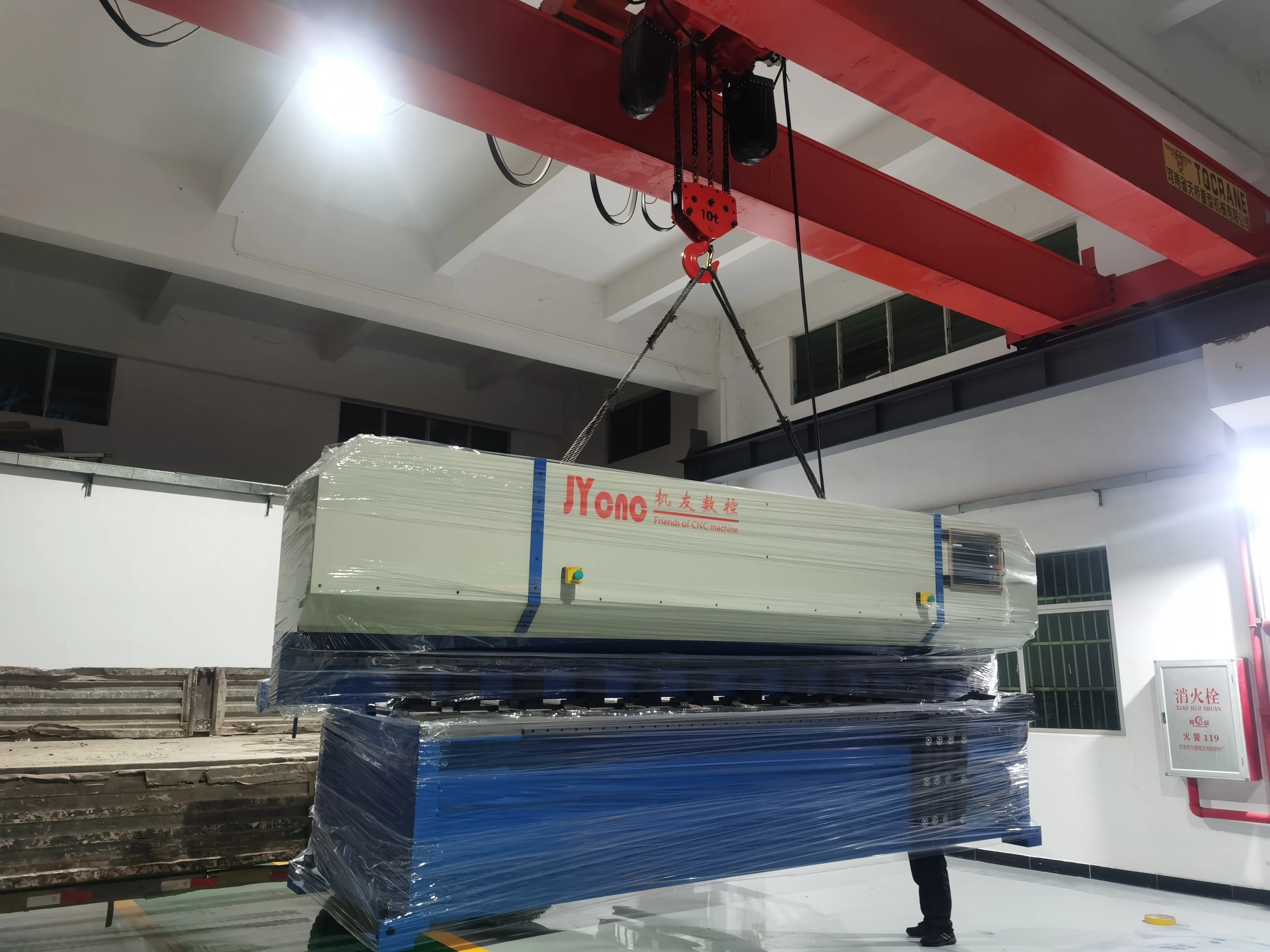

Packaging & Logistics
