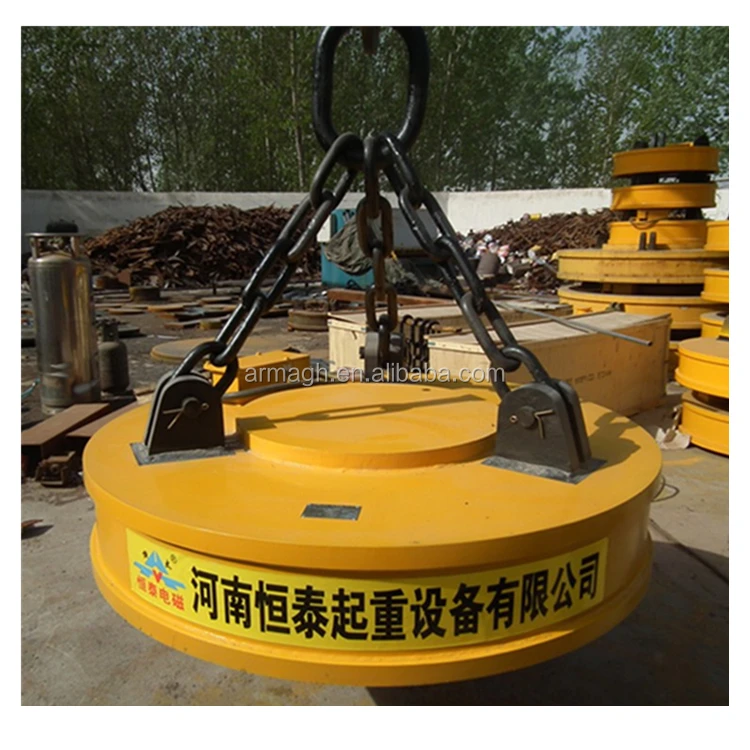

Good quality lifting magnet for scrap electromagnet lifter

Product Overview

Description

                              Product Description

                                                                 Product Application

Lifting Magnet is mainly used to lift steel plate and round steel. Due to its characteristics of light weight, easy operation and strong suction, it has been widely used in Marine engineering, storage, transportation, machinery manufacturing and other fields.Lifting Magnet can handle tones of scrap continuously throughout the day. they can lift steel more quickly and conveniently than any other mechanical device. Suitable for transferring cast ingots, steel balls, metal and steel scraps.Suitable for cast ingot ,steel ball ,machine chip ,for various kinds of steel scraps ,return scrape ,cropping ,baling scraps and etc in foundry factories and for iron powder in coal washery ,during slag disposal process ,it can remove large size of iron at initial step .Outlet box has two chambers, an extra-thick fender and an anti-twist setting .

                                                                         Main Features

1.Coil protection plate adopts wear - resistant, shock - proof rolling high manganese steel.

2.Fully enclosed structure: adopt fully sealed structure, high moisture resistance.

3.Strong lifting capacity, light weight.
4.Low power consumption, long service life.

5. The coil is made of double glass silk covered with aluminum wire, with good thermal stability and insulation.

6. The load factor is usually 50%.Load factor 75% of magnets are called high-frequency magnets,
7.High frequency magnet has high working frequency and high working efficiency.The speed is also high.

8.Energy saving: usually use constant voltage, also can choose strong excitation control (dc-290v /220V) and constant current power supply.It can improve lifting power, save energy and improve economic efficiency.
9.Easy to install, operate and maintain

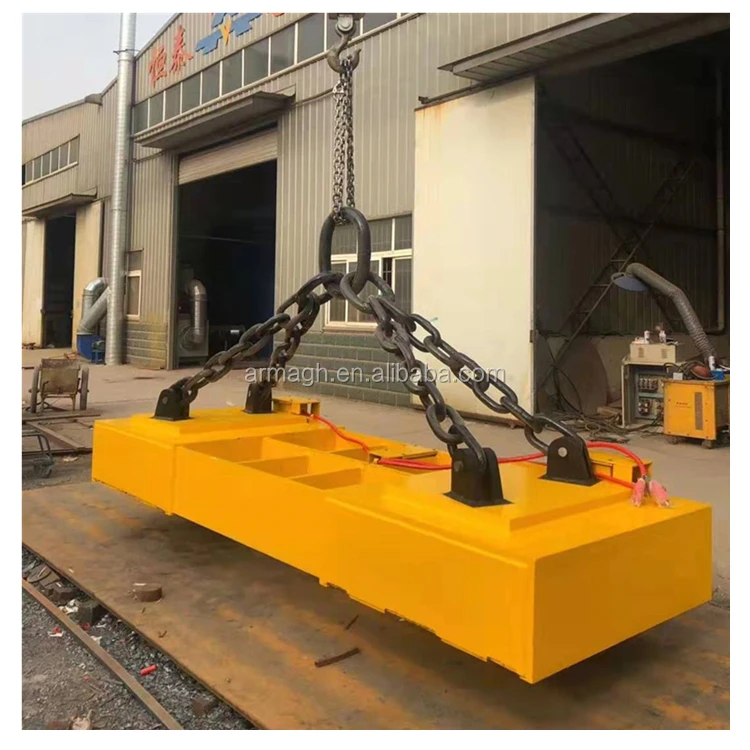

                                                                       product show

                               Product parameter

Model	Current in cold state ( A)	Power in cold state (KW)	Lifting capacity (kg)			Weight (kg)	Overall dimension (mm)					Control Equipment	Cable reel & Cable Connector
			Single steel ball	Packed steel ingots	Packed steel scraps		A	B	C	D	E
MW5-70L/1	15	3.3	2500	380/200	120/100	490	700	800	160	90	30	STML-4E-C	JTA75-15-2 DL-102
MW5-80L/1	18	3.96	3000	480/250	150/130	620	800	800	160	90	30	STML-4E-C
MW5-90L/1	26.6	5.85	4500	600/400	250/200	800	900	1090	200	125	40	STQL-7E-C
MW5-110L/1	35	7.7	6500	1000/800	450/400	1350	1100	1140	220	150	45	STQL-9E-C	JTA100-15-2 DL-102
MW5-120L/1	45.5	10	7500	1300/1000	600/500	1700	1200	1180	220	150	45	STQL-14E-C
MW5-130L/1	54	11.9	8500	1400/1100	700/600	2060	1300	1240	250	175	50	STQL-14E-C
MW5-150L/1	71.2	15.6	11000	1900/1500	1100/900	2830	1500	1250	350	210	60	STQL-19E-C
MW5-165L/1	75	16.5	12500	2300/1800	1300/1100	3200	1650	1590	370	230	75	STQL-19E-C
MW5-180L/1	102.4	22.5	14500	2750/2100	1600/1350	4230	1800	1490	370	230	75	STQL-25E-C	JTA200-15-2 DL-202
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000	2100	1860	400	250	80	STQL-32E-C
MW5-240L/1	154	33.9	26000	4800/3800	2850/2250	9000	2400	2020	450	280	90	STQL-38E-C

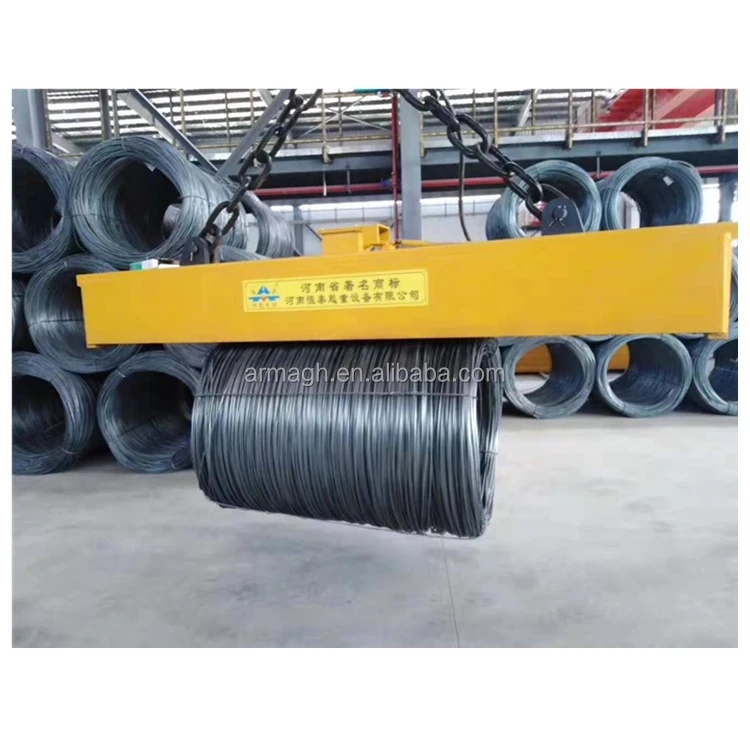

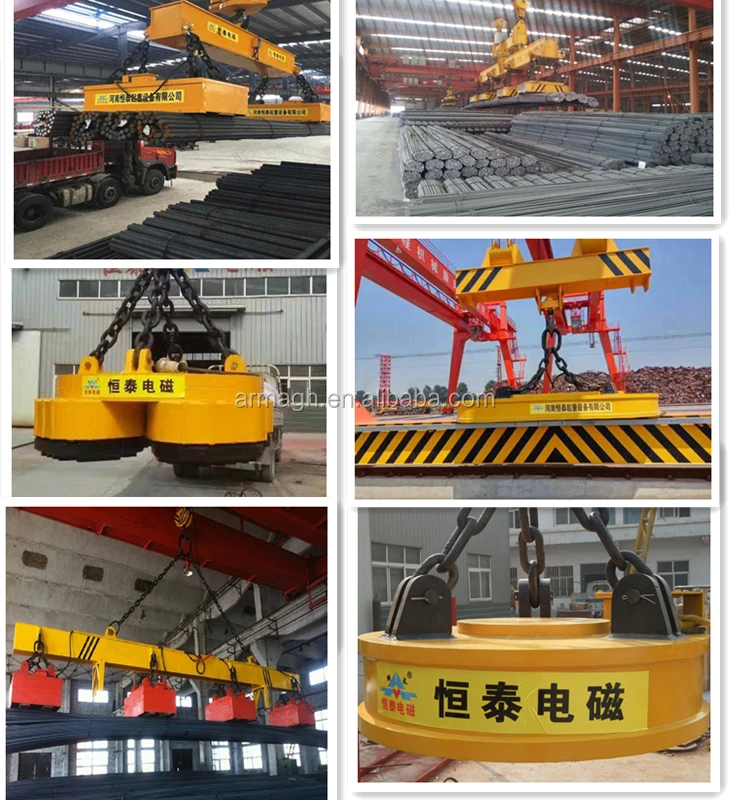

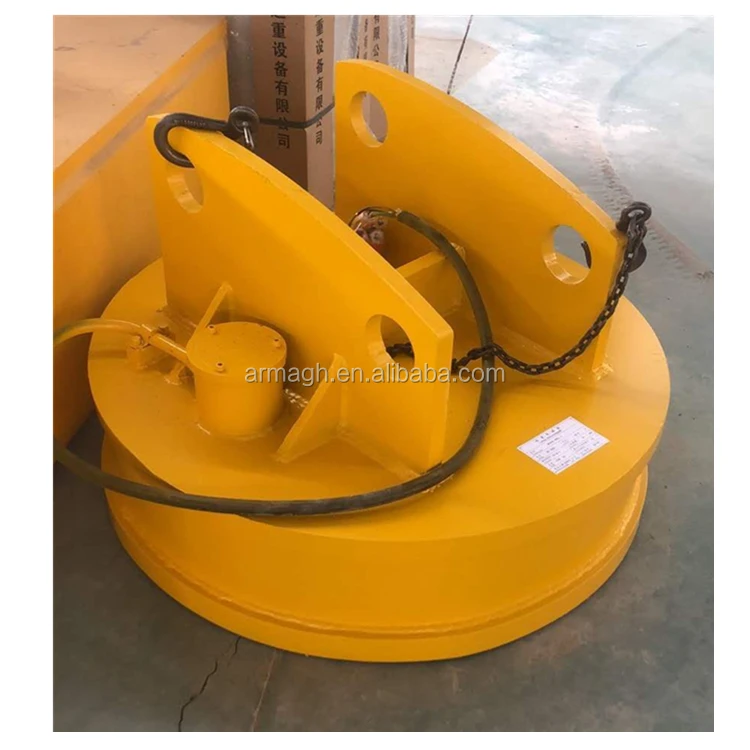

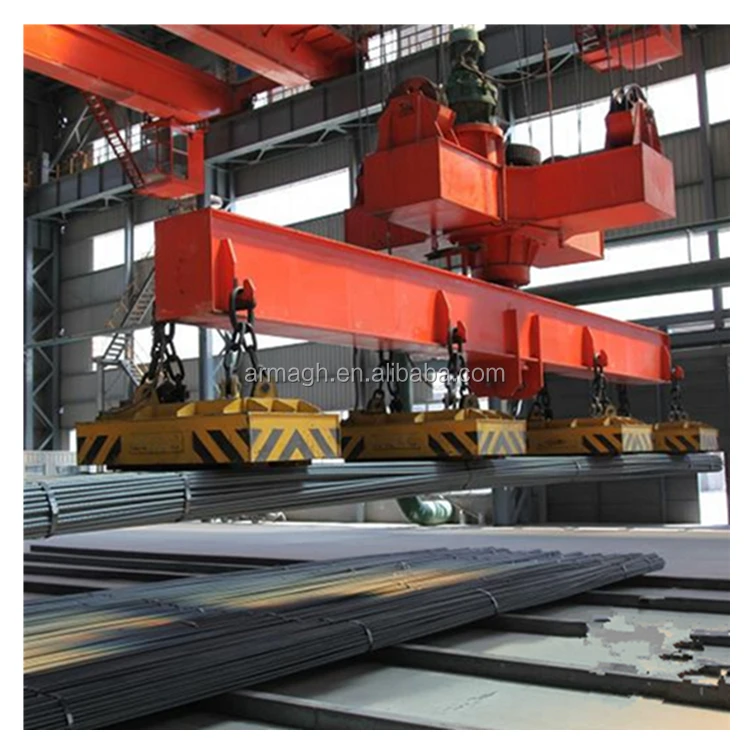

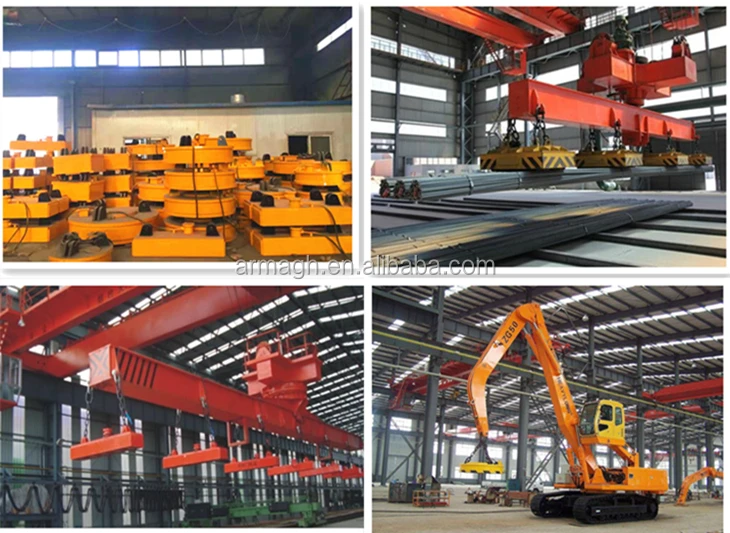

                                Detailed Images

                                  Our Service

Henan Armagh co., LTD. Provides general purpose bridge cranes, gantry cranes, crane hooks, mining grab cranes, ship loaders, grab ship unloader, stacker recovery equipment, dredger, electric hoist, mobile platform and other types of hydraulic cranes in factories, workshops, ports, mines and other industries.

1.With well-equipped professional engineers and strong technical force
2.We thank you very much for any inquiries you have made by email,
3.We will reply to your email or fax within 24 hours.
4. The product is guaranteed for 12 months after leaving the factory or 12 months after installation and debugging, except for man-made damage factors.
5. Two years of spare parts provide better maintenance.
6. Delivery shall be based on English user manual, accessories manual, product qualification certificate and other relevant certificates.
7.Send you detailed drawing after your deposit
8.Test before shipping .And will send you test photo and video
9.Arrange transportation to your country,if you need
10.Provide product manual .

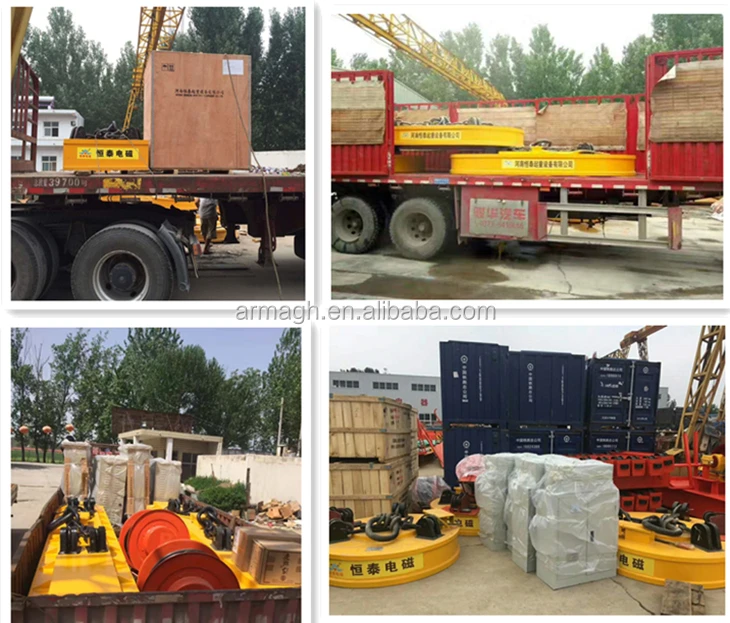

                            Packing & Delivery

                                                                Export packing

1.Control cabinet is packed by wooden box ,crane lifting electromagnet is packed by plastic

2.Wood case for electric parts, accessories;large sections will be loaded onto bulk cargo ship after packing.
                                                     Convenient transportation:
1.All available modes of transport can be express, air or sea.
2.The nominated shipping company or our own forwarder can be used for shipment.
3.Track the goods for you until the goods arrive.
4.Shipping time: 20-30 days after receive the deposit

                                   Our company

Henan Armagh co., LTD. By virtue of scientific management system, convenient transportation conditions, strong production capacity, advanced detection means and strong sales network, to produce high quality, beautiful appearance lifting products to serve large and medium-sized enterprises at home and abroad.Company has a sound quality assurance system closely, the product research and development, design, manufacture, process, quality inspection, after-sales service and other links are covered in the quality assurance system under the control of, in the elaboration structure, energy conservation, environmental protection, safe and reliable, to adopt new technology of new materials and other aspects, make the product quality level enhances unceasingly, product marketing all over the world.

                                                             Customer visiting

                                       FAQ

1.Q:Which industry do you serve?

    A:We serve many industries,including machinery, metallurgy, electric power, railway, water conservancy, port, aviation, military industry,

automobile, shipbuilding, petroleum, chemical engineering, coal, steel manufacturing, precast concrete, steel structure warehouse, marble, stone and other industries.
2.Q:Whether you can offer customized crane?
   A: Of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement.

The most important thing is that you tell us what you need.
3.Q:Which areas do you server?
   A:We have a very large market in China, and our cranes are exported to all over the world, including Europe, Africa, Middle East, Asia, North America,

South America, etc. We have served more than 100 countries worldwide accumulatively.
