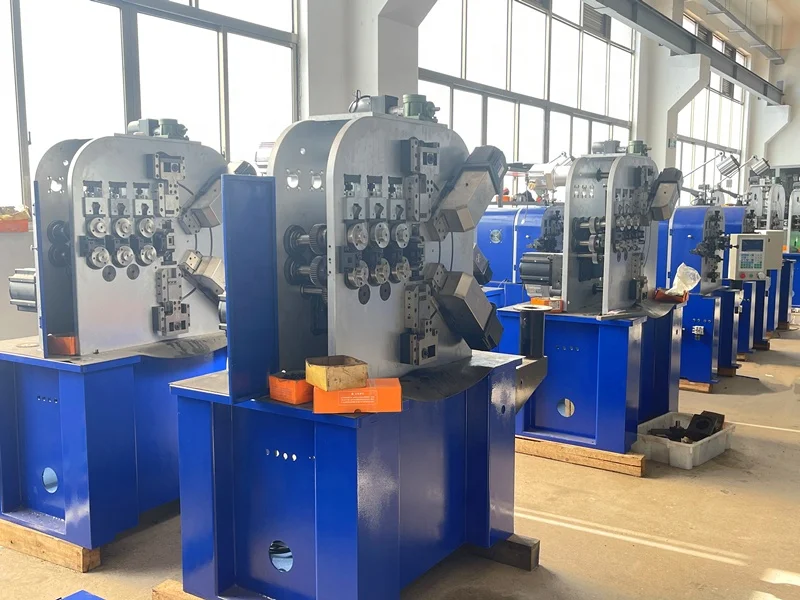

3 8mm superlastic spring coiling machine,compression spring making machine,spring manufacture machinery
- Category: >>>
- Supplier: Zhejiang Yinfeng Automotion Technology Co. Ltd.
Share on (1600580778408):
Product Overview
Description
Products Description
Product advantages 1

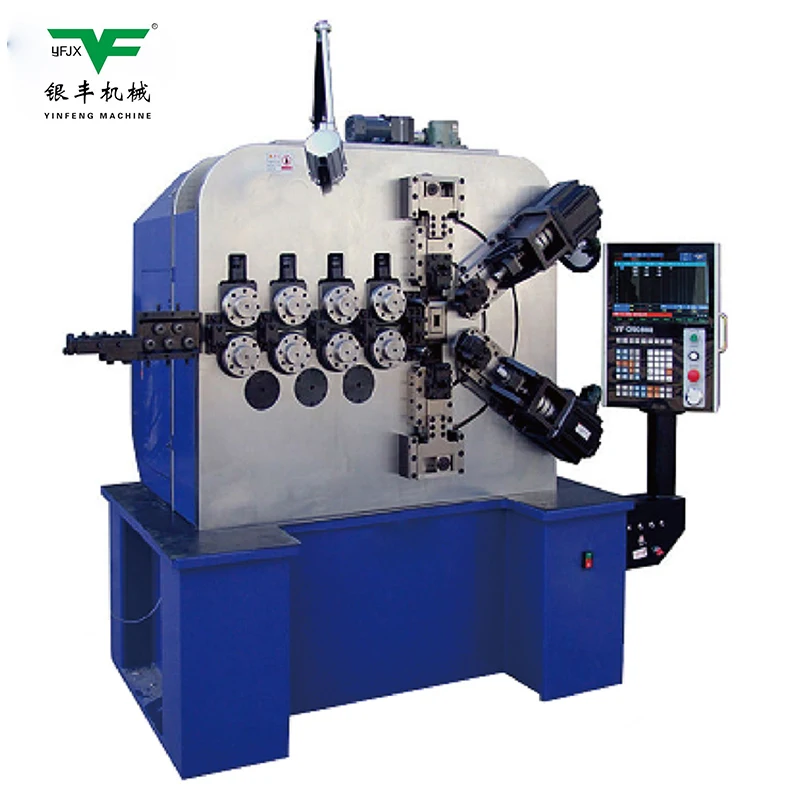

Multiple axes CNC spring compression machine can be produced (0.15-12.0mm wire diameter). This machine has the characteristics of traditional mechanical spring compression machine. It is equipped withmodern computer-controlled servo system with high speed and accuracy.
Product advantages 2
The position of each axis, wire feed information,production speed, production quantity are displayed on the screen, the program information is easy to set and change on the keyboard, the pitch adjustment is convenient and flexible，the outer diameter axis is independent, and can be easily set by the program Adjust the size of theouter diameter, the compression spring machine can produce any shape of compression spring without adjusting the mechanical part, completely avoid the trouble of replacing the cam piece, adjustment and convenience.
Product advantages 2
The system is equipped with a computer and can store hundreds of work programs.

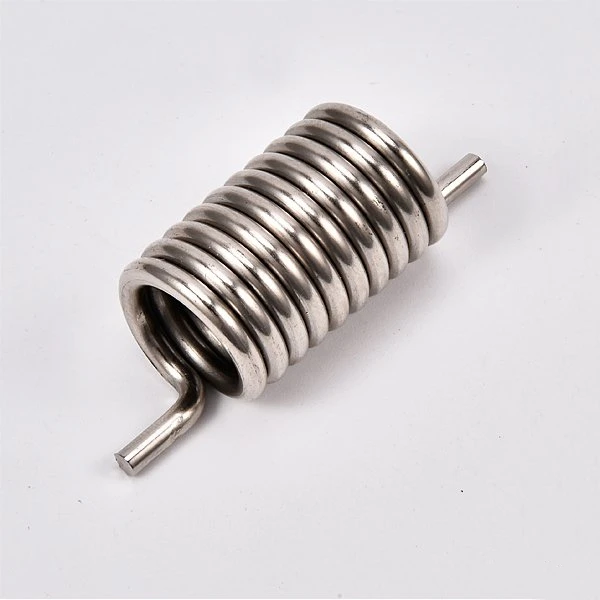

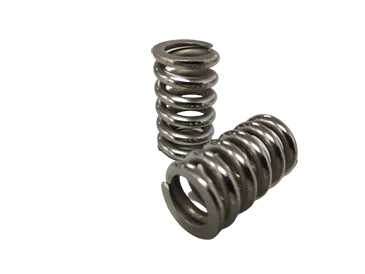

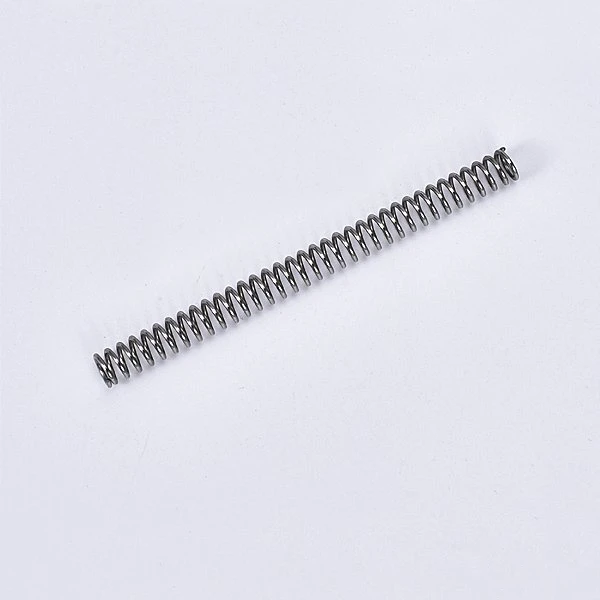

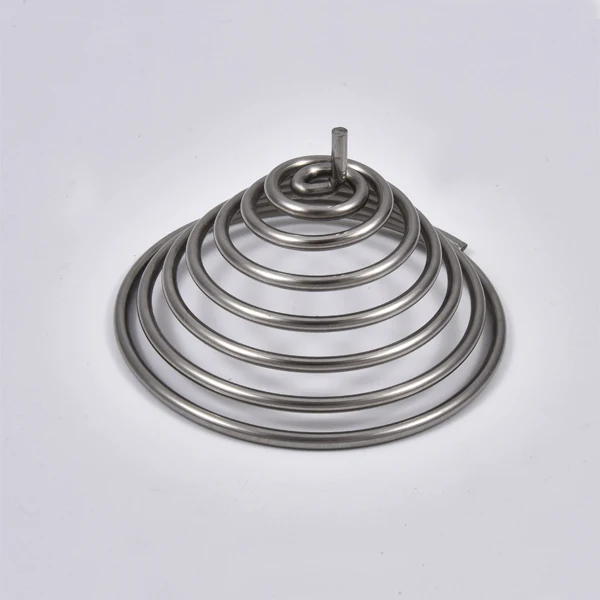

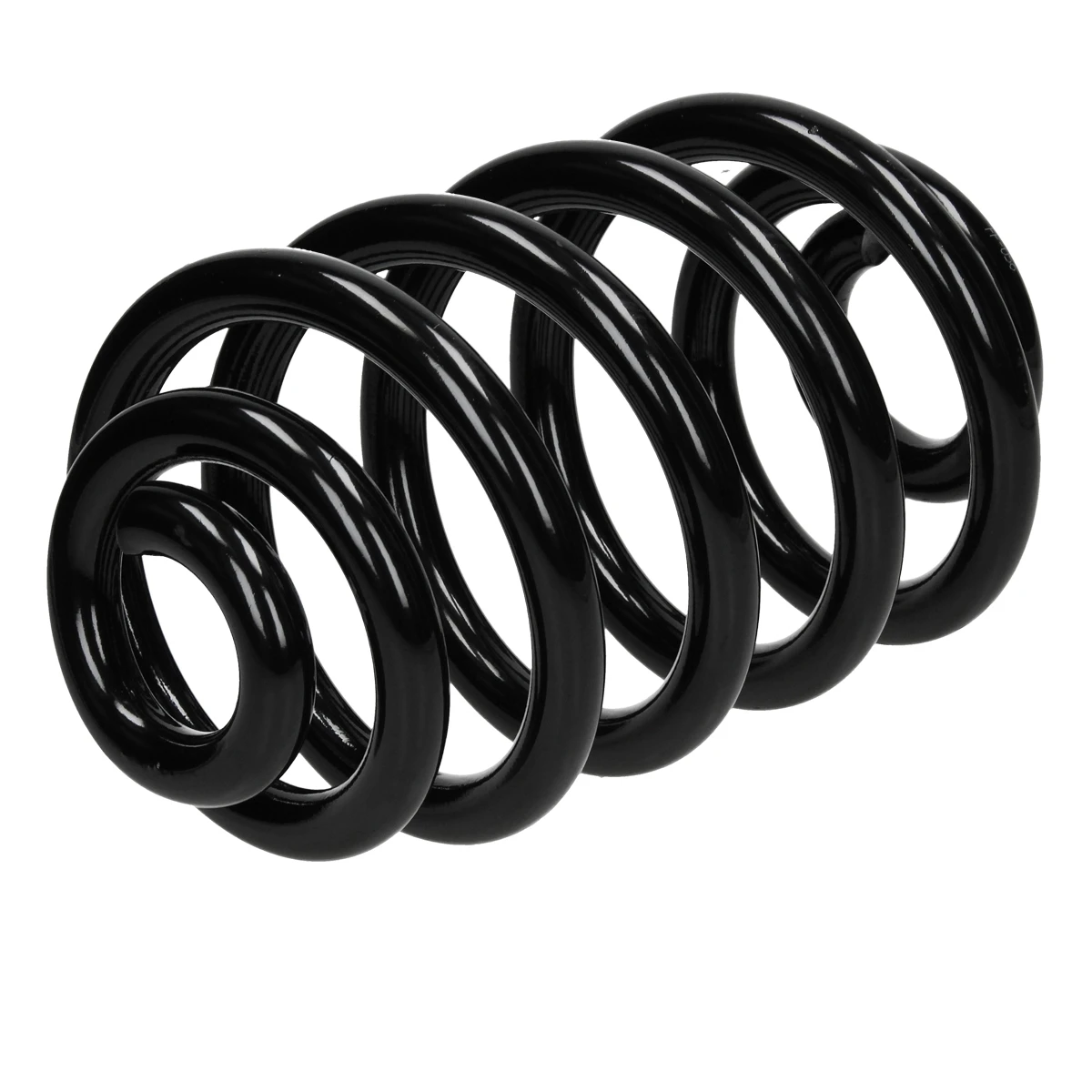

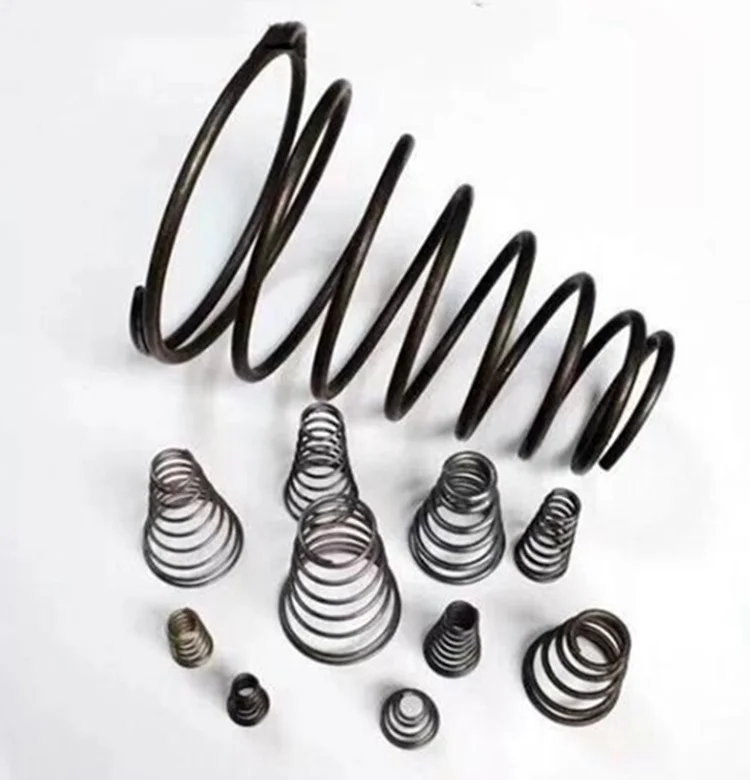

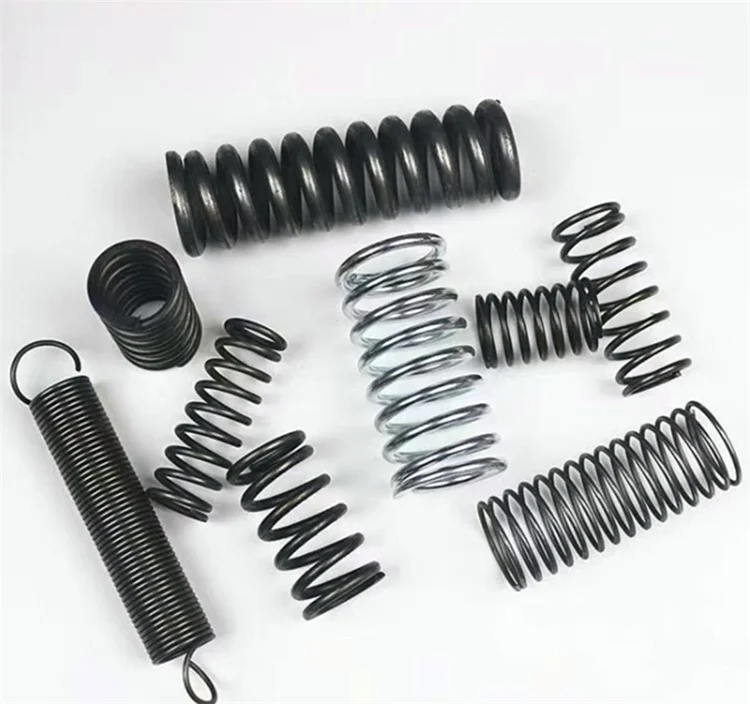

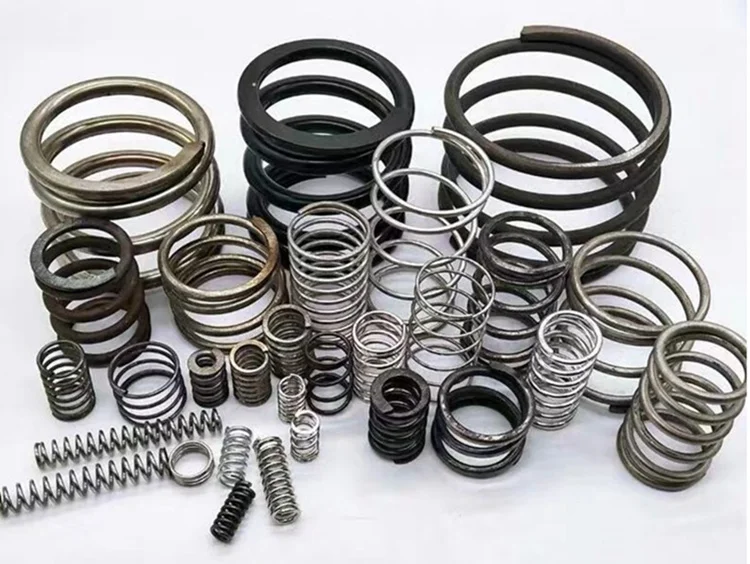

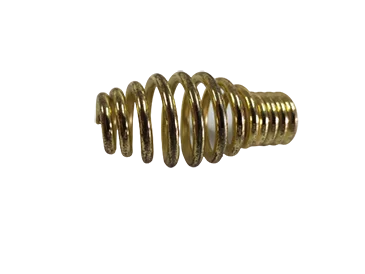

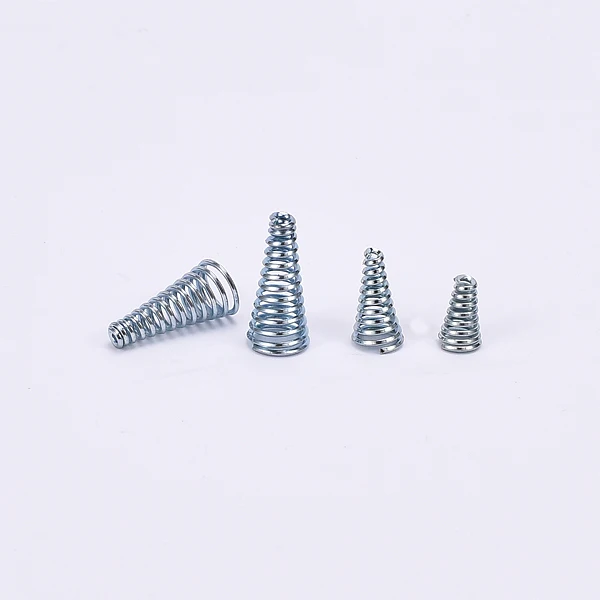

Suitable for all kinds of compression springs, oil seal springs, pagoda springs，wave springs, clockwork spring, and various special-shaped springs, complex and difficult spring,etc.
Suitable for all kinds of compression springs, oil seal springs, pagoda springs，wave springs, clockwork spring, and various special-shaped springs, complex and difficult spring,etc.

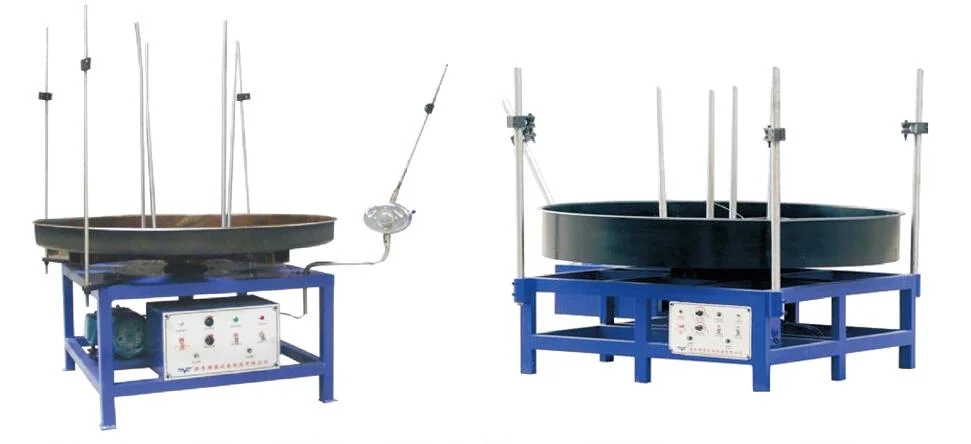

Automatic material feed frame
1.Characteristics: timing, disconnection, (starved feeding), abnormal stops (deviation), automatic alarm stop run, induction
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
Our Yinfeng Machine Can Make Any Kinds Of Spring, Also We Can Customized Extra Function According To Your Requirements.
Product Paramenters
Technical Parameters: | CNC-8680 | ||||
Wire diameter of coiled material | Φ3.0-Φ8.0mm | Outside diameter servo motor | 2.7KW | ||
Max outer diameter of coiled sprin | MaxΦ120mm | Cutter servo motor | 4.5KW | ||
Speed | Max 150 pcs/min | Cutter servo motor | 4 5KW | ||
Wire Feed instruction value | ±0.01 - ±9999.99 | Pitch servo motor | 1.5KW | ||
Other instruction value | ±0.1°- ±359.9° | Power supply | 380V + 10%V50HZ | ||
Wire feed servo motor | 15.0KW | Size | 2500x1400x2100mm | ||
Outside diameter servo motor | 2.7KW | Weight | 3500KG | ||
Price list could be sent upon request, just kindly contact us:
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
Manufacturing Product Videos
Why Choose Us

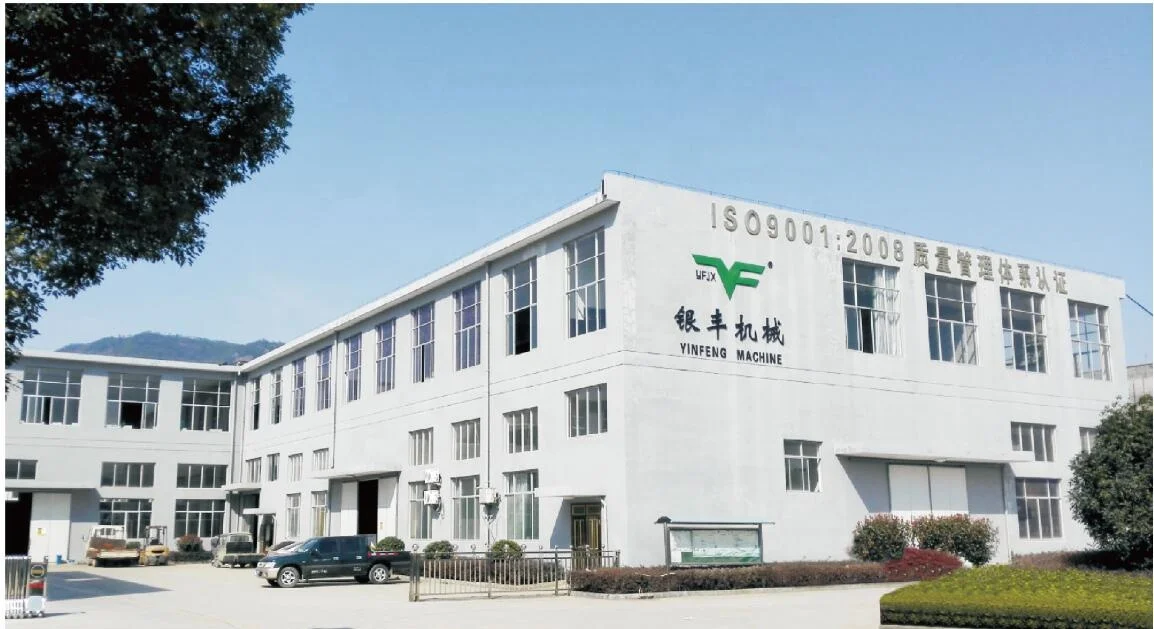

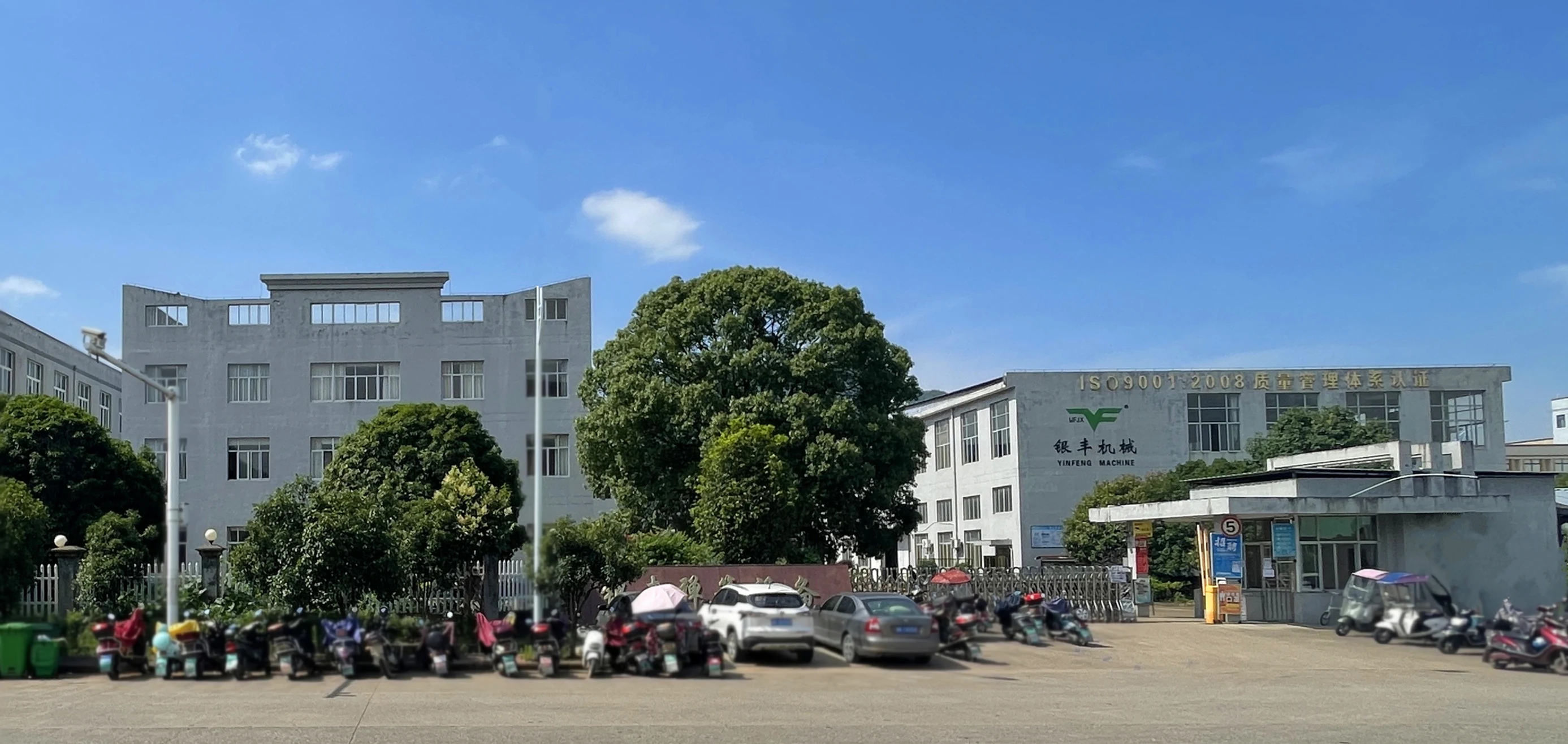

Company Profile：
Zhejiang Yinfeng Automation Technology Equipment Co.，Ltd. is a high-tech enterprise specialized in CNC spring machinery and assorted equipment research and development，design and marketing, has two decades of production history. All our systems and servo motors were introduced mature technology manufacturing and direct use of its related products from Japan and Taiwan. The equipment of the company has high-precision wires feed，molding action stability，novel and pleasant appearance and other features,favored by the majority of customers，the equipment are in the industry forefront for continuous many years.
Floorspace
50000+m²
Year Established
2002Yrs
Total Employees
150-200People
Our products：
Our company has 2-6 axis coiling spring machine, 3-13 axis CNC camless Spring Machine, 4-6 axis CNC spring mcahine ,7 axis 3D wire forming machine, rotor wire forming machine, spring inspection machine, spring machine accessories tools,and provide a variety of difficult spring processing services.
Our equipment can produce：

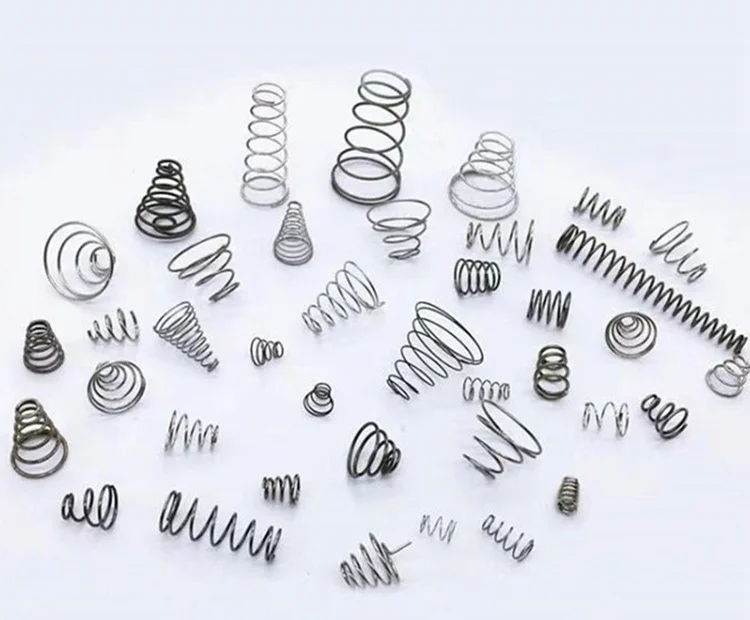

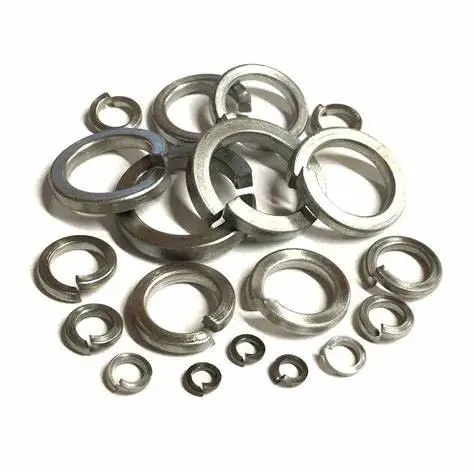

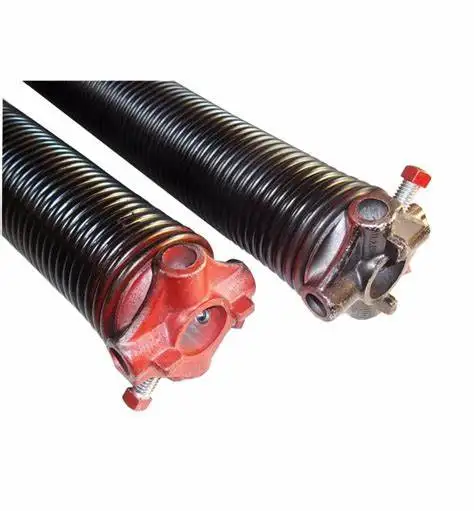

Our equipment can produce pressure springs, tension springs, torsion springs, screw sleeves and wire forming products to meet the needs of a variety of industries, including electronics, toys, electrical appliances, sports equipment, automobiles,stationery, instruments, meters, hair accessories, All kinds of high-precision springs required for crafts, etc., can also produce sheet shrapnel and winder of different specifications. In the increasingly competitive market in the future, the company will, as always, adhere to the tenet of' 'Technology first, quality win, service intimacy", “exploitation and innovation, pursuit of excellence" , providing customers in the spring industry with qualified equipment which have stable quality and reasonable price.

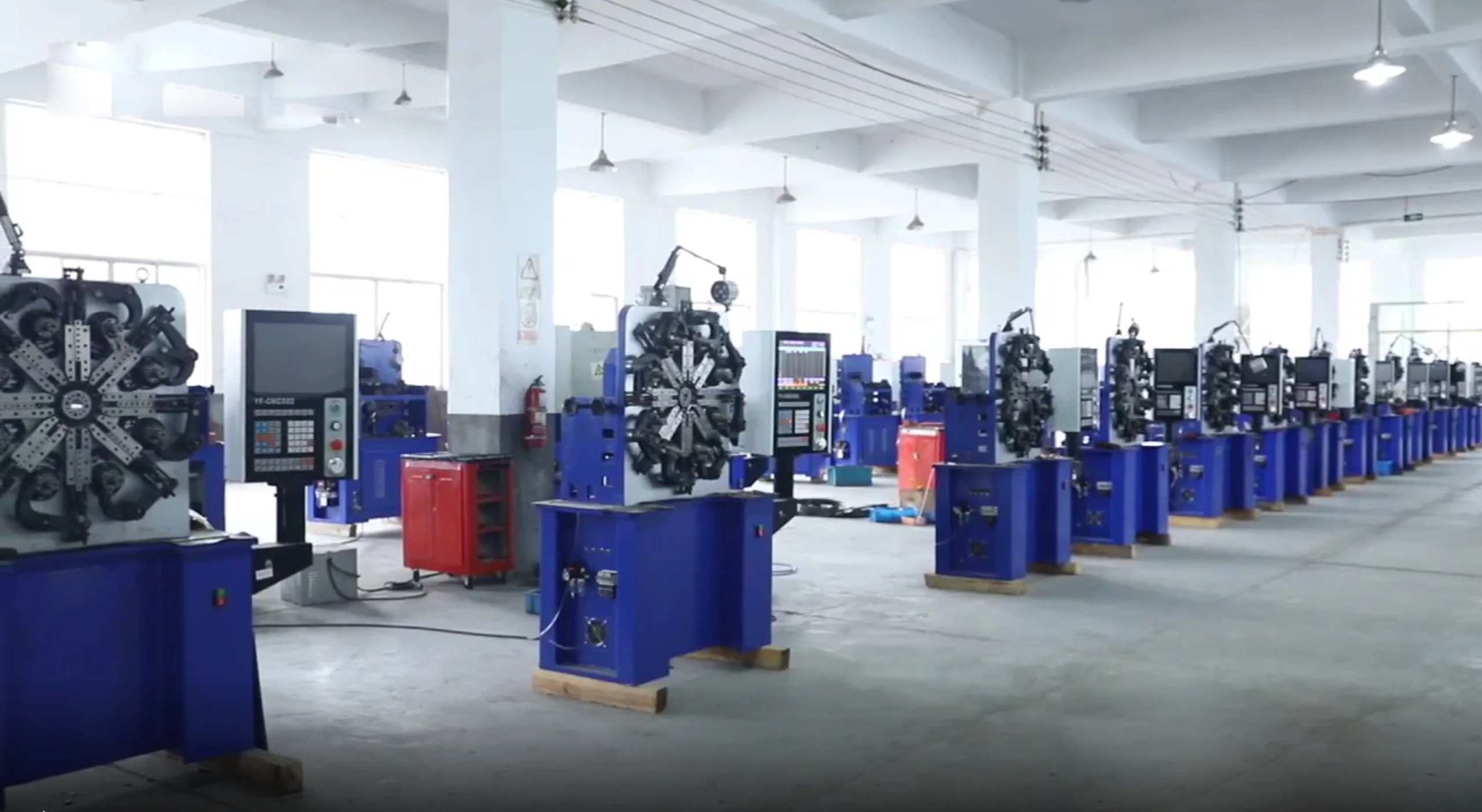

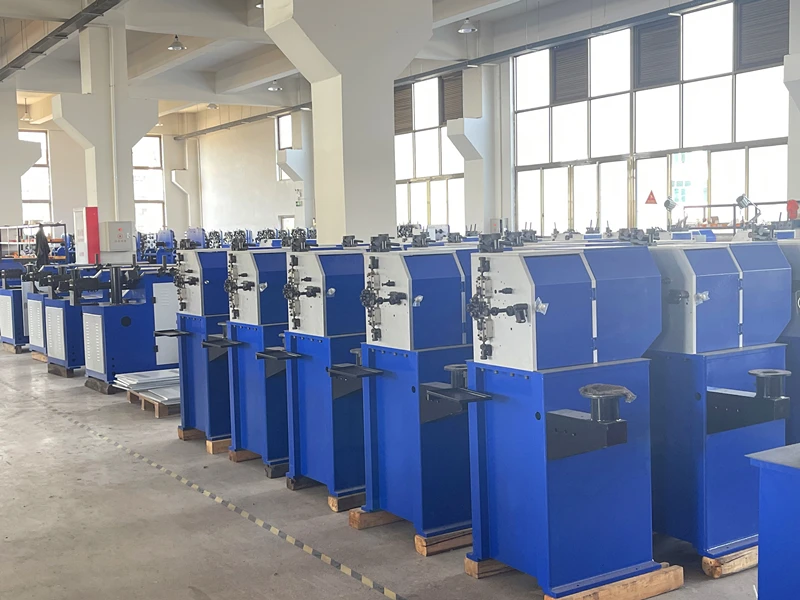

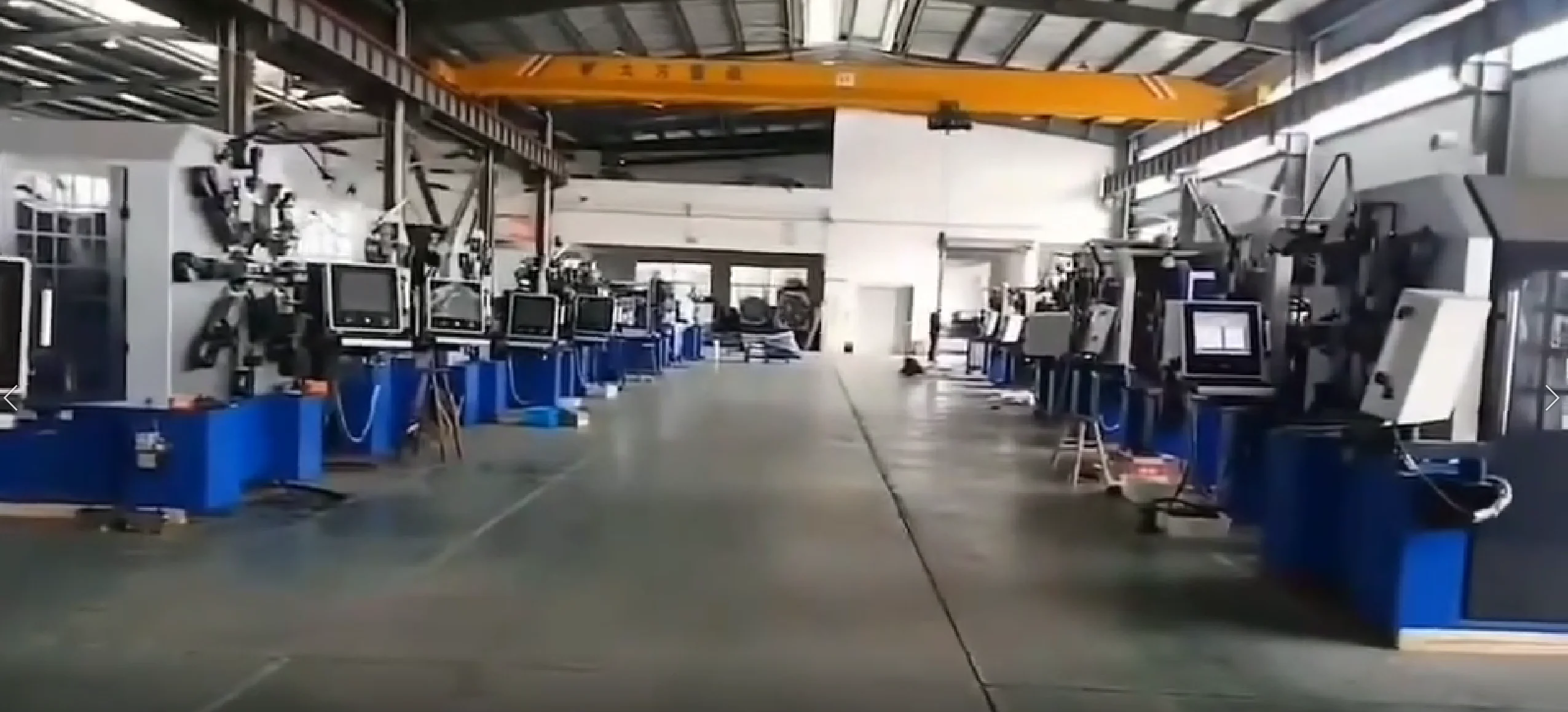

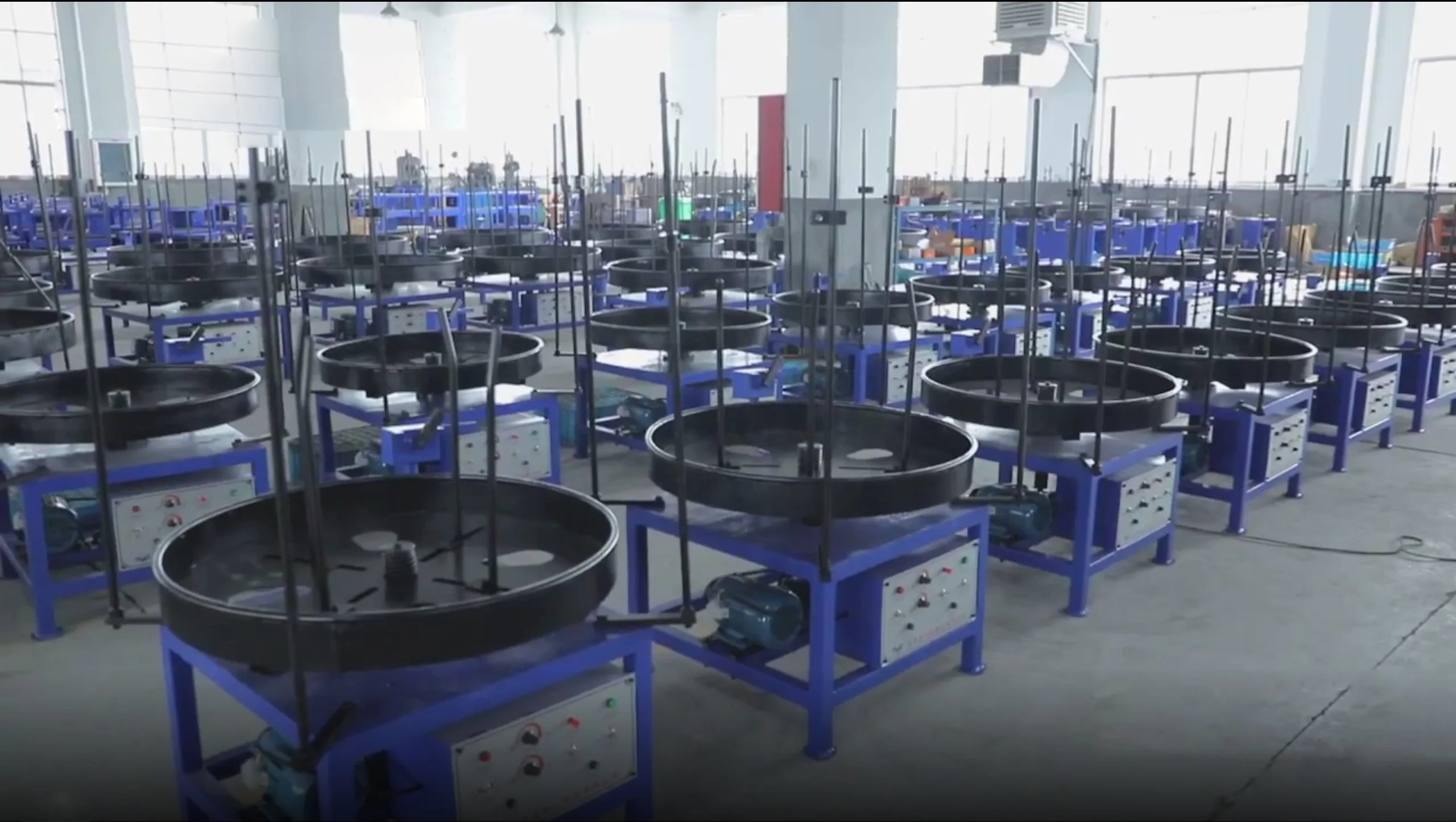

Finished product workshop
Stock Machines: 20-30/pcs Per Model
Total Stock：300pcs＋ Monthly

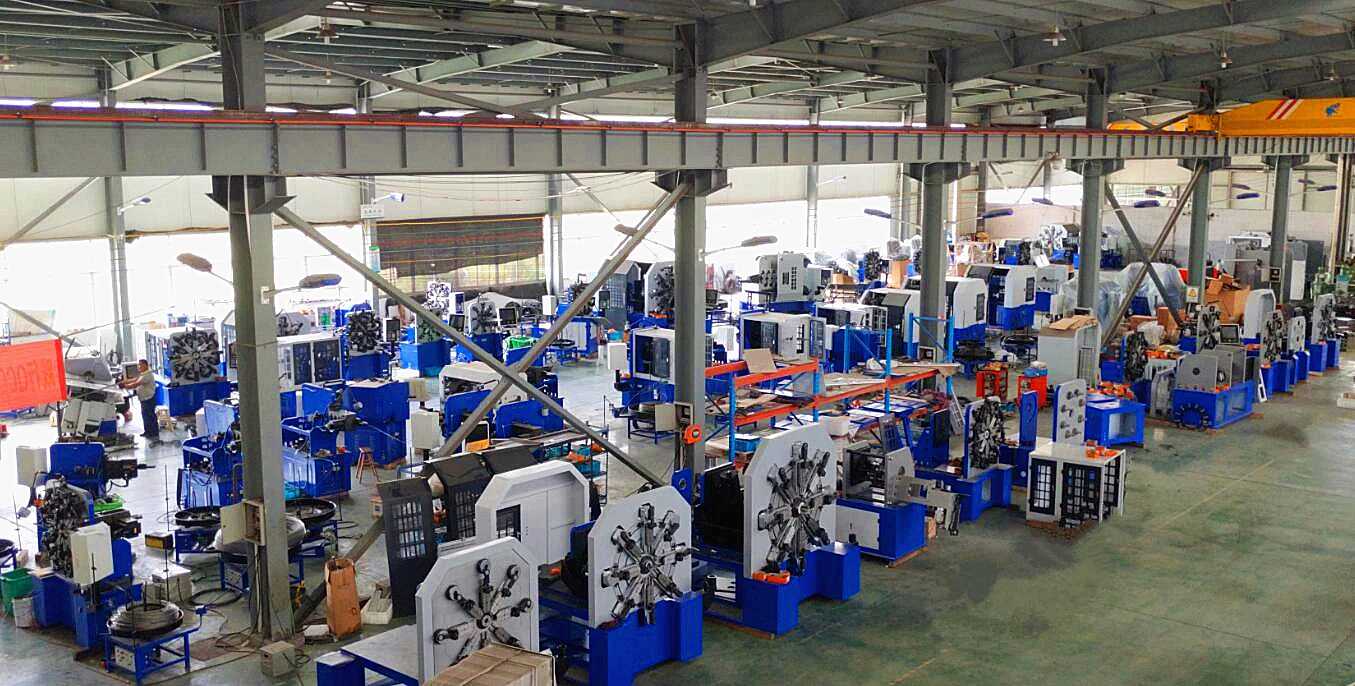

Assembly Morkshop
World Standard Production Procedure Ensure High Quality and High Precision of Products
Five Assembly Workshops, each 5000 Square Meter
Customize Cut Mold
Engineers：20+
Customized Different Cut Molds According to Requirements 5 Days Lead Time for Customized Cut Mold
We Can OEM Custom According To Your Requirement
To manufacturing and servicing spring machinery meet customer demandfor quality technology, take on spring manufacturing industry partner, we all willcontinue to develop more sophisticated machinery， and to provide moreconvenient and efficient technical advice and perfect after-sales service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, we have been in this industry for over 20 years.
Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shipment.
