Product Overview
Description
Product Description

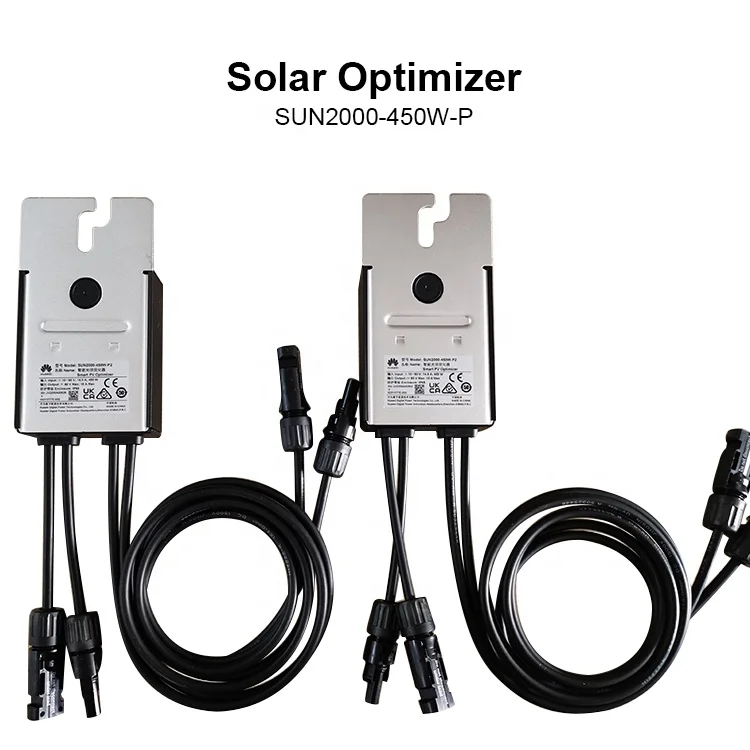

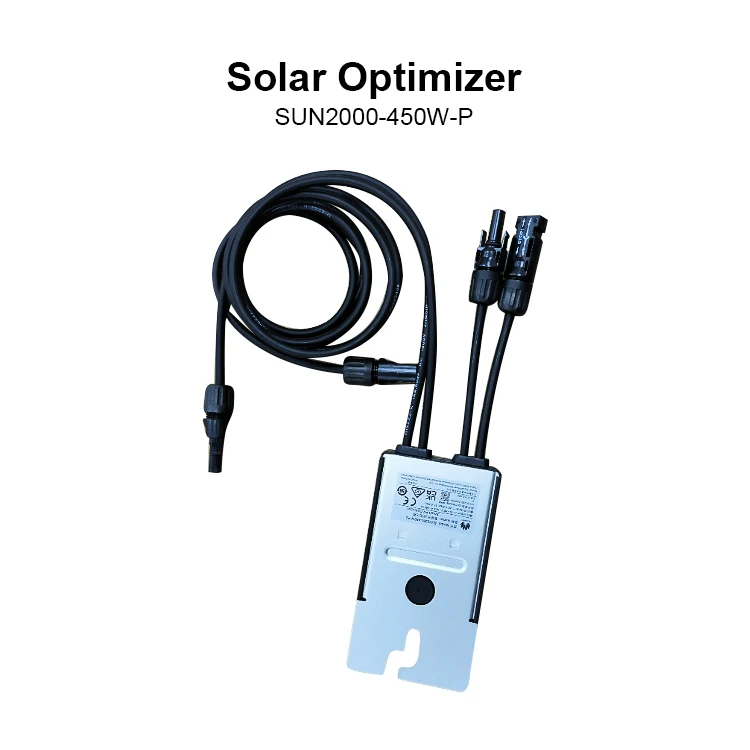

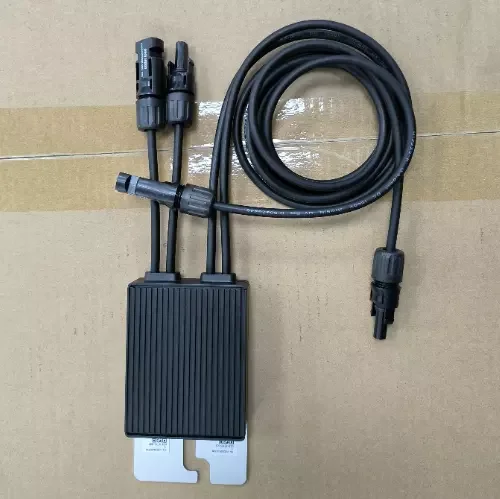

Huawei Optimizer SUN2000-450W-P Huawei Optimizers 450W Solar Optimizer

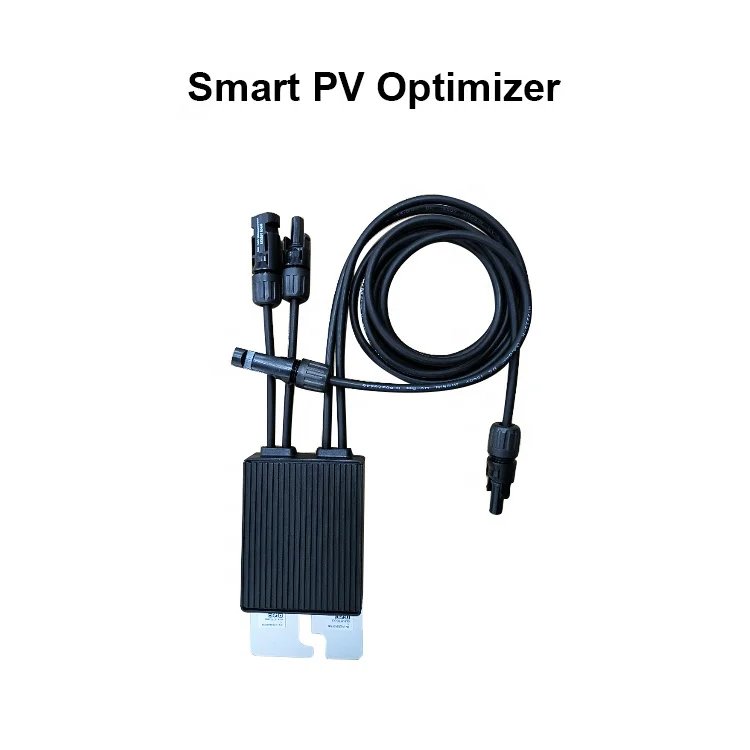

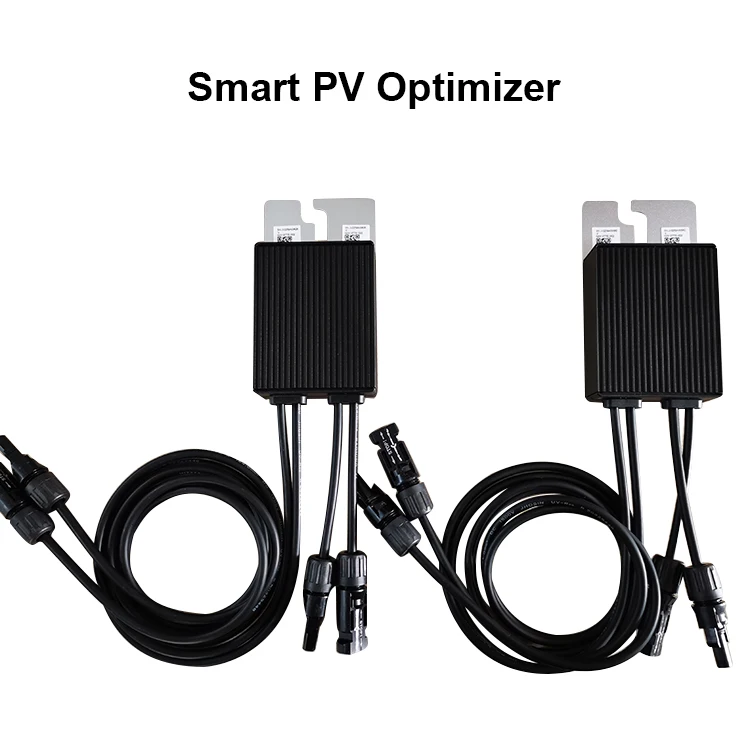

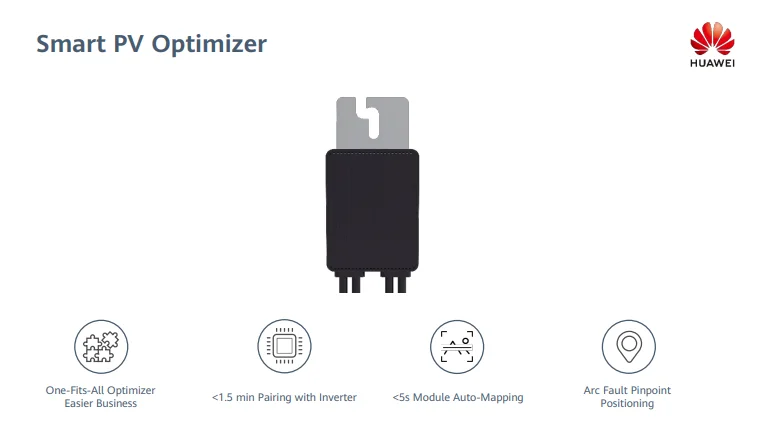

Smart PV Optimizer
1. One optimizer fits all application scenarios 2. Up to 30% more energy by optimizing each module’s performance
3. Lower BoS cost & higher oversizing with long string design
4. Module level voltage shutdown for safe installation and maintenance
5. Support pinpoint arc fault positioning
1. Faster Speed Optimizers To Inverter
2. Reliable Strong Signal Disruption
3. Dturbo Optimizer Pairing Less 1.5s
4. 5s Created Layout By Phone
2. Reliable Strong Signal Disruption
3. Dturbo Optimizer Pairing Less 1.5s
4. 5s Created Layout By Phone
5. AI Brain Control The System
6. Module Level Voltage Shutdown
7. Fire Prevent 100%
8. DC ARC Fault Has Been Found The Major Cause of Fire in PV System
7. Fire Prevent 100%
8. DC ARC Fault Has Been Found The Major Cause of Fire in PV System
Technical Specification | SUN2000-450W-P | SUN2000-600W-P | ||
Input | ||||
Rated Input DC Power | 450W | 600W | ||
Absolute maximum input voltage | 80 V | |||
MPPT operating voltage range | 10 - 80 V | |||
Maximum Short Circuit Current (Isc) | 14.5 A | |||
Max. efficiency | 99.5 % | |||
Weighted efficiency | 99.0 % | |||
Overvoltage category | II | |||
Output | ||||
Max. output voltage | 80V | |||
Max. output current | 15A | |||
Output bypass | YES | |||
Shutdown output voltage per optimizer | 0V | |||
Shutdown output impedance per optimizer | 1k Ω ± 10 % | |||
Standard Compliance | ||||
Safety | IEC62109-1 (class II safety) | |||
RoHS | Yes | |||
General Data | ||||
Dimension (W x H x D) | 71 x 138 x 25 mm (2.8 x 5.4 x 1.0 inch) | |||
Weight (including cables) | 0.55 kg (1.2 lb.) | |||
Installation part (optional) | Grounding Plate, Grounding Lug, PV Module Frame Plate | |||
Input connector | Staubli MC4 | |||
Output connector | Output connector | |||
Input wire length | 0.15 m (0.5 ft.) | |||
Output wire length | 1.2 m (3.9 ft.) | |||
Operating temperature / humidity range | -40 ℃～85 ℃ 5 / 0 %RH～100 %RH | |||
Degree of protection | IP68 | |||
Compatible product | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2, SUN2000-30/36/40KTL-M3 | |||

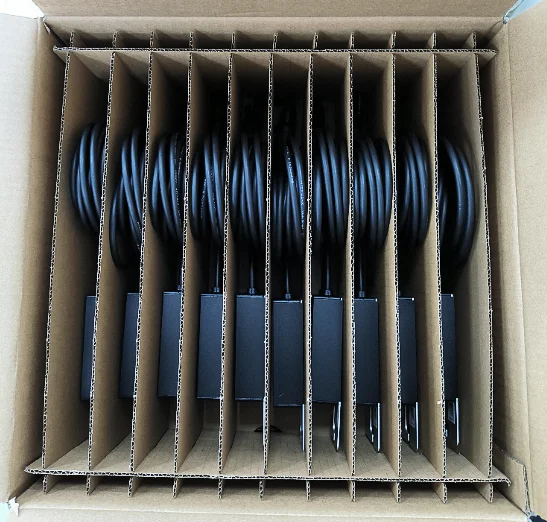

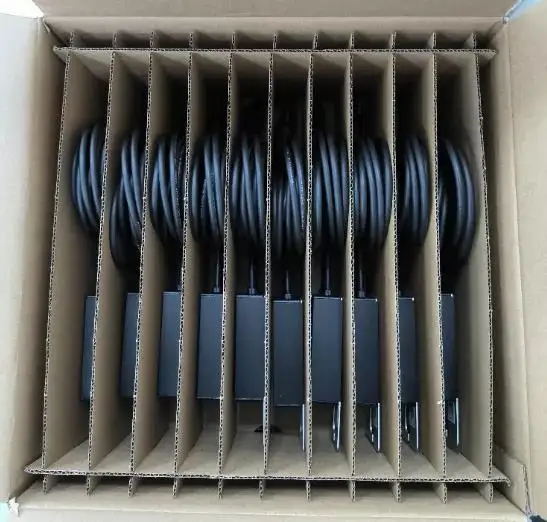

Packing & Delivery
