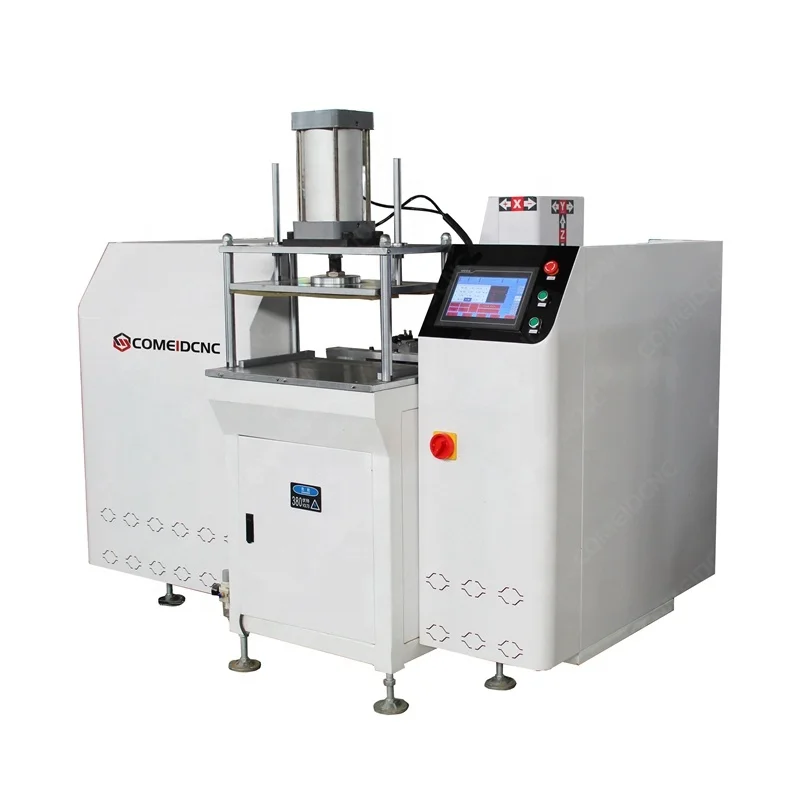

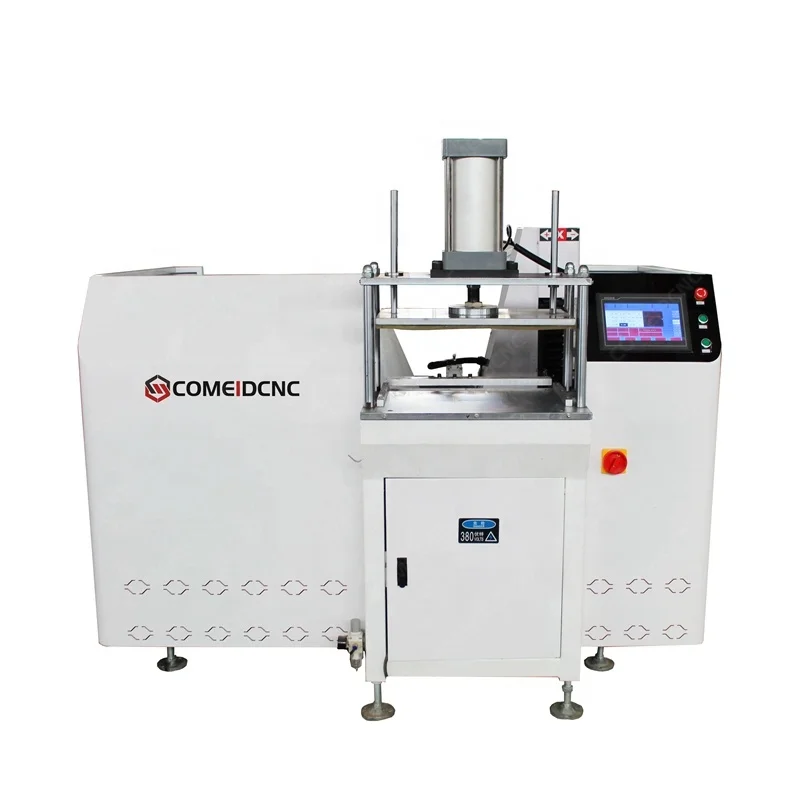

CNC End Milling Machine For Aluminum Profile Windows Making
- Category: >>>
- Supplier: Jinan Comeid CNC Equipment Co. Ltd.
Share on (1600580823531):
Product Overview
Description
New Design Aluminum Profile Window Door CNC End Milling Cutter Machine
Product Paramenters
Power supply | 380V, 50HZ |
Power of head | 3KW ZHONGYUTE |
Rotate Speed of head | 2800 r/min |
Rated oil pump pressure | 16Mpa |
Oil pump | 2.5MCY |
Air pressure | 0.5-0.8Mpa |
Saw size | φ300*φ30 Diamond material |
Table Size | 510mm |
Transmission | Ball screw / gears rail |
Machine Weight | 850KG |
Control System | HONGHAI 10 inch screen |

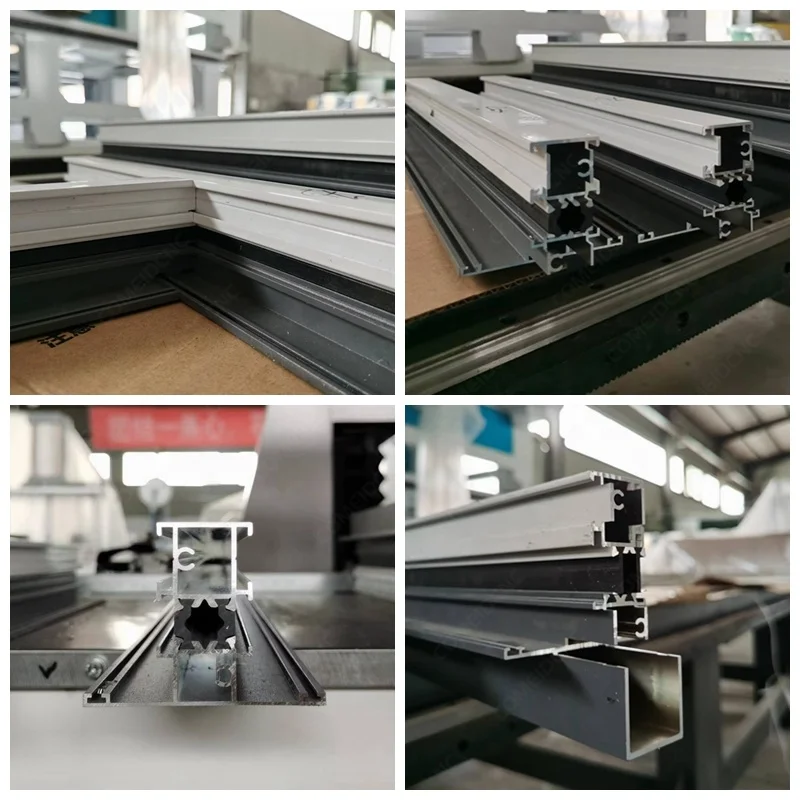

1. It is used for the processing of aluminum alloy middle tappet profiles. Multiple profiles can be milled at one time, with highprocessing efficiency.
2. The cutter can be adjusted up and down, front and back, and can process different structures such as step surface, rectangulargroove and tenon.
3. The tool diameter is large. The number of tools can be increased or decreased as needed.
4. The gas-liquid conversion controls the feeding, the feeding speed is linearly adjustable, and the operation is stable.
High precision linear bearing guide rail pair can maintain machining accuracy for a long time.
2. The cutter can be adjusted up and down, front and back, and can process different structures such as step surface, rectangulargroove and tenon.
3. The tool diameter is large. The number of tools can be increased or decreased as needed.
4. The gas-liquid conversion controls the feeding, the feeding speed is linearly adjustable, and the operation is stable.
High precision linear bearing guide rail pair can maintain machining accuracy for a long time.
Figure photos

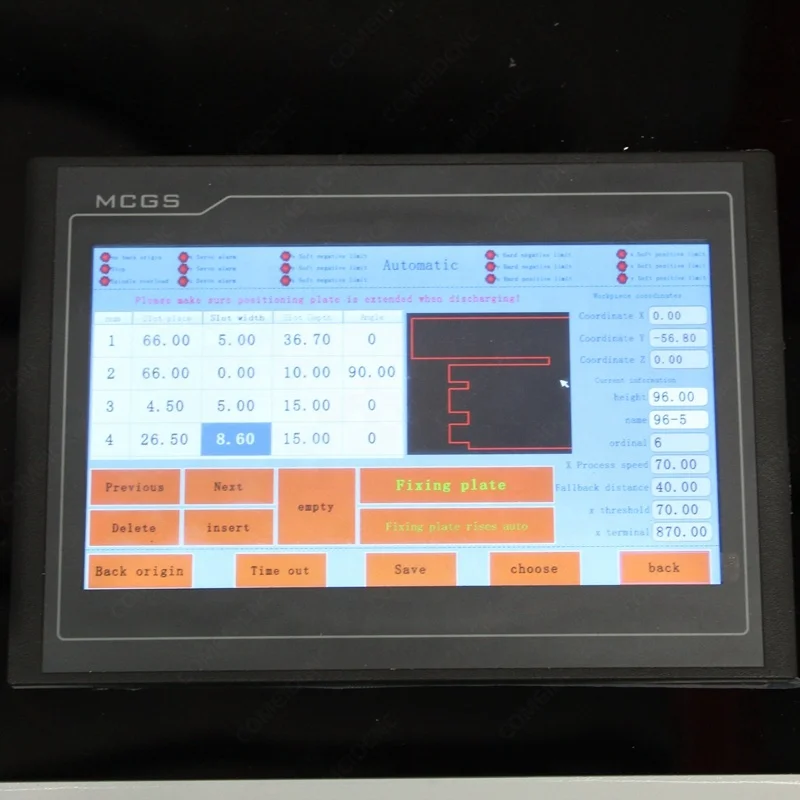

Touch screen control system

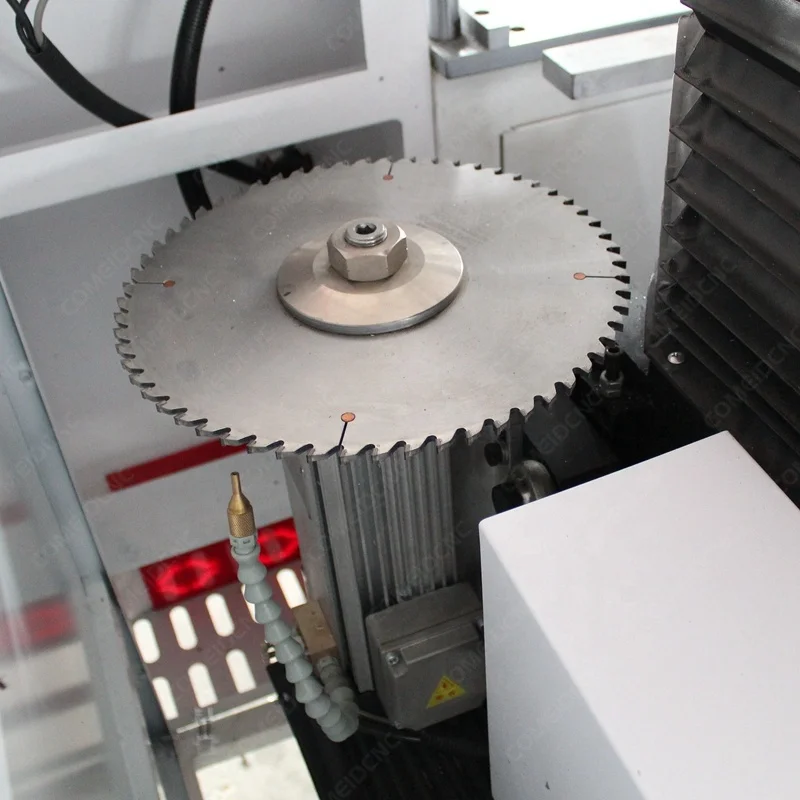

High power saw blade spindle

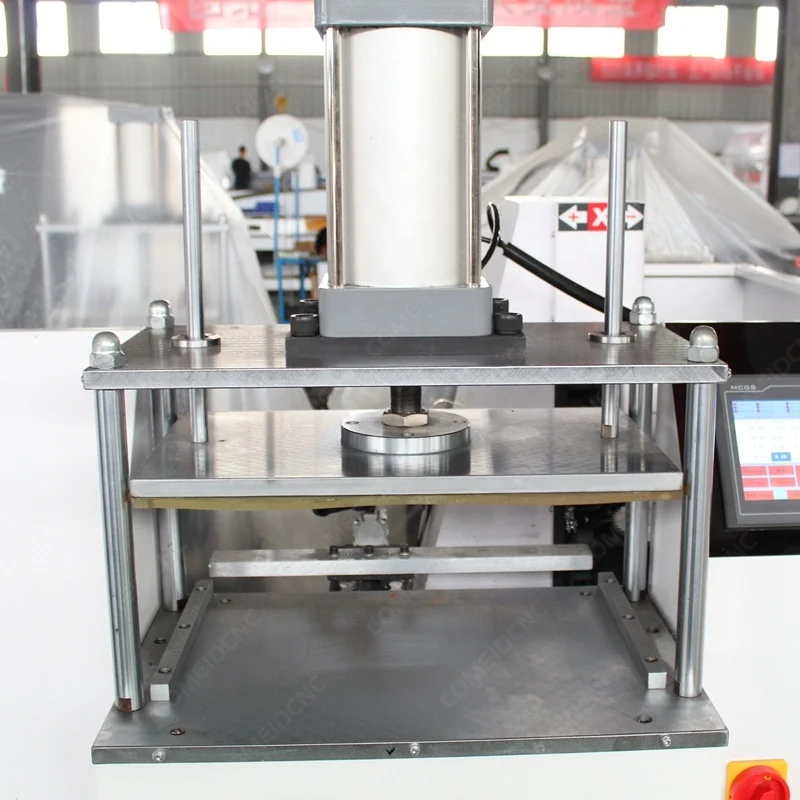

Automatic hydraulic clamping
Servo motor drive
Application
Company Information
Since 2009 our company began production and sales of CNC equipment. It accumulated customers and dealers from all around theworld.Their feedback help improving product value-added.Publicity, sales, production, inventory, quality control, R & D departments perForm their duties orderly. Product design with good operation, important parts carefully selected, low failure rate.Production of 50 per month production capacity, each machine manufactured before the rigorous testing and 8 hours uninterrupted operation.It provides excellent service. According to customer needs to choose the most suitable products. 24-hour telephone, mail, WeChat in a timely manner. Software and mechanical engineers accumulated years of experience, they offer quick and effective after-sale problem-solving.
