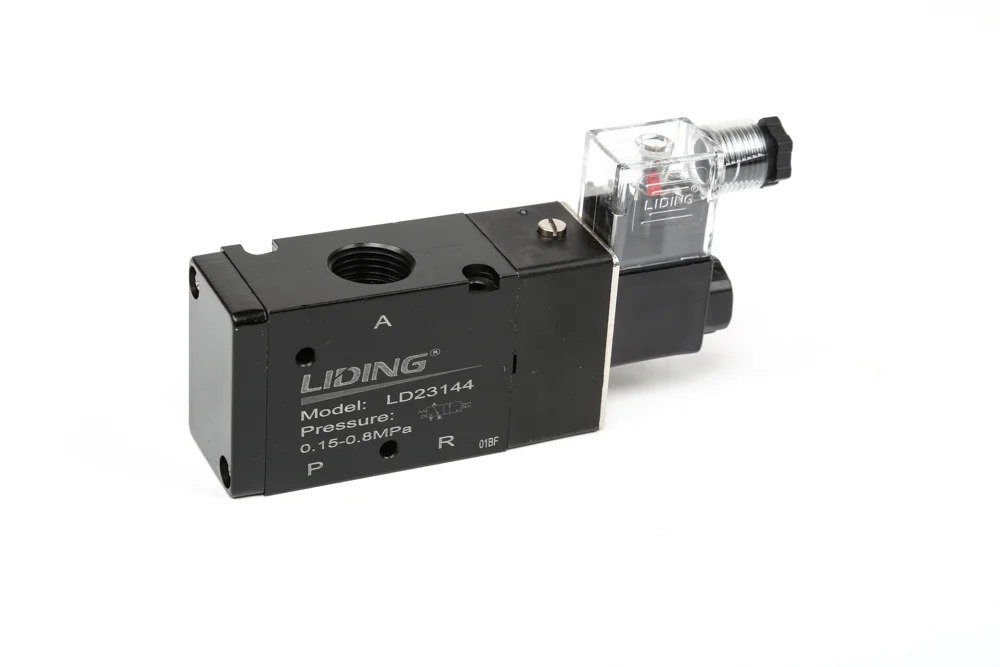

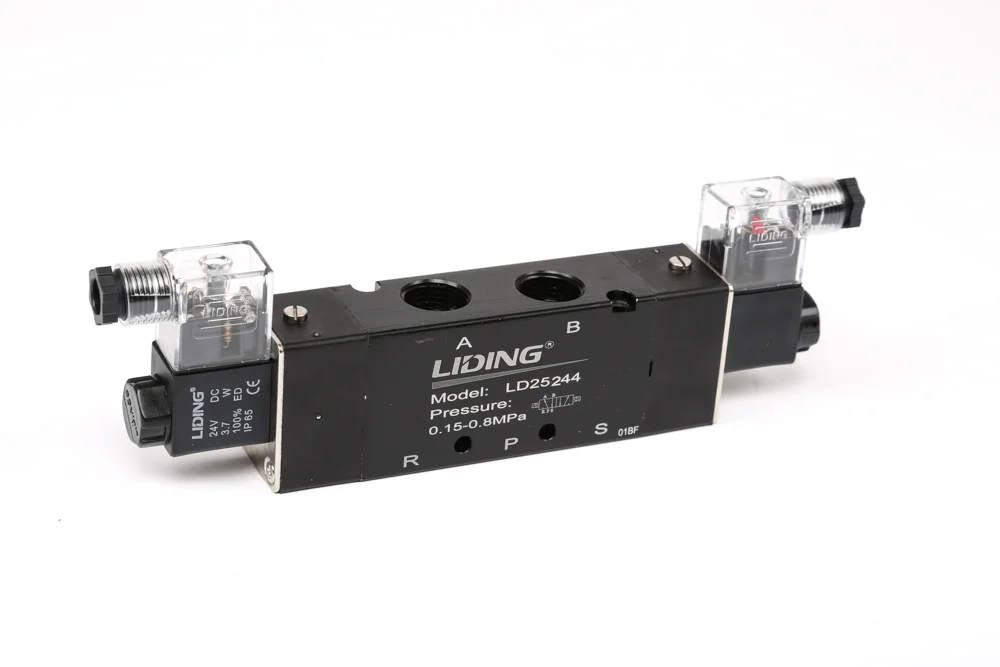

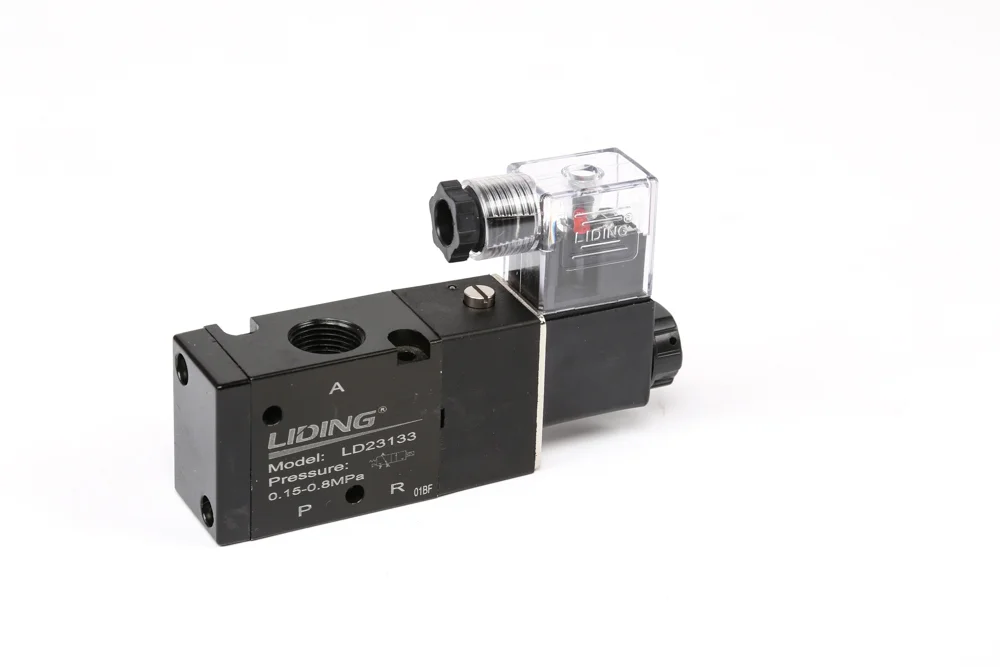

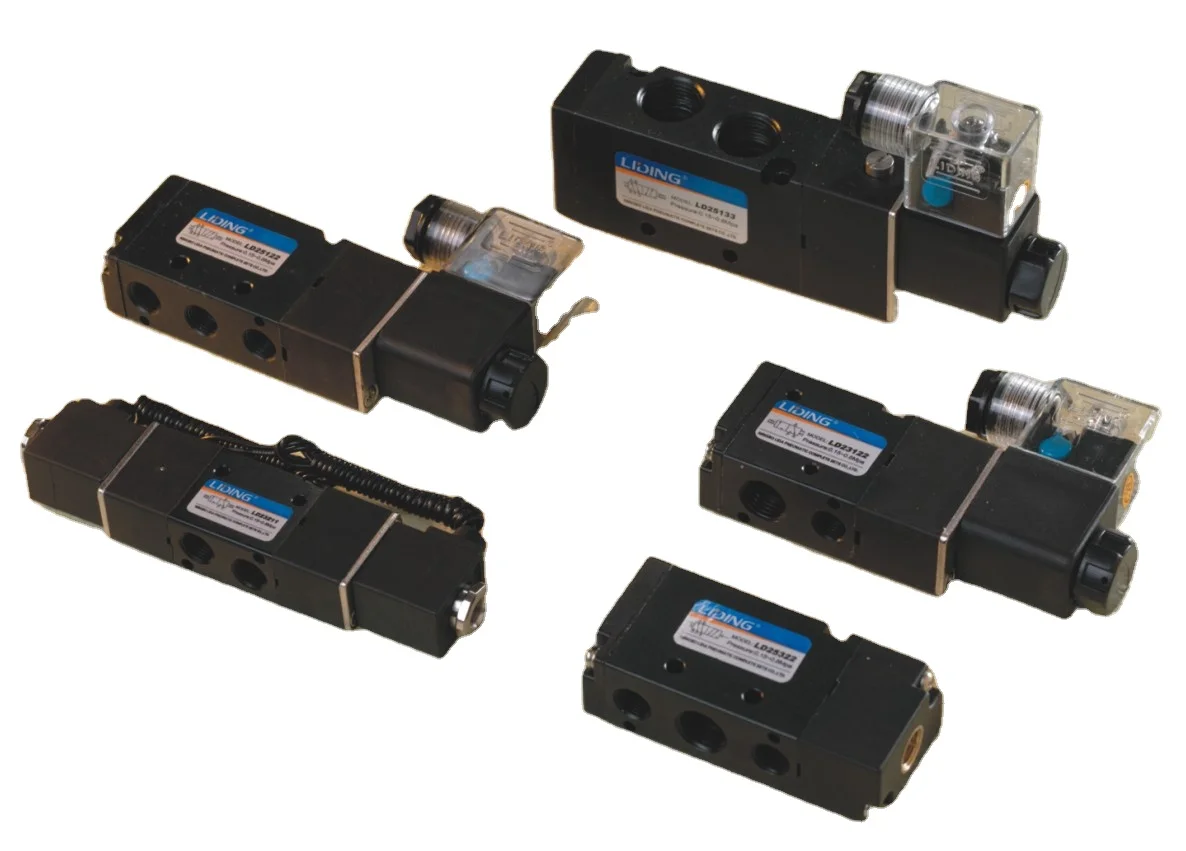

LIDING Brand LD2 Series 3/2 Way 12v Air Solenoid Valve 24v
- Category: >>>
- Supplier: Ningbo Lida Pneumatic Complete Sets Co. Ltd.
Share on (1600580993683):
Product Overview
Description
LD series ssolenoid valve and air valve can replace 3V and 4V valves. LD is same dimensions and function as 3V,4V. They are improved from 3V and 4V valves.
The advantage of LD valves:
LD series adopt imported seal.
LD valve shaft is HARD ANODIZING Processed.
LD coil have over loading protecting.
LD working life is 15,000,000 times.
LD seals are non-oil lubricating seals, no lubricant, no pollution.
The advantage of LD valves:
LD series adopt imported seal.
LD valve shaft is HARD ANODIZING Processed.
LD coil have over loading protecting.
LD working life is 15,000,000 times.
LD seals are non-oil lubricating seals, no lubricant, no pollution.
Model | LD23121 | LD23222 | LD25121 | LD25221 | LD35221C | LD25122 | LD35222C | ||||||
Working Medium | 40 Micron Filtered Air | ||||||||||||
Joint Pipe Bore | G1/8 | G1/4 | G1/8 | G1/4 | G1/4 | ||||||||
The Position Counting | Two-position Three-way | Two-position Five-way | Three-position Five-way | Three-position Five-way | Three-position Five-way | ||||||||
Operating Temperature | 5~50℃（41~122°F） | ||||||||||||
Working-Pressure | 0.15~0.8MPa | ||||||||||||
Max.Pressure Resistance | 1.2MPa | ||||||||||||
Power Consumption | AC:3VA DC:3.7W | ||||||||||||
Protection Class | IP65（DIN40050） | ||||||||||||
Shortest Excitation Time | 0.05 Second | ||||||||||||
Q: What is your main market?
A: Our main market is Middle East, southeast Asia, Africa and other developing countries.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
