CRS4531K container lifting equipment forklift 45 ton reach stacker for sale
- Category: >>>
- Supplier: Xiamen LTMG co. ltd
Share on (1600581147766):
Product Overview
Description
Product Description

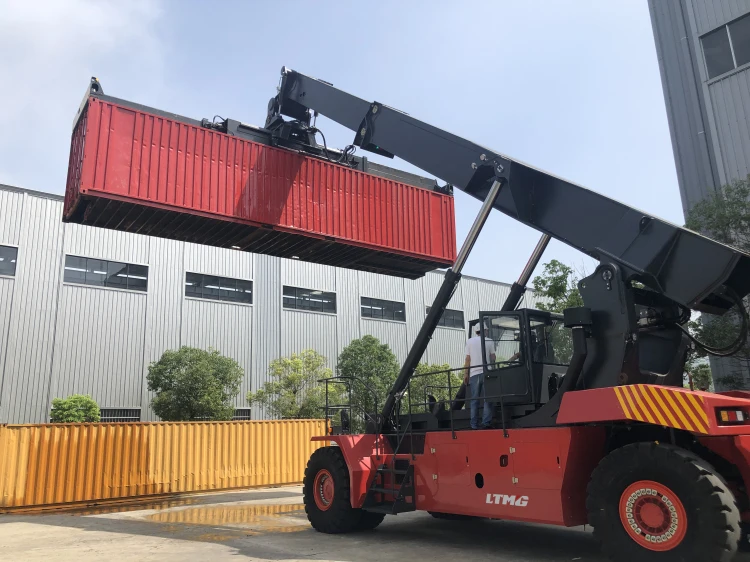

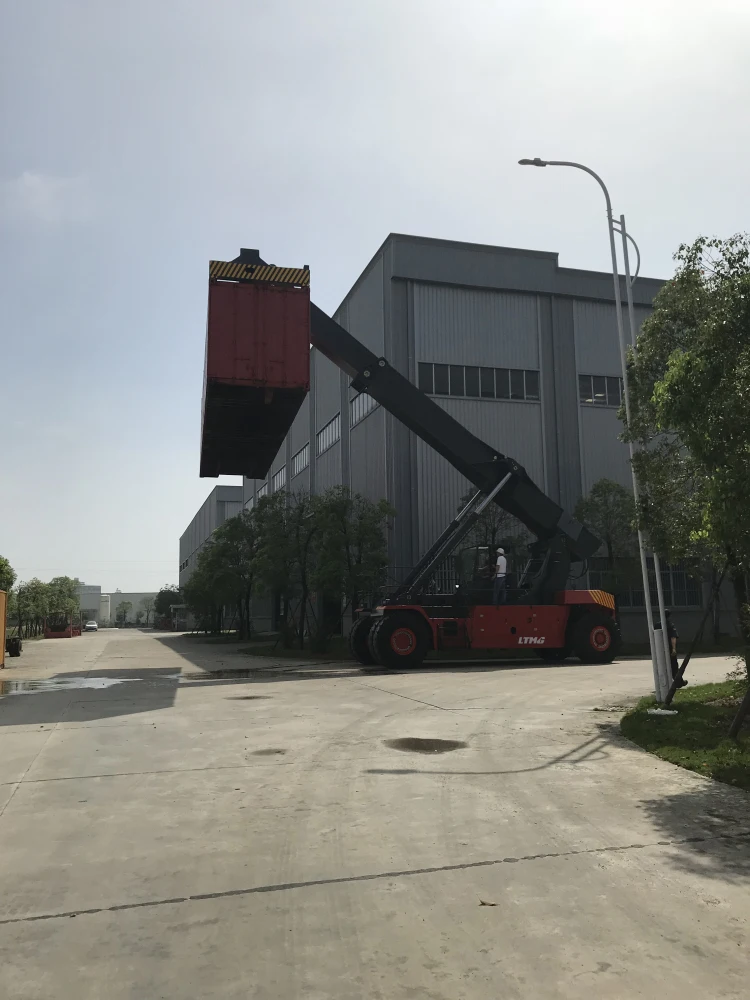

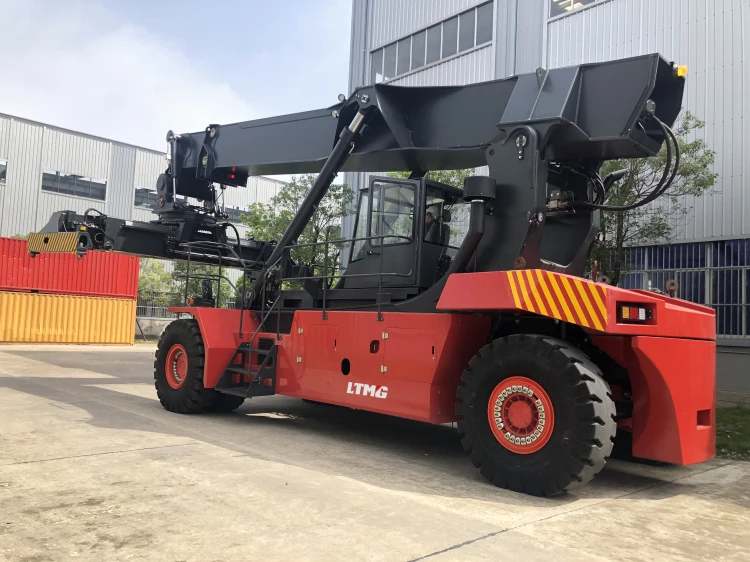

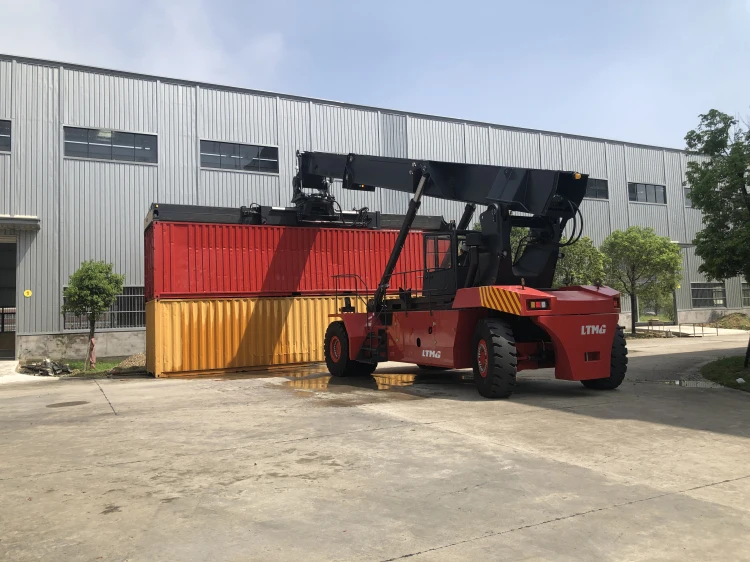

LTMG CRS450/5 new container handler
1. Dynamic anti-tip over protection
2. Load sense hydraulic system
3. Vertical lifting function
4. Errors automatic detection and real data showing technology
5. Anti-collision protection for spreader and boom
6. Full Can-bus communication
7. Movable cabin
8. Separate brake tank
9. Pressurized hydraulic tank
Product Paramenters
CHARACHTERISTICS | ||||
Manufacturer | LTMG | |||
Model designation | CRS450/5 | |||
Power unit: battery, diesel, LP gas, mains power | Diesel | |||
Operation: manual, pedestrian, stand-on, seated, order picker | Rider seated | |||
Load capacity(L1, L2, L3) | Q (kg) | 45000 / 31000 / 16000 | ||
Load centre, First row(L1) | c (mm) | 1800 | ||
Load centre, Second row(L2) | c (mm) | 3860 | ||
Load centre, Third row(L3) | c (mm) | 6400 | ||
Axle centre to spreader center(L1-1/2 high) | x (mm) | 2800 / 2600 | ||
Wheelbase | y (mm) | 6400 | ||
DIMENSIONS | ||||
Boom lift angle, raised/lowered | α/β( / °) | 61/ 0 | ||
Height boom lowered | h1 (mm) | 4945 | ||
Lift height(L1, L2, L3) | h3 (mm) | 15900 / 14100 /11350 | ||
Height, boom extended | h4 (mm) | 19000 | ||
Height of cabin | h6 (mm) | 3900 | ||
Height, operators seat | h7 (mm) | 2840 | ||
Towing coupling height | h10 (mm) | 600 | ||
Twistlock height lowered | h13 (mm) | 1495 | ||
Overall length with spreader | l1 (mm) | 11618 | ||
Overall length | l2 (mm) | 8410 | ||
Overall width | b1/b2 (mm) | 4180 / 3400 | ||
Width of soreader 20'/40’ | b3 (mm) | 6050 /12150 | ||
Ground clearance minimum | m1 (mm) | 345 | ||
Ground clearance, centre of wheelbase | m2 (mm) | 300 | ||
Stacking aisle 20' container | Ast (mm) | 10225 | ||
Stacking aisle 40' container | Ast (mm) | 13050 | ||
Turning radius | Wa (mm) | 8605 | ||
Minimum pivoting point distance | b13 (mm) | 3400 | ||
Wheelspan, Front wheels | b10 (mm) | 3030 | ||
Wheelspan, Rear wheels | b11 (mm) | 2786 | ||
WEIGHTS | ||||
UnLaden | Laden | |||
Weight kg | 71400 | 116400 | ||
Load on drive axle kg | 36400 | 101900 | ||
Load on steering axle kg | 35000 | 14500 | ||
PERFORMANCES | ||||
UnLaden | Laden | |||
Travelling speed km/h | 25 | 21 | ||
Climbing ability % | 30 | 28.8 | ||
Tractive force kN | 325 | —— | ||
Lifting speed m/s | 0.39 | 0.28 | ||
Lowering speed m/s | 0.39 | 0.39 | ||
CABIN | ||||
Movable closed cabin | ||||
Equiped with Air-conditioner, cooling/heating function | ||||
Noise level at driver's ear dBA | 74 | |||
ENGINE | ||||
Brand | Cummins | |||
Type | QSM 11 | |||
Cylinder number/ Displacement | 6 / 10820 cm3 | |||
Rated power @ rated speed | 250Kw @ 2100 rpm | |||
Maximum torque | 1674NM @ 1500 rpm | |||
Rated current of alternator | 150 A | |||
Battery | 24 V (2 x 12 /150) | |||
TRANSMISSION | ||
Transmission Manufacturer | ZF/5WG261 AUTO | |
Transmission type | Auto-shift / Interlock | |
Clutch Type | Torque Converter | |
Gear number | 5 F / 3 R | |
TYRES | ||
Drive wheels | 18.00-25 40PR | |
Steering wheels | 18.00-25 40PR | |
Type | Pneumatic | |
Pressure | 10 bar | |
Quantity, Front/Rear | 4 / 2 | |
TANKS CAPACITY | ||
Hydraulic oil tank | 800 liter | |
Fuel tank | 500 liter | |
DRIVE AXLE | ||
Driver axle manufacturer | KESSLER/Germany | |
Type | D102PL341 | |
STEER AXLE | ||
Steering axle manufacturer | KESSLER/Germany | |
Type | L102 | |
Steering | Double action cylinder | |
BRAKE SYSTEM | ||
Service brake: Hydraulic wet-disc | ||
Parking brake: Electric released disc brake, enabled when power off | ||
HYDRAULIC SYSTEM | ||
Twin piston pump | ||
Maximum pressure: 310 bar | ||
Load sensing system | ||
Hydraulic cooler with electric motor | ||
separate brake oil tank | ||
BOOM | ||
2 x Dual action lift cylinders | ||
1 x Dual action extension cylinder | ||
SPREADER | ||
Handling ISO 20'-40' containers | ||
2 x damping cylinder | 2 x gearbox & brake system | |
Type | WLZSP45 | |
Rotate degrees deg | - 105° / + 195° | |
Sideshift mm | - 800 / + 800 | |
TRUCK SAFETIES | ||
Error display system | ||
Counting system for containers | ||
Weighing system (Low precision) | ||
Electric anti-overload system | ||
Full Can-bus control system | ||
o | ||
Parking brake enabled when power off | ||
Seat switch | ||
SPREADER SAFETIES | ||
Locking/unlocking only after correct landing | ||
Lifting/lowering only when the 4 twistlocks on same position | ||
Anticollision rotation limit switch | ||
Customers Show
After service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
