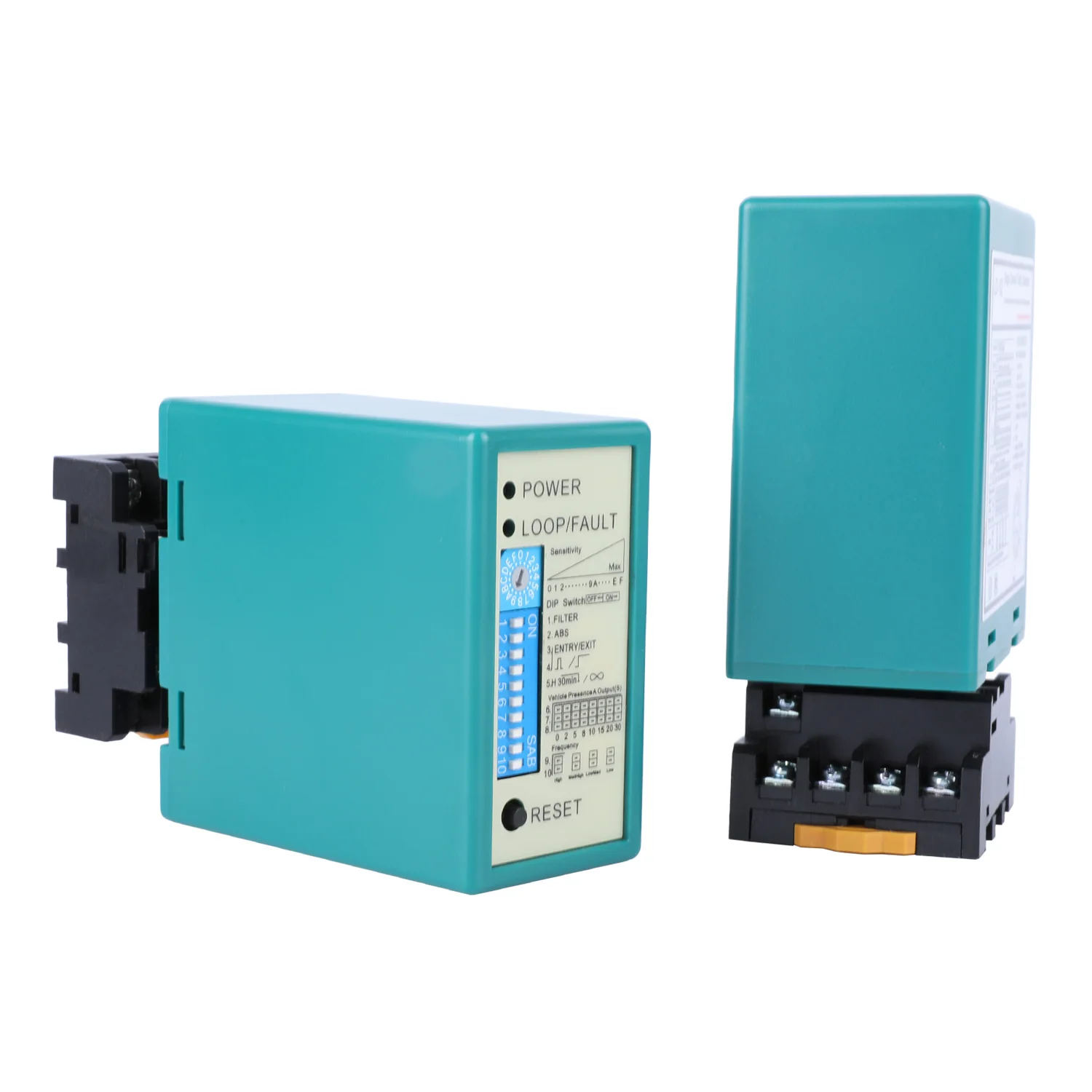

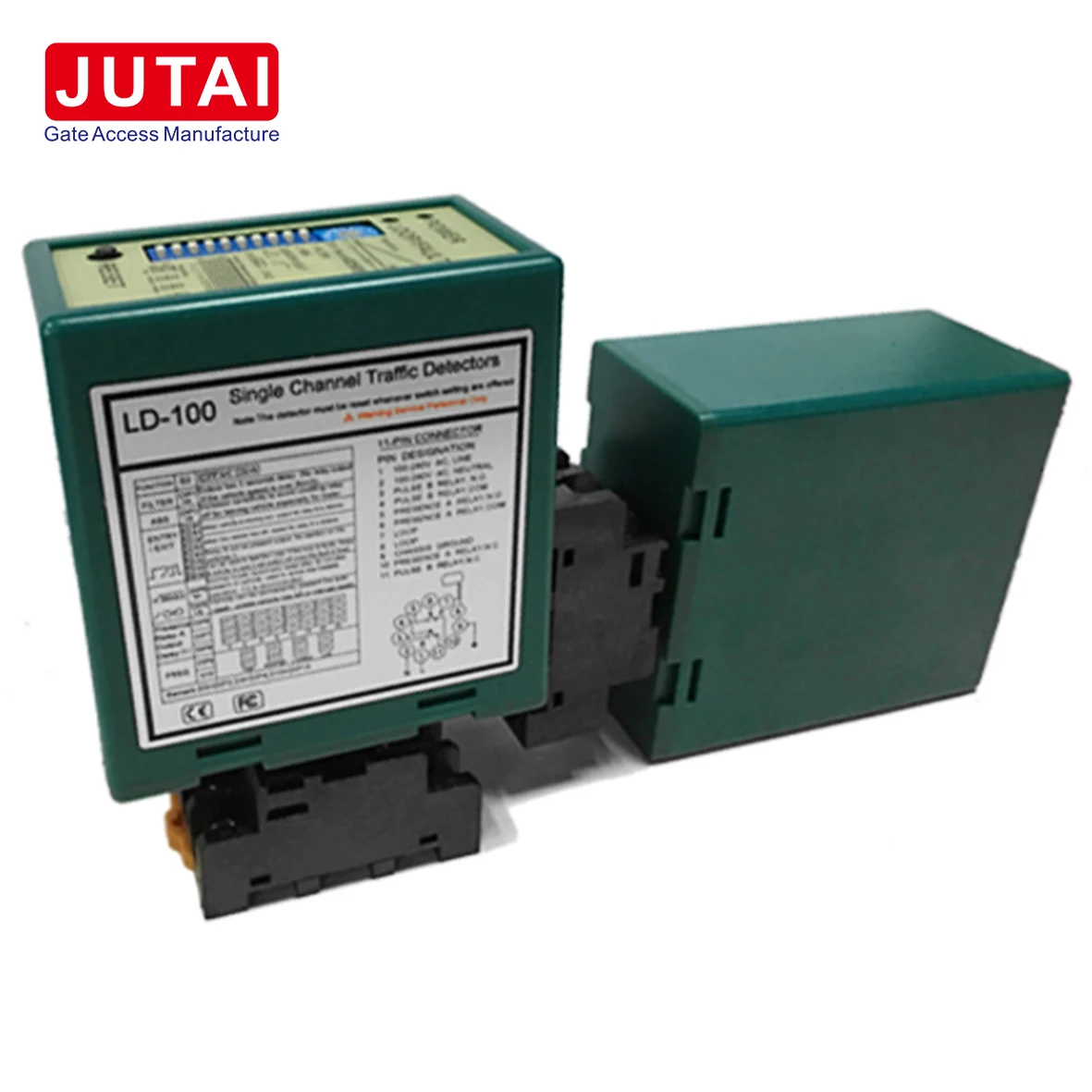

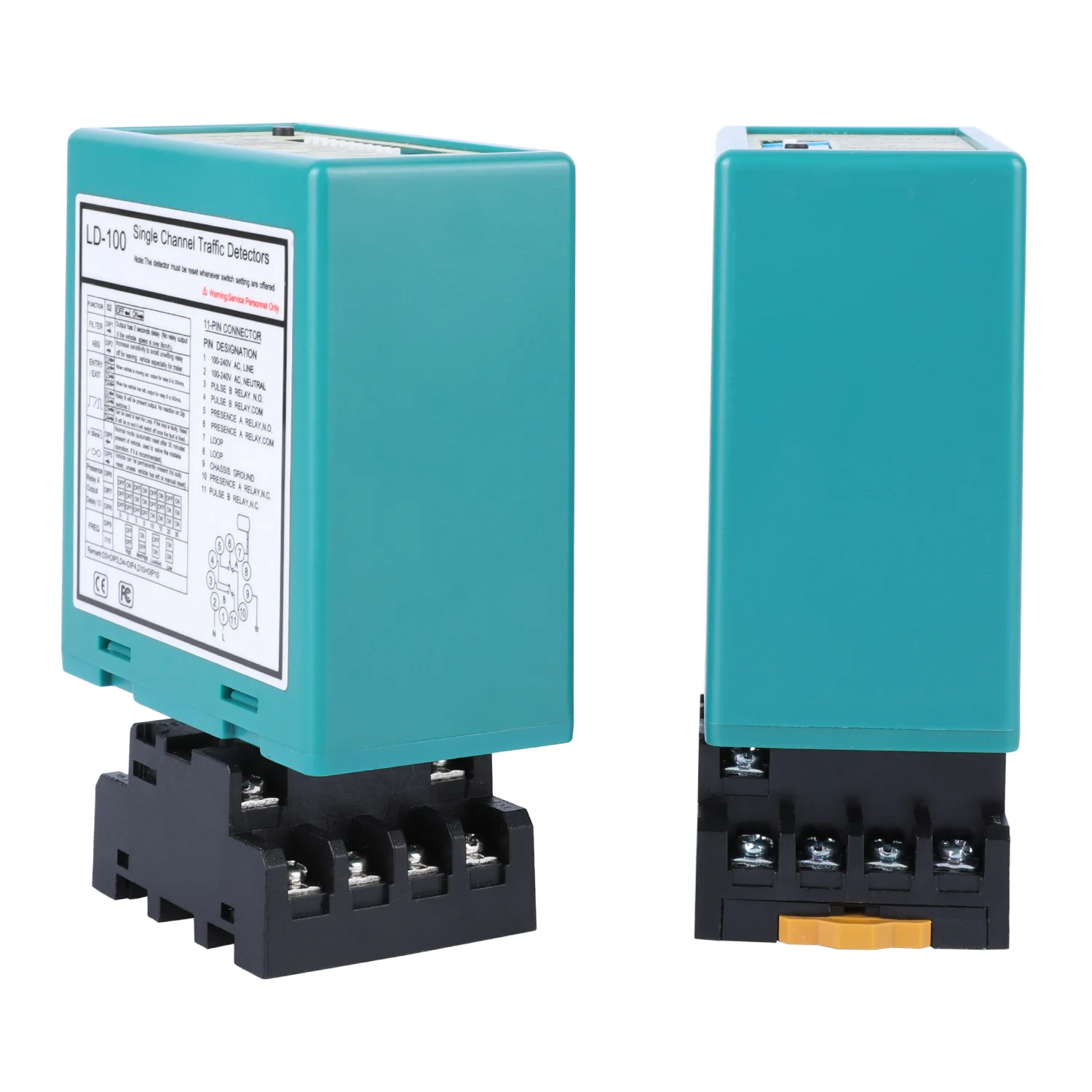

Single channel loop detector LD-100
JUTAI inductive sensor single traffic loop detector is used for vehicle detection, for example, monitor or safeguard your access
ways when vehicles approach. The single channel vehicle loop detector is useful in many ways, such as, door controlling, barrier
gate operator system, driveway mechanisms, and traffic light control system.

JUTAI as the single channel loop detectors supplier, it provides the best single channel loop detector aim for parking system and
driveway gate access control. Vehicle loop detector is to detect vehicle presence when sensing an inductance change which is
caused by all sorts of vehicle pasing over a wire loop detector that sits under the road surface.




Specification


item
value
Warranty
2 years
Sensitivity
16-ways selectable levels
Customized support
OEM, ODM, OBM
Frequency
four step switch, 20-80KHz
Reset
push button on the enclosure

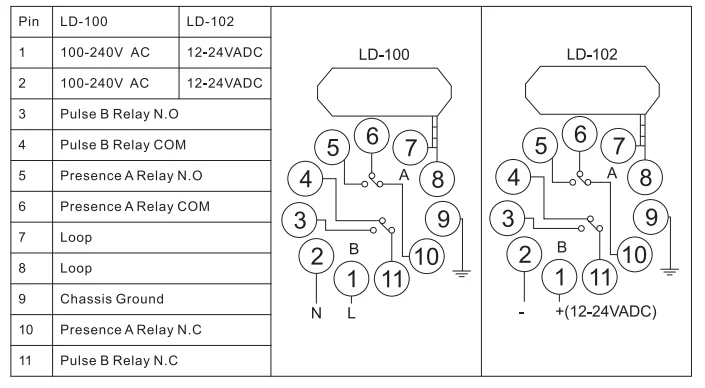

Connection
11-pin Submagnal
Model
LD-100
Power Supply
100-240VADC
Detection type
ALL type vehicles
Inductive Range
15-2000uH
Fast Response Times
10-90ms
Relay Output
Presence relay/ Fault relay
Relay Time
0,2,4,8,10,15,20,30s
Operating Temperature
-40 ~+70
Feature
Sensitivity Adjustment
Alarm mode
Light Alarm

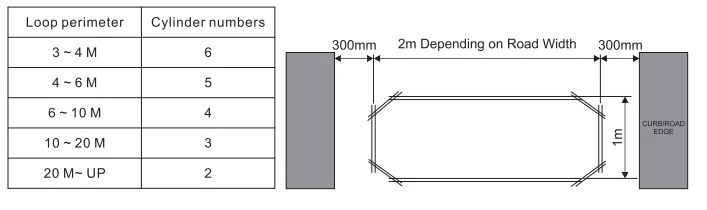

Installation Instructions

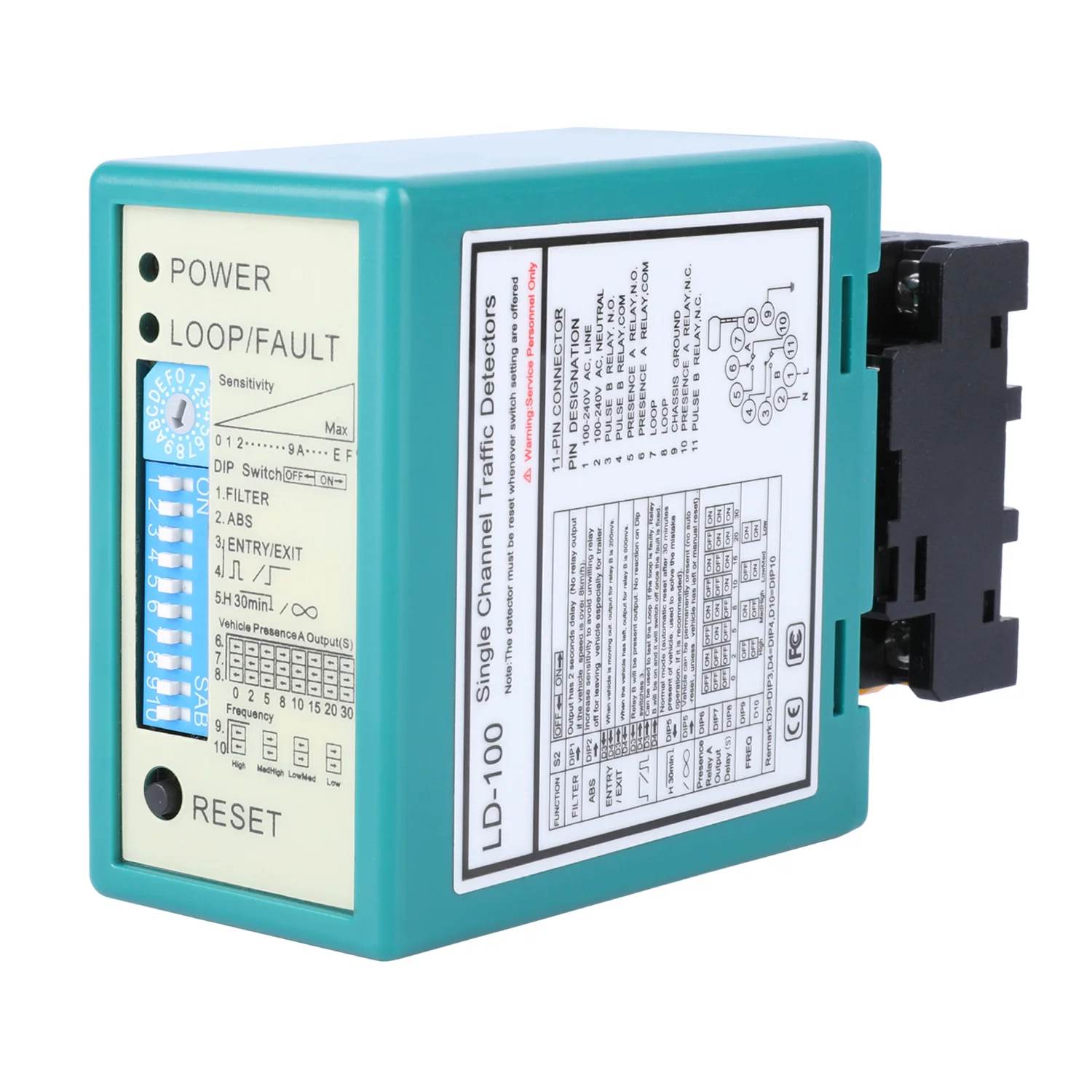

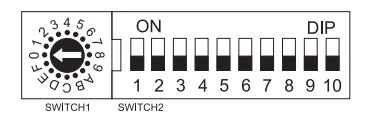

Loop detector Setting
Switch 1: Sensitivity selection
User can select 16 diferrent setting by turning
"0" to “F” being the most sensitive.
Switch 2: (Dip switch setting)
1. DIP 1 &DIP 2 Setting special functions
2. DIP 3 &DIP 4 Setting relay B output
3. DIP 5 Setting automatic reset
4. DIP 6 &DIP 7 &DIP 8 Setting relay & delay
5. DIP 9 & DIP 10 setting frequency (40k to 100 khz).Used to avoid the interference.

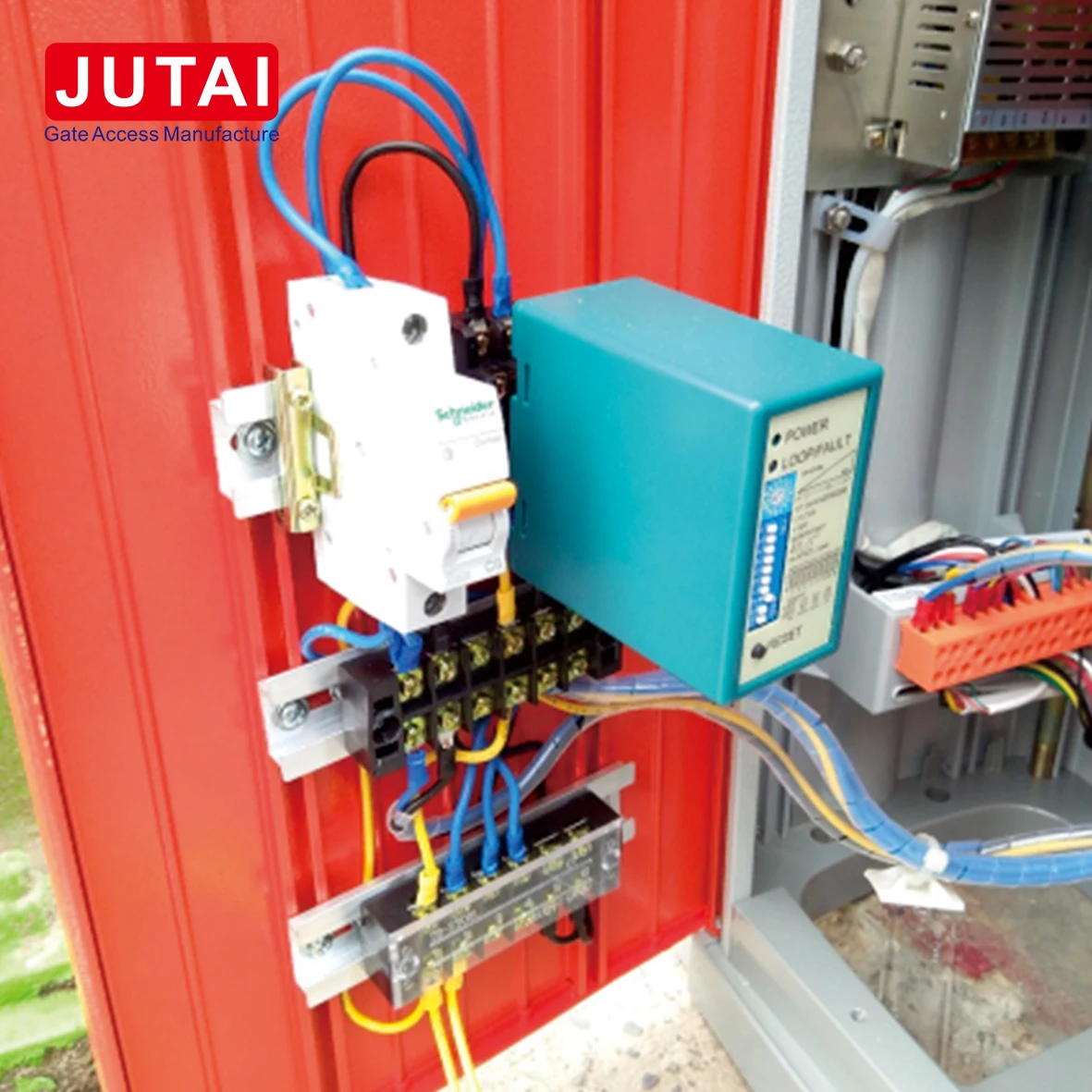

Details Images




Applications

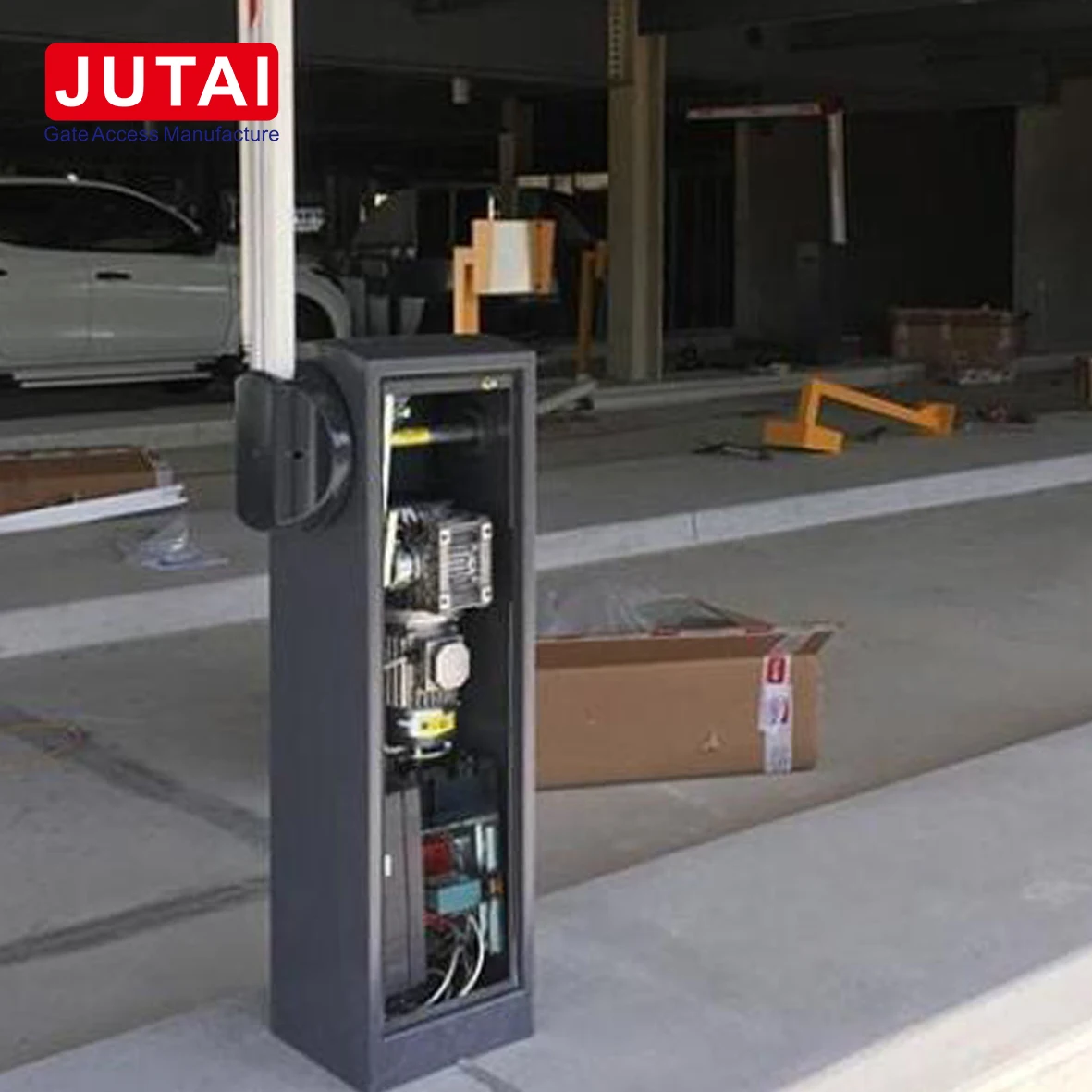

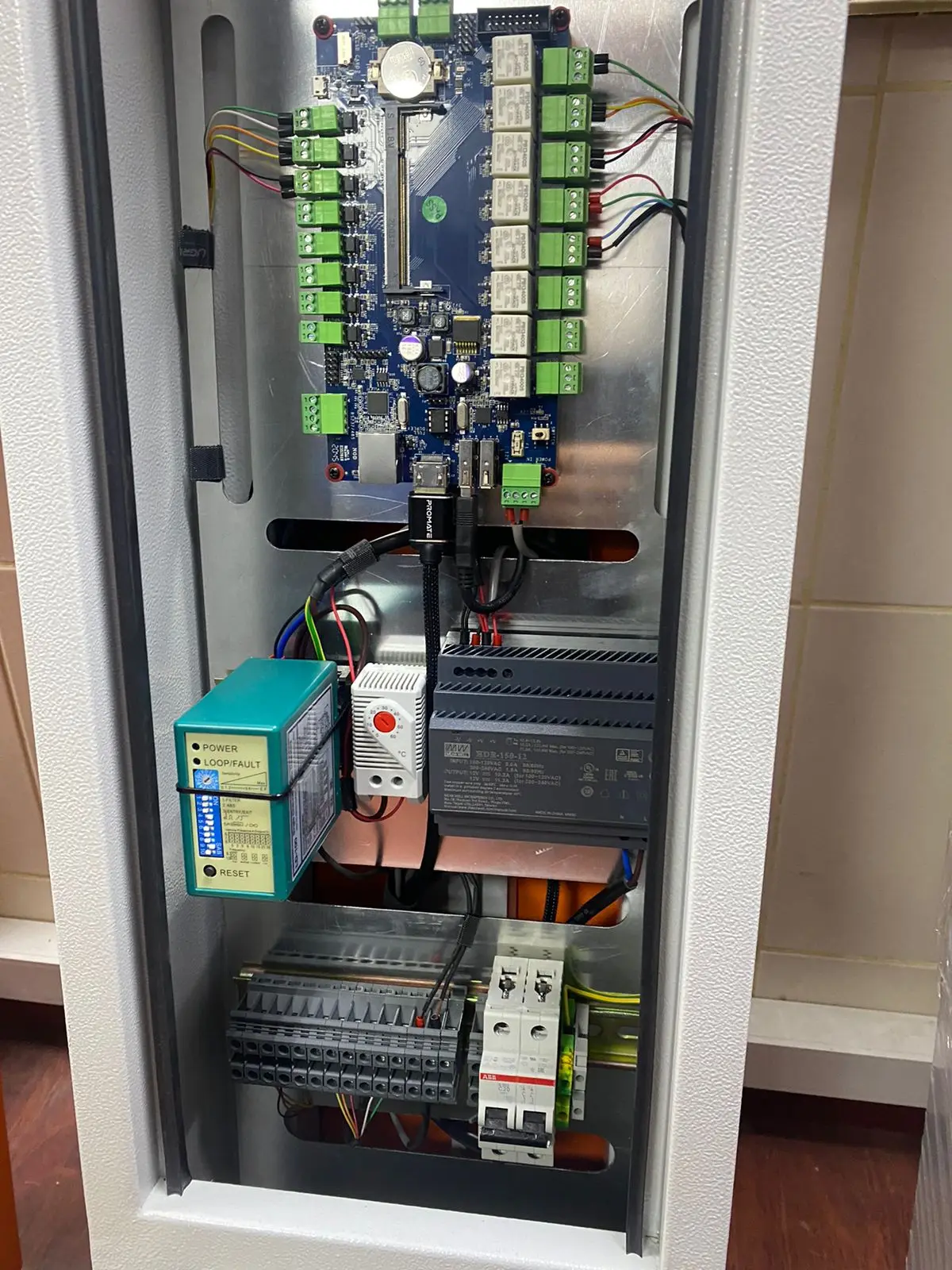

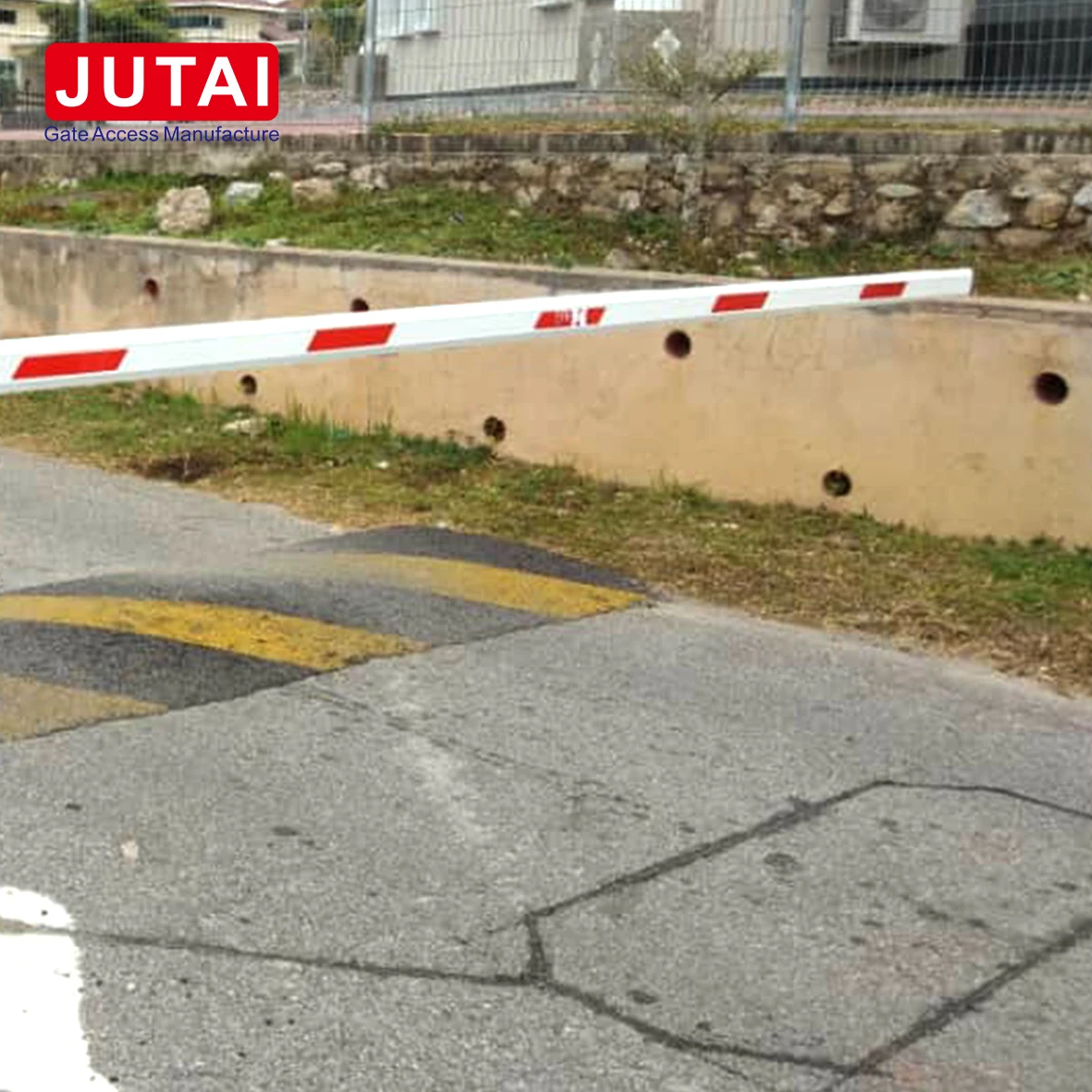

Vehicle detection loop sensor can be used for parking barrier gate control, vehicle access control, traffic control system, vehicle counting system, motorised gates and doors, security bollards, and camera trigger function, etc. There are also many other inductive sensor loops for special uses, such as traffic barrier arm loops, free-exit loops, safety loops and other loops. Those are for the general applications for sensing the vehicle and gate access control equipment.






Company Profile


JUTAI gate access manufacturers provide clients with the following products and solutions:

--vehicle loop detectors(single channel/dual channel)
--photoelectric beam sensors (wired/wireless/reflective/rotational)
--Infrared multi-beam safety curtain sensors ( 30cm/1m/2m heights, 4-beams/8-beams...)
--Radar detectors
--Gatelink remote control gate automation ( receiver with smart USB/cigarette lighter/remote buttons...)
--Standalone card readers
--Proximity EM card reader 130cm
--UHF ani-clone long-range reader with tag/sticker/card
--433mhz Bluetooth long-range reader with smart card
--GSM gate opening
--Access control system(card/remote/QR code/face recognition)
--Parking management system
--Parking guidance system
--Traffic light system
