Jntech 3.5kw 5kw инвертор с чистым синусом со слежением за максимальной точкой Мощности гибридный солнечный инвертор 3500W солнечный инвертор решетки 48V
- Category: Solar Energy Products >>>
- Supplier: Jntech,Renewable,Energy,Co.,Ltd.
Share on:
Product Overview
Description
Jntech 48V 3KVA 5KVA Off Grid Solar Hybrid MPPT Inverter for Solar Energy Storage System
Product Description
Product introduction
Solar off-grid energy storage inverter is integrated with a MPPT solar charge controller, a high frequency
pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries.
Solar off-grid energy storage inverter can be connected in paralle
Solar off-grid energy storage inverter is integrated with a MPPT solar charge controller, a high frequency
pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries.
Solar off-grid energy storage inverter can be connected in paralle
Features:
1.Rated power 3.5KW / 5KW, power factory
2. Built-in MPPT, MPPT voltage range 120V~430Vdc
3.Pure sine wave AC output

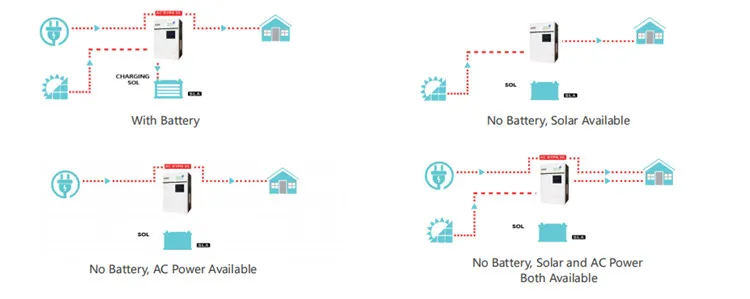

4.Solar and utility joint to power the loads
5.With the ability to work with or without battery
6.Parallel operation up to 6 units
7. WIFI/ GPRS remote monitoring
8.CAN/ RS485 communication for BMS
2. Built-in MPPT, MPPT voltage range 120V~430Vdc
3.Pure sine wave AC output
4.Solar and utility joint to power the loads
5.With the ability to work with or without battery
6.Parallel operation up to 6 units
7. WIFI/ GPRS remote monitoring
8.CAN/ RS485 communication for BMS
Model | JNF3K5HF-B-V1 | JNF5KHF-B-V1 | |
System | |||
Rated power | 3500VA/3500W | 5000VA/5000W | |
System DC voltage | 48VDC | 48VDC | |
Parallel option | Yes, up to 6 units | ||
Monitoring option | WiFi or GPRS | ||
Inverter Output | |||
AC voltage | 220V-230V-240VAC | ||
Surge power | 7000VA | 10000VA | |
Peak efficiency | 93% | ||
Transfertime | 10ms (For Personal Computeis); 20ms(For Home Appliances) | ||
Waveform | Pure Sine Wave | ||
Solar Charger& AC Charger | |||
Max. PV array voltage | 450Vdc | ||
Max. PV array power | 4500W | 6000W | |
Operating voltage MPPT range | 120~430Vdc | ||
Battery overcharge protection | 60Vdc | ||
Max. solar charge current | 80A | 100A | |
Max. AC charge current | 60A | 80A | |
Max. charge current | 80A | 100A | |
Physical | |||
Dimension | 470x320x135mm | ||
Net weight | 11.5Kg | 12Kg | |
Communication interface | USB/CAN/RS485 | ||
Environment | |||
Humidity | 5% to 95% Relative Humidity (non-condensing) | ||
Operating temperature | 0℃~50℃ | ||
Storage | -15℃~60℃ | ||

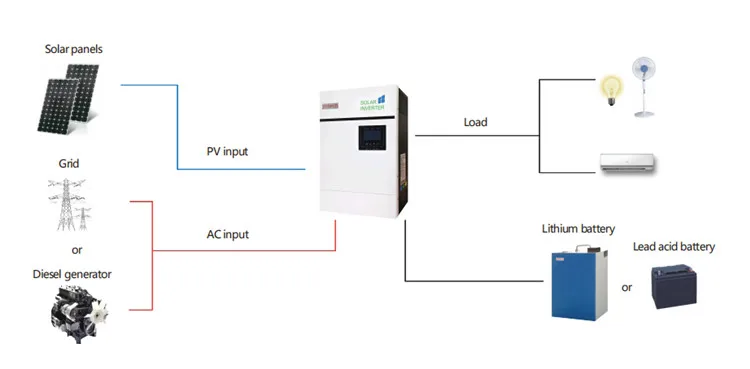

Product Application
Easy to read all working models and parameters in LCD
Manufacturing Flow
Packing & Delivery
Exhibition
Company Profile
JNTECH RENEWABLE ENERGY CO.,LTD, affiliated to HEFEI JNTECH NEW ENERGY CO.,LTD, is a dependent corporation by the merger of mother company's renewable energy application product division and research institute. Focusing on renewable energy application's high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products' R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico. Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.
