CNC Metal Turning Lathe Machine CK6140 CTCNC40C Low Cost CNC Lathe
- Category: >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (1600581476496):
Product Overview
Description

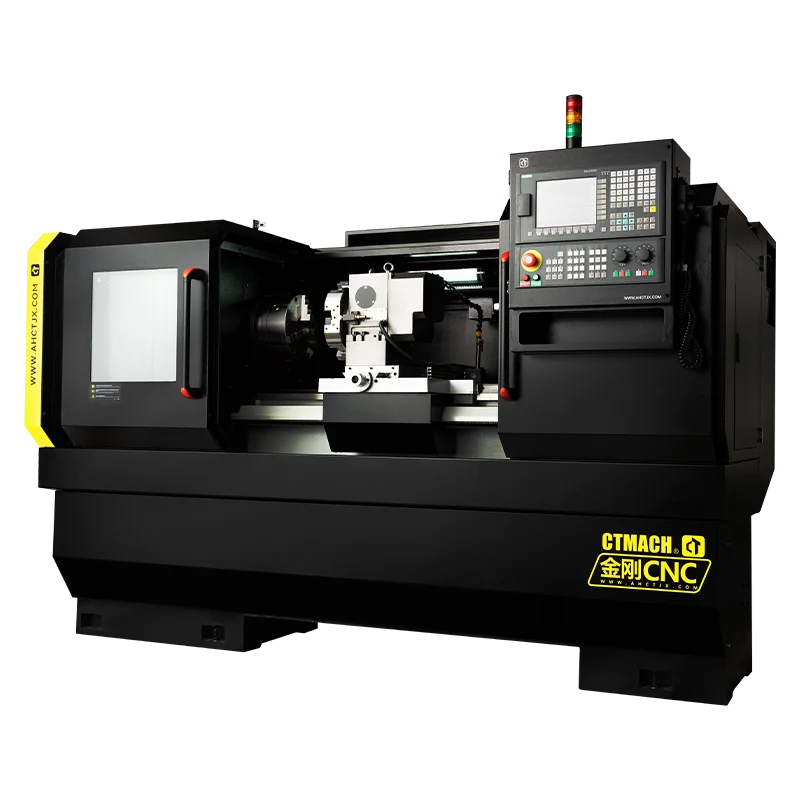

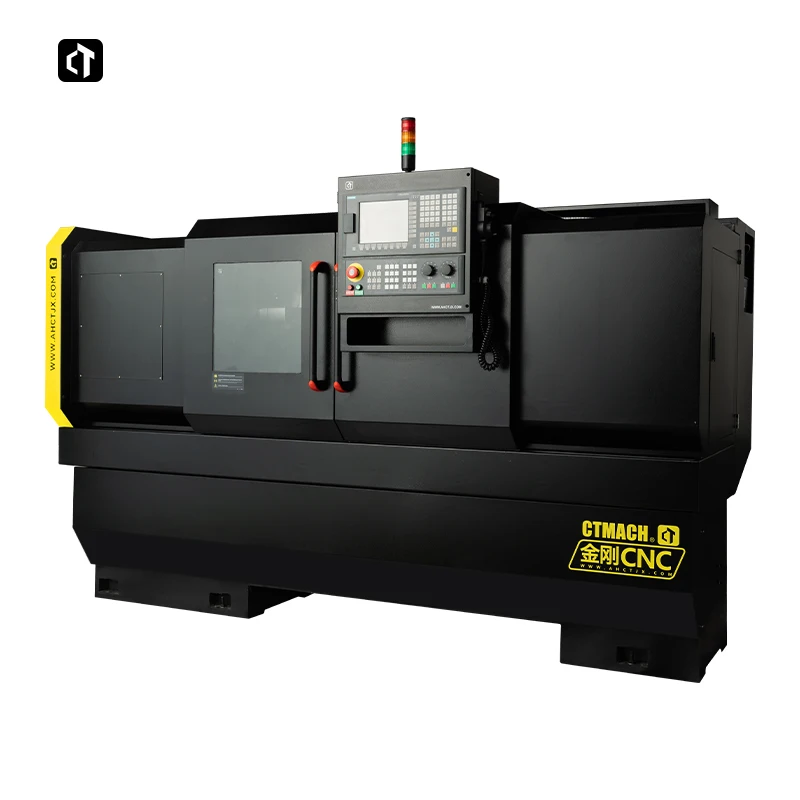

CTCNC40C Industrial CNC Lathe
1-High rigidity flat bed hard rail CNC lathe.
2-The surface of the bed guide is precision ground and hardened, HRC50.
3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine.
4-High-precision grinding ball screw, positioning and machining accuracy is more stable.
5-Siemens 808D system.
6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
2-The surface of the bed guide is precision ground and hardened, HRC50.
3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine.
4-High-precision grinding ball screw, positioning and machining accuracy is more stable.
5-Siemens 808D system.
6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
Introduction to Parameters CTCNC40C | CTCNC40C | |
Rotation diameter of bed | 400 mm | |
Swivel diameter on the middle carriage | 210 mm | |
Maximum workpiece length | 1000 mm | |
Spindle speed range | 200-2000 rpm | |
Spindle diameter | 82mm | |
Spindle hole taper | MT6 | |
Number of stations | 6 | |
Tool holder specifications | 20 mm | |
Tailstock sleeve taper | MT4 | |
Tailstock sleeve stroke | 120 mm | |
Main motor power | 7.5 kw | |
Pump motor power | 180 w | |
(ZX) Feed motor torque | 6 NM | |
Z axis rapid traverse speed | 10 m/min | |
X-axis rapid movement speed | 8 m/min | |
Z-axis repeatability | ≤ 0.01mm | |
Repeated positioning accuracy of X axis | ≤ 0.008mm | |
XZ axis positioning accuracy | ≤ 0.015mm | |
Machine size | ≈2640x1500x1766 mm | |
Net weight | ≈1800 kg | |
Machine Size
Machine size\t≈2640x1500x1766 mm
Net weight\t≈1800 kg
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Show Deails

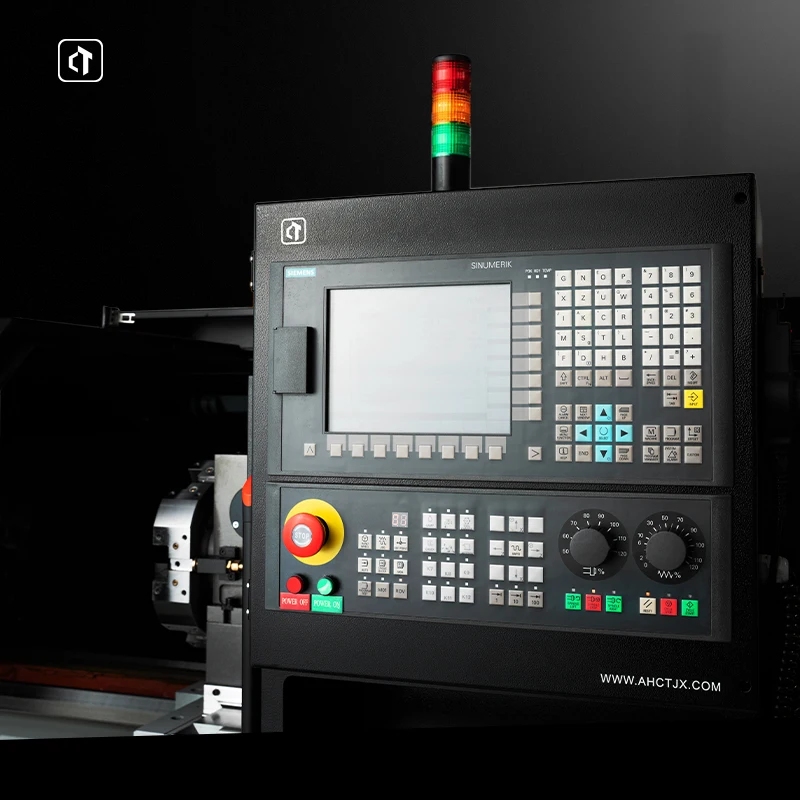

Siemens 808D system

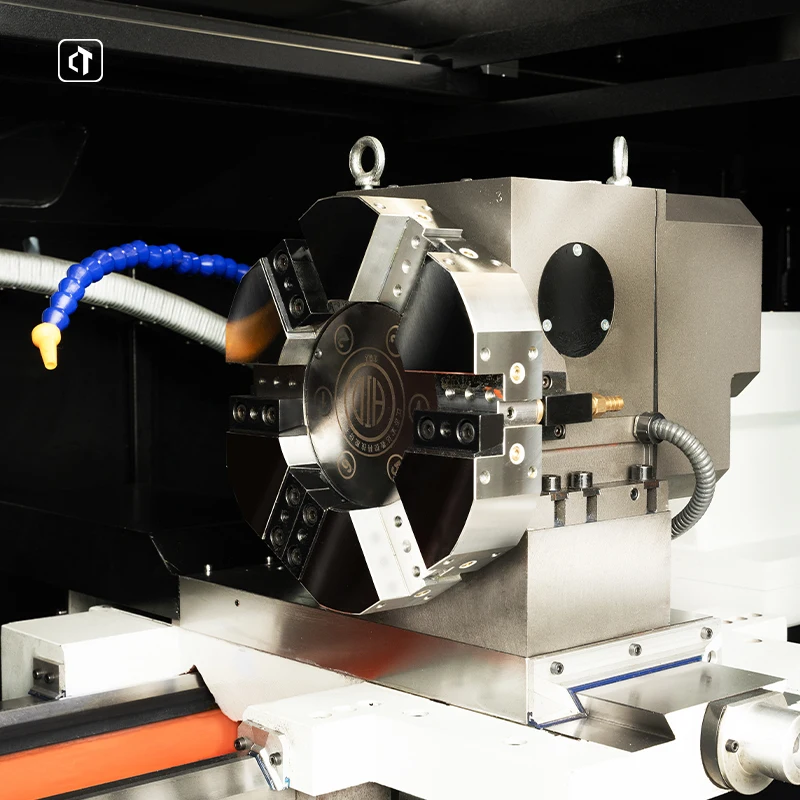

6-station electric tool holder
Shank size: 20x20mm

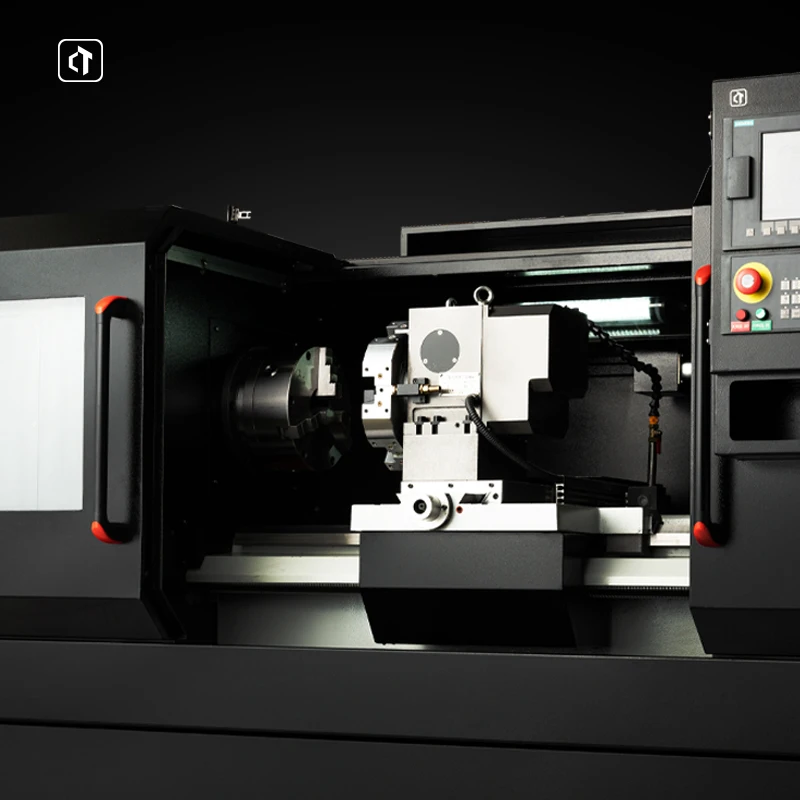

All-Inclusive Sheet Metal
Double sliding door power off
Induction hardening
Hard rail
High strength, strong bearing capacity
Continuously variable speed
200-2000rpm
Independent Spindle A2-8
200-2000rpm
Independent Spindle A2-8
Frequency conversion main motor 7.5KW
Spindle through hole 82mm
Handheld Electronic Handwheel
Automatic Lubrication Pump
Standard Accessories
