Surface Solar Water Pump For River Irrigation Purpose, Solar Water Pumping Machine
- Category: Solar Applications >>>
- Supplier: Zhejiang,Rambo,Intelligent,Technology,Co.,Ltd.
Share on:
Product Overview
Description
>>> BRUSHLESS DC SOLAR PUMP
>>> WHY SELECT ZRI
1. No MOQ required, Most solar water pumps ready in stock(fast lead time)
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Top 3 leading brand in China both in terms of professionalism and market share
5. Manufacture more than 50000pcs per year
6. Exported more than 60 countries
>>> HOW TO CHOOSE PUMP

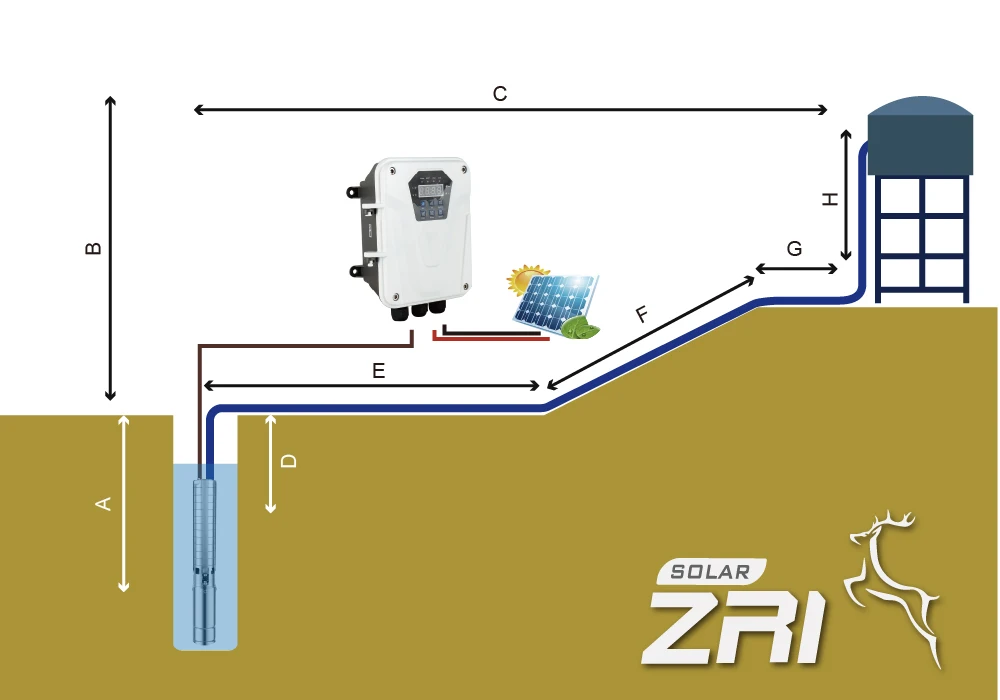

HEAD CALCULATE:
1. Distance of 'A+B+C/10 (in meter)
1. Distance of 'A+B+C/10 (in meter)
2. Distance of ''A+E+F/10+G+H/10 (in meter)
Water source: Borehole(diameter__mm )
FLOW CALCULATE:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table
Pls select the right pump below yourself, or pls inform us below information, then we can select the right pump for you.
1. Where will the pump be used?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?
1. Where will the pump be used?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?
ITEM | Rated Voltage | Optimum input voltage(DC) | Rated Power | Max. Flow | Max. Head | Outlet |
Z3PC3-25-24-200 | 24V | 30V-48V | 200W | 3.0m³/h | 25m | 1.25 '' |
Z3PC3-35-24-300 | 24V | 30V-48V | 300W | 3.0m³/h | 35m | 1.25 '' |
Z3PC3.5-47-48-400 | 48V | 60V-90V | 400W | 3.5m³/h | 47m | 1.25 '' |
Z3PC3.5-80-72-600 | 72V | 90V-120V | 600W | 3.5m³/h | 80m | 1.25 '' |
Z3PC3.5-95-96-750 | 72V | 90V-120V | 750W | 3.5m³/h | 95m | 1.25 '' |
Z3PC3.8-123-110(/150)-1100 | 110V | 110-150V | 1100W | 3.8m³/h | 123m | 1.25 '' |
Z3PC3.8-155-110(/180)-1300 | 110V | 110-150V | 1300W | 3.8m³/h | 155m | 1.25 '' |
Z3PC3.8-180-110(/200)-1500 | 110V | 110-150V | 1500W | 3.8m³/h | 180m | 1.25 '' |
Z3PC5.2-45-48-500 | 48V | 60V-90V | 500W | 5.2m³/h | 45m | 1.5 '' |
Z3PC5.2-50-72-600 | 72V | 90V-120V | 600W | 5.2m³/h | 50m | 1.5 '' |
Z3PC5.2-75-96-750 | 72V | 90V-120V | 750W | 5.2m³/h | 75m | 1.5 '' |
Z3PC6-84-110(/150)-1100 | 110V | 110V-150V | 1100W | 6.0m³/h | 84m | 1.5 '' |
Z3PC6-125-110(/200)-1500 | 110V | 110V-150V | 1500W | 6.0m³/h | 125m | 1.5 '' |
Z3PC7.5-43-96-750 | 72V | 90V-120V | 750W | 7.5m³/h | 43m | 1.5 '' |
Z3PC7.5-62-110(/150)-1100 | 110V | 110V-150V | 1100W | 7.5m³/h | 62m | 1.5 '' |
Z3PC7.5-78-110(/200)-1500 | 110V | 110V-150V | 1500W | 7.5m³/h | 78m | 1.5 '' |
Z4PC6-32-48-400 | 48V | 60V-90V | 400W | 6.0m³/h | 32m | 1.25 '' |
Z4PC6-42-72-600 | 72V | 90V-120V | 600W | 6.0m³/h | 42m | 1.25 '' |
Z4PC6-56-96-750 | 72V | 90V-120V | 750W | 6.0m³/h | 56m | 1.25 '' |
Z4PC6-84-110(/150)-1100 | 110V | 110V-150V | 1100W | 6.0m³/h | 84m | 1.25 '' |
Z4PC6-112-110(/180)-1300 | 110V | 110V-150V | 1300W | 6.0m³/h | 112m | 1.25 '' |
Z4PC6-135-110(/200)-1500 | 110V | 110V-150V | 1500W | 6.0m³/h | 135m | 1.25 '' |
Z4PC9-45-96-750 | 110V | 110V-150V | 750W | 9.0m³/h | 45m | 2 '' |
Z4PC9-58-110(/150)-1100 | 110V | 110V-150V | 1100W | 9.0m³/h | 58m | 2 '' |
Z4PC9-71-110(/180)-1300 | 110V | 110V-150V | 1300W | 9.0m³/h | 71m | 2 '' |
Z4PC9-85-110(/200)-1500 | 110V | 110V-150V | 1500W | 9.0m³/h | 85m | 2 '' |
Z4PC13-36-96-750 | 110V | 110V-150V | 750W | 13m³/h | 36m | 2 '' |
Z4PC13-49-110(/150)-1100 | 110V | 110V-150V | 1100W | 13m³/h | 49m | 2 '' |
Z4PC13-54-110(/180)-1300 | 110V | 110V-150V | 1300W | 13m³/h | 54m | 2 '' |
Z4PC13-60-110(/200)-1500 | 110V | 110V-150V | 1500W | 13m³/h | 60m | 2 '' |
Z4PC17-48-110(/200)-1500 | 110V | 110V-150V | 1500W | 17m³/h | 48m | 2 '' |

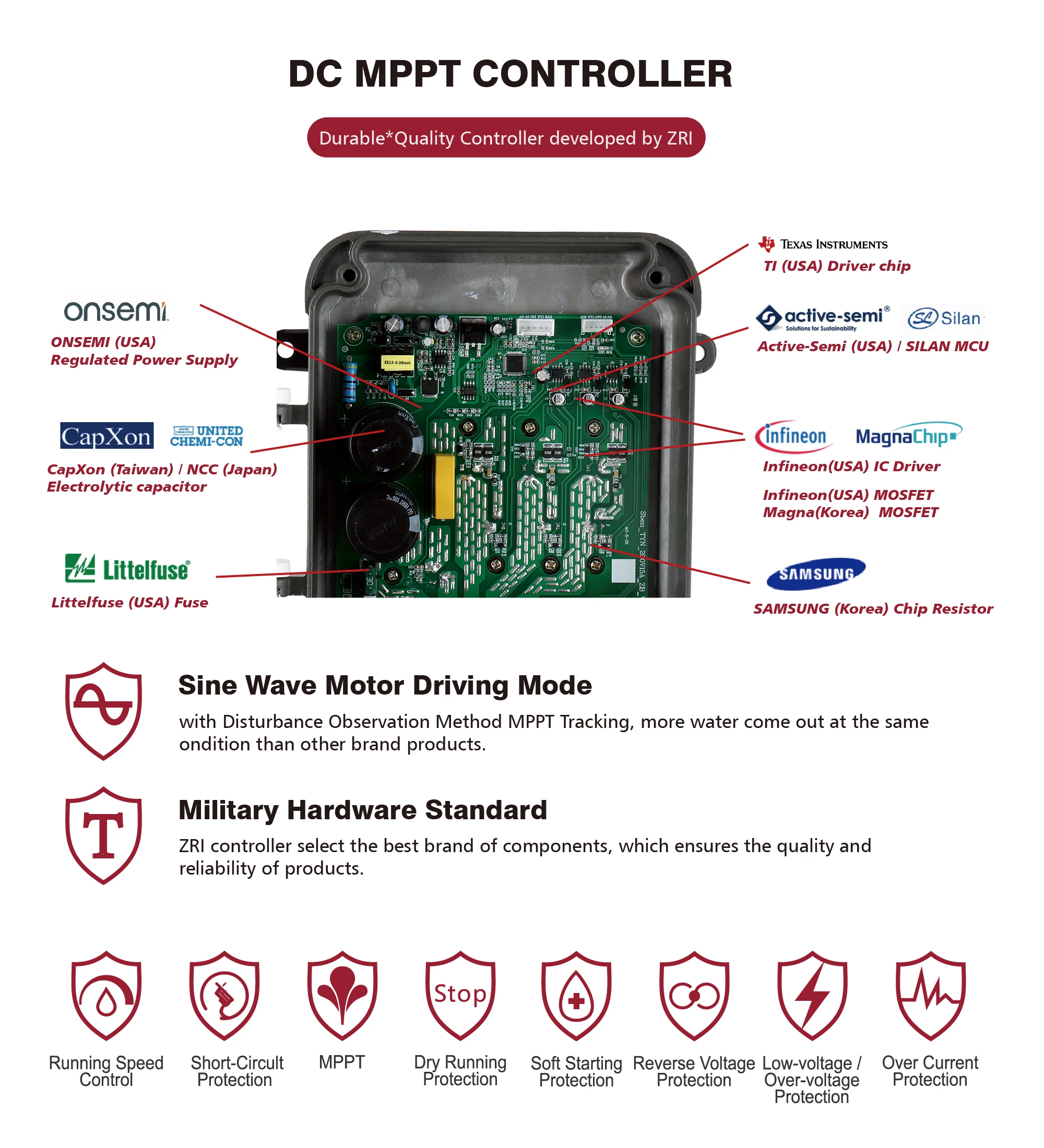

- MPPT: Maximum Power Point Tracking
- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation
- Timing function: Set pump running time
- Over current protection: Motor stops automatically when stucked
- Soft starting protection:Protect the motor & bearing
- Lack of water protection: Restart Automatically upon the Water Level
- Low-voltage / Over-voltage protection: Protect the motor & controller
- Reverse voltage protection: Circuit breaking automatically when reverse connection
- Short-circuit protection: Automatically stops when Short wiring of motor

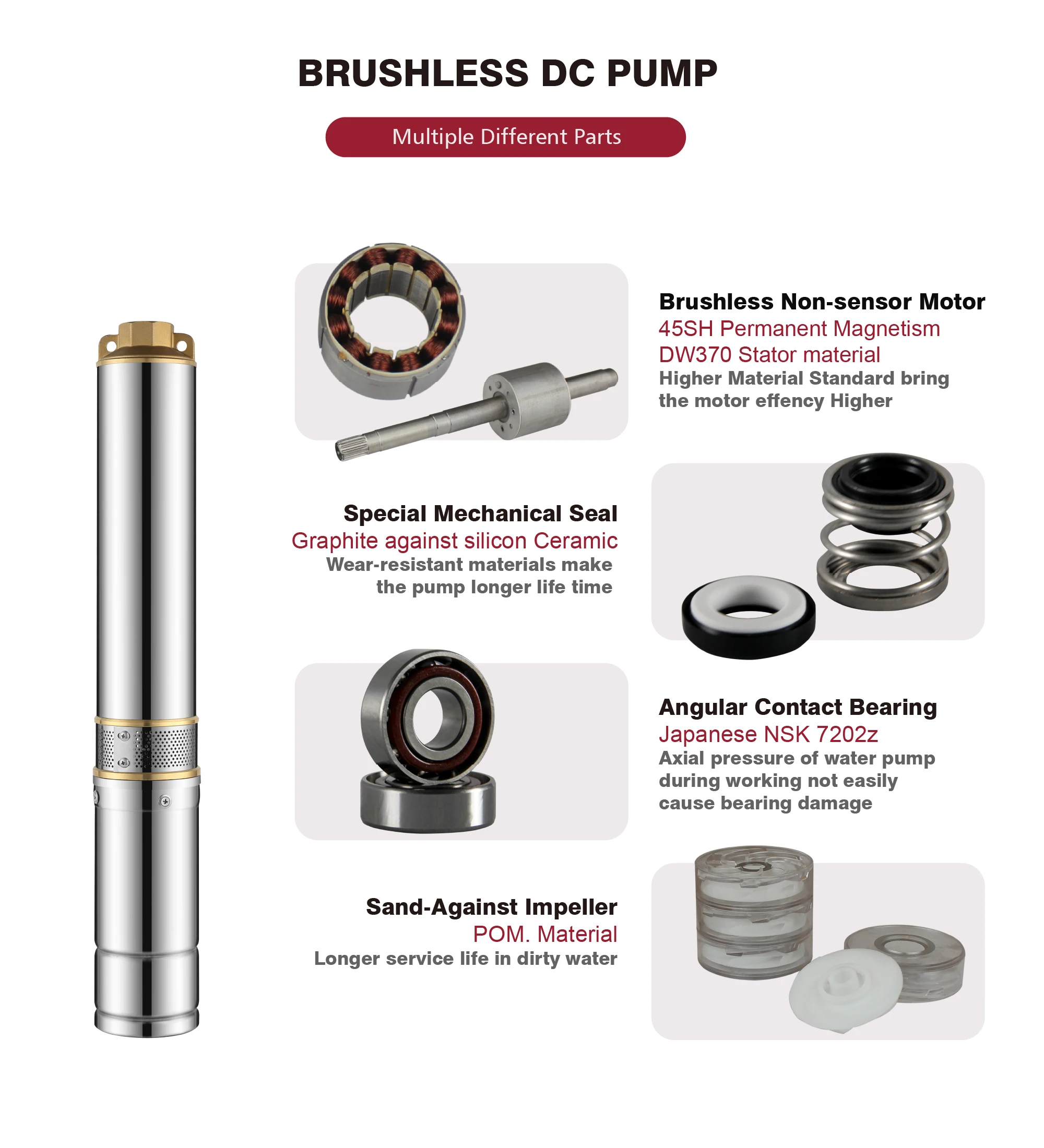

ADVANCED TECHNOLOGY
- The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor.
- Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
- 100% copper wire, DW-300 cold-rolled silicon steel sheet. - Stainless steel 304 & 316 shaft , motor body, screw.

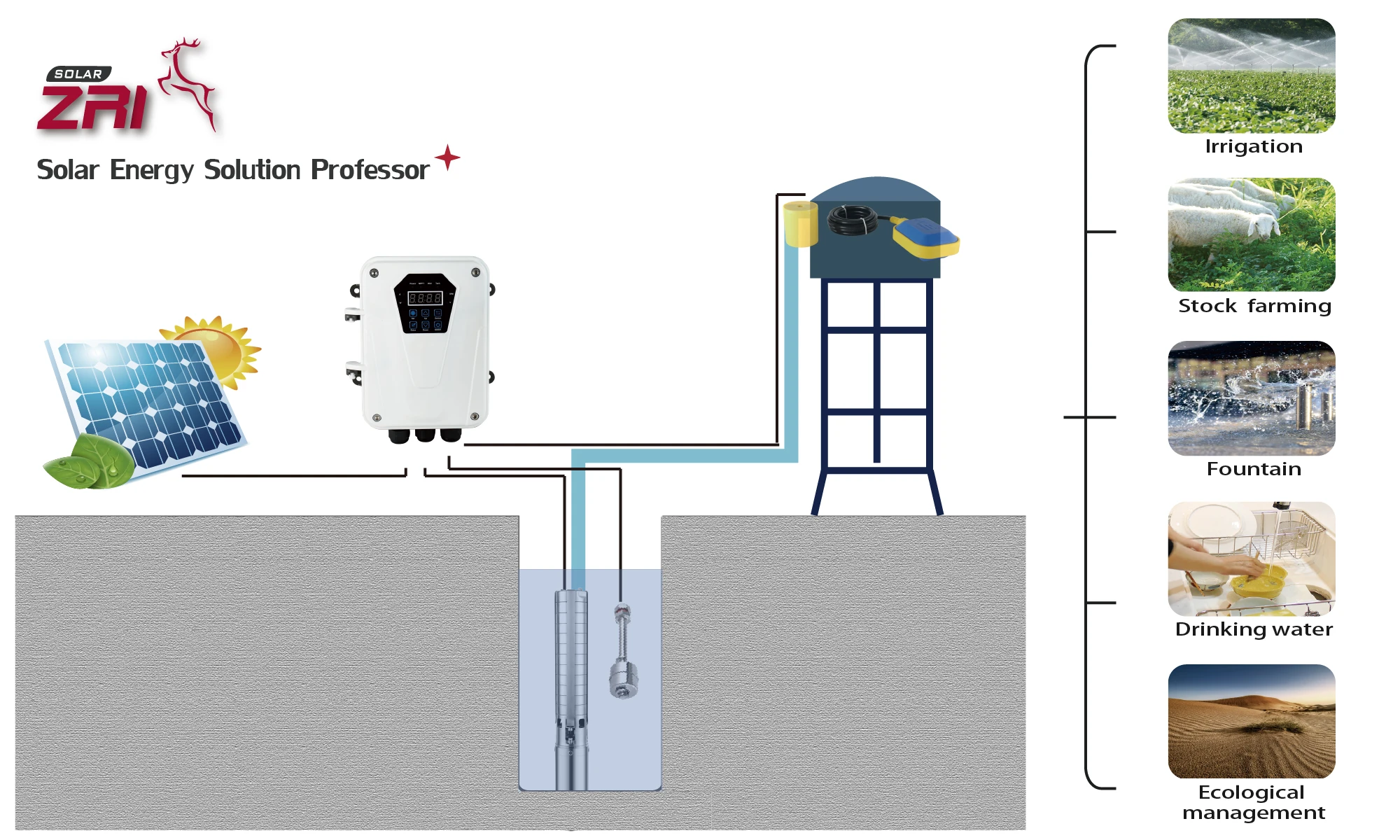

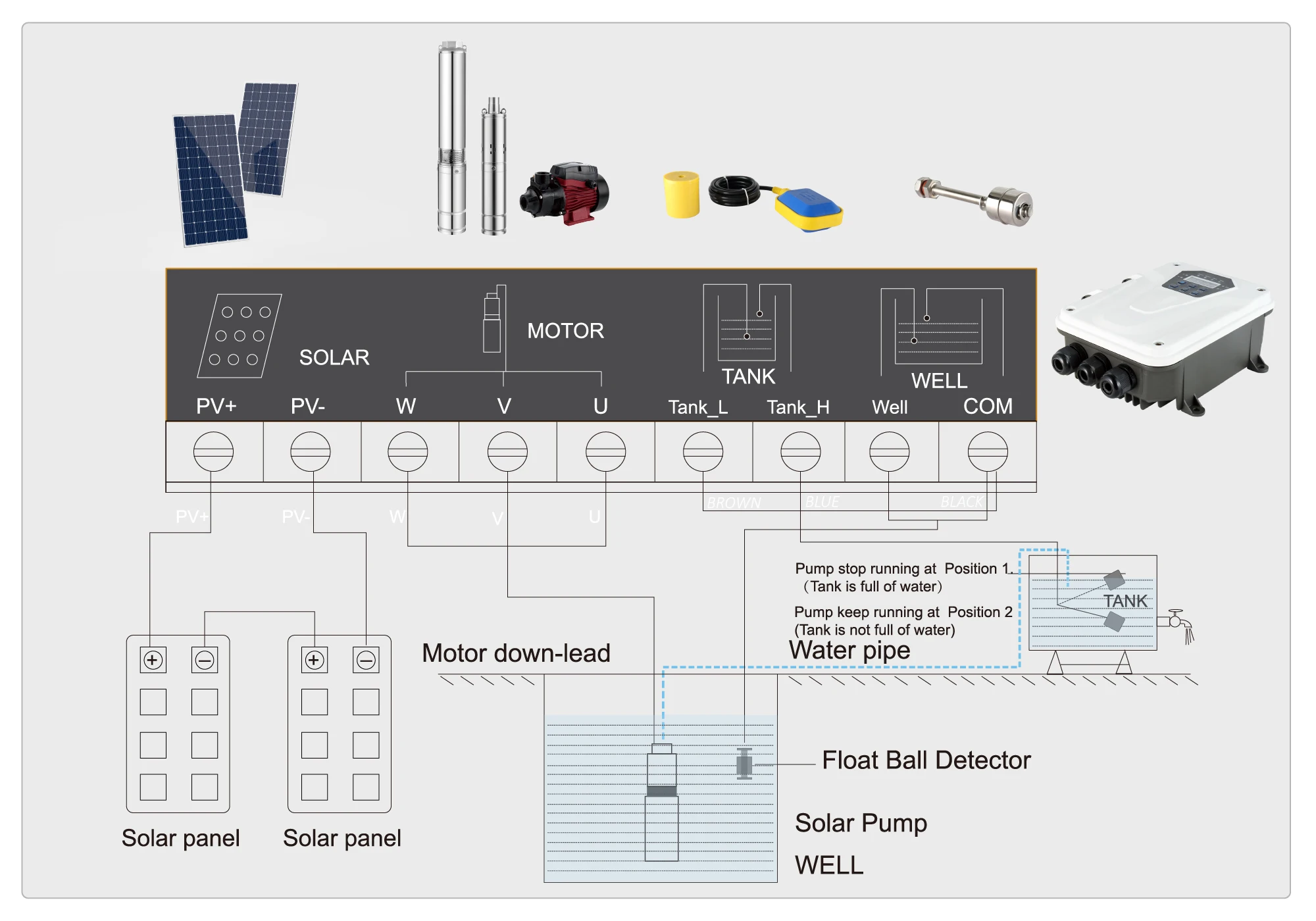

>>> HOW TO INSTALL A SOLAR PUMP
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→pumping water
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)
Application
@ Application of deep well pump to irrigation
@ Village and town water supply
@ Clean drinking water
@ Village and town water supply
@ Clean drinking water
@ Garden watering
@ Enviroment friendly
@ Pumping and drip irrigation
>>> WHAT WILL YOU GET FROM ZRI

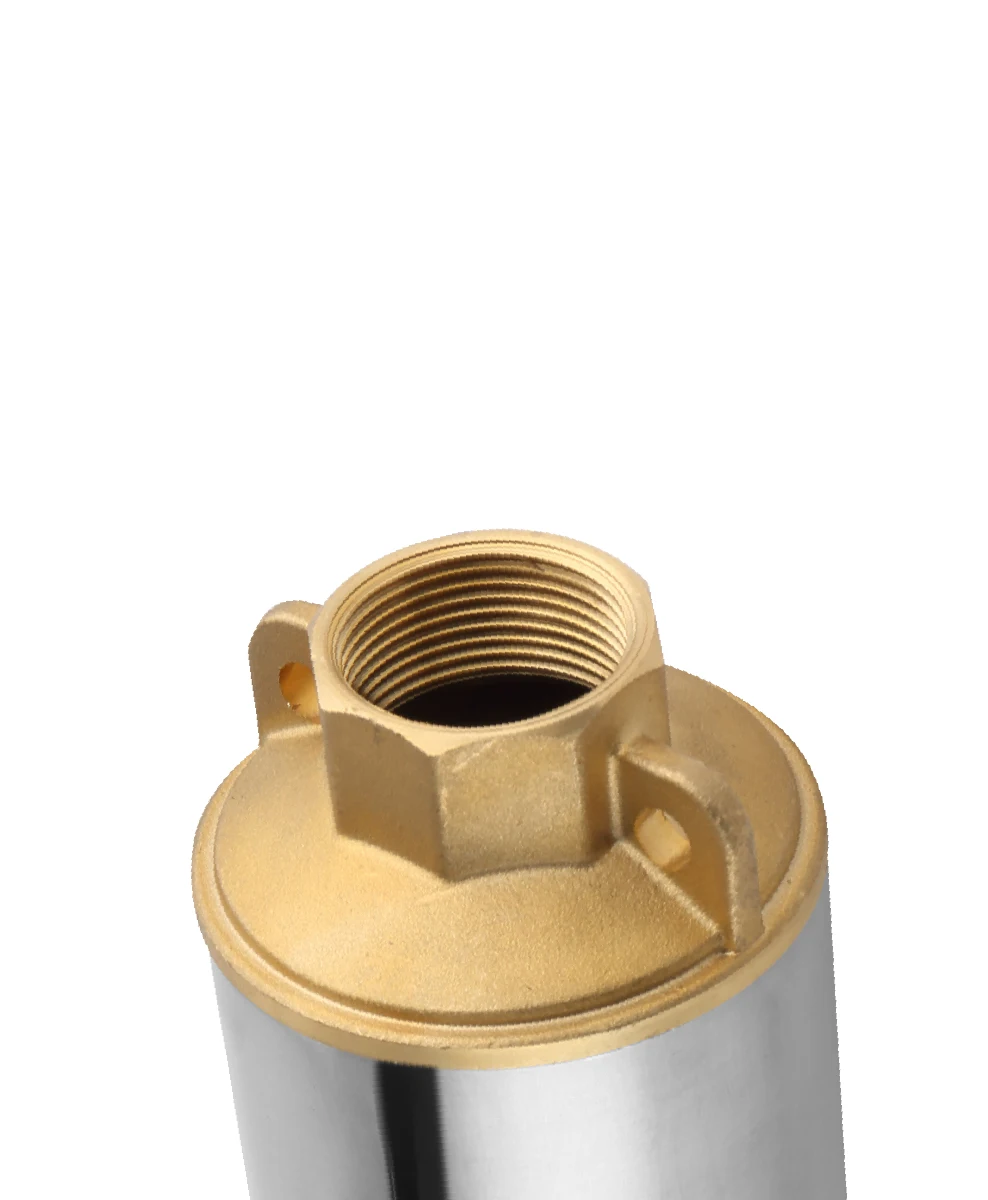

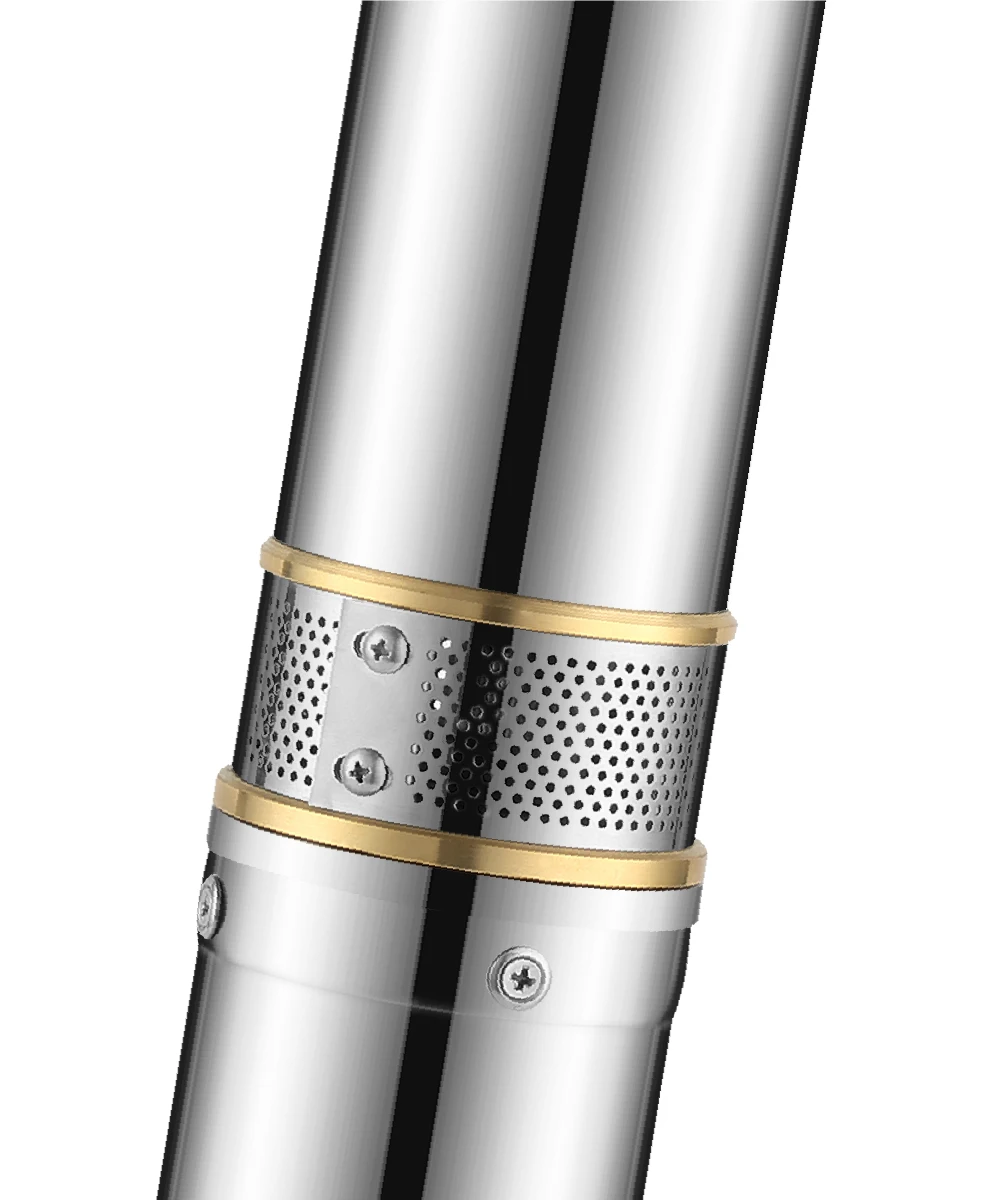

Brushless DC Pump
1 PCS Solar pump with 2m cable, longer cable is available if required

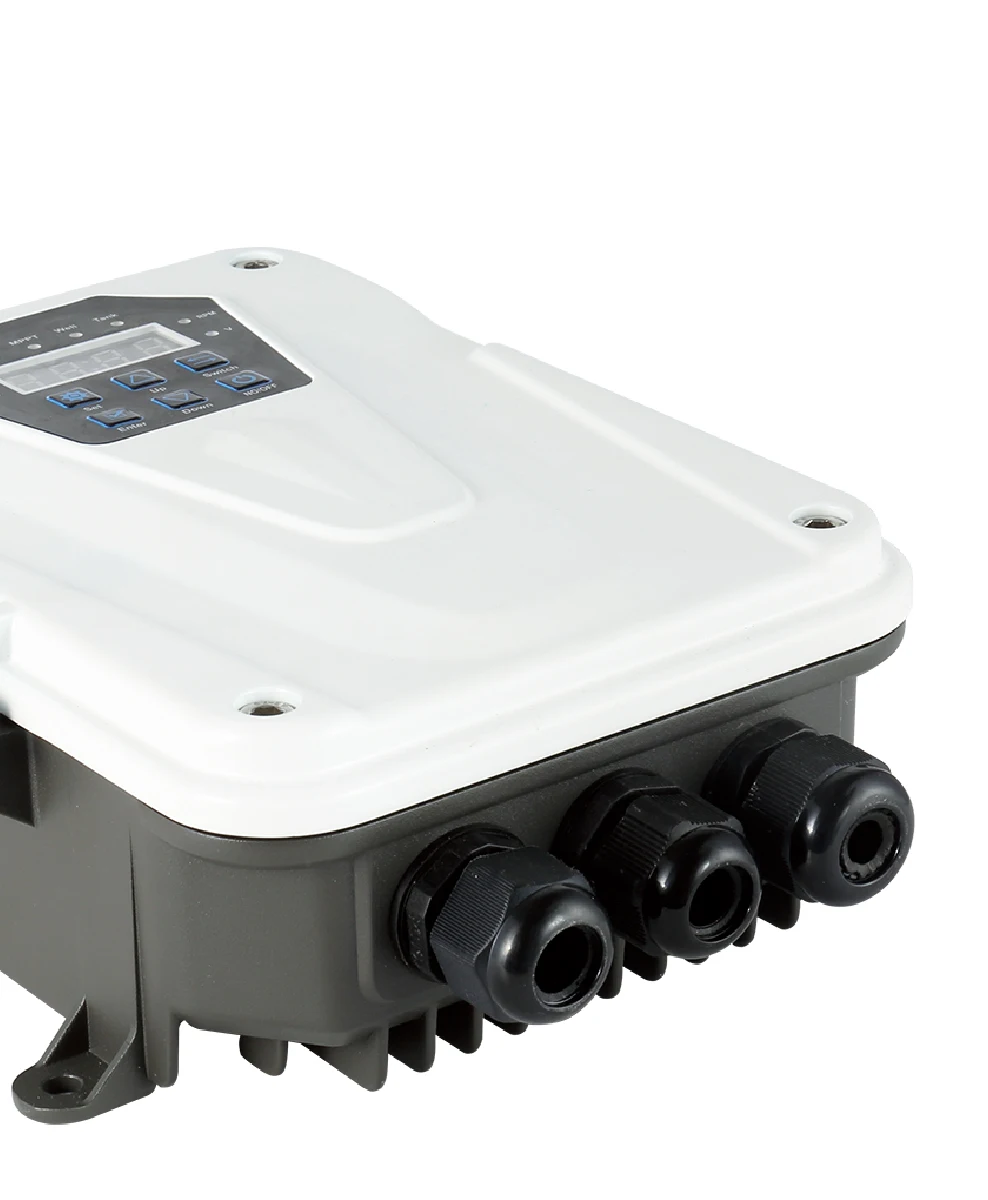

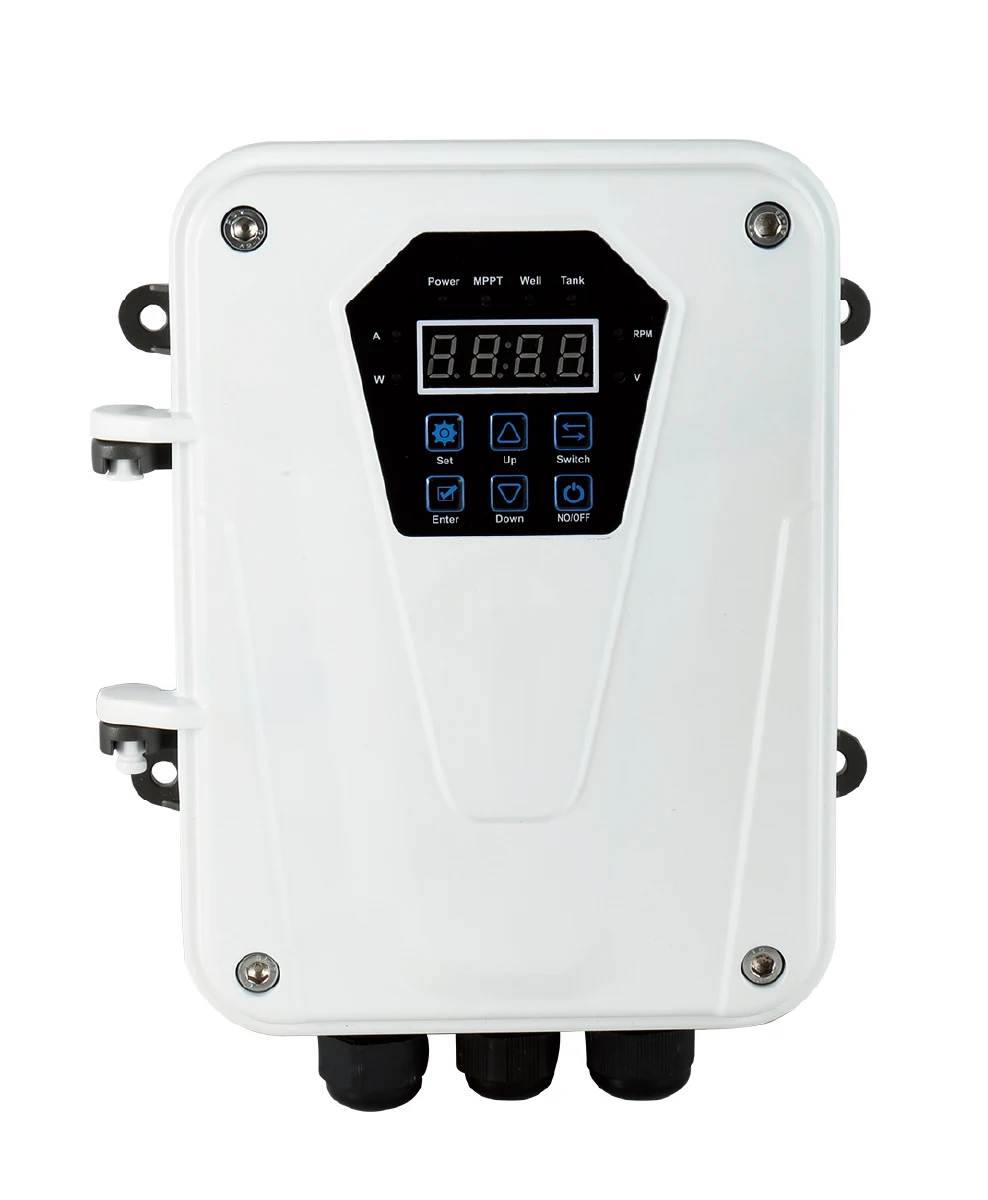

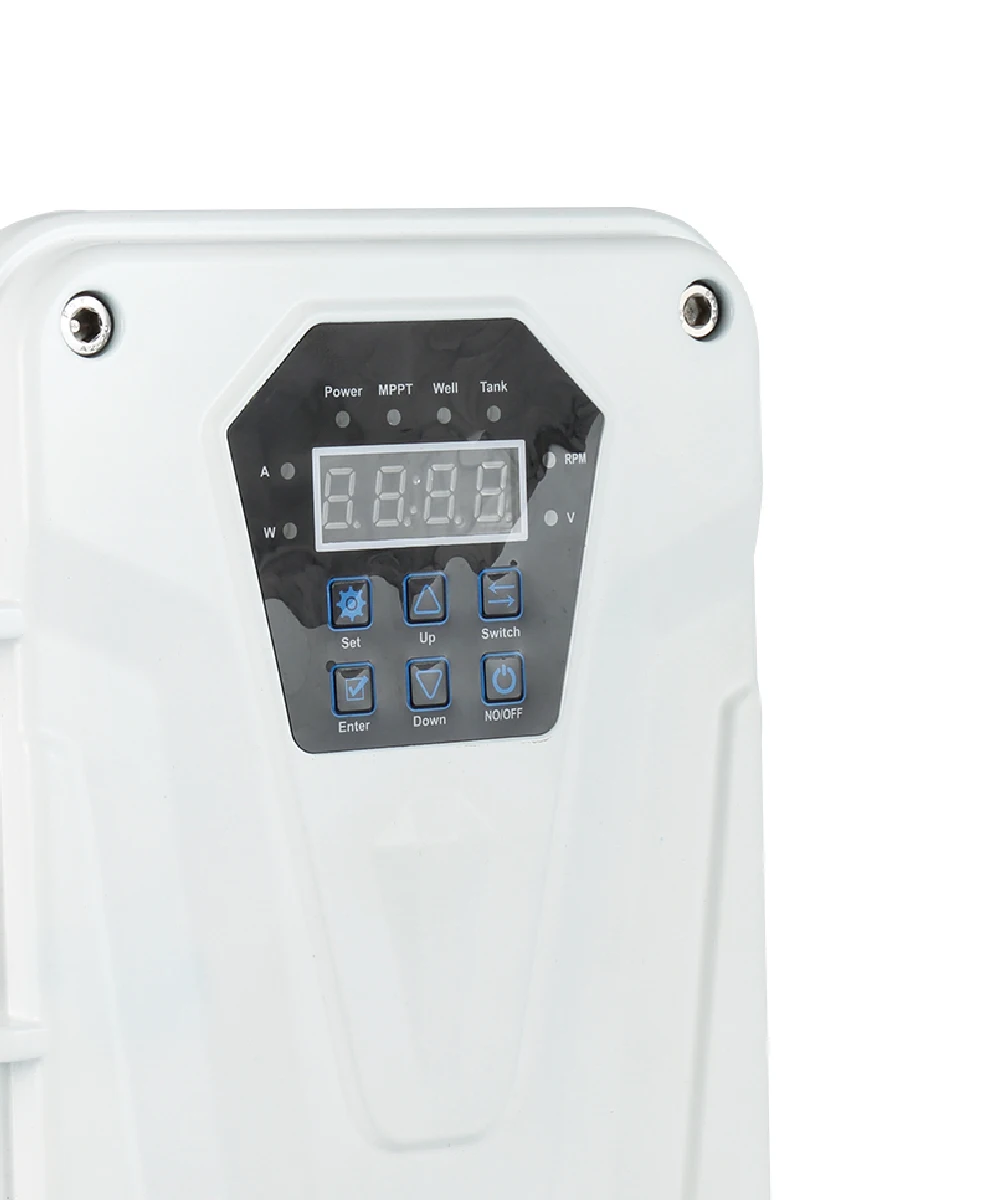

MPPT Solar Pump Controller
1 PCS High-efficiency and full-automatic MPPT Solar Pump Controller
Installation Accessiories
1 PCS Water level sensor or float switch
1 PAIR MC4 PV Connector
1 ROPE PTFE Tape
1 ROPE Electric tape
1 PCS screwdriver
1 PCS screwdriver
1 PCS Pipe Conector
1 PCS Installation Manual
>>> WHY YOU CAN TRUST ZRI
- ZRI′ S network has been spread to about 120 countries and regions around the world.
Installed in Thailand
Installed in Australia
Installed in USA
Installed in Argentina
Installed in Egypt
Installed in South Africa
Good Comments on ZRI from Customers
- Professional international trade sales team, superior customer care
- Annual visit to solar pump agent to give technical training.
Water Pump Workshop
Controller Manufacturing Workshop
QC Process Control
QC Process Control
QC Process Control
ZRI Certification
- Continuously diversify products range to satisfy customers' needs
CE Certification
ISO Certification
IEC 60335 Certification
>>> FAQ
Q1: What you can offer if we want to be your dealer?
Q2: What's your payment terms?
Q5: Do you offer test performance of the pumps?
An: We can provide good quality marketing photos, videos and training materials.
Q2: What's your payment terms?
An: We accept Alibaba trade assurance payment, TT payment, L/C and so on.
Q3: What is the delivery time?
An: Our lead time is around 2-5 days for small order qty less then 50 pcs, lead time for bigger quantites is around 15-20 days
An: Our lead time is around 2-5 days for small order qty less then 50 pcs, lead time for bigger quantites is around 15-20 days
Q4: Can you do our labels on the controller and pump?
An: Yes, we can do your private labels on your pump and controllers which is explained above.
Q5: Do you offer test performance of the pumps?
An: Yes, we do offer our test reports of our solar water pumps, such as flow, head etc.
Q6: What is the advantages of ZRI solar pumps? Why to choose your ZRI pumps?
An: ZRI uses Japanese bearings in all of it’s pumps as we have identified cheaper low grade bearings to be a significant issue in pumps.
ZRI’s submersible solar screw pumps are manufactured with 304 Stainless Steel,which is a high grade steel and rated higher than many other pumps which using 201 stainless steel, 316L Stainless Steel is also optional for harsh water in prolong the pump working life.ZRI use a High Grade SH Permanent Magnet brushless DC motor, Max. 4000RPM(not brush or common magnet as in low cost product, reduces life expectancy).
