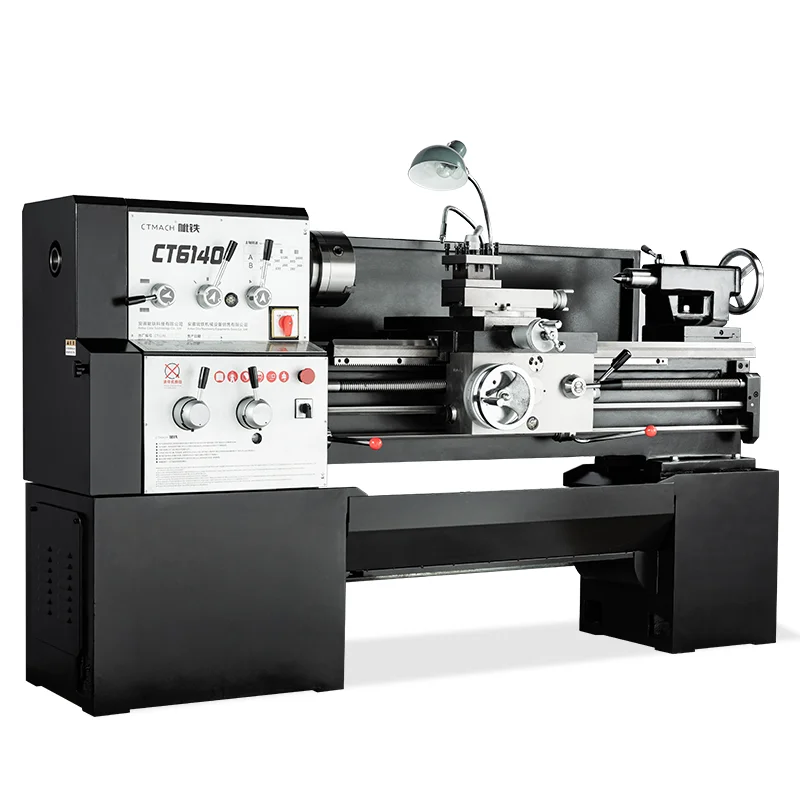

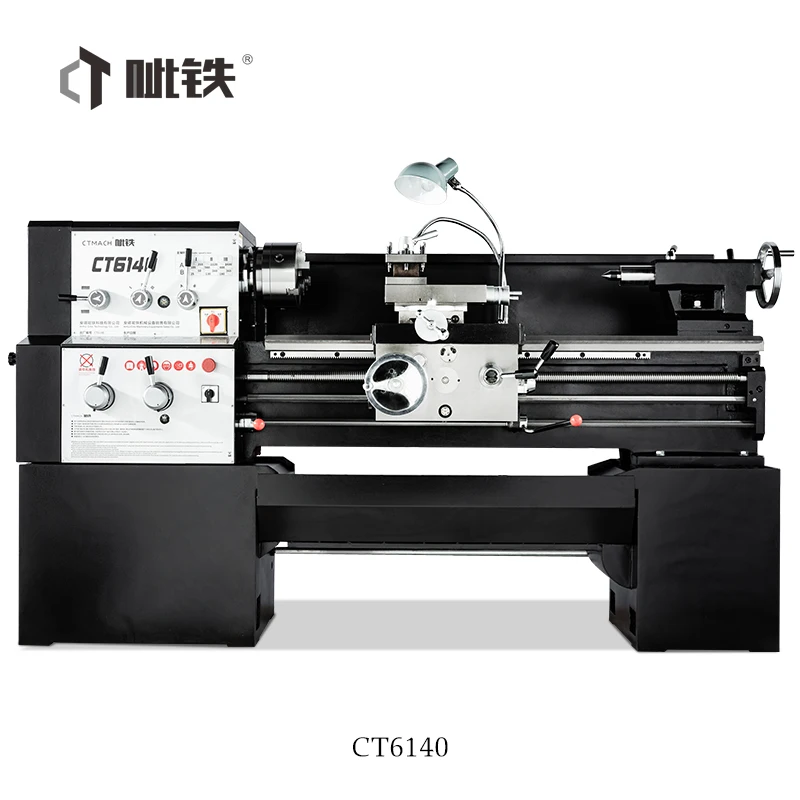

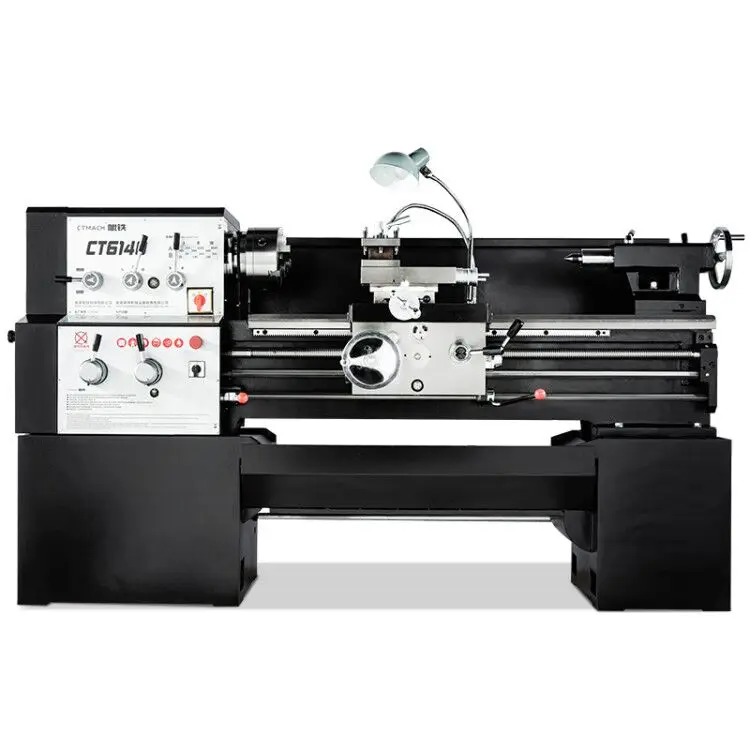

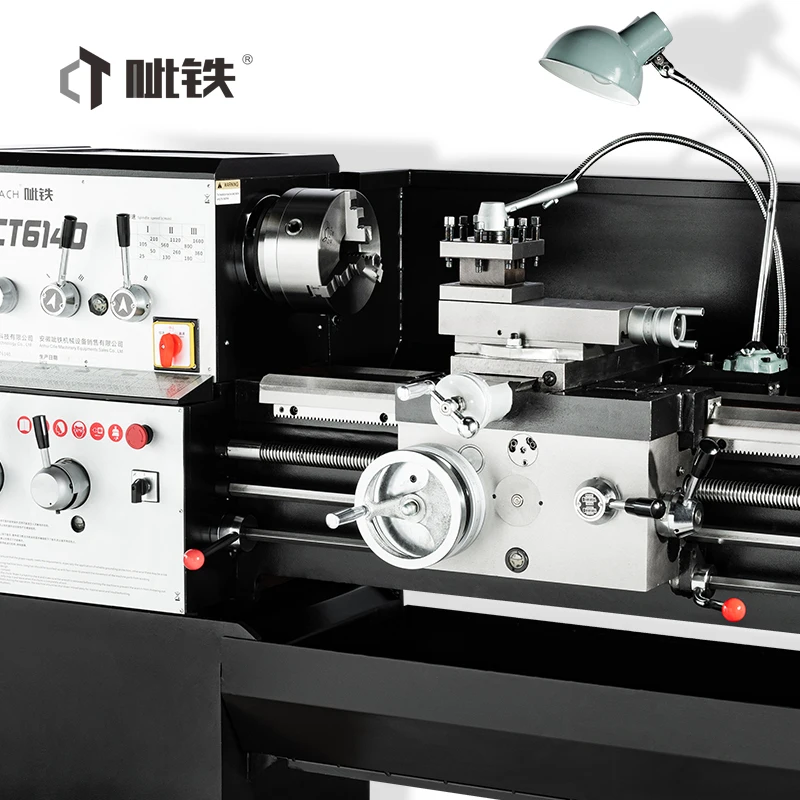

CT6140 bench small lathe used automatic horizontal mini lathe table manual lathe machine
- Category: >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (1600581566127):
Product Overview
Description

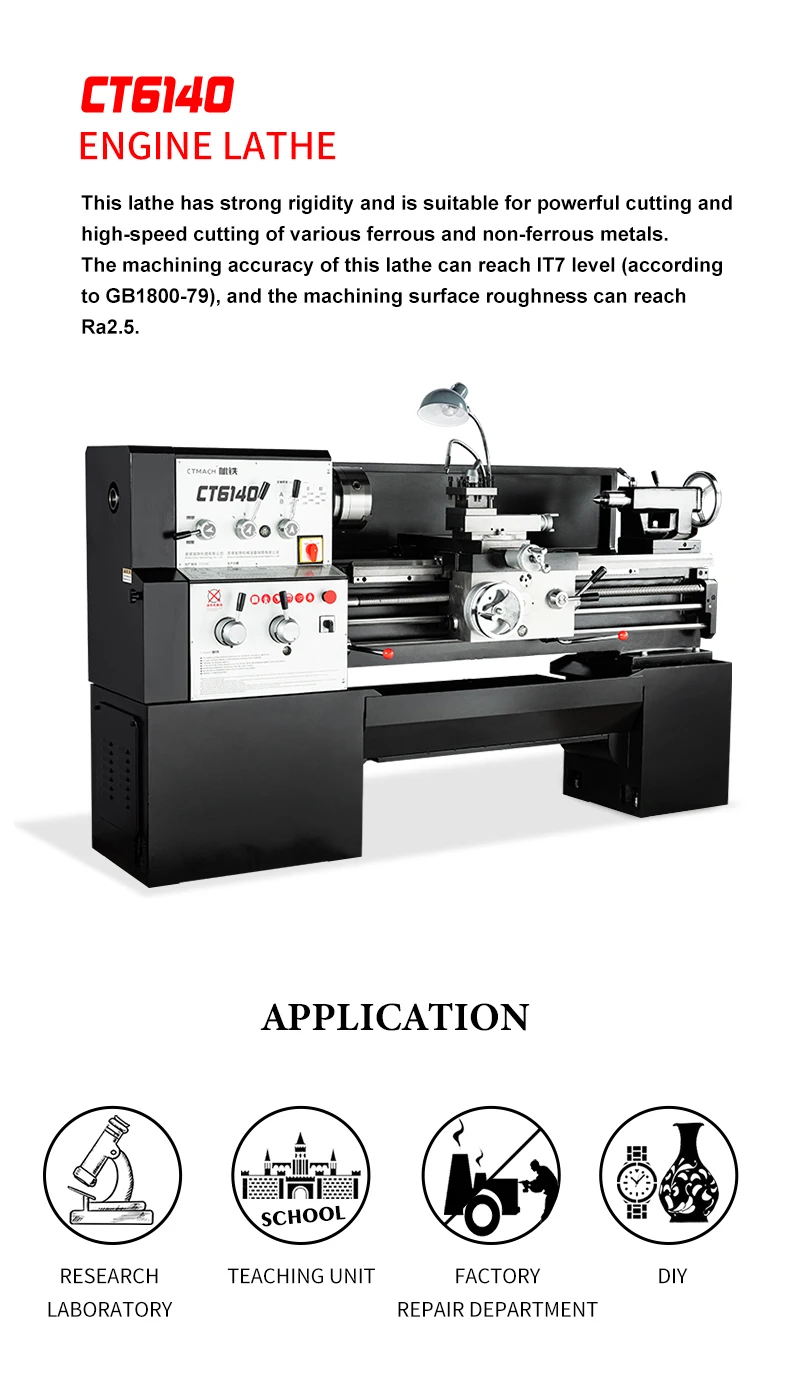

| CT6140 HEAVY DUTY LATHE FROM CTMACH |
Model: CT6140 | |
Swing over bed | 400mm |
Swivel diameter of tool post | 240mm |
Distance between centers | 1000mm |
Large Carriage Travel | 900mm |
Middle Carriage Travel | 240mm |
Small Carriage Travel | 140mm |
Travel of Tail-stock Sleeve | 130mm |
Taper of Tail-stock | MT4 |
Spindle Bore | 48mm |
Spindle Taper | MT6 |

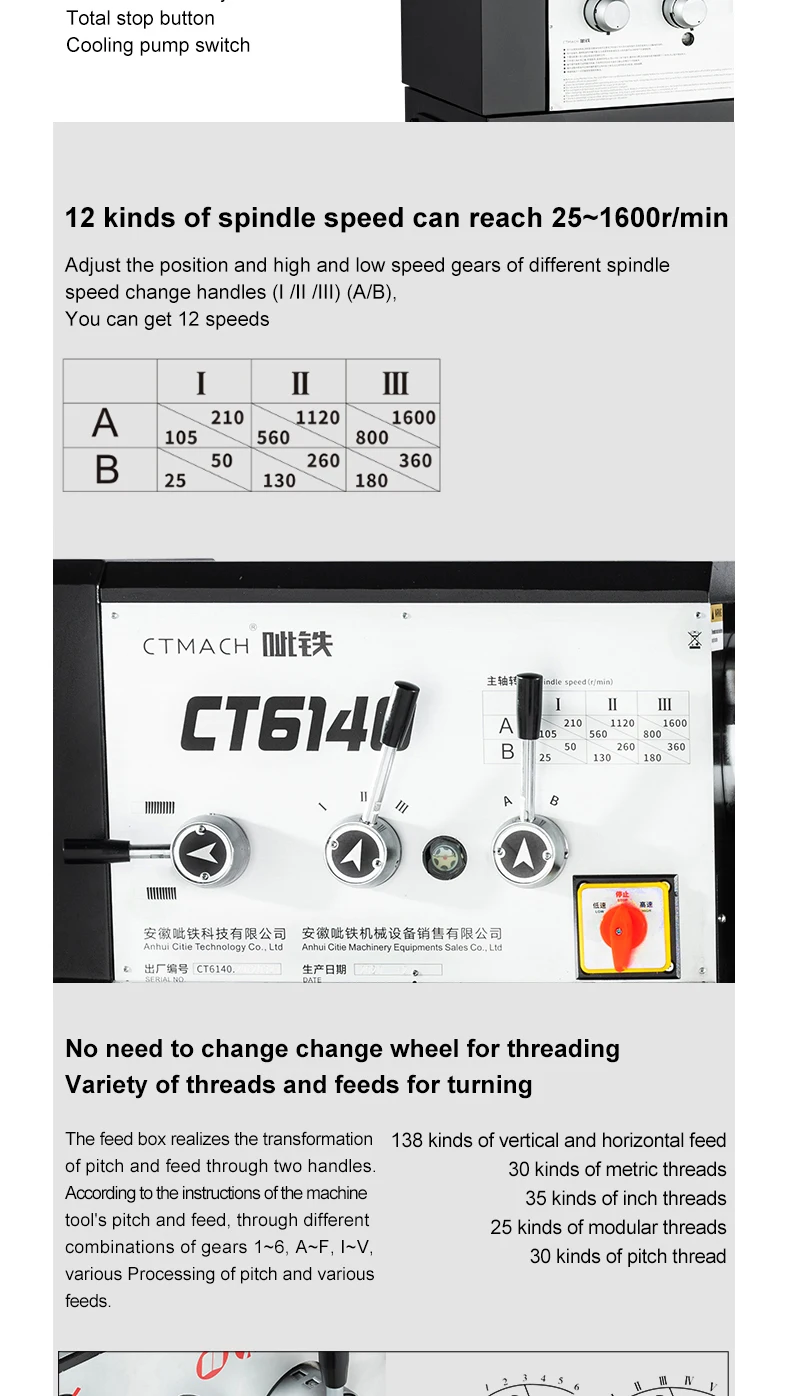

Spindle Positive and Negative Speed/Grade | 25-1600r/min(12) |
Longitudinal Feed/Grade | 0.04-2.16mm/r(138) |
Transverse Feed/Grade | 0.02-1.08mm/r(138) |
Metric Thread/Grade | 0.45-20mm/r(30) |
Inch Thread/Grade | 80-1¾T.P.I(35) |
Modulus Thread/Grade | 0.25-10mm(25) |
Diameter Pitch Thread/Grade | 160-3½DP(30) |

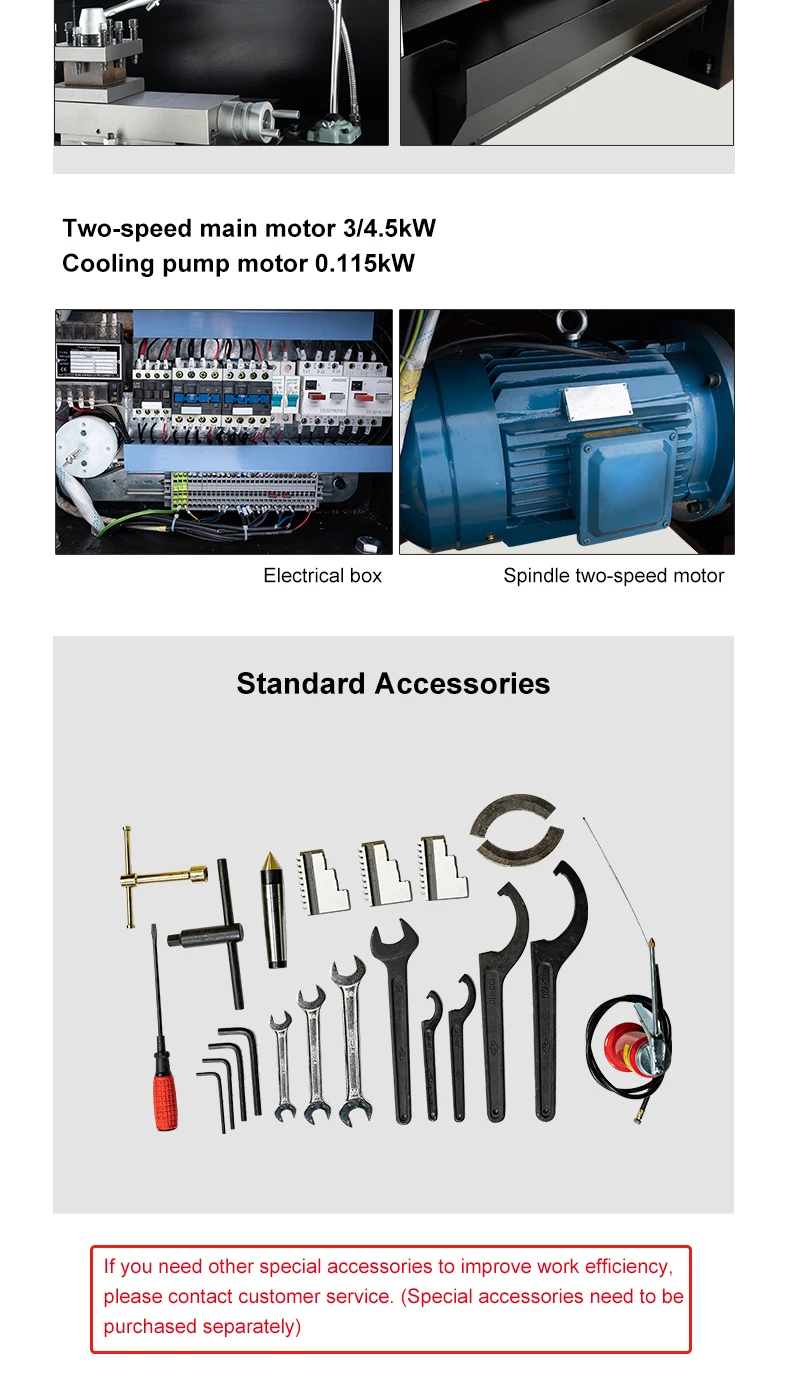

Main Motor Power(double speed) | YD132M-8/4 3/4.5KW |
Main Motor Speed | 750/1500r/min |
Cooling Pump Motor | AYB-20TH 0.115KW |
Machine Dimension | 2200*900*1250mm |
Net Weight | 1450KG |
Gross Weight | 1850KG |
Packing Size | 2410*1160*1600mm |
