Оптовая продажа 2022, Высококачественный сетевой датчик обнаружения звука с портом, промышленный измеритель децибел звука, шумомер

Share on:

Price in USD:Details


Product Overview

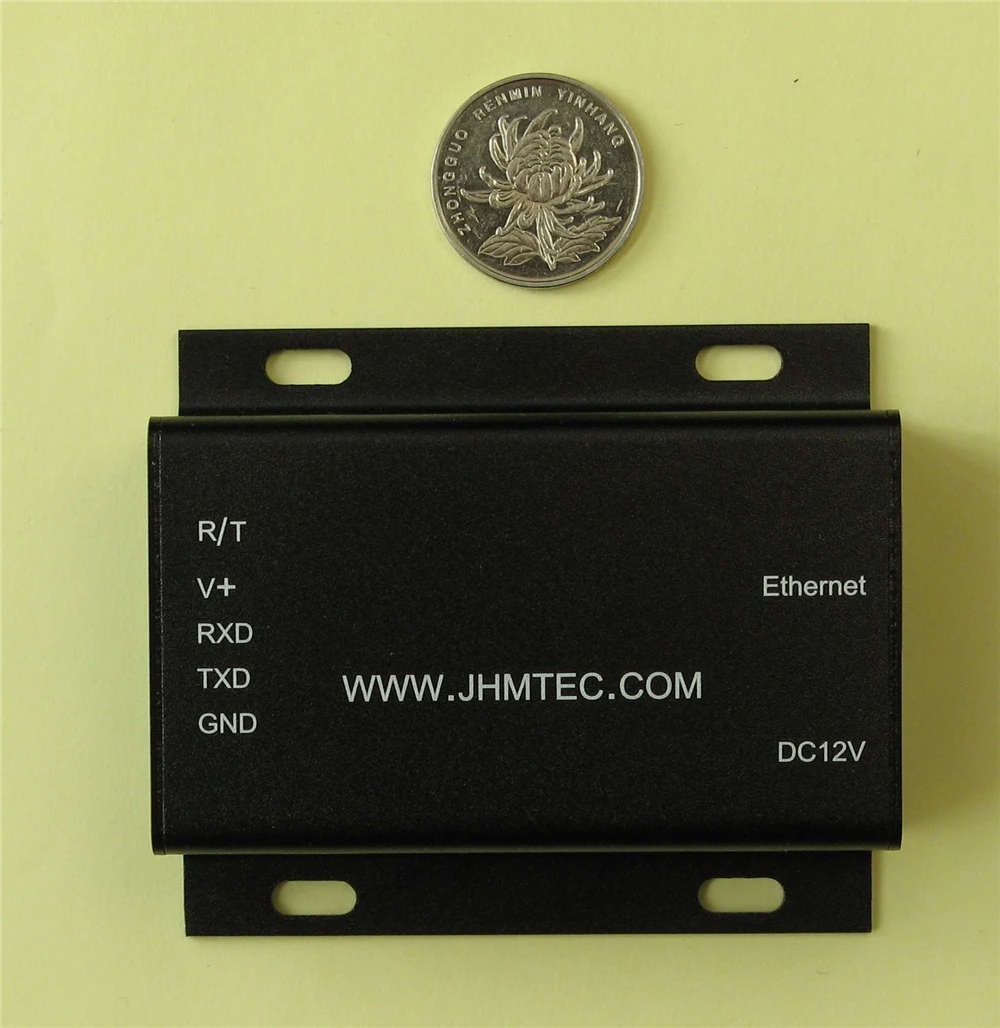

Product display

Power supply: DC12V, 10M rate IP / UDP communication, support ping.exe command response.
Port port, IP can be set by serial port input command.RS232 communication mode 9600, n, 8,1, information ASIC character, return key 'Enter' for 16 x 0x0d + 0x0a. Query this device ip: CM + IP=?(Enter)
Example: Device Answer to CM + IP= (Enter)
Set the IP to with serial port input
Query this device port: CM + PORT=?(Enter)
Example: Device answer CM + PORT=8253 (Enter)
Reset the port to 8255, and enter the command CM + PORT=8255 (Enter)
Other online devices in the LAN can obtain the noise measurement value of the device:
Port, IP match this device , transfer CM + NS02=?The (Enetr) command, the device returns the current noise value.

Product model
Appearance specifications
Measurement error
+/ -1.5dB (2Khz80dB point correction)
Conversion accuracy
0.1 dB
Output mode
RS232 interface ASIIC code output
Frequency weighted features
30dB to 120dB (automatic shift)
Pick up manufacturer
35 Hz to 20 KHZ
A Weighted dynamic measurement range
A weighting characteristic
Frequency response
Toshiba Capacitor type (covered with windproof)
Dynamic characteristis
Working and storage temperature
- 10-60 ℃
Working and storage humidity
10 ----- 90RH%
Power standard
DC9V - DC12V (corrugated & lt; 0.5%) current 30 ma
