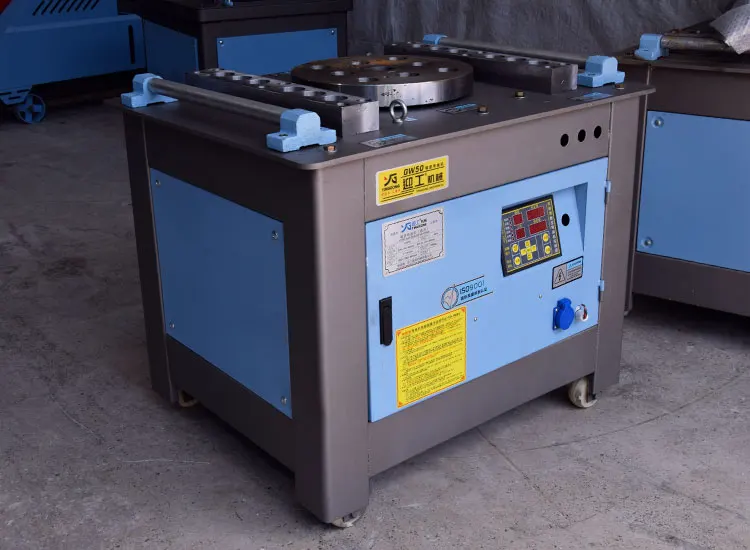

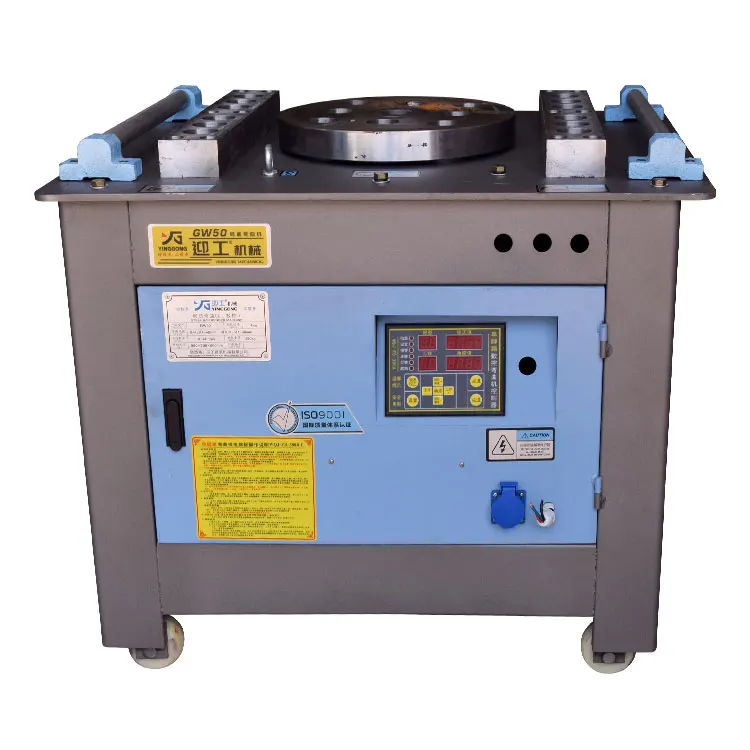

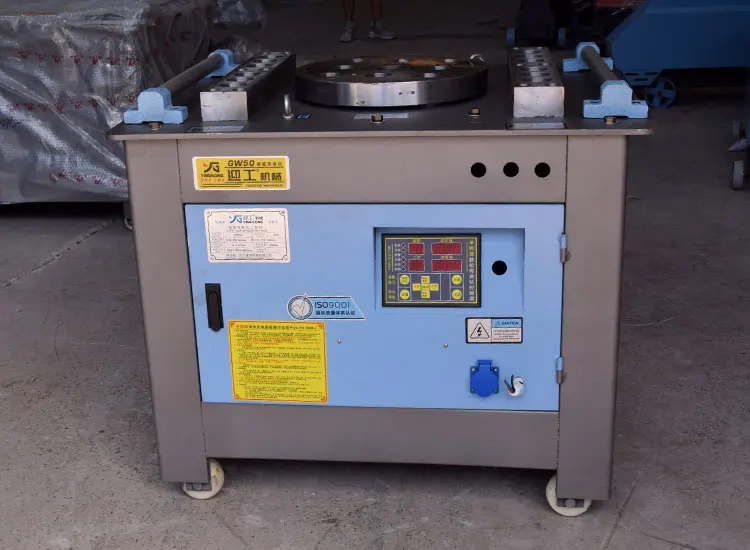

GW50 CNC steel bar bending machine
- Category: >>>
- Supplier: Anhui Taoqiang Machinery Equipment Co. Ltd.
Share on (1600581774155):
Product Overview
Description

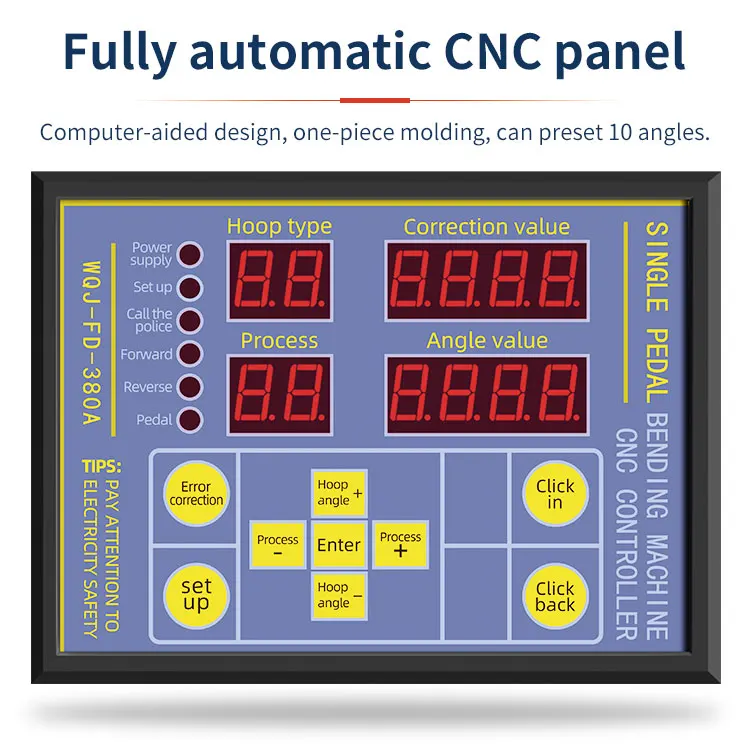

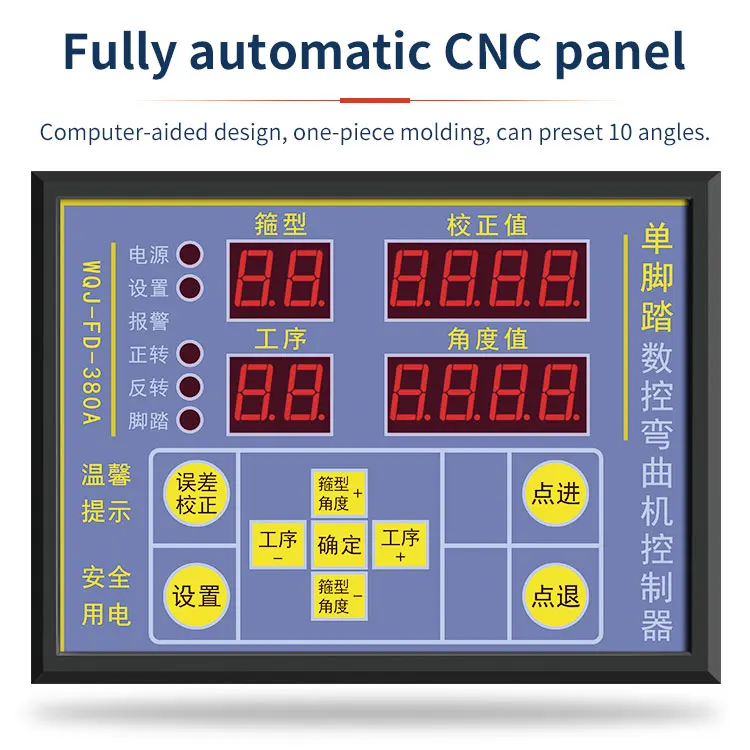

Fully automatic CNC panel
Computer-aided design, one-piece molding, can preset 10 angles.

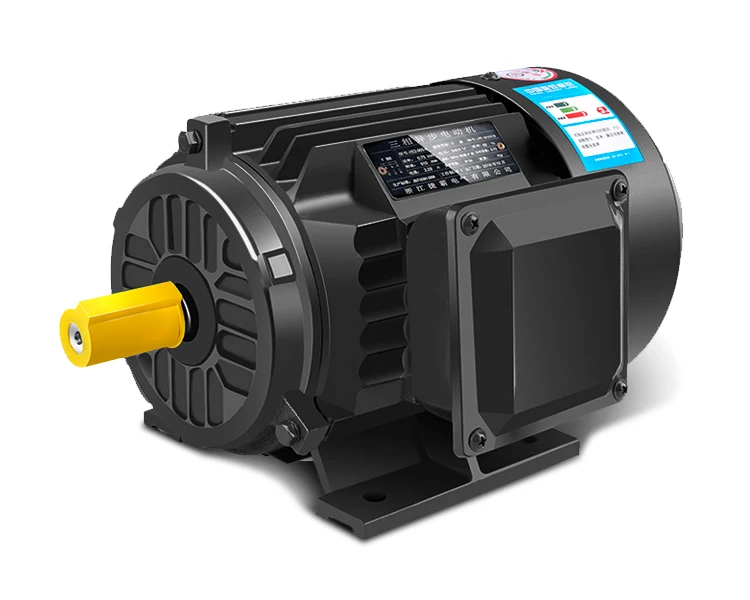

Pure copper motor
Strong copper wire motor does not burn the machine, high speed, stronger power, saving time and effort.
All copper coil
High precision rotor
Seiko Bearings

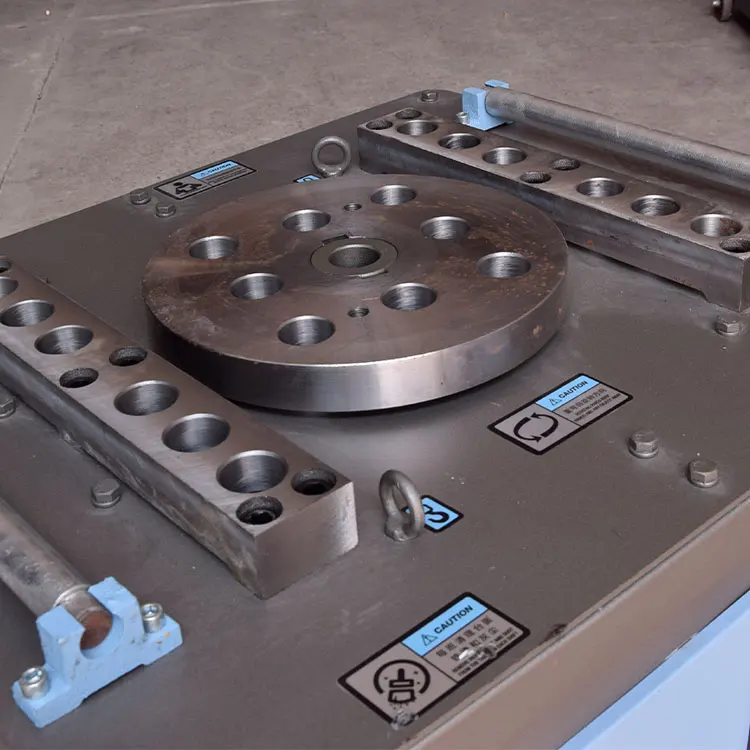

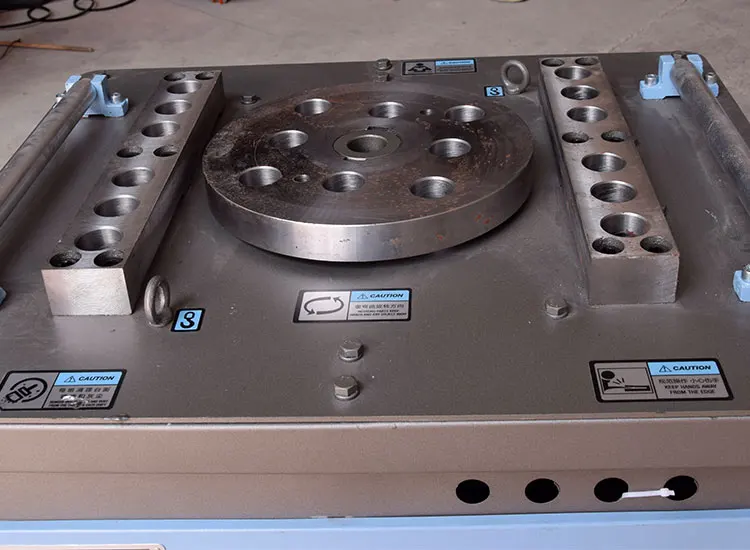

All-steel turntable + table
Laser-cut panels, high-strength discs, square bars, quenched, durable and wear-resistant.
Forged turbo

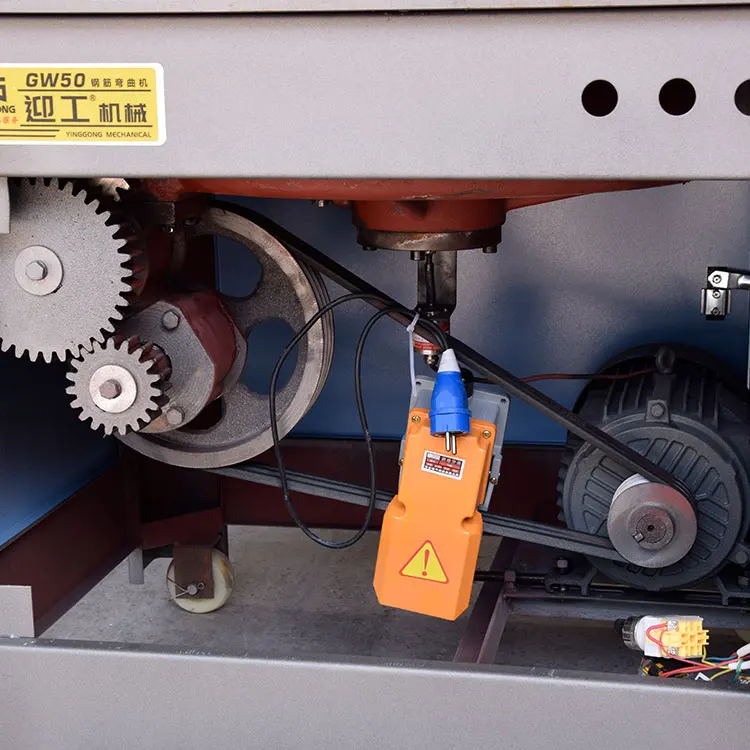

Multi-stage gear shifting, pulley two-speed design.
Product parameters
Product number | GW40 | 40 CNC | 42 | 42W-F | 50 CNC |
Ability to work | Round steel：φ6-32mm Rebar：28mm | Round steel：φ6-32mm Rebar：28mm | Round steel：φ6-36mm Rebar：32mm | Round steel：φ6-36mm Rebar：32mm | Round steel：φ6-40mm Rebar：36mm |
Working speed | 7r/min 5-10r/min | 7r/min 5-10r/min | 7r/min 5-10r/min | 7r/min 5-10r/min | 7r/min 5-10r/min |
Motor Power | 3KW | 3KW | 3KW | 3KW | 4KW |
Overall dimension | 800×800×750 | 800×800×750 | 850×740×800 | 860×750×810 | 850×800×850 |
machine weight | 260kg | 260KG | 280KG | 280KG | 340KG |
Product demonstration
