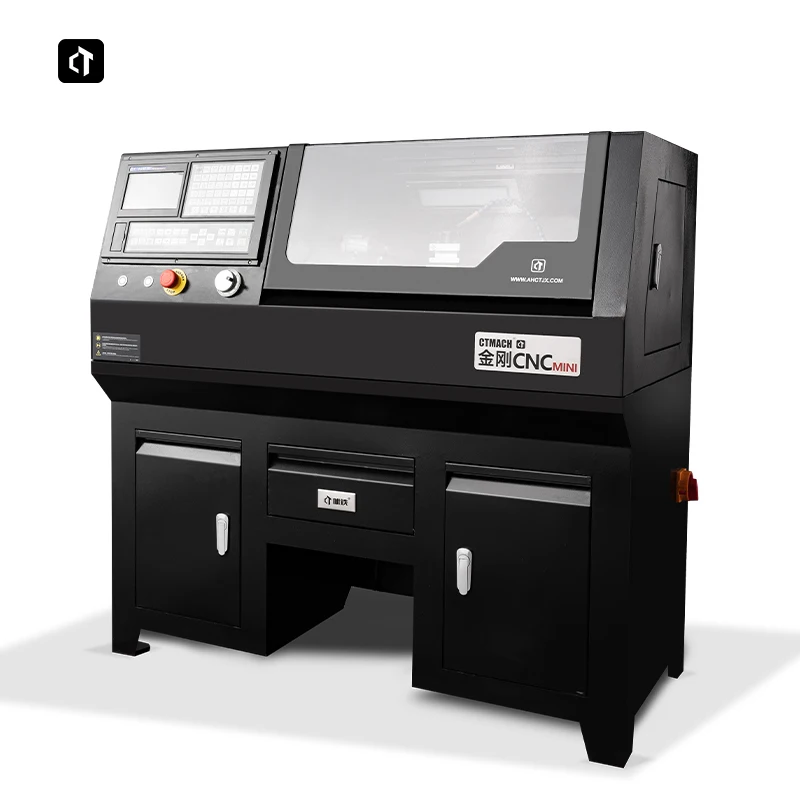

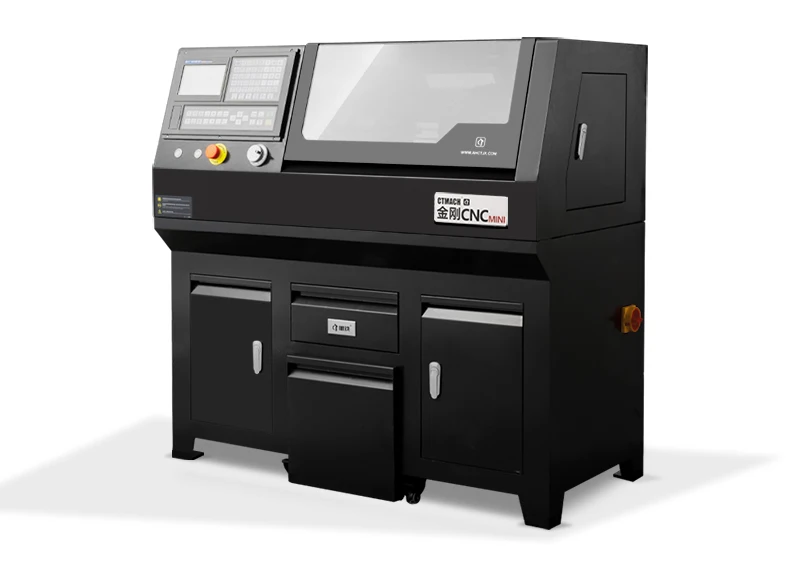

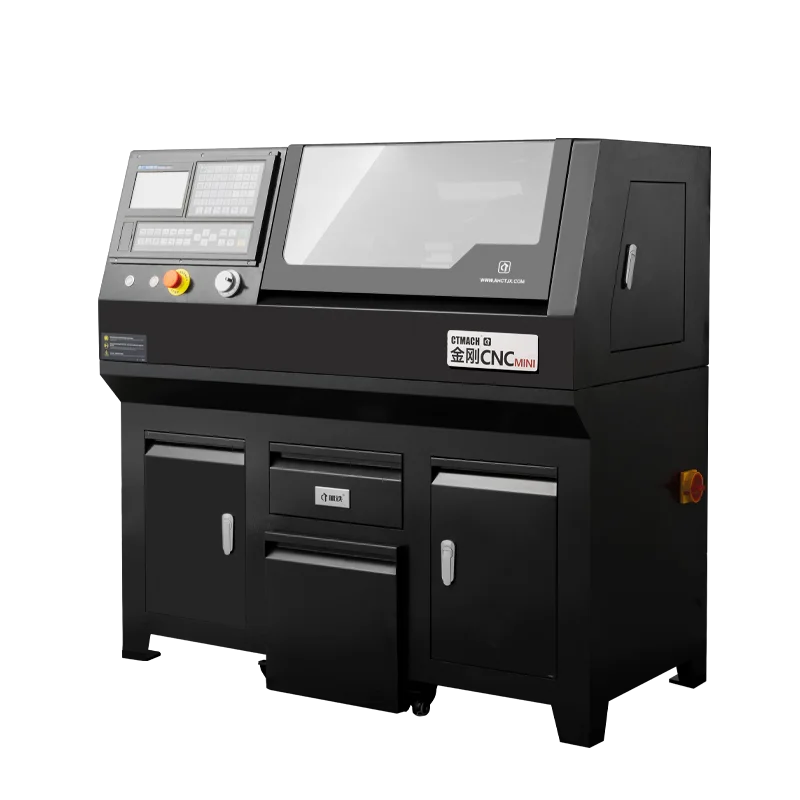

CTCNC21C Metal Motorized Hobby Benchtop Mini CNC Lathe with stand for School Training or education
- Category: >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (1600581816679):
Product Overview
Description

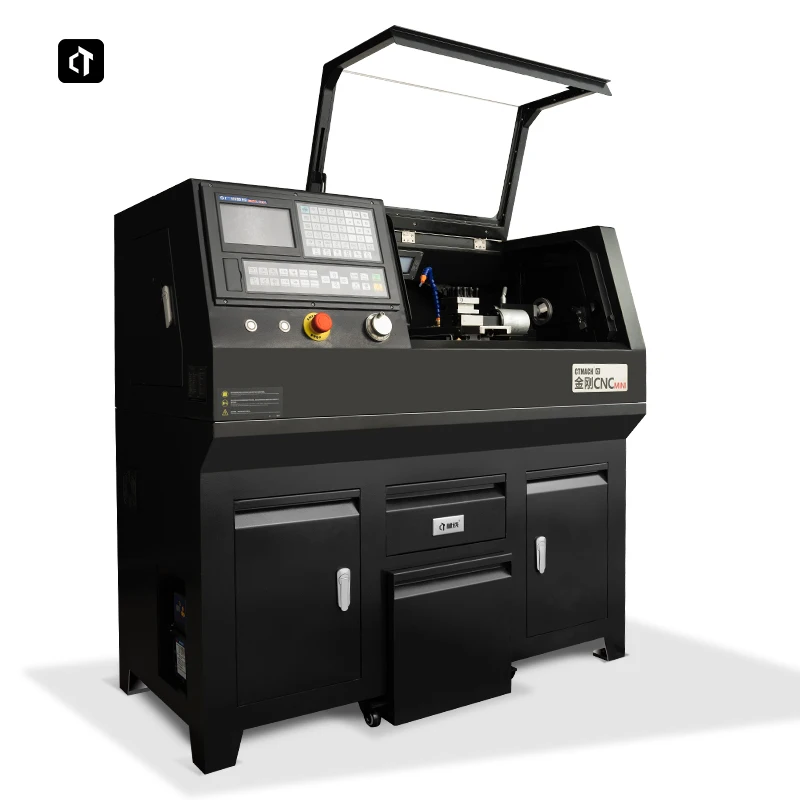

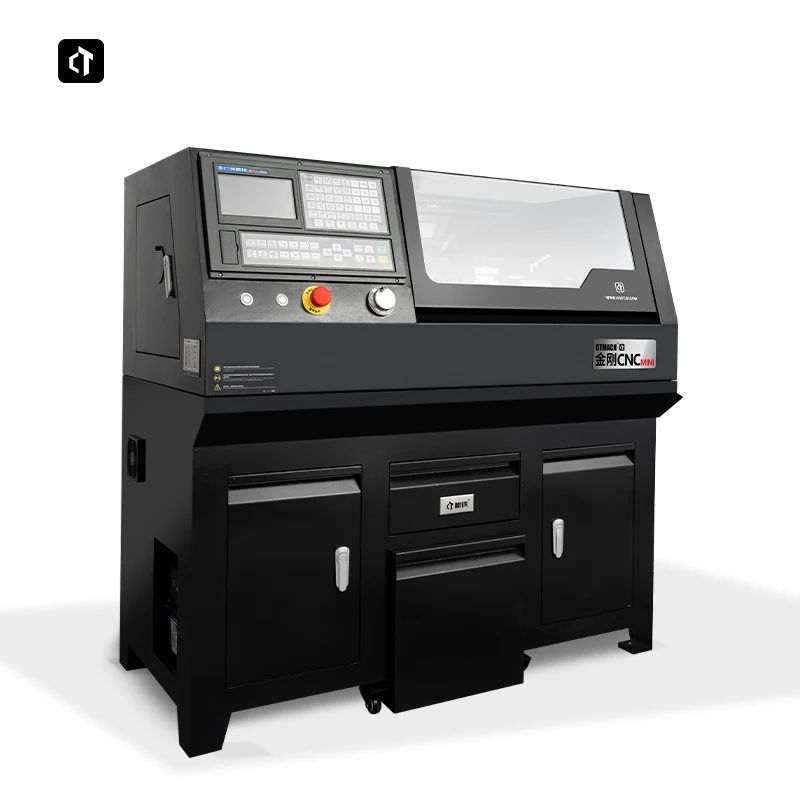

CTCNC21C
Precision Small CNC Lathe
2. Small occuping,lower energy consumption, easy operation,suitable for small processing.
3. High-quality spindle by high-precision grinding and support by Angular contact bearin.
4. Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.
5. Processing of complex parts, fully functional, economical.
Introduction to Parameters
Rotation diameter of middle carriage\t100 mm
Maximum length of turning workpiece\t250 mm
Spindle diameter\t26 mm
X/Z axis travel\t110x300 mm
Electric square knife holder\t12x12mm
Tailstock sleeve taper\tMT2
Spindle taper\tMT4
Tailstock sleeve diameter\t22 mm
Tailstock sleeve stroke\t50 mm
Spindle accuracy\t＜0.01mm
Positioning accuracy\t0.02 mm
Repeatability\t0.01mm
Movement speed of two axes\tMax. 6000 RPM
Two-axis feed rate\t1~4000 RPM
Spindle speed\t0-3000r/min
Spindle Servo Motor\t1.88KW / 6N.m
Two-axis servo motor\t750w / 2.4N.m
Pump power\t40w
Voltage\t220V / 50HZ
Net weight\t≈376 kg
Machine size (LxWxH)\t≈1250×680×1200mm
Package Size\t≈1350×750×1400mm

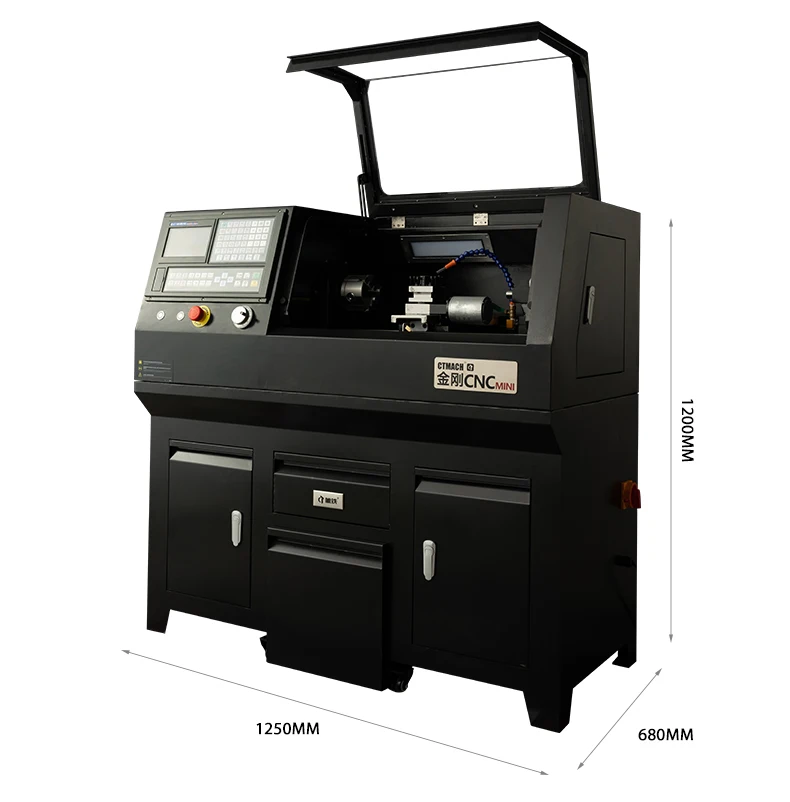

Machine Size
Net weight\t≈376 kg
Machine size (LxWxH)\t≈1250×680×1200mm
Package Size\t≈1350×750×1400mm
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Machine size (LxWxH)\t≈1250×680×1200mm
Package Size\t≈1350×750×1400mm
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Show Deails

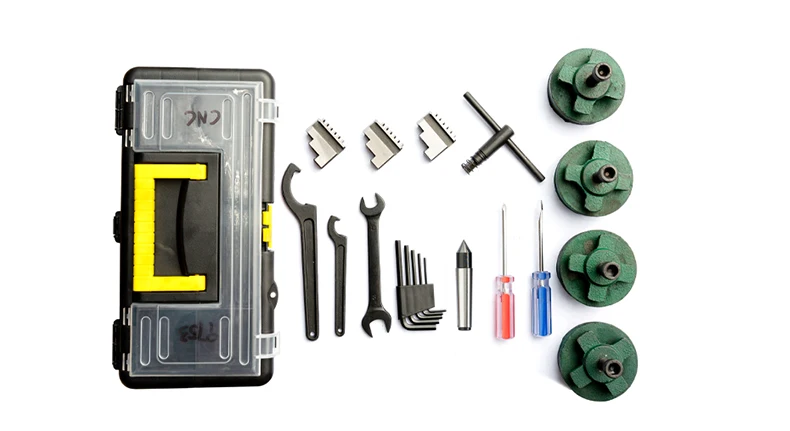

Standard Accessories
CTMACH is one of the largest lathe manufacturers in China. We have 12 years of production and R&D experience. In 2019, we set up a foreign trade export sales department. We specialize in independent research and development, production, sales and after-sales service of small household machine tools, lathes, drilling and milling machines, small multifunctional drilling and milling machines, small CNC machines and cutting machines. Our products have been exported to more than 30 countries such as Europe and the United States, and these machines are used in many industries and fields. We always insist on technological innovation and standard production process. We have after-sales engineers and technicians engaged in mechanical design for many years.
Products are exported to more than 30 countries and regions in the worldEU CE standard, safe and reliableISO9001 quality system certification
FAQ:
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.

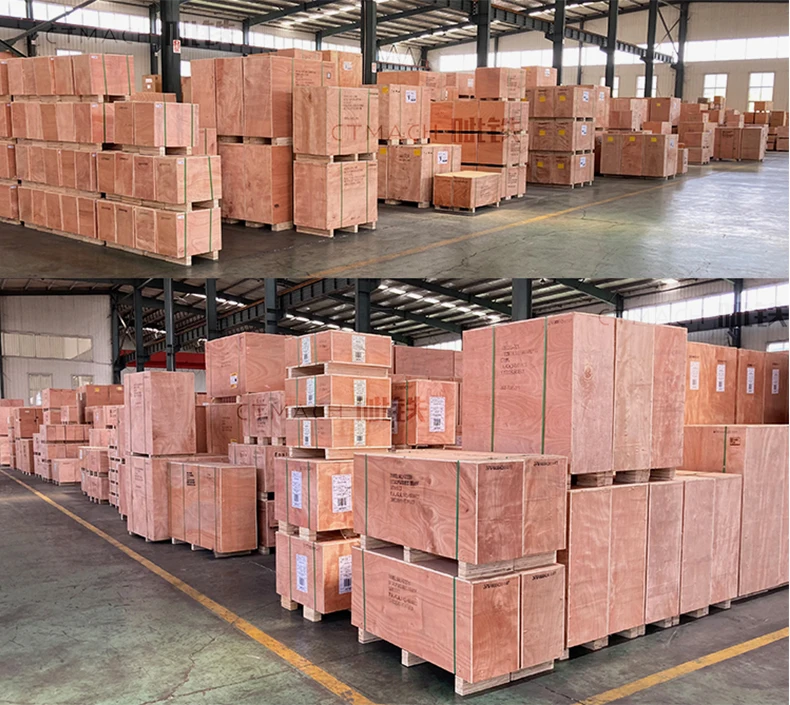

Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normalitems, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normalitems, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
