Plate Preservation Line Integrated Systems Sand Shot Blasting Machine/ Steel Electric Customized Provided Blasting Engine Parts

Share on (1600582016184):


Price:$30,000.00

Quantity:


Product Overview

Description




2023 New Arrival High Quality
Steel Plate Preservation Line

Name: Steel Plate Preservation Line
Machine Model: QXY Series - Customized

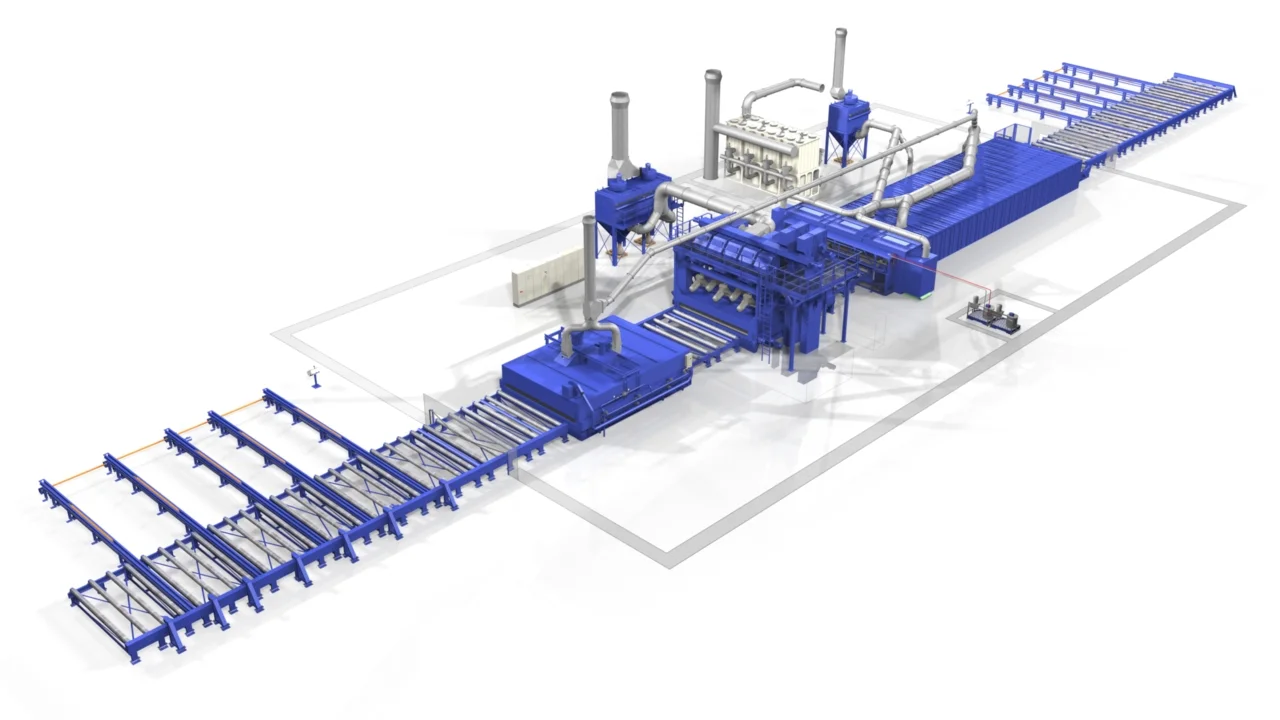

The preservation line(Steel pretreatment line) is a complete blasting and painting line that can be easily integrated into existing production lines, consisting of independently modified conveyor systems, a preheater, shot blasting machine, paint booth, and a post treatment dryer. Conveyor systems can be chosen according to individual requirements, along with roller conveyors, travel grates, and transversely conveyor, etc. It is process to treat the surface of the steel plate by shot blasting, and coated with protective paint before the treatment (in the raw material state). The preservation line can improve the corrosion resistance of mechanical products and metal parts, enhance the fatigue resistance of steel plates, extend the service life of mechanical products, and also optimize the steel surface for further treatment.
In addition, due to the relatively regular shape of the steel plate, and it is easy to perform mechanical rust removal and automatic painting through processing. Therefore, the cleaning efficiency will be greatly improved, labor intensity and environmental pollution will be effectively reduced too.
Roller conveyor lines are an essential part of the overall preservation system. The components (steel plate, steel pipe or steel section) continuously pass through the pre-treatment chamber, the blasting chamber and the cleaning chamber, on a special roller conveyor. The high performance turbines mounted on the blasting chamber ensure full coverage under controlled process conditions, and result in the desired cleaning effect.
We are a professional steel plate surface treatment line manufacturer. Steel plates can be processed in widths ranging from 1m to 6m. It can also handle general structural steel, such as angle steel, channel steel, I-beam, etc.


Main Specification of Steel Plate Preservation Line


Item\\type
QXY1600
QXY2000
QXY2500
QXY3500
QXY4000
QXY4500
QXY5000
Speed(m/min)
0.5-3.0
0.5-3.0
0.5-3.0
1.0-6.0
1.0-6.0
1.0-6.0
1.0-6.0
Width(mm)
1600
2000
2500
3500
4000
4500
5000
Height(mm)
450
450
450
450
500
500
500
Total power(kw)
240
300
360
600
660
680
760
Ventilation capacity(m³/h)
26000
34000
38000
40000
45000
50000
55000


Key benefits:
-Continuous blasting
-Highly efficient blast wheel
-Versatile transport technology
-High process security
-Custom designs with
flexible layouts
-Simple integration into existing manufacturing processes

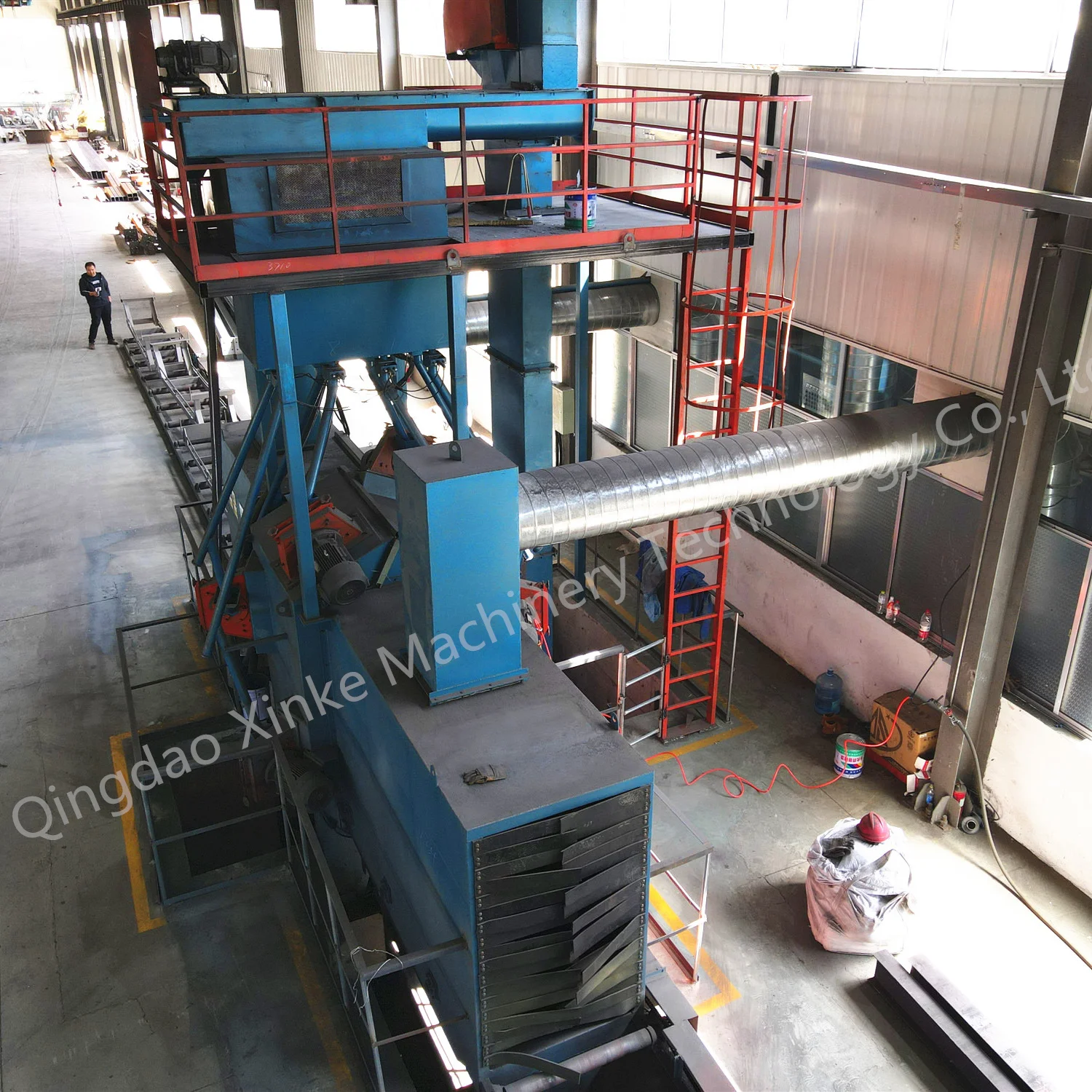

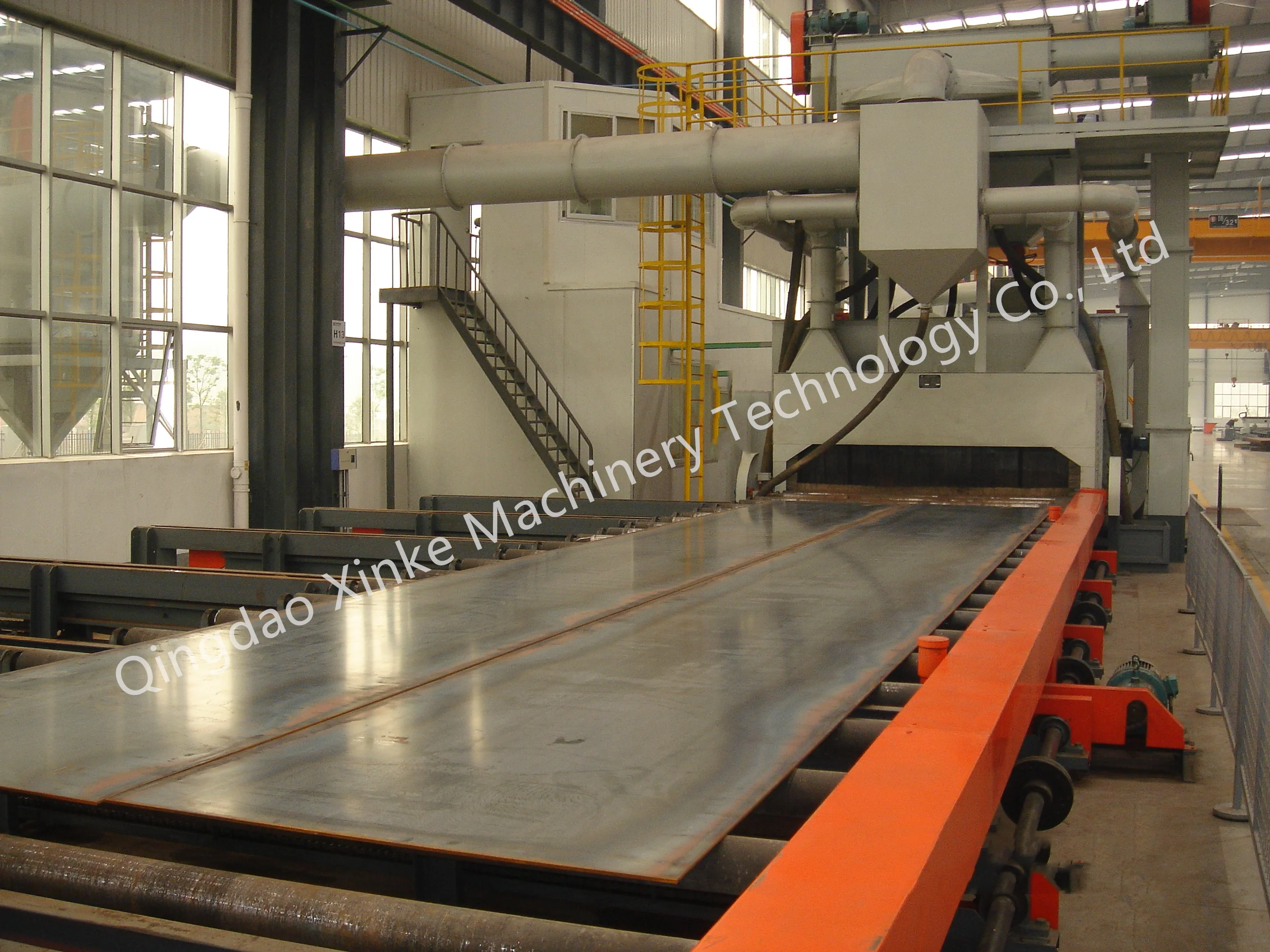

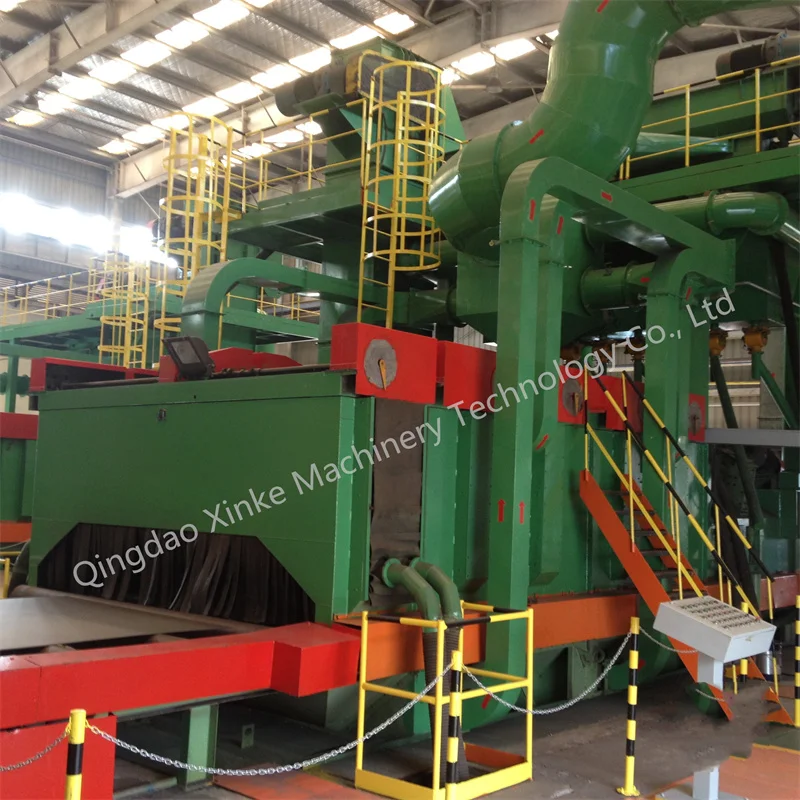

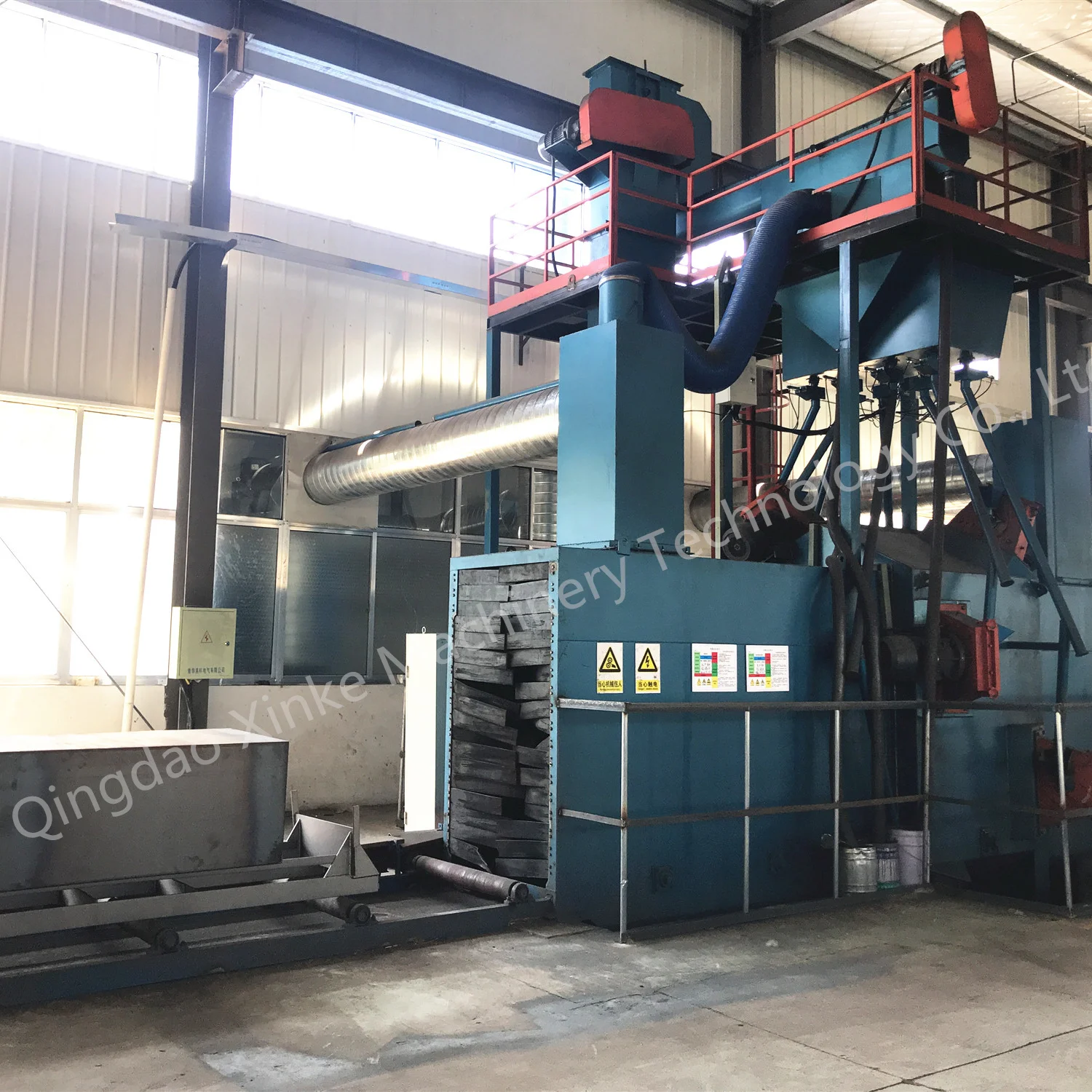

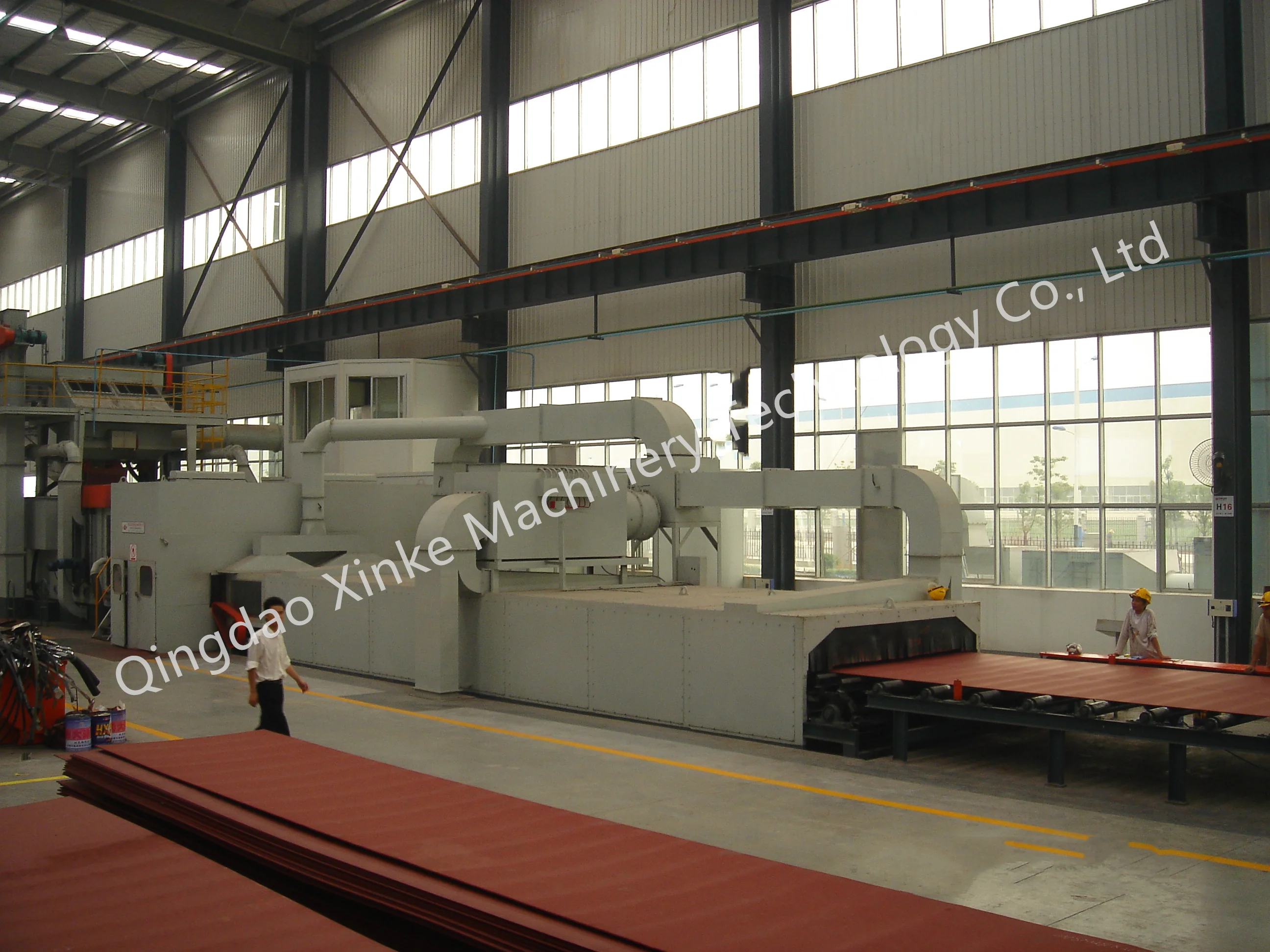

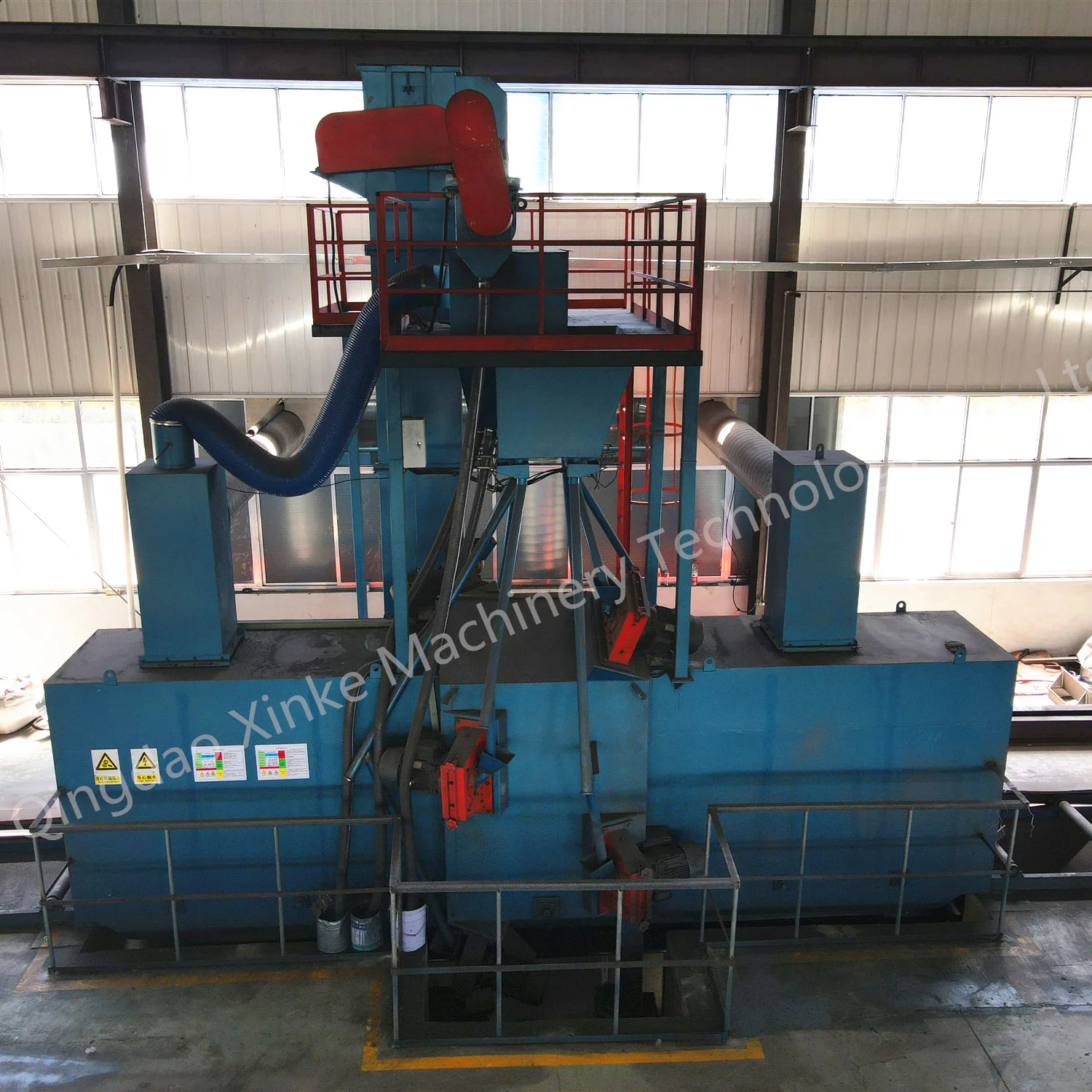

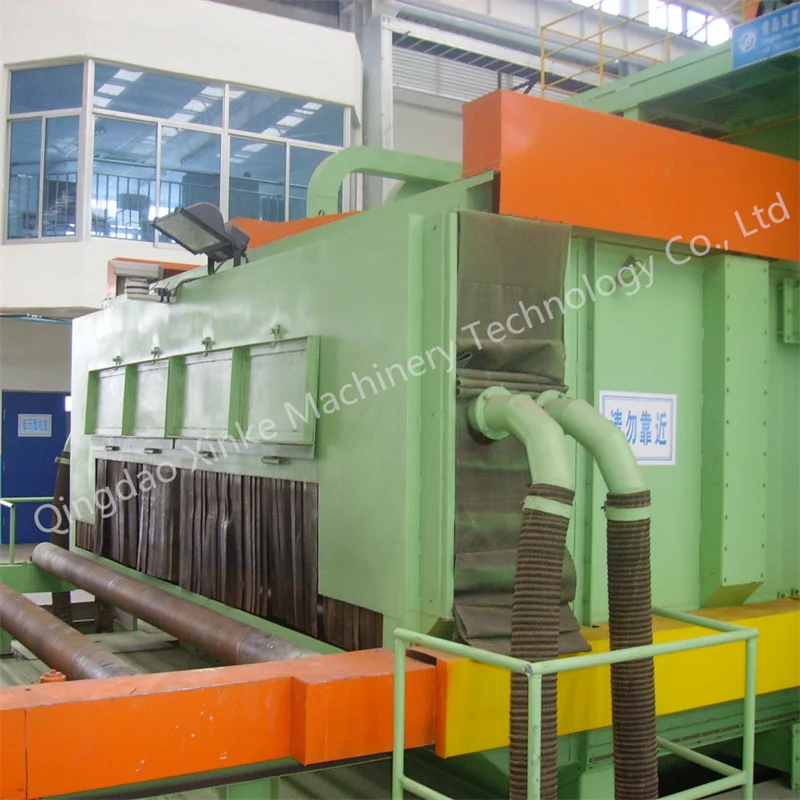

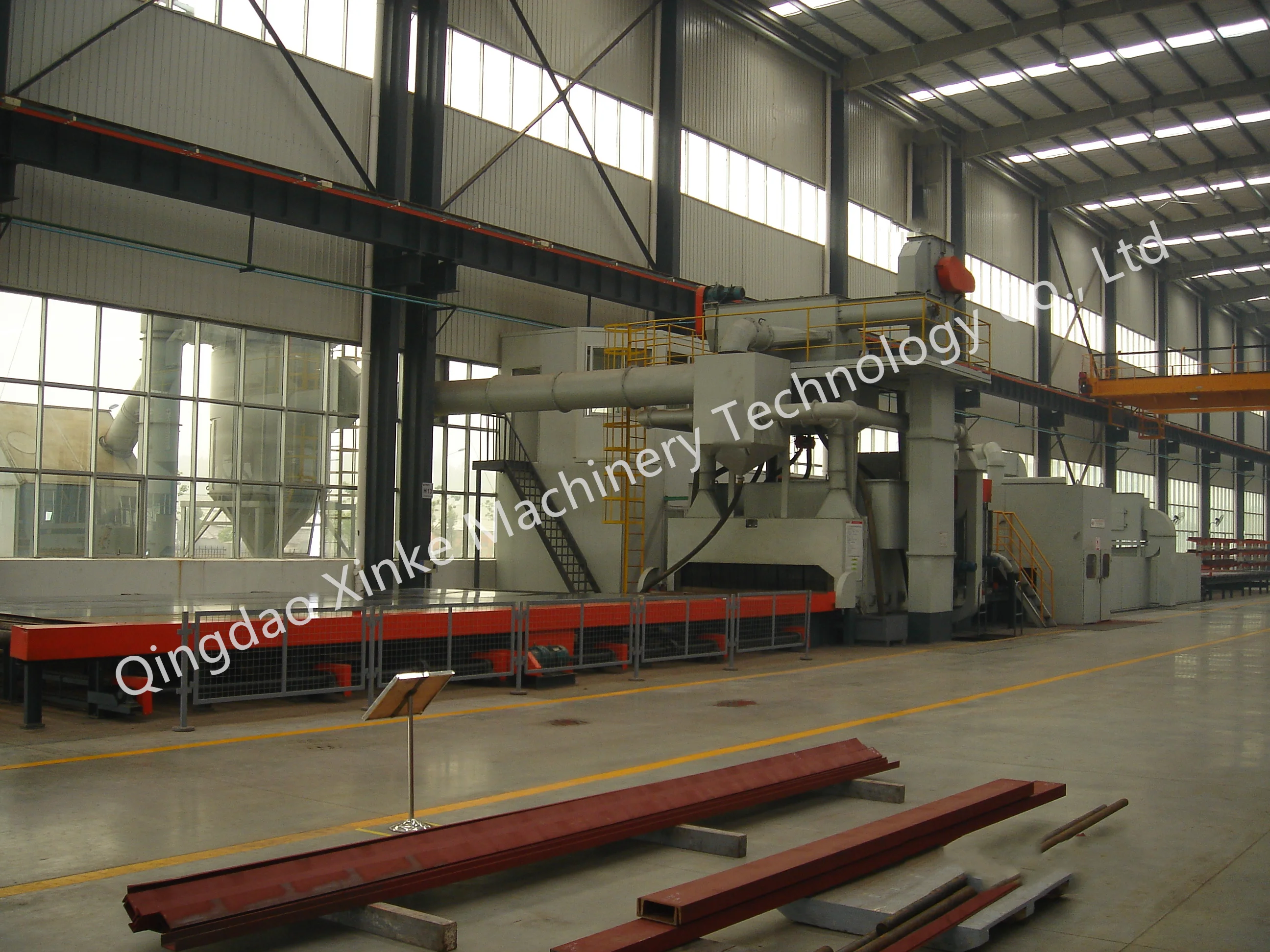

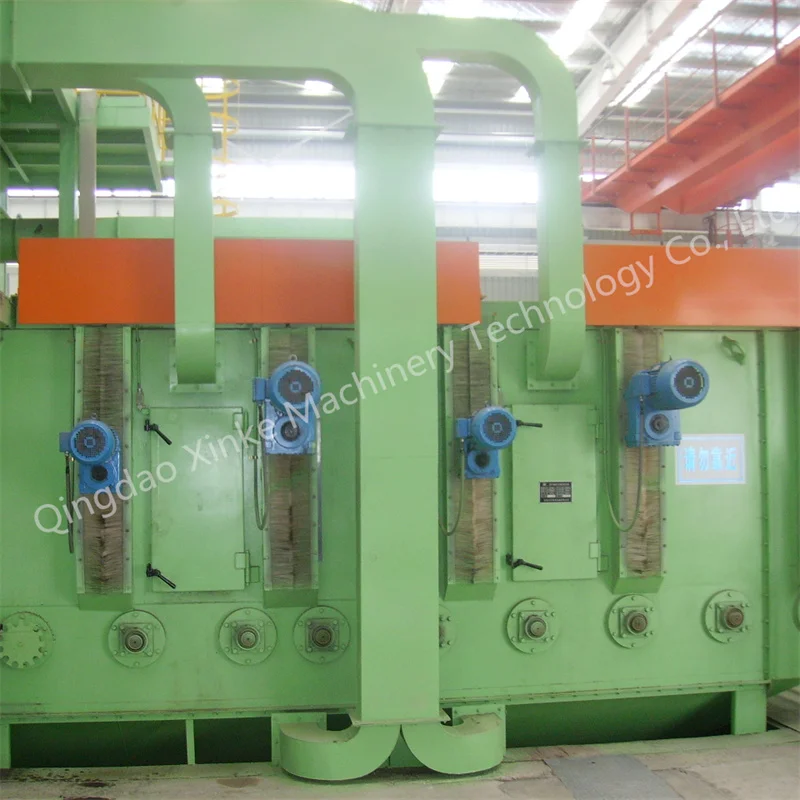

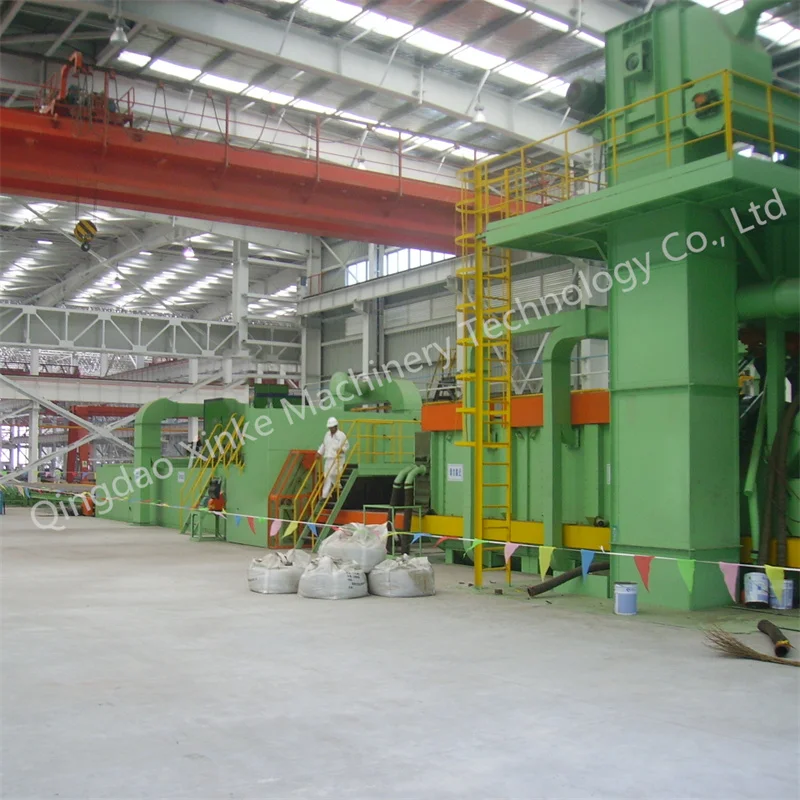

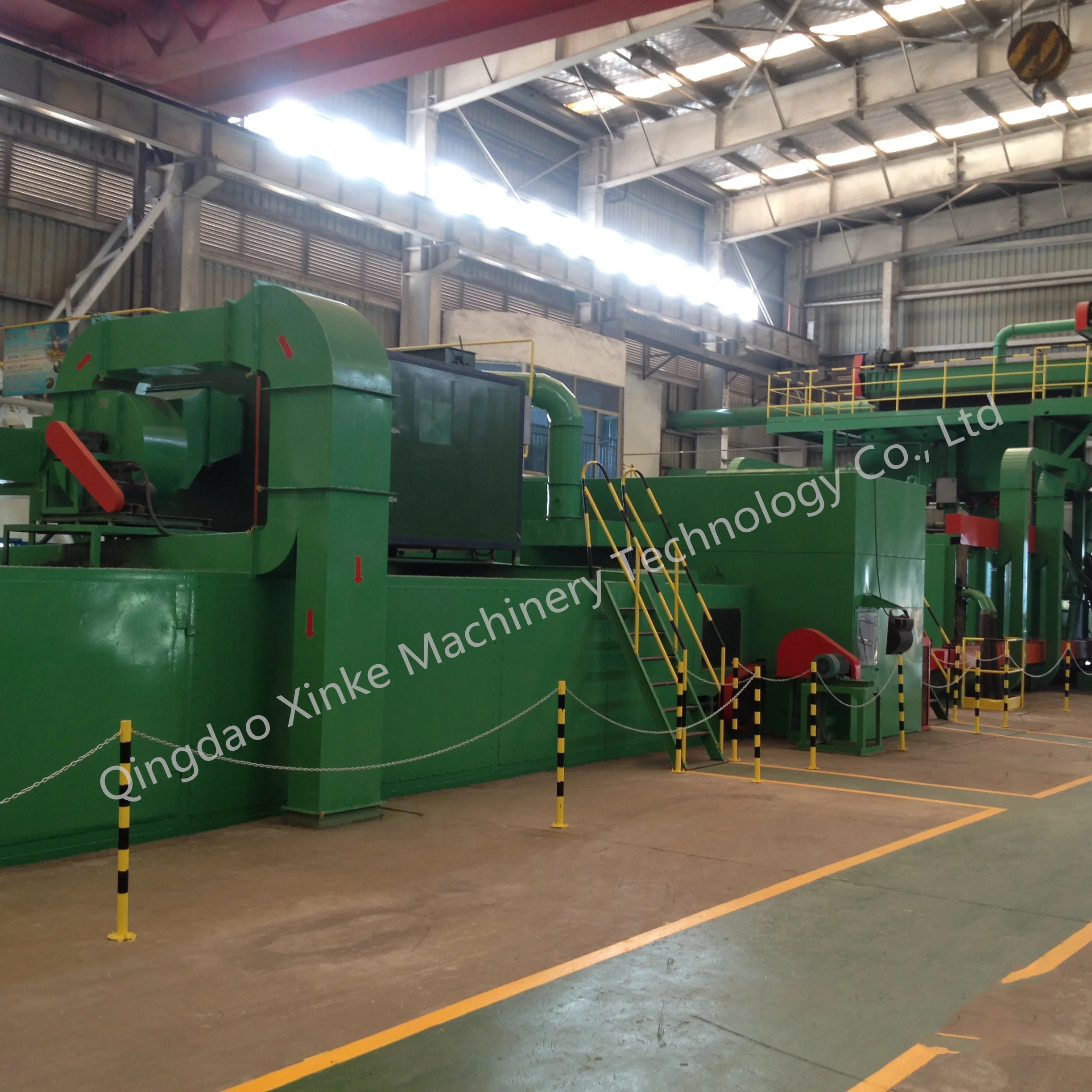

Photographing in Client's factory of Steel Plate Preservation Line

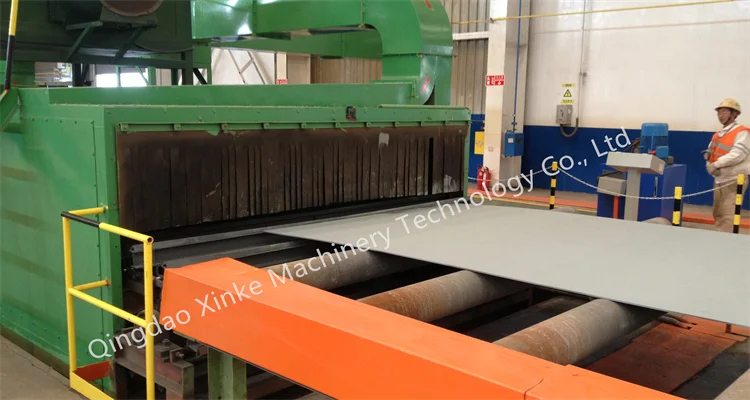

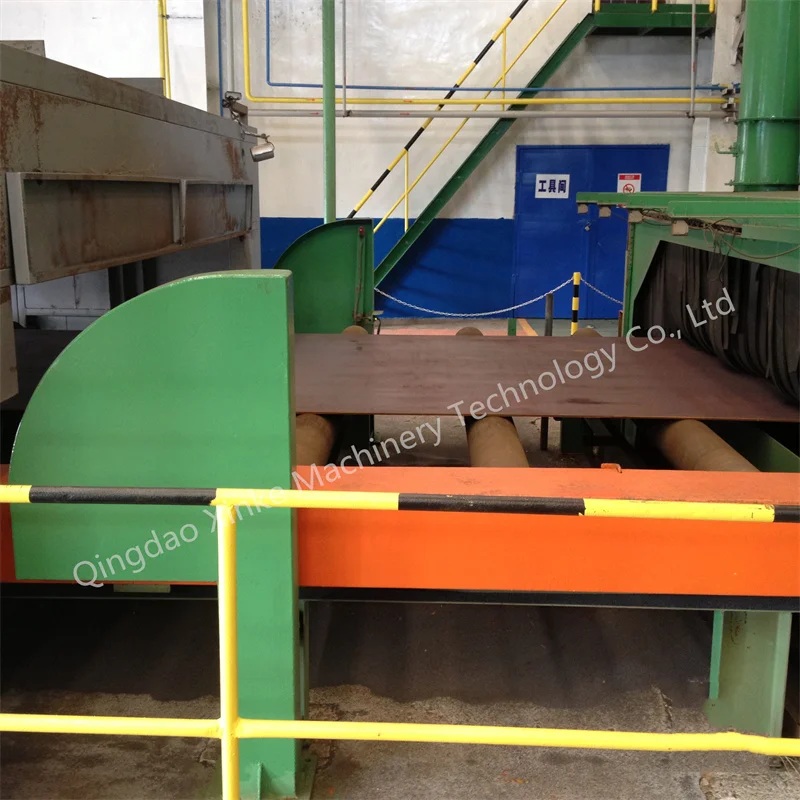

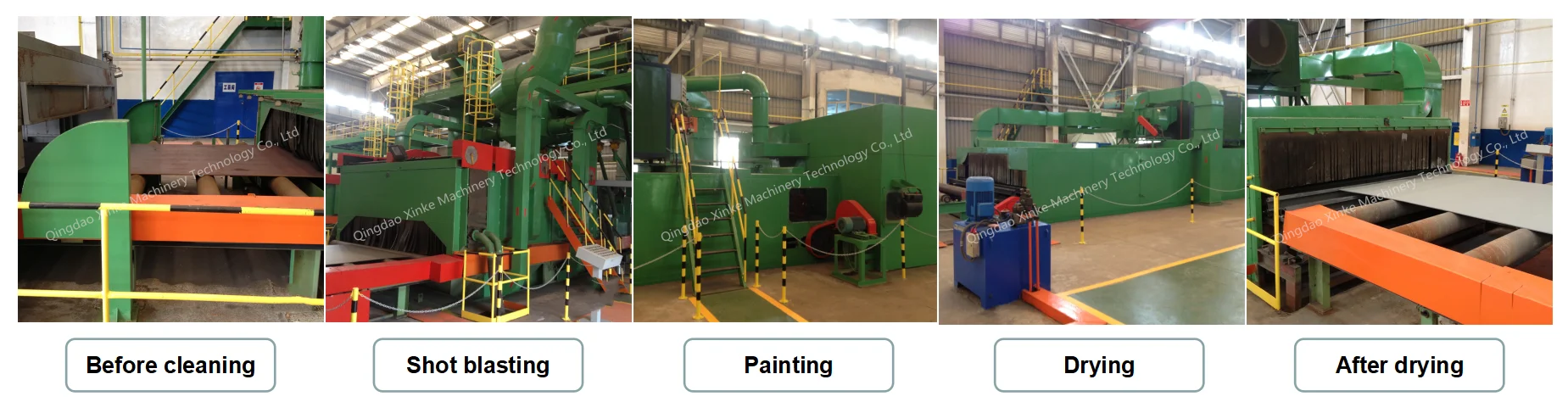

Production Process of Steel Plate Preservation Line

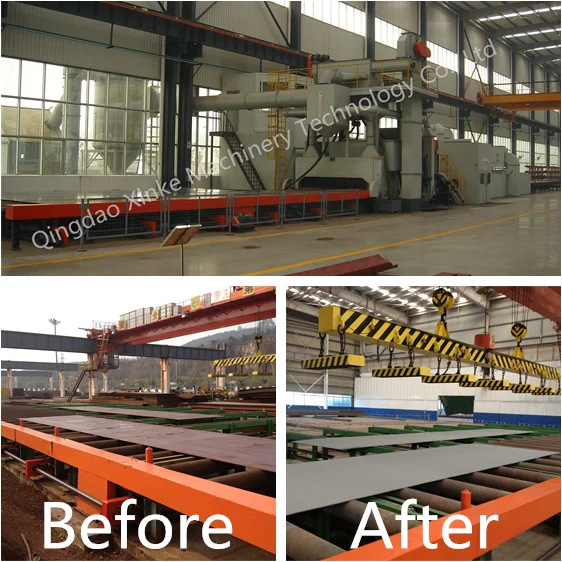

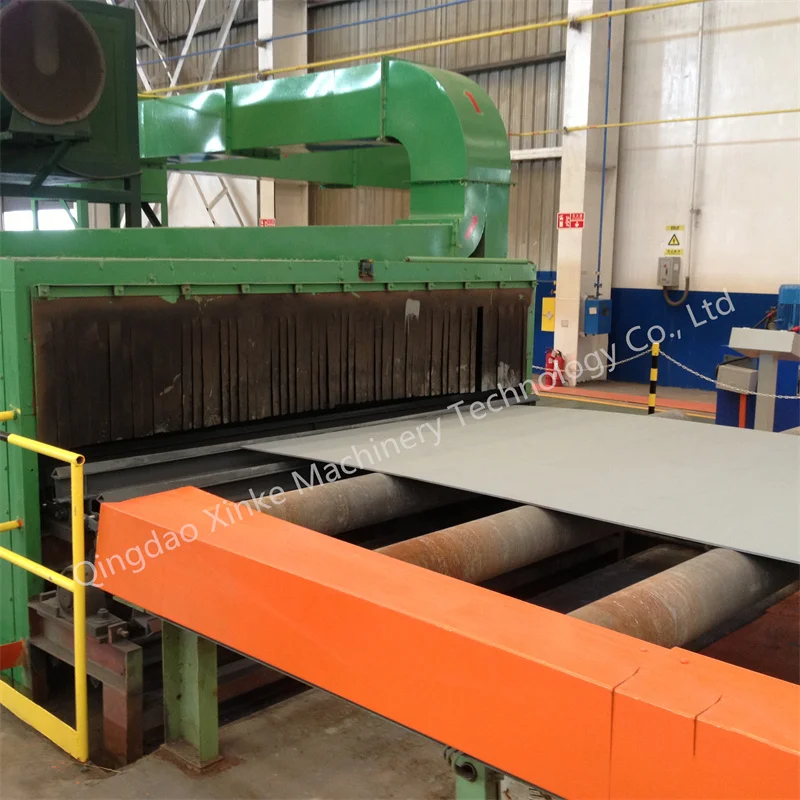

Cleaning effect display of Steel Plate Preservation Line

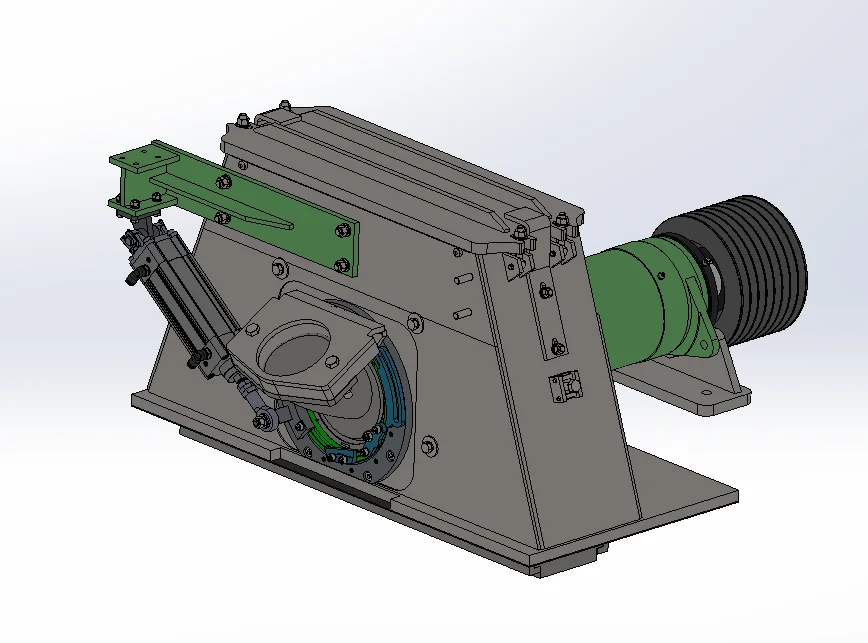

Shot blasting wheel of Steel Plate Preservation Line:



The shot blasting wheel is a key component, which has a great impact on the quality of steel cleaning, service life and maintenance. This series of machines adopts several sets of the world's most advanced single-disc curved blade shot blasting machines. The projectiles flow in from the introduction pipe, and the high-speed dense projectiles are thrown out by the shot dividing wheel, the directional sleeve and the blade, hitting the surface of the workpiece, making the The rust layer and its dirt on the surface of the workpiece fall off quickly, and a smooth surface with a certain roughness is obtained, which improves the adhesion between the paint film and the surface of the material, and improves the fatigue resistance and corrosion resistance of the material. This part is mainly composed of impeller, main shaft and main bearing seat, pill dividing wheel, directional sleeve, guard plate, transmission mechanism and so on.
















1.How many days do you need to produce this machine?
This is our standard machine and we have some in stock,can be delivered right now after your deposit.
2.What does your factory do regarding quality control?
We pay much more importance to quality from the very beginning to the end of production,Every machine will be fully assembled and carefully tested before shipment.
3.What's your machine quality guarantee?
Quality guarantee time is one year,We choose world famous brand components to keep our machine in perfect working condition.
4.Are you able to give installation and commissioning overseas?How long will it takes?
Yes,we supply overseas service, but customers needs to pay for the engineers fight tickets and hotel,food .Small machine usually takes about 20days.
