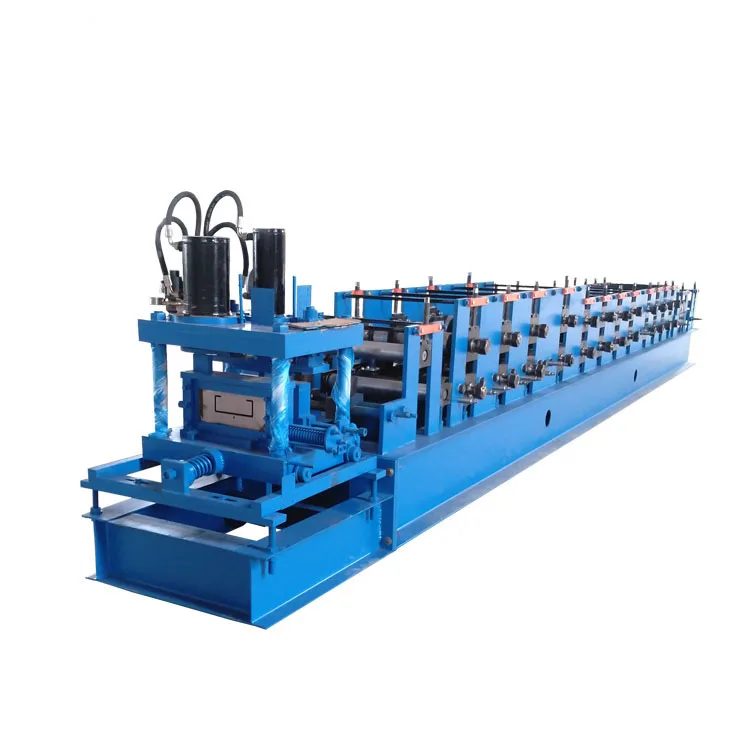

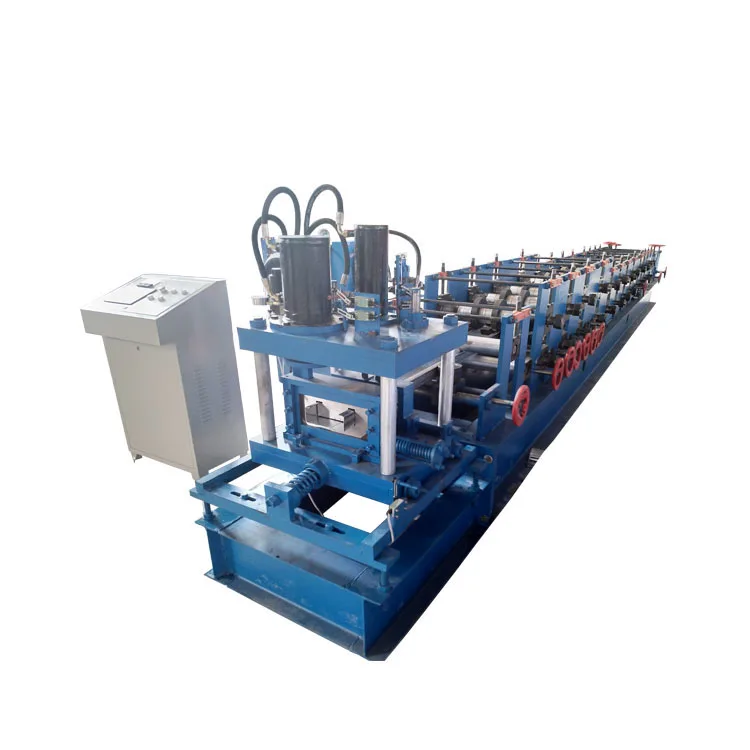

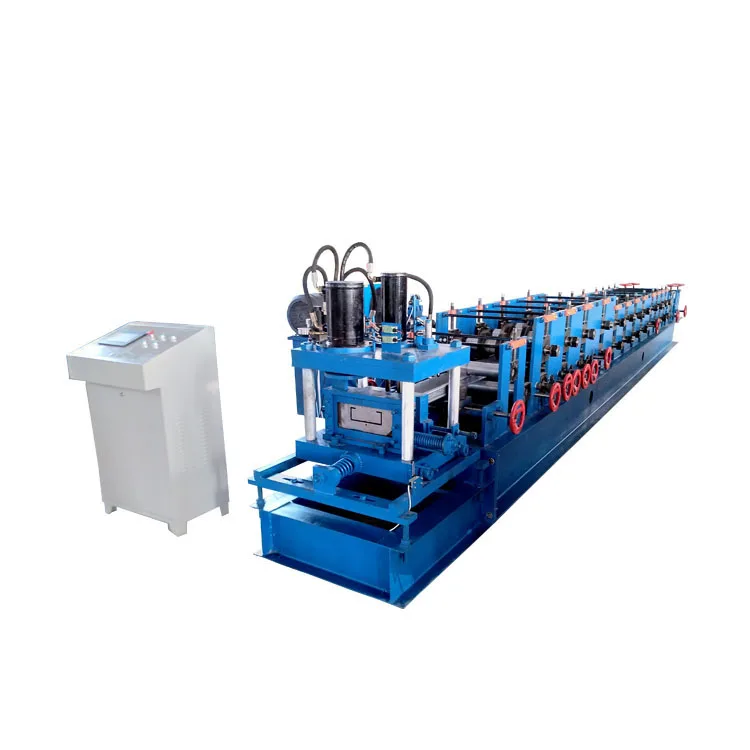

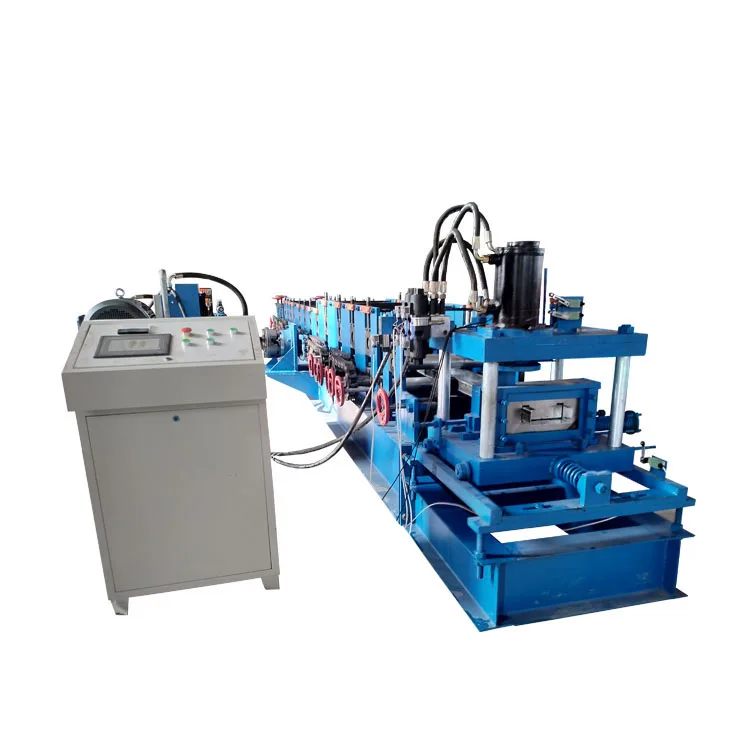

full automatic c purlin roll forming machine (1600582172746)

Share on:


Price:$15,000.00 - $15,500.00
Price in USD:Details

Quantity:


Product Overview

Description





Product Description













































































































configurations



manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system




Material



processing material



Colored Steel plate, Galvanized Board, Aluminum Plate




thickness



1-3mm








Coil width



200 mm




Manual decoiler



The maximum load capacity:5 ton








The coil inside diameter:450-550mm




Suitable Coil width:200mm




Main Forming machine



Forming steps



15steps



Shaft diameter



70 mm



Thick of arch frame



16mm



Frame body



300 H steel



roller material



high grade NO. 45 forged steel with 0.05mm hard chrome plating



shaft material



high grade NO. 45 carbon wrought steel



cutter material



Cr12 mold steel with quenched treatment



Transmission



By 1 chain



Work speed



8-10m/min



Hydraulic system



Automatic hydraulic cutting after forming, without wasting.



Control Device



PLC control


touch screen


Program language: English/Chinese(or as required)



Operating mode



Button+touch screen







Total  power



5.5 kw




Main body color



Blue and orange(or as required)



Voltage



380v/50hz/3phase(or as required)







Packaging & Shipping







related machine

























Company Information





Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.





The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.





Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.





Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.







Our service


1.Installation and training


If the customer come to our factory and check the machine,we can teach you how to use the machine.


And can training you face to face.


If the customer can't come to our factory,we can teach you online and we can make video call.


2.After service


Two years guarantee for whole machine


24 hours technical support by calling and video





FAQ





1. Does one machine can only produce one style panel profile?


Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.





2. Do you have after sales support?


Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.





3. How to visit your company?


A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.


B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.





4. What can you do if the machine broken?


Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.





5. Can you be responsible for transport?


Yes, please tell me the destination port or address.we have rich experience in transport.





6. You are Trade Company or factory?


We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.





7. Why your price is higher than others?


As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.





8. How long the machine could be made?


Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
