Automatic Flatbed Kraft Paper Cup Fan Blank Punching Die Cutting Cutter Machine(MB 980)
- Category: >>>
- Supplier: Zhejiang Good Machinery Co. Ltd.
Share on (1600582196604):
Product Overview
Description
Products Description

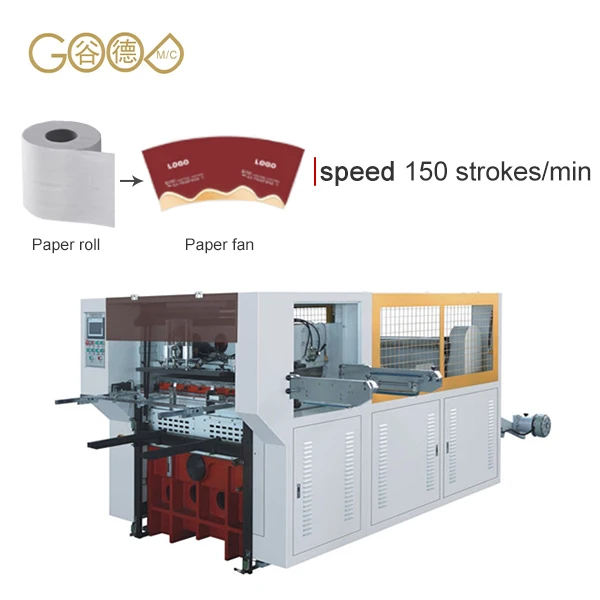

MB-980 automatic die cutting machine is our latest product, which is very suitable to cut
the paper roll to sheets by wooden dies, it is the best choice for paper cup or printing factory, one die cutting machine can meet the need for 15 paper cup forming machines.
MB-980 die cutting machine is PLC controlled, paper roll feeding by servo motor, you can preset the die cutting method, either by following the color code or by setting the certain cutting length, very practical for printed paper roll as well as non-printed paper roll.
MB-980 reel automatic die cutting machine is ideal equipment for various types of paper, PE coated paper, it is widely used in printing, packing and paper cup production. Driven by the Schneider Inverter, the paper roll go through a reverse device, and under the control of servo motor then feeding the flat type die cutting device, the feeding length could be set by the touch screen, convenient and precise.
the paper roll to sheets by wooden dies, it is the best choice for paper cup or printing factory, one die cutting machine can meet the need for 15 paper cup forming machines.
MB-980 die cutting machine is PLC controlled, paper roll feeding by servo motor, you can preset the die cutting method, either by following the color code or by setting the certain cutting length, very practical for printed paper roll as well as non-printed paper roll.
MB-980 reel automatic die cutting machine is ideal equipment for various types of paper, PE coated paper, it is widely used in printing, packing and paper cup production. Driven by the Schneider Inverter, the paper roll go through a reverse device, and under the control of servo motor then feeding the flat type die cutting device, the feeding length could be set by the touch screen, convenient and precise.
Technical Specification: | |
Max die cutting area | 960x550mm |
material | 100-400gsm single pe and double pe coated paper or PLA paper |
speed | 120-150 strokes per min |
power | 380v/220v 11kw |
air source | 1.0m3/min;0.8Mpa(customer prepare) |
weight | 7000kgs |
dimension | 4.1*1.9*2.0M |

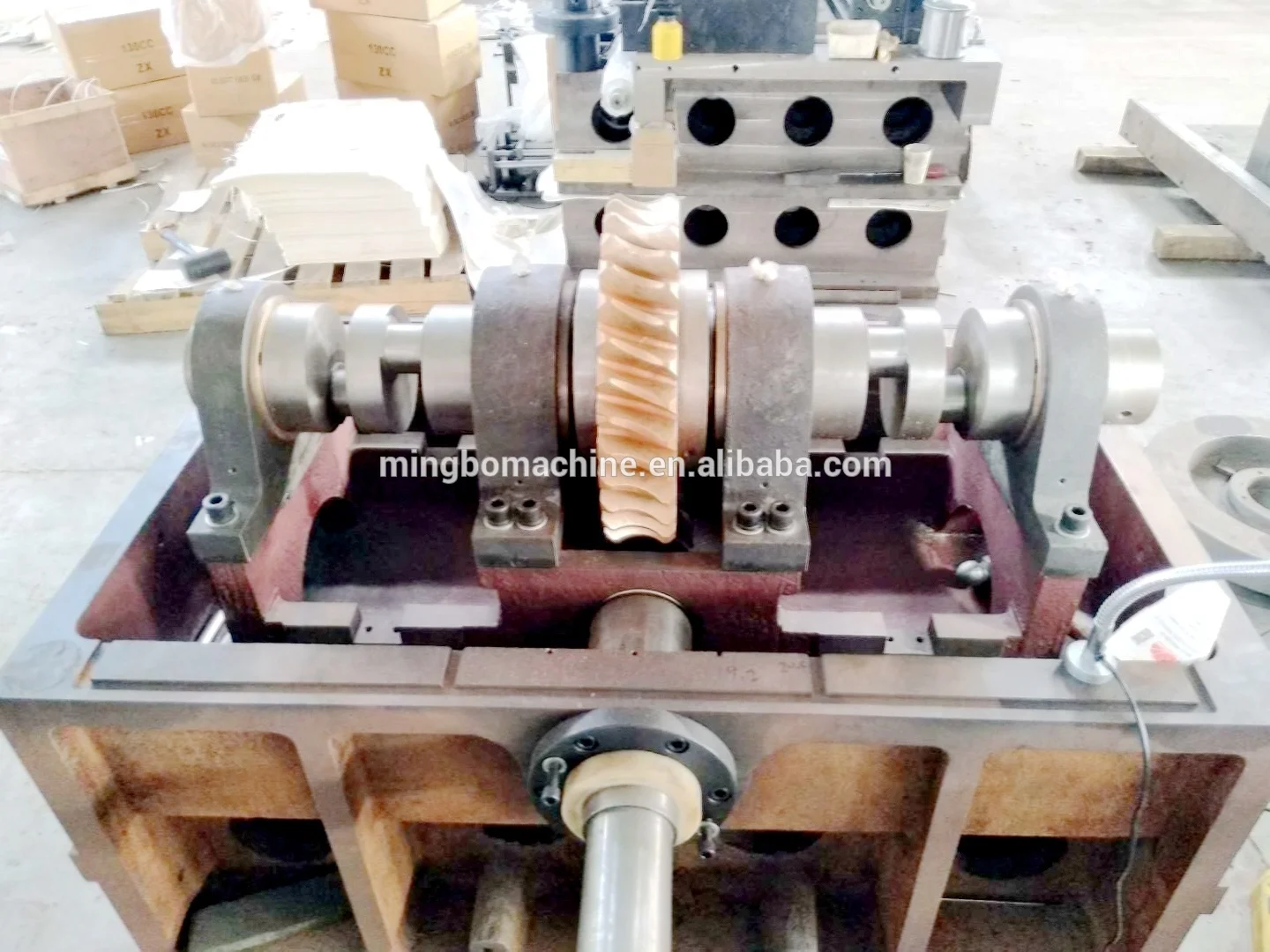

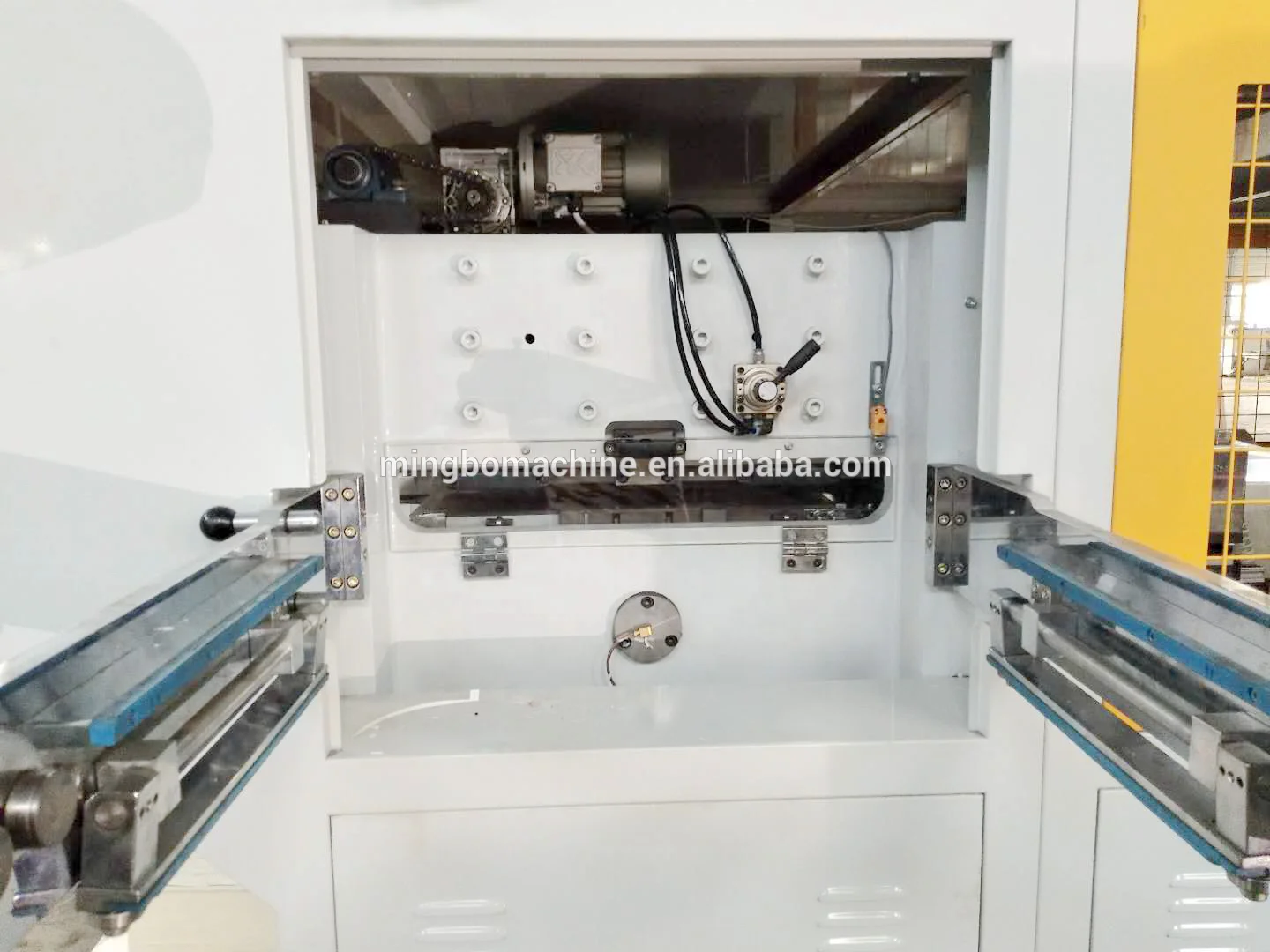

Machine details:
Specification:

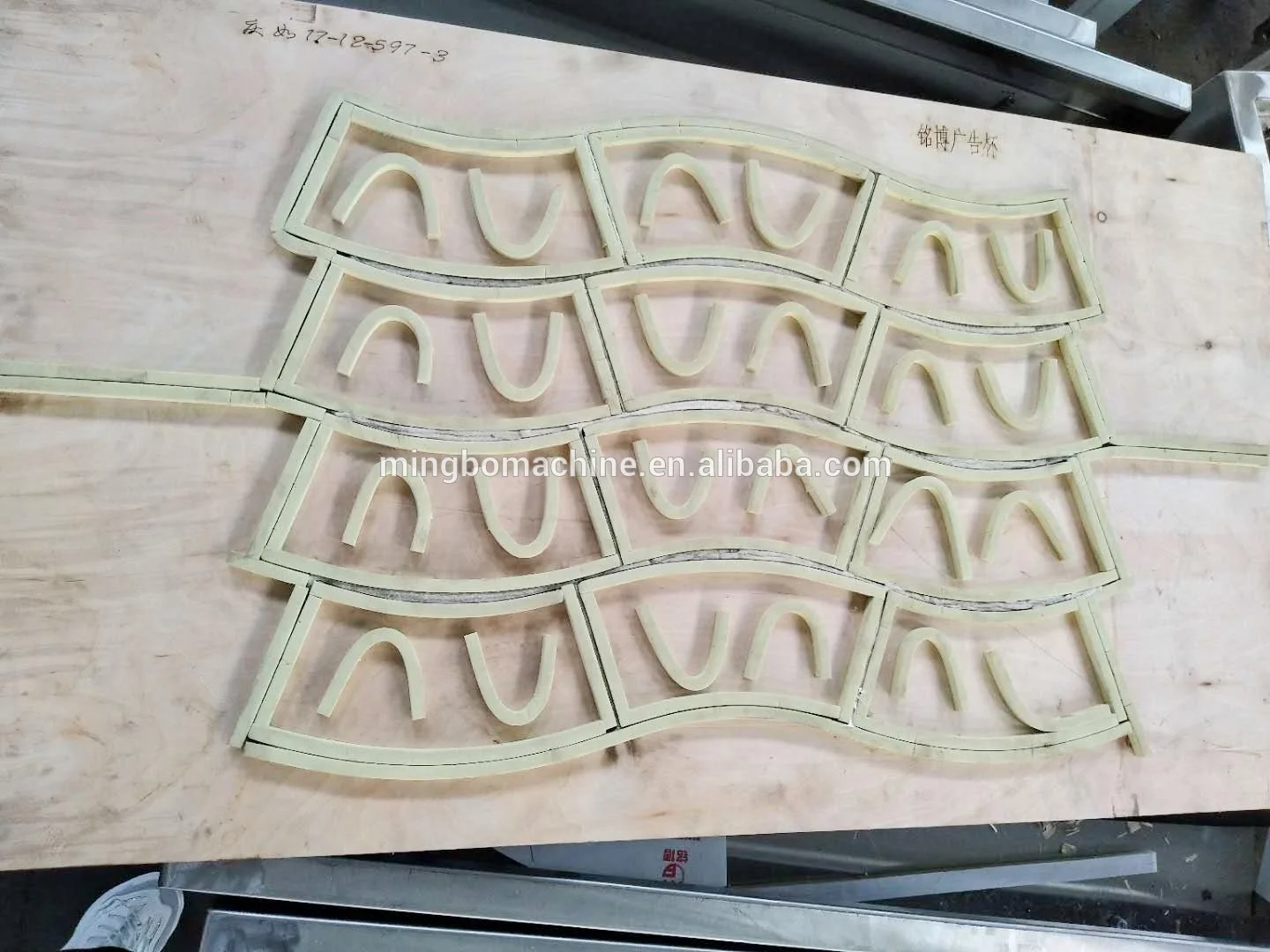

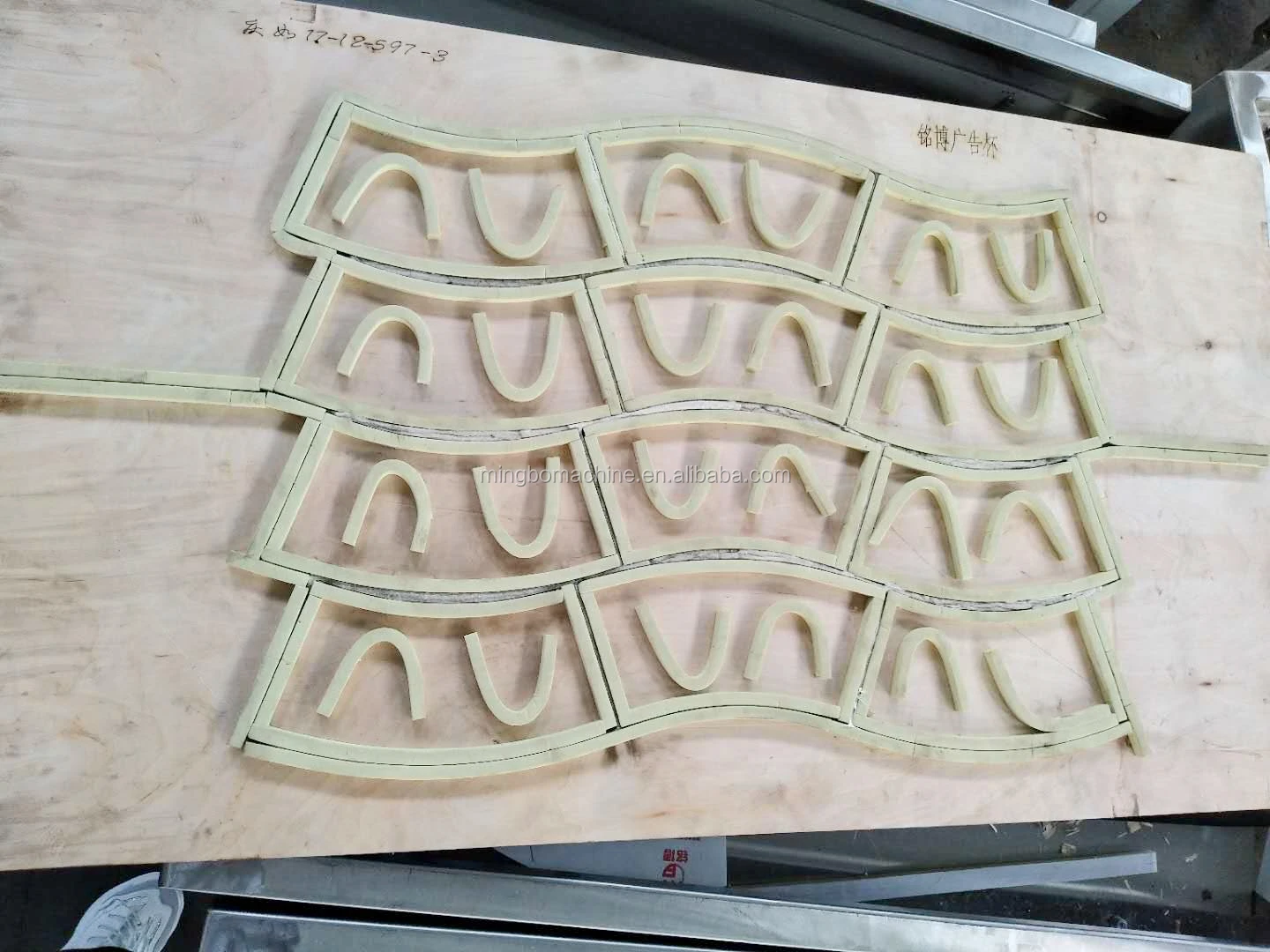

1. The wooden die is lock by air(pneumatic clutch control), very easy to change the wooden die.
2. Automatic lubricating system, more easy for daily maintenance.
3. The paper roll feeding and retreat is controlled by the same button and same motor, which will make the paper feeding more fluently, and better orientation, and for better finished paper stacking.
4. This machine is equip with overload protecting system, safe for operation.
5. All the key parts we adopt the imported brand, which ensure the machine can run stable for a long time.
Remarks:
The waste paper should clear by hand.
Wastage: MIN. 5% according to your cup size and drawing.
2. Automatic lubricating system, more easy for daily maintenance.
3. The paper roll feeding and retreat is controlled by the same button and same motor, which will make the paper feeding more fluently, and better orientation, and for better finished paper stacking.
4. This machine is equip with overload protecting system, safe for operation.
5. All the key parts we adopt the imported brand, which ensure the machine can run stable for a long time.
Remarks:
The waste paper should clear by hand.
Wastage: MIN. 5% according to your cup size and drawing.
Machine working performance, kindly refer to the following video link:
https://youtu.be/w39aE8R4aw4

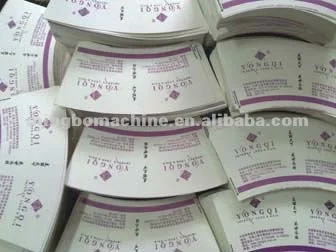

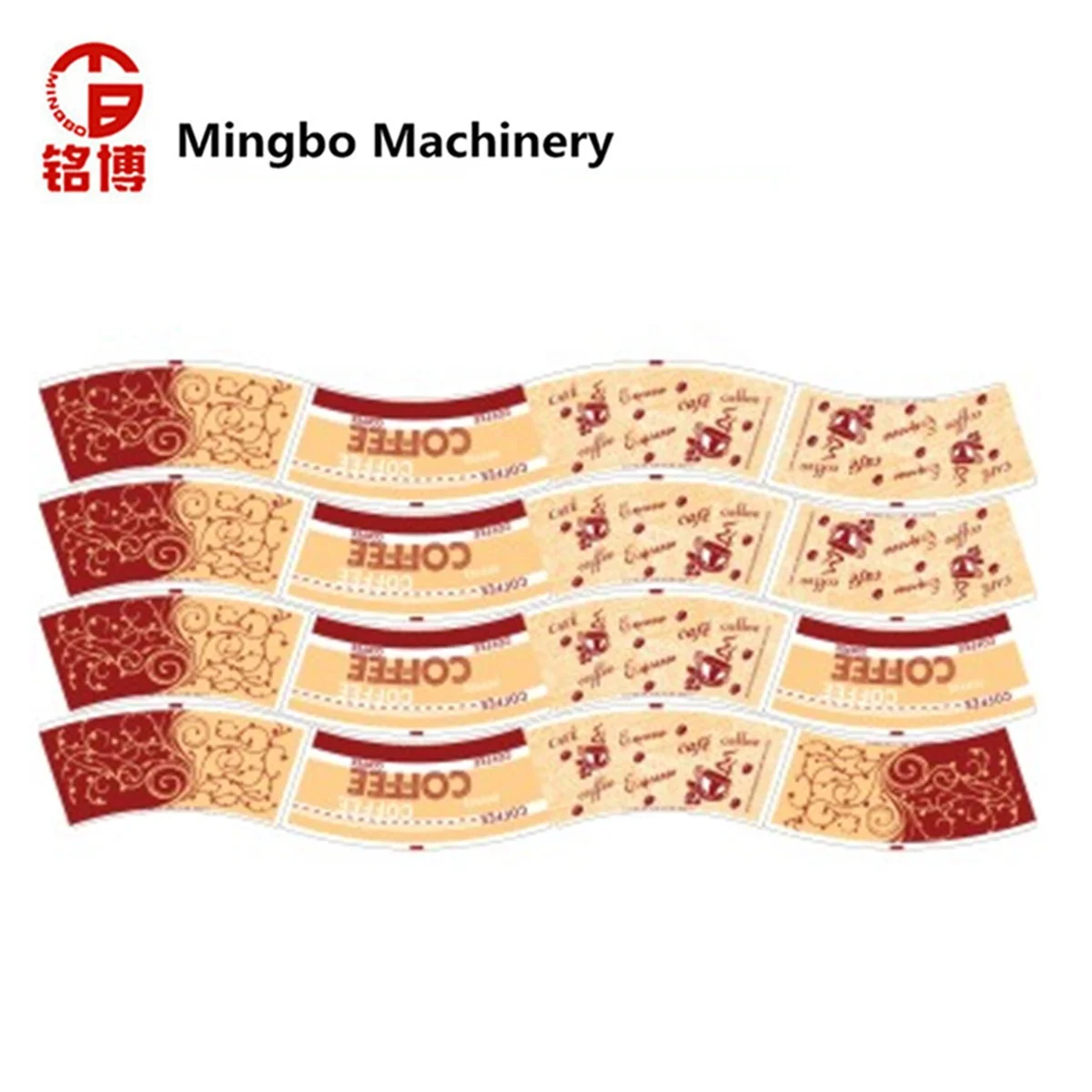

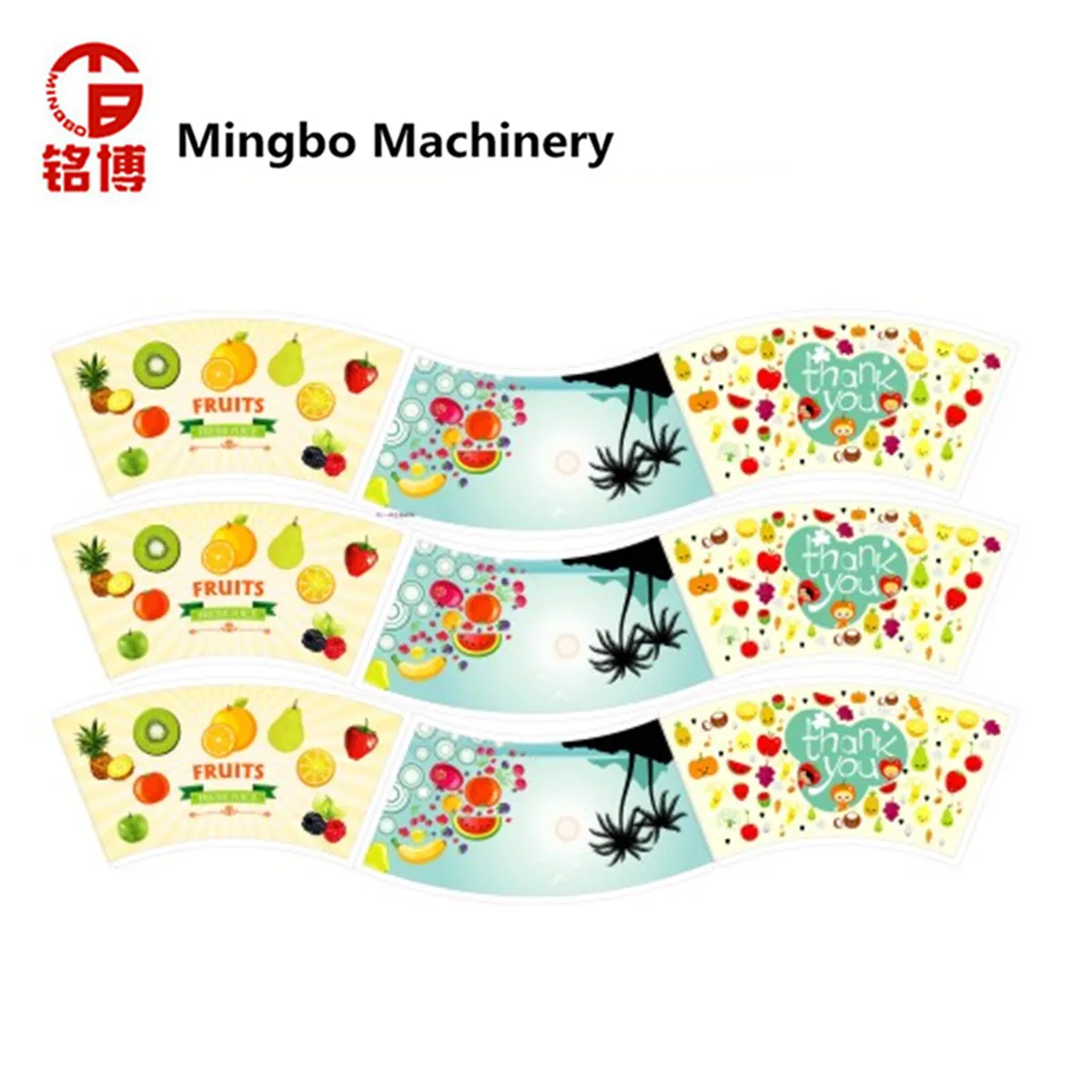

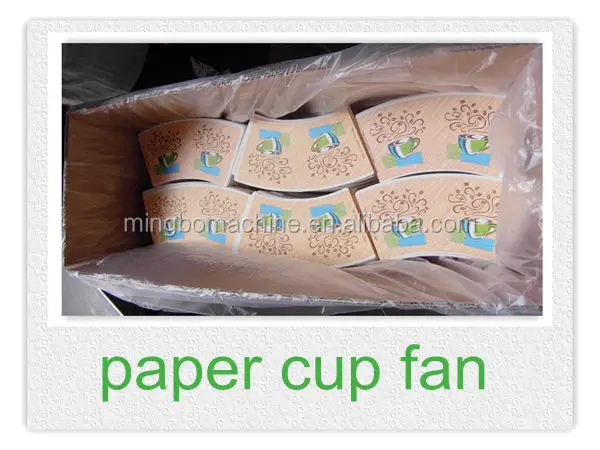

A list of sample
Recommend Products
Certifications

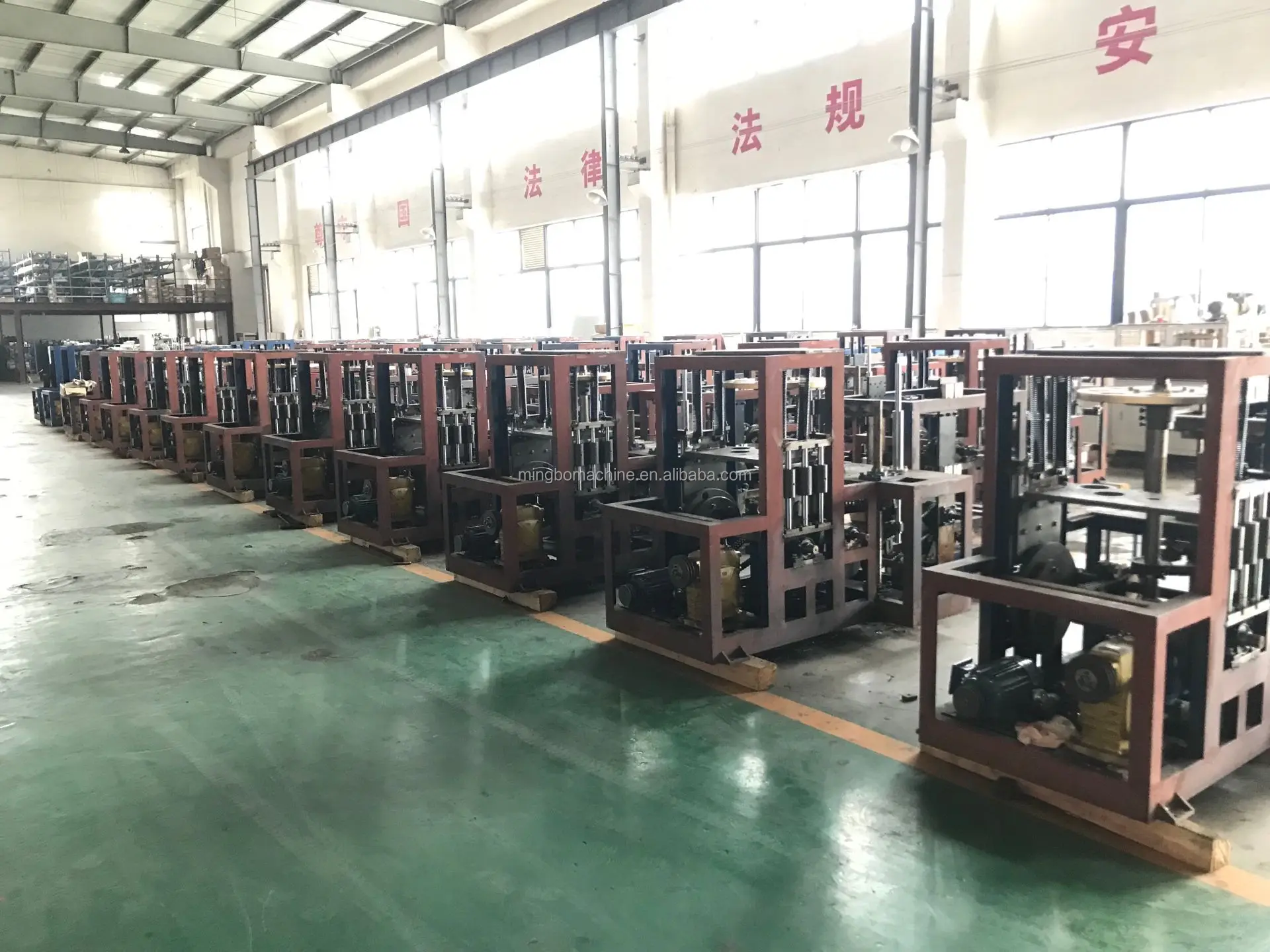

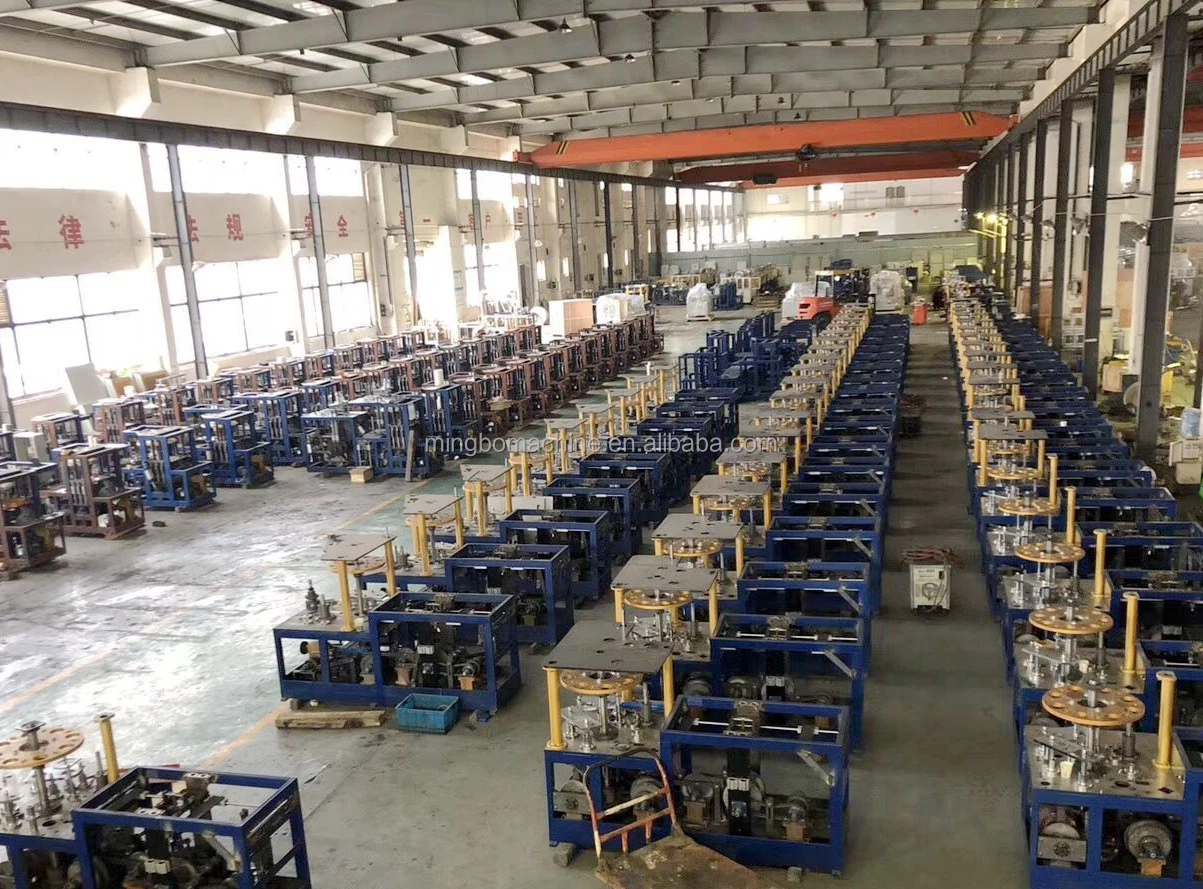

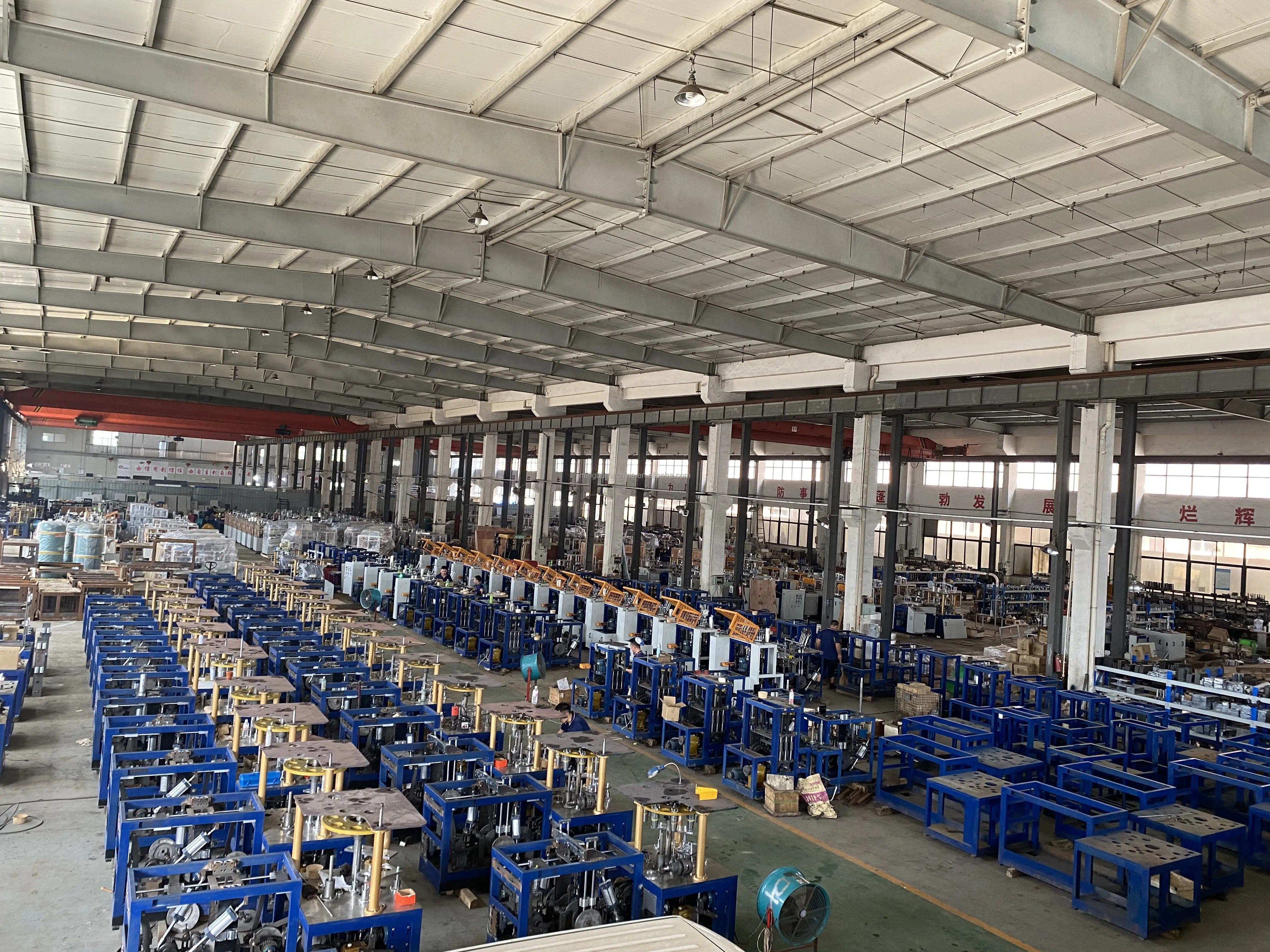

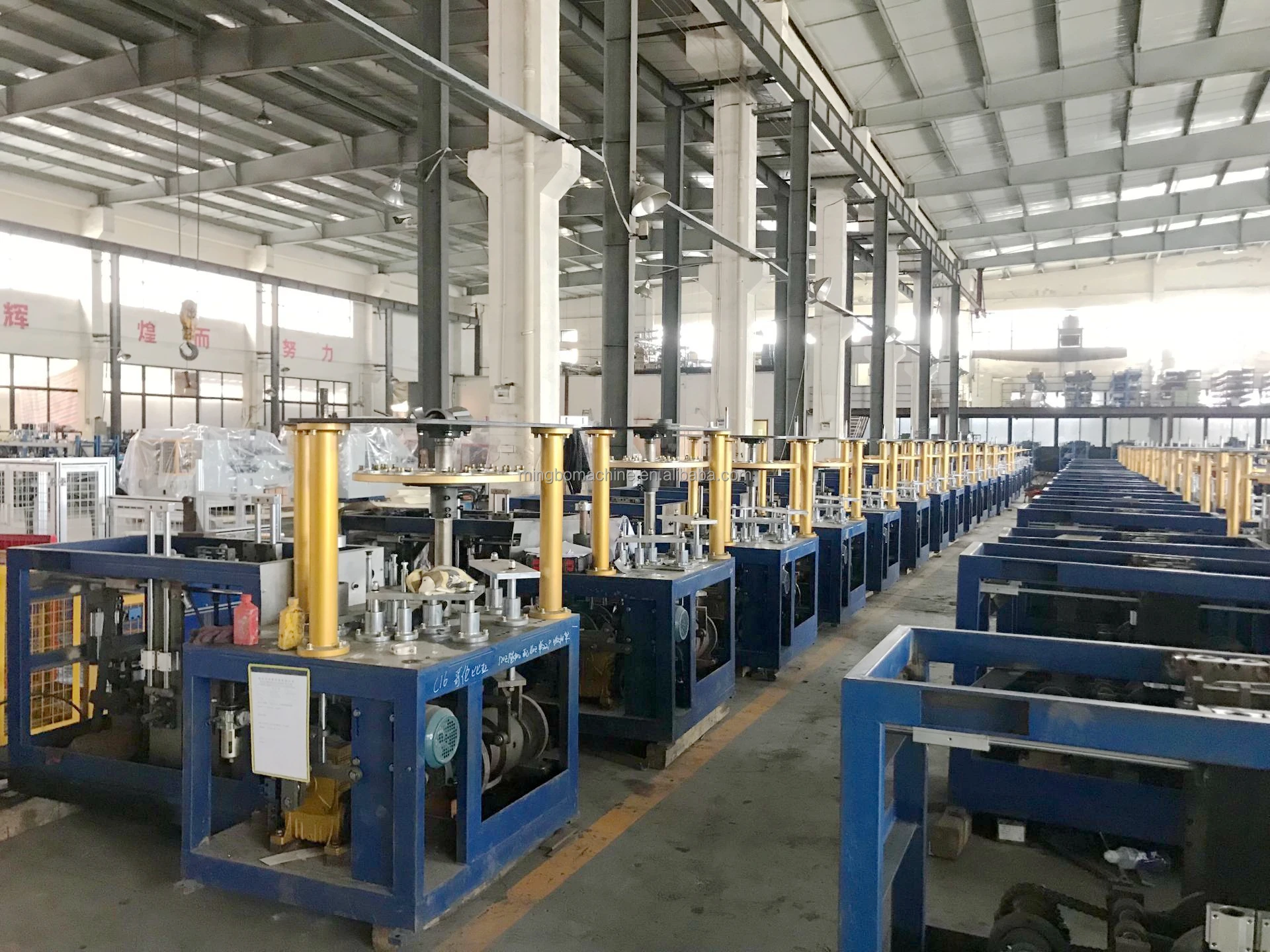

Exhibition
Company Profile
FAQ
1.ARE YOU MANUFACTURE FACTORY OR TRADING COMPANY?
we are one of the leading manufacturer of the paper cup machine die cutting machine, cup lid machine paper plate machine and also the burger box machine in China.
2. WHAT KIND OF CERTIFICATE DO YOU HAVE?
WE HAVE GOT THE CE, SGS, BV VERIFIED CERTIFICATE FOR OUR MACHINE AND FACTORY.
3. WHERE IS YOUR FACTORY LOCATION?
WE ARE LOCATE IN NO.85 WANSHENG ROAD,WANQUAN INDUSTRIAL ZONE,PINGYANG COUNTY,WENZHOU CIRY.
we are one of the leading manufacturer of the paper cup machine die cutting machine, cup lid machine paper plate machine and also the burger box machine in China.
2. WHAT KIND OF CERTIFICATE DO YOU HAVE?
WE HAVE GOT THE CE, SGS, BV VERIFIED CERTIFICATE FOR OUR MACHINE AND FACTORY.
3. WHERE IS YOUR FACTORY LOCATION?
WE ARE LOCATE IN NO.85 WANSHENG ROAD,WANQUAN INDUSTRIAL ZONE,PINGYANG COUNTY,WENZHOU CIRY.
OUR NEAREST TRAIN STATION IS RUIAN STATION, OUR NEAREST AIRPORT IS WENZHOU AIRPORT.
4. WHAT ABOUT YOUR MACHINE DELIVER TIME?
FOR NORMAL SPEED PAPER BOWL MACHINE 30 DAYS, FOR MEDIUM SPEED CUP MACHINE 45 DAYS.
4. WHAT ABOUT YOUR MACHINE DELIVER TIME?
FOR NORMAL SPEED PAPER BOWL MACHINE 30 DAYS, FOR MEDIUM SPEED CUP MACHINE 45 DAYS.
