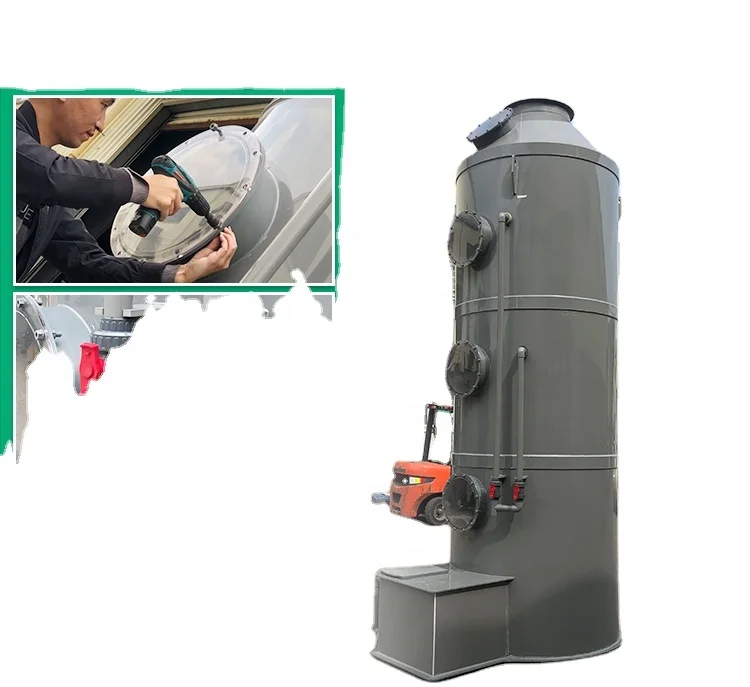

wet scrubber manufacturers exhaust gas pollution control system
- Category: Gas Disposal Machinery >>>
- Supplier: XICHENG,EP,LTD
Share on:
Product Overview
Description
Product Description
We offer wet and dry scrubber systems capable of removing contaminants through gas absorption or mechanical contact. Applicable pollutants include odors such as inorganic chemical gases, acid gases, alkaline (alkali) fumes, particulate matter and dust.
Product details
item | value |
Condition | New |
Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Not Available |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | Pump, filler, raw materials, etc., fan, activated carbon air filter, connection pipe and fittings |
Place of Origin | China |
Guangdong | |
Brand Name | XICHENG |
Warranty | 1 Year |
Weight (KG) | 100kg |
material | pp polypropylene/stainless steel |
function | exhaust gas treatment |
Work Principle | gas-liquid neutralization |
Application field | acid mist/laboratory/VOCs/industrial/etc. |
Type | vertical |
Air volume | 0-200000m3/h |
Certification | CE/ISO9001/ISO14001/RoHS |
features | acid alkali and corrosion resistance |
advantages | flanges connection, easy to install and high efficiency |
service | offer after-sales service |
Product principle
The working principle of the most commonly used industrial wet scrubber is countercurrent spraying: acid or alkaline acid mist exhaust gas is introduced into the purification tower through the air duct, and the exhaust gas is fed from the bottom of the tower through the packing layer. continuous through the voids of the packing layer. On the surface of the packing, the gas-liquid two phases fully contact, absorb and neutralize the reaction, and adsorb the acidic or basic pollutants contained in the exhaust gas.
After the acid mist exhaust gas is purified, the clean gas is dehydrated and demisted by the defogging plate and then discharged into the atmosphere by the fan.
Insoluble viscose particles and dust are poured into the collection tank, suspended particles are discharged from the overflow outlet, and the collected sediment is discharged from the sewage outlet. The absorption liquid is pressurized by the water pump at the bottom of the tower and sprayed downward from the top of the tower, and finally refluxed to the bottom of the tower for recycling.
After the acid mist exhaust gas is purified, the clean gas is dehydrated and demisted by the defogging plate and then discharged into the atmosphere by the fan.
Insoluble viscose particles and dust are poured into the collection tank, suspended particles are discharged from the overflow outlet, and the collected sediment is discharged from the sewage outlet. The absorption liquid is pressurized by the water pump at the bottom of the tower and sprayed downward from the top of the tower, and finally refluxed to the bottom of the tower for recycling.

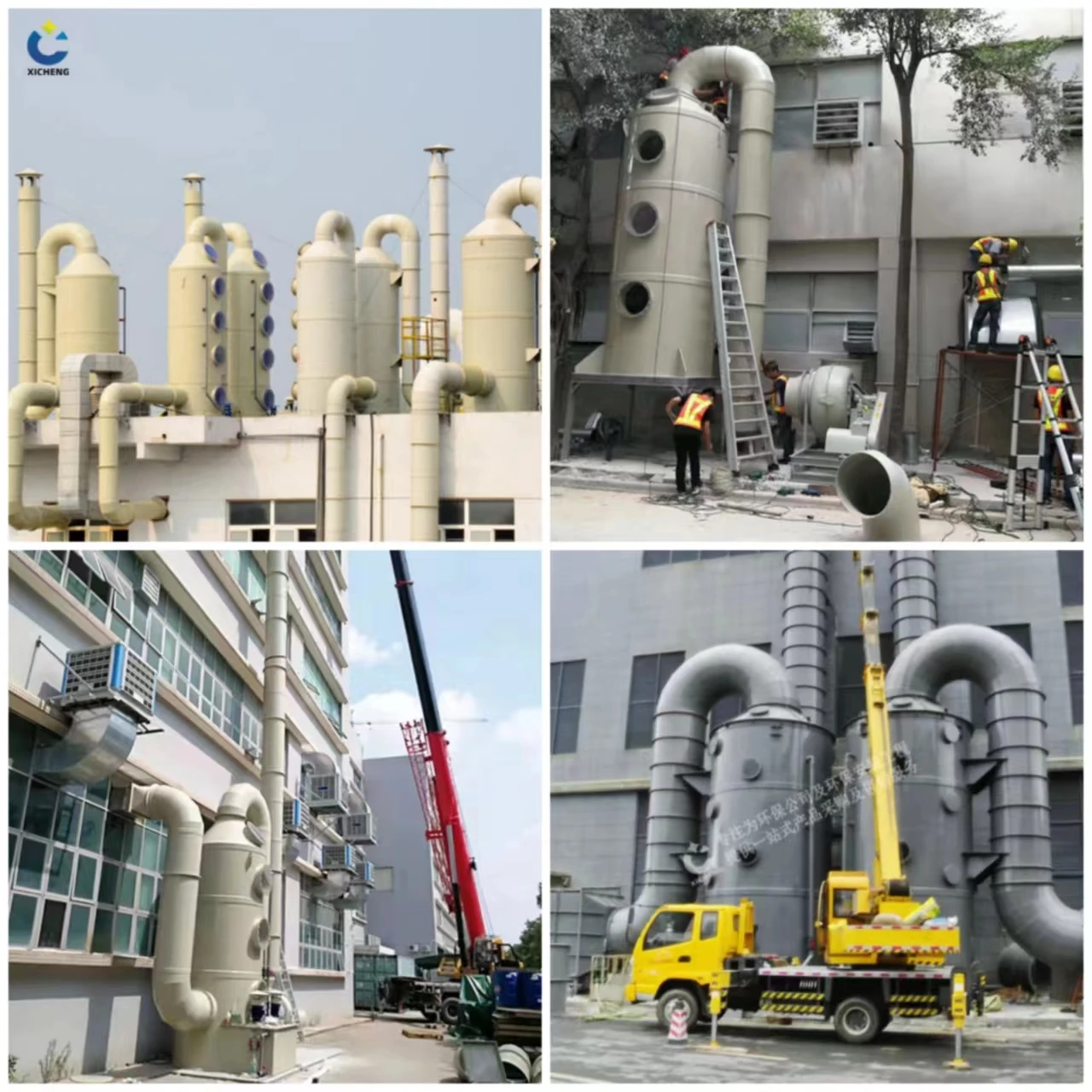

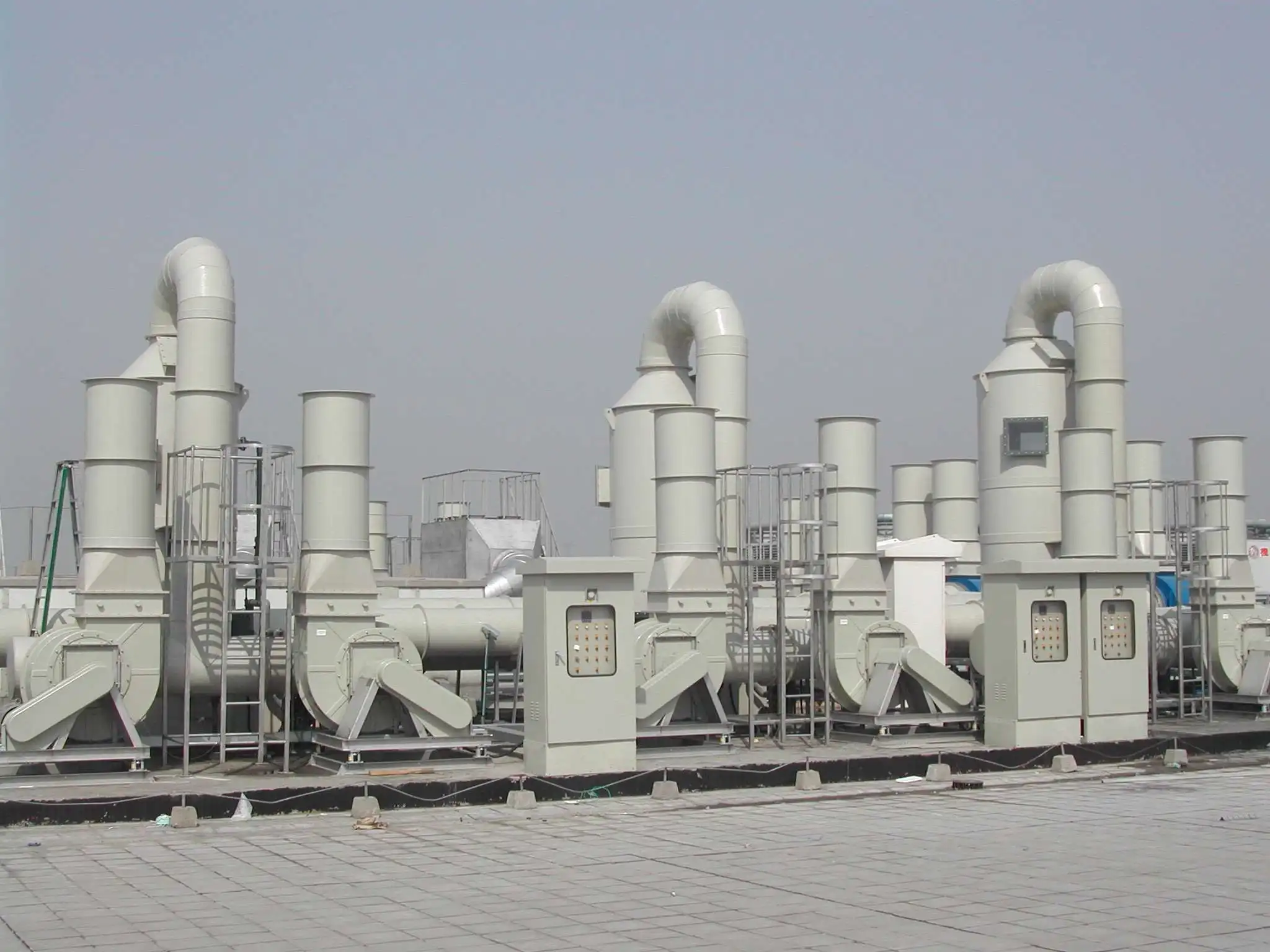

Products Application

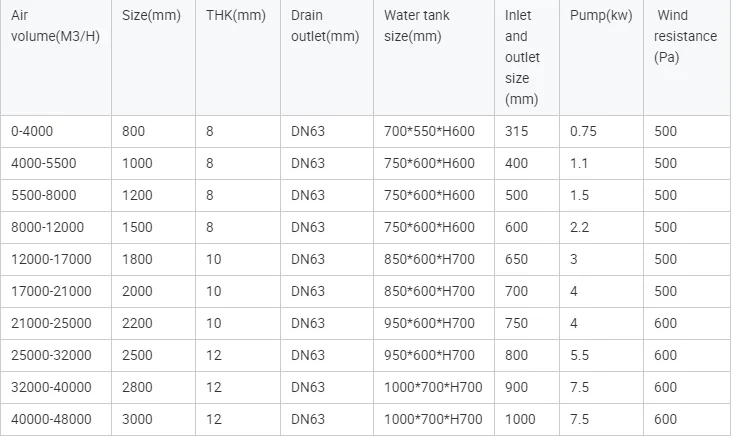

We will design wet scrubber Spray purification tower of appropriate specifications for you according to the working conditions provided by you. The following are the conventional models we have in stock for your reference:
Installation Instruction
1. Connect your exhaust chimney outlet to the inlet of the washing tower (exhaust gas scrubber);
2. Connect the outlet of the washing tower to the inlet of the activated carbon equipment through the S-shaped connecting pipe;
3. Connect the outlet of the activated carbon equipment to the inlet of the centrifugal fan through the PVC soft connection;
4. Connect the outlet of the centrifugal fan to the chimney duct through the reducing head;
5. The exhaust gas will be purified by the washing tower, and then enter the activated carbon equipment through the S-shaped connecting pipe for adsorption, so as to obtain clean gas, which will enter the atmosphere through the centrifugal fan and chimney duct.

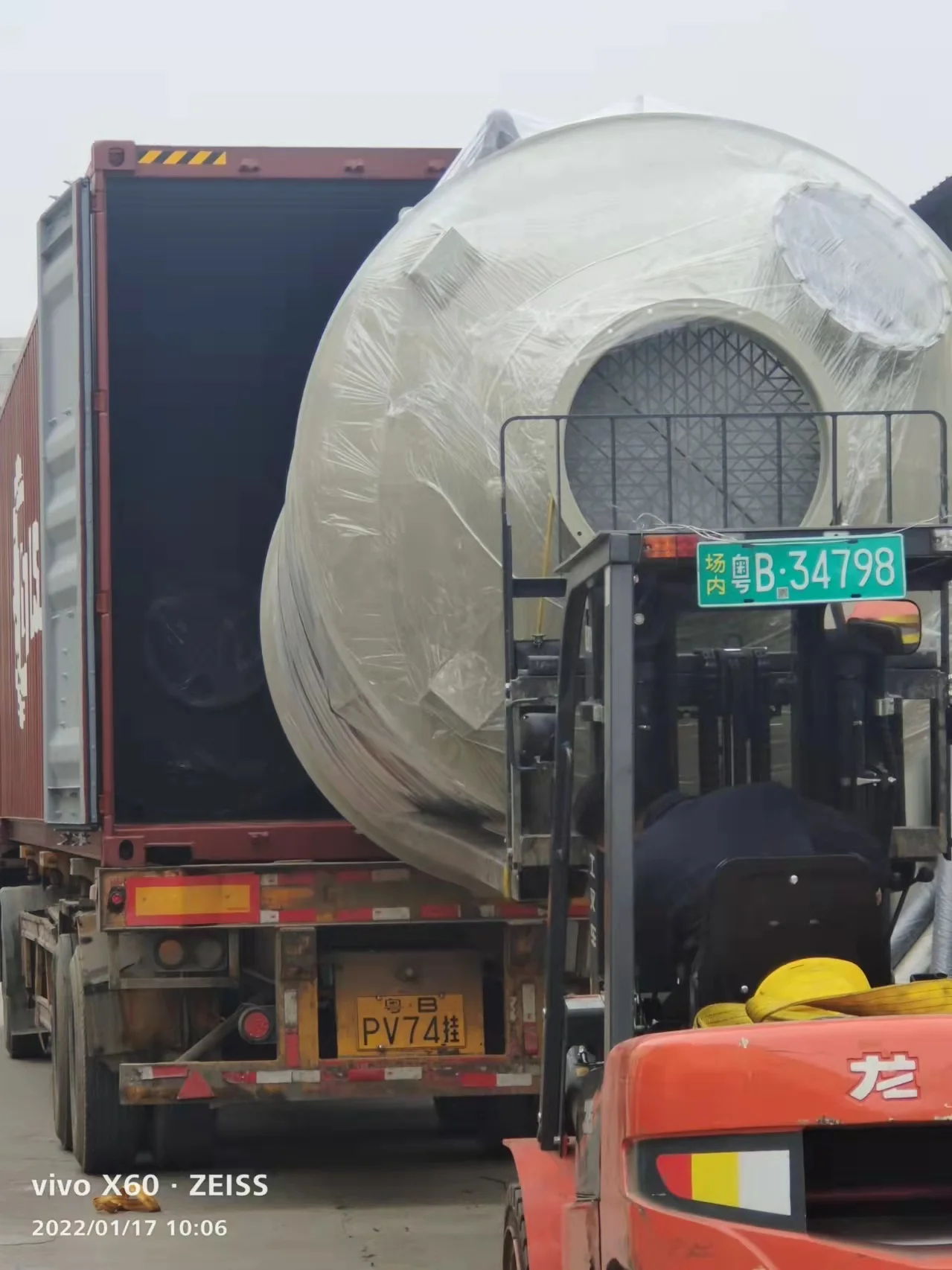

Packing & Delivery
1. Wooden rack/wooden case
2. Container

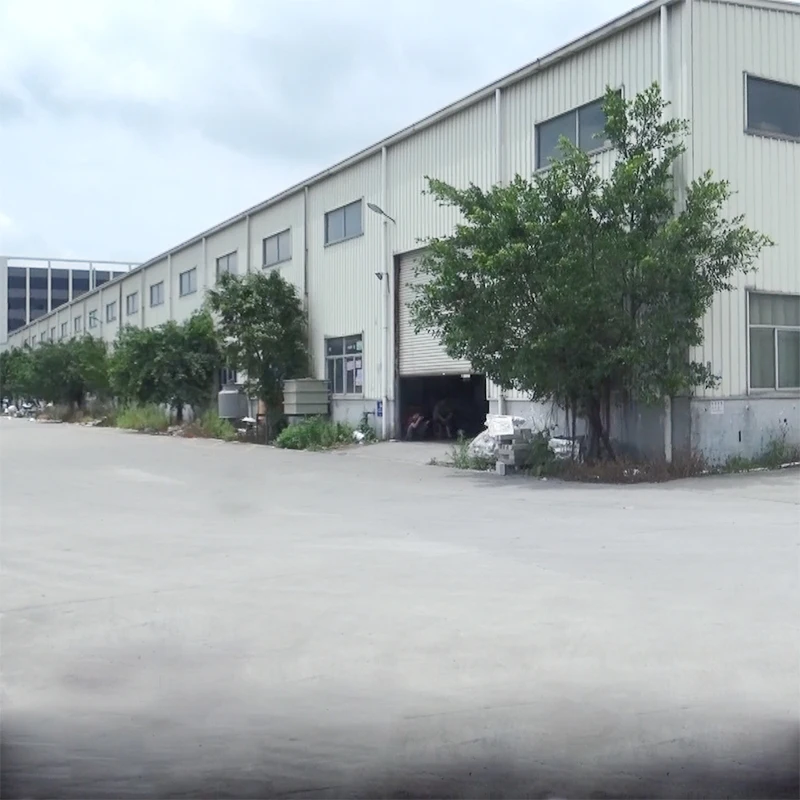

Company Profile
Shenzhen Xicheng Environmental Technology Co., LTD. is located in Guangming District, Shenzhen. It is an environmental protection equipment manufacturer integrating technology research and development, equipment manufacturing, product sales, and after-sales service. Our company has been focusing on the environmental protection industry for many years and specializes in the production and sales of environmental protection equipment and various accessories. Our company has an excellent team with advanced service concepts. We are committed to providing quality products and services to our customers in scientific management mode.

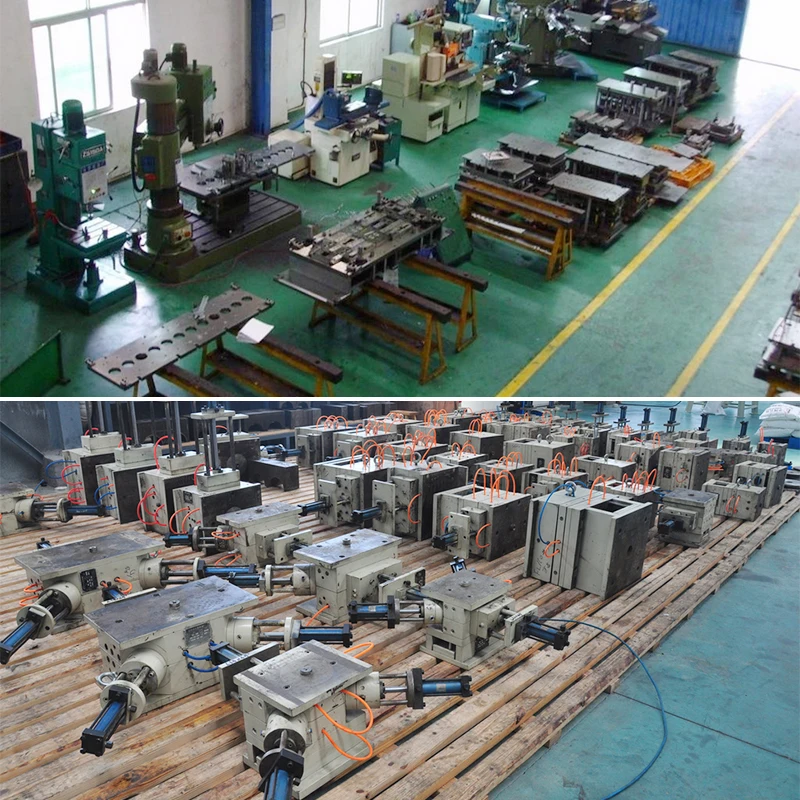

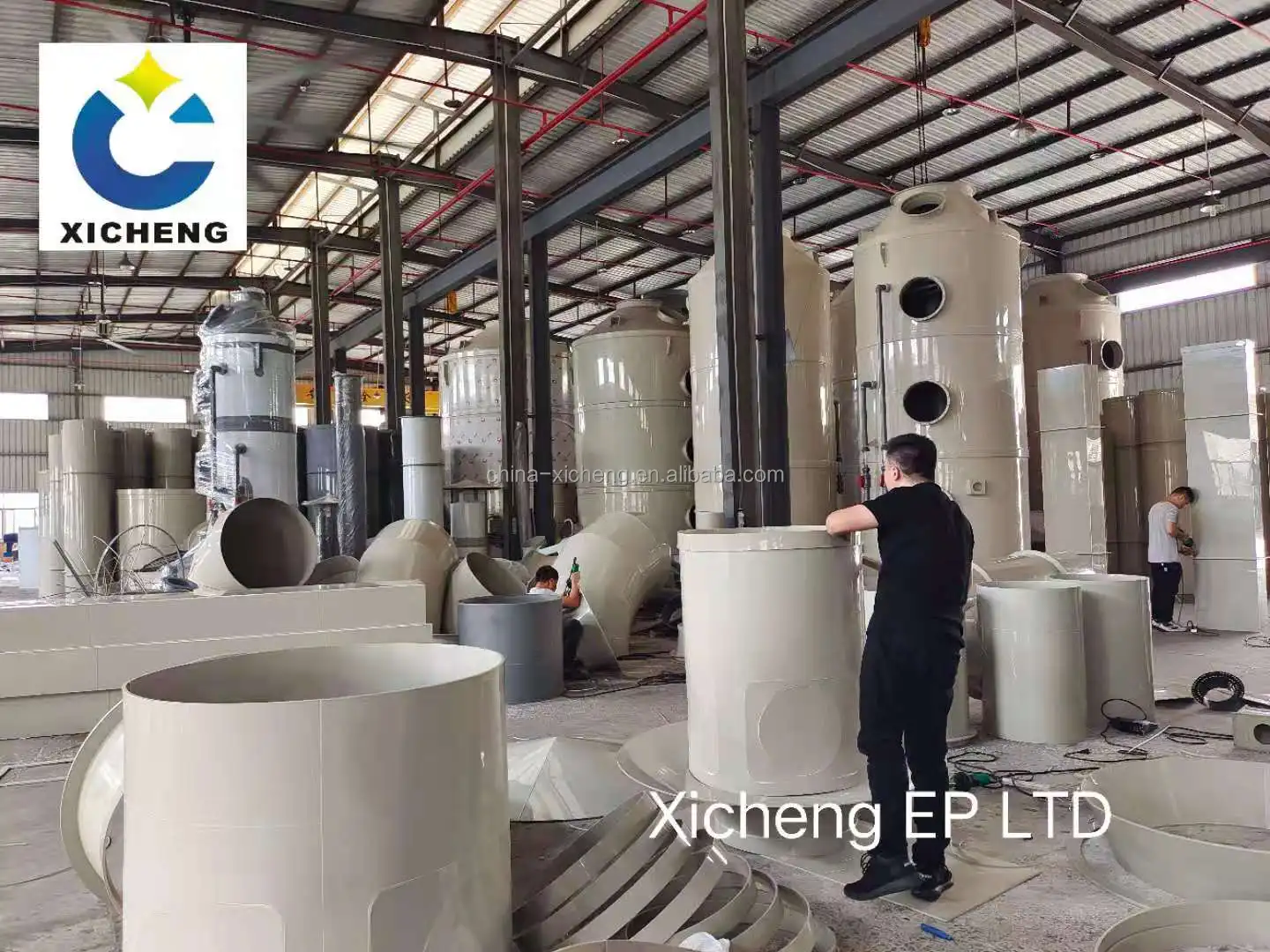

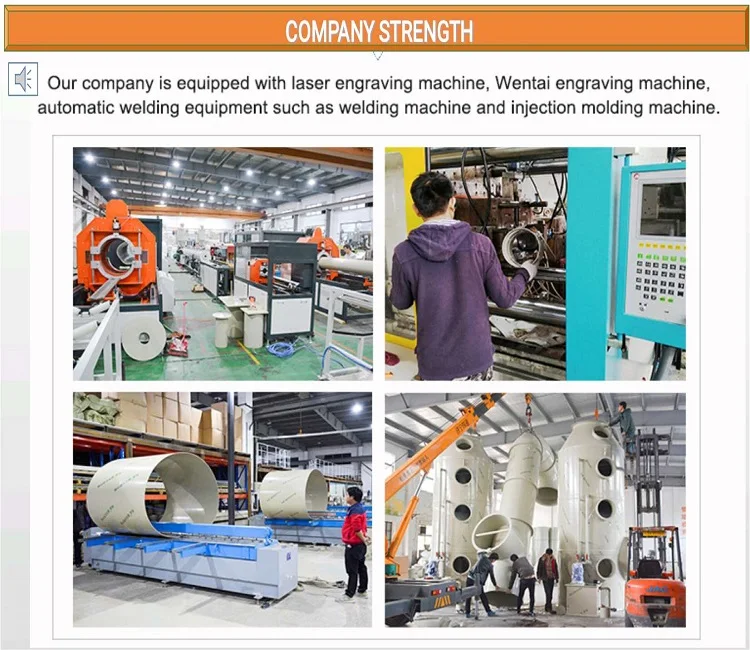

Company Strength
Company Service

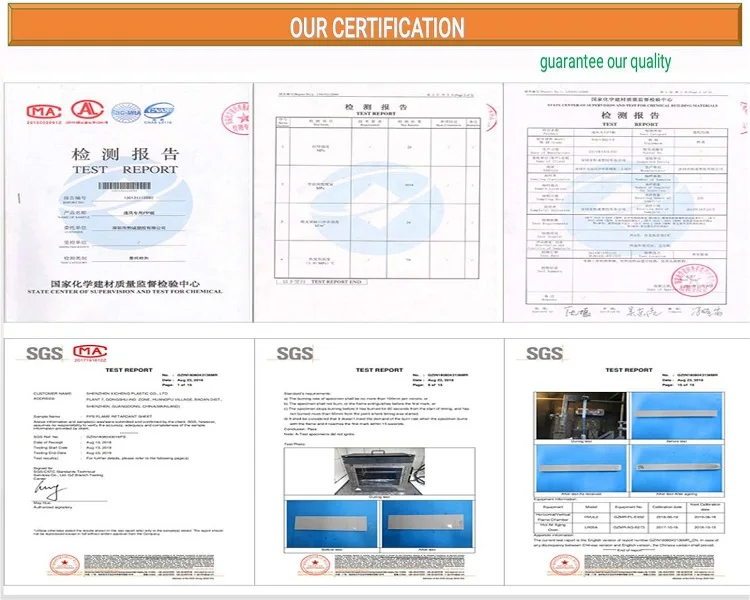

Certificate And Test Report
Why Choose us
Exhibitions
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(56.00%),Southeast Asia(10.00%),Western Europe(8.00%),Mid East(4.00%),North America(3.00%),South America(3.00%),Oceania(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Central America(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wet Scrubber/ Activated Carbon Air Filter,Air Damper Valve,PP Pipe,PP Tank
4. why should you buy from us not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and accessories. Our company has an excellent team with advanced service concept.
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD, HKD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2016,sell to Domestic Market(56.00%),Southeast Asia(10.00%),Western Europe(8.00%),Mid East(4.00%),North America(3.00%),South America(3.00%),Oceania(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Africa(2.00%),Eastern Asia(2.00%),Northern Europe(2.00%),Central America(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wet Scrubber/ Activated Carbon Air Filter,Air Damper Valve,PP Pipe,PP Tank
4. why should you buy from us not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and accessories. Our company has an excellent team with advanced service concept.
5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW；
Accepted Payment Currency: USD, HKD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
