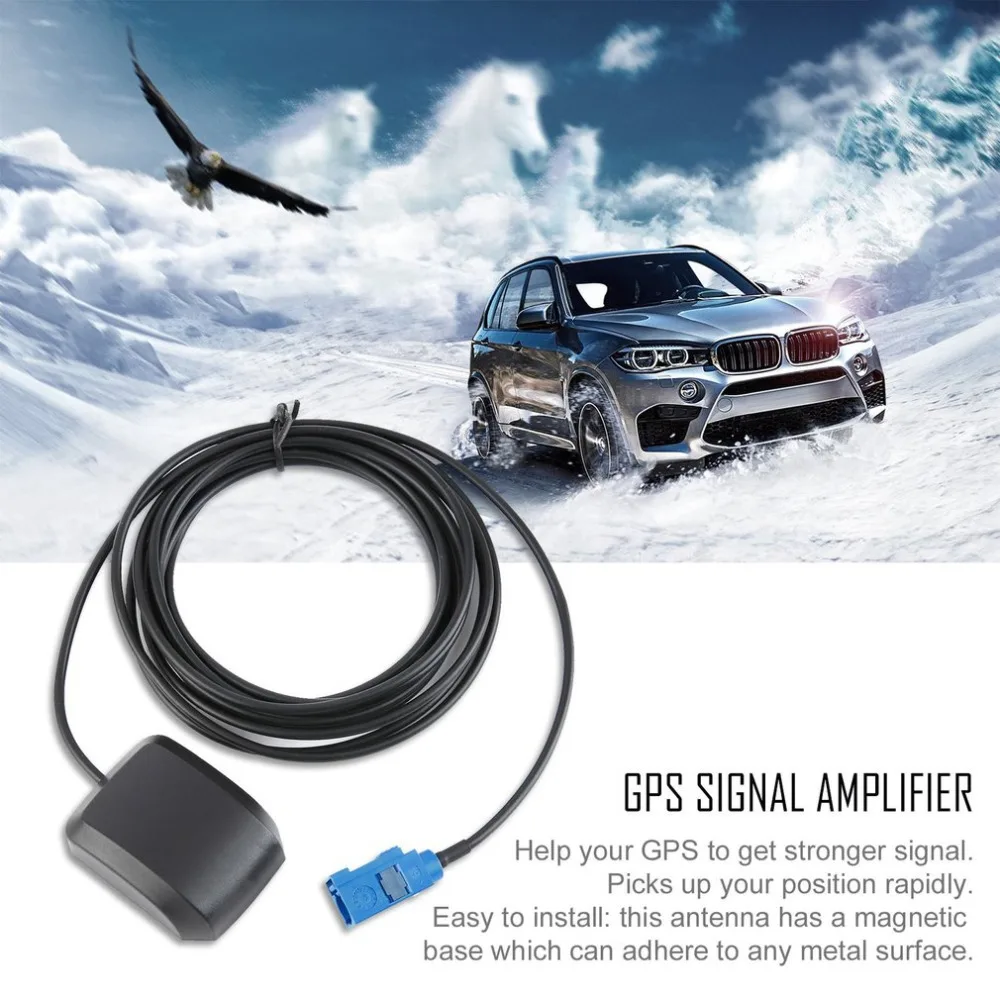

Factory gps bd glonass external antennas cable fakra sma tnc connector tracker car active rs232 nmea0183 marine gps antenna

Share on (1600582771451):


Price:$2.80 - $4.00

Quantity:


Product Overview

Description





Product Paramenters


ANTENNA SPECIFICATION
Frequency
1575.42mhz & 1561mhz
Polarization
RHCP
Peak Gain
5.0 dBic typ
Nominal Impedance
50Ω

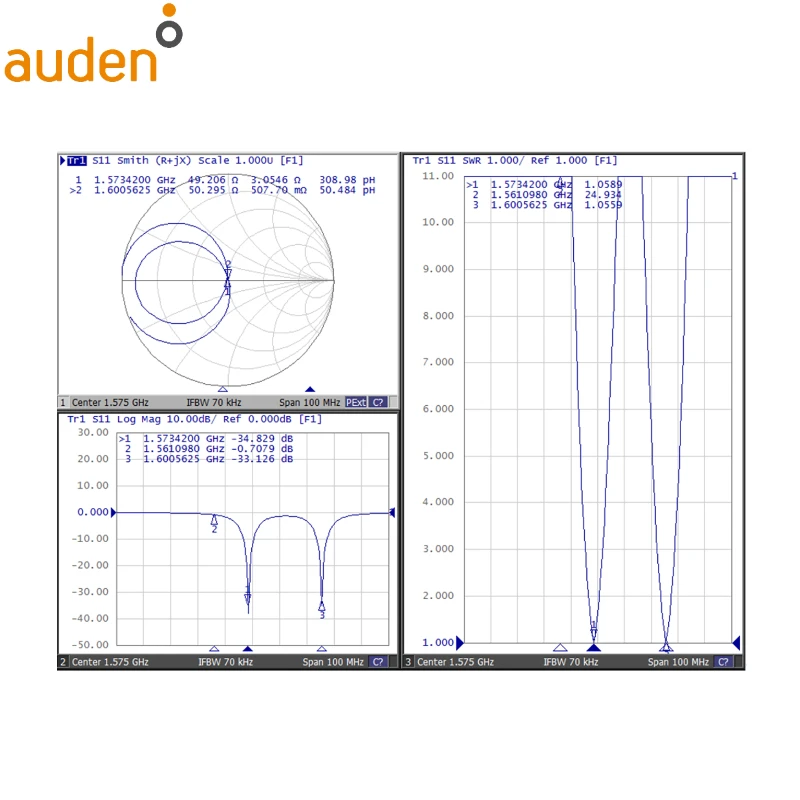

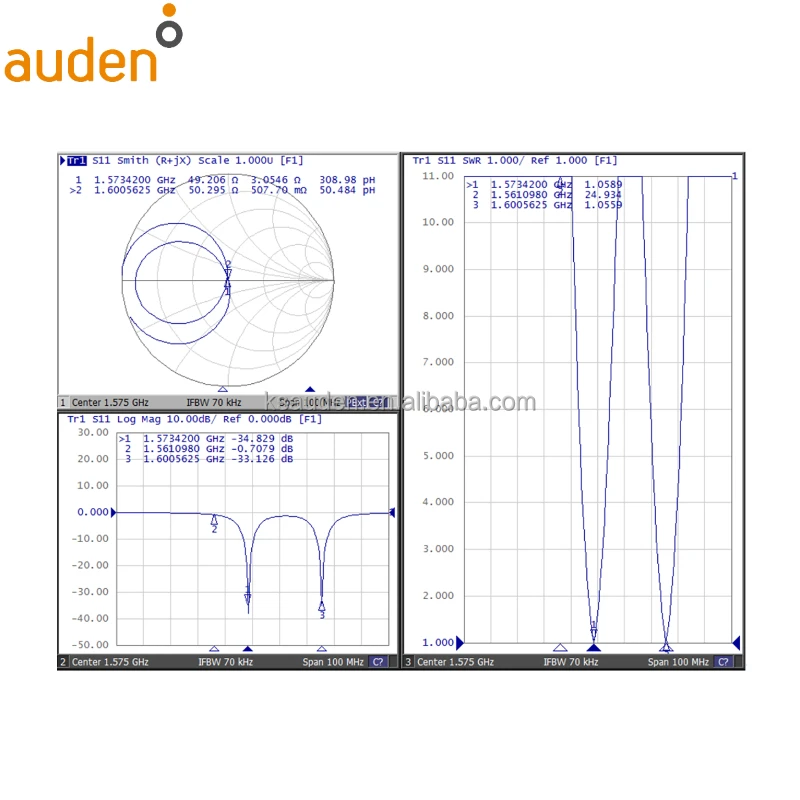

Output VSWR (Min. performance)
≤ 2:1
Mac input power
2W
LNA SPECIFICATION
Gain (Max)
28 dB
Noise Figure
≤1.5 dB
Supply Voltage
3.3 ± 0.3V or 5.0 ± 0.5V
Current
25 mA
Input P1dB
≥-27dBm
Output VSWR
≤ 2:1

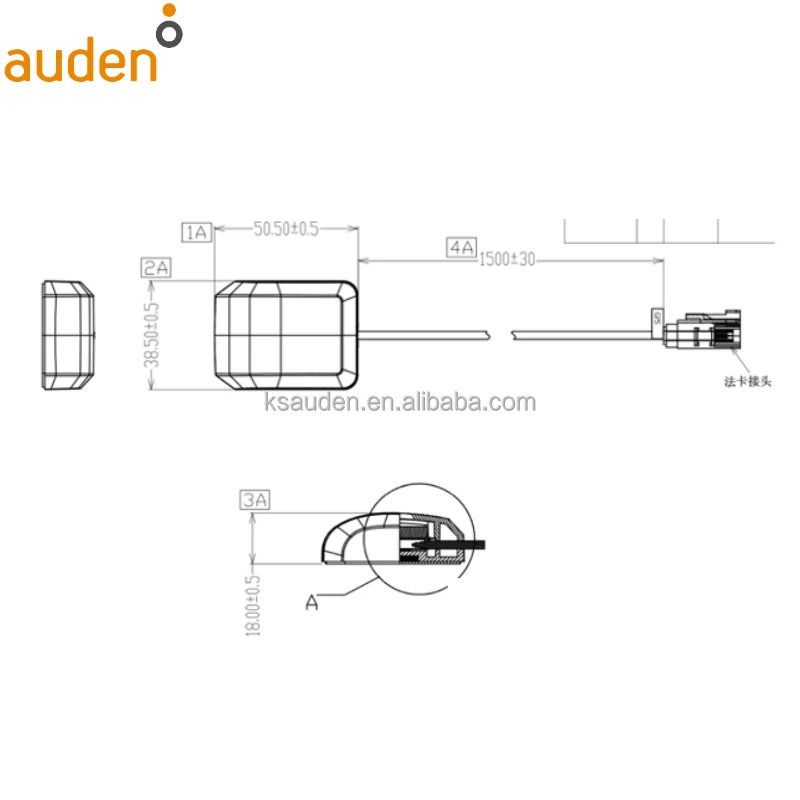

MECHANICAL SPECIFICATION
Planner Dimention
49±1*37±1*17.5±1mm
Radome Material
ABS
Connector
sma
Cable Length
3M (Customized)
Cable Type
RG174
Mounting Method
magnetic / Adhesive
Environmental SPECIFICATION
Temperature Range
-40°C to 85°C
Ingress Protection
IP67 Rated
Humidity
Operation 95% RH at 65oC
Environmentally Friendly
ROHS Compliant






Our Advantages






Manufacturing Technique




Exhibition




Certifications




Company Profile






Auden Communications & Multimedia Techno (Kunshan) Co.,Ltd,is a wholly-owned subsidiary of the Auden Techno Corp, was founded in 2001,
The mainland headquarter is located in Kunshan,comes along with 20000 sqm factory and more than 200 staffs. Auden is a high-tech enterprise,
Over the years, focused on R&D and Manufacturing of antennas. We have a strong R&D team, it including more than 80 engineers, 3 R&D centers in Mainland China with 10 OTA chambers and SAR test equipment,They are distributed in Kunshan,Shenzhen, Xi'an. Our Company has passed ISO9001:2015,ISO14001:2015,OHSAS 18001:2007, IATF16949:2016,etc.The antennas designed by Auden are widely used in mobile phones, tablets, Notebook, automotive electronics, IOT,industrial products, gateway, smart homes, etc.
No Perfect status, always seek for better. We sincerely welcome all the clients come to visit our factory and work together with us for a better bright future.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2001,sell to North America(9.00%),South America(8.00%),Northern Europe(7.00%),Southeast Asia(6.00%),Western Europe(6.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Antenna,RF Cable,Plastic molding,Metal stamping

4. why should you buy from us not from other suppliers?
Auden is a high-tech enterprise,was founded in 2001,has more than 20 years of antenna production and R & D experience.We have a strong R&D team, it including more than 80 engineers, 3 R&D centers in Mainland China with 10 OTA chambers and SAR.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: null;
Language Spoken:English,Chinese
