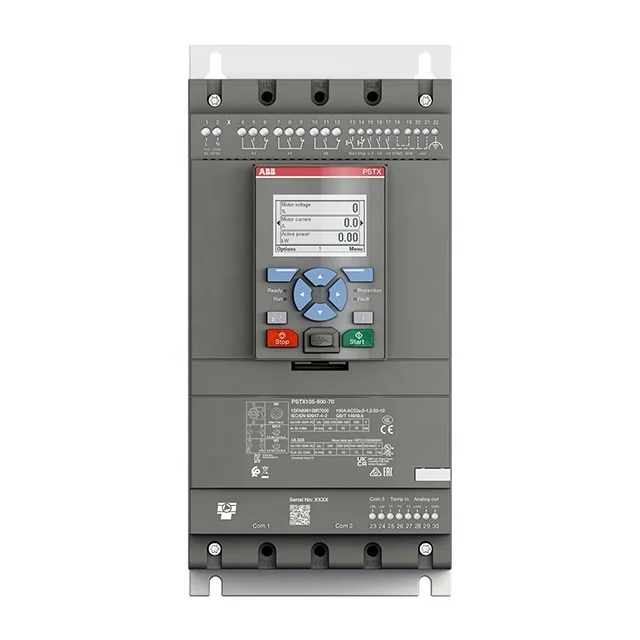

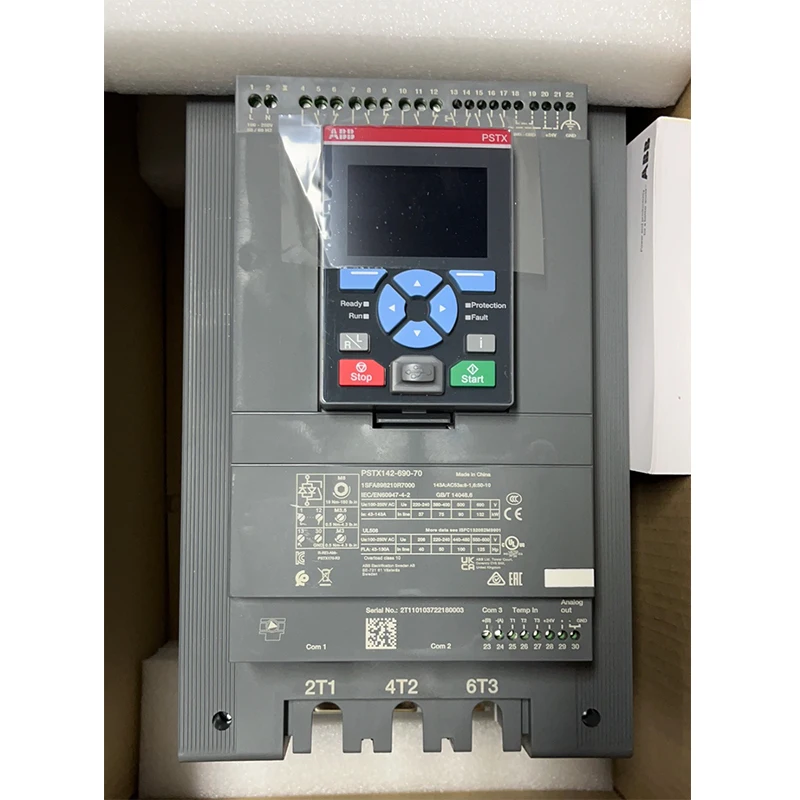

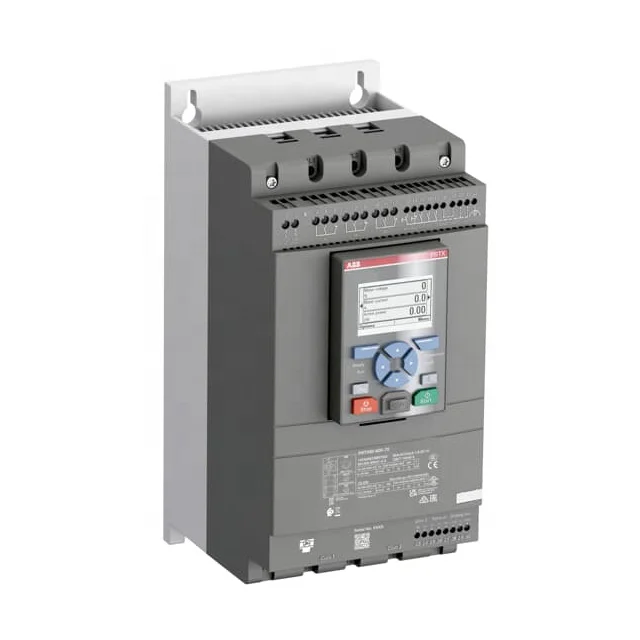

ABB Soft starter 208 690V 880KW Original official agent 1SFA898221R7000 PSTX1250 600 70 PSTX series Brand new ABB
- Category: >>>
- Supplier: Shiny-Control Technology Develop (beijing) Co. Ltd.
Share on (1600583186264):
Product Overview
Description
PSTX1250-690-70
General Information
- Global Commercial Alias:
- PSTX1250-690-70
- Extended Product Type:
- PSTX1250-690-70
- Product ID:
- 1SFA898221R7000
- ABB Type Designation:
- PSTX1250-690-70
- EAN:
- 7320500510483
- Catalog Description:
- PSTX1250-690-70 Softstarter
- Long Description:
- The softstarter PSTX1250-690-70 has a rated maximum operational current of 1250 A with an operating voltage span from 208...690 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has a built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning etc. To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.
Categories
- Products » Drives » Softstarters » Softstarters » PSTX Softstarters » PSTX1250
- Products » Low Voltage Products and Systems » Control Products » Softstarters » Softstarters » PSTX Softstarters » PSTX1250
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85044090
Popular Downloads
- Data Sheet, Technical Information:
- 1SFC132012C0201
- Instructions and Manuals:
- 1SFC132081M0201
Dimensions
- Product Net Width:
- 435 mm
- Product Net Height:
- 565 mm
- Product Net Depth / Length:
- 367 mm
- Product Net Weight:
- 63.3 kg
Technical
- Rated Operational Voltage:
- 208 ... 690 V AC
- Rated Control Supply Voltage (Us):
- 100 ... 250 V AC
- Rated Control Circuit Voltage (Uc):
- DC Operation 24 V
- Rated Frequency (f):
- 50/60 Hz
Main Circuit 50 / 60 Hz
- Rated Operational Power - In-Line Connection (Pe):
- (230 V) 400 kW
(400 V) 710 kW
(500 V) 880 kW
(690 V) 1200 kW
- Rated Operational Current - In-Line Connection (Ie):
- 1250 A
- Rated Operational Power - Inside Delta Connection:
- at 230 V 670 kW
at 400 V 1200 kW
at 500 V 1500 kW
at 690 V 2000 kW
- Rated Operational Current - Inside Delta Connection:
- 2160 A
- Service Factor Percentage:
- 100 %
- Overload Protection:
- Built-in electronic overload protection
- Integrated Electronic Overload:
- Yes
- Adjustable Rated Motor Current Ie:
- 30 ... 100 %
- Starting Capacity at Maximum Rated Current Ie:
- 4xIe for 10s
- Ramp Time:
- 1 ... 120 second [unit of time]
- Initial Voltage During Start:
- 10 ... 99 A
- Step Down Voltage Special Ramp:
- 100 ... 10 %
- Current Limit Function:
- 1.5 ... 7.5 xle
- Switch for Inside Delta Connection:
- Yes
- Run Signal Relay:
- Yes
- By-pass Signal Relay:
- Yes
- Fault Signal Relay:
- Yes
- Overload Signal Relay:
- Yes
- Analog Outputs:
- 0…10 V, 0…20 mA, 4…20 mA
- Signal indication ready to start/standby ON (LED):
- Green
- Signal indication running R (LED):
- Green
- Signal indication protection (LED):
- Yellow
- Signal indication fault (LED):
- Red
- Communication:
- Built in Modbus interface, Anybus, FieldBusPlug (with adapter).
- Degree of Protection:
- IP00
- Terminal Type:
- Main Circuit: Bars
- Connecting Capacity Control Circuit:
- Rigid 1 x 2.5 mm²
- Connecting Capacity Supply Circuit:
- Rigid 1 x 2.5 mm²
- Tightening Torque:
- Main Circuit 45 N·m
- Product Main Type:
- PSTX1250
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- Main Circuit 690 V
- Ampere Rating UL/CSA:
- 1250 A
- Tightening Torque UL/CSA:
- Main Circuit 398.3
Environmental
- Ambient Air Temperature:
- Operation -25 ... +60 °C
Storage -40 ... +70 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Certificates and Declarations (Document Number)
- CQC Certificate:
- CN: CQC2015010304830298 / SE: CQC2015010304830294
- Declaration of Conformity - CCC:
- CN: 2020980304001097 / SE: 2020980304001508
- Declaration of Conformity - CE:
- 2CMT005209
- Environmental Information:
- 2CMT005232
- Instructions and Manuals:
- 1SFC132081M0201
- RoHS Information:
- 2CMT005210
Container Information
- Package Level 1 Width:
- 600 mm
- Package Level 1 Depth / Length:
- 616 mm
- Package Level 1 Height:
- 800 mm
- Package Level 1 Gross Weight:
- 75.3 kg
- Package Level 1 EAN:
- 7320500510483
- Package Level 1 Units:
- box 1 piece
Classifications
- Object Classification Code:
- Q
- ETIM 4:
- EC002572 - Electronic motor control and protection device
- ETIM 5:
- EC002572 - Electronic motor control and protection device
- ETIM 6:
- EC002572 - Motor management device
- eClass:
- V11.0 : 27370907
- UNSPSC:
- 39121521
 |
