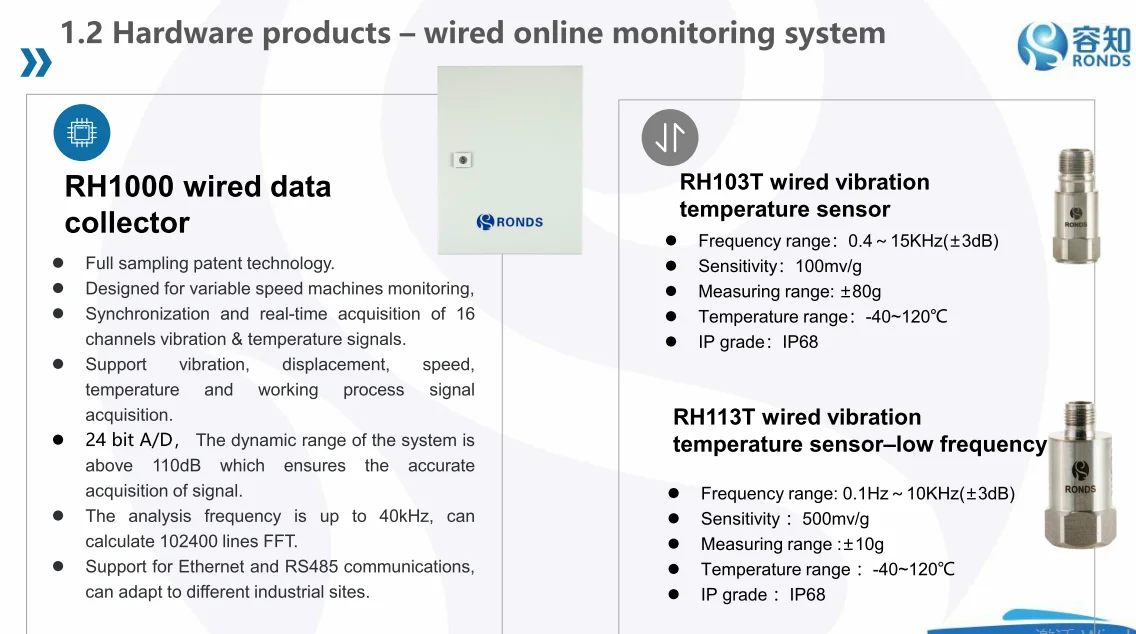

RH1000 online monitoring station consists 16 vibration and temperature optional channels, 2 process information channels, 1 speed
channel and 1 sway channel (optional and for wind turbine tower measurement). Taking advantage of the patent of RONDS, it can
realize synchronous data acquisition with all channels.






Features

* Maximal 16 channels synchronous data acquisition
* Machine Data Overview
* DAQ Definition Group Management & Characteristic Parameter Group Management
* Configuration Information Tree
* Remote Data Viewing

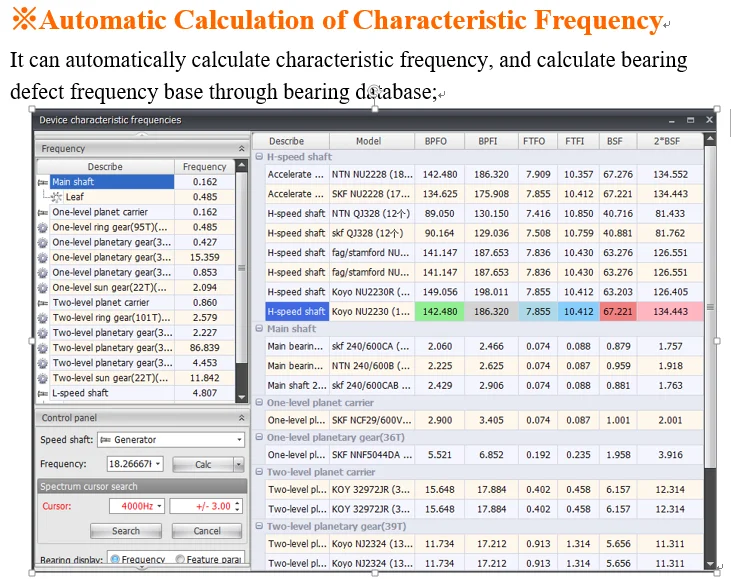

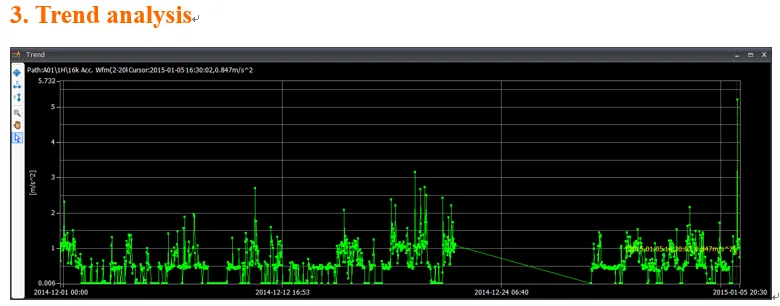

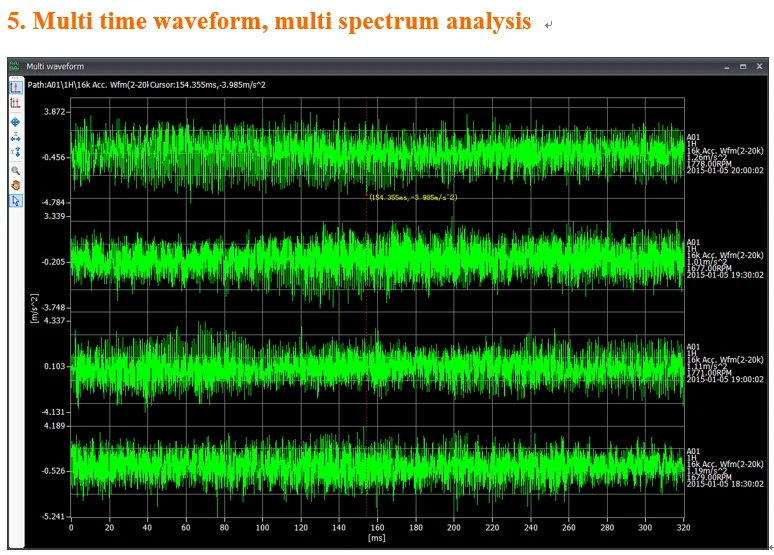

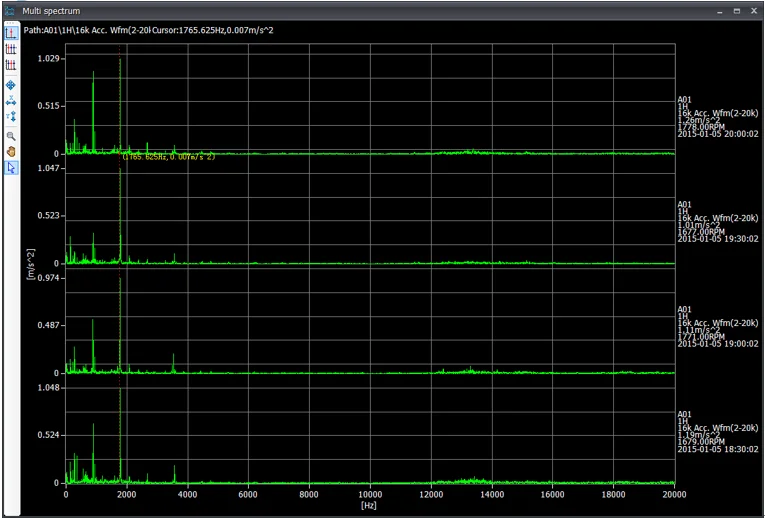

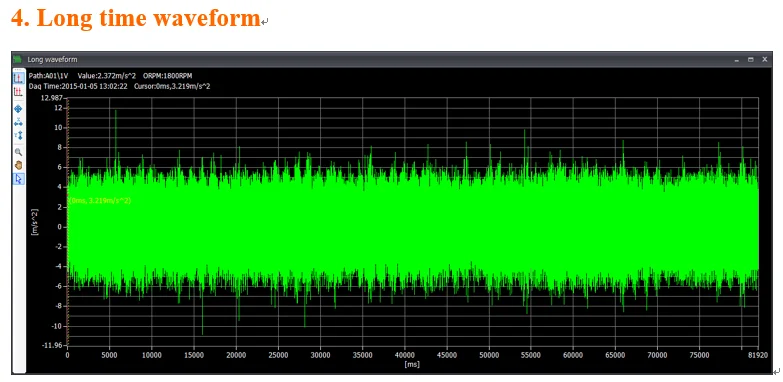

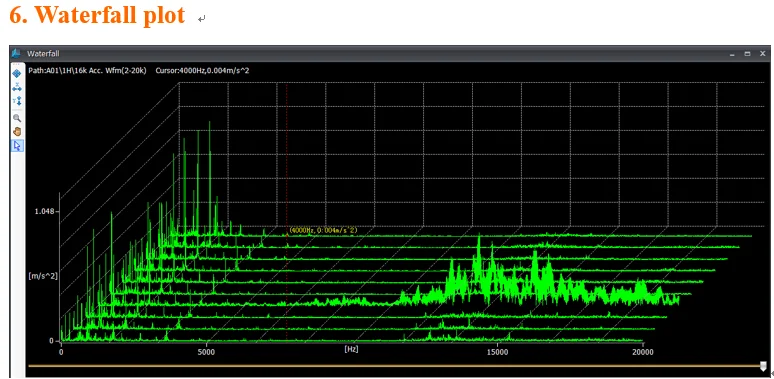

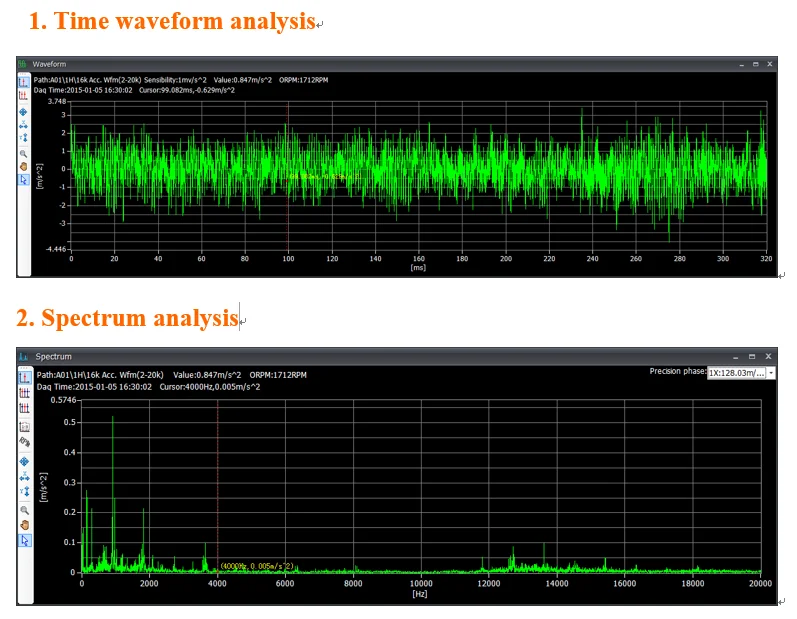

* Plenty of Data Analysis Tools
* Automatic Calculation of Characteristic Frequency
* Intelligent Alarm Function
* Create report Function


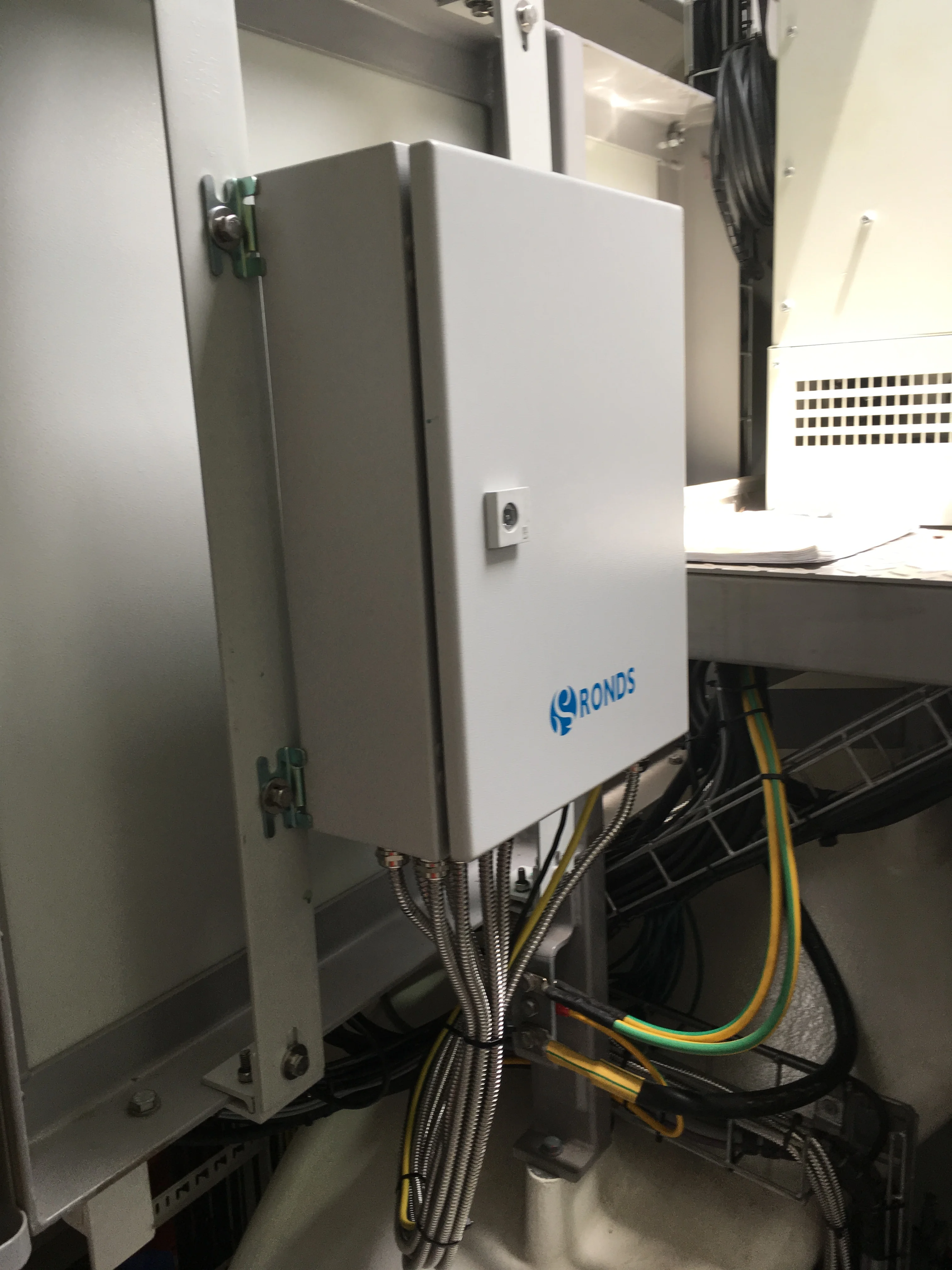

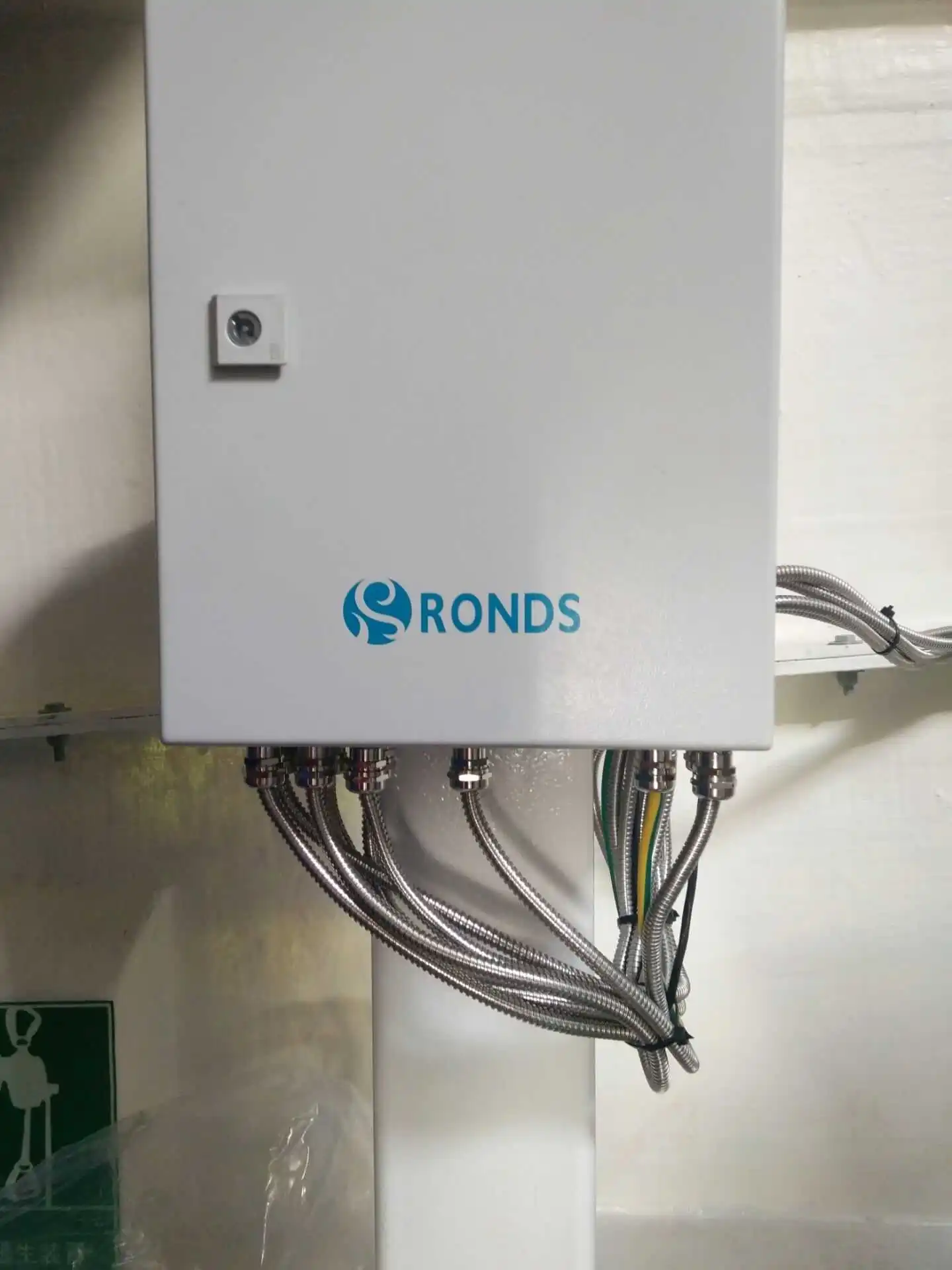

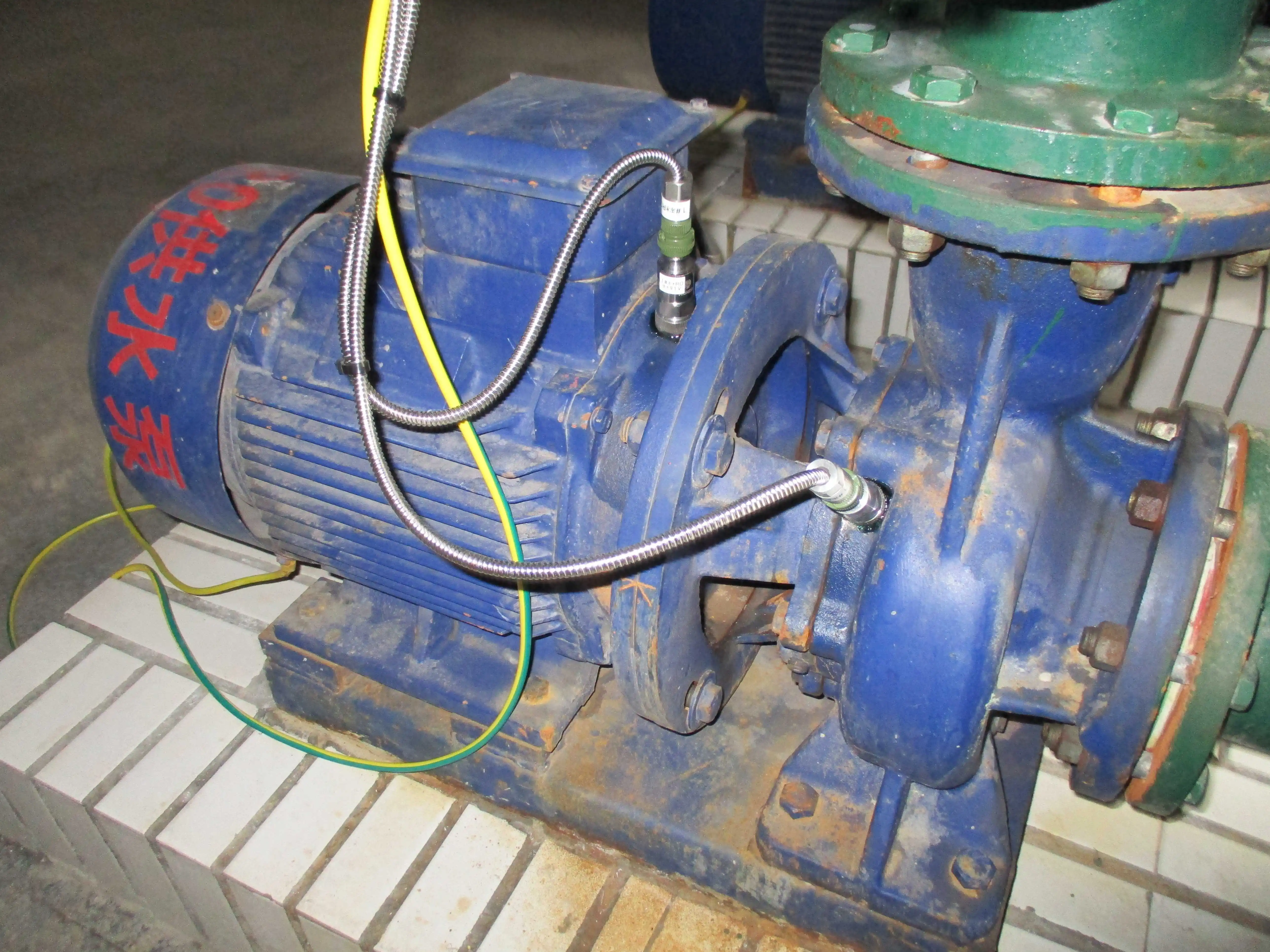

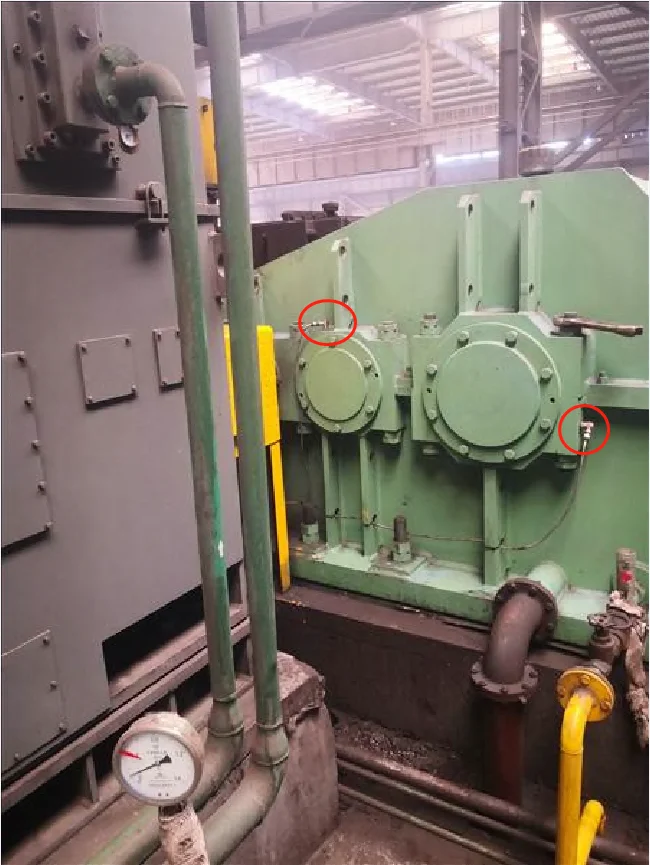

Field Application




Technical Specifications


Max. channels
16 channels vibration/temperature, 1 channel speed, 2 channels processing, 1 channel sway
vibration（temperature measurement is optional)
Channel No.
16 channels
Sensor integrated
IEPE acceleration sensor
High/ low frequency and dual acceleration acquisition synchronously
Input impedance
200kΩ
Input coupling
AC
Sensor drive current
4mA@24V
A/D converter
24 bits delta-sigma ADC
Sampling frequency
256Hz、512Hz、1280Hz、2560Hz、5120Hz、12.8KHz、25.6KHz、51.2KHz、102.4kHz
Dynamic range
100dB
Signal range
-10~10V
Precision
±1%，160Hz
Frequency response
0.2dB(10Hz ~ 5kHz)
0.6dB(2Hz ~ 20kHz)
Integrated temperature measurement
Support
Temperature measurement range
-40℃ ~ 120℃
Temperature measurement range
±2℃
Speed channel
Channel No.
1 channel
Sensor integrated
TTL isolation，12V non isolated，24V PLC isolation
Power output
12VDC
Trigger level
5V、12V、24V
Speed measurement range
（1）Against proximity switch、PLC，speed range：0 ~ 20000 RPM。
（2）Against high speed encoder、incremental encoder、shaft encoder，speed range：0 ~ 10000 RPM，impulse per circle：1-2048。
precision
±0.5%
Processing channel（optional）
Channel No.
2 channels
Input impedance
voltage：≥ 10kΩ
current：≤ 250Ω
Signal access
voltage：-10V ~ 10V
current：4mA ~ 20mA
precision
±0.5%
Signal processing
Acquire long time waveform length
2M samples/CH
Acquire measurement definition length
1K，2K，4K，8K，16K，32K，64K，128K，256K
Spectrum lines
400，800，1600，3200，6400，12800，25600,51200,102400
Basic parameter
CPU frequency
400MHz
Data storage
RAM：64M Bytes，Flash：standard 1G Bytes
Internet
TCP/IP，10/100baseT，optical fiber（optional）
communications
RS485，default 1 channel（2 channels max.）
Hardware support for oil and inclinometer incidence sensor access
Using condition
Dimension
400mm×300mm×110mm
Weight
<5kg
IP Grade
IP65
Working environment
-40~70℃，≤95%RH，non-condensing
Storage environment
-50~85℃，≤95%RH，non-condensing
Atmospheric pressure
70kPa ~110kPa
The highest altitude is 3000 meters
Power supply
Working voltage
Outdoor: 220VAC±20%，50~60Hz
Indoor: 12-24VDC
Need to replace transformer to support 85~135VAC
Consumption
<8W
Certification
Certificate
CE
Immunity to electromagnetic interference
Acquire long time waveform length
2M samples/CH
Acquire measurement definition length
1K，2K，4K，8K，16K，32K，64K，128K，256K
Spectrum lines
400，800，1600，3200，6400，12800，25600,51200,102400
Basic parameter
CPU frequency
400MHz
Data storage
RAM：64M Bytes，Flash：standard 1G Bytes
Internet
TCP/IP，10/100baseT，optical fiber（optional）
communications
RS485，default 1 channel（2 channels max.）
Using condition
Dimension
400mm×300mm×110mm
Weight
<5kg
IP Grade
IP65
Working environment
-40~70℃，≤95%RH，non-condensing
Storage environment
-50~85℃，≤95%RH，non-condensing
atmospheric pressure
70kPa ~110kPa
Power supply
Working voltage
Outdoor: 220VAC±20%，50~60Hz
Indoor: 12-24VDC
Consumption
<8W
Certification
Certificate
CE
Immunity to electromagnetic interference
ESD immunity
EN61000-4-2 4 level ±8kV（contact discharge） ±15kV（air discharge）
Radio frequency electromagnetic radiation immunity
EN61000-4-3 3 level 10V/m
EFT immunity
EN61000-4-4 4 level ±4kV
Surge immunity
EN61000-4-5 4 level ±4kV
radio frequency transmission immunity
EN61000-4-6 3 level 10V
Magnetic field immunity
EN61000-4-8 5 level 100A/m
Impulse magnetic field immunity
EN61000-4-9 5 level 1000A/m
Damped oscillation field immunity
EN61000-4-10 5 level 100A/m
Voltage drop, interrupt, and voltage fluctuation immunity
EN61000-4-11 60% rated voltage 10 cycles
