West Tune Q3204 Real time PCR System Four Channels and Double 16 well Blocks PCR Machine
- Category: >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (1600583661600):
Product Overview
Description
Products Description

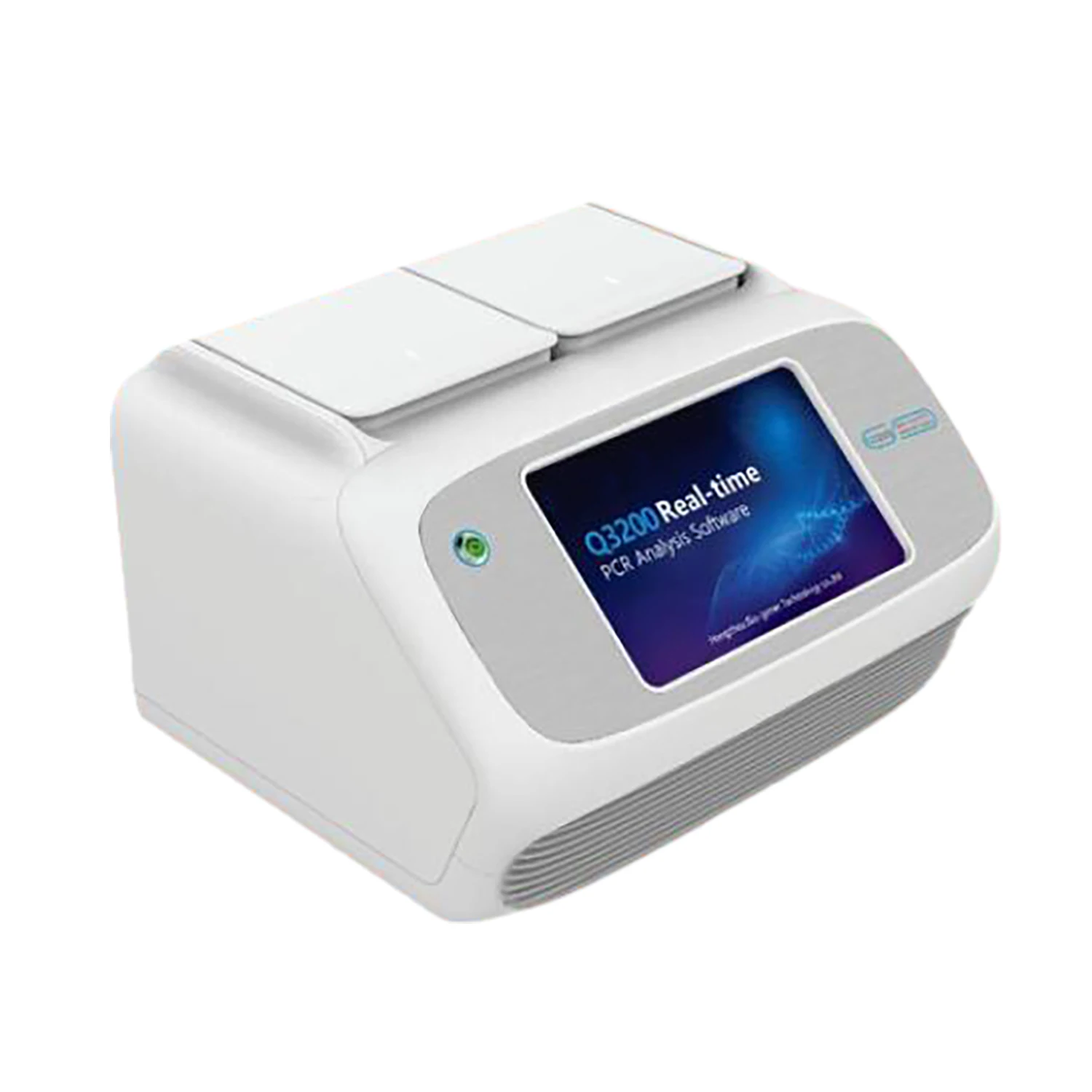

Q3204 Real-Time PCR System is a portable fluorescence quantitative PCR instrument developed by Bio-Gener company. This product adopts four channel and double 16-well blocks, which can run two different files simultaneously. The product combines a variety of advanced technologies: 7-inch high-definition TFT color touch screen, win10 operating system with analysis software, complete quantitative analysis and printing report without computer. It adopts American Marlow custom-made peltier, high sensitivity
photoelectric detector and side scan technology, to ensure superior performance and stable detection results.
Application: the product can be used for real-time detection in pasture, forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.
photoelectric detector and side scan technology, to ensure superior performance and stable detection results.
Application: the product can be used for real-time detection in pasture, forest farm, breeding farm and water source. It is used for rapid diagnosis of disaster and epidemic disease, inspection and quarantine in the field of food safety, and scientific research in biological laboratories.
Features
•Four channels and double 16-well blocks design, can run two different programs at the same time.
•Small size, light weight, easy to carry.
•Powerful software analysis function, which can be used for Quantitative Analysis, Melting CurveAnalysis, Genotyping, Relative quantification, and etc.
•7-inch high-definition TFT color touch screen, and embedded win10 operating system.
•20G flash memory can save 40,000 experimental data.
•Printer as an optional which can print the records directly, no need to connect the computer.
•Printer as an optional which can print the records directly, no need to connect the computer.
•Imported 32 bundled optical fibers are used to collect fluorescence from the side to increase the intensity of fluorescence signal and reduce light conduction damage.
•Black reaction block to avoid background noise.
•Black reaction block to avoid background noise.
•LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
•The electromagnetic lock cover technology prevents the hot lid from accidentally opening.
•Front shutdown button makes file data more secure.
•Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy
•Constant current control circuit makes power output smooth and extends Peltier life, also improves temperature control accuracy
•It has the protection functions of over-current, over temperature, power- off data self recovery, etc.
•Forward and backward air vent design, can be placed side by side, saving laboratory space.
Specifications
Model No. | Q3204 | ||
Sample Capacity | 32x0.2ml(2xl6well, dual block) | ||
Consumable | Clear0.2 ml PCRtube /8-tubestrips | ||
Reaction Volume | 10-100μl | ||
Temperature control technology | Marlow customized Peltier allow 1.000.000cycles | ||
Temperature Range | 0-100°C(Resolution:0.1°C) | ||
MAX. Ramp Rate | 5°C/s | ||
Temperature fluctuation | ±0.1 °C | ||
Uniformity | ±0.25°C | ||
Accuracy | ±0.25°C | ||
Hot Lid Temperature | 30-1150 C(Adjustable, default 105°C) | ||
Temperature Control | Block/Tube | ||
Excitation wavelength | 460-650nm | ||
Emission wavelength | 500-720nm | ||
Factory Calibrated Dyes | F1:FAM/SYBRGreenl F2: HEX/VIC/JOE/TET F3: ROX/ TEXAS - RED F4: Cy5/ Quasar-670 | ||
Excitation | Long life LED | ||
Detection | High sensitivity photoelectric detector | ||
Dynamic Range | 1-1010 Copies | ||
Sensitivity | 1 copy | ||
Feature function | Quantitative/qualitative analysis, Melting curve, Genotyping | ||
Date Export Formats | excel, csv,txt | ||
Printing | Report can be printed (optional USB thermal printer) | ||
Display | 7 inch color TFT touch screen,1280x800 pels | ||
Communication Parts | WIFI/USB2.0 | ||
Dimension | 300x267x198mm(LxWx H) | ||
Net Weight | 6.7KG | ||
Voltage | 220VAC 50Hz | ||
Power | DC15V 255W | ||
