2022 peephole camera wifi door viewer motion detection Tuya smart peep hole video doorbell
- Category: Door Viewers >>>
- Supplier: Shenzhen,Jcsmarts,Electronic,Co.,Limited
Share on:
Product Overview
Description
Product Description
WiFi feature:
The door viewer is bulit-in the Tuya wifi module, it support to remotely monitor by smart phone app. The app can monitor the door outside at any time, anywhere. When someone press the doorbell, it will video call to smart phone app. You can answer it and talk with them. Also you can take a picture or video with the visitors.
Advantages:
1, Doorbell, Video call to smart phone app;
2, Do Not Disturb: turn off the doorbell to keep silent;
3, 0.3MP camera, 120 degree view angle, 2pcs IR leds;
4, 4.3 inch HD screen;
5, Support 1-32G SD card;
6, Built-in 2400mAh lithium batteries;
7, Powered by USB cable;
8, Fit for 35-120mm door thickness;
9, Warranty: 1 year

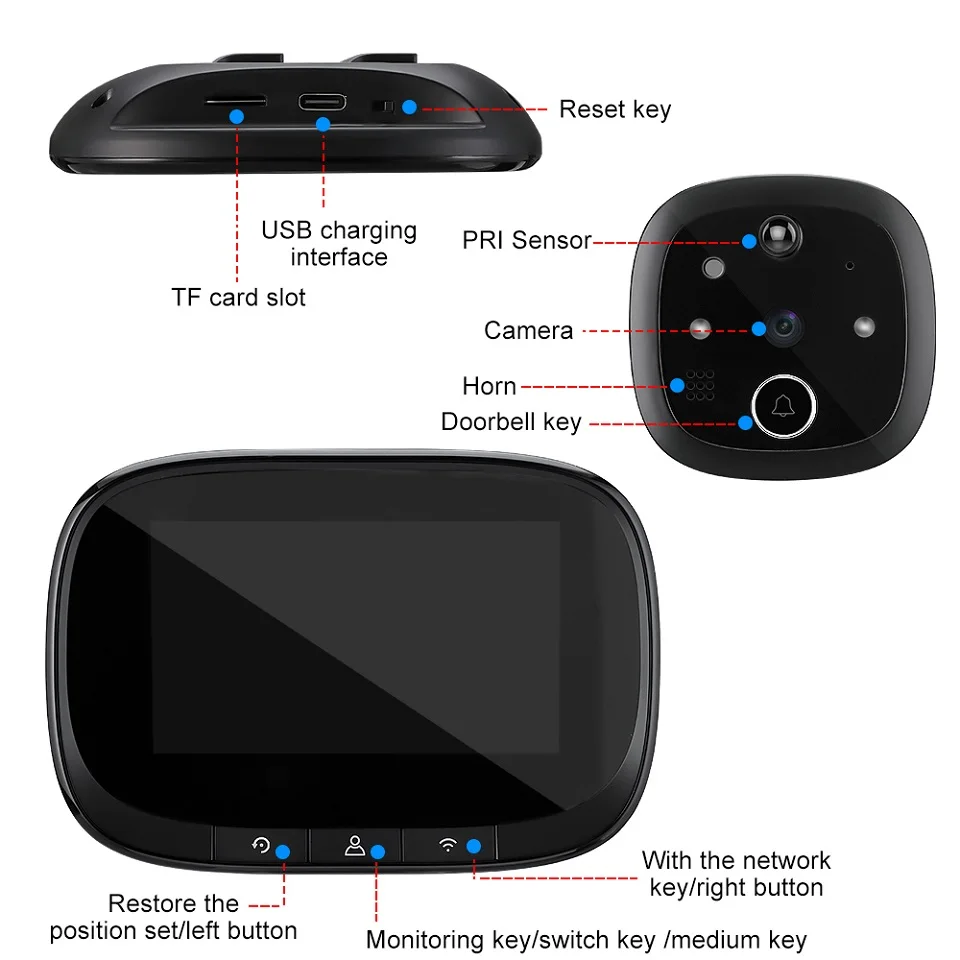

Lock Details
Size:
The door viewer is made of ABS plastic.
Product name | Motion detection door viewer | ||||||
Material | ABS | ||||||
Display screen | 4.3 inch TFT | ||||||
Image sensor | 0.3MP | ||||||
Viewing angle | 120 degree | ||||||
Record mode | auto take photo/ record video | ||||||
Doorbell ring | 12 option chords | ||||||
Memory card | Support TF card up to 32G | ||||||
IR led | 2pcs, 850nm | ||||||
Motion detection | Support, distance radius 1-3m | ||||||
Power supply | Built-in 2500mAh rechargeable battery | ||||||
Door thickness | 35-120mm | ||||||
Menu language | English | ||||||
Warranty | 1 year | ||||||
Installation:
1, choose the right screw according to the door thickness, then fix it on the camera;
2, Fix the metal bracelet on the door like picture 2;
3, connect the cable to screen, then hang the screen up to the metal bracelet. Make sure it won't shake.
4, turn on the device to check if it work properly;
2, Fix the metal bracelet on the door like picture 2;
3, connect the cable to screen, then hang the screen up to the metal bracelet. Make sure it won't shake.
4, turn on the device to check if it work properly;
Product Usage
1, Doorbell
Press the Doorbell button, the camera will auto snap a picture then video call to smart phone app. The doorbell volume can be adjusted.
Doorbell can be turn off. Then the door viewer will enter to "Do Not Disturb" mode.
When answer the call, you can hold the speaker to talk with visitors. Also you can take photo/ video for the visitors.
2, Motion Detection
Their is PIR motion sensor on the camera, when someone stand up to 10s, It will push s message to smart phone app and sound "You've received a PIR alarm message. Then you can open the app to monitor the door outside freely.
3, Wide View Angle
It support 120 degree view angle.
4, Clear Night Vision
With 2pcs IR leds, you can monitor outside clearly.
5, Built-in 3500mAh Rechargeable Lithium Battery
It is built-in 3500mAh rechargeable lithium battery, power by USB cable.
Certifications
