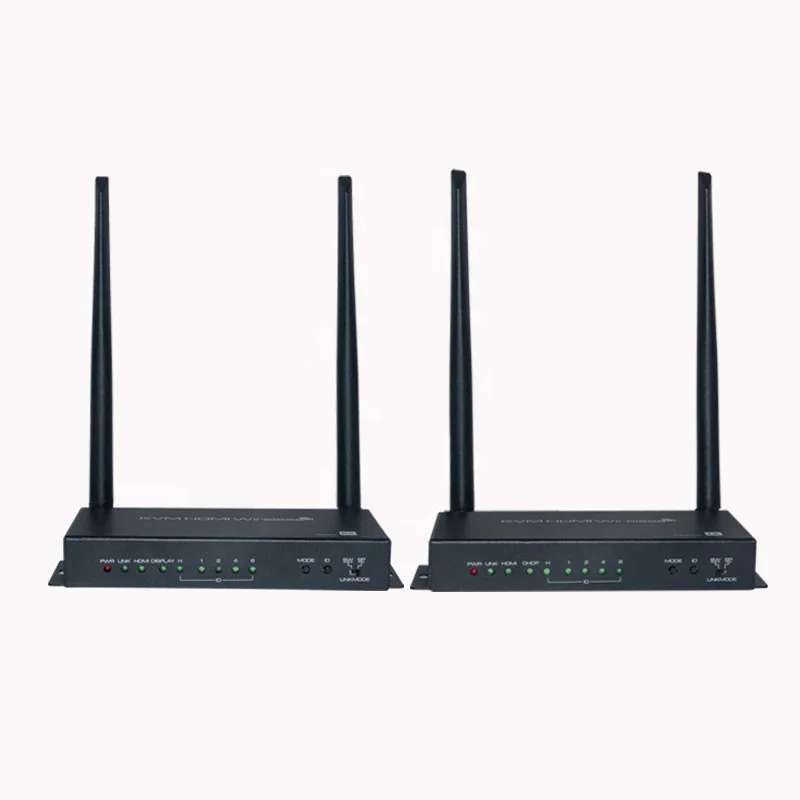

Low Delay 5G 4K@30Hz hdmi extender 100m Loopout Transmitter and Receiver USB IR RS232 KVM HDMI Wireless Extender

Model No.

MO-TECH-HDMI-EXKVM100M

Model name

KVM HDMI Wireless Extender

Ports

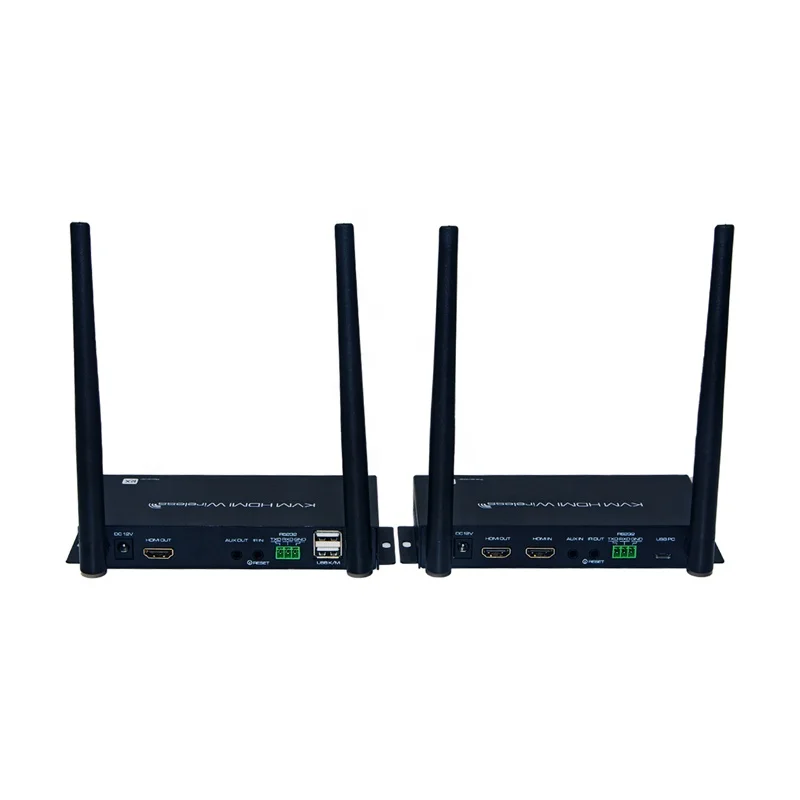

TX: HDMI IN x1, HDMI OUT x1, AUX IN x1, IR OUT x 1, RS232 x1, Micro USB x1, DC JACK x1

RX: HDMI OUT x1, AUX OUT x1, IR IN x 1, RS232 x1, USB2.0 x2, DC JACK x1

HDMI input resolution

480P/720P/1080P/2160P@60/50/30/25/24

HDMI loop output resolution

Same as input, with no latency

HDMI output resolution

480P/720P/1080P@60,Output 4K@30 when 4K input

HDMI Audio format

LPCM (48/44.1/32KHZ 16/20/24bit)

Input/output TMDS signal

0.5~1.5Vp-p(TTL)

Input/output DDC signal

5Vp-p(TTL)

Transmission latency

Less than 80ms

Wireless standard

802.11 ac WiFi MIMO technology

Wireless Band

4.900 GHz ~ 5.845 GHz (5GHz ISM Band)

Antenna type

External dual 5dBi gain antenna

Transmit Output Power

802.11ac /MCS9: 15 dBm ± 1.5 dB

@ EVM ≤ -32dB

Transmission distance

≤100m (in open space)

IR Carrier frequency

20~60KHz

Power adapter specification

Input: AC 100~240V / Output: DC 12V/1.5A

Max working current

TX≤ 400mA, RX≤ 300mA

Working temperature range

0~ +40℃

Working humidity range

10 to 85%RH(No Condensation)

Storage temperature

-10 to 60℃

Storage humidity

5 ~95%RH(No Condensation)

Size

TX/RX:170.5*74.5*27.5 (mm)

Weight

TX:325g,RX:330g

Accessories

Transmitter x1, Receiverx1, Manualx1, Power Adaptorx2, Micro USB-USB cable x1, IR Transmitter cable x1, IR Receiver cable x1
