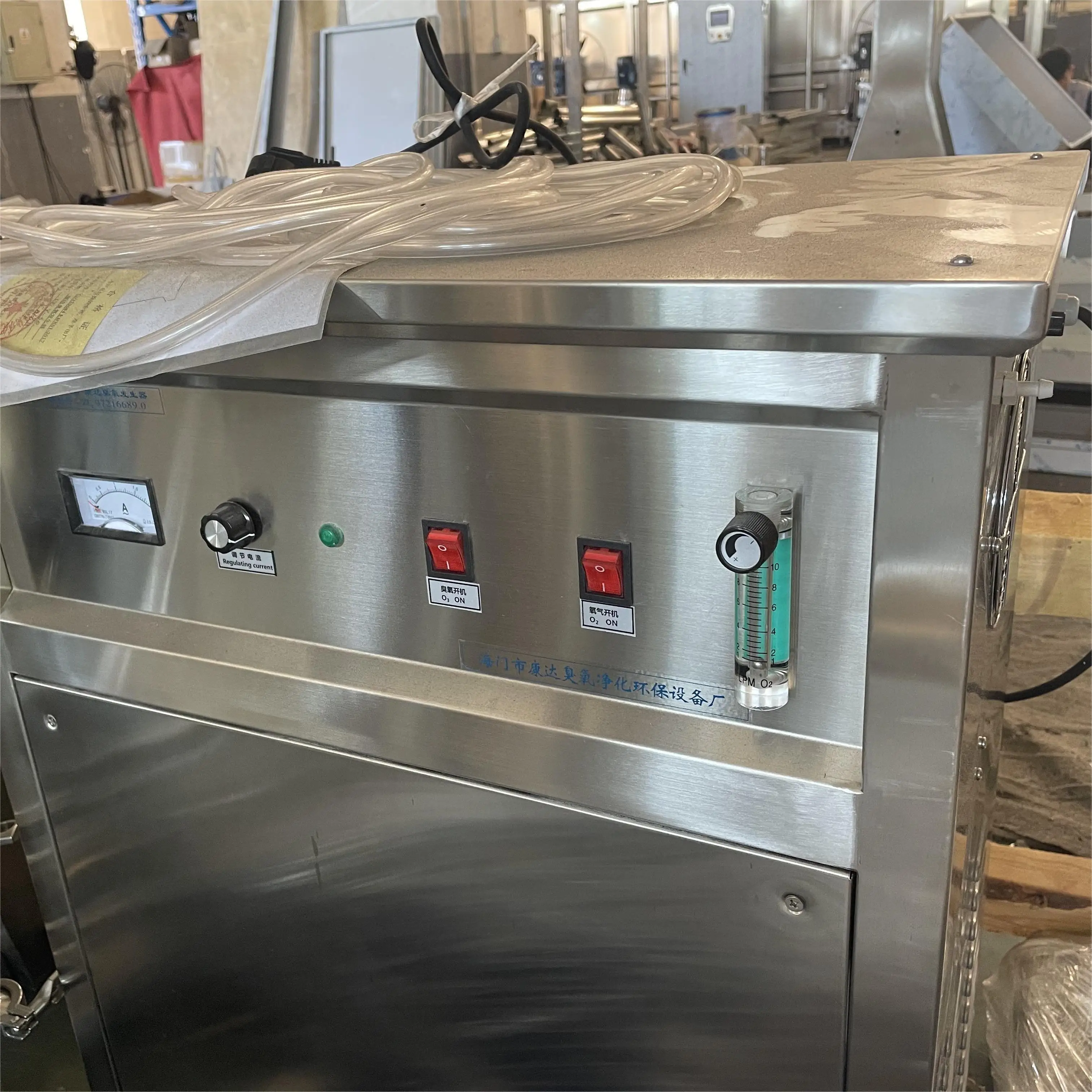

oz 7g 160w ozone generator for water treatment for industrial ozone machines
- Category: >>>
- Supplier: Jiangsu SinoPAK Machinery Co. Ltd.
Share on (1600584530291):
Product Overview
Description
Ozone Generator \\ Pure Water Producing System
Products Description
The powerful air-cooled ozone generator adopts a high temperature resistant HQG non-glass structure discharge unit. The structure is extremely stable, has a long service life, has high discharge efficiency, and is not easily damaged by returning water;
Composition:

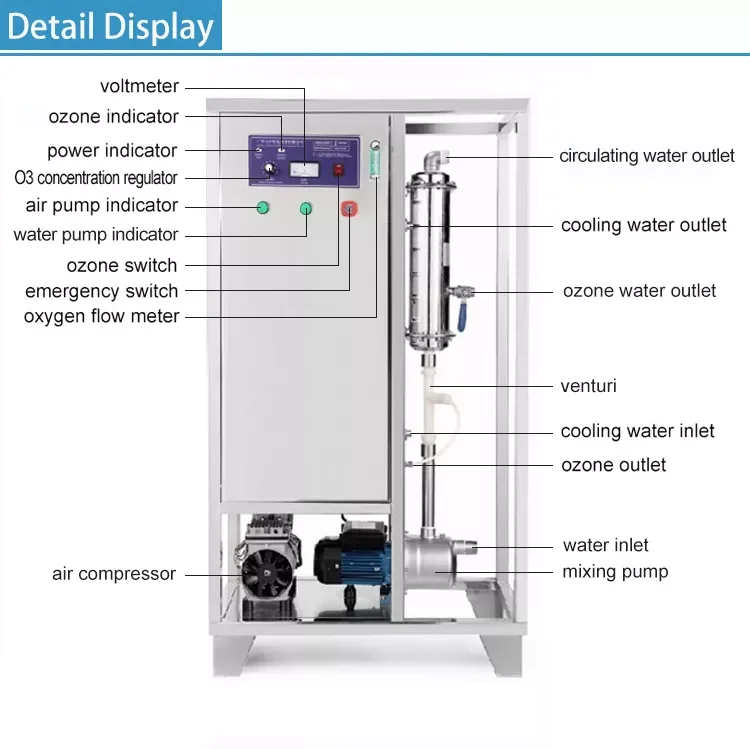

Generator unit, stainless steel casing, ammeter, Taiwan-made 150 fan, gas flow meter, ozone adjustment knob, etc.
Features：
No ozone alarm, no automatic shutdown, return to normal after ozone, this function indicates whether the discharge unit is working normally.
Backwater alarm. Stop using oxygen or dry air to dry and turn on the machine. Stop the alarm for 3 seconds after starting up.
Over-temperature alarm and shutdown protection, when the temperature is below 50 degrees, it will automatically resume work and stop the alarm.
model | Ozone production ( g/h) | Cooling method | Max output concentration (g/m3 ) | L*W*H(mm) | Weight (kg) | Power (W) | |||||
SOZ-YB-6G | 6 | air-cooling | Oxygen source : 30~ 50 Air source : 10~25 | 350*230*530 | 11 | 120 | |||||
SOZ-YB-10G | 10 | 350*230*600 | 12 | 150 | |||||||
SOZ-YB-16G | 16 | 12 | 180 | ||||||||
SOZ-YB -20G | 20 | 470*230*730 | 18 | 300 | |||||||
SOZ-YB-25G | 25 | 19 | 350 | ||||||||
SOZ-YB -32G | 32 | 19 | 380 | ||||||||
SOZ-YW-40G | 40 | Water cooling 0.2~0.5m3/h | Oxygen source : 50~100 Air source: 16~30 | 400*300*950 | 26 | 600 | |||||
SOZ-YW-50G | 50 | 660 | |||||||||
SOZ-YW-60G | 60 | Water cooling 0.3~1.0m3/h | 520*370*1150 | 50 | 1000 | ||||||
SOZ-YW-80G | 80 | 1200 | |||||||||
SOZ-YW-100G | 100 | 770*500*1200 | 85 | 1300 | |||||||
Power supply | 220V 50HZ | ||||||||||
