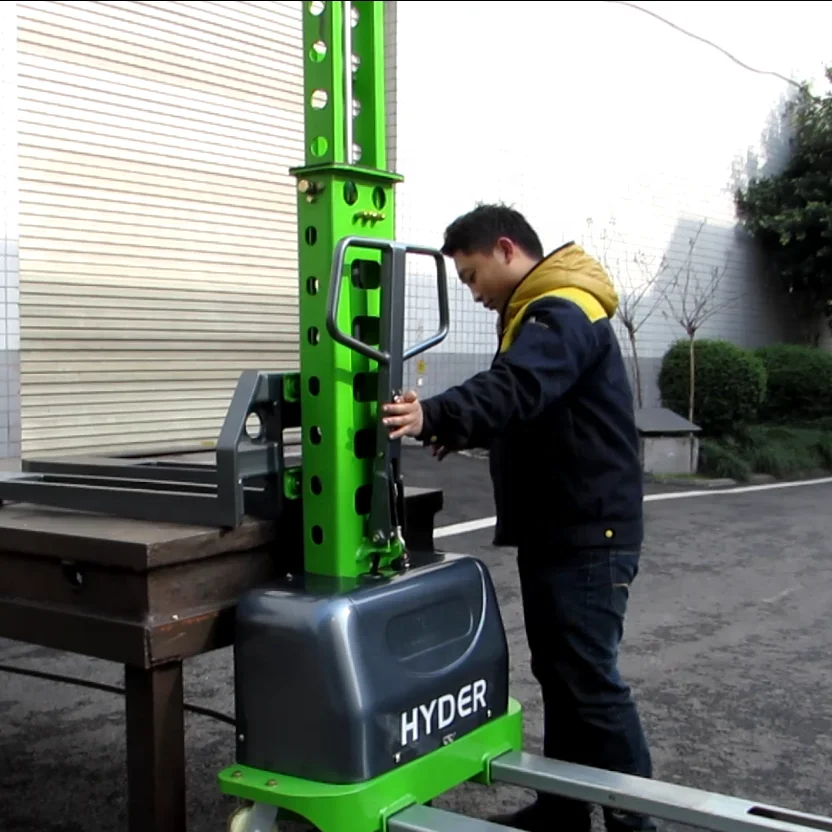

Electric powered self loading stacker for alternative solution to truck ramp and hydraulic pallet truck
- Category: >>>
- Supplier: Shanghai Hyder Industry Co. Ltd.
Share on (1600584530403):
Product Overview
Description
Products Description

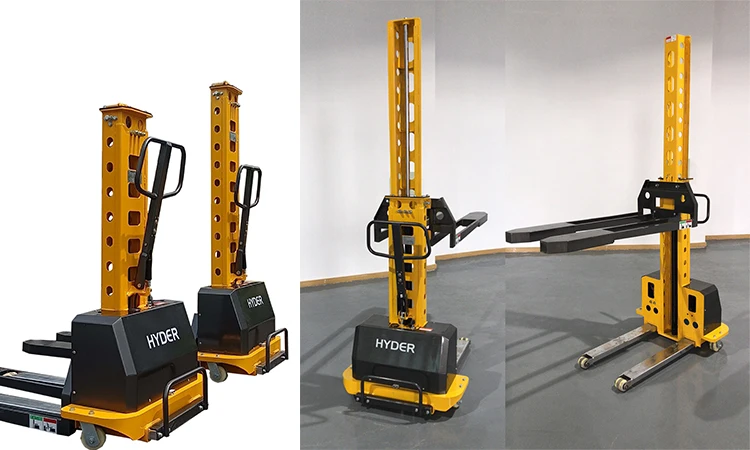

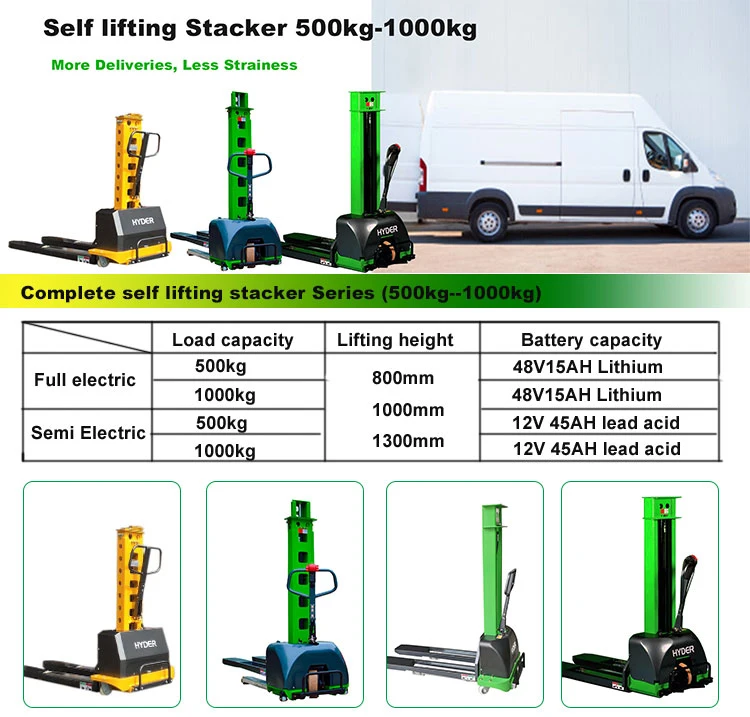

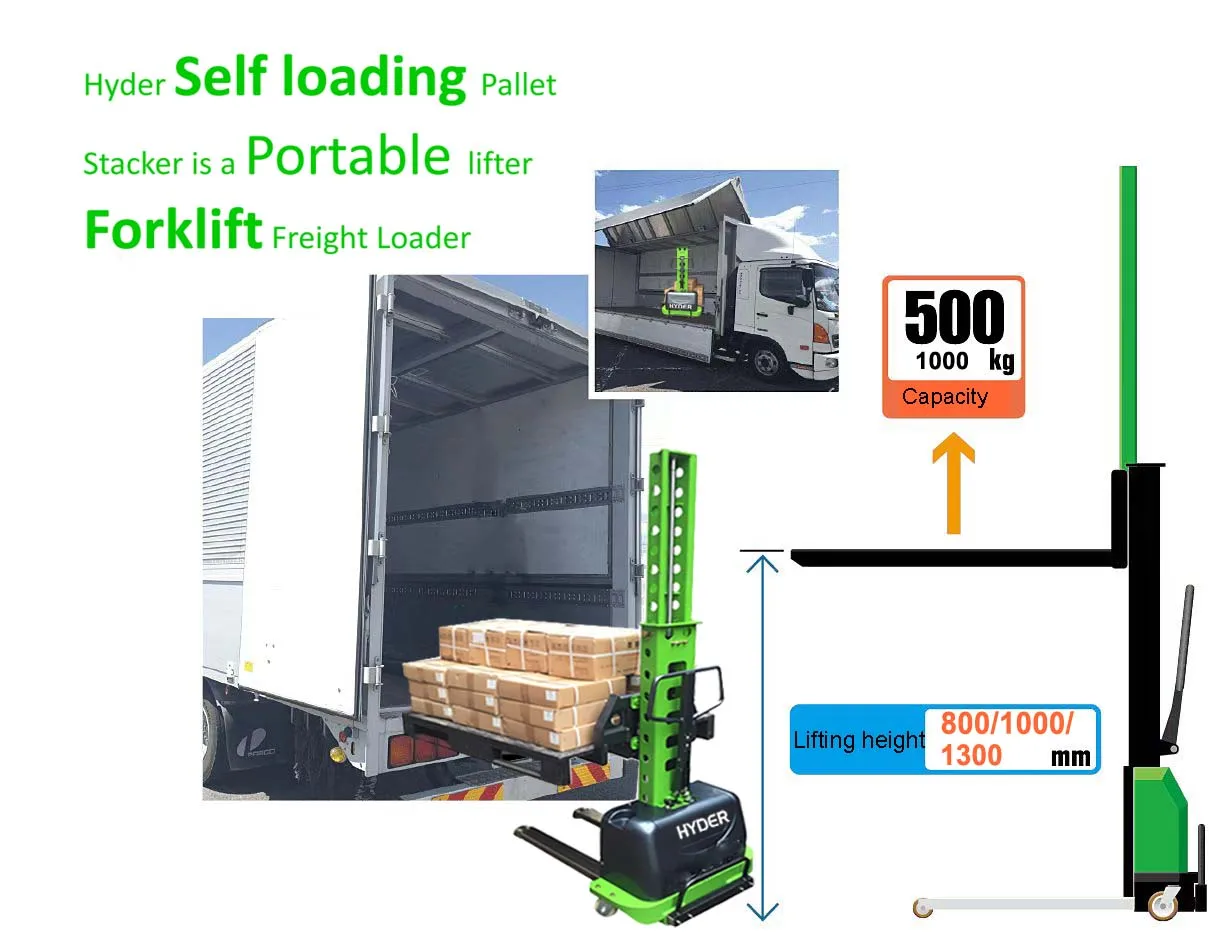

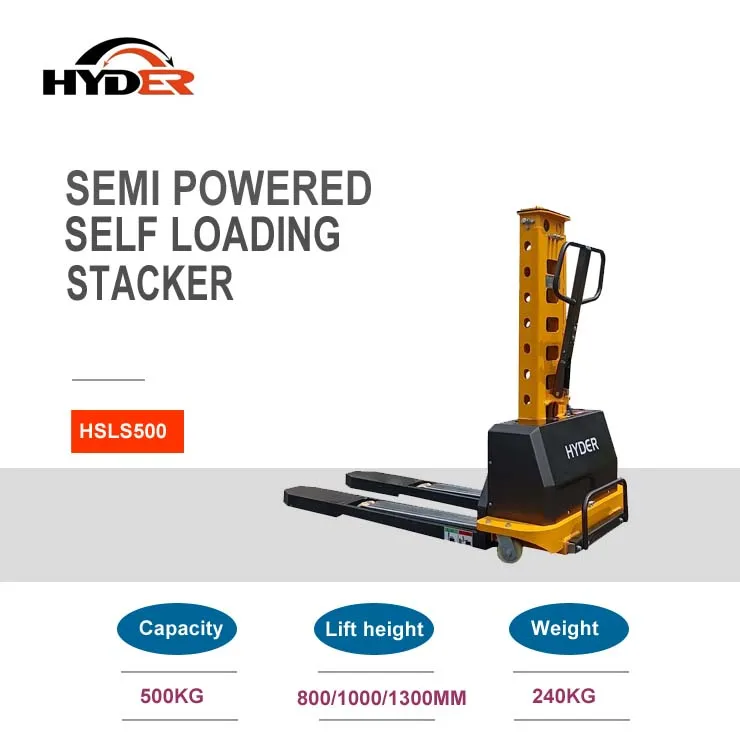

500kg 1000kg self lifting pallet stacker , fully electric and semi electric
This forklift HSLS500 is an ideal replacement for a lift that is permanently installed on a car. It is characterized by a low curb weight and can be used on any car in your fleet.
Self-lift function.

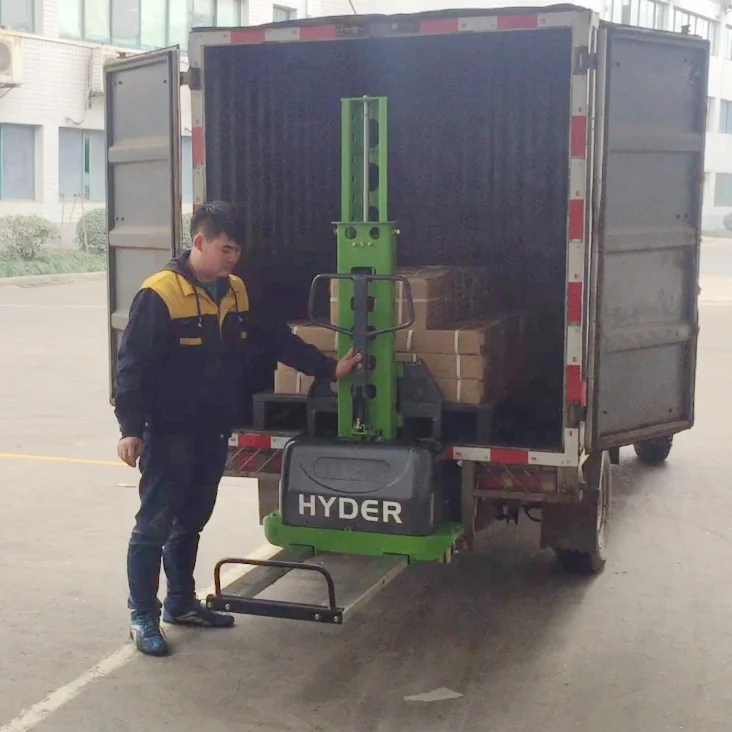

It can easily lift by itself to truck or other vehicles then deliver cargo to customers' door by it. This changes traditional
logistics means and saves logistics cost.
Light design in weight
Any adult alone can operate it easily. Realize door-to-door delivery without contact, reducing the risk of contracting COVID-19.
Double-control switch design
This will make operation more efficient and safety
Max capacity 500kg/1000kgs
It can satisfy 80% of logistics demands
Large capacity lead acid battery 12V/45Ah or 48V/15Ah lithium battery
It can make sure the operation time is longer during logistics distribution
logistics means and saves logistics cost.
Light design in weight
Any adult alone can operate it easily. Realize door-to-door delivery without contact, reducing the risk of contracting COVID-19.
Double-control switch design
This will make operation more efficient and safety
Max capacity 500kg/1000kgs
It can satisfy 80% of logistics demands
Large capacity lead acid battery 12V/45Ah or 48V/15Ah lithium battery
It can make sure the operation time is longer during logistics distribution
Specification
Model | - | HSLS500 | ||||
Operation | - | Driving Manually, Lifting Eletric | ||||
Capacity | mm | 500 | ||||
Capacity Center | mm | 400 | ||||
Weight | Kg | 230 | 240 | 255 | ||
Lifting Height | mm | 800 | 1000 | 1300 | ||
Overall height when fork lowest | mm | 700 | 900 | 1200 | ||
Overall height when fork highest | mm | 1150 | 1350 | 1650 | ||
Total Length | mm | 1650 | ||||
Body leg length | 1005 | |||||
wheelbase | mm | 815 | ||||
Total Width | mm | 786 | ||||
Fork Length | mm | 1150*155 | ||||
Fork Width(Outside) | mm | 535 | ||||
Min Turning radius | WA mm | 1100 | ||||
Material of Wheels | - | Nylon | ||||
Bearing wheel size | mm | Φ70x60 | ||||
Driving wheel size | mm | Φ100x45 | ||||
Brake Type | - | Mechanical | ||||
Motor Power Lifting | Kw | DC 0.8 | ||||
Battery Voltage/Nominal Capacity | V/Ah | lead acid 12V/45Ah | ||||
Charger Battery | - | YES | ||||
Recommend Products

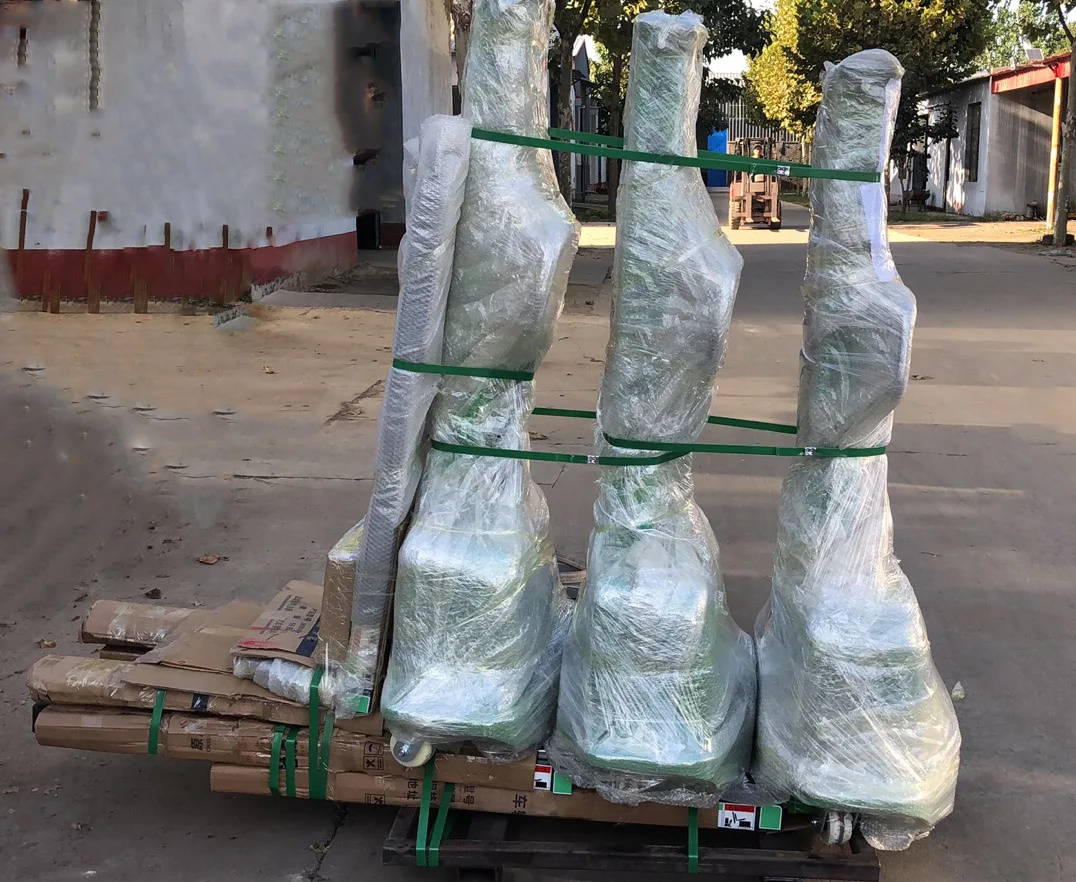

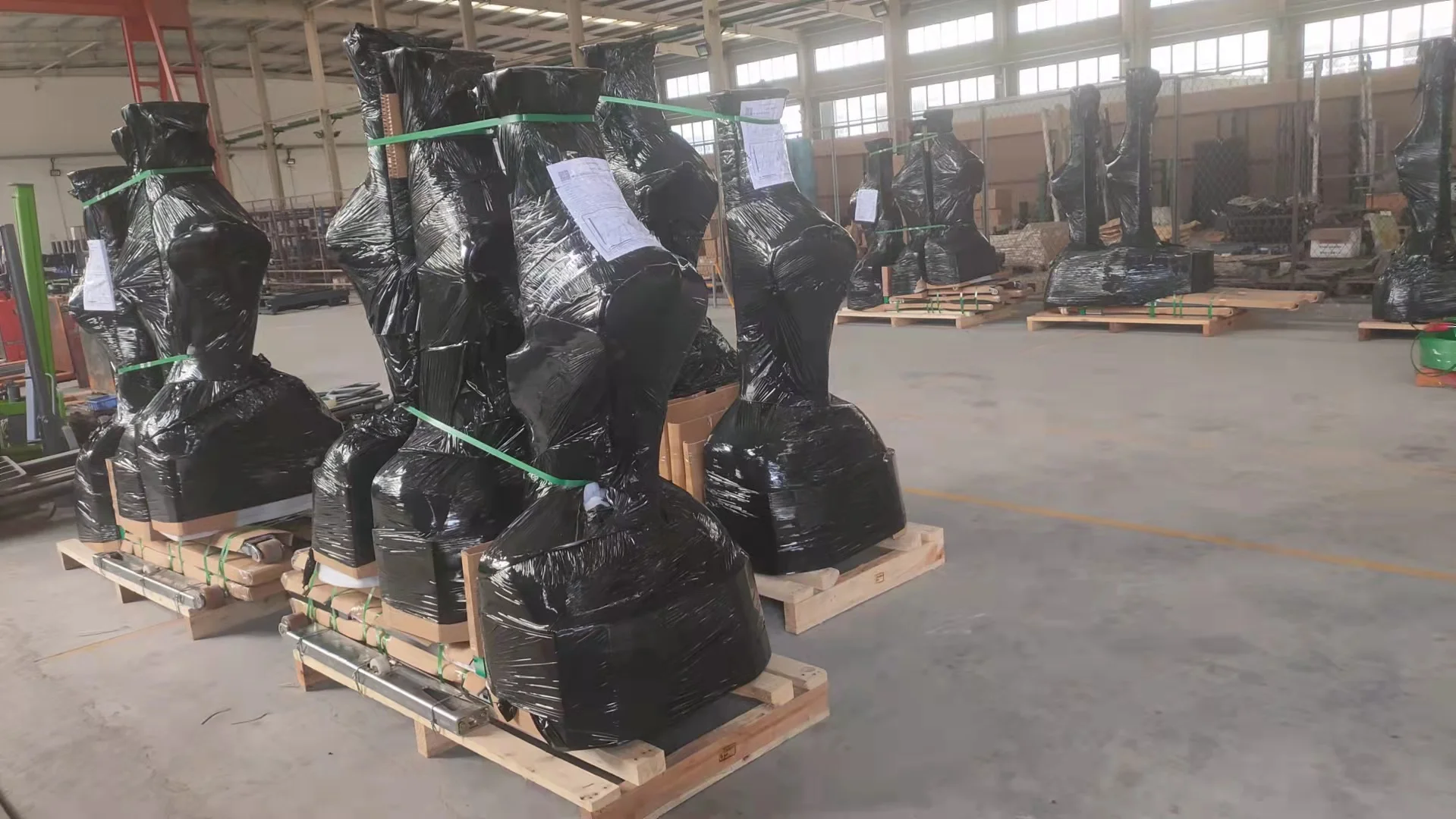

Delivery
FAQ
1. Q: "Why this forklift can only handle 500kg? I need to handle heavier loads."
A: Firstly, this forklift is designed for portable use with a van and lorry, so it should be lighter and smaller in size. That is
what we made as an improvement on the mast.
Secondly, it is a semi-electric-powered stacker, which also needs manual power to pull and push. A heavier load will request a
bigger battery which will go against our portable design.
However , Hyder has been devoted to adjust and meet the requirements. Now we have both 500kg and 1000kg ready for your options.
what we made as an improvement on the mast.
Secondly, it is a semi-electric-powered stacker, which also needs manual power to pull and push. A heavier load will request a
bigger battery which will go against our portable design.
However , Hyder has been devoted to adjust and meet the requirements. Now we have both 500kg and 1000kg ready for your options.
2. Q: " I want to lift higher, can you do that?"
A: Since it is designed to go into a van or lorry, the mast can not be too high. It focuses on climbing the truck not stacking in
the truck.
Hyder team is developing a higher mast with double mast that can lift up to 1.6m for big trucks like container trucks now.
the truck.
Hyder team is developing a higher mast with double mast that can lift up to 1.6m for big trucks like container trucks now.
3. Q: How many working hours it can work? I need it work for 5-6hours, is that possible?
A: Normally, HSLS500 can work for 50times of loading and unloading process; while the HSLS1000 can work for 30times.
The self-propelled model can work for 50times and 60m travel on the ground with lithium battery 48v15ah powered.
We can change to a bigger battery to prolong the working time. Considering the longer working time will request a larger battery,
which means heavier the truck itself. That goes against portable design again.
Everyone would find the right places and shining. The more we need, the more complex and more expensive would that machine be!
We have a lot of ideas, but also we need to consider the practical use and technics. What we can do is to find the balance between
idea and reality!
The self-propelled model can work for 50times and 60m travel on the ground with lithium battery 48v15ah powered.
We can change to a bigger battery to prolong the working time. Considering the longer working time will request a larger battery,
which means heavier the truck itself. That goes against portable design again.
Everyone would find the right places and shining. The more we need, the more complex and more expensive would that machine be!
We have a lot of ideas, but also we need to consider the practical use and technics. What we can do is to find the balance between
idea and reality!

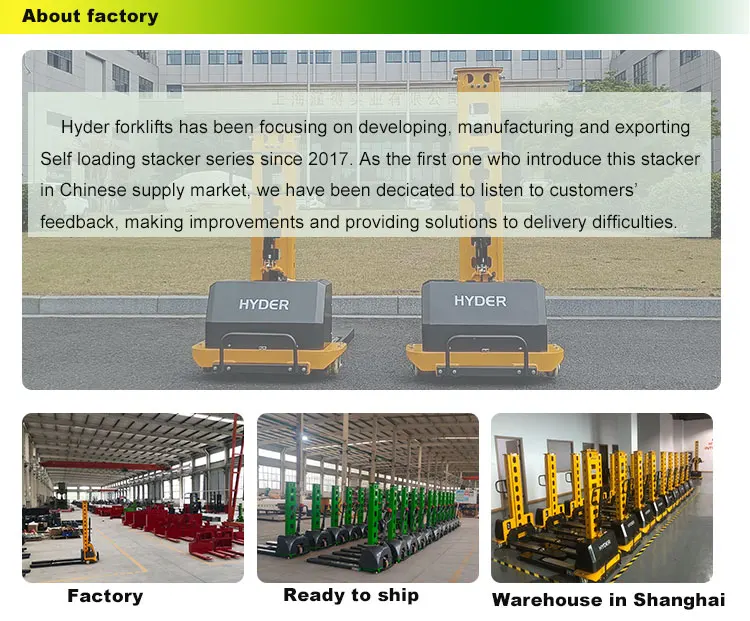

Company Profile
